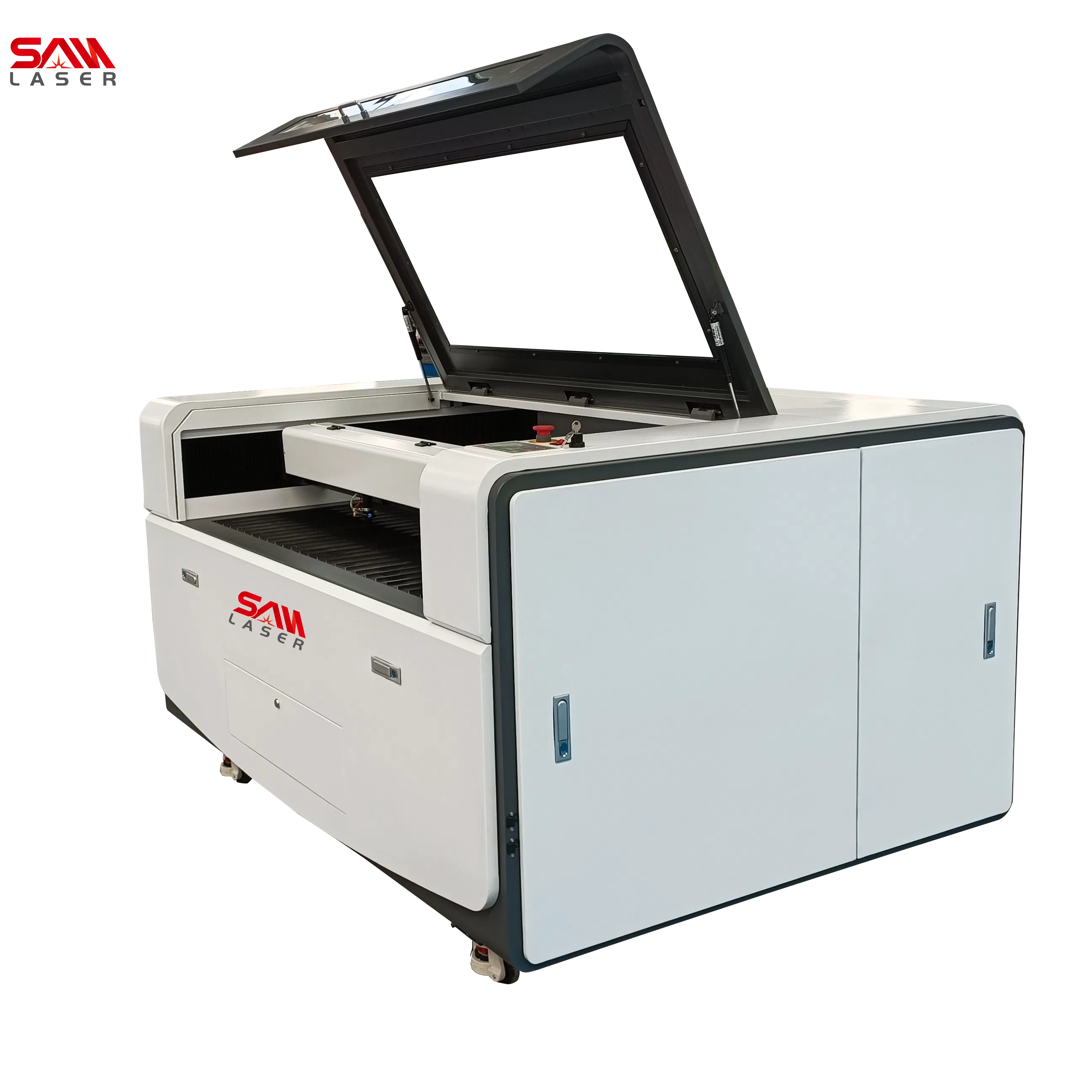

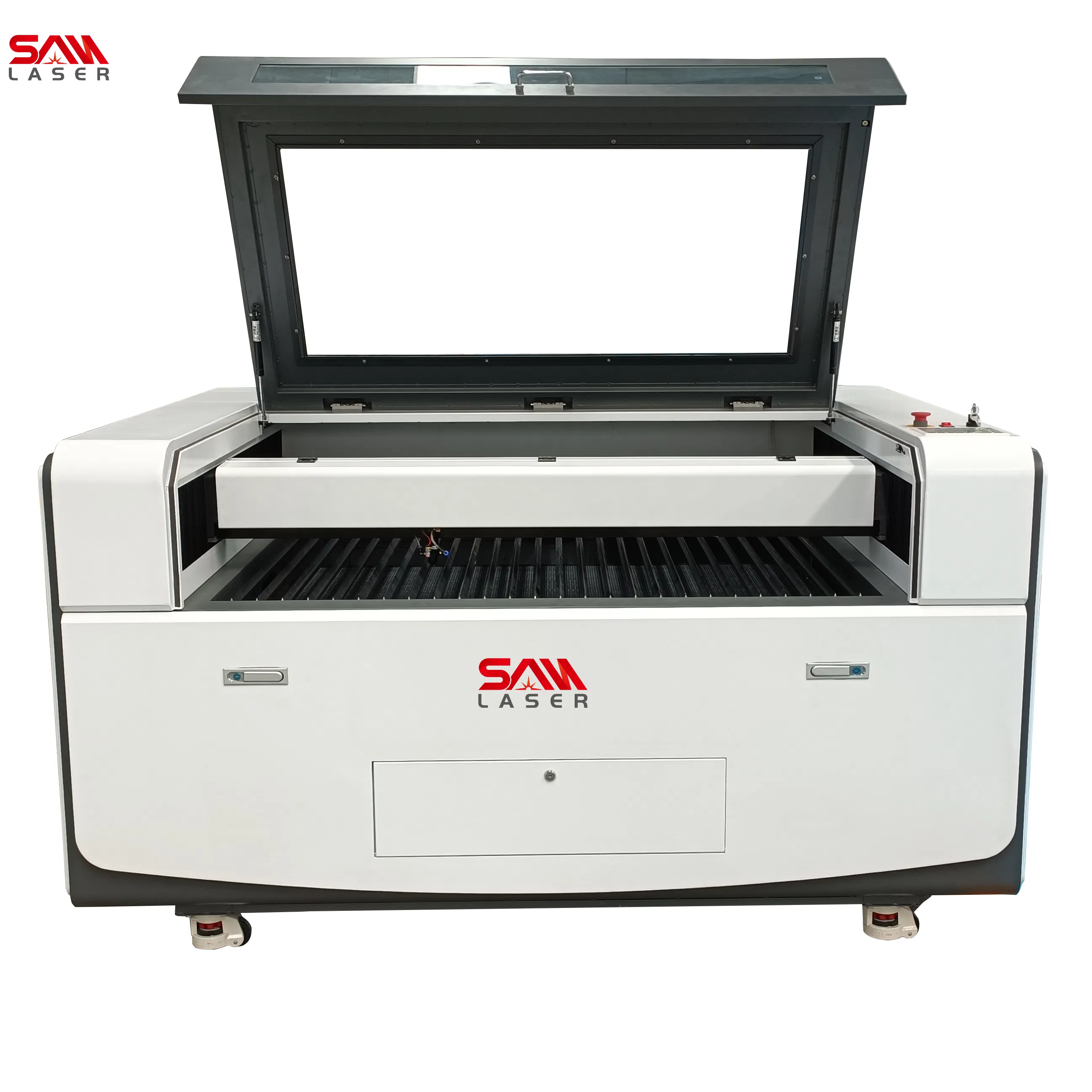

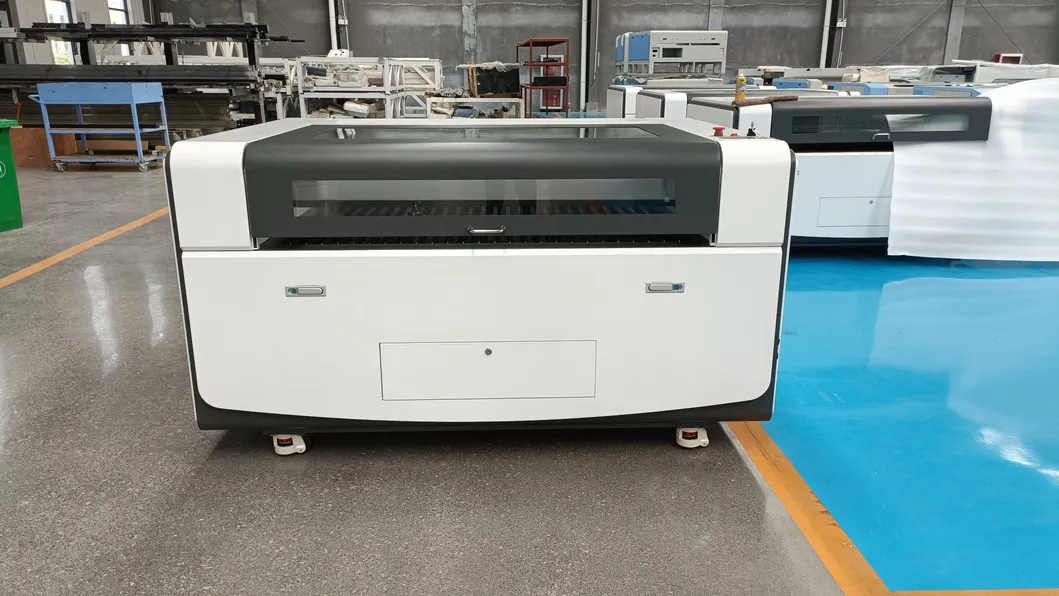

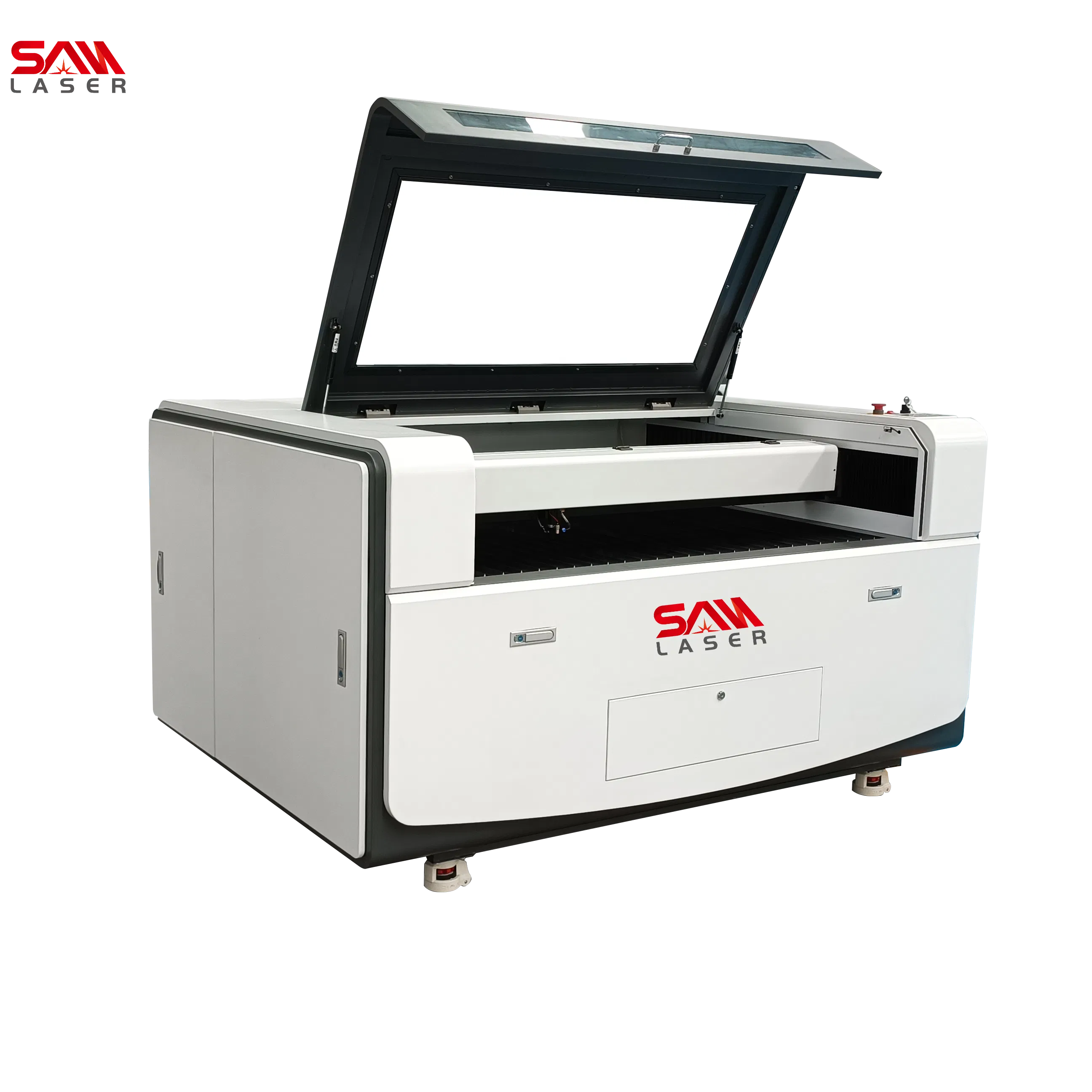

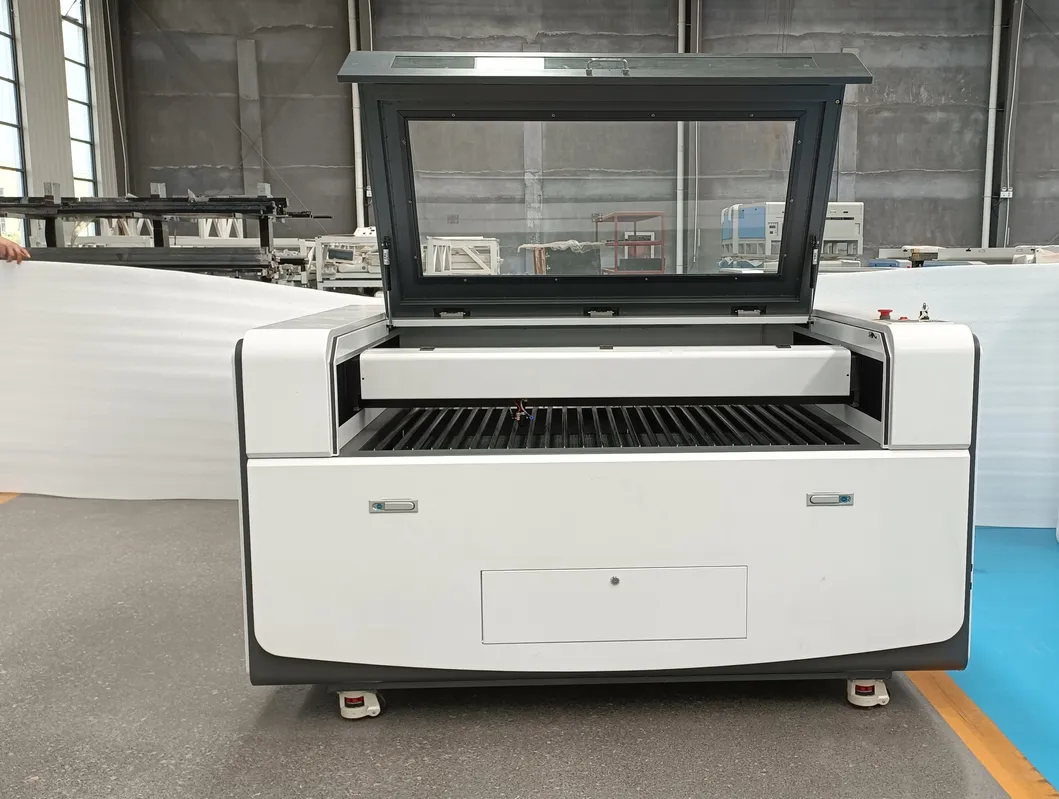

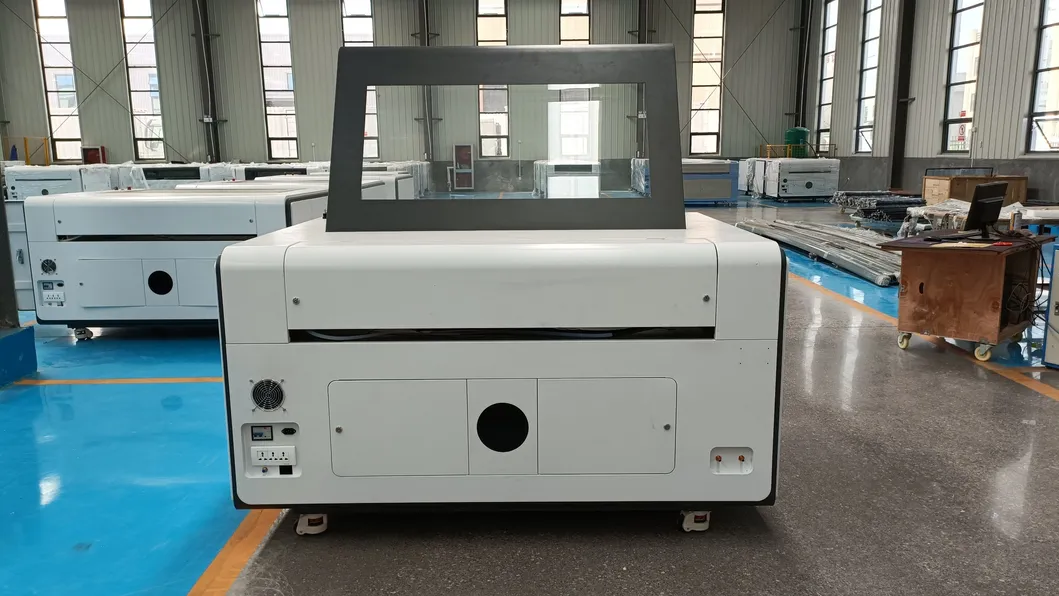

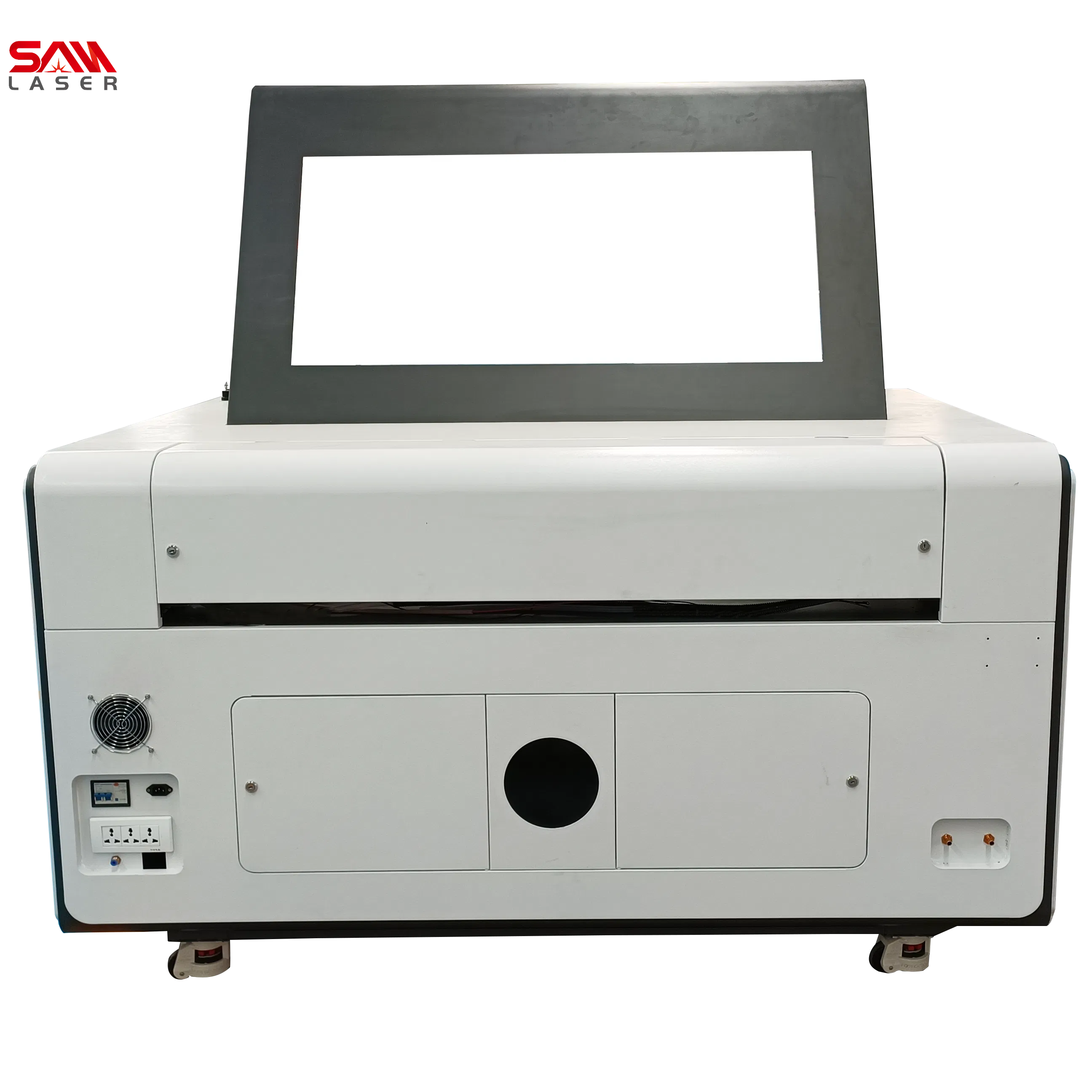

1610 CO2 Laser Engraving Cutting Machine

Customization:	Available
After-sales Service:	24 Hours Online Service
Warranty:	1 Year

Basic Information

Model NO.	6090 1390 1610	Application	Home Appliance, Textile, Automotive, Woodwork, Advertising
Cooling System	Water Cooling	Technical Class	CO2 Gaseous Laser
Control System	Ruida Rdc6445 System	Applicable Material	Nonmetal (Acrylic, Wood, Leather, etc.)
Laser Type	CO2 Glass Laser Tube	Cutting Depth	≤ 25mm (According to Material)

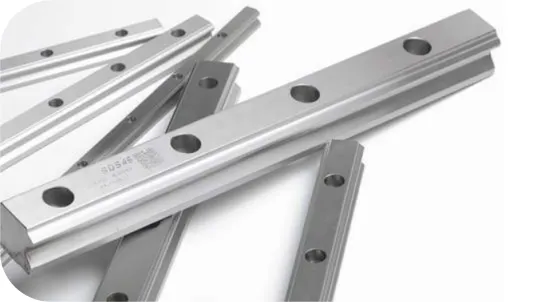

Transmission	Japan Smg Linear Rail + JB Belt	Voltage	110V/220V 50Hz 60Hz

Product Description

The CO2 Laser Engraving Cutting Machine is tailored for masterful precision on acrylic, wood, leather, paper, and cloth. This advanced technology is designed to elevate craftsmanship, providing exquisite detail and accuracy for artisans and industrial users.

Industrial Applications

Applicable Materials Non-metal materials such as acrylic, double color board, Plexiglas, common glass, bamboo, wood, rubber, marble, granite, tiles, leather, and cloth.

Applicable Industries Advertising decoration, furniture, eyewear, PVC products, lighting, printing, packaging, embroidery, clothing, and trademark crafting.

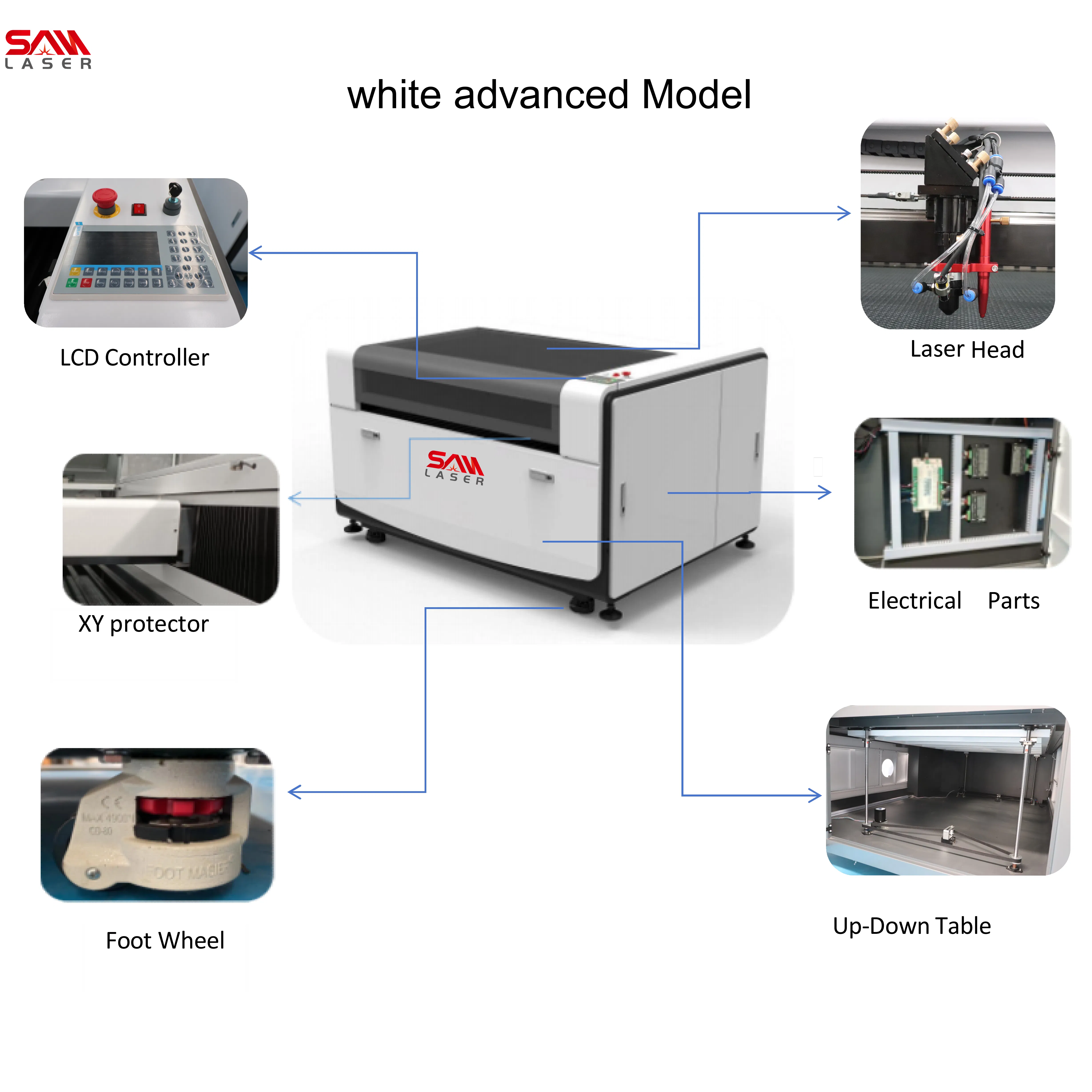

Core Components & Features

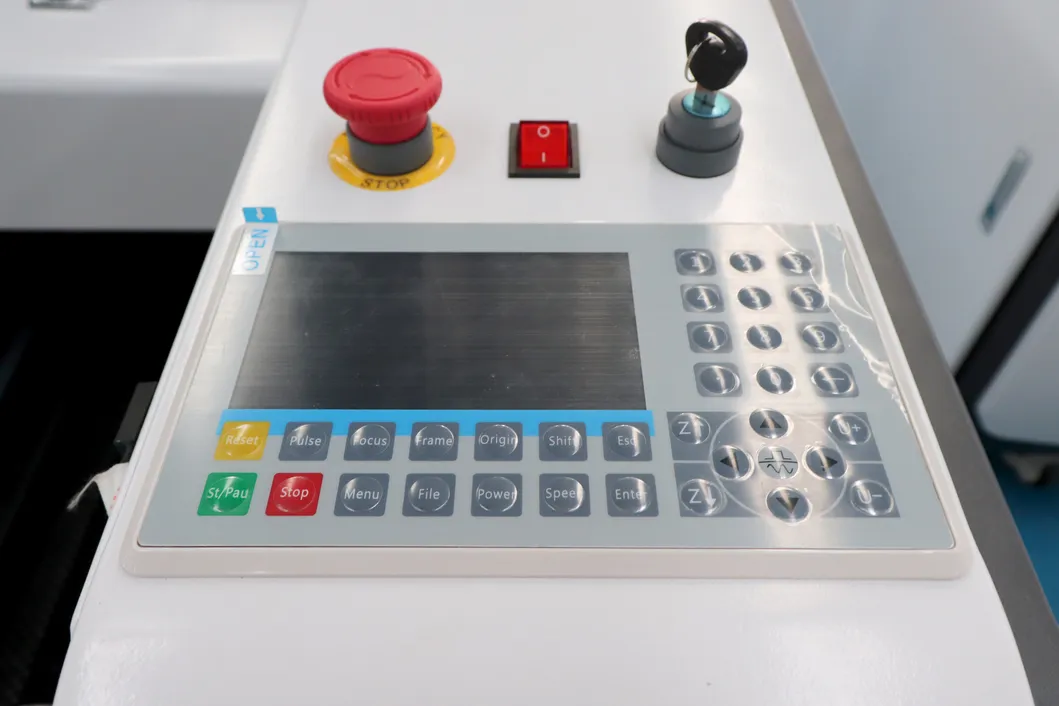

Ruida LCD Controller RDC6445 system supports 4-axis control and multiple languages. Equipped with USB and WLAN ports for seamless communication.

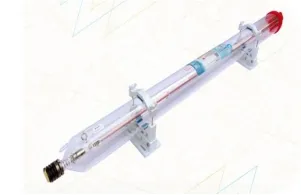

Powerful Laser Tube YONGLI A8S model with 150W (Peak 180W) power. Features a 12,000-hour working life and stable 30mA current.

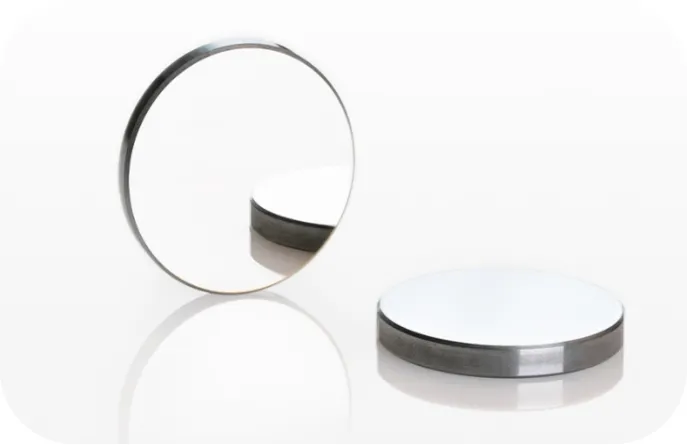

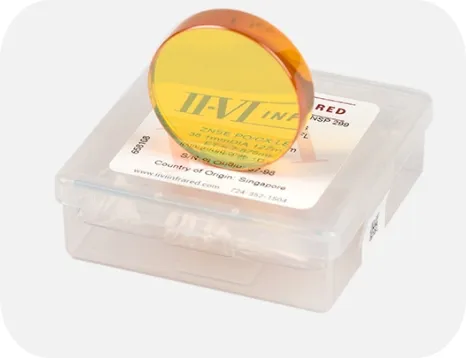

High-Quality Optics 25mm Si mirrors with 99.8% reflectance and 20mm USA ZnSe lens with high transmittance (99.5%).

Professional Chiller CW5000 cooling system ensures optimal operation even in hot climates. 6L volume and 2361btu/h cooling capacity.

Safety & Stability

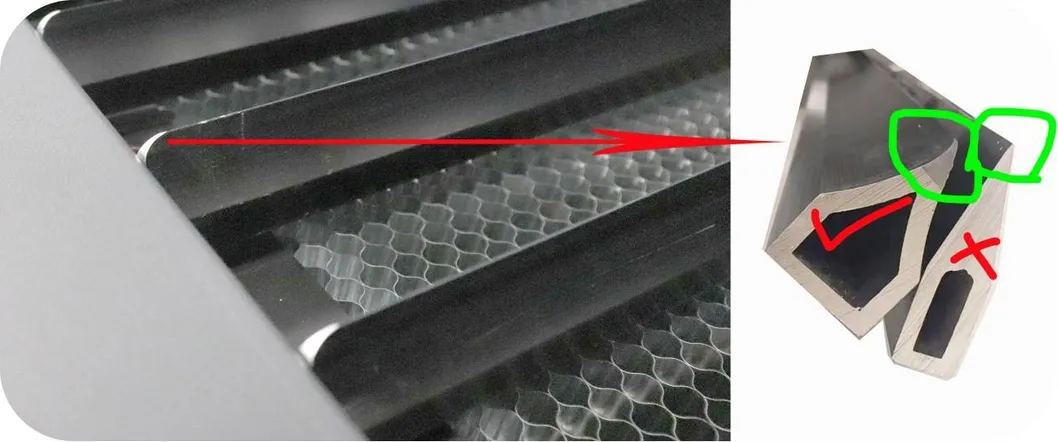

Dual Working Table Includes both Honeycomb and Sword Blade tables. Features a motorized up-down system with ball screw precision.

Dust Protection XY axis dust cover protection shields linear rails and belts from debris, ensuring long-term durability.

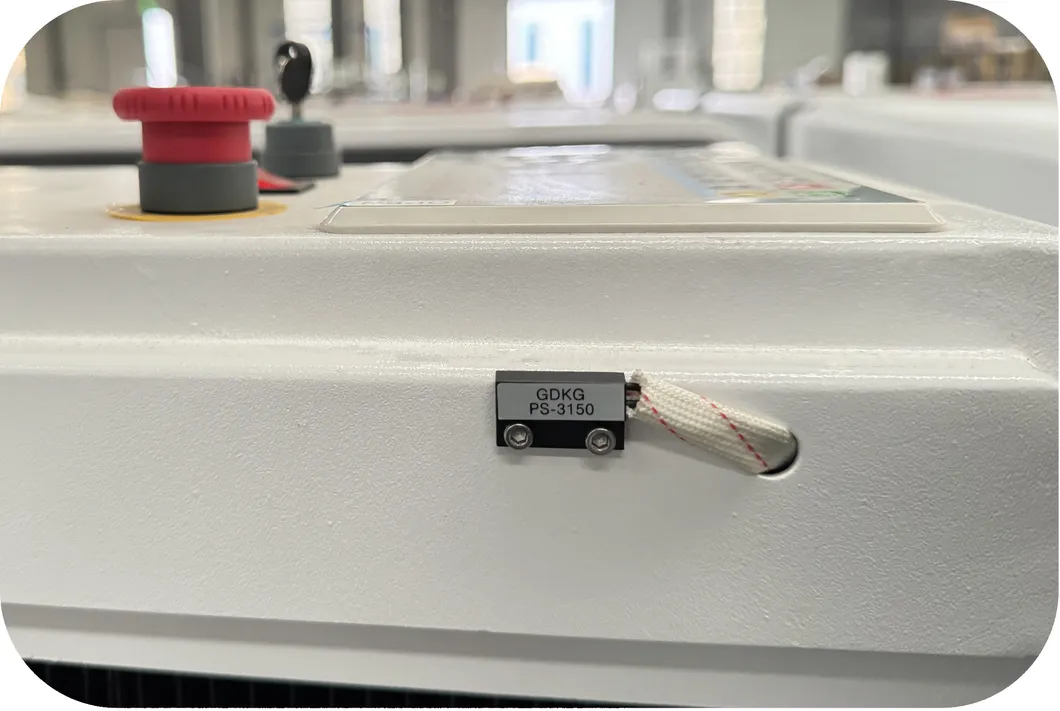

Intelligent Safety "Open Cover Protection" pauses processing automatically when the lid is lifted to prevent injury.

Product Parameters

Parameter	Specification
Working size	1300*900mm
Laser power	YONGLI AS6 150W
Engraving speed	1-60000mm/min
Cutting speed	1-10000mm/min
Resolution ratio	≤0.0125mm
Cooling type	Circulation water cooling CW5000
Supported formats	JPG, JPEG, PLT, DST, BMP, DXF, AI
Machine G.W.	500KGS

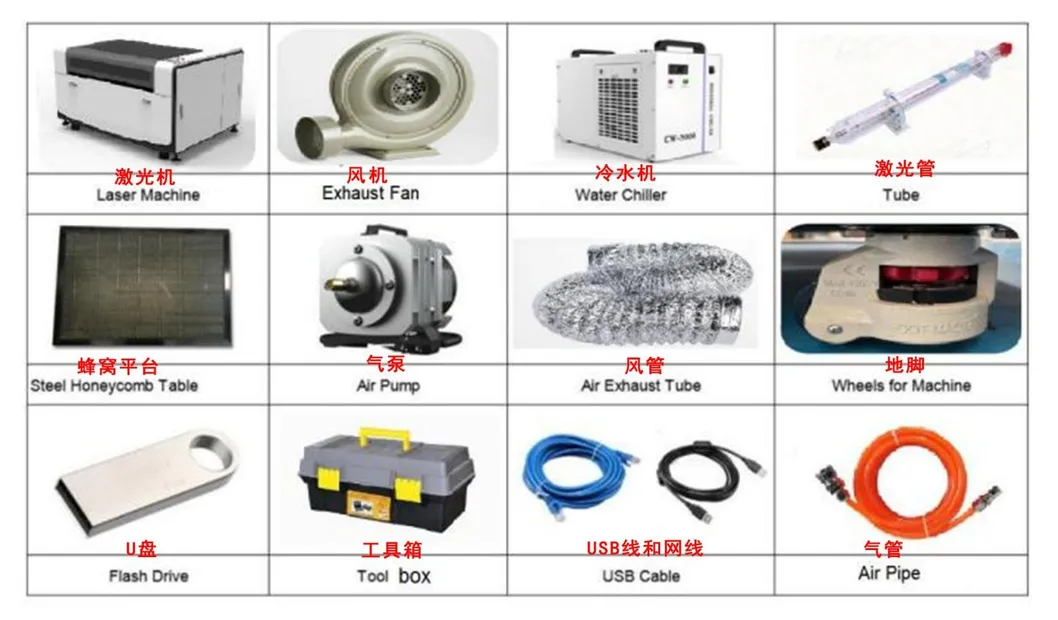

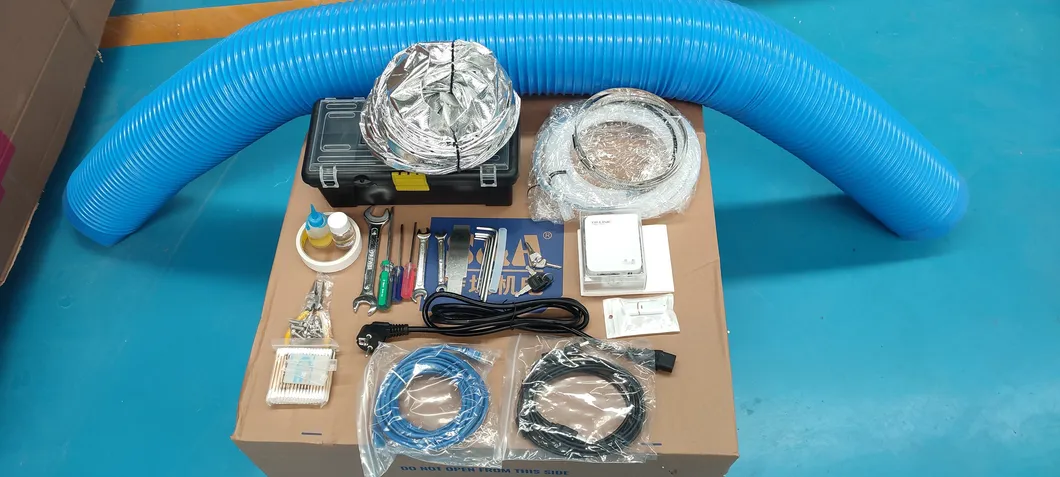

Packaging List

1 x Air Pump (Essential operation)
1 x Exhaust Fan & Tube (Efficient air circulation)
1 x Water Chiller CW5000 (System cooling)
1 x Set of Inner Hexagon Spanner & Tools
1 x Power Cord & USB Cable
1 x Operation Manual & Flash Drive

After Sales Service

Expert Team Over 13 years of hands-on experience in laser technology.

Rapid Support Step-by-step videos and remote guidance via video calls for problem-solving.

Global Warranty Partnerships with industry leaders ensures fast replacement parts and unwavering support.

Frequently Asked Questions

Q1: I'm new to laser machines. How do I choose the right one? A: Simply tell us what materials you want to process and your intended applications (cutting or engraving). We will recommend the best model and power for your needs.

Q2: How do I operate the machine after receiving it? A: We provide an English manual and instructional videos. Our engineers also offer free remote guidance via WeChat, Skype, or video calls.

Q3: What if the machine has issues during the warranty period? A: Send us photos or videos of the issue, and we will provide free replacement parts if covered under warranty, along with lifelong technical support.

Q4: What non-metallic materials can this machine cut? A: It is ideal for acrylic, wood, leather, cloth, paper, rubber, and various plastics.

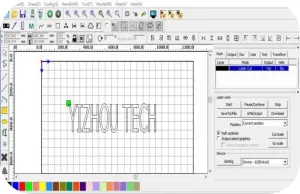

Q5: What software is compatible with this machine? A: The machine uses RDworks V8, which supports file formats like JPG, JPEG, BMP, DXF, PLT, and AI.

Q6: How is the laser tube cooled? A: It uses an industrial CW5000 circulation water cooling system to maintain optimal temperature and extend the tube's lifespan.
