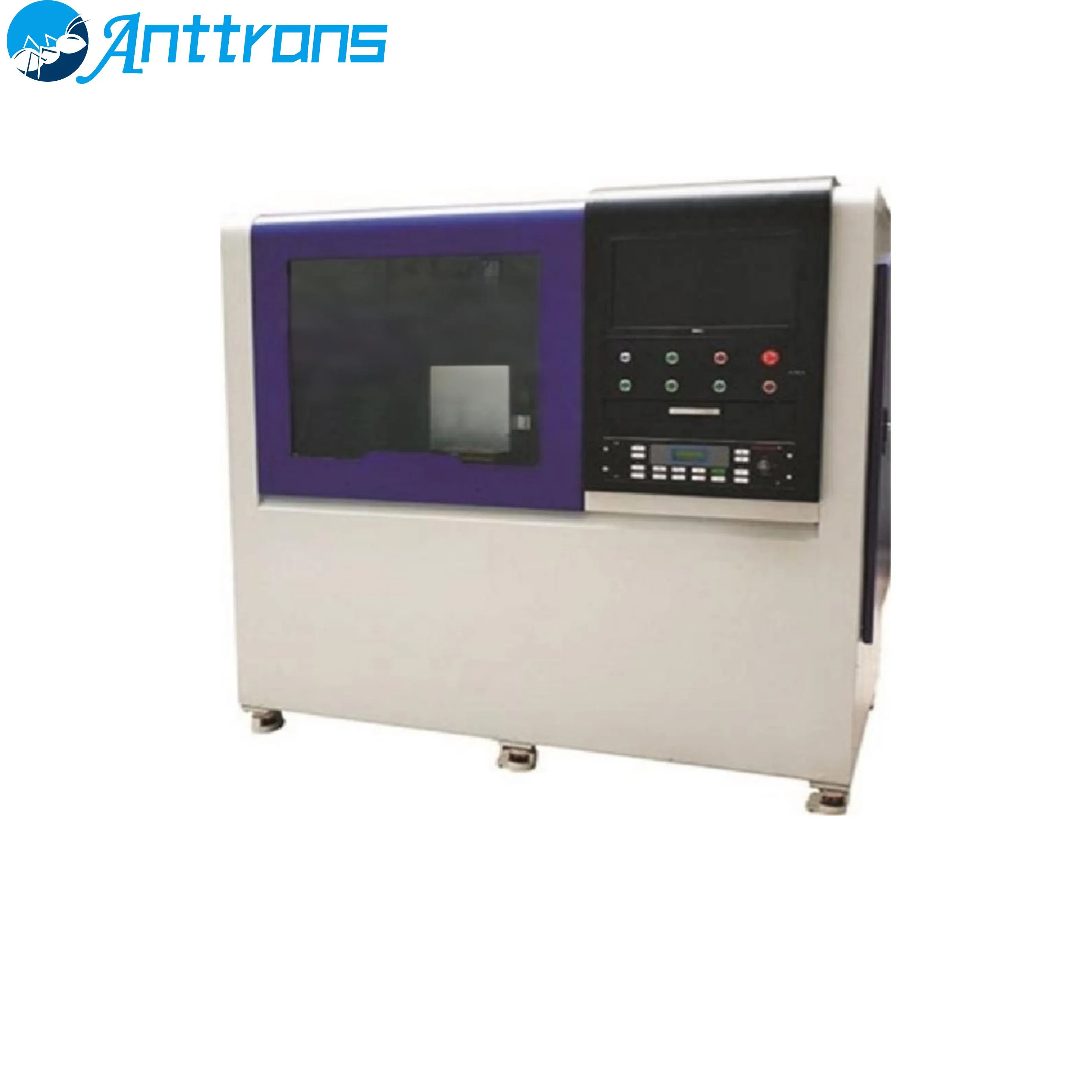

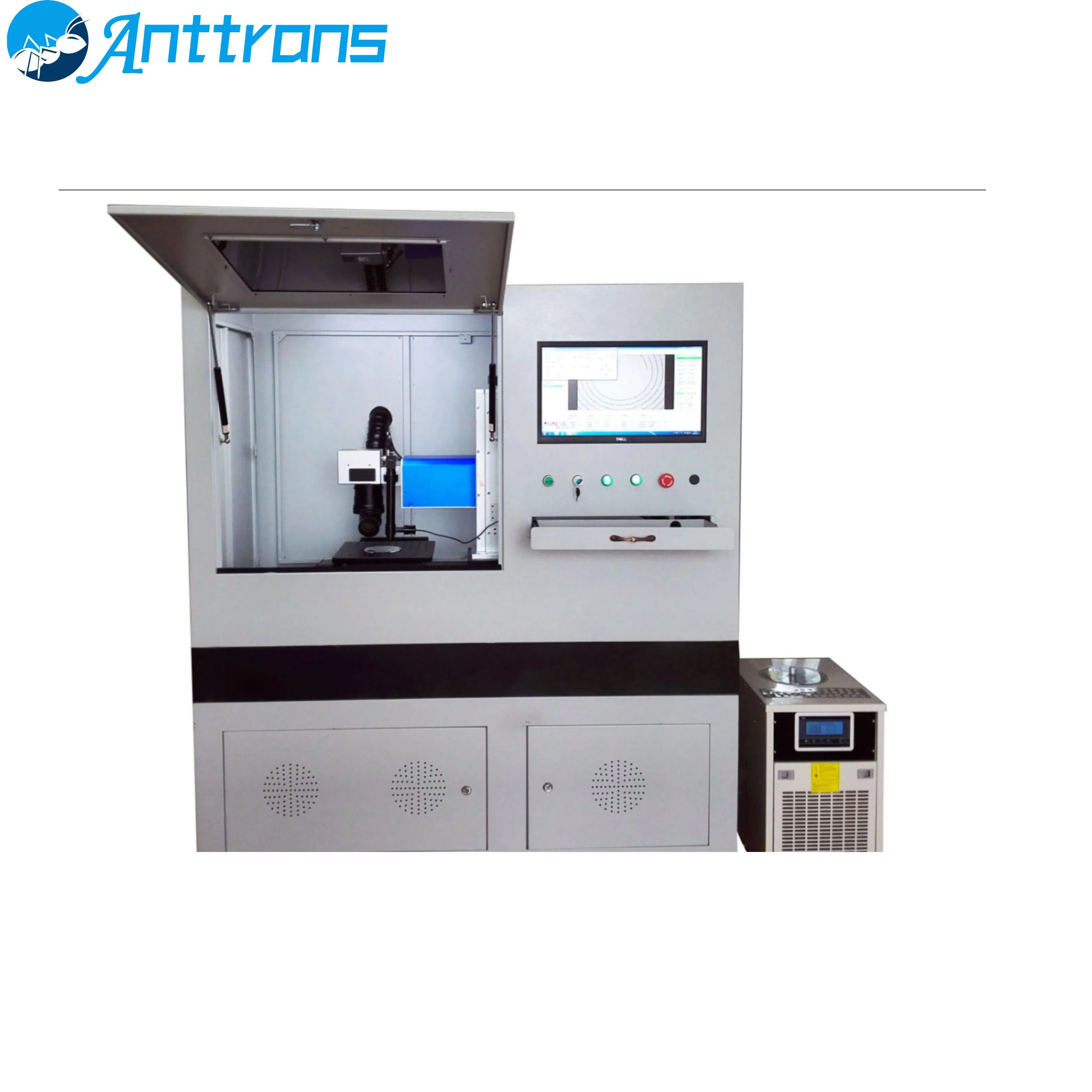

Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

i

Overview

Model NO. AT-61163

Origin China

Package Size 150.00cm * 90.00cm * 150.00cm

Gross Weight 2000.000kg

★

Product Features

High-energy density and stable ultraviolet laser directly ablates and vaporizes materials, with a μm-level heat-affected zone and a minimum processing spot size of 5μm.
High-resolution camera, in conjunction with a high-precision linear motor-driven platform, enables sub-micron-level high-precision alignment.
Precision Z-axis achieves high-precision focusing to ensure stable and repeatable processing techniques.
Sub-micron-level runout spindle holds the workpiece for rotation, enabling high-speed and high-surface-finish micro-machining.
Auxiliary W-axis allows for the processing of straight holes and inverted taper holes.
Marble tabletop enhances overall system stability for long-term precision.
Minimum processing hole diameter of 5μm, capable of depth-to-width ratios > 10:1.

⚙

Product Parameters

Category	Parameter	FM-UVD7 Specification
Laser	Wavelength / Power	355nm / >7W@40 kHz (3~40 W optional)
XY Stage	Travel / Repeatability	300*300mm / ≤±1μm
XY Stage	Positioning Accuracy	≤±3μm (Resolution 0.1μm)
Z-axis	Travel / Accuracy	200mm / ≤±5μm
W-axis	Angular Range	±10°
Monitoring	CCD Camera	5-megapixel / 10X Optical Magnification
Spindle	Circular Runout	<1μm
Processing	Min Spot Size	5μm (10μm optional)
Processing	Materials	Glass, organics, metals, ceramics, etc.
Utility	Cooling / Dust	Water-cooled / Triple Dust Purification
Physical	Dimensions / Weight	120016001900mm / 1200Kg

↗

Product Applications

Automotive Industry

GDI and Diesel Fuel Injectors (30-200μm), Urea Injectors for emission standards.

Aerospace

Engine Fuel Nozzles, Rocket Propellant Nozzles, and UAV Atomization Nozzles.

Medical Equipment

Nebulizer Nozzles (10-50μm), Microfluidic Chips, and Interventional Devices.

Precision Instruments

Inkjet Printheads, Sensor Nozzles, and Optical Instrument cleaning systems.

#

Technical Scope

Our operation specializes in technical development and exchange involving computer software/hardware, functional glass, and new optical materials. We provide solutions for optical instruments, semiconductor specialized equipment, CNC machine tools, and electronic components. Our expertise extends to metal cutting, welding equipment, and photovoltaic component sales.

📷

Detailed Photos

?

Frequently Asked Questions

What materials can this equipment process?

The system is highly versatile and can process glass, organic materials, metals, and ceramics.

What is the minimum hole diameter capability?

The equipment can achieve a minimum processing hole diameter of 5μm with controllable shapes.

How does the system ensure high precision during operation?

It uses a high-resolution camera, linear motor-driven platforms, and a sub-micron-level runout spindle to maintain sub-micron alignment and stability.

Can it process both straight and tapered holes?

Yes, thanks to the auxiliary W-axis, the system is capable of processing both straight and inverted taper holes.

What kind of maintenance does the cooling system require?

The system uses a standard water-cooled mechanism and triple dust purification to ensure long-term stability and minimal maintenance.

What is the positioning accuracy of the XY stage?

The XY stage features a positioning accuracy of ≤±3μm and a repeatability of ≤±1μm.
