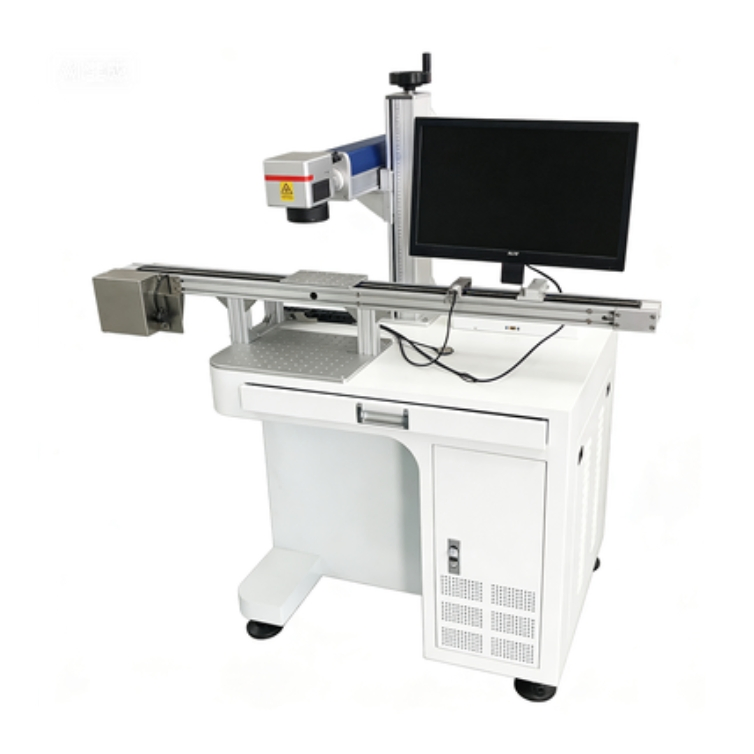

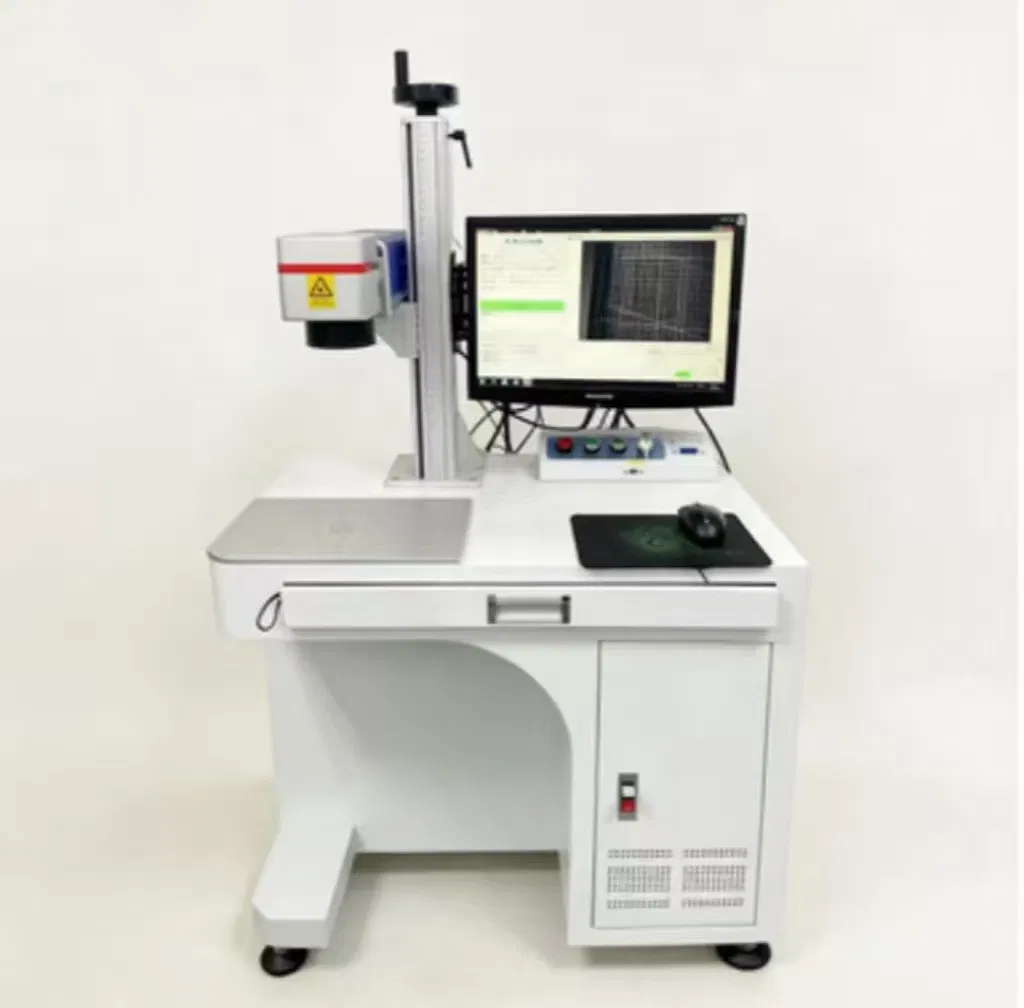

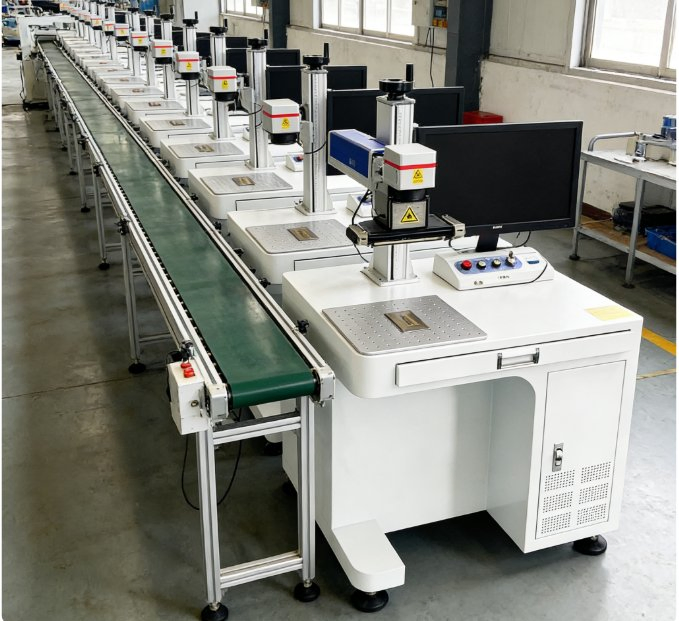

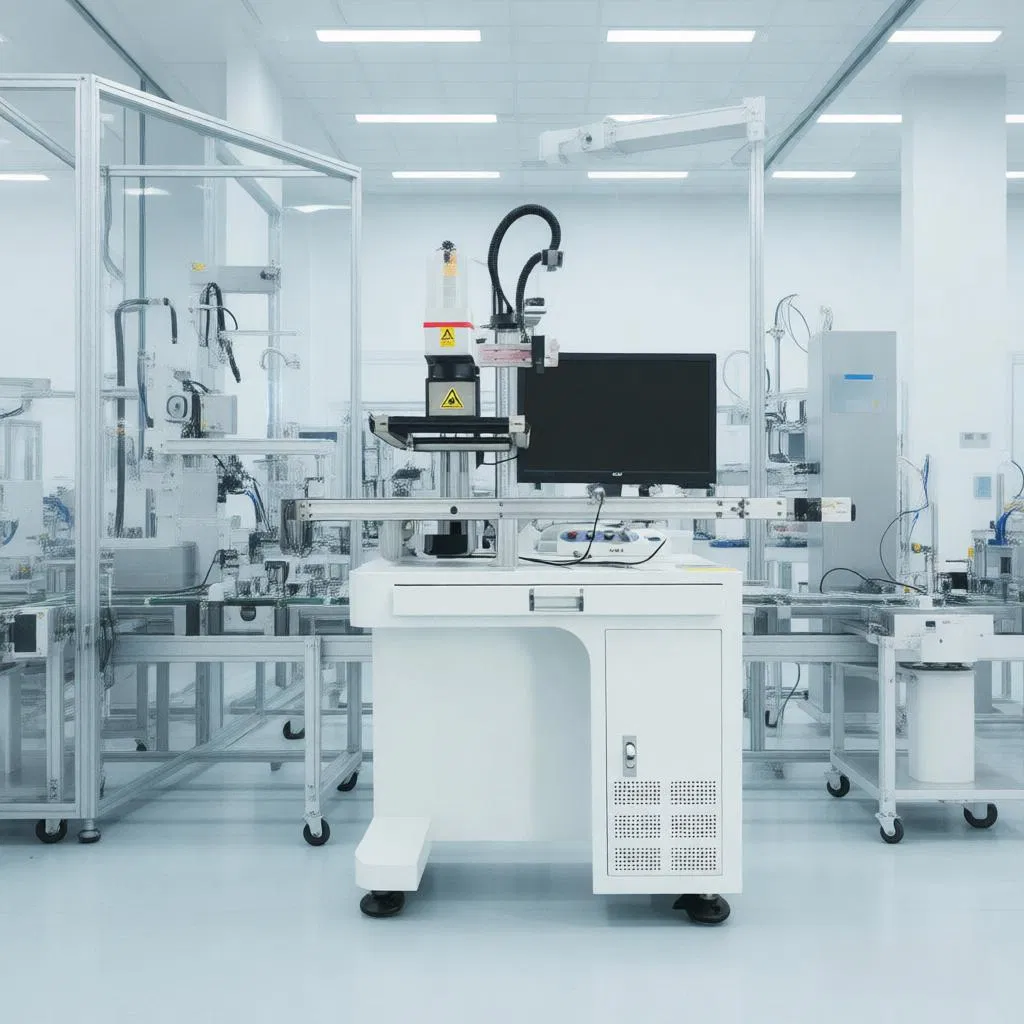

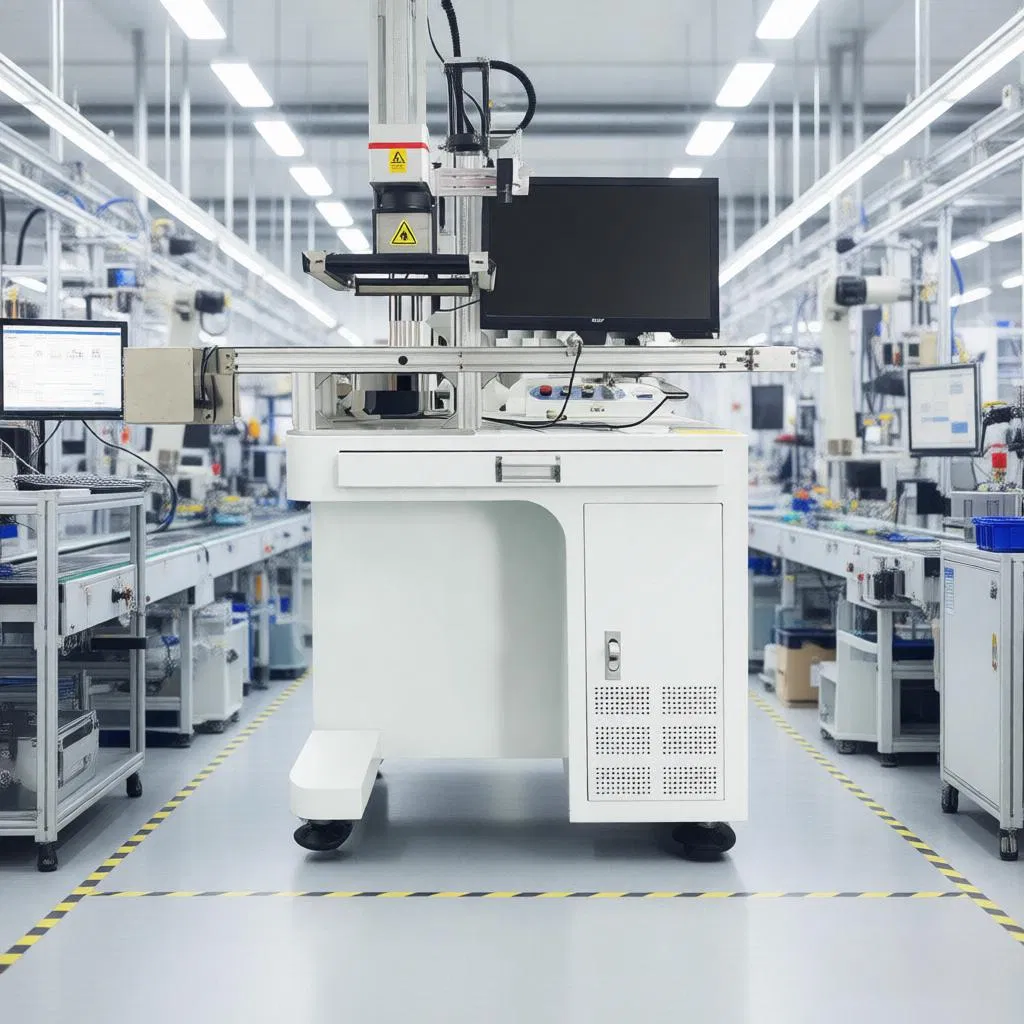

Conveyor Vision Laser Marking System with CCD Camera

Basic Information

Model NO.

YY-630W

Type

Laser Machine Frame

Camera Type

Gigabit Network Industrial Camera

Lens Focal Length

12mm/16mm

Control Card

V1 Single-Axis / V2 Dual-Axis

Protection

Optical Fiber Laser Lens

Specification

51mm x 51mm x 41mm

Origin

Shenzhen

Visual Laser Marking System

The independently developed visual laser marking system deeply integrates laser marking, motion control, and automatic loading technologies, enabling unmanned automatic processing. The software supports customized assembly lines (X, Y dual-axis platforms), flying marking, pseudo-coaxial, and off-axis modes.

Through visual automatic recognition and positioning, it achieves dynamic marking on assembly lines. This technology guides the laser for precise marking of workpieces, solving manual positioning challenges and improving processing efficiency. It can also track processed items, inspect products, and interface with MES systems.

Our Advantages

1

High quality rate over 99.9% with repeatability accuracy up to 0.01mm.

2

Supports multiple laser types: fiber optic, CO2, and UV lasers.

3

User-friendly vision software with strong compatibility for customized solutions.

4

Simultaneous recognition and positioning with multiple templates and automatic switching.

5

Adaptable to conveyor belts, XY platforms, and vibratory feeders for fully automatic marking.

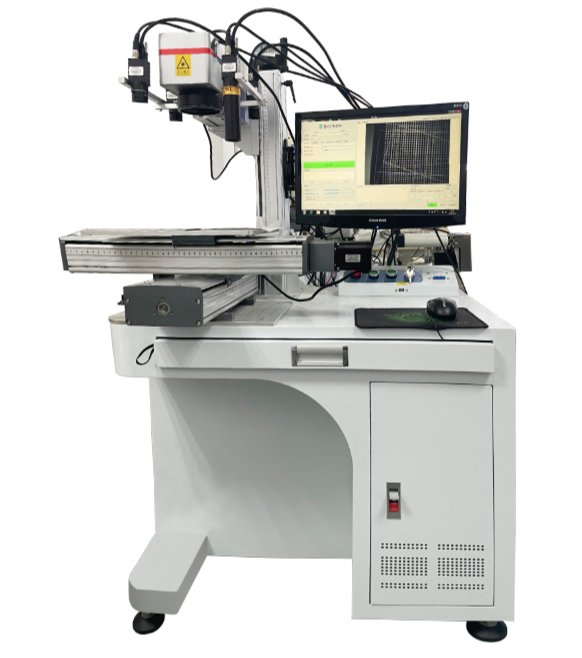

XY Dual-axis Platform System

Suitable for large processing ranges, typically used with trays or entire boxes. Ideal for 3C industry, metal nameplates, and hardware tools.

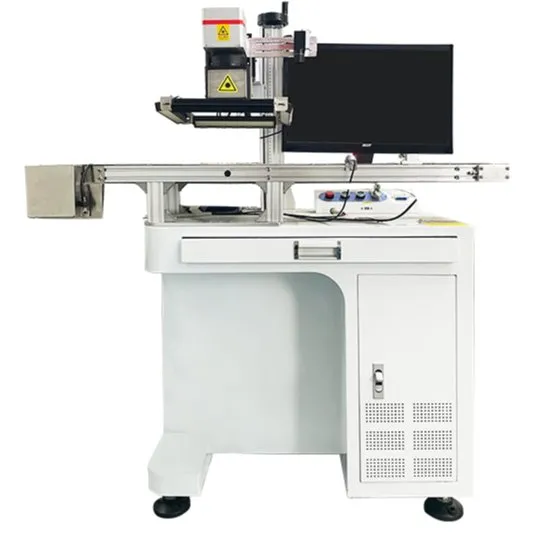

Flying Vision Marking System

Locates and processes products continuously moving on production lines with high efficiency tracking and accuracy.

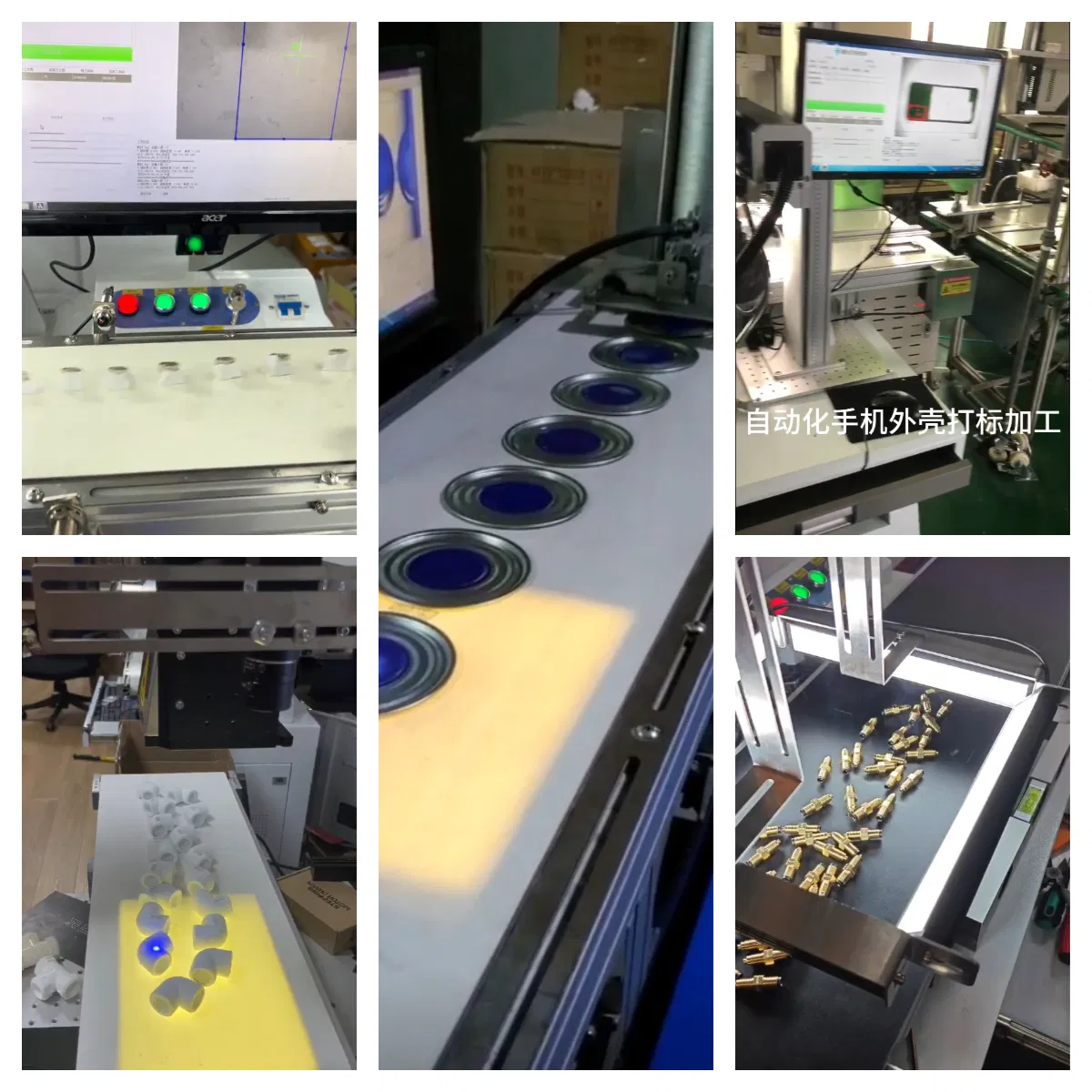

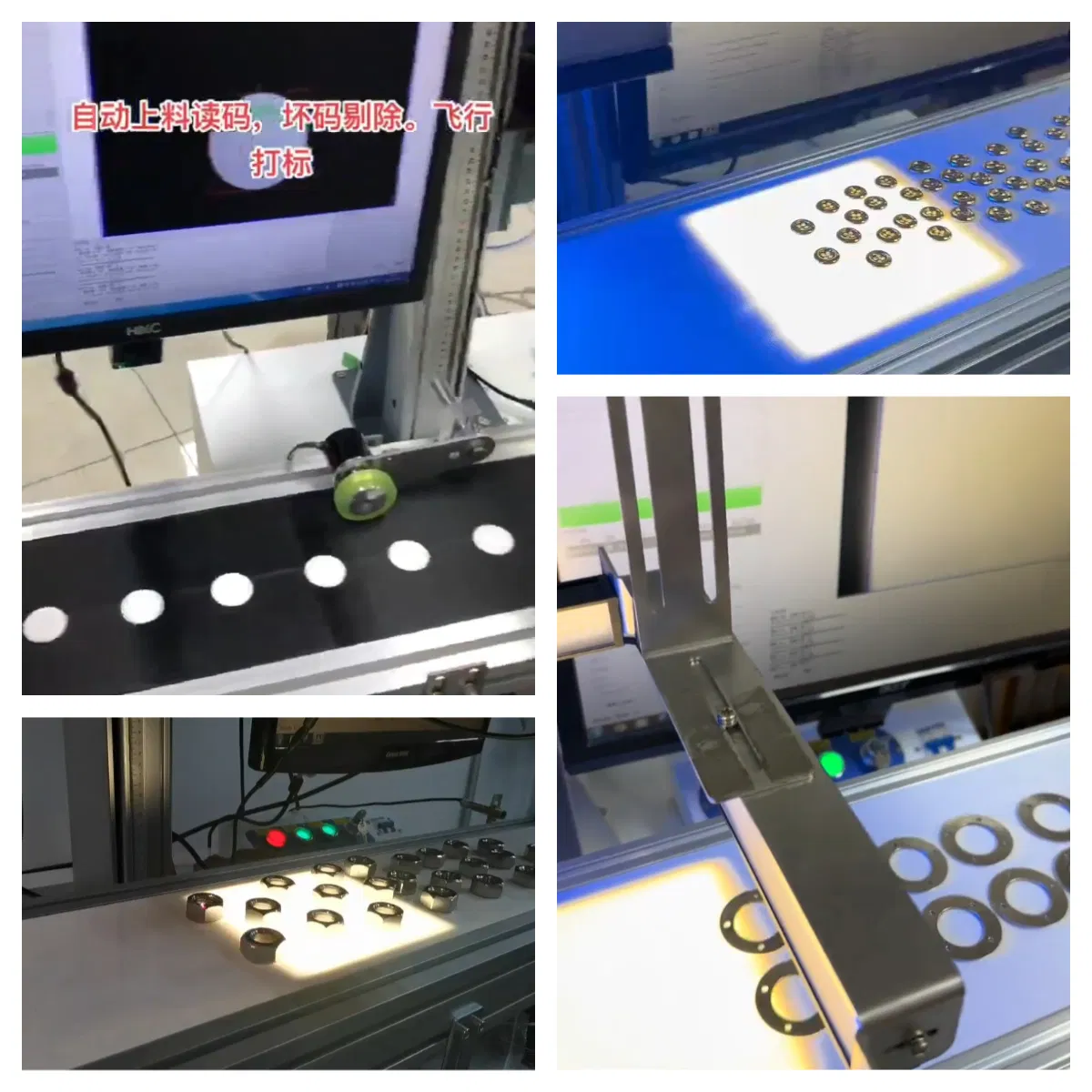

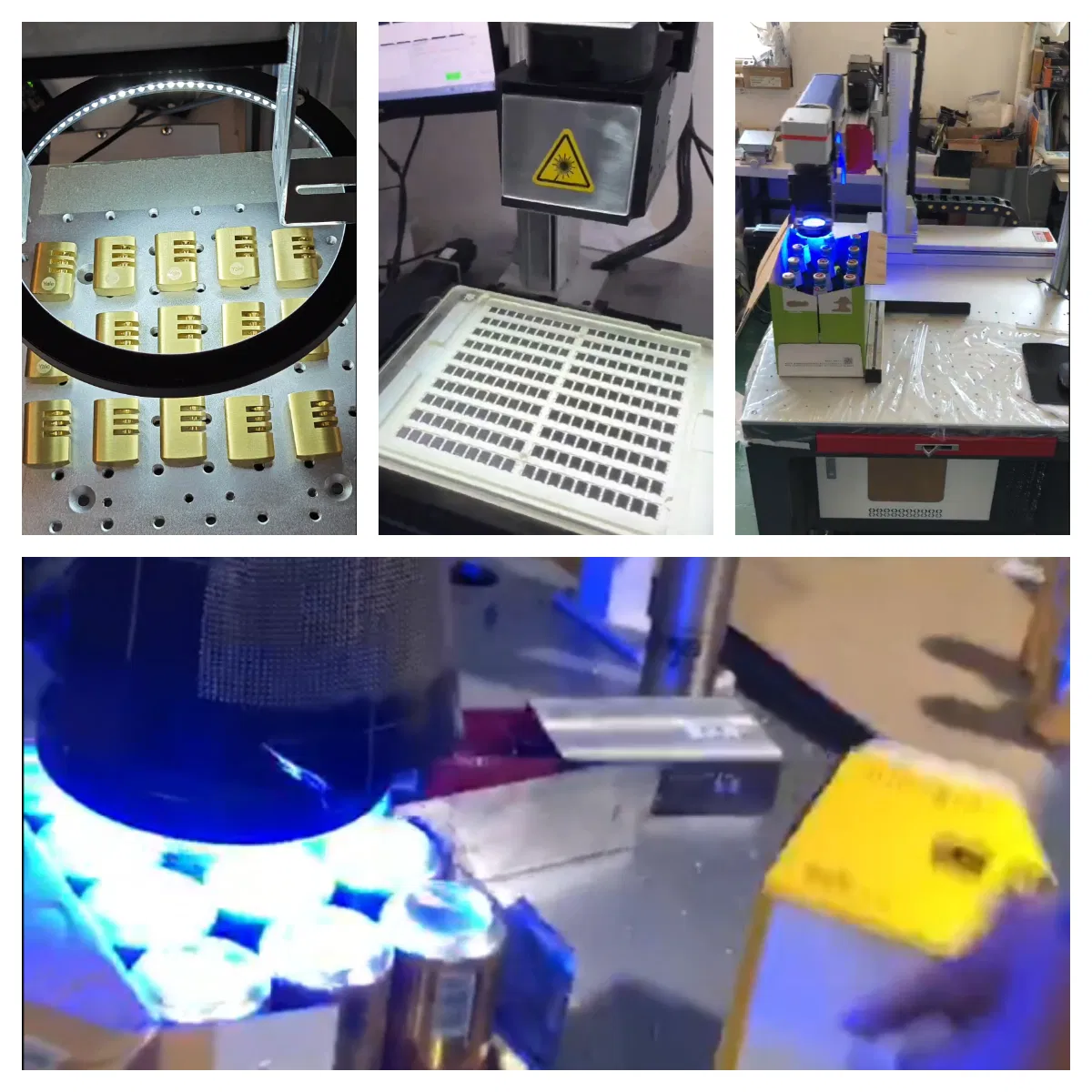

Case Studies

Technical Expertise

Specializing in the R&D of industrial camera hardware and software, as well as machine vision application solutions. With a professional team of over 30 engineers, the focus remains on the design and manufacturing of industrial cameras across interfaces like USB3.0, GigE, and GMSL2.

Solutions are deeply integrated into real-world scenarios including industrial inspection, robotics, and automated manufacturing. Continuous innovation and reliable engineering support enable global partners to accelerate deployment and reduce integration risks in the industrial ecosystem.

Frequently Asked Questions

Q1: What is the lead time for orders?

A: Standard products typically ship within approximately one month. Custom product lead times are determined based on technical specifications and material availability.

Q2: What is the minimum order quantity (MOQ)?

A: Small MOQ is supported for standard models. The exact requirement depends on the specific product model.

Q3: Do you provide SDK and technical support?

A: Yes, we offer a complete SDK, development documentation, and support for secondary development along with remote technical assistance.

Q4: Which sensor brands are used in your cameras?

A: We mainly utilize internationally recognized sensor brands such as Sony and ON Semiconductor to ensure high-quality imaging.

Q5: What industries are these cameras used in?

A: Our cameras are widely applied in machine vision, automated inspection, vision positioning, laser marking, robot guidance, and electronics manufacturing.

Q6: Are the products covered by a warranty?

A: Yes, products typically come with a warranty period (standard up to 3 years for specific lines) ensuring reliability and performance for industrial environments.
