Customized Process Packages for Advanced Water-Guided Laser Cutting

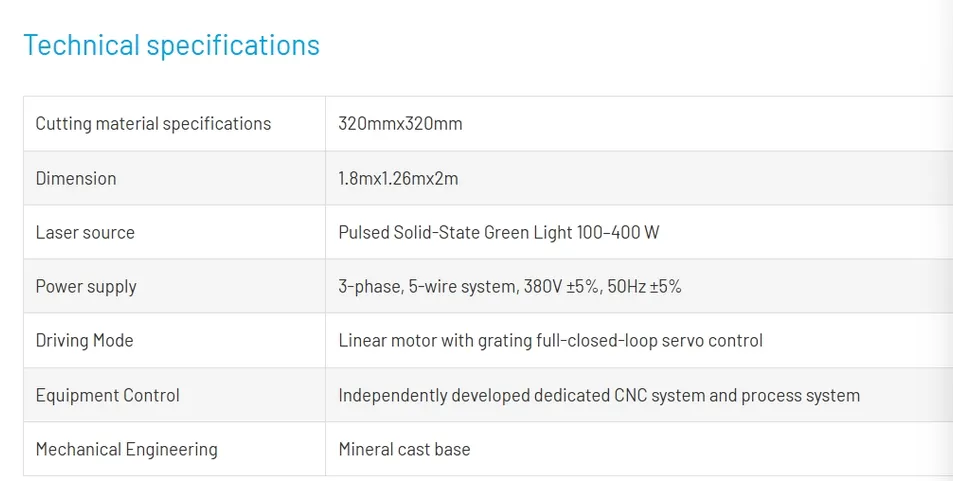

Basic Specifications

Model NO.

Three-Axis Precision Cutting Machine

Application

Aerospace, Automotive Industry

Cooling System

Air Cooling

Technical Class

Pulse Laser

Applicable Material

Metal

Structure Type

Gantry Type

Laser Classification

Solid Laser

Laser Technology

Water-Guided

Driving Mode

Linear Motor Servo

Cutting Specifications

320mm x 320mm

Dimension

1.8m x 1.26m x 2m

Mechanical Engineering

Mineral Cast Base

Origin

Jiangsu, China

Product Description

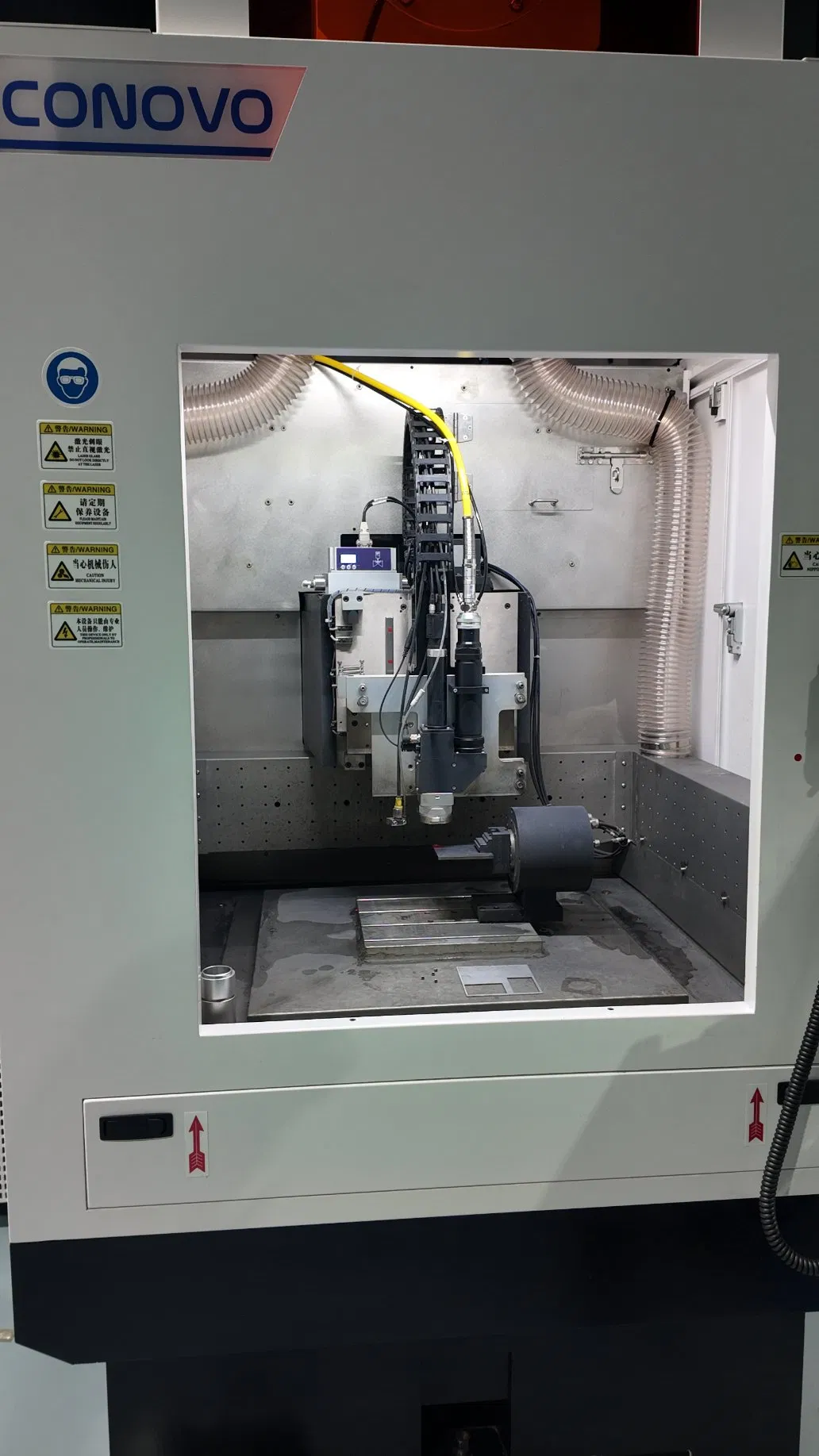

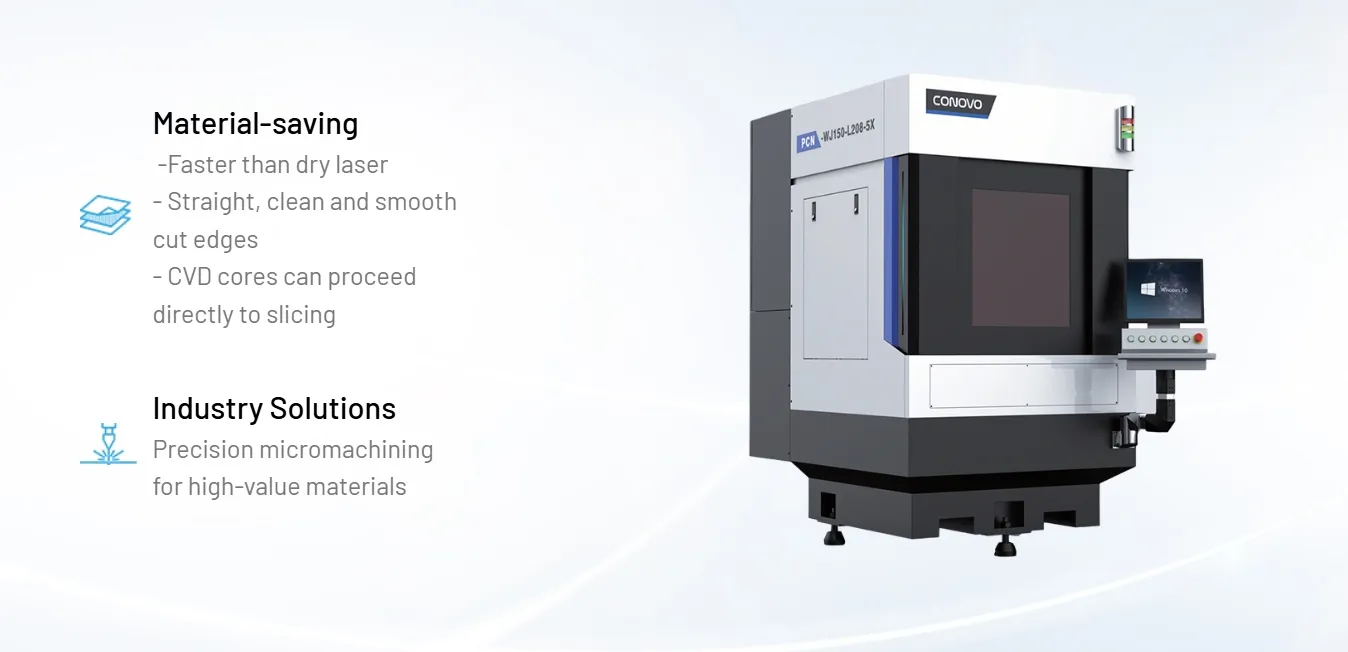

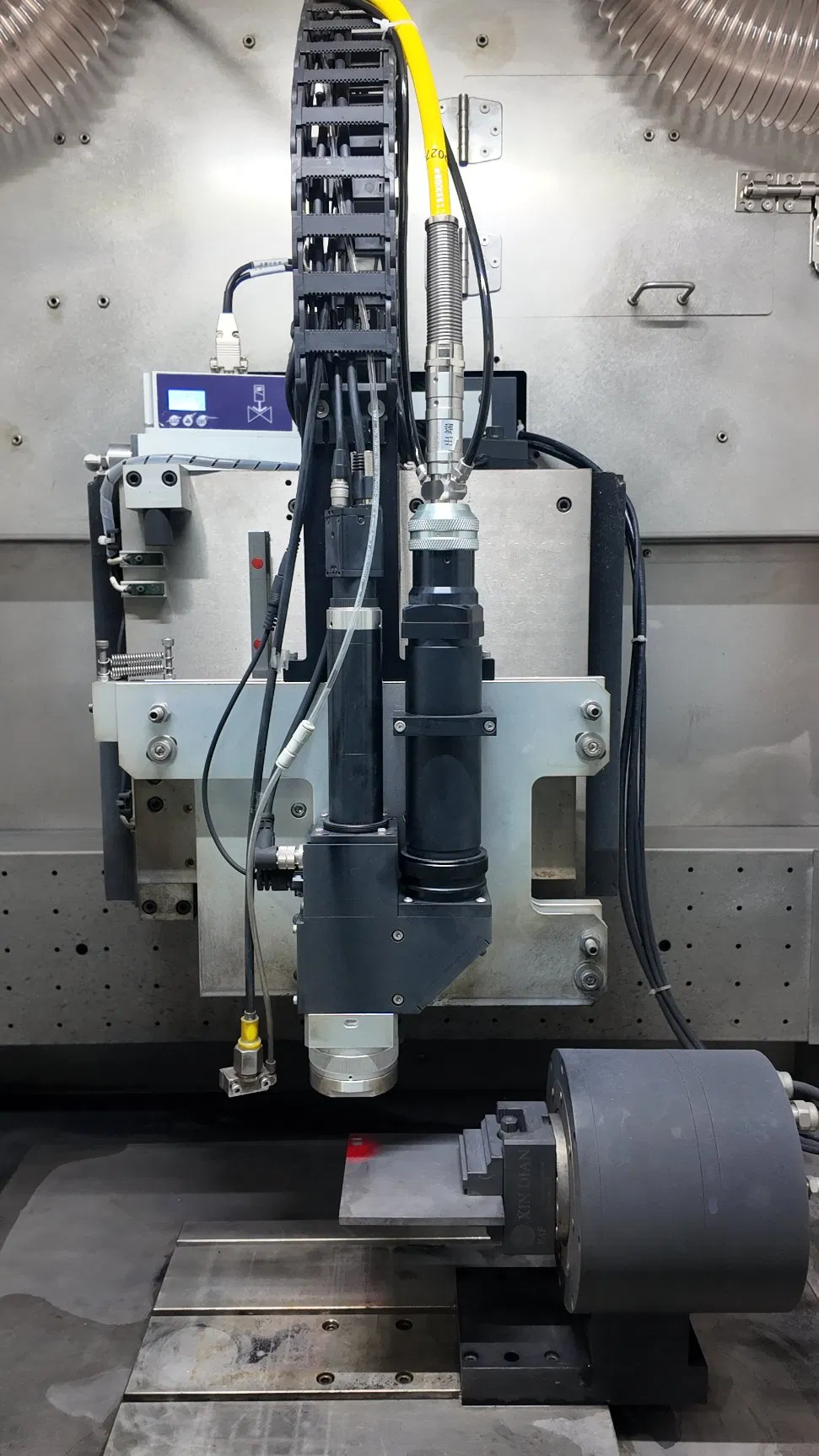

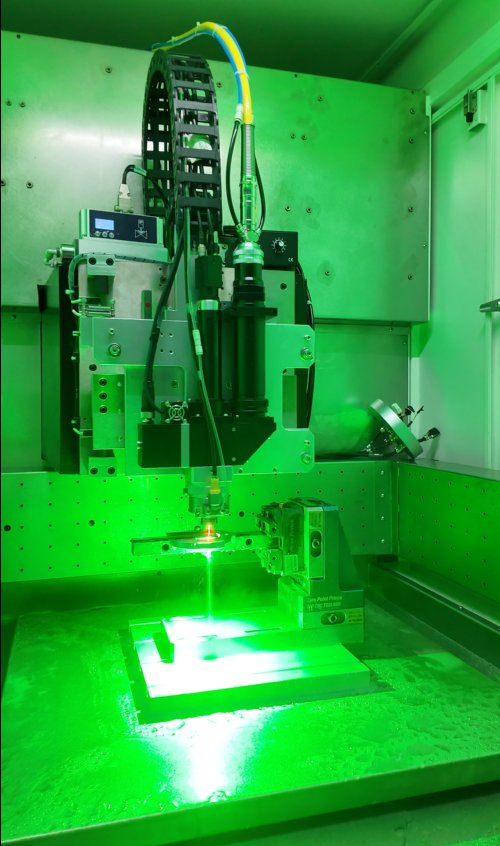

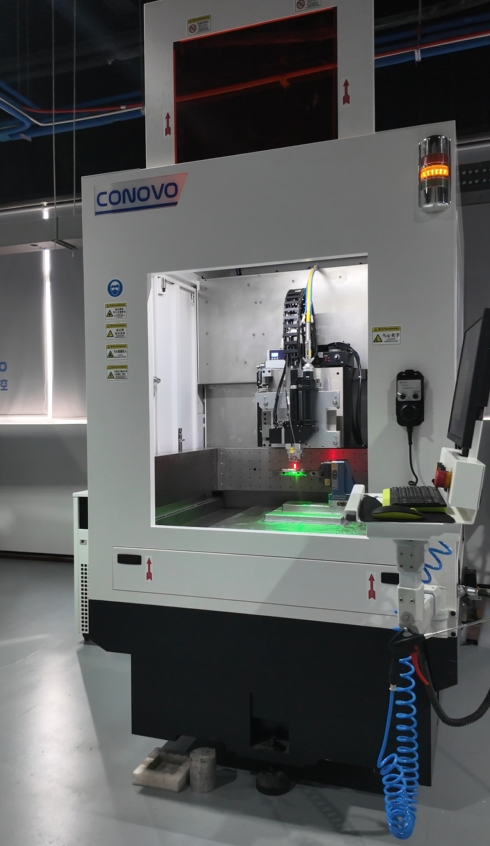

Introducing our Three-Axis Precision Water-Guided Laser Cutting Machine, designed for cutting a wide range of materials including hard and brittle substances like SiC, diamond, ceramics, and glass, as well as metals, composites, and thermally sensitive materials. This advanced cutter is equipped with cutting-edge technology to ensure precise and efficient processing, making it ideal for various applications in industries such as manufacturing, engineering, and research.

Main Application Industries

With no thermal damage, high precision and strong adaptability, water jet guided laser is widely used in:

Aerospace Industry

Precision machining for special-shaped cooling holes, aero-engine blades, and aircraft body C/SiC composite components.

Semiconductor Industry

Ingot coring, wafer dicing, and micro-hole machining for materials like SiC and GaN.

Medical Device Industry

Processing titanium alloy medical implants and precision accessories with zero thermal damage.

Precision Mold & Tool

Cooling groove and micro-hole machining for mold steel and cemented carbide without burrs.

Core Problems Solved

✓ Thermal Damage: Heat-affected zone controlled within 5μm; eliminates oxidation and microcracks.
✓ Precision Issues: Realizes taper-free processing (taper angle <1°) and dimensional tolerance within ±5μm.
✓ Material Adaptability: Handles super-hard, super-brittle, and composite materials without delamination.
✓ Efficiency: One-time forming with 2-3 times higher efficiency than traditional laser processing.

Service & Support

Equipment Procurement

Water jet guided laser precision equipment with stable components, customizable parameters, and full installation/after-sales support.

OEM Processing

Professional processing services for difficult materials and complex structural workpieces, ensuring precision and efficiency.

Frequently Asked Questions

What materials can be processed with this machine?

The machine is designed for metals, hard/brittle materials like SiC, diamond, ceramics, glass, and thermally sensitive composites.

How does water-guided laser technology prevent thermal damage?

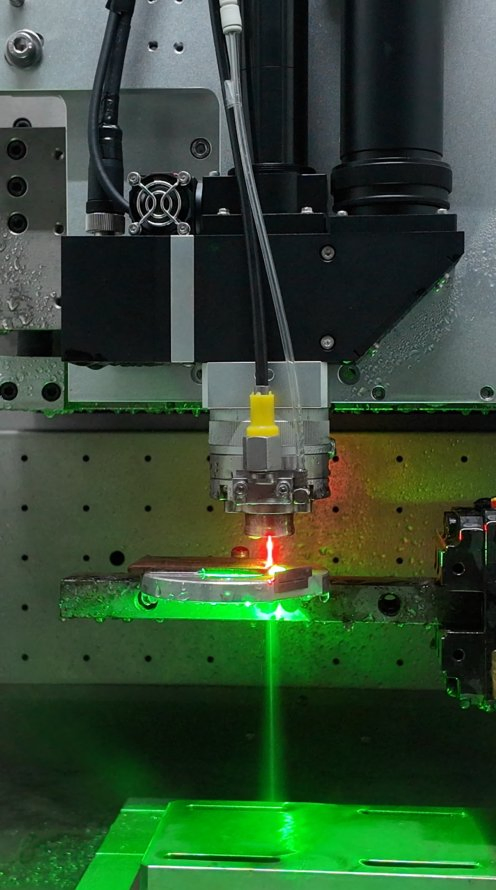

The water jet acts as a waveguide and a coolant simultaneously, controlling the heat-affected zone within 5μm and eliminating oxidation or carbonization.

What is the processing precision of the water-guided system?

It achieves a dimensional tolerance controlled within ±5μm and a taper-free processing angle of less than 1°.

Is the machine suitable for the semiconductor industry?

Yes, it is ideal for wafer dicing, ingot coring, and micro-hole machining of third-generation semiconductors like GaN and SiC.

What kind of support services are provided?

We offer equipment procurement with full installation and commissioning, as well as professional OEM processing services for complex projects.

What are the advantages over traditional wire cutting?

The processing efficiency is 2-3 times higher, it produces no burrs or thermal deformation, and requires no post-processing grinding.
