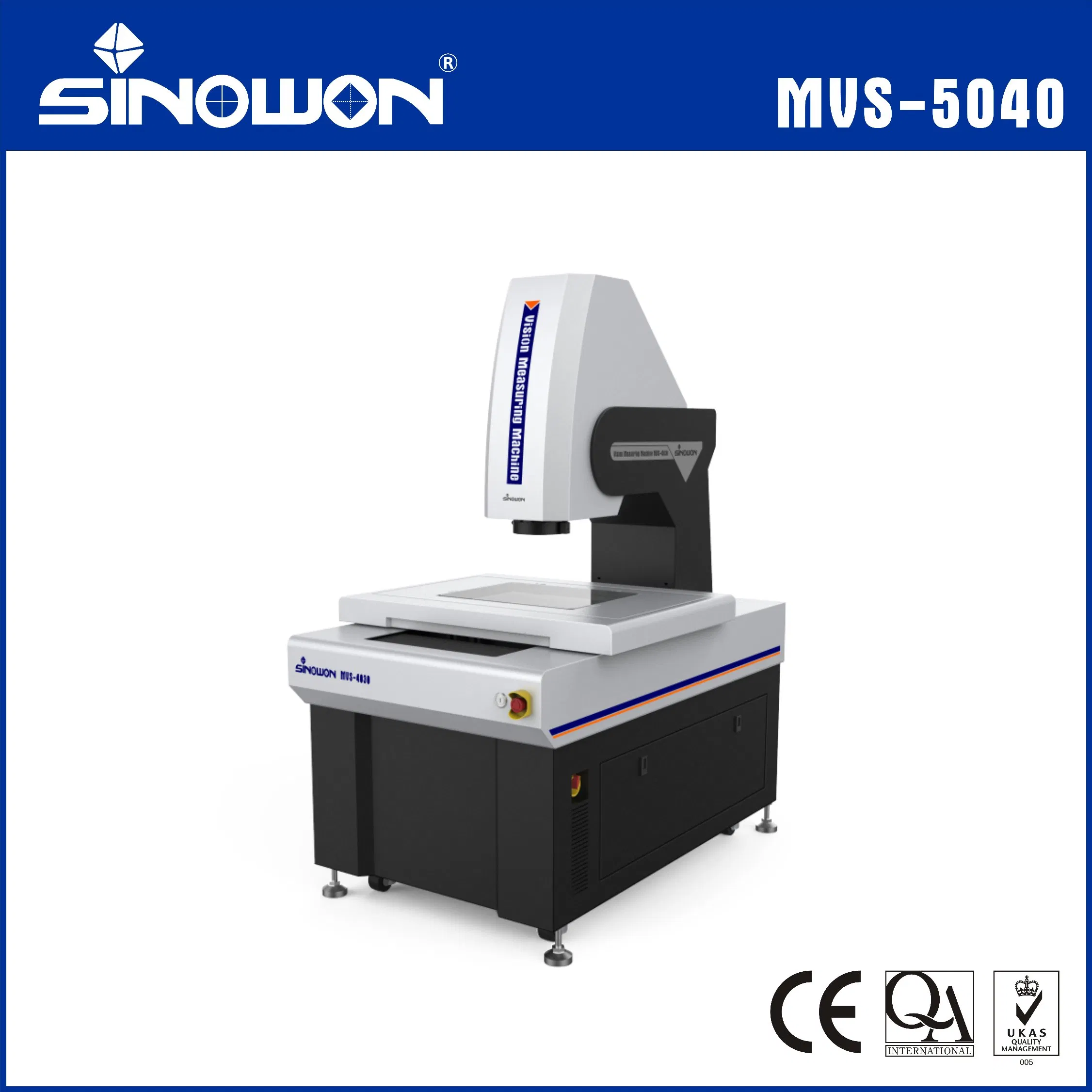

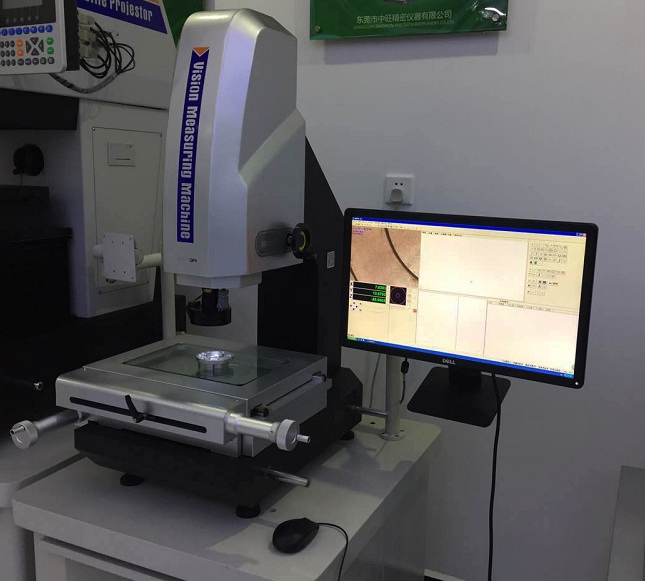

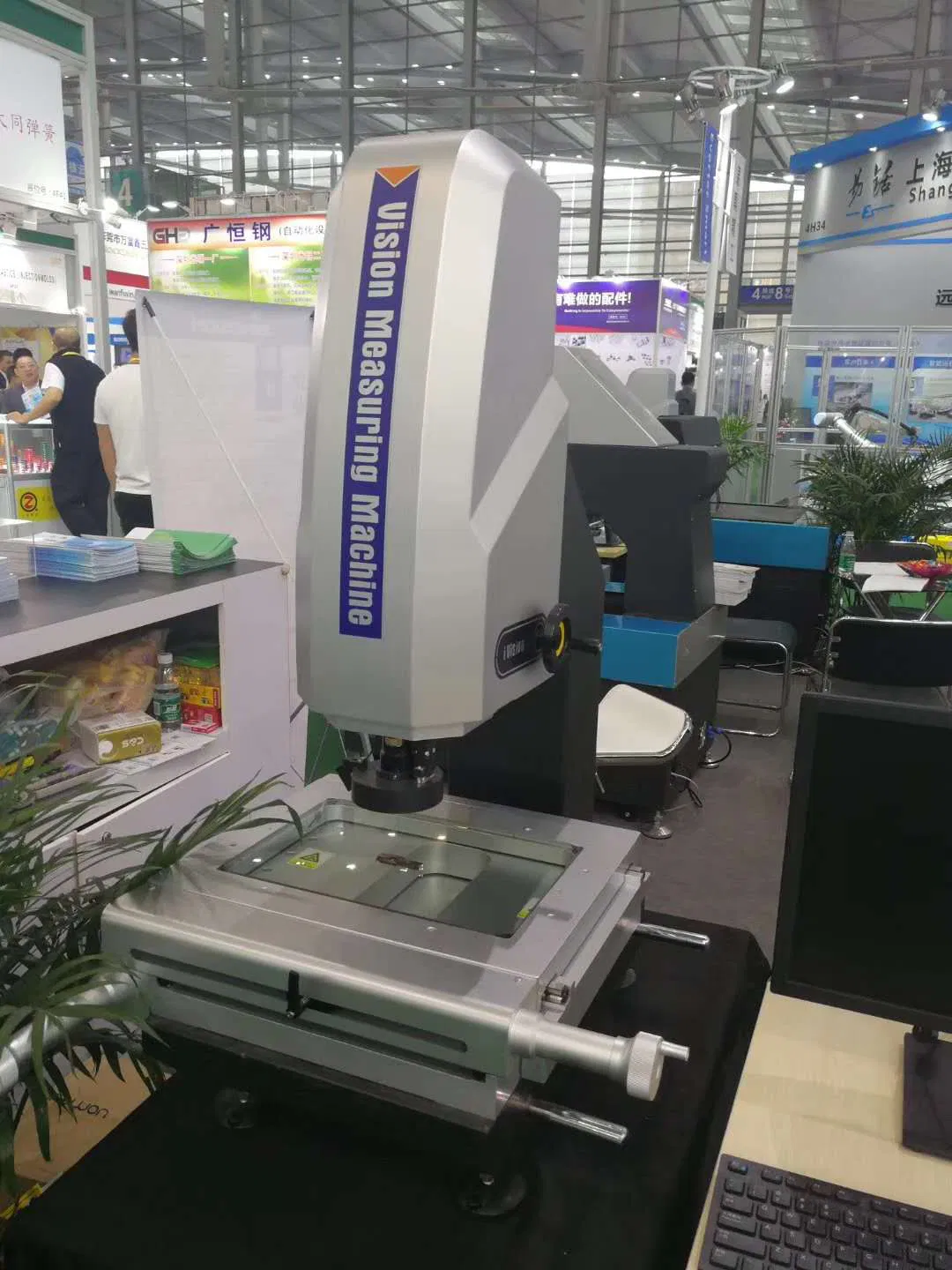

Fully Auto Video Measuring System (MVS-5040)

1 / 5

Fully Auto Video Measuring System (MVS-5040)

Customization:	Available
X/Y/Z 3-Axis Linear Scale(2.5D):	High Accuracy Glass Linear Scale
Accuracy:	X/Y-Axis:+L/200(Um) Z-Axis:4+L/200(Um)

Send Inquiry

Product Description

Basic Specifications

Model NO.

MVS-5040

Repeatability

3um

Operation Mode

Joystick, Mouse, Automatic

Illumination

Adjustable 256-Grade LED Cold Light

Software System

iMeasuring 4.1 Fully-Auto

Net Weight

550kg

Max. Load Capacity

25kg

X/Y Travel

500X400mm

HS Code

90318090

Production Capacity

100 sets/Month

Products Characteristic

Advanced Software: Equipped with iMeasuring 4.0 for automatic measurement programming and enhanced quality control.

3D Upgrade Path: Supports optional contact probes and 3D Measuring Software for fully automatic 3D contact measurement.

Real-time Monitoring: Compatible with FexQMS Data Analysis software to reduce material consumption and optimize control.

Technical Specification

Parameter		Specification (MVS-5040)
Code#		523-380
X/Y-axis Travel		500x400mm
Z-axis Travel		200mm
X/Y/Z Linear Scale		Resolution: 0.0005mm
Guidance Mode		Precision Linear Guide, Double-track Double Slider
Accuracy (X/Y)		≤3+L/200 (um)
Accuracy (Z)		≤4+L/200 (um)
Repeatability		±2um

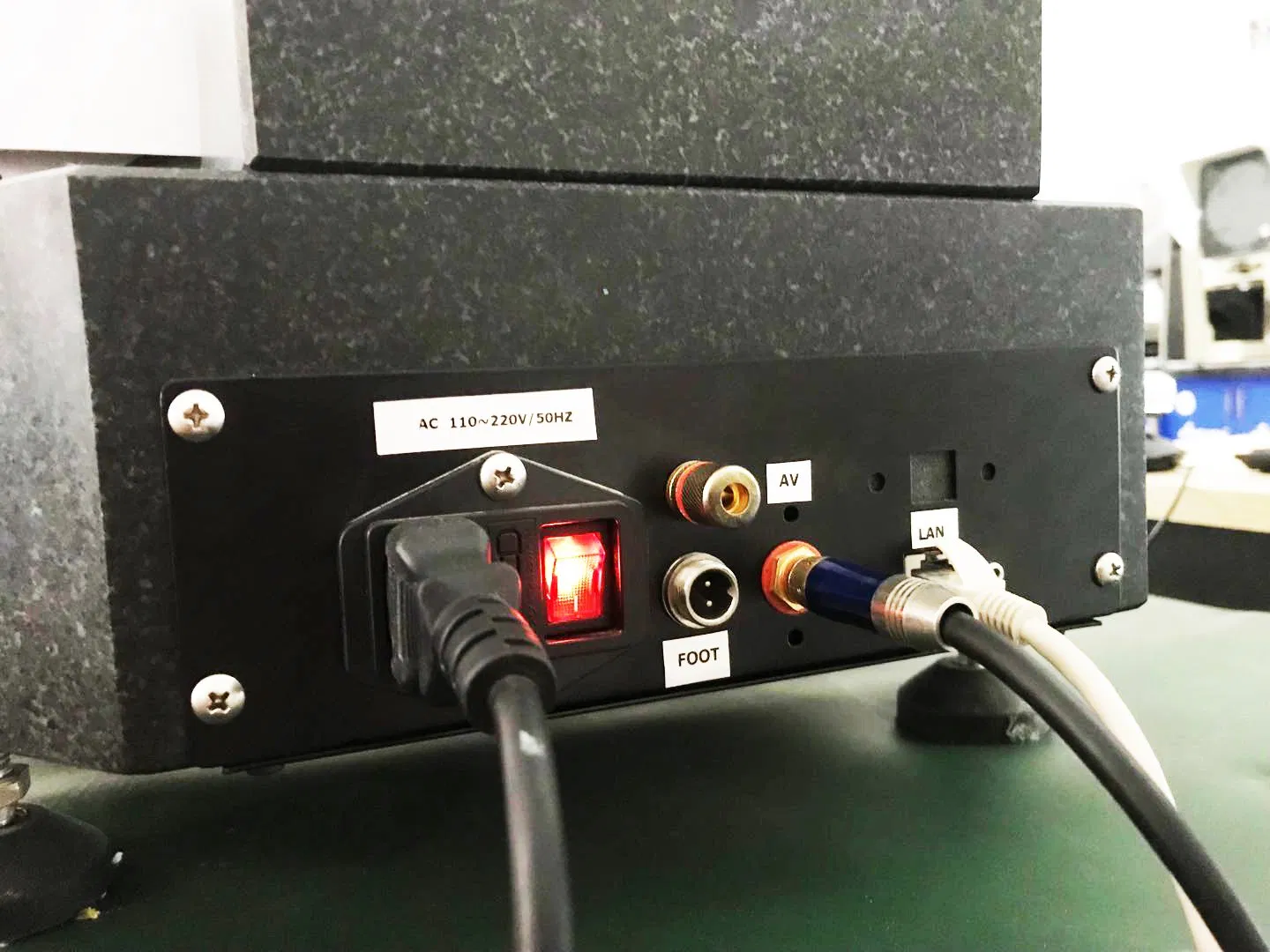

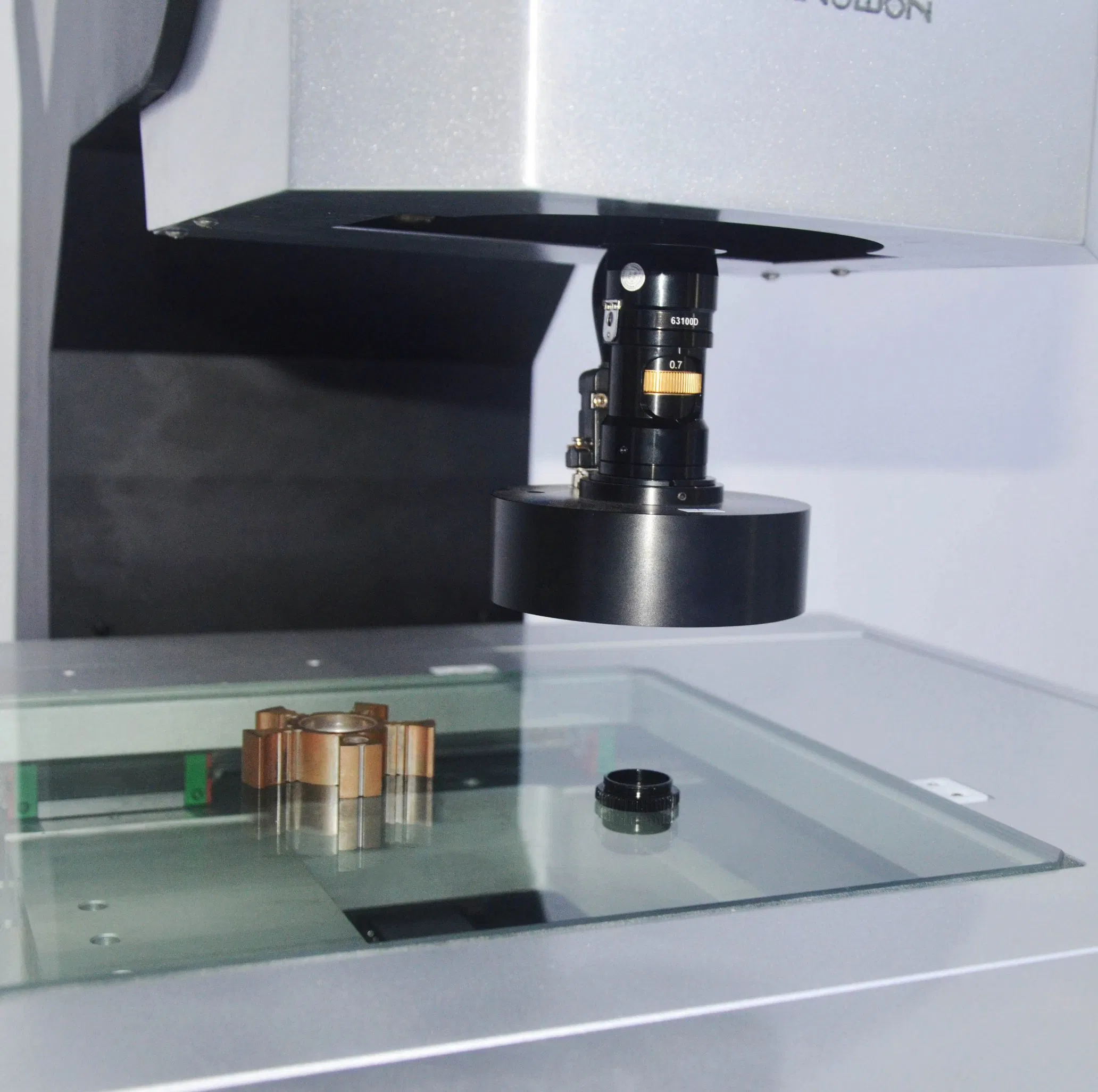

Video System	Camera	High Definition 1/3" Color CCD
	Lens	6.5X Motorized Coaxial Zoom (0.7X-4.5X)
Illumination	Contour	LED Parallel Cold Illumination
	Surface	Adjustable 5-ring 8-division LED

Industry Applications

This system is widely used for dimension detection in production lines and laboratories across various industries:

Semiconductor (Wafers, Components)
Precision Metal (Machining, Stamping)
Medical Equipment
PCB & Electronic Carrier Tape
Automotive & Motorcycle Parts
Precision Plastic & Rubber
Gears & Bearings
Research Institutes & Universities

Semiconductor Manufacturing

Precision Metal Processing

Precision Plastic

Technical Overview

Configuration & Accessories

Standard Delivery	Code#	Optional Accessories	Code#
IM 4.0 Fully-auto Software	IM 4.0	Imported MCP Touch Probe	581-721
Calibration Block	581-801	Imported Laser Sensor	581-361
Motion Controller	526-111	3D Measuring Software	IM 4.2
Imported 0.5um Linear Scale	581-201	2X Auxiliary Objective	423-050
Joystick	581-871	0.5X Auxiliary Objective	423-050

Frequently Asked Questions

What is the measurement accuracy of the MVS-5040?

The system provides high precision with an X/Y-axis accuracy of ≤3+L/200 um and a Z-axis accuracy of ≤4+L/200 um.

Can the system be upgraded for 3D measurements?

Yes, the machine can be updated to a Fully Auto contact 3D Measuring Machine by adding the optional imported contact probe and 3D measuring software.

What type of lighting system does it use?

It features an adjustable 256-grade LED cold illumination system, including contour parallel lighting and a 5-ring 8-division surface light.

What is the maximum load capacity for samples?

The MVS-5040 is designed to handle a maximum load capacity of 25kg on its measuring table.

What industries commonly use this measuring system?

It is widely applied in semiconductor manufacturing, precision metal processing, medical equipment, electronics (PCB), and automotive parts industries.
