High Power Fast Flow CO2 Laser Cutting and Engraving Machine CO2 Glass Tube Cutting Machine

Customization: Available
After-sales Service: 7X24 Hours
Warranty: 1

Product Description

📊 Basic Information
Model NO.
RDT-CO2
Cooling System
Water Cooling
Technical Class
CO2 Laser
Applicable Material
Nonmetal
Structure Type
Desktop
Laser Technology
Laser Cutting
Application
Home Appliance, Environmental Equipment, Petroleum Machinery, Food Machinery, Aerospace, Automotive, Advertising
Origin
China
🔍 Product Overview

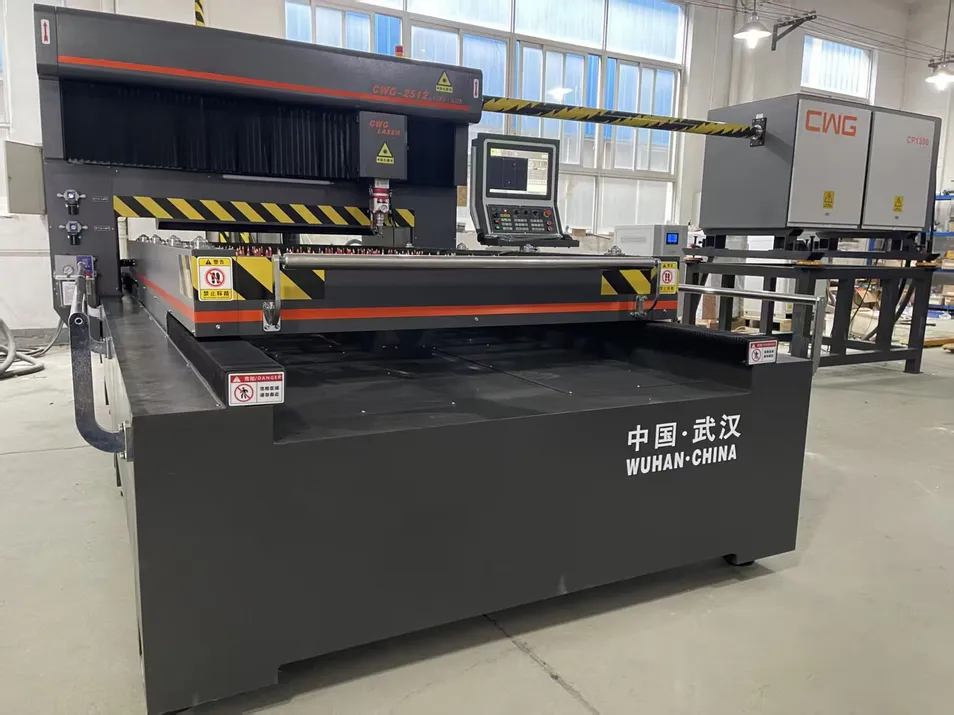

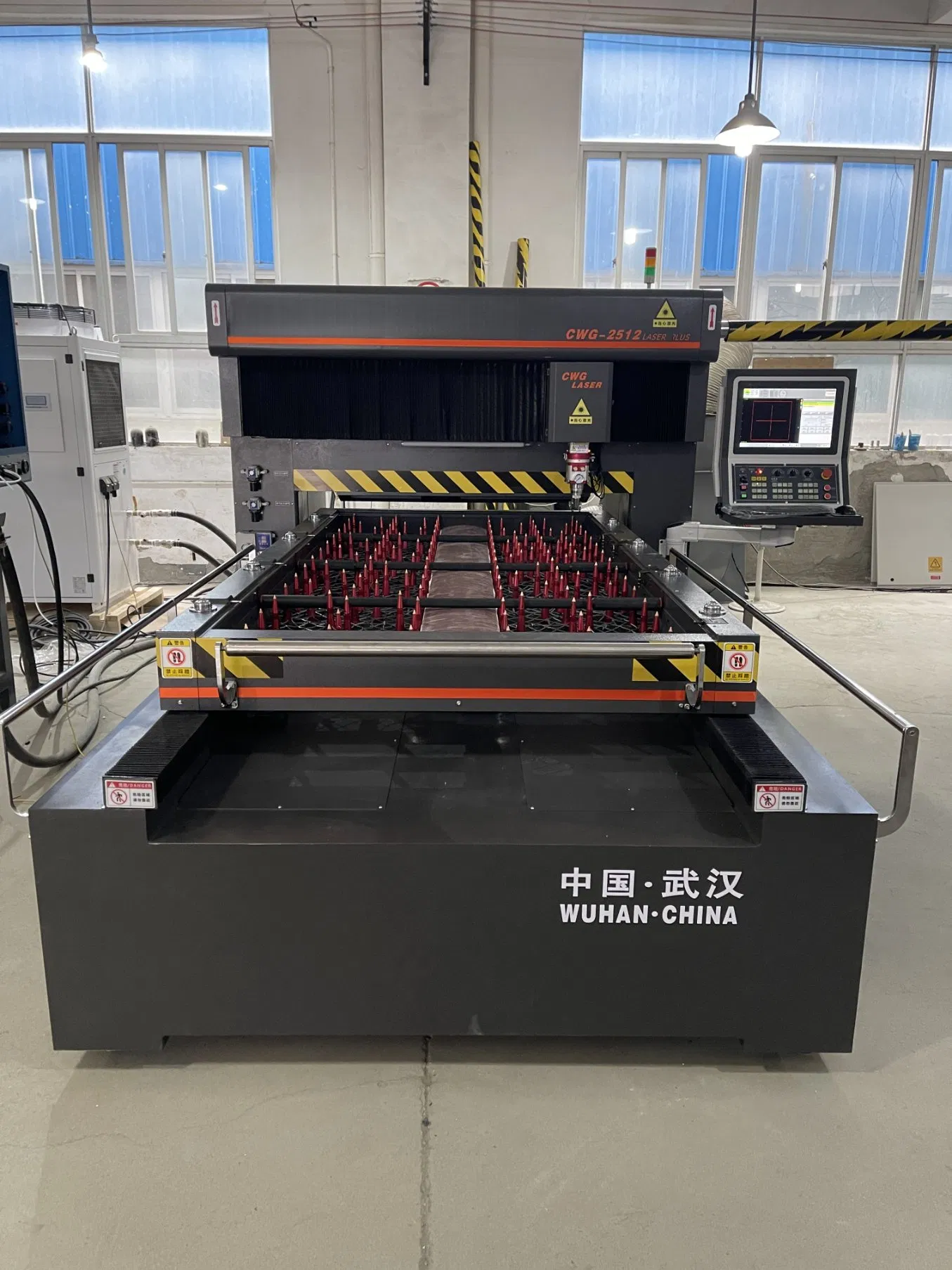

CO2 Laser Cutting Machine
  • CO2 laser cutting machine with gantry structure ensuring stability.
  • Constant structure maintains optical path stability with Y-axis moving bed.
  • Welding structure table with high strength, rigidity, and dynamic characteristics.
  • Tempering and vibration aging treatment to eliminate stress for precision.
  • Z-axis controlled by contact type inductance sensor for automatic surface tracking.
  • Automatic tracing-edge functionality.
  • Fully closed flexible flame retardant protective cover for the rail rack.
  • Anti-interference design with high-density shielding for signal and power wires.
  • Imported precision ball screws for X/Y/Z axes.
  • Professional customized PA-8000 CNC system for efficient laser processing.
📋 Technical Specifications
Seq Item Parameter
1Processing area (L * W)2500mm×1250mm
2X axis travel2500mm
3Y-axis Travel1250mm
4Z axis travel120mm
5X, Y axis positioning accuracy±0.02mm/m
6X, Y axis repeat positioning accuracy±0.02mm
7X-Y axis positioning speed50m/min
8Numerical control systemPA-8000
9Working bed max load weight300kg

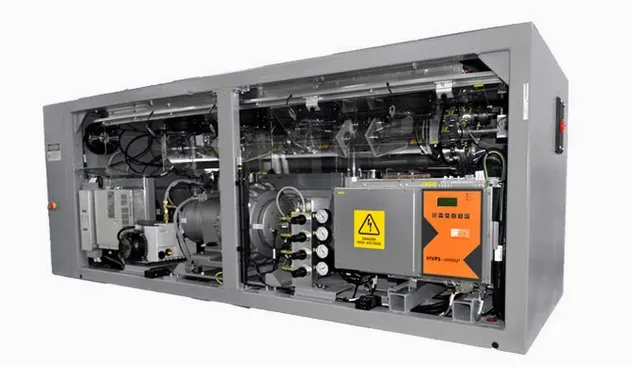

Machine Detail 1

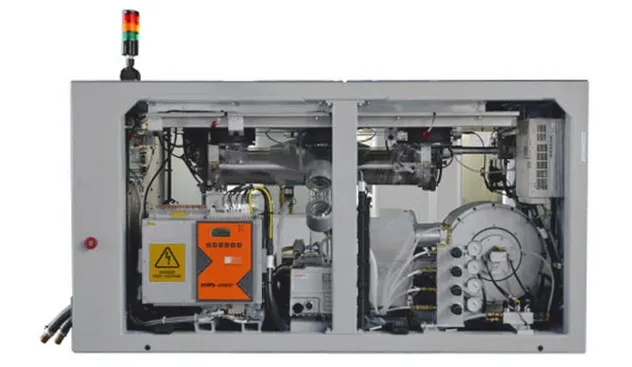

Machine Detail 2

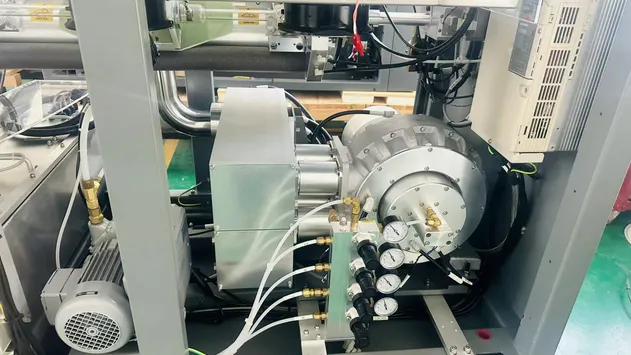

Machine Detail 3

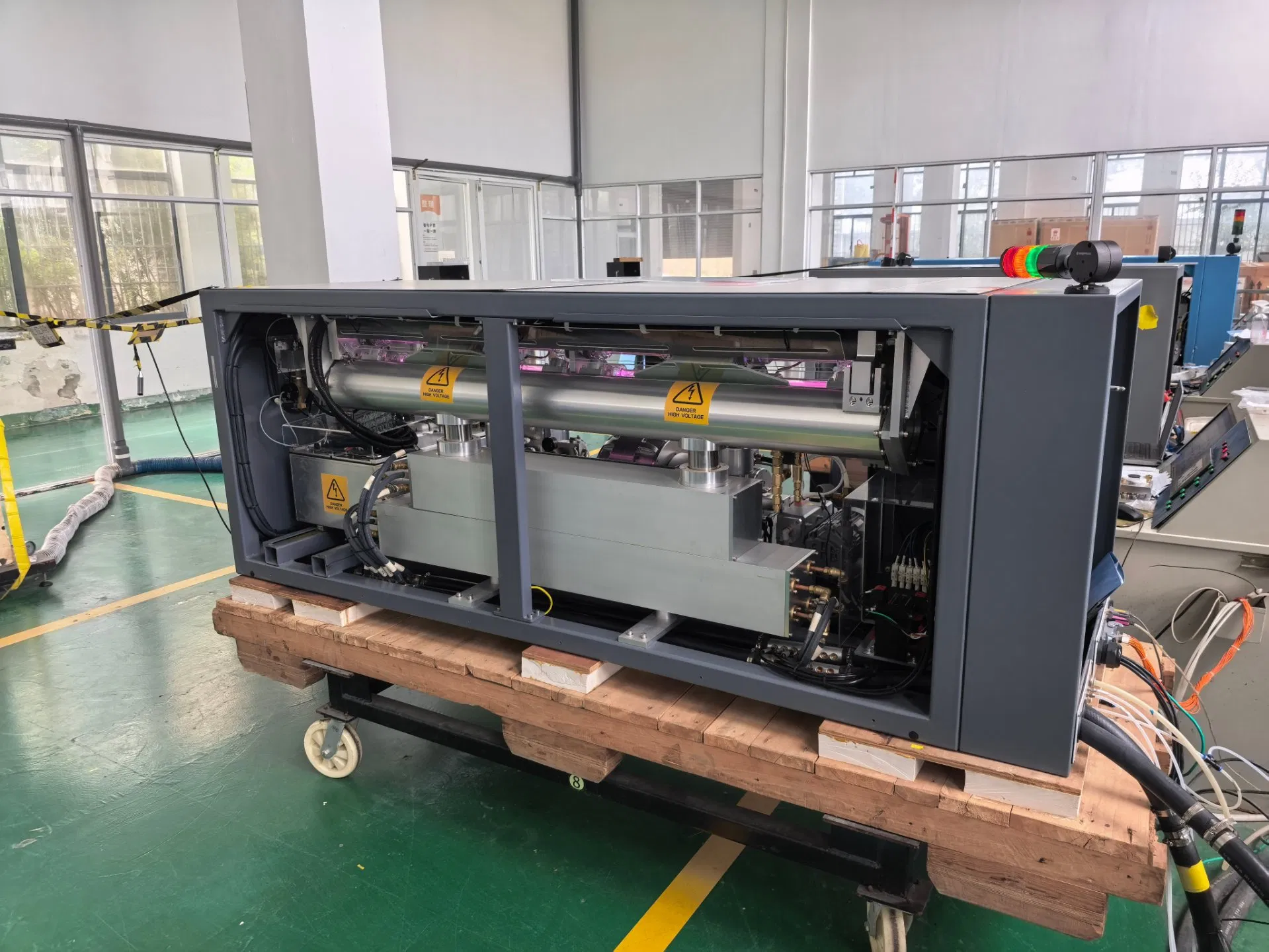

Specification CP1300/1800/2400
Laser power range(W)50-1300/1800/240
Wave length(μm)10.6
Polarization45° linear polarization
Beam quality (M2)< 2.4 (typical 2.1 to 2.3)
Pulse frequency (KHz)0-2
Beam diameter (mm)14.5mm@1/e2, 19mm full beam
Gas compositionCO2:N2:He =4%:28%:68%
Operation modeCW/pulse
💎 Key Features & Design
  • Integrated Structure: Completely new design with the smallest volume in its class.
  • Optical Stability: Precision machined aluminum alloy end plates and water-cooling Invar light bridge.
  • Clean Operation: International first-grade oil-free turbine avoids oil pollution on mirrors and tubes.
  • Intelligent Mixing: Integrated gas mixing unit regulates consumption automatically based on power.
  • High Efficiency: DC excited high voltage laser power supply with strong anti-interference.
  • Rapid Response: Fast peak pulse output improves drilling quality and shortens processing time.
  • Industrial Durability: Capable of stable 24-hour operation.

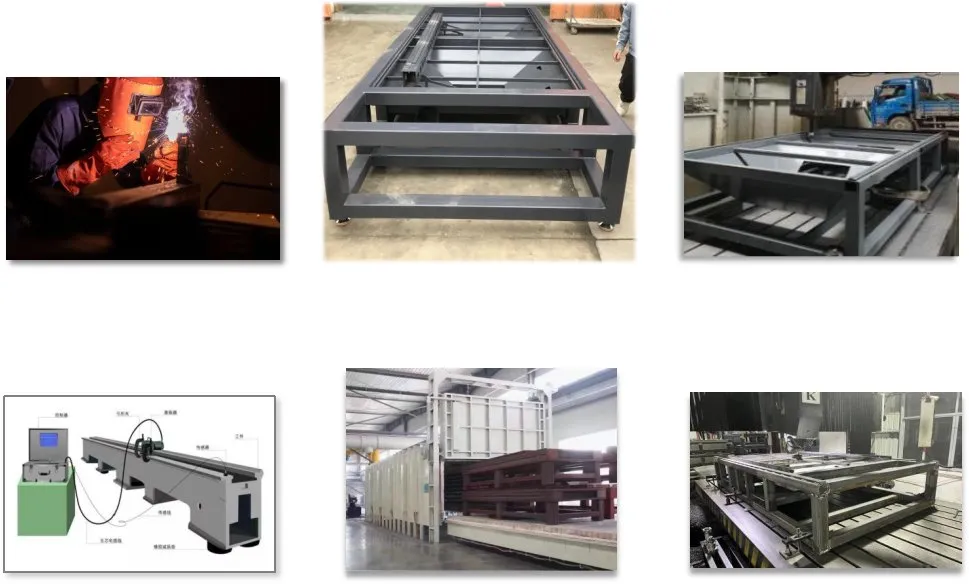

Technical Design Diagram
✂️ Cut Samples
Laser Cut Samples
🏭 Production Excellence
Integrating production of laser cutting, welding, and cleaning machines, we are committed to delivering state-of-the-art equipment and exceptional service to ensure client satisfaction.

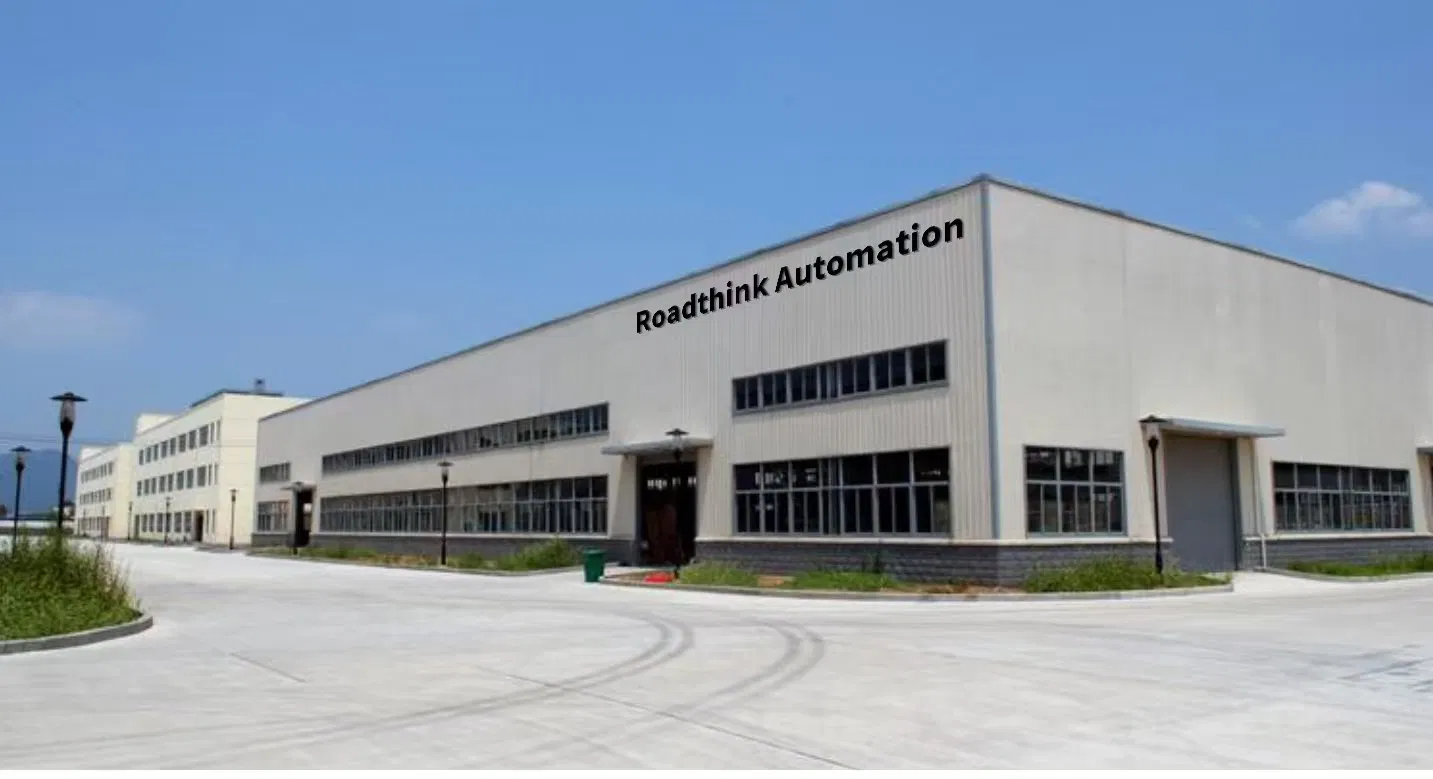

Factory Production Line
💡 Frequently Asked Questions
What materials can this CO2 laser machine process?
It is specifically designed for non-metallic materials, including those used in home appliances, food machinery, shoemaking, and the advertising industry.
How accurate is the positioning of the machine?
The machine offers an X/Y axis positioning accuracy of ±0.02mm/m and a repeat positioning accuracy of ±0.02mm.
What kind of maintenance does the turbine require?
The machine uses an oil-free turbine, which completely avoids oil pollution in the gas circuit and mirrors, greatly reducing maintenance costs and effort.
Does the machine support continuous industrial operation?
Yes, the system is designed for high stability and supports full power operation for 24 hours daily.
What is the advantage of the PA-8000 CNC system?
The PA-8000 is a professional CNC system tailored for laser processing, featuring efficient perforation and precise sharp angle processing capabilities.
Is pre-mixed gas required for operation?
No, the machine is equipped with an intelligent gas mixing unit, allowing you to use separate gases which is more economical and convenient.
