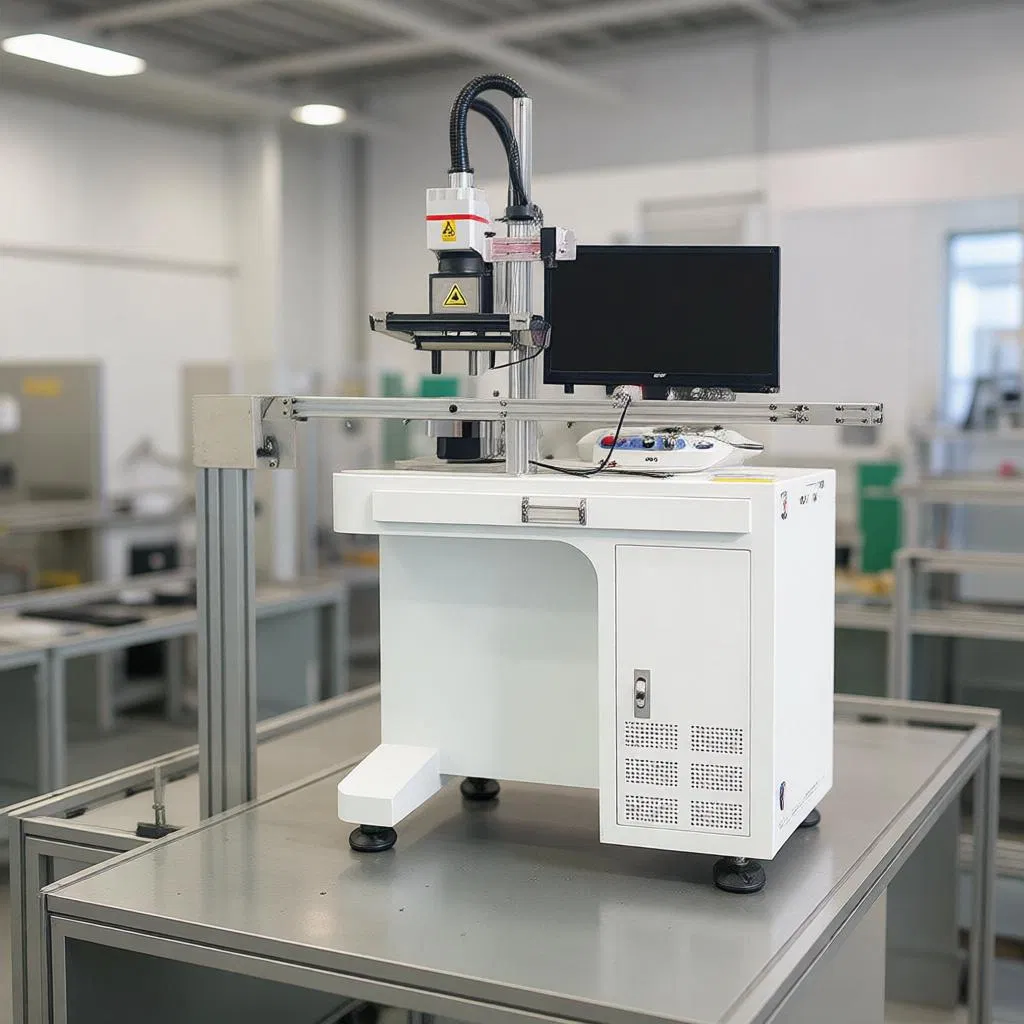

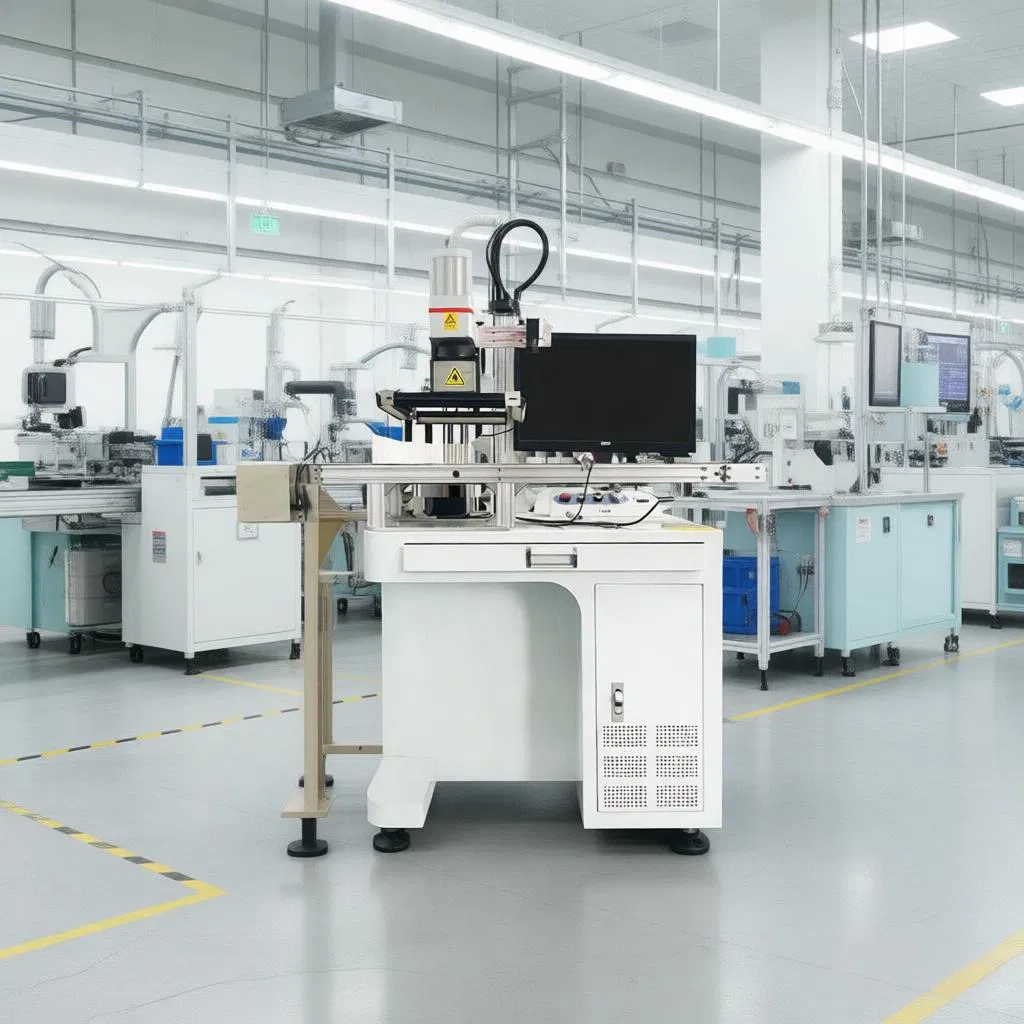

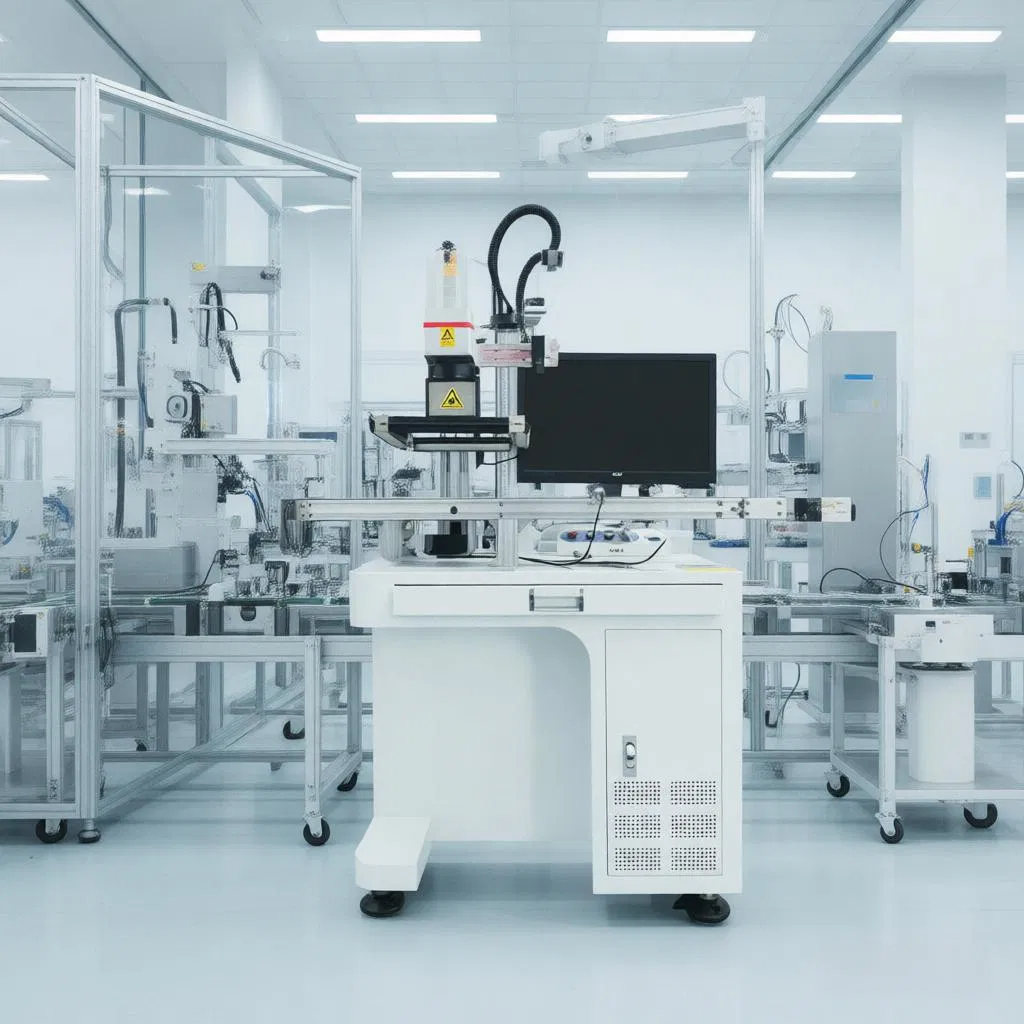

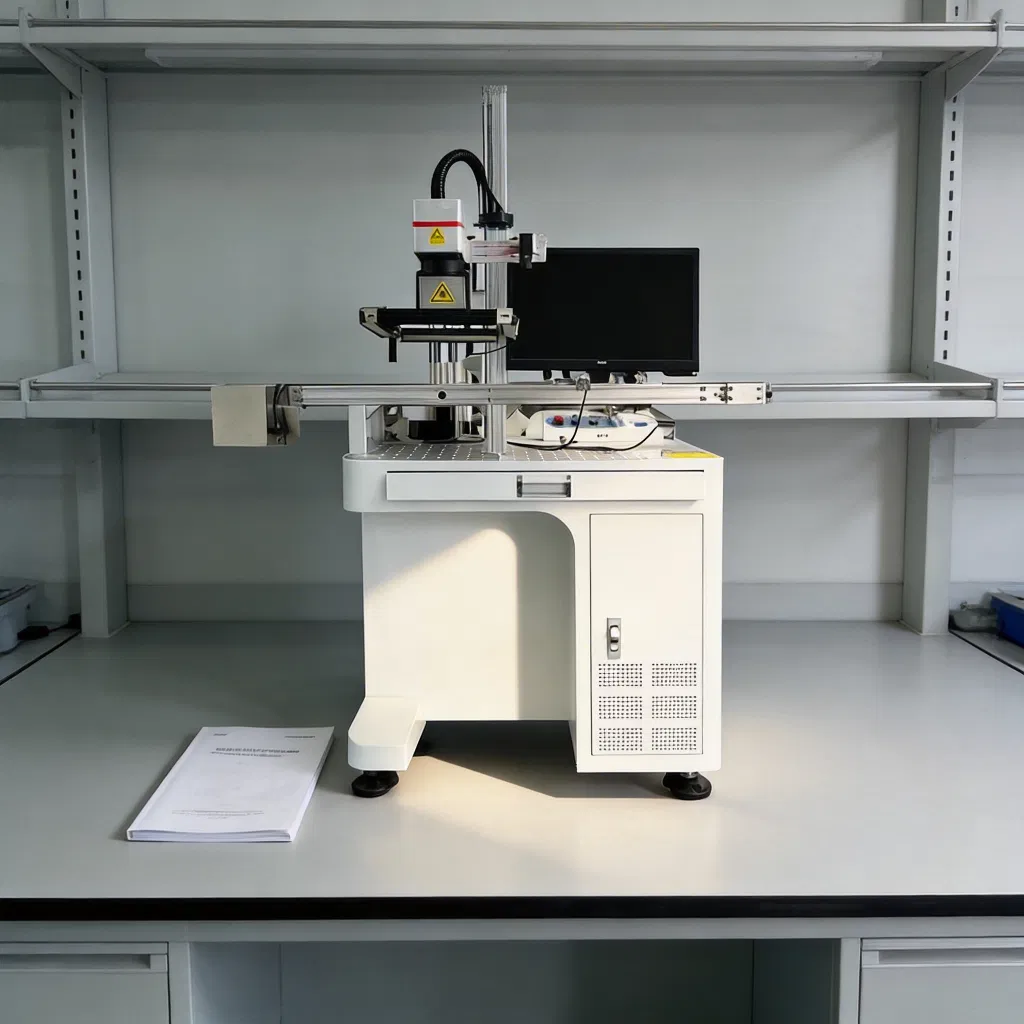

High Precision Vision Laser Marking System for Qr Code and Barcode Marking

Basic Information

Model NO.

YY-1200W

Type

Laser Machine Frame

Camera Type

Gigabit Network Industrial Camera

Lens Focal Length

12mm/16mm

Standard Software

Standard Visual Marking Software

Control Card Type

V1 Single-Axis / V2 Dual-Axis

HS Code

85258919

Specification

51mm x 51mm x 41mm

Product Description

Visual Laser Marking System

This independently developed visual laser marking system deeply integrates laser marking, motion control, and automatic loading and unloading technologies, enabling unmanned automatic marking processing. The software system supports customized assembly lines (x, y dual-axis platforms), and supports flying marking, pseudo-coaxial mode, and off-axis mode.

Through visual automatic recognition, positioning, and motion control, it achieves dynamic marking on assembly lines. Using visual positioning technology to guide the laser for precise marking of workpieces, it solves problems such as difficulty in manual positioning and low marking efficiency.

Core Advantages

High quality rate over 99.9%, with repeatability accuracy up to 0.01mm.
Supports various laser types, including fiber optic, carbon dioxide, and ultraviolet lasers.
Strong compatibility vision software, easy to operate and user-friendly.
Simultaneous recognition, positioning, and marking with multiple templates.
Adaptable to various environments: conveyor belts, XY platforms, vibratory feeders, etc.
Barcode reading, grayscale recognition, and missed-marking alarm systems.
Processing accuracy of ±0.025mm for conventional products.

System Solutions

XY Dual-axis Platform System

Flying Vision Marking System

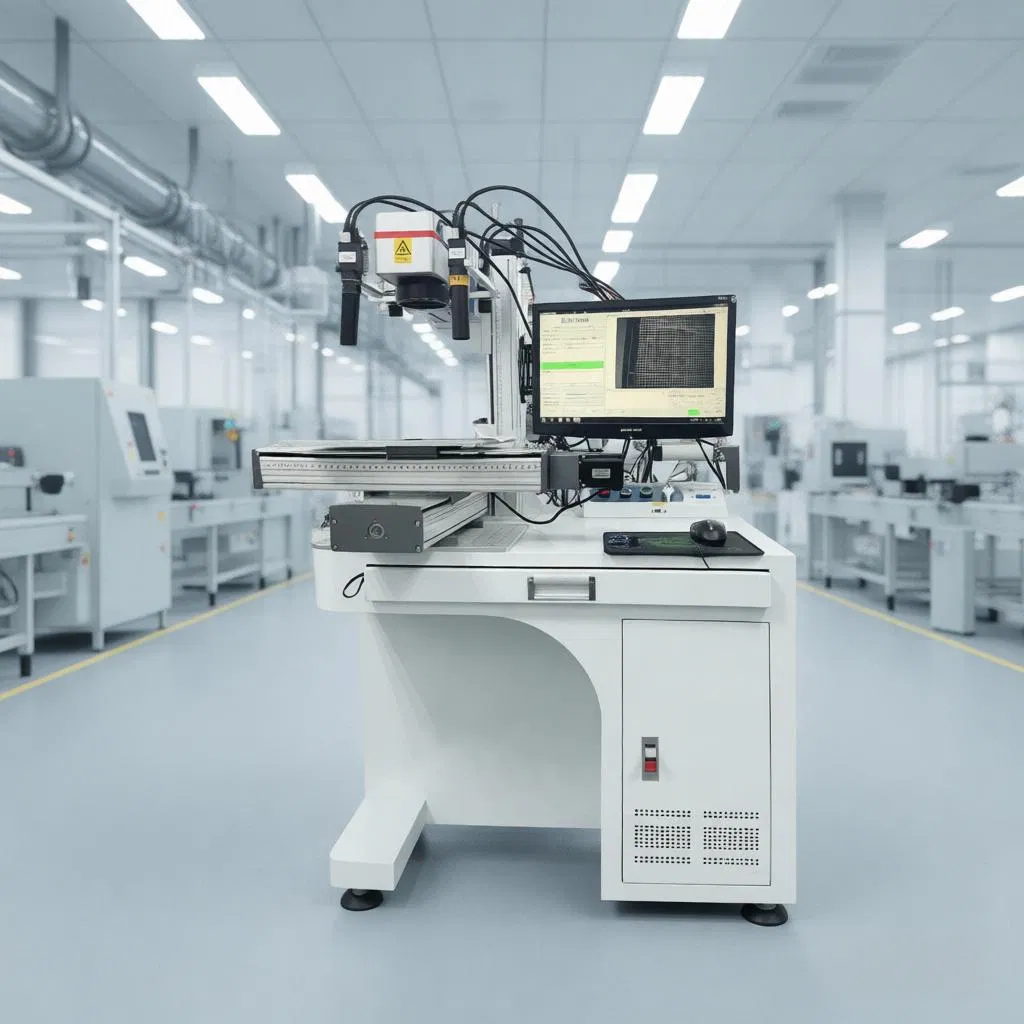

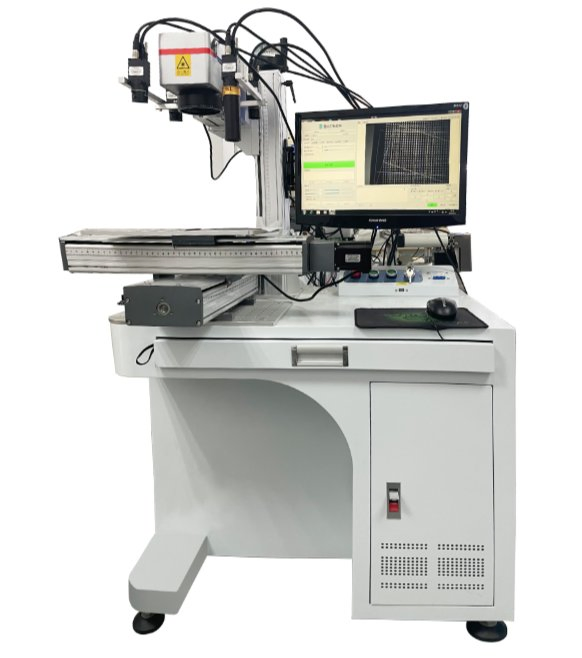

XY Dual-axis Platform: Suitable for large processing ranges, typically used with trays or entire boxes. Ideal for 3C industry, metal nameplates, and electronic components.

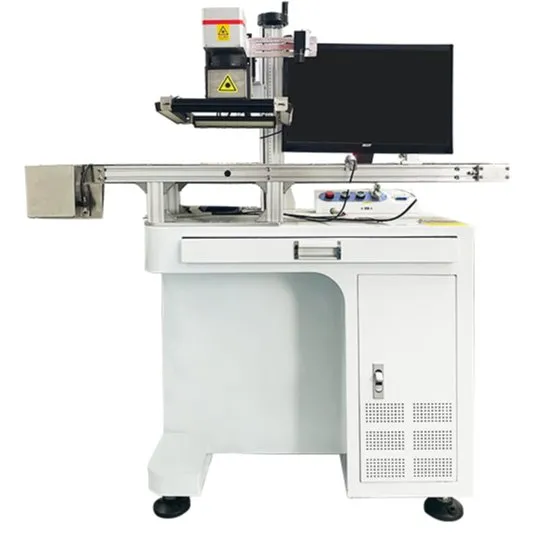

Flying Vision System: Accurately locates products continuously moving on production lines. Higher efficiency compared to static marking.

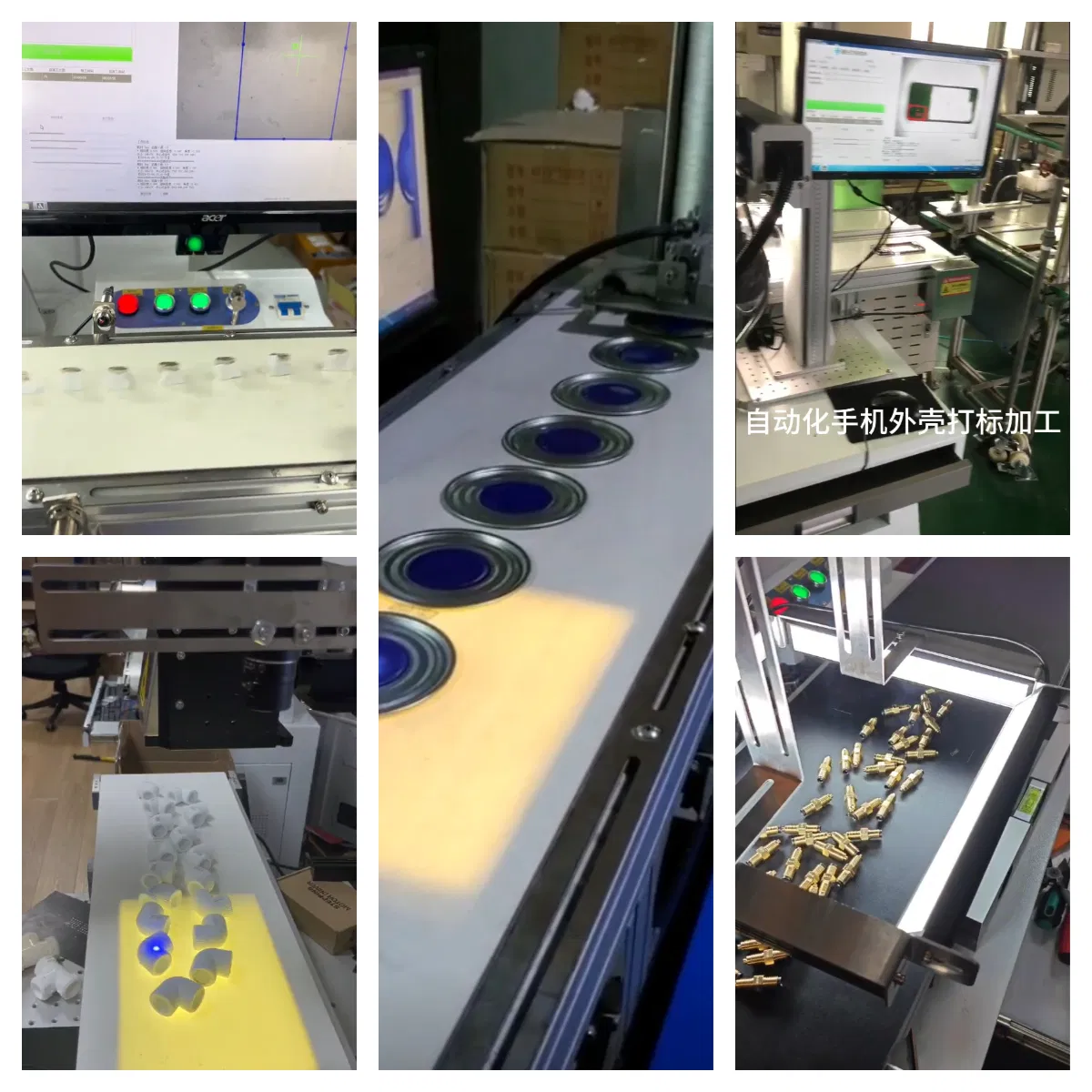

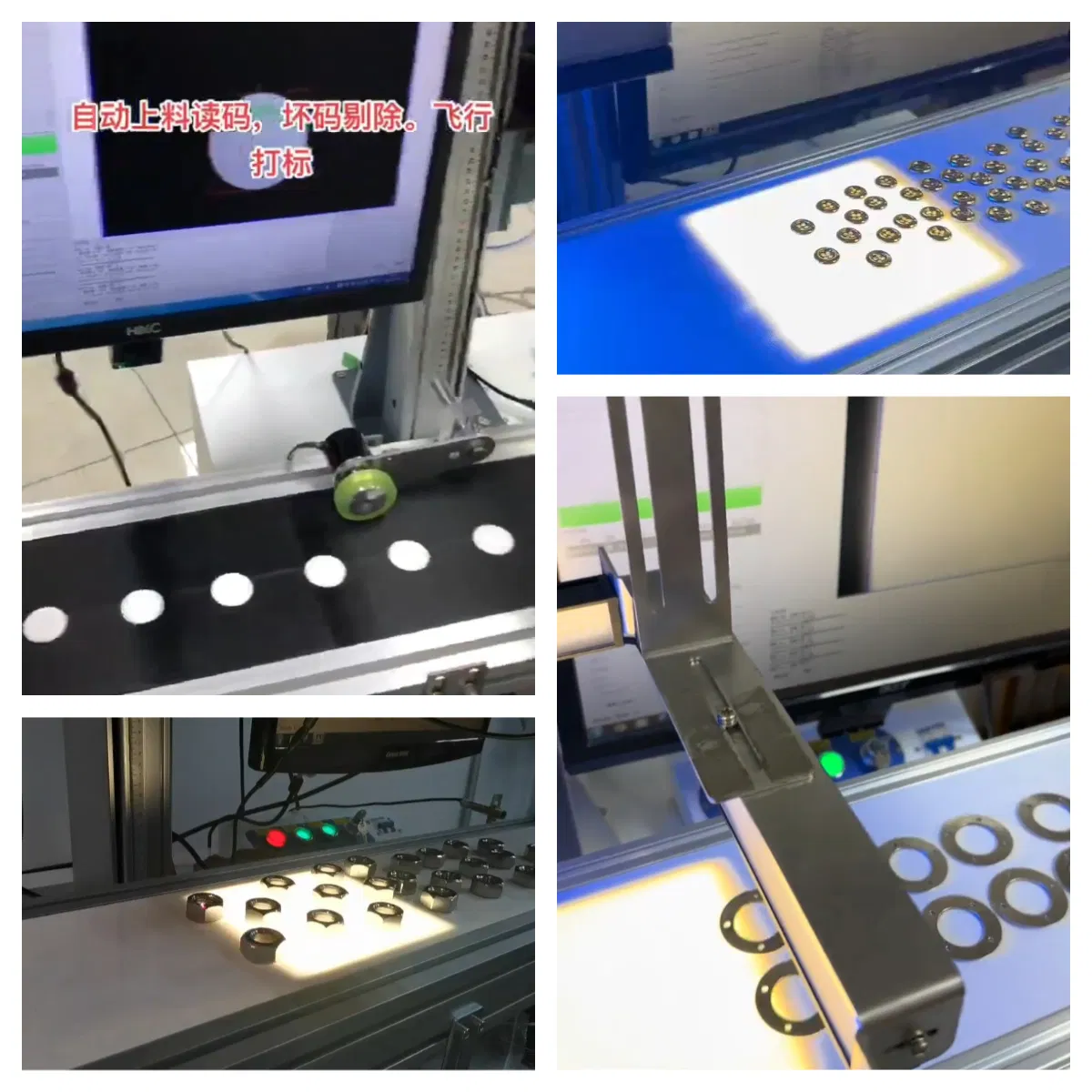

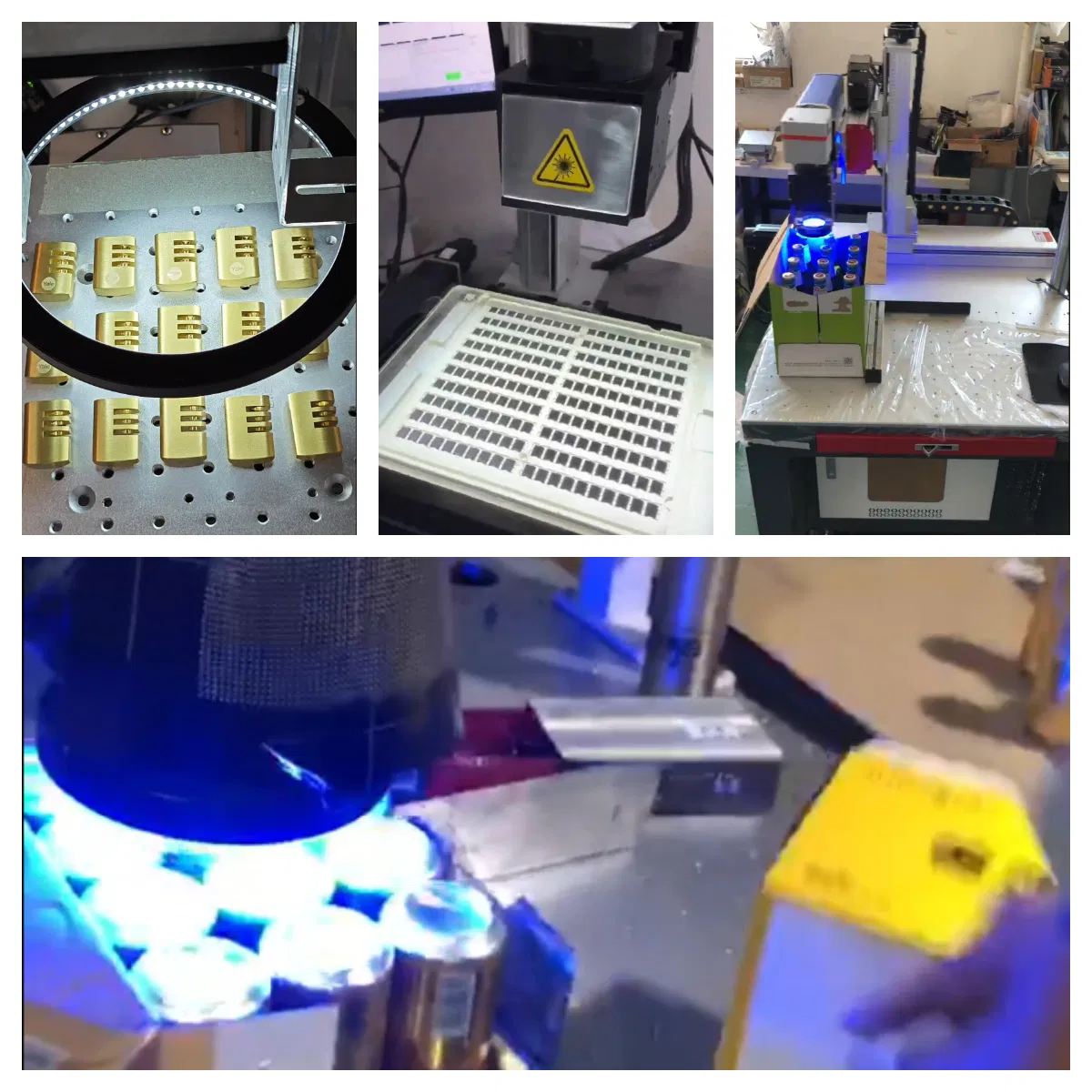

Case Studies & Applications

Professional Capabilities

Specializing in the R&D of industrial camera hardware and software as well as machine vision application solutions. Backed by a professional R&D team of more than 30 engineers, we focus on the design and manufacturing of industrial cameras supporting interfaces including USB3.0, GigE, and 10GigE.

Our solutions are widely used in machine vision, industrial inspection, robotics, drones, and semiconductor manufacturing, helping global partners accelerate deployment and reduce integration risks.

Frequently Asked Questions

What is the lead time for orders?

Standard products typically ship within approximately one month. Custom product lead times are determined based on technical specifications and material availability.

Are you a manufacturer or a trading company?

We are a professional industrial camera manufacturer integrating R&D, production, and sales, with our own technical team and production facilities.

Which sensor brands do you use?

We mainly use internationally recognized sensor brands such as Sony and ON Semiconductor to ensure high performance and stability.

Do you provide SDK and technical support?

Yes, we offer a complete SDK, development documentation, and support for secondary development and remote technical assistance.

What is the minimum order quantity (MOQ)?

Small MOQ is supported for standard models. The exact MOQ depends on the specific product model and requirements.

Which industries are your cameras used in?

Our cameras are widely used in machine vision, automated inspection, vision positioning, laser marking, robot guidance, and electronics manufacturing.
