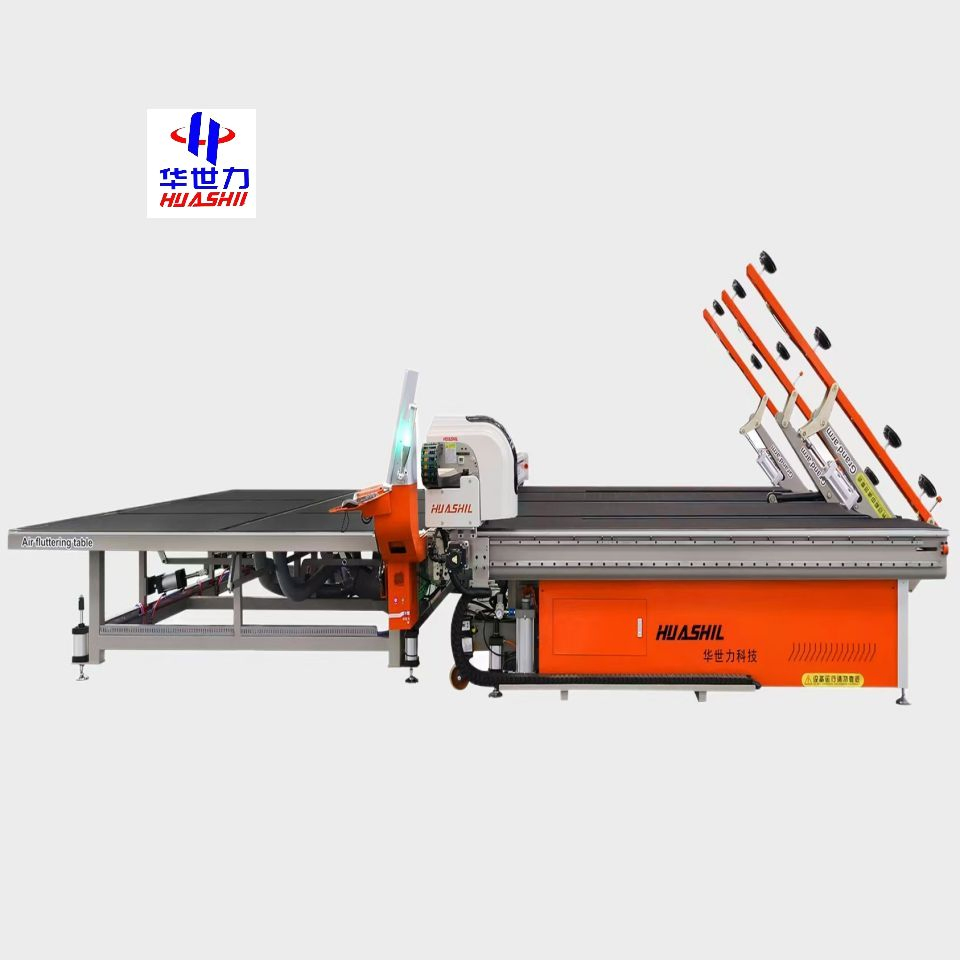

Innovative Glass Processing Solutions for Effortless Mirror Cutting

Customization:	Available
Certification:	CE, ISO
Cutting Method:	Diamond Wheel Cutting

Send Inquiry

Product Description

📋 Basic Information

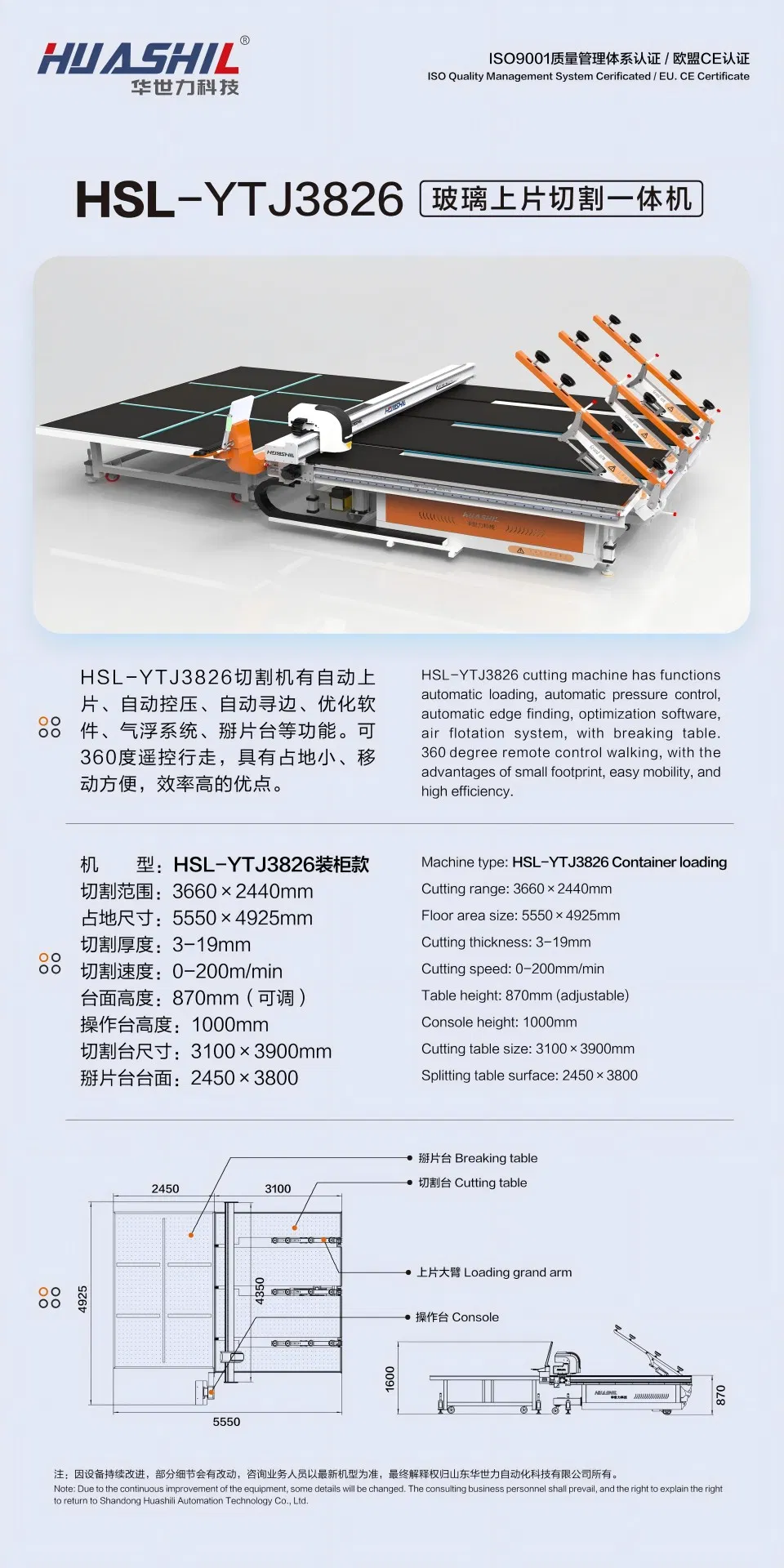

Model NO.HSL-YTJ3826

Maximum Cutting Thickness15 mm

Power Supply380V

Safety FeaturesEmergency Stop Button

Power15kw

Dimensions5700*4925*1600mm

Glass Size3660*2440mm

Glass Thickness3-15mm

Cutting Speed0-200m/Min

Cutting Accuracy<=+-0.2mm/M

Table Height0.88m

Key Selling PointsHigh-Accuracy

Applicable IndustriesBuilding Material Shops, Manufacturing Plant

Control SystemPLC

HS Code8464901100

Production Capacity100 set/Month

🔍 Product Details

⚙

Advanced Control System: Seamless automatic cutting of both straight and intricately shaped glass, elevating efficiency and precision.

📚

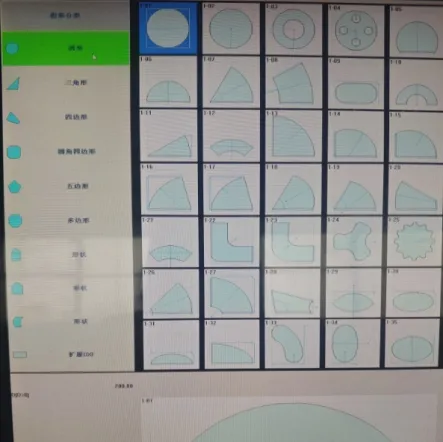

Special-Shaped Library: Integrated patterns and templates tailored to accommodate diverse cutting requirements.

🎯

Edge-Finding & Positioning: Accurate detection of true position and deflection angle for unmatched operational efficiency.

🛡

Safety Loading Tech: Advanced anti-strip function provides protection against adhesion risks during handling.

🚀

High-Pressure Flotation: Strategic air holes and centrifugal fans generate airflow to transport glass while preventing surface scratches.

📷 Technical Component Breakdown

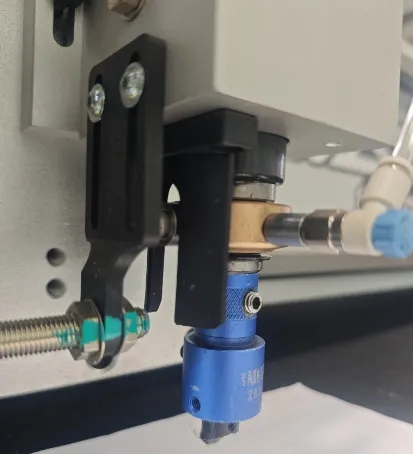

Revolutionary Cutting Technology & Automatic Oil Supply

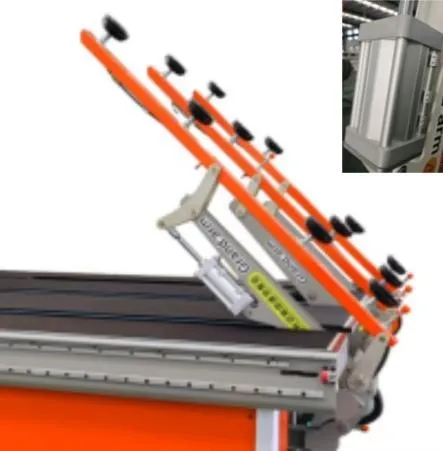

Automatic Edge Positioning & Telescopic Boom Loading

Frame	Thickened profile with aging treatment; side beam processed by gantry machine tools for maximum stability.
Side Beam	Patented industrial aluminum combined linear guide rails ensure stable operation of the cutting bridge.
Cutting Beams	Milled by a gantry milling machine to ensure precision accuracy.
Straight Square Rail	Customized linear guides with high precision, low noise, and long-lasting stability.
Gear and Rack	6-grade ground helical gear rack, HRC50~55°, high wear resistance.
Fan	High total pressure centrifugal fan ensures large flow rate for stable glass flotation.

🚂 Applications

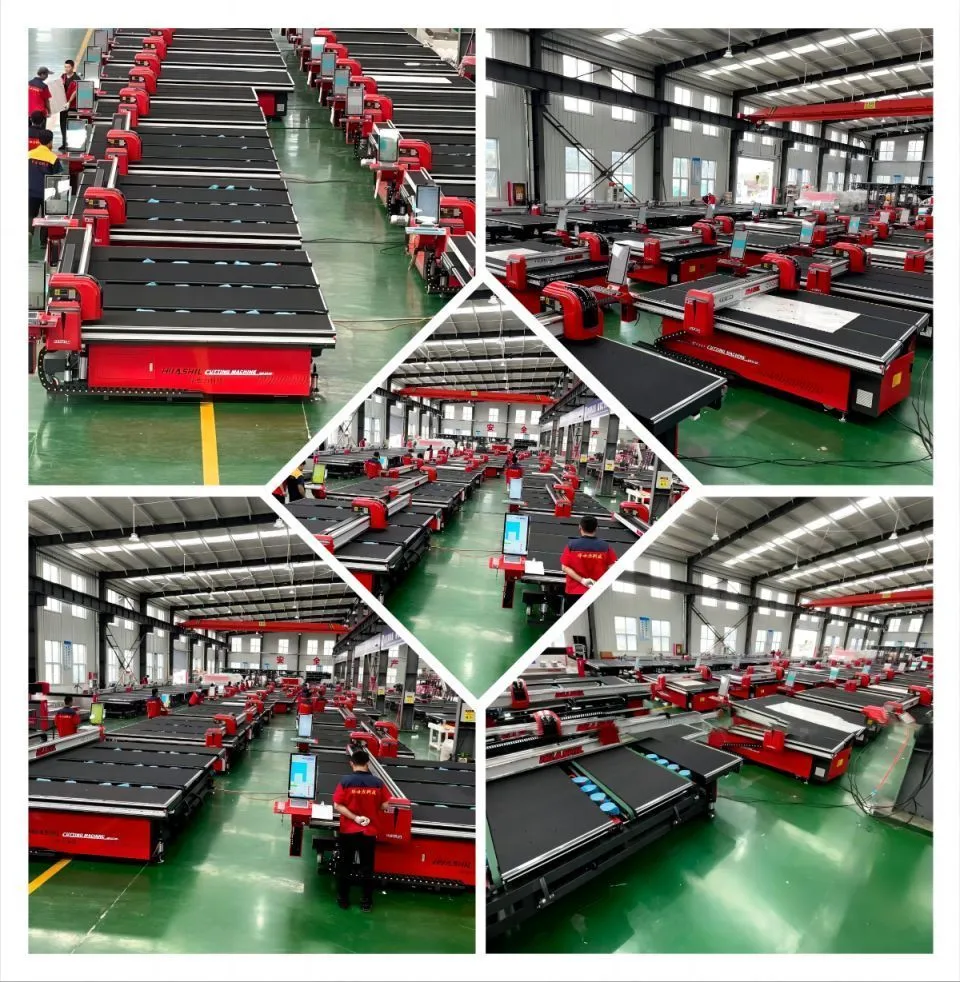

🏭 Manufacturing Excellence

Our facility is a pioneering high-tech enterprise committed to the research, development, and manufacturing of mechanical automation equipment. We specialize in glass deep processing machinery, including loading and cutting lines, intelligent chip trimming systems, and precision glass edging solutions.

Driven by technological excellence, we lead the industry in intelligent automation and material control. Our commitment to inventive design and outstanding after-sales service ensures durable, high-performance equipment that meets global industrial standards.

🌐 Exhibition & Logistics

📞 Service Support

Comprehensive Pre-Sales Service

1. Swift, professional responses to all machinery inquiries.
2. Tailor-made advice to align with your unique configuration requirements.
3. In-depth factory walkthroughs for complete confidence.

Exceptional In-Sales Service

Experience a holistic, one-stop tailored service journey. We provide 24/7 online technical support to ensure seamless productivity throughout the installation phase.

Unparalleled After-Sales Service

Highly skilled engineers offer international installation and training. We guarantee a consistent supply of spare parts at competitive prices to keep your operations running effectively.

❓ Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a professional manufacturer with over a decade of dedicated experience in the glass processing machinery industry.

What is the typical delivery lead time?

For standard machines, the delivery time is 20 days after the deposit is received. For customized solutions, please consult our team for a specific timeline.

How do you handle technical support and breakdowns?

We respond immediately to technical issues via email or instant messaging. Email inquiries are addressed within 12 hours, and we can dispatch engineers for on-site assistance if required.

What is the warranty period for your machinery?

All machines include a one-year warranty (excluding wear parts). We provide free replacement for broken parts during this period, plus 24/7 online technical support.

Do you offer operator training for the equipment?

Yes, we provide professional engineer visits for installation, adjustment, and operator training. Remote online training sessions are also available upon request.

Can the machinery be customized for specific glass sizes?

Absolutely. We offer customization options to meet specific industrial glass processing dimensions and thickness requirements.
