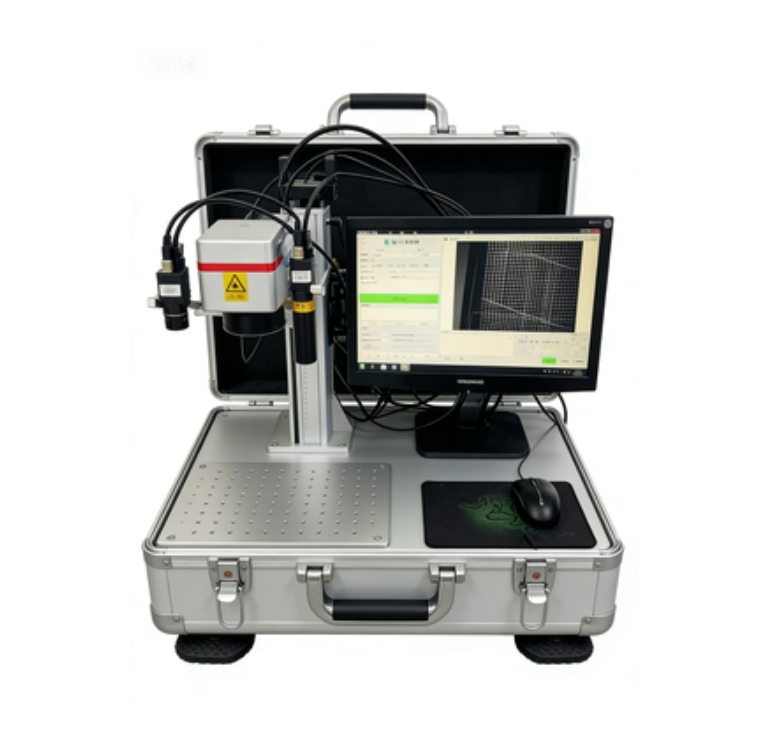

Precision Automatic Vision Alignment Laser Marking System with CCD Technology

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

YY-500W-F

Type

Laser Machine Frame

Camera Type

Gigabit Network Industrial Camera

Lens Focal Length

12mm/16mm

Annotation Mode

Induction / Xy Platform

Control Card

V1 Single-Axis / V2 Dual-Axis

Specification

51mm x 51mm x 41mm

HS Code

85258919

Product Description

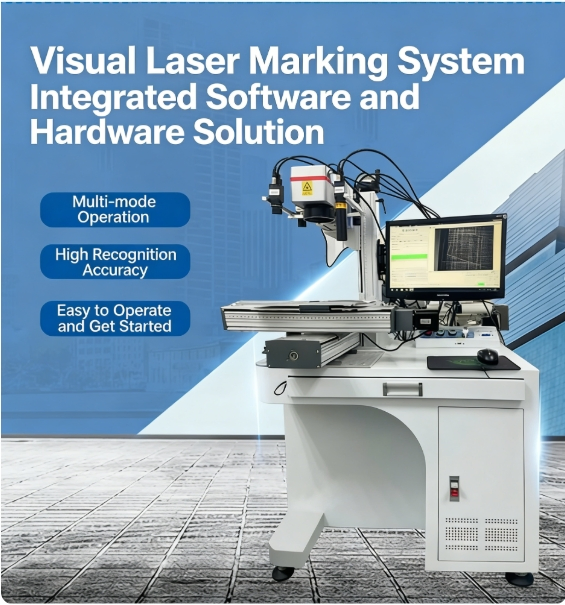

Visual Laser Marking System

The independently developed visual laser marking system deeply integrates laser marking, motion control, and automatic loading and unloading technologies, enabling unmanned automatic marking processing. Through visual automatic recognition, positioning, and motion control, it achieves dynamic marking on assembly lines. It solves problems such as manual positioning difficulty and low marking efficiency, reducing personnel requirements while improving overall processing accuracy.

Key Advantages

Quality rate over 99.9%, with repeatability accuracy up to 0.01mm.
Supports fiber optic, carbon dioxide, and ultraviolet lasers.
Vision software with strong compatibility, user-friendly and flexible.
Simultaneous recognition, positioning, and marking with multiple templates.
Adaptable to conveyor belts, XY platforms, and automated feeders.
Processing accuracy of ±0.025mm with zero missed markings.
Customized visual algorithms for complex objects.

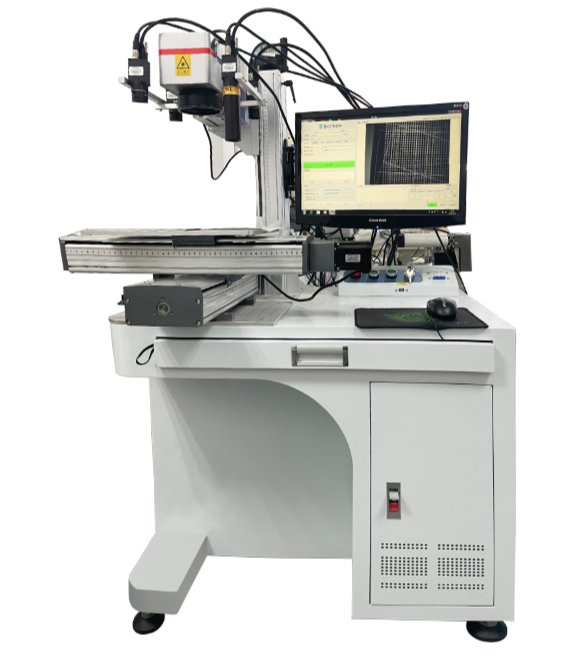

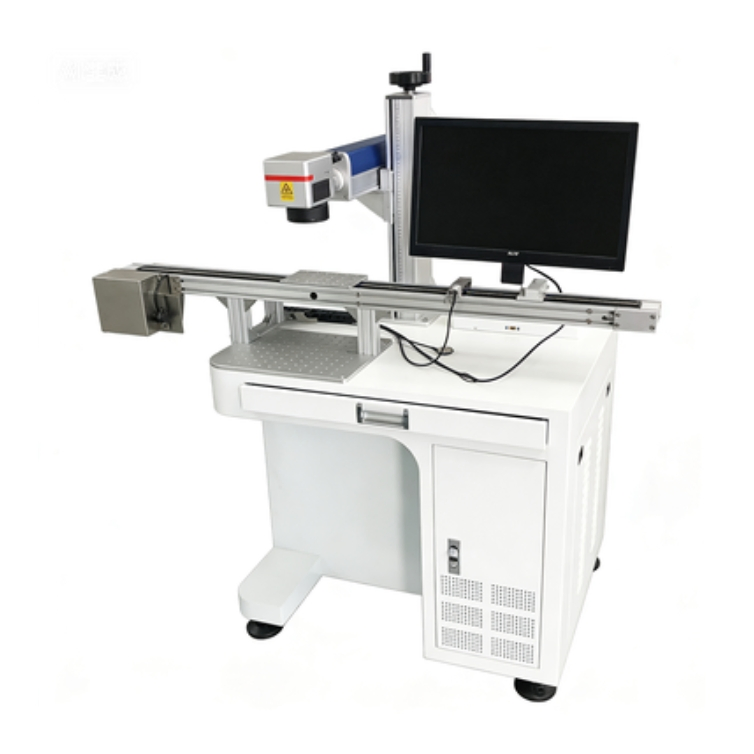

XY Dual-axis Platform System

Suitable for large processing ranges and tray-packed items. Ideal for 3C industry, metal nameplates, and electronics components.

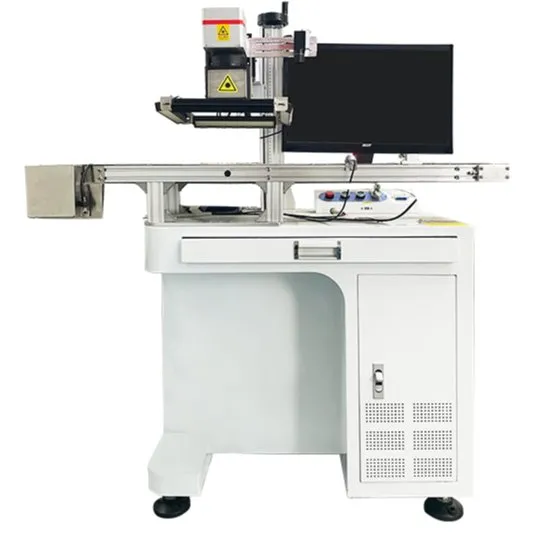

Flying Vision System

Accurately locates and processes products continuously moving on production lines with high efficiency tracking.

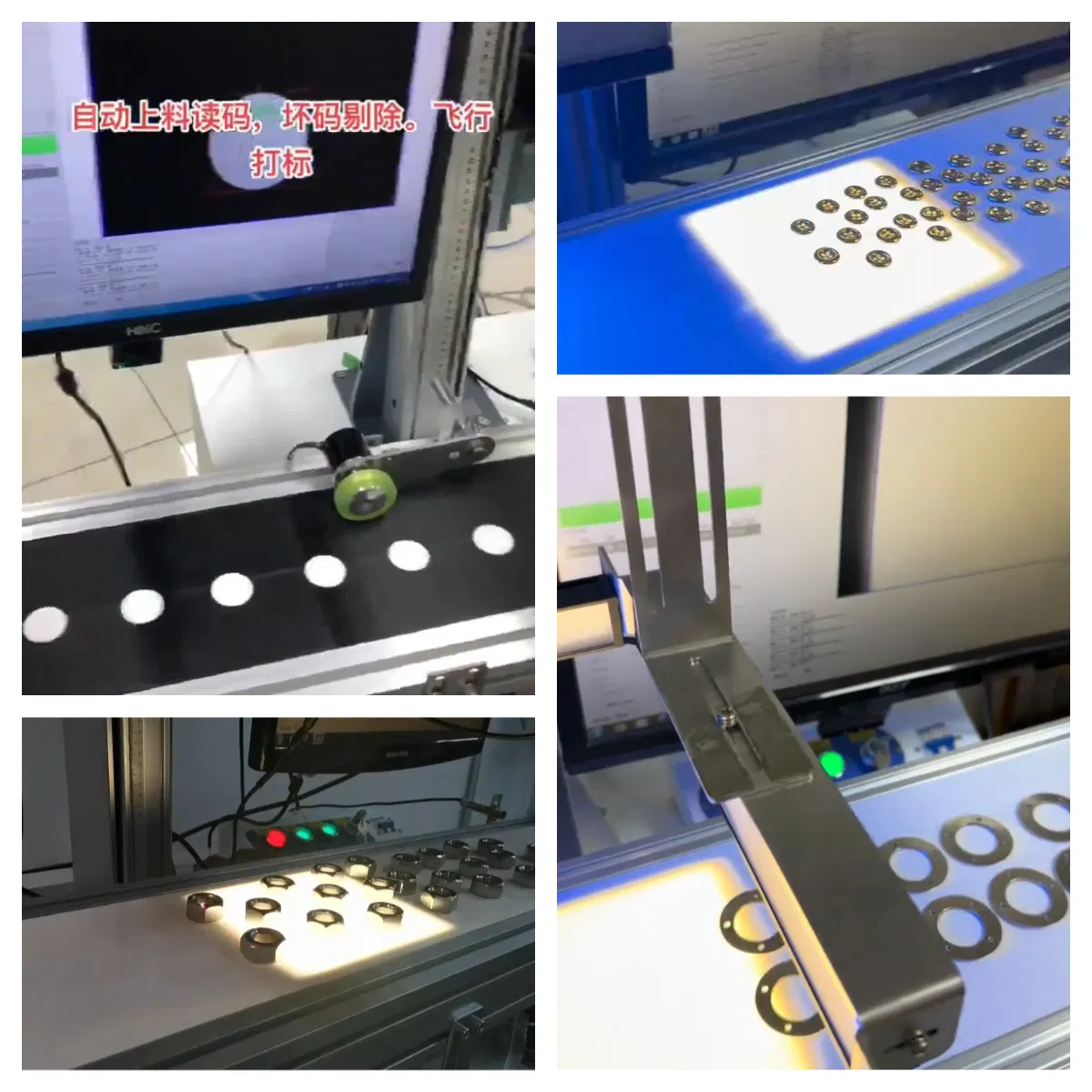

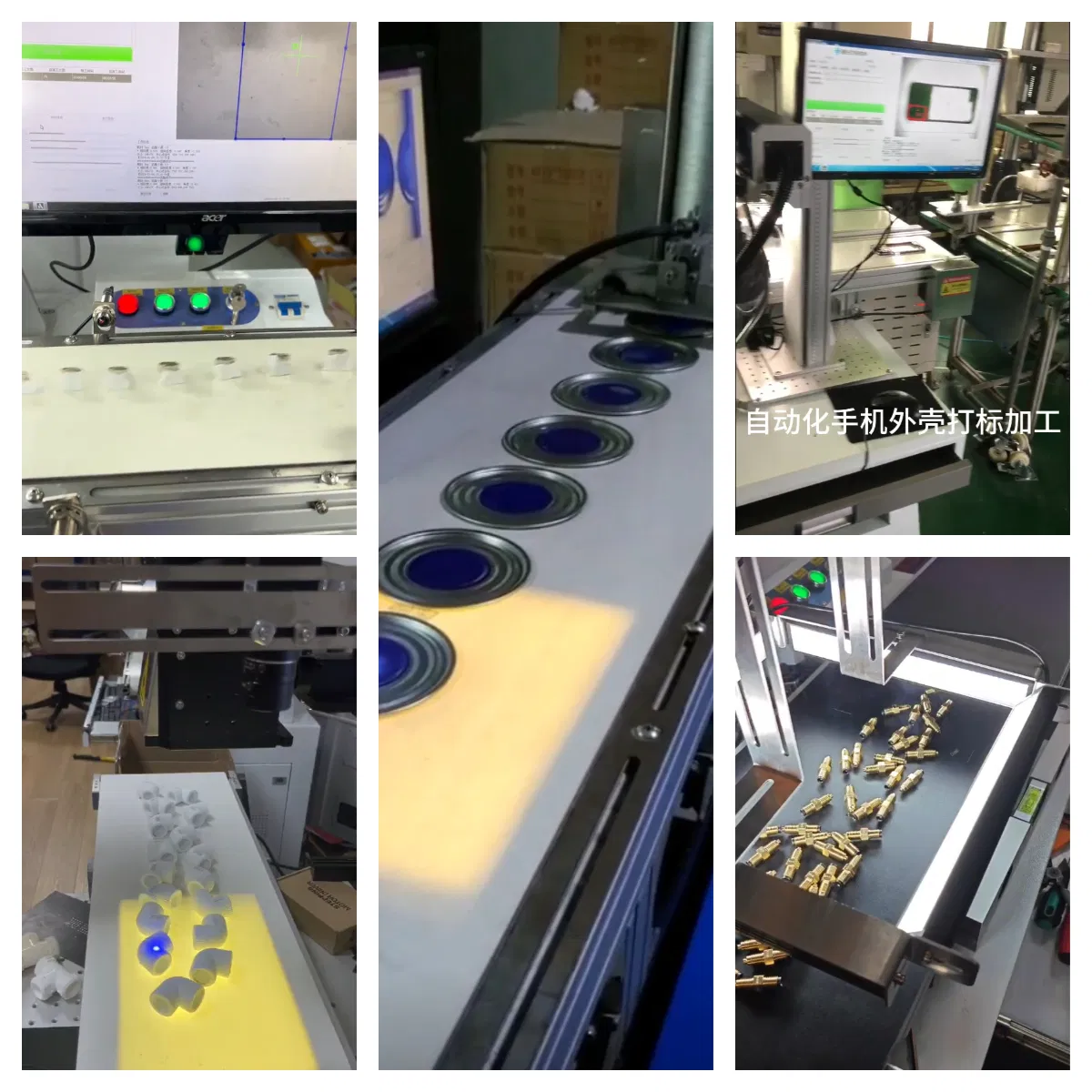

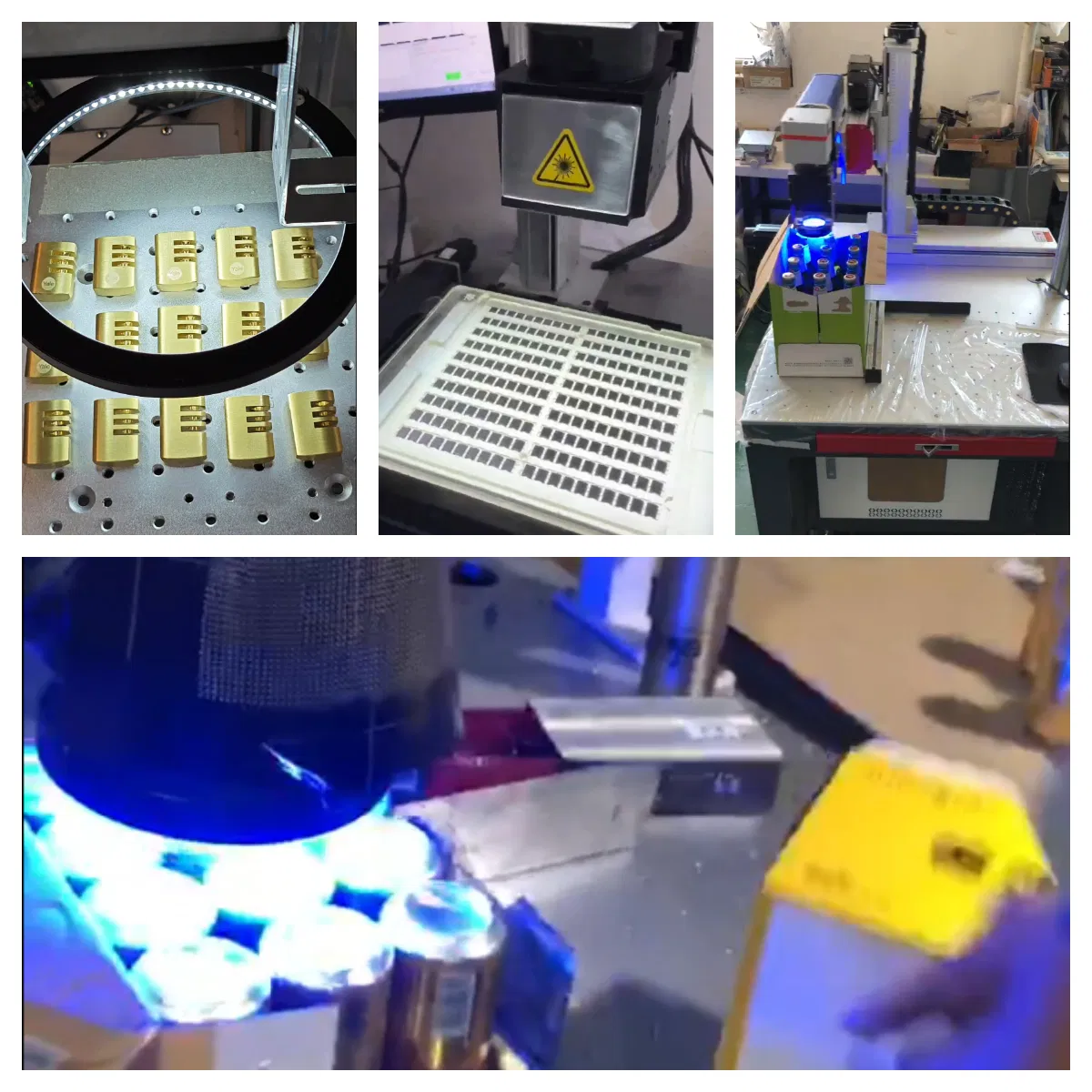

Case Studies

Technical Expertise

Specializing in industrial camera hardware and machine vision solutions with over a decade of experience. The R&D team focuses on designing high-performance industrial cameras supporting USB2.0, USB3.0, GigE, and GMSL interfaces. By delivering validated and scalable vision technologies, the solutions help accelerate deployment and reduce integration risks across global industrial ecosystems.

Frequently Asked Questions

What is the lead time for orders?

Standard products typically ship within approximately one month. Custom product lead times are determined based on technical specifications and material availability.

Do your products come with a warranty?

Yes, our systems are built for environmental protection and durability, typically featuring a warranty period of 3 years to meet industrial needs.

What is the minimum order quantity (MOQ)?

Small MOQ is supported for standard models. The exact quantity depends on the specific product model chosen.

Are you a manufacturer or a trading company?

We are a professional industrial camera manufacturer integrating R&D, production, and sales with our own technical team and facilities.

Which sensor brands do you use?

We primarily use internationally recognized sensor brands such as Sony and ON Semiconductor to ensure high imaging quality.

Do you provide SDK and technical support?

Yes, we offer a complete SDK, development documentation, and full support for secondary development and remote technical assistance.
