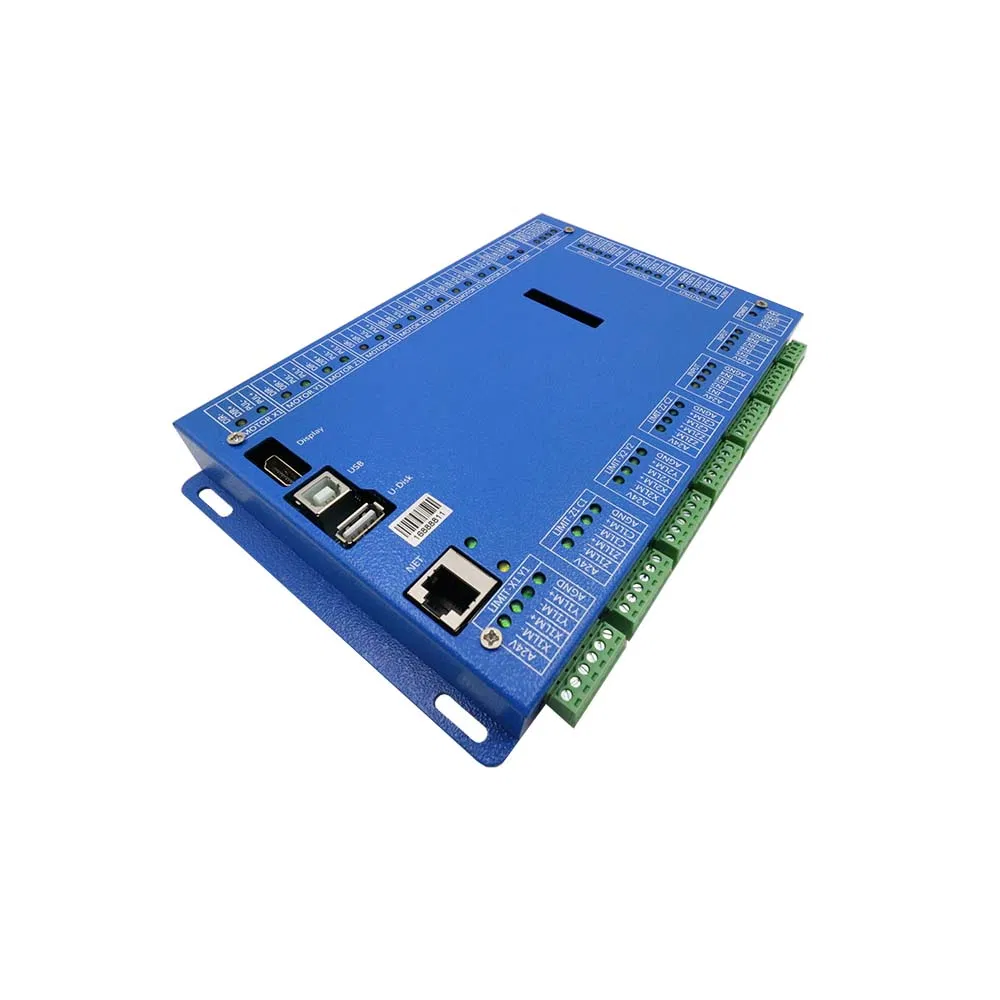

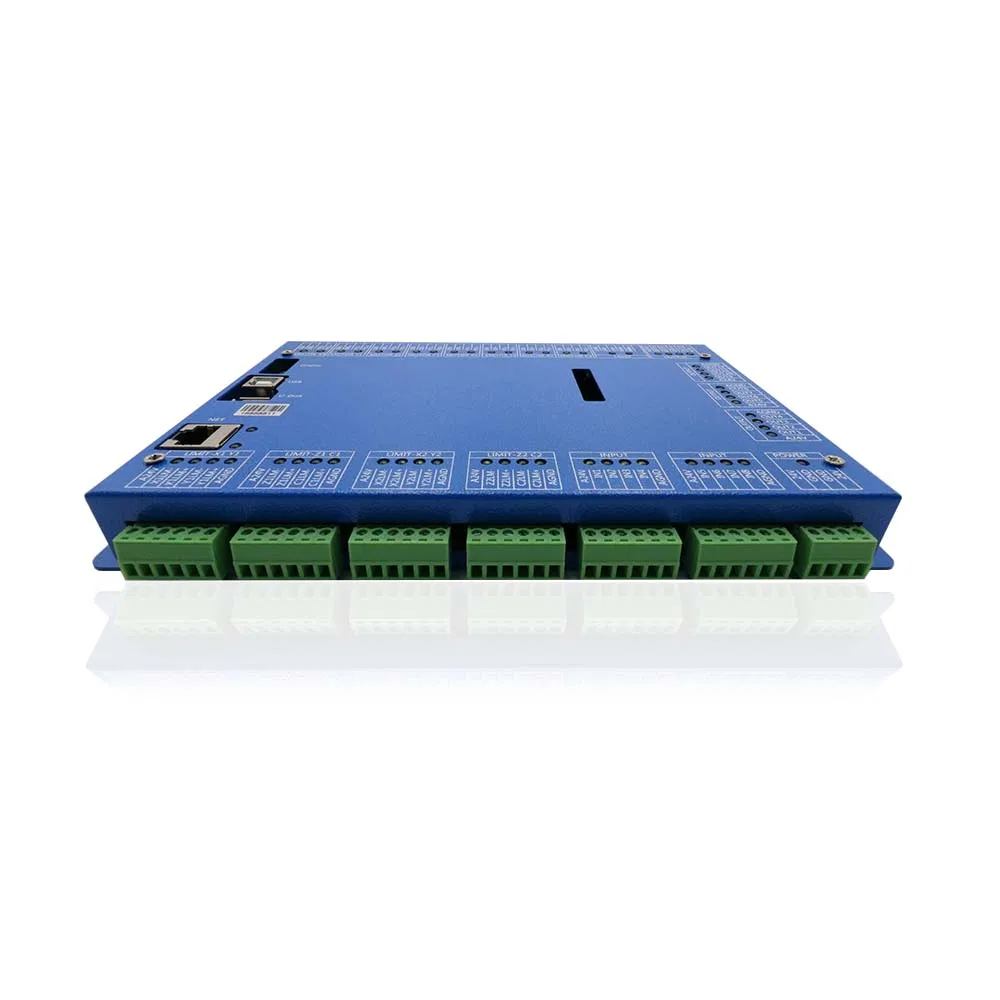

Precision Visual Positioning Vibration Knife for Fabric Cutting cut control

Basic Specifications

Model NO.

ZD712

Type

Laser Control Card

Packing Size

260*210*90MM

Gross Weight

2.2KG

Applications

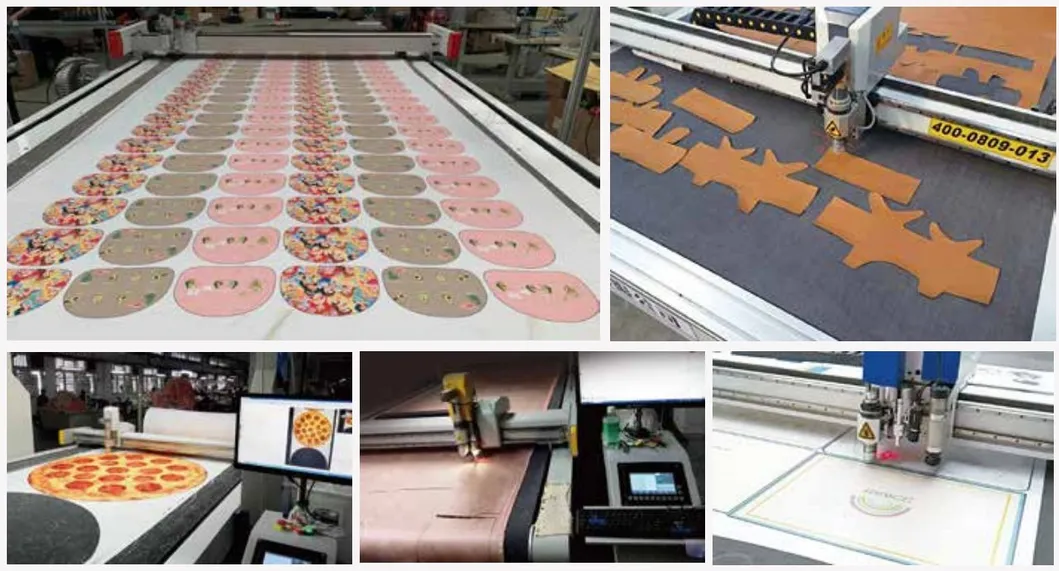

Digital prints, fabrics, clothing, sportswear

Power Supply

DC 24v / 3v Battery

Software

Windows (except Vista)

File Formats

PLT, AI, DXF, DST, BMP, JPG, PNG

Core Features & Advantages

◈Comprehensive processing: Supports cutting, V-slot, punching, brush, and milling cutter processes.
◈Multi-head Versatility: Compatible with single-head, double-head, and three-head synchronization or intermigration.
◈Intelligent Vision: Visual recognition for automatic edge lifting, multi-template cutting, and MARK point positioning.
◈Advanced Geometry: Supports V-slot arc transitions and conversion to I-slots for tool-free hole equipment.
◈Flexible Control: Adjustable cutting points (start, middle, or end) for long-line processing.
◈Seamless Connectivity: Supports USB, Network communication, and U-disk data exchange.
◈Dual Modes: Supports both offline and online working modes with remote system update capabilities.

Technical Parameters

Hardware Interface

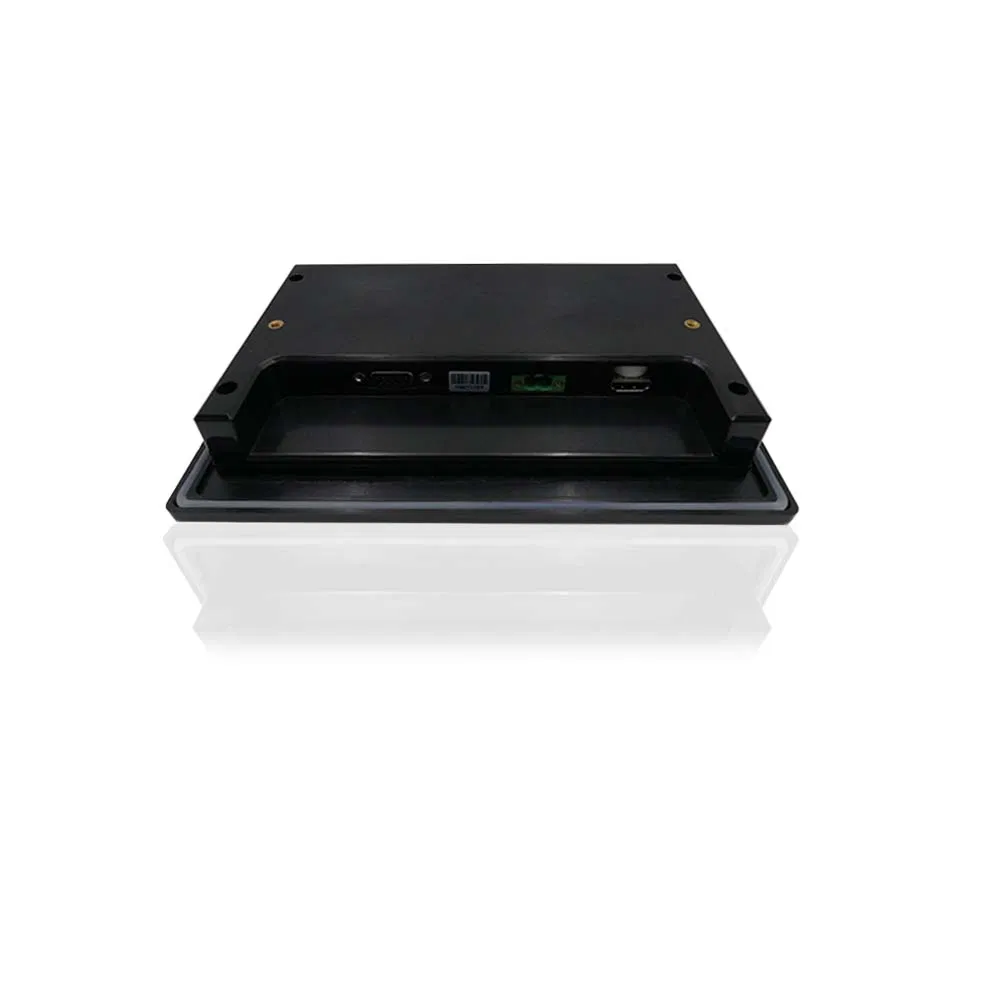

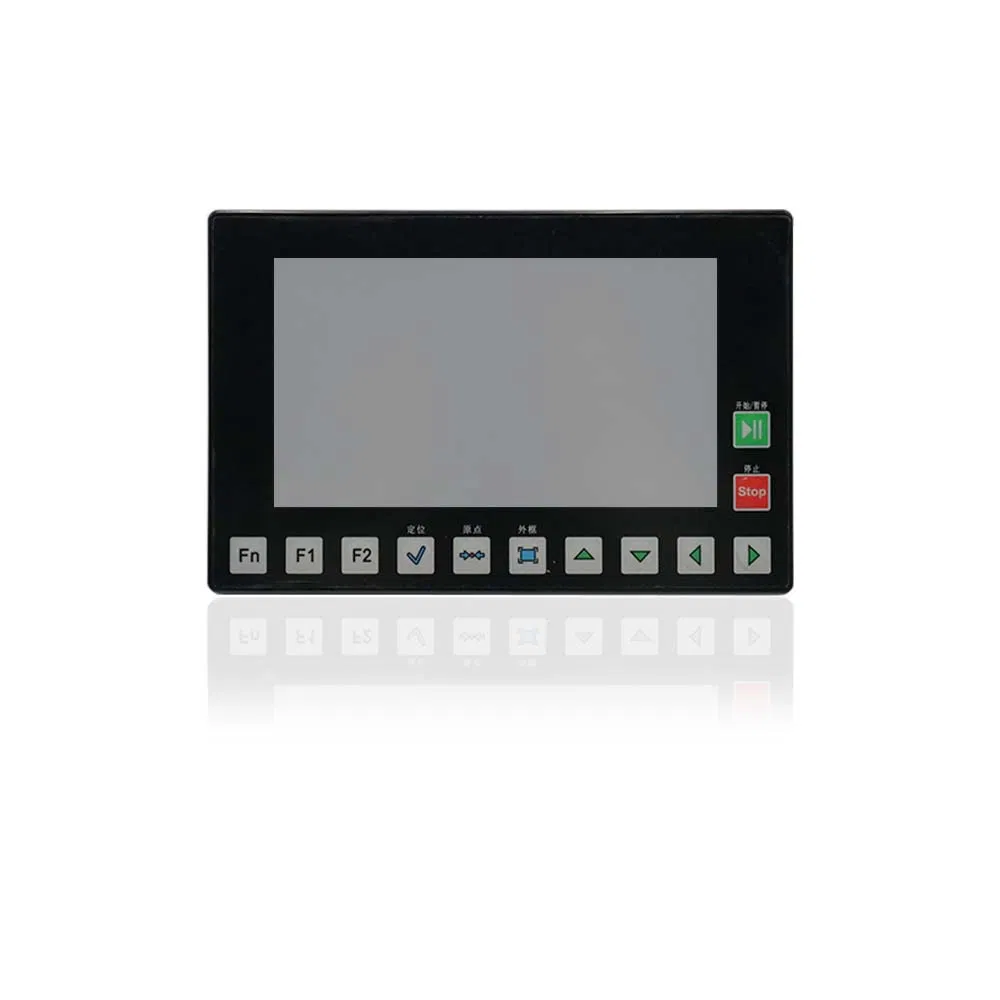

Screen Size	7 Inches
Delivery Outlets	16 Ports
Input Ports	16 Ports
Control Axes	8 Axes
Functional Support
Input-Output Diagnosis	Supported
Power-off Protection	Supported
Edge Compensation	Supported
Milling & Punching	Supported
Layered Cutting	Supported

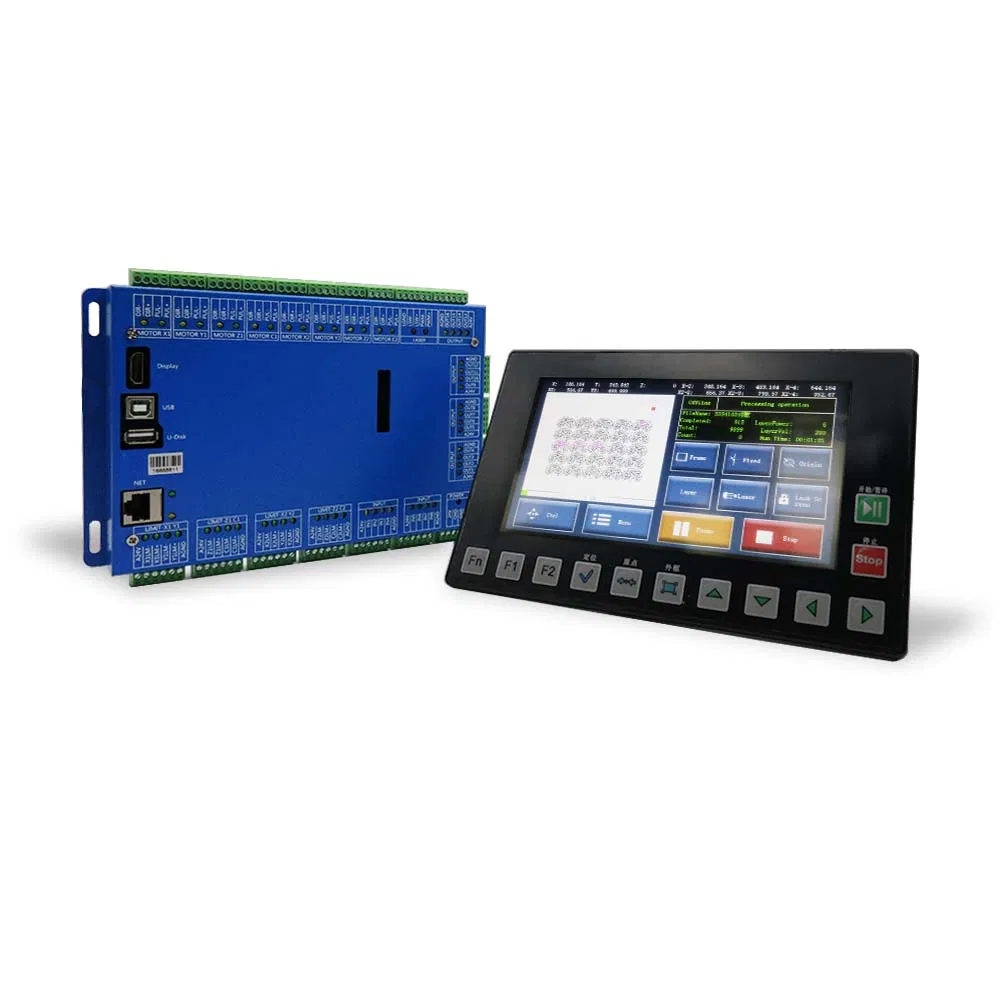

Product Presentation

Frequently Asked Questions

Do you offer OEM/ODM services?

Yes. We provide comprehensive customized services including appearance design, internal functional module optimization, and user-friendly software interface development to help you bring products to market efficiently.

What is the typical cutting accuracy?

Under ideal conditions, the positioning accuracy can reach 0.001mm. This is achieved through high-precision stepper or servo motors combined with advanced motion control algorithms.

What materials can be processed?

Our controllers support a wide range of non-metallic materials including acrylic, wood, leather, plastics, and fabrics. Settings like laser power and speed can be adjusted based on material density and thickness.

Is laser power gradient control supported?

Yes, the controller allows for precise gradation of laser power. This is essential for specialized engraving or products requiring varied light transmission effects.

What international certifications are available?

Our controllers are designed to meet international standards including CE (safety and health), FCC (electromagnetic compatibility), and RoHS (environmental protection).

How is technical support provided?

We provide remote technical assistance via network, including email and instant messaging. For software-related issues, we can offer remote desktop troubleshooting and provide detailed user manuals.
