Advanced Laser Micromachining System Employing High-Efficiency Water Cooling Technology

Customization:	Available
After-sales Service:	Video Support for Free
Warranty:	1year

📊 Basic Information

Structure

Vertical Drilling Machine

Layout

Vertical

Controlling Mode

CNC

Number of Shaft

Laser

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Transport Package

Polywood Box

Origin

China

Capacity

1000/ Year

🔍 Product Description

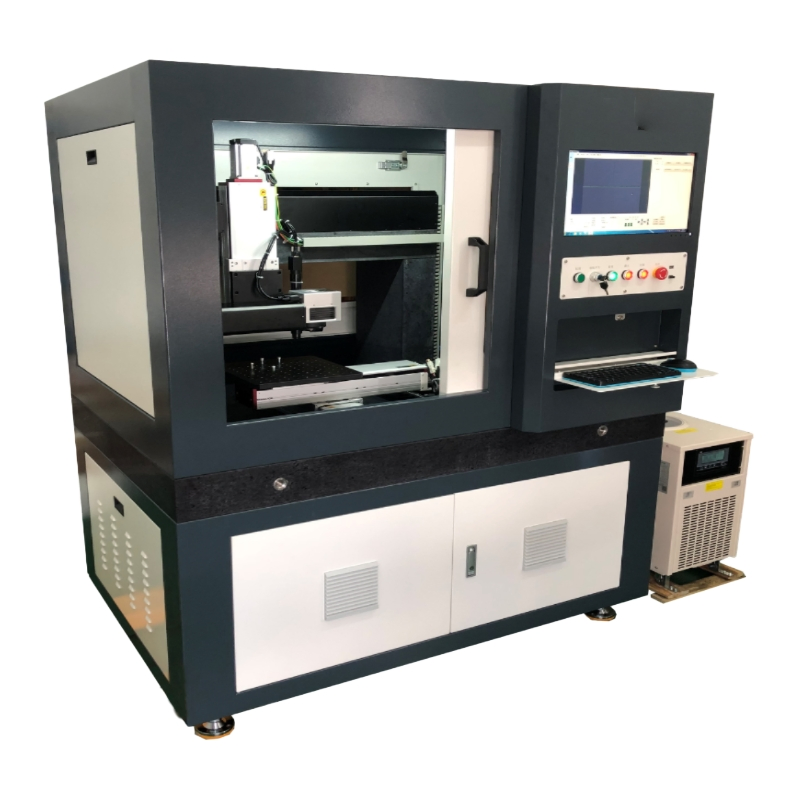

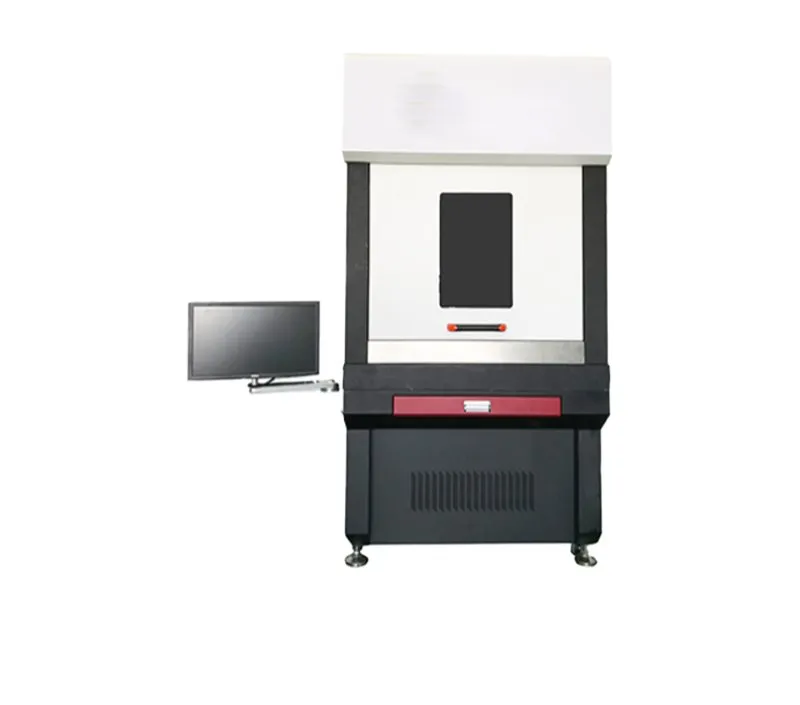

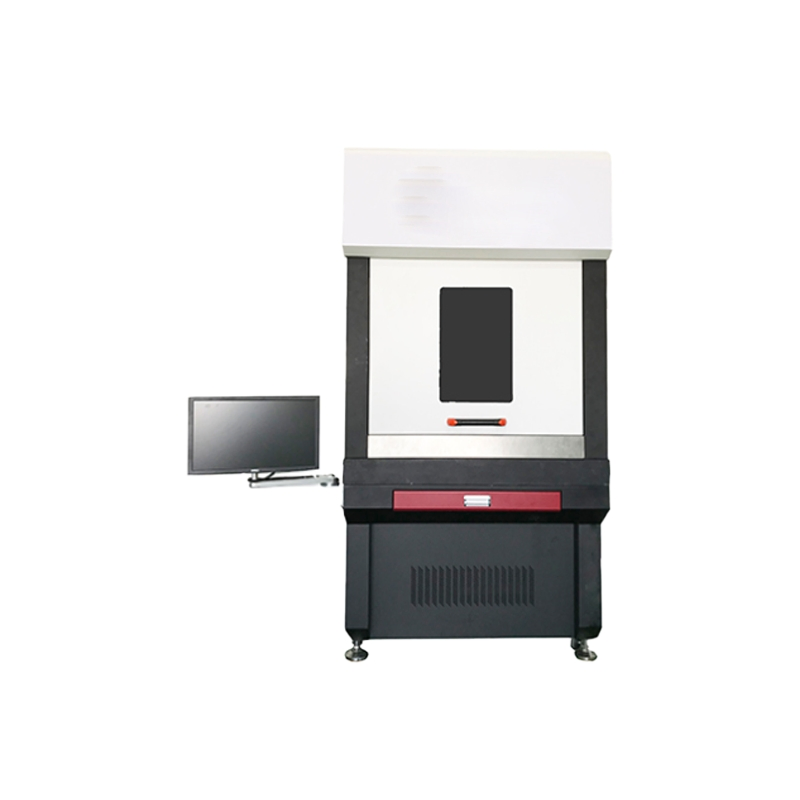

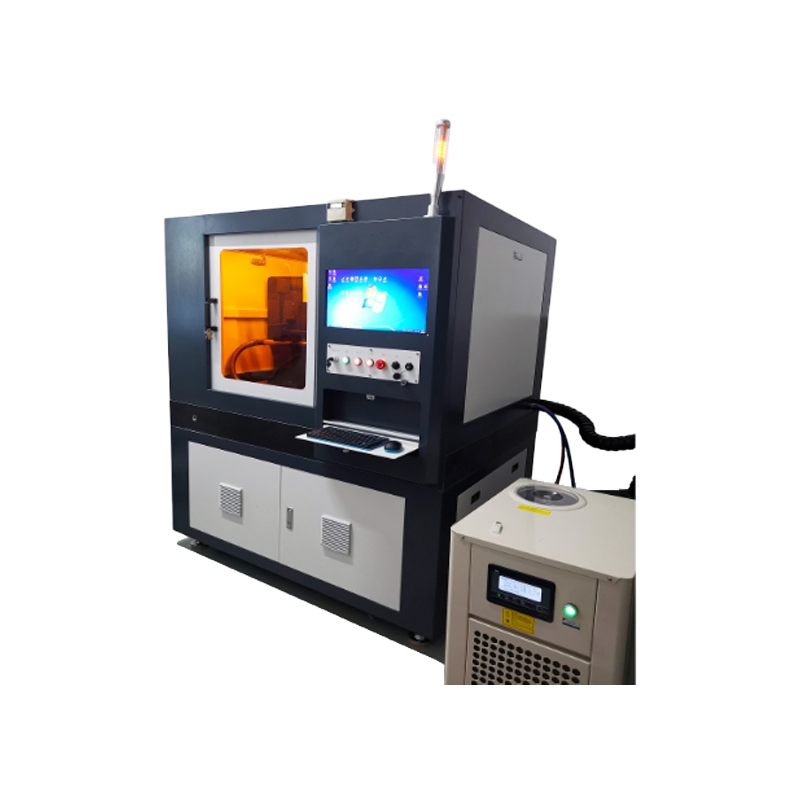

Advanced laser micromachining system employing high-efficiency water cooling technology

High-power, high-stability ultraviolet lasers are used to directly ablate vaporized materials, achieving μm-level hole diameters and μm-level heat-affected zones.
High-speed, small-area precision micro-hole machining is achieved by controlling the beam offset using imported precision galvanometers.
High-speed, high-precision, large-format micro-hole machining is achieved through a micron-level high-speed linear motor platform.
The Z-axis is electrically adjustable to accommodate materials of different thicknesses and tapered hole requirements.
Rangefinder super-resolution industrial cameras ensure full-frame error correction, ultra-high precision focusing, and online measurement.
Marble countertop construction enhances overall stability for long-term precision.
Minimum micropore diameter: 5μm; overall machining accuracy: ±4μm; machining area: 300*300mm.

🛠️ Equipment Application

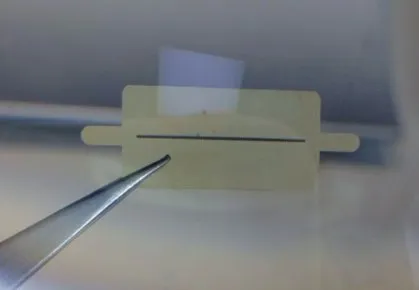

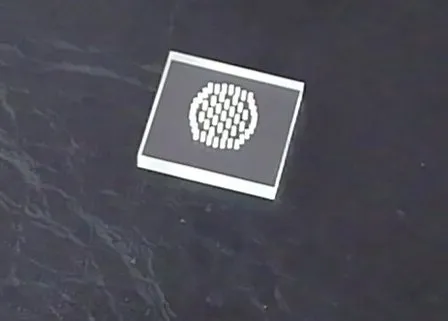

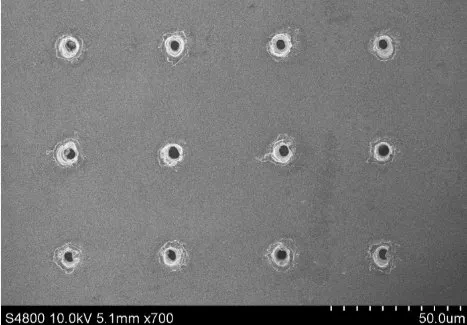

Used for precision micromachining of metals, ceramics, silicon wafers, glass, and organic materials.

📋 Technical Specification

Category	Parameter	FM-UVM3A	FM-UVM3B
Laser	Wavelength	355nm
	Power	>3W@40kHz (3~40W optional)
	Frequency	1~200kHz
	Pulse width	15ns@40kHz
Galvanometer	Scan range	<50*50mm	<15*15mm
Galvanometer	Accuracy	≤±3μm
Workbench	Journey	300300mm (600600mm optional)
	Resolution	0.1μm
	Speed	≤200mm/s
Processing	Min Spot Size	8μm	5μm
Processing	Materials	Glass, Organic, Metals, Ceramics
Dimensions	Size	120012001900mm
Weight	Total Weight	1200Kg

📦 Other Product Lines

🚚 Packing & Delivery

Standard Warranty: 12 months after shipping

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and service group.

Training: Free on-site or remote operation and maintenance training.

🏢 Factory Profile

Our factory is a technology-driven enterprise specializing in the R&D, production, and sales of industrial and scientific research laser application systems. We provide precision laser application solutions for micro-hole, micro-groove, micro-welding, scribing, cutting, and feature forming.

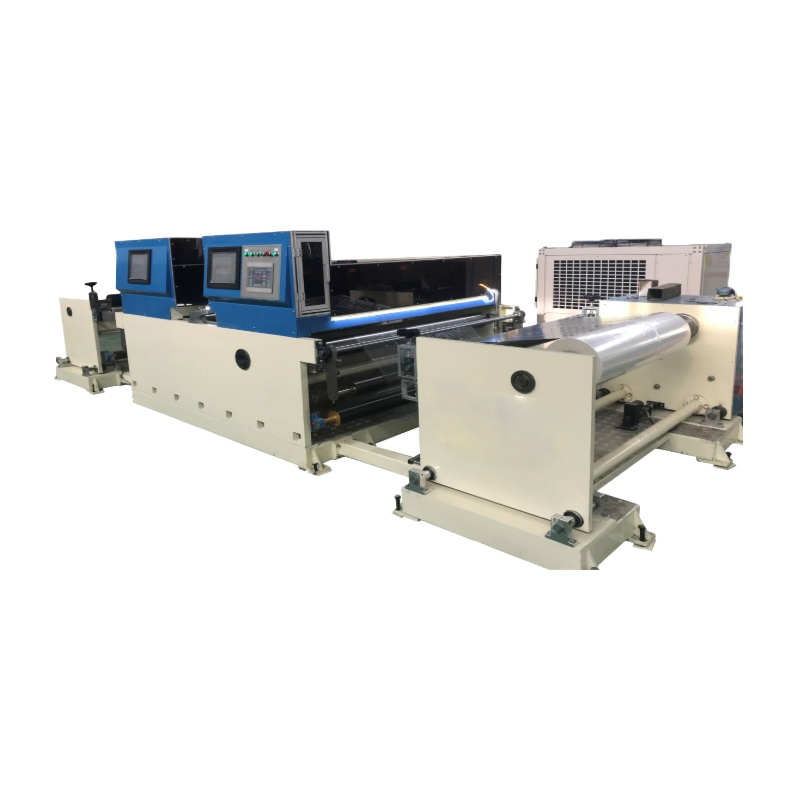

Currently, we have developed a series of systems including Femtosecond Laser Precision Processing, Picosecond Laser Ultra-Fine Processing, and Roll-to-Roll Thin Film Micro-Hole systems, serving industries such as biomedicine, semiconductors, and new energy.
