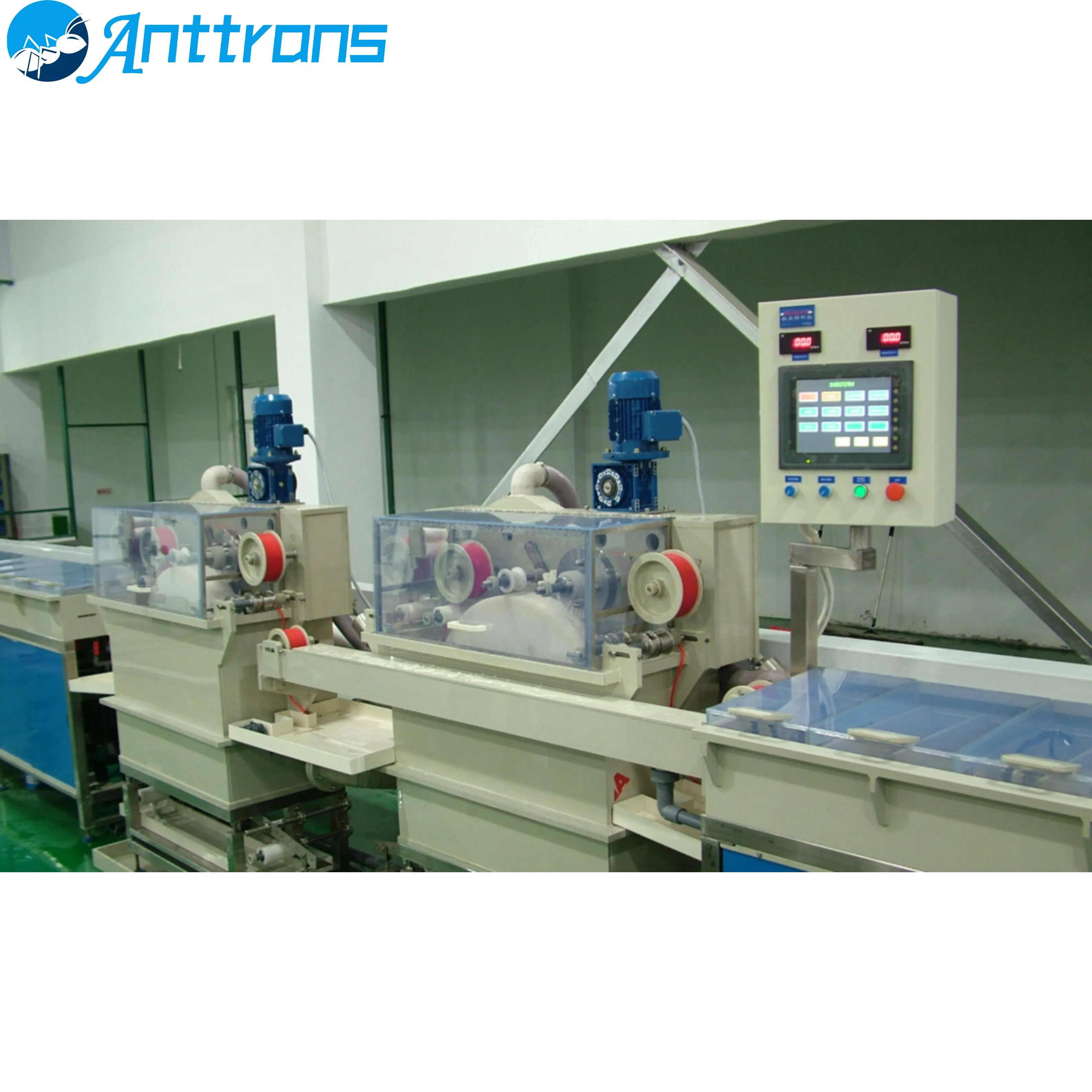

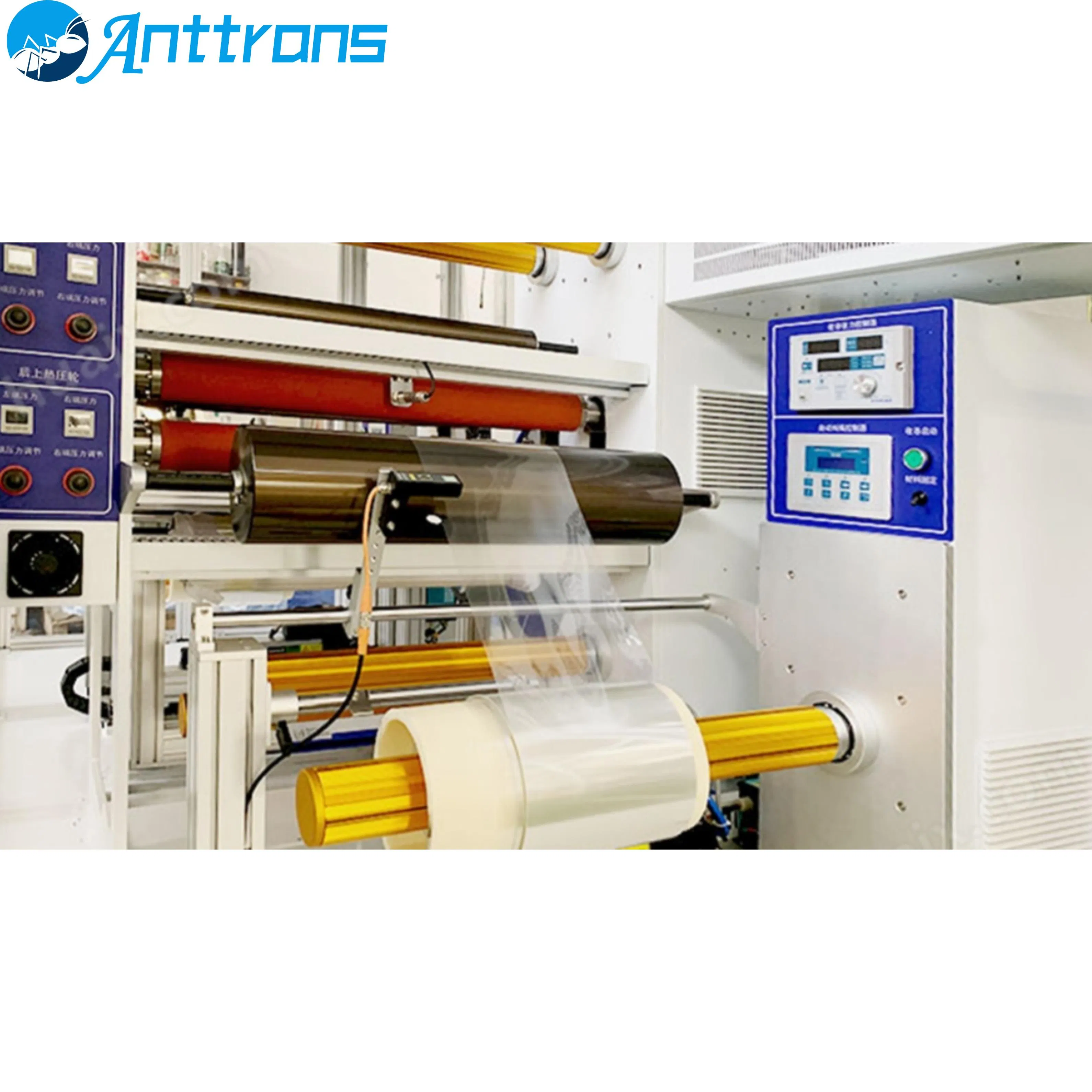

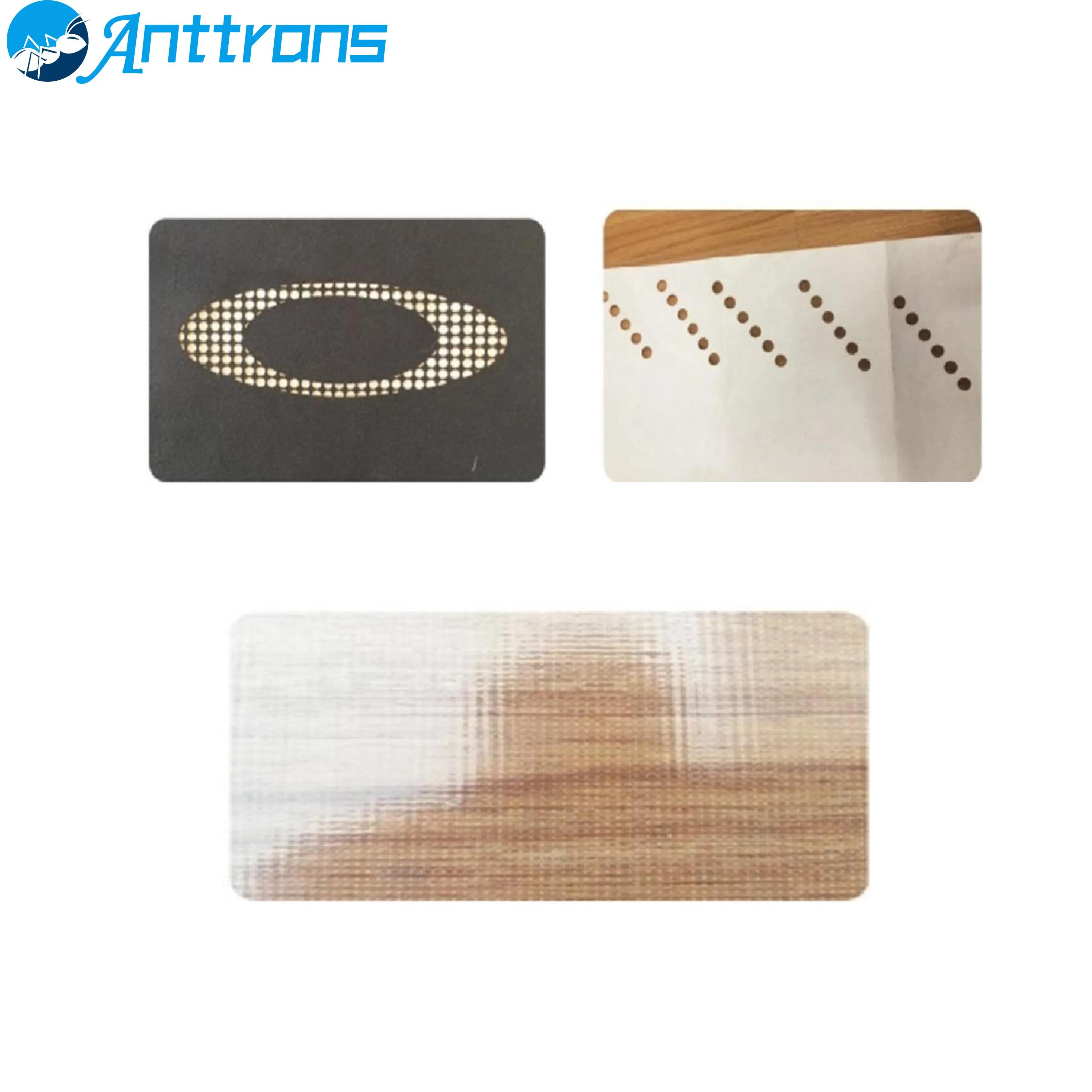

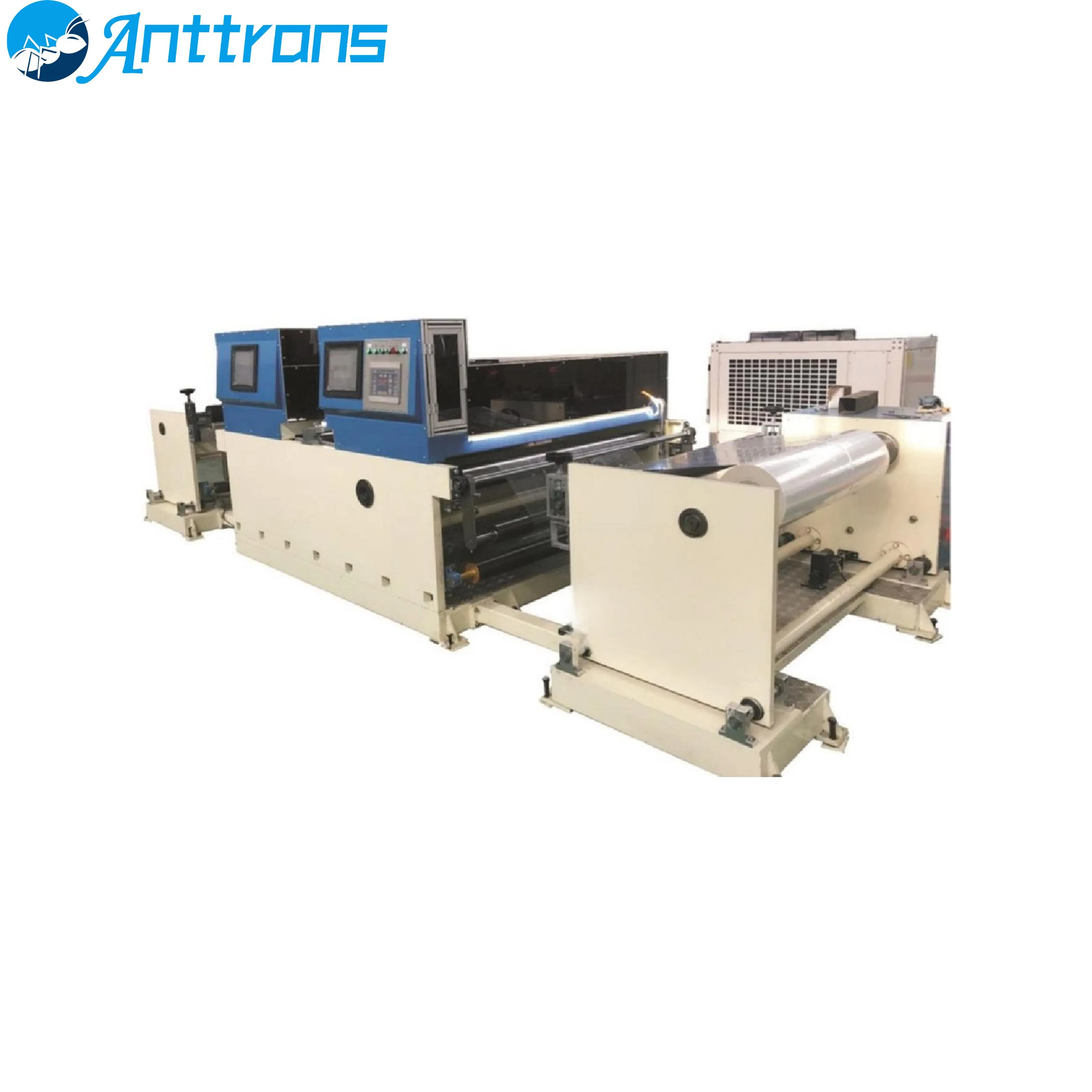

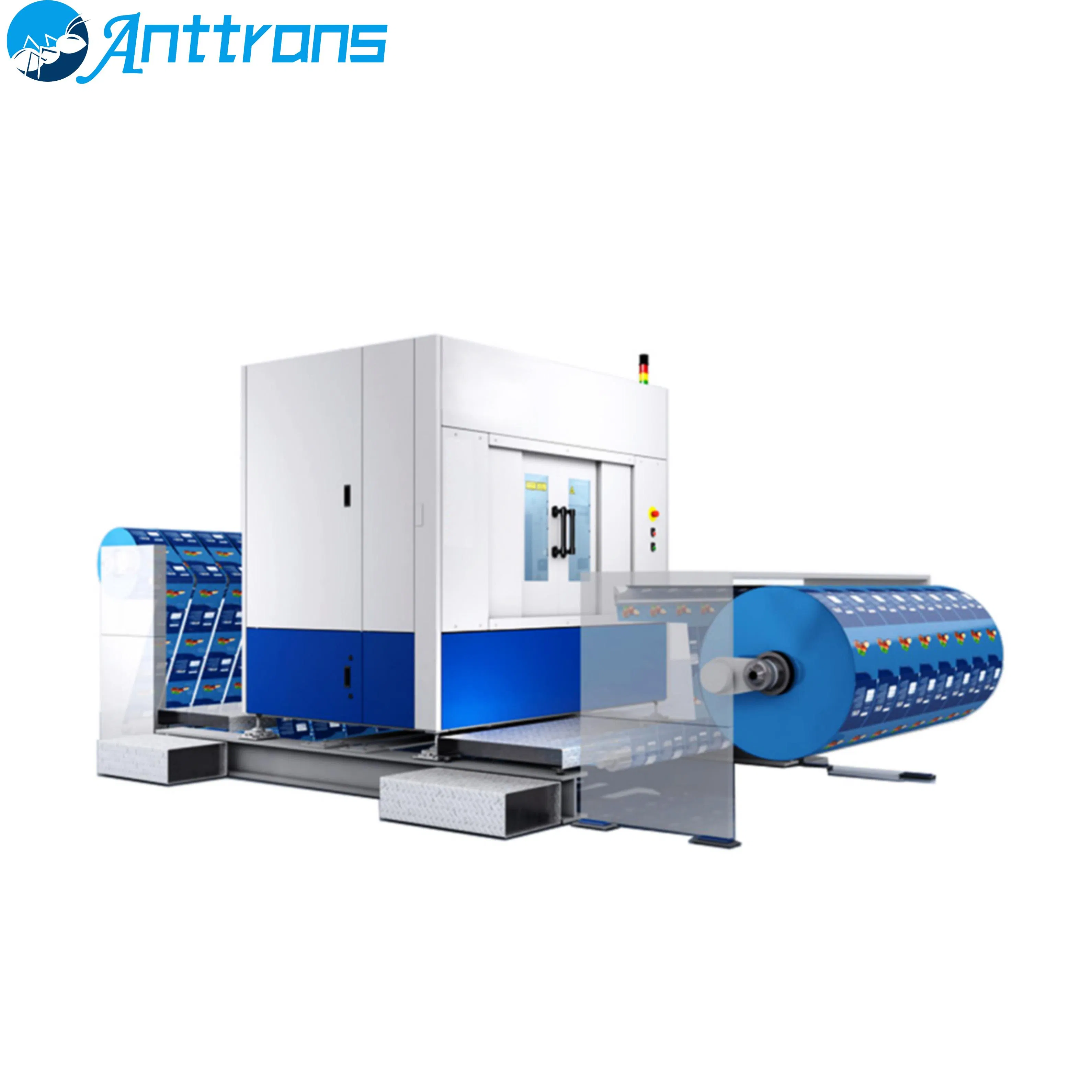

Roll-to-Roll Thin Film Micropore Processing System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

Overview

Model NO.

AT-61165

Origin

China

Package Size

150.00cm * 90.00cm * 150.00cm

Package Gross Weight

2000.000kg

Product Description

The system employs multiple laser heads spliced together for step-by-step processing with rewinding and unwinding capabilities, and can incorporate deviation correction functionality. It is suitable for high-speed micropore processing of wide-format rolled thin films. The laser system and auxiliary systems are designed according to specific processing requirements to meet demands for aperture size, processing speed, precision, and effect.

Product Features

The laser system is designed based on material and processing requirements, taking into account factors such as aperture size, speed, stability, and cost. The minimum aperture size can reach 5 microns.

Multiple laser systems operate in parallel to broaden the processing width (up to 2m) and enhance micropore processing speed.

Ultra-high-speed laser scanning heads achieve a frequency of up to 10kHz per 1mm step, significantly improving punching speed.

Step or continuous rewinding and unwinding with the option to add deviation correction functionality to meet stringent micropore processing requirements.

Maintenance-free operation, suitable for 24/7 continuous industrial use.

Product Parameters

Category	Parameter	AT-FD30/50/100
Laser	Wavelength	355/1064/10600nm
Laser	Power	30/50/100W
Processing Capability	Minimum Aperture	0.005~0.3mm
Processing Capability	Processing Thickness	≤0.2mm
Processing Capability	Processing Width	20mm~2000mm
Processing Capability	Positioning Accuracy	0.05mm
Processing Capability	Processing Speed	4000 holes/s per laser head
Processing Capability	Processing Materials	Metal and alloy films, plastic films
Cooling	Cooling Method	Water-cooled
Power	Electrical Supply	380V 50~60Hz 50A
Power Consumption	Power Consumption	≤20kW
Operating Environment	Operating Environment	1~30ºC / No condensation

Company Profile

Technical services, technology development, technology consulting, technology exchange, technology transfer, technology promotion: computer software, hardware, and auxiliary equipment; Retail of computer software, hardware, and auxiliary equipment; Import and export of goods; Import and export of technology; Credit information consulting services; graphic and textual design and production; sales of functional glass and new optical materials; Sales of optical instruments; Sales of specialized equipment for semiconductor devices; sales of experimental analysis instruments; sales of CNC machine tools; sales of instruments and meters; Sales of electronic components and electromechanical equipment; Sales of metal cutting and welding equipment; Fiber optic sales; Sales of photovoltaic equipment and components; Sales of optical glass; Sales of electronic specialized materials.

Detailed Photos

Frequently Asked Questions

What is the minimum aperture size achievable with this system?

The laser system can achieve a minimum aperture size as small as 5 microns (0.005mm), depending on the material and processing requirements.

What materials are compatible with the Roll-to-Roll laser system?

The system is designed to process wide-format rolled thin films, including various metal and alloy films as well as plastic films.

How does the system handle wide-format processing?

It utilizes multiple laser systems operating in parallel, allowing for a processing width ranging from 20mm up to 2000mm (2 meters).

Is the equipment suitable for continuous industrial operation?

Yes, the system is designed for maintenance-free operation and is fully capable of 24/7 continuous industrial use.

What are the cooling and power requirements?

The system is water-cooled and requires a 380V 50~60Hz 50A electrical supply, with a total power consumption of ≤20kW.

Does the system include film tension and alignment control?

The system features rewinding and unwinding capabilities with the option to add deviation correction functionality to ensure high precision during micropore processing.
