Basic Specifications
Power Supply
DC 24V Button Battery 3V
Standard Component
Standard Component
Supported Format
All Standard Formats
Language Support
Multi-Language
Production Capacity
10,000 sets/Year
Product Description

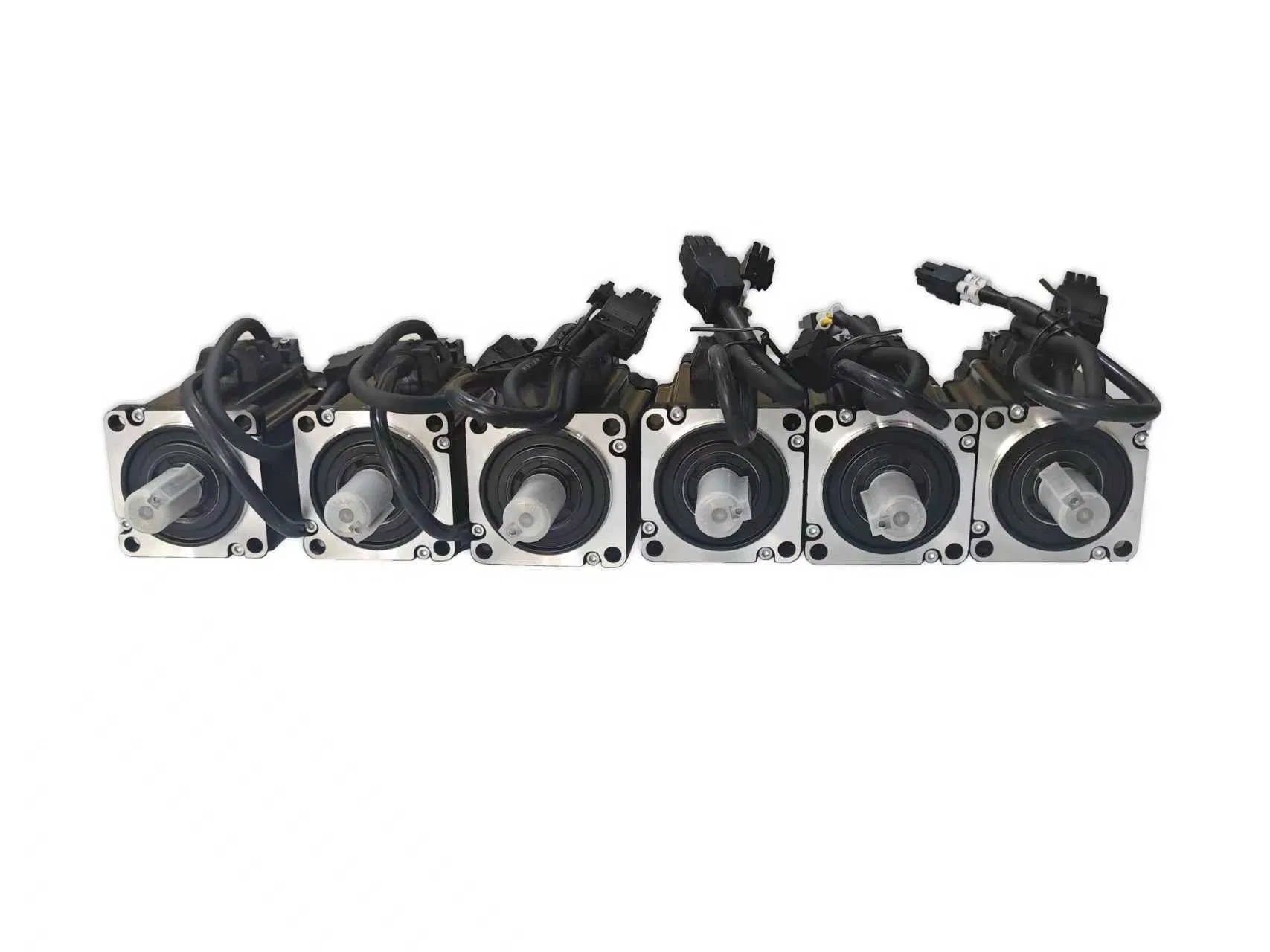

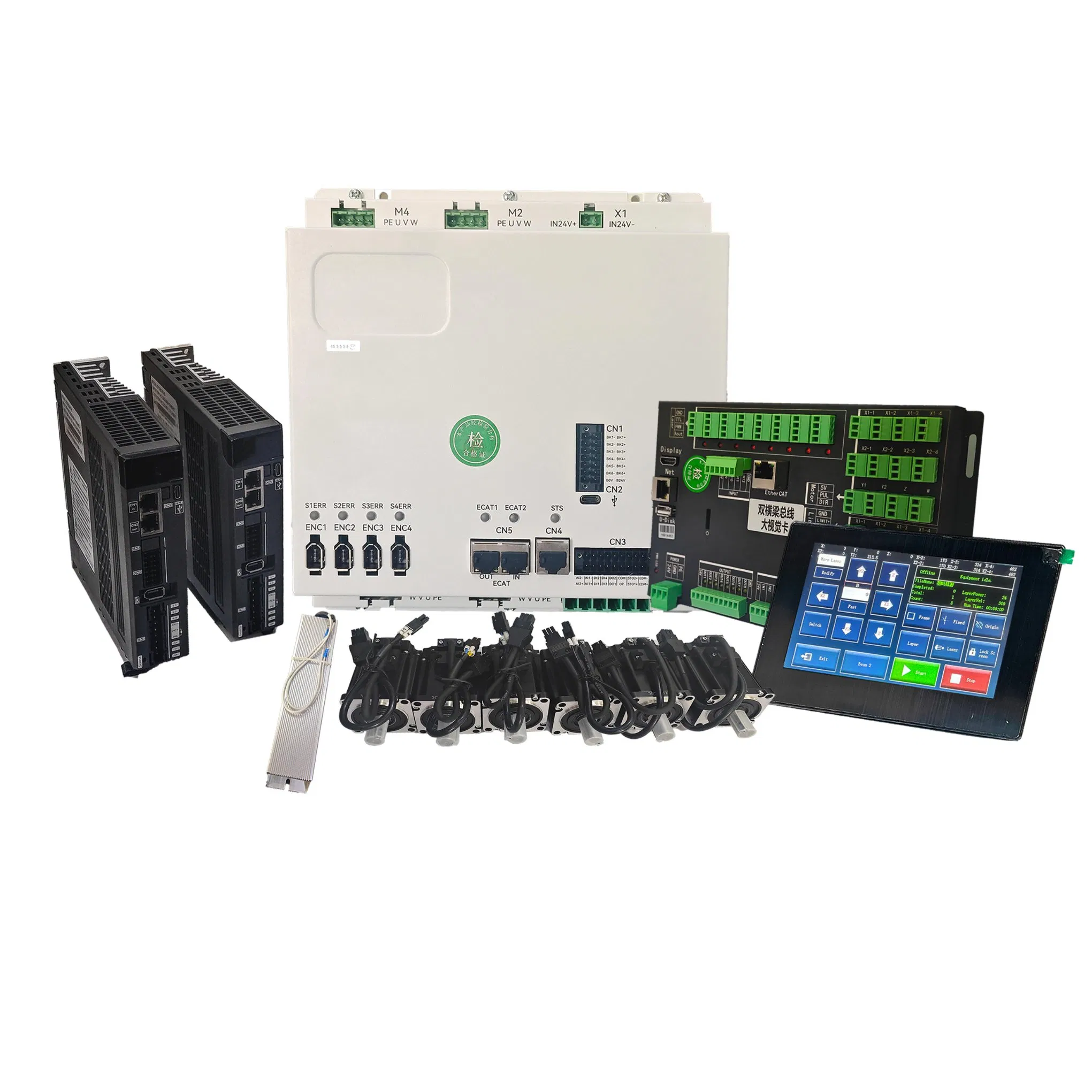

Model ZY72B8E: High-performance motion control solution equipped with 750W*4 plus 400W*2 Servo Motors. This system integrates EtherCAT real-time technology with multi-axis drives for precision laser automation.

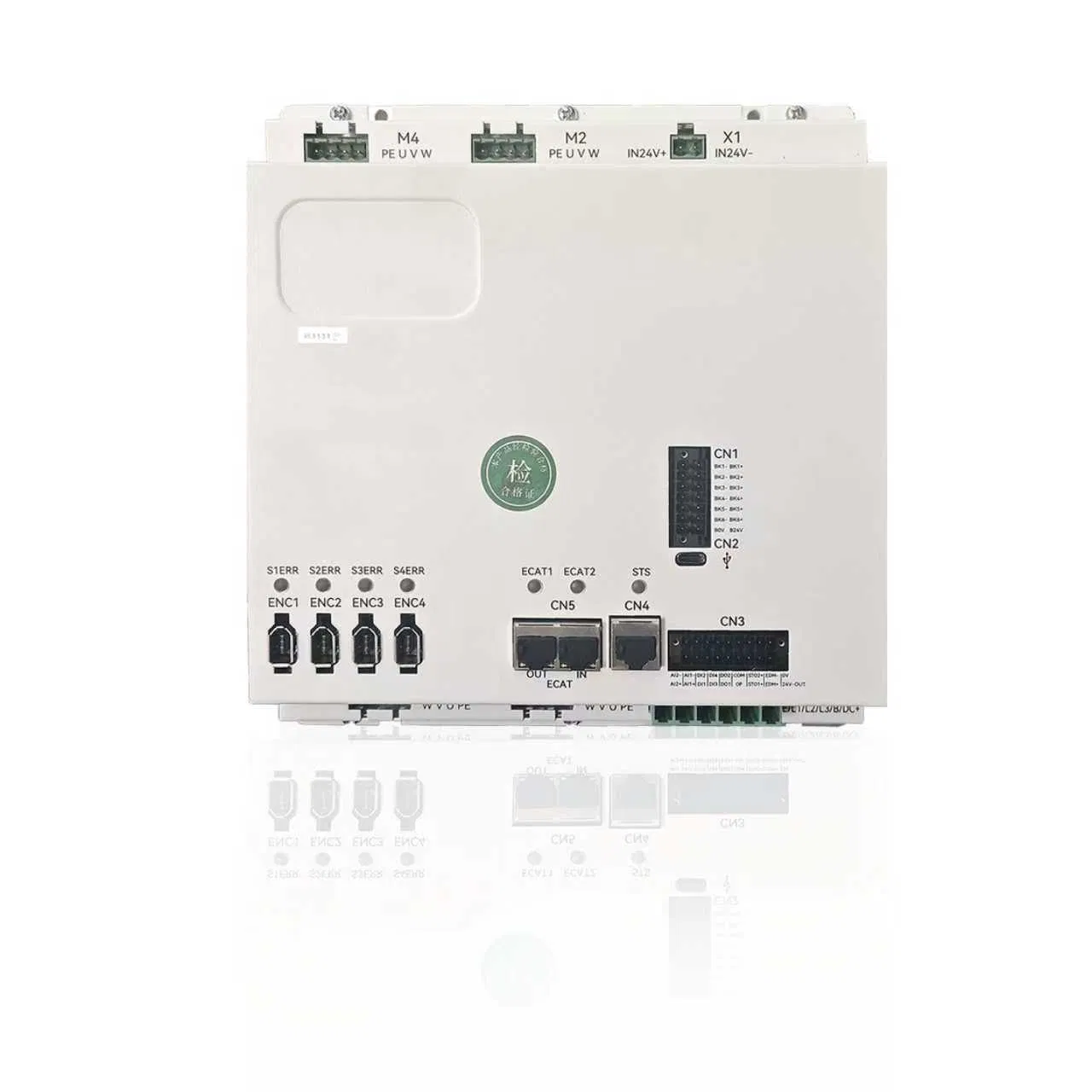

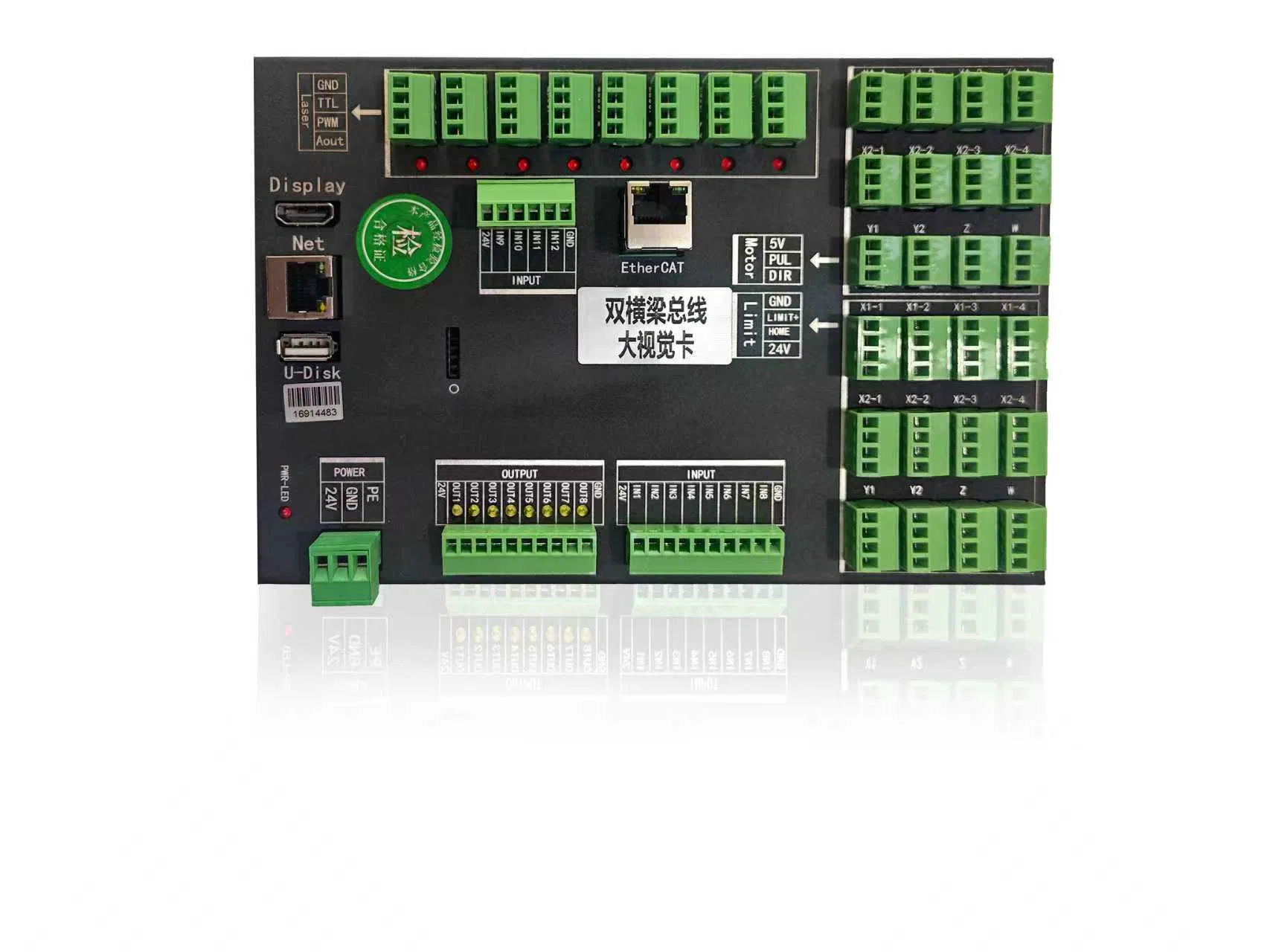

The ZY72B8E Ethercat Laser Control Board provides a fully integrated solution from the control layer to the execution layer. The system core manages motion commands, laser power, and gas control signals through subordinate drives and I/O modules.
Integrated with the four-in-one drive, six-in-one servo drive, and single-axis servo drives, the system achieves multi-axis synchronization, high-speed response, and high-precision positioning. This architecture simplifies cabinet wiring and reduces space requirements while providing excellent real-time performance and diagnostic capabilities.
Key Features
- Full Integration of Control and Execution
- Laser Control Card as the System Core
- Multi-Axis Synchronization & High-Speed Response
- Highly Scalable & Modular Architecture
- Advanced Anti-Interference & Diagnostics
Application Fields
- Cloth, Textile, and Fabric Cutting
- Leather Processing
- Crafts and Artwork Engraving
- Glass Engraving
- Steel Mesh and Stencil Cutting
- Mobile Phone Screen Protector Processing
Product Advantages
• Wiring & Space Saving: At least 40% reduction in installation space through EtherCAT networking.
• Ultra-High Performance: Microsecond communication latency ensuring deterministic control in high-speed scenarios.
• Robust Reliability: Immunity to electromagnetic interference with built-in online trace and fault analysis tools.

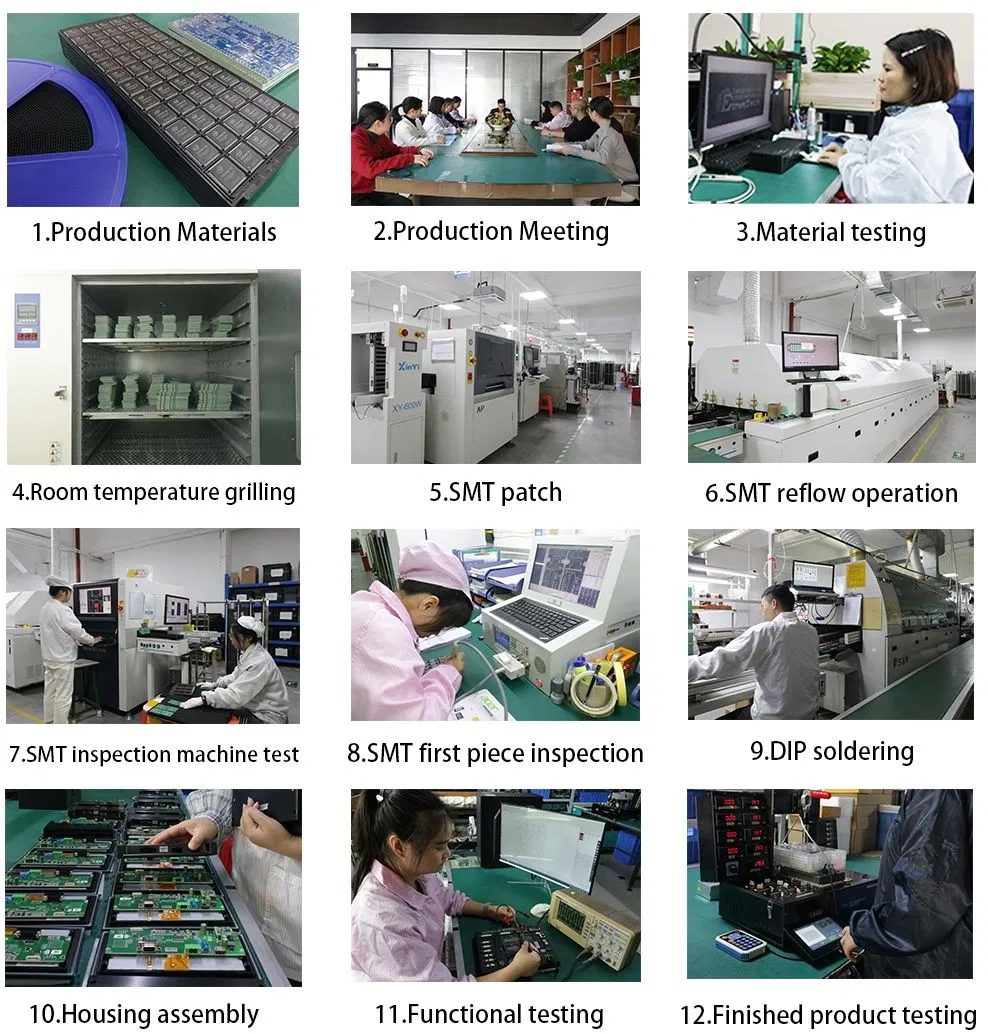

Production & Quality Showcase
Delivery & Service
Delivery: Standard delivery within 30 days after confirmation. Actual lead time depends on order volume and customization.
Shipping: Flexible options including international express, ocean freight (CFR/CIF), or coordination with your designated forwarder.
Serving: We provide professional pre-sale consultation and comprehensive after-sales support, including installation advice and remote troubleshooting.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are the original manufacturer with a strong R&D team and professional production facilities.
How many years of experience do you have?
We have nearly 14 years of experience in this industry, with technicians who have worked in the field for over 20 years.
Is OEM/ODM customization available?
Yes, we welcome OEM and customized requirements. We can optimize appearance, functions, and software interfaces to meet your needs.
What is the typical delivery lead time?
For stock items, lead time is 1-3 business days. For bulk or customized orders, the standard delivery time is within 30 days.
How do you provide technical support?
We offer remote technical support via email, messaging, and remote desktop tools. Each package also includes a detailed user manual and troubleshooting guide.
What are the shipping methods for large quantities?
For large quantities, sea freight is recommended as it is more cost-effective. For urgent small orders, international express is the primary option.
