Advanced Six-Axis Robotic Laser Cutting System for Precision Engineering

Customization:	Available
Accuracy:	�0.1 mm
Application:	Aerospace Industry, Automotive Industry, Metal Fabrication Industry, Shipbuilding Industry

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

H2100-B-6

Control Mode

Point to Point Control

Drive Mode

Electric

Type

MIG, MAG, TIG

Axes

6 Axes

Reaching

2100mm

Payload

6kg

Structure

Articulated

Repeatability

0.05mm

Weight

235kg

Mounting Type

Ground, Bracket, Ceiling

Production Capacity

1000 Sets /Month

⚙

Product Description

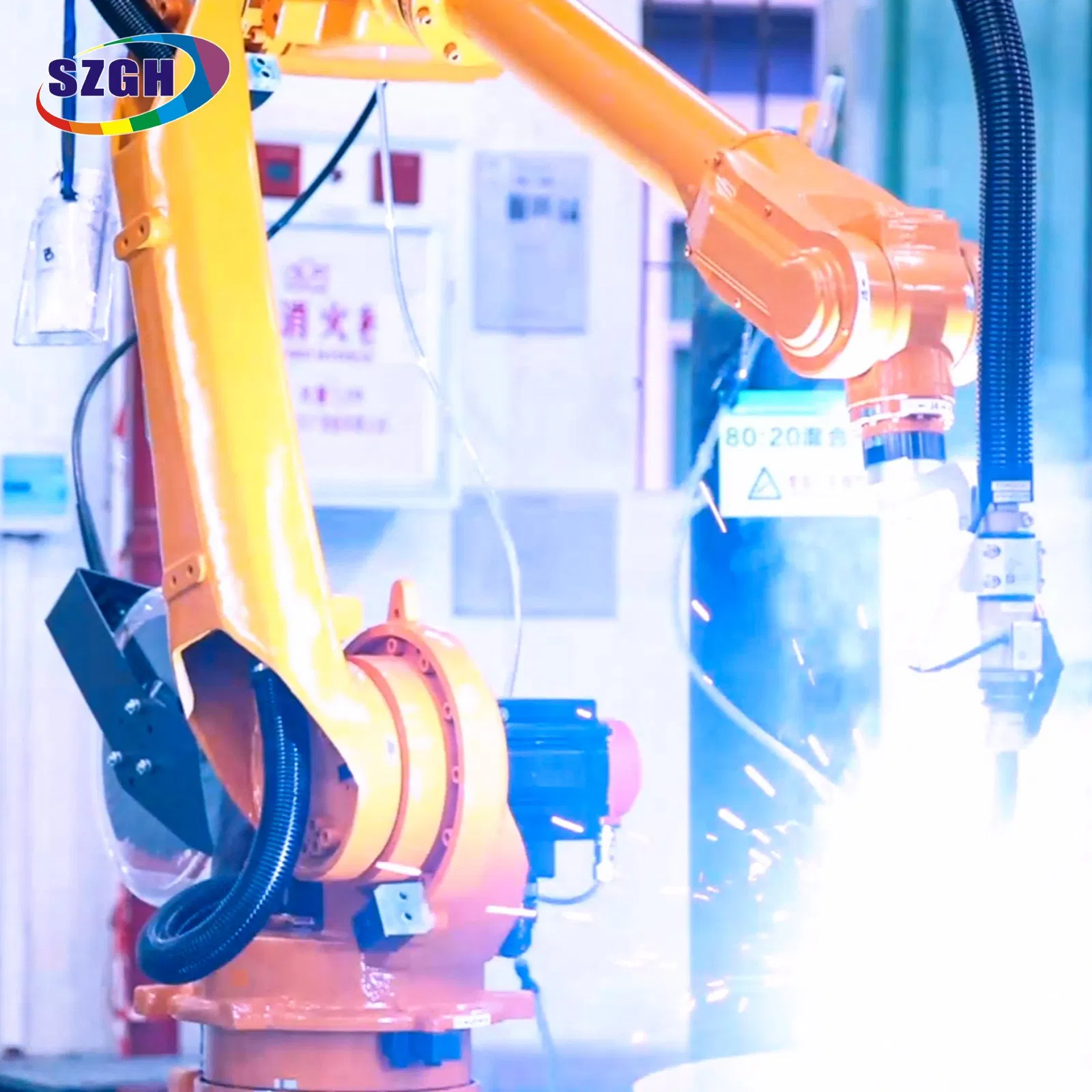

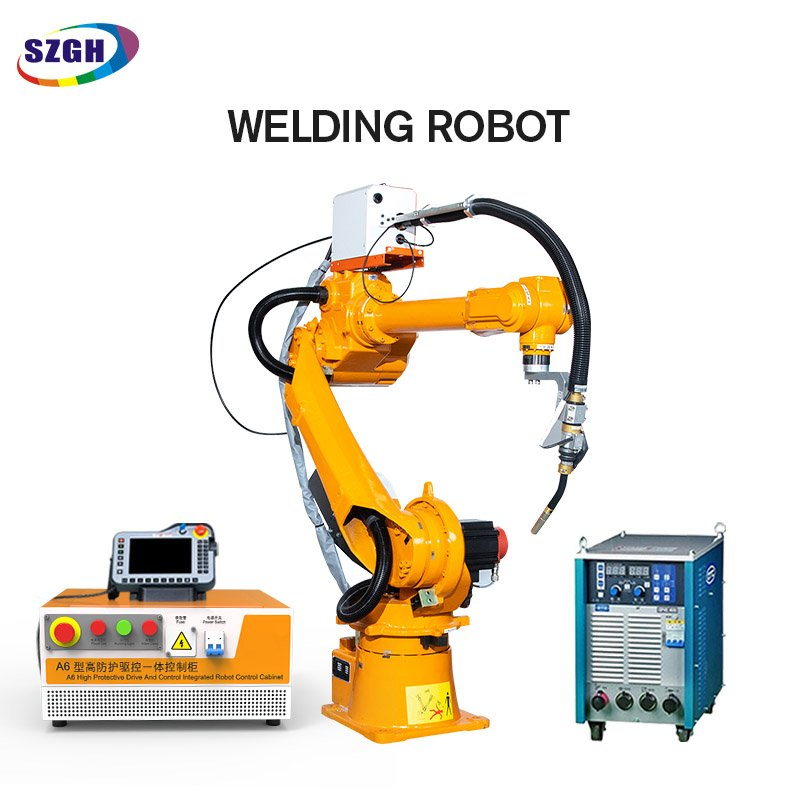

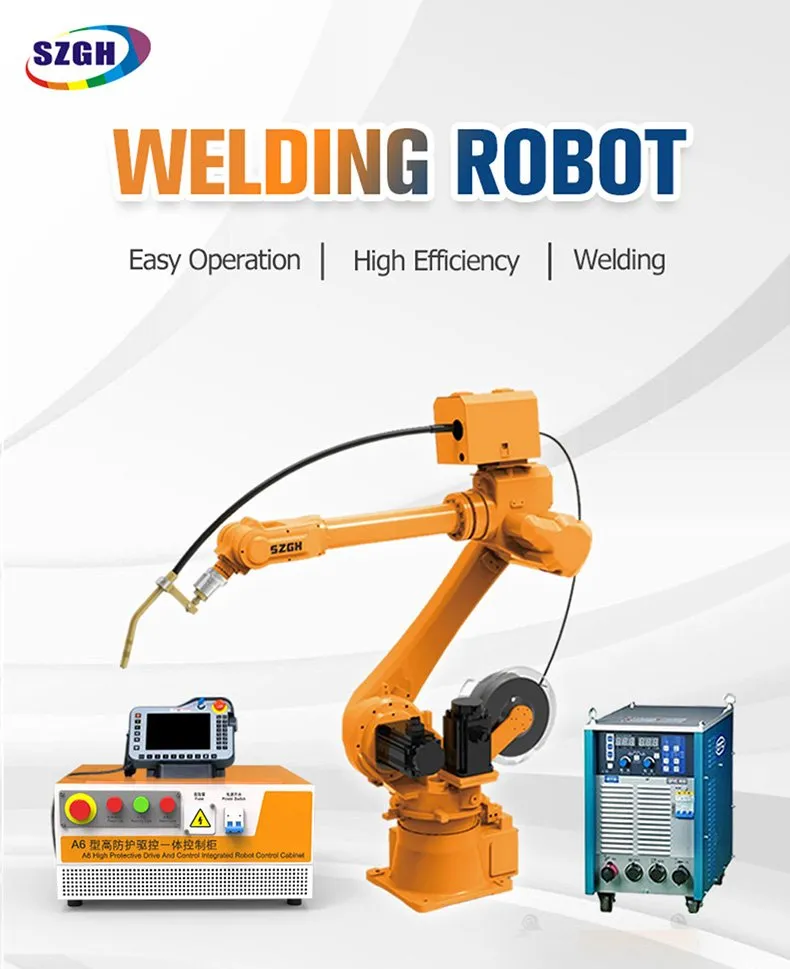

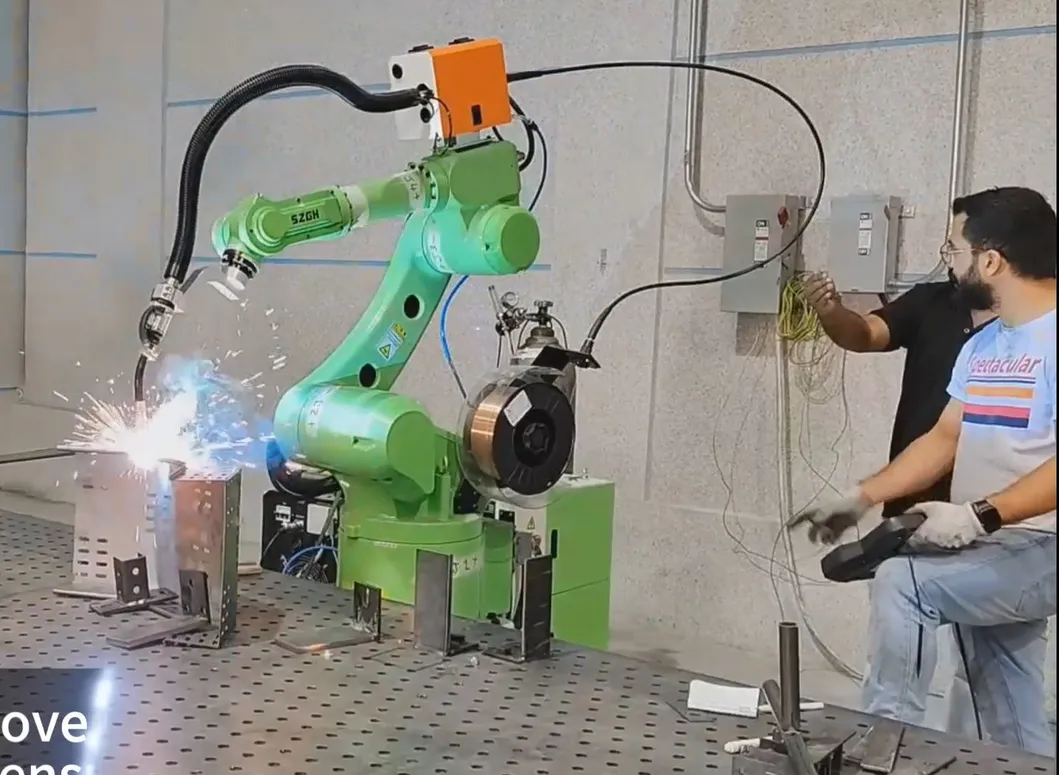

Industrial robot for manipulation TIG/MIG welding. The H2100-B-6 robot is dedicated to welding tasks, offering easy operation, high efficiency, and safety. There are 25 models in mass production including general purpose, welding, spraying, palletizing, grinding and handling types. All models are equipped with an intelligent robot control system developed independently.

Specification	Details
Model	H2100-B-6
Payload	6kg
Reach	2100mm
Axes	6-11 axes
Application	Welding
Special Service	Customizable standard colors and logo support
Warranty	12 Months
Support	Video technical support, Online support

✔

Technical Features

★ Supports up to 12 axis control, realizes the control of external axes (traveling axes and positioner).
★ Structural optimization algorithm suitable for body control of various structure types.
★ Open structure for synchronization of international technology and extension of functions.
★ Software PLC functions facilitate logic control and easy programming.
★ Modular setting of functions suitable for diverse applications with safety modules.
★ Improved computer bus connection ensures reliability and absolute servo precision.

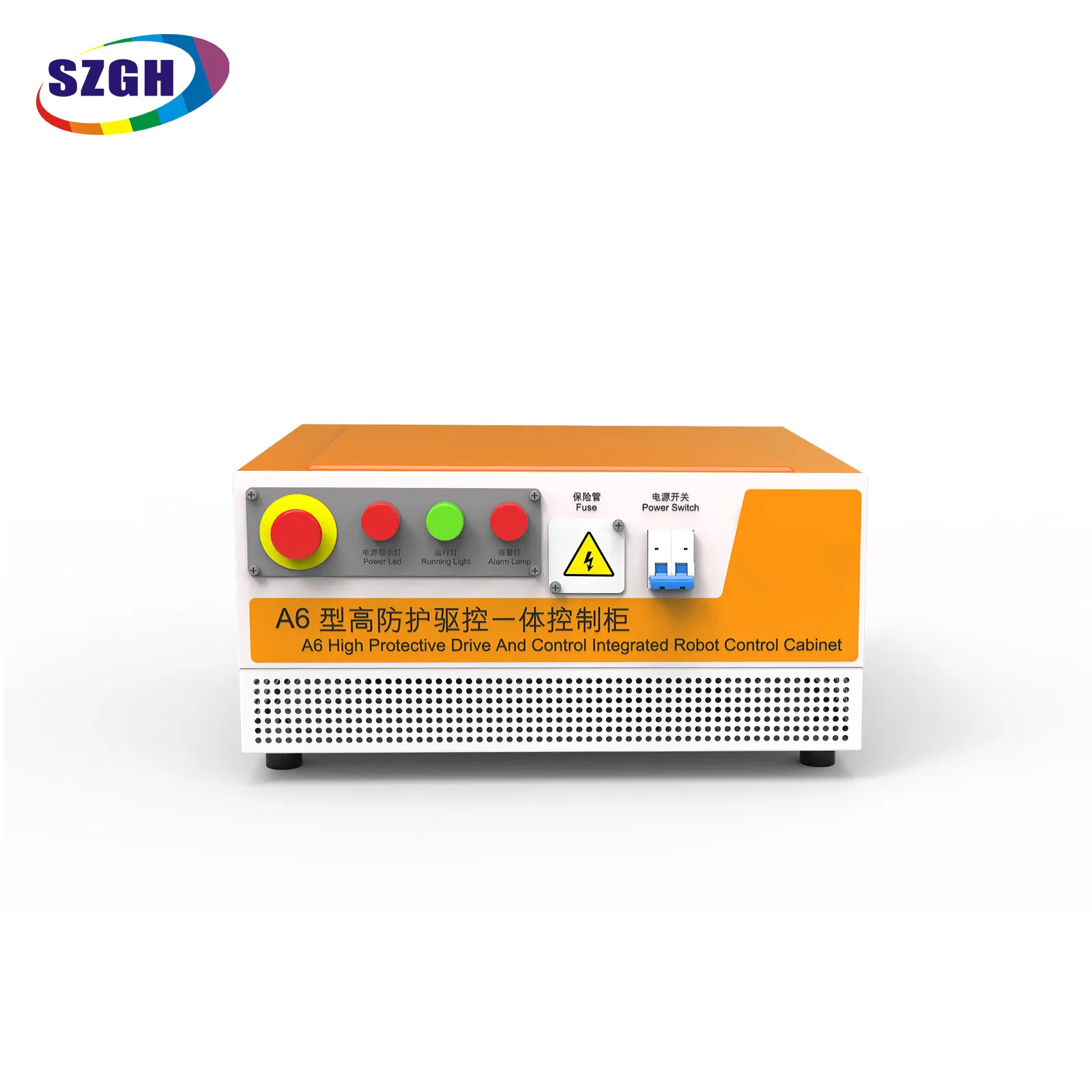

Control System Specifications

Storage	2 GB

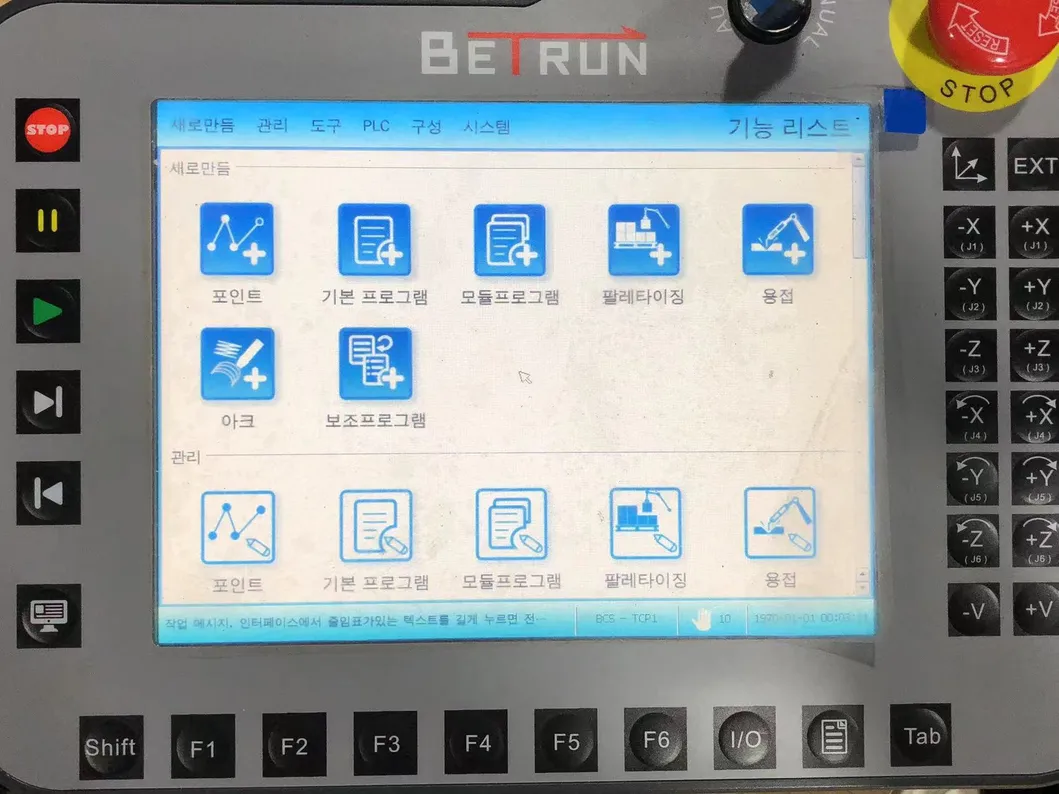

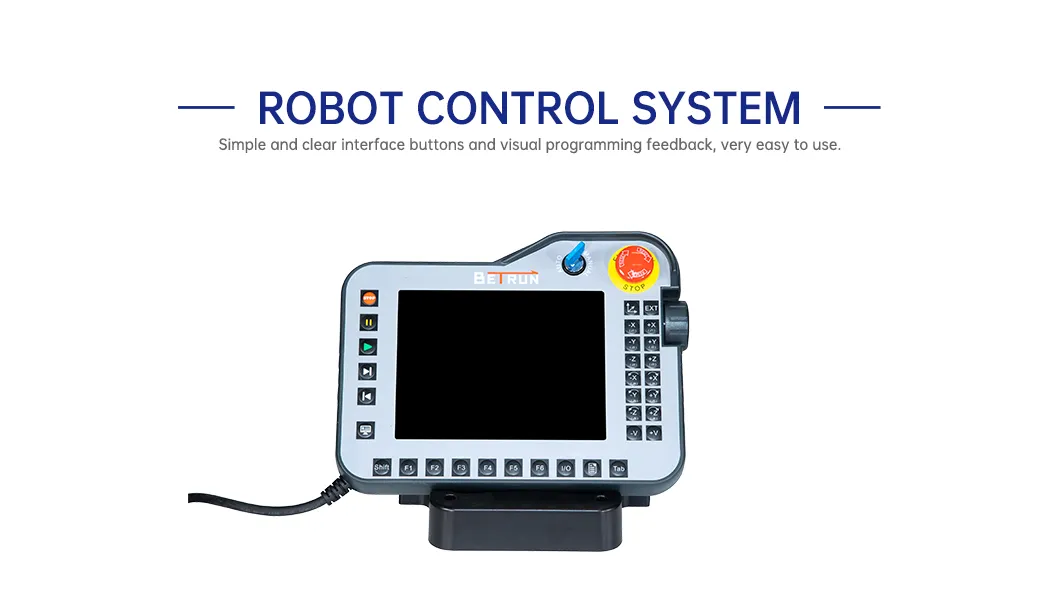

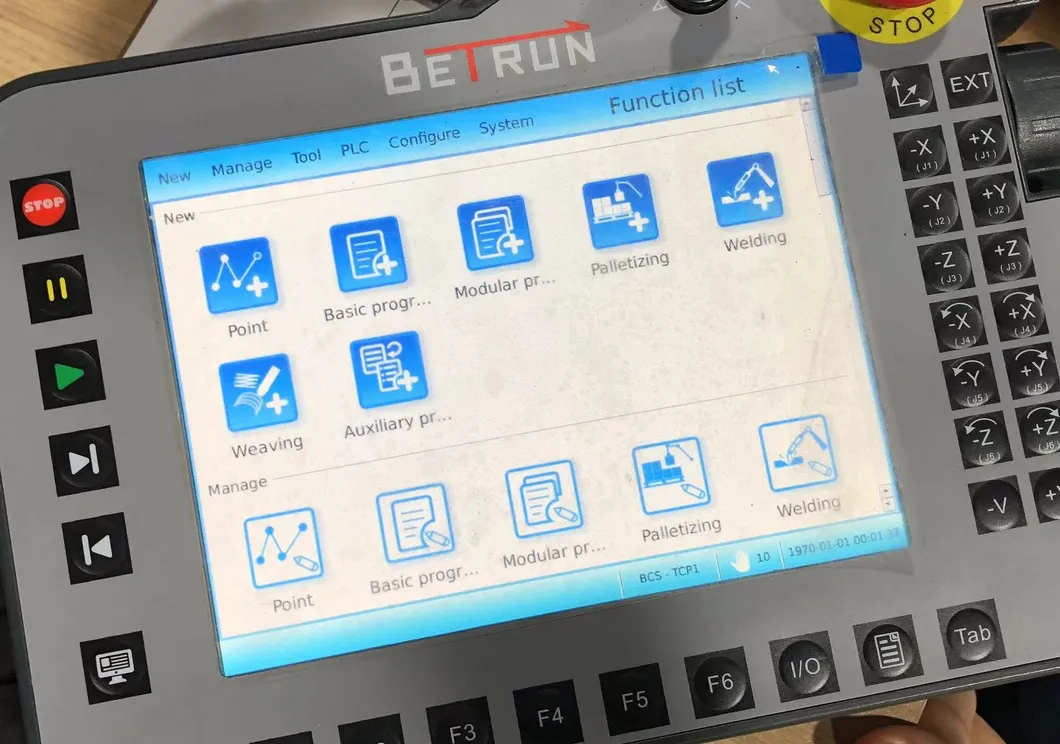

Teaching Box	Full keyboard + touch screen, mode select, safety/emergency switches
Interface	Multiple encoder signal, Ethernet, Serial communication
Motion Function	Point-to-point, linear, circular
Anomaly Detection	Emergency stop, servo anomaly, anti-collision, arcing anomaly

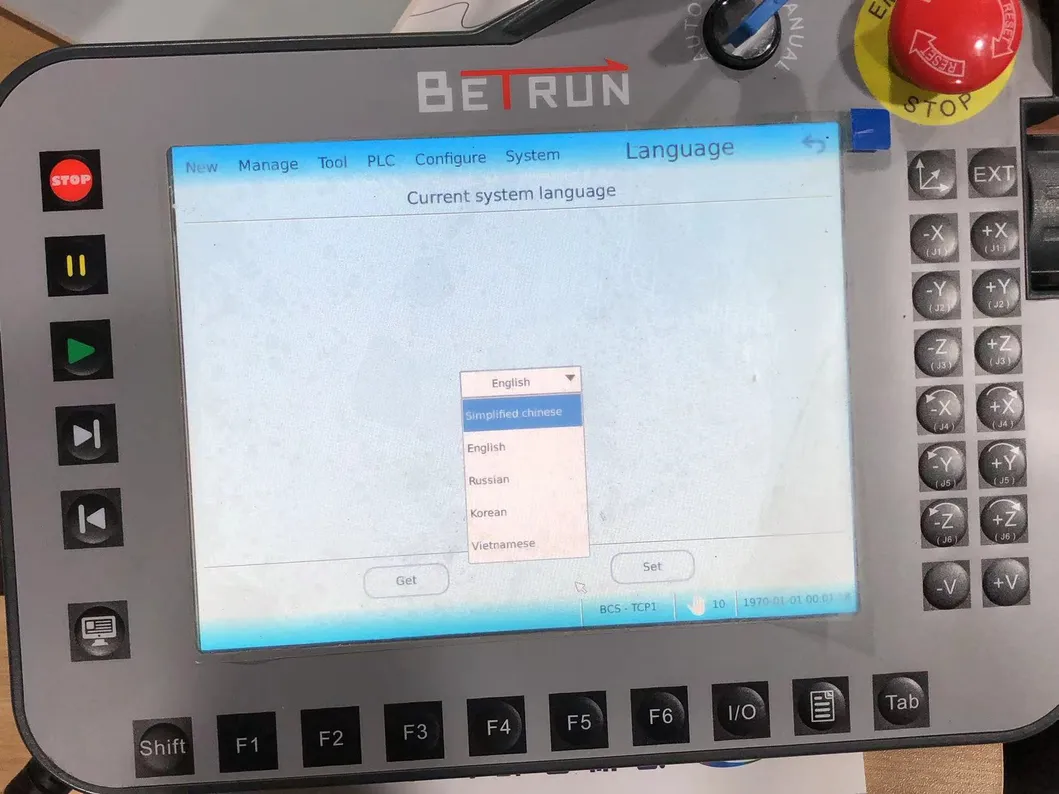

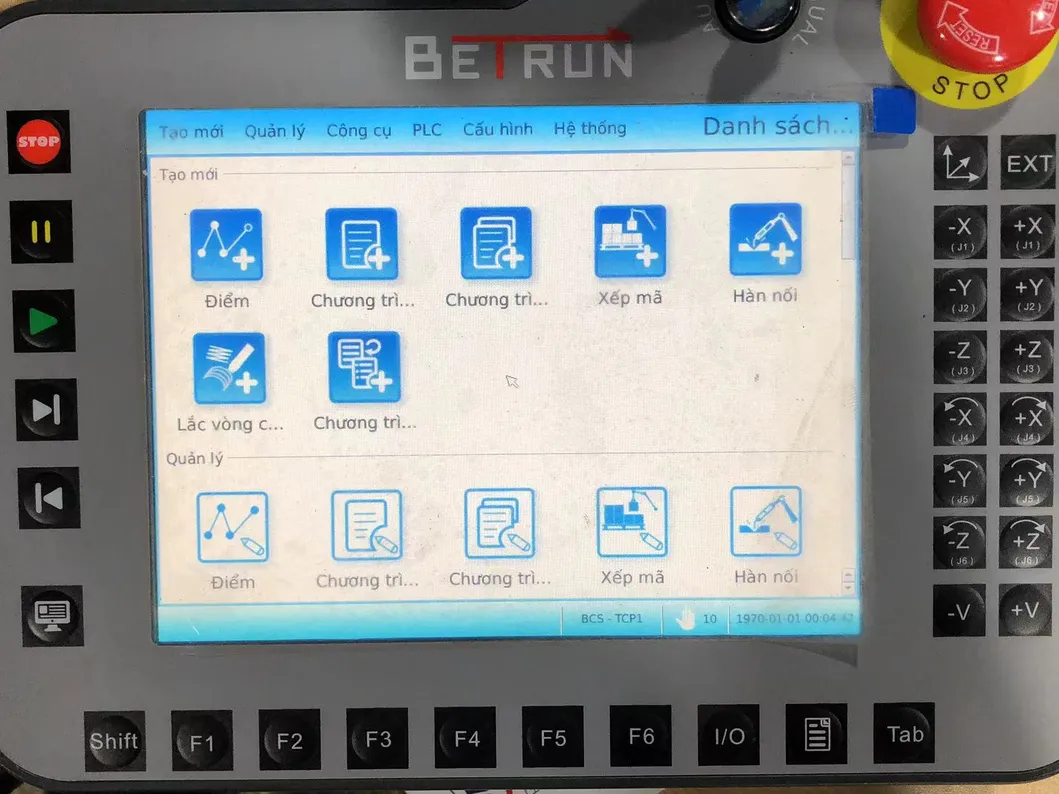

Multi-Language Support

English Russian Vietnamese Korean Chinese

⚒

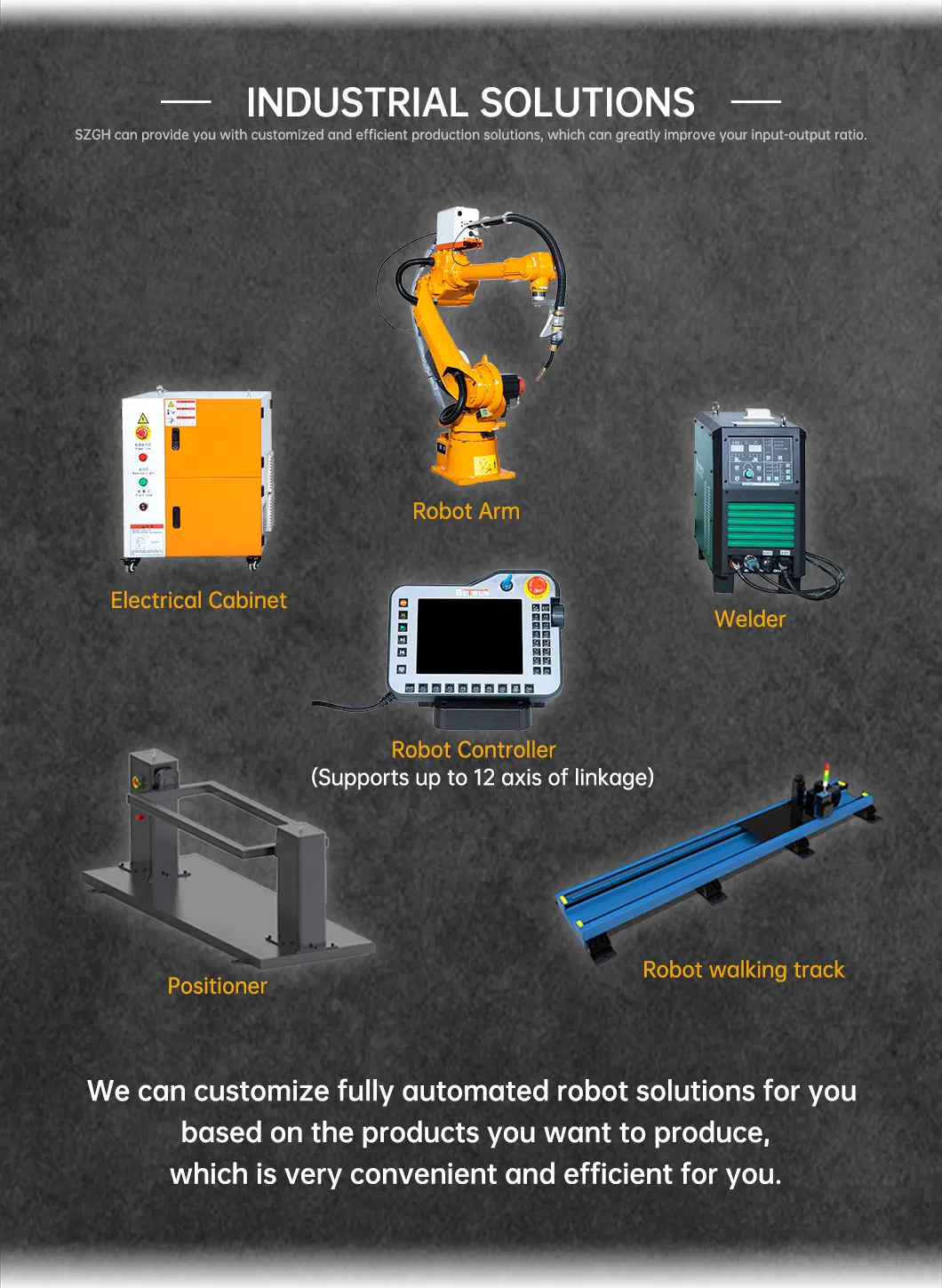

Customized Solutions

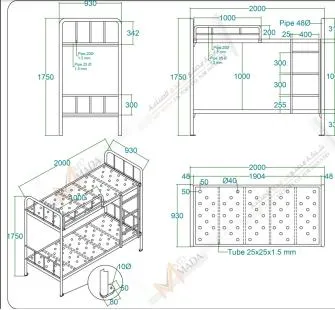

Special customization, engineering simulation, and welded carbon steel bed frame solutions are available. Clients provide object size, drawings, and material specifications for a tailored inquiry.

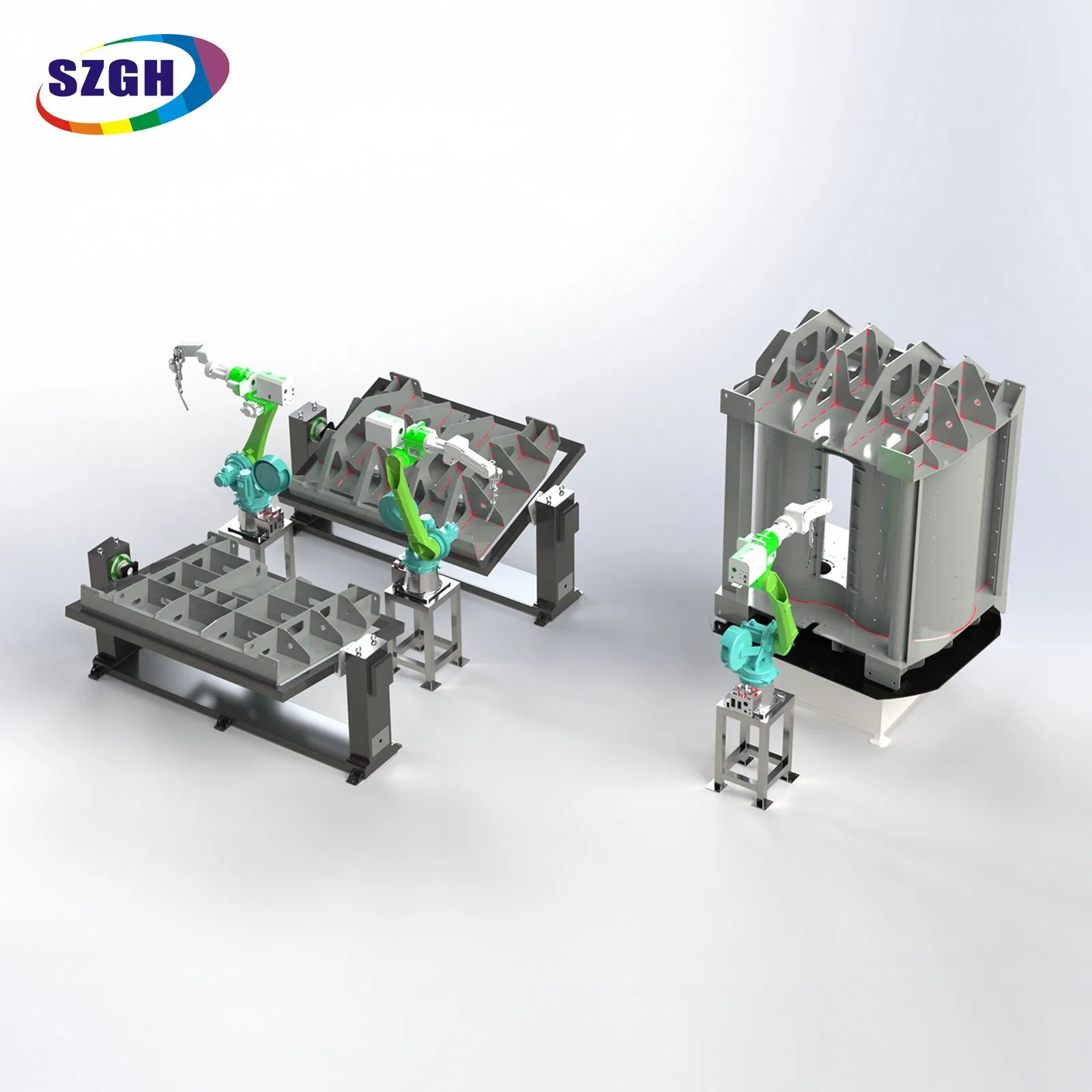

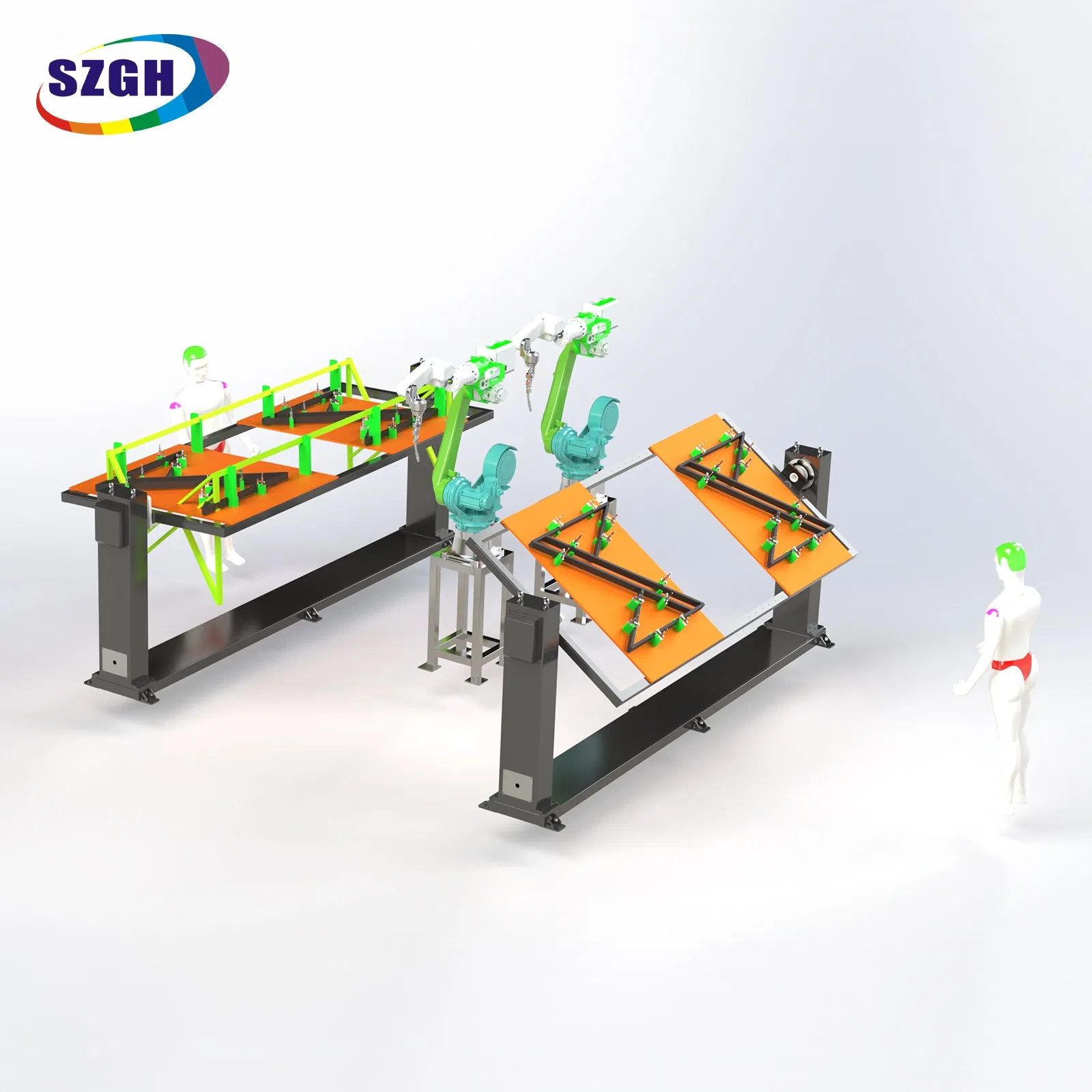

Engineer Recommended Solution: Welding robot arm kit + Rotary table for high efficiency.

ℹ

Professional Production

Frequently Asked Questions

Who are we?

We are a technical solution provider based in Guangdong, China, established in 2013. We specialize in CNC total solutions and robot arms, supported by independent technical teams with over 10 years of overseas sales experience.

How can we guarantee quality?

Quality is ensured through a full pre-testing phase conducted by professional engineers and a final 100% inspection before every shipment.

What can you buy from us?

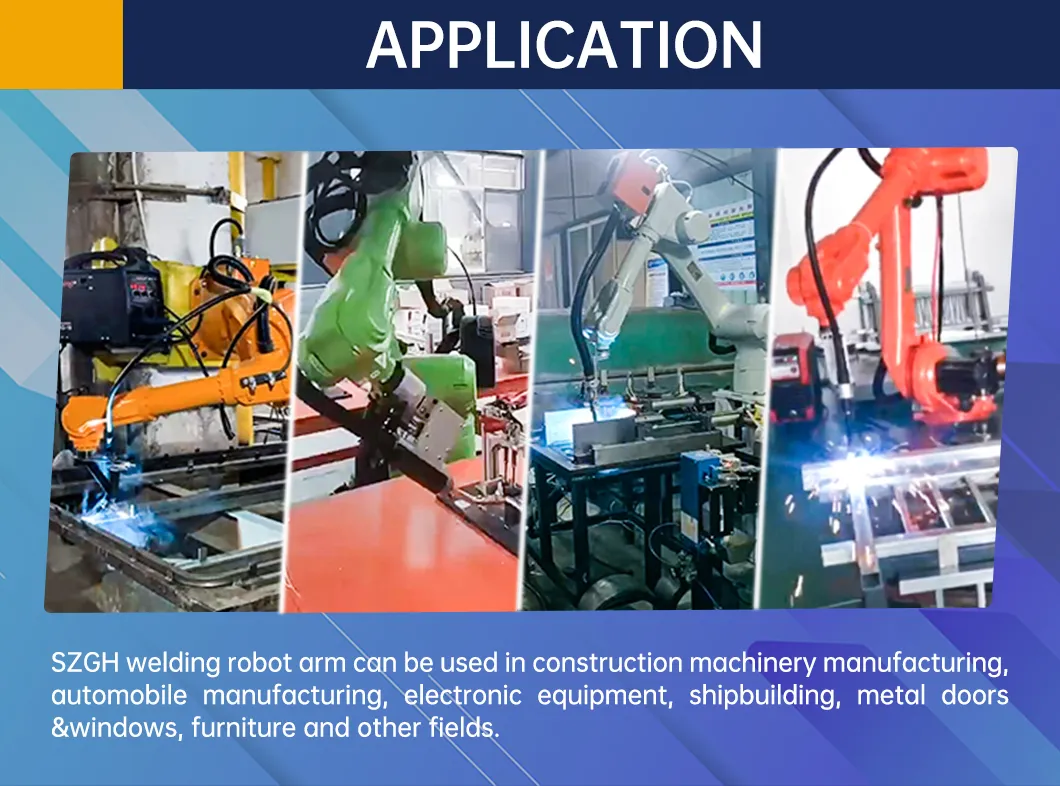

We offer industrial robot arms for welding, painting, spraying, material handling, pick-and-place, grinding, and other customized robotic solutions.

Why choose us over other suppliers?

We provide complete package solutions for robot arms, excellent technical support, high-quality manufacturing guarantees, and competitive quotations based on honest and reliable business principles.

What services can we provide?

We accept various delivery terms (FOB, CFR, CIF, EXW, DDP, etc.) and payment methods (T/T, L/C, Credit Card, PayPal). Our team provides support in multiple languages including English, Spanish, Russian, and more.

What are the supported robot applications?

Our 6-axis robot arms are primarily used for MIG, MAG, and TIG welding but can be adapted for handling, spraying, and palletizing through modular function settings.
