Intelligent Glass Loading Robot Arm PLC-Controlled Automatic Glass Loading System

1 / 5

Intelligent Glass Loading Robot Arm PLC-Controlled Automatic Glass Loading System

Customization:	Available
Application:	Automotive Industry, Construction Industry, Glass Processing Industry, Home Appliance Industry
Control System:	PLC Control System

Send Inquiry

Product Description

Basic Specifications

Model NO.	DS-5133	Glass Thickness	3-19 mm
Maximum Glass Size	5100*3300	Power Supply	380V/50Hz
Safety Features	Emergency Stop, Overload Protection, Safety Sensors	Warranty	1 Year
Sucker Rotating Arm	Double-Side / Bilateral	To Suck Glass Depth	≤700mm
Transport Speed	0-35m/Min (Adjustable)	Loading Cycle	≤60 S
Vacuum Pressure	-70~-99 Kpa	Vacuum Hold Time	≤15min
Power	7.5kw	Machine Type	Glass Cutting Machine

Product Description

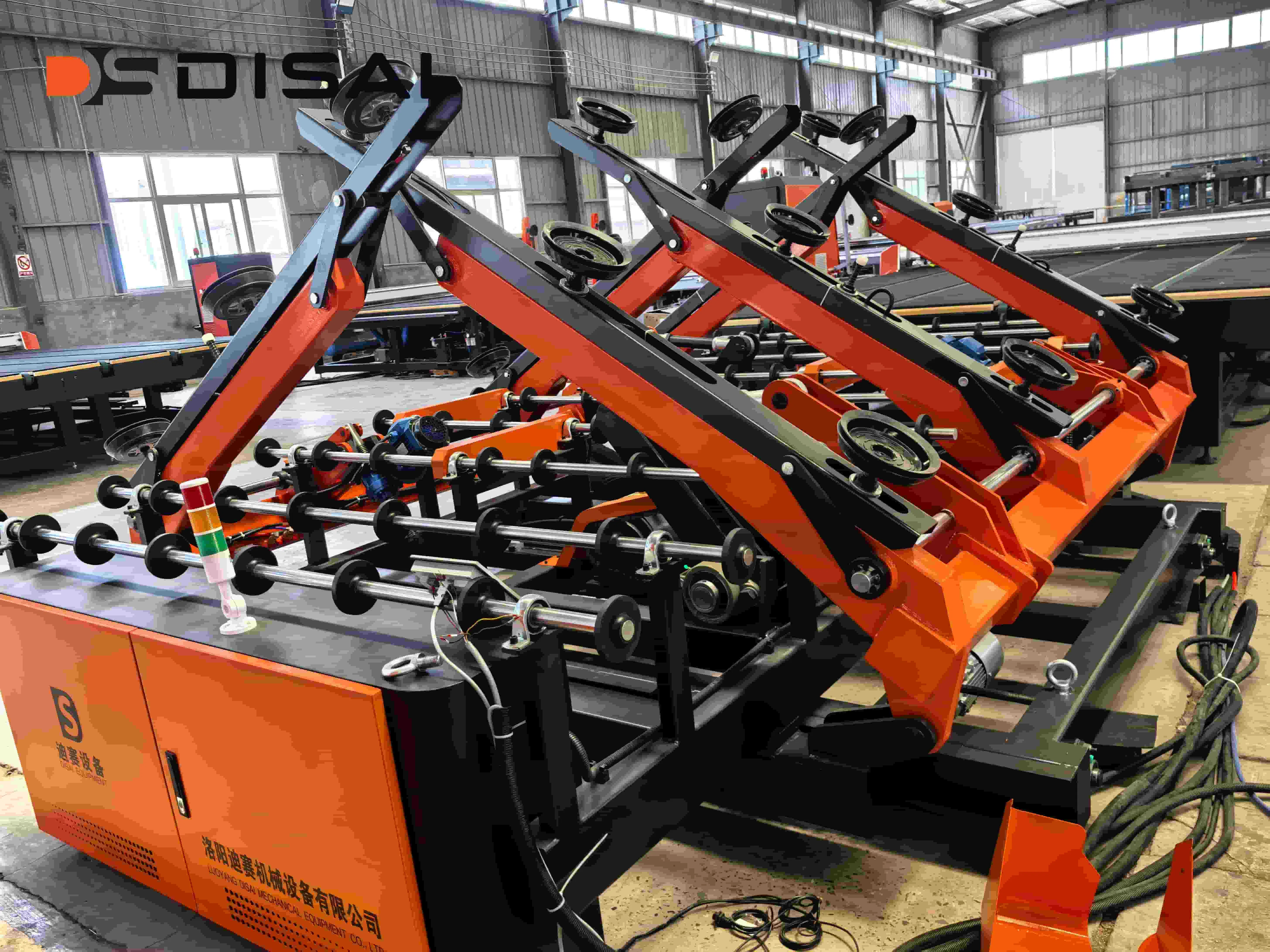

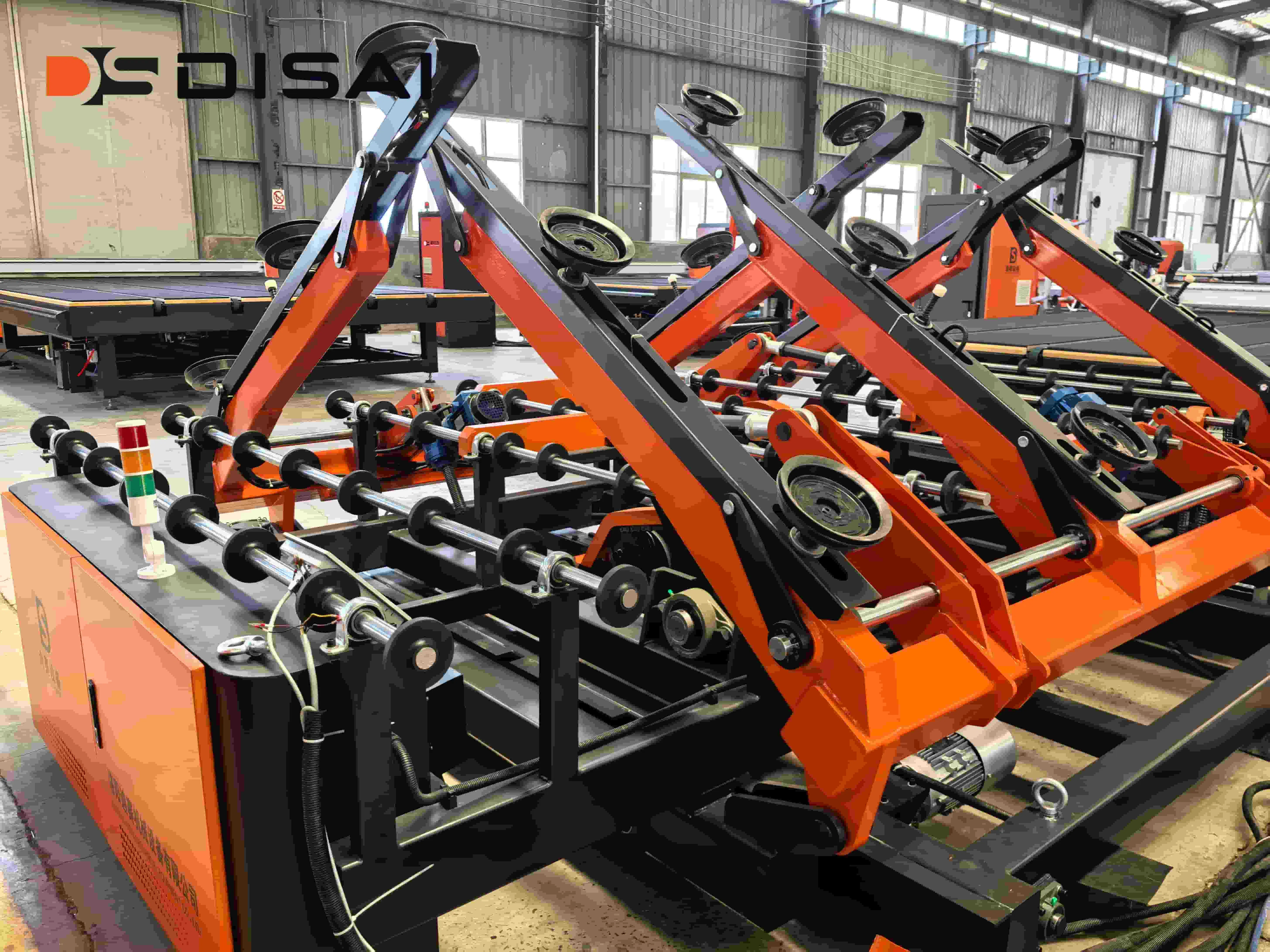

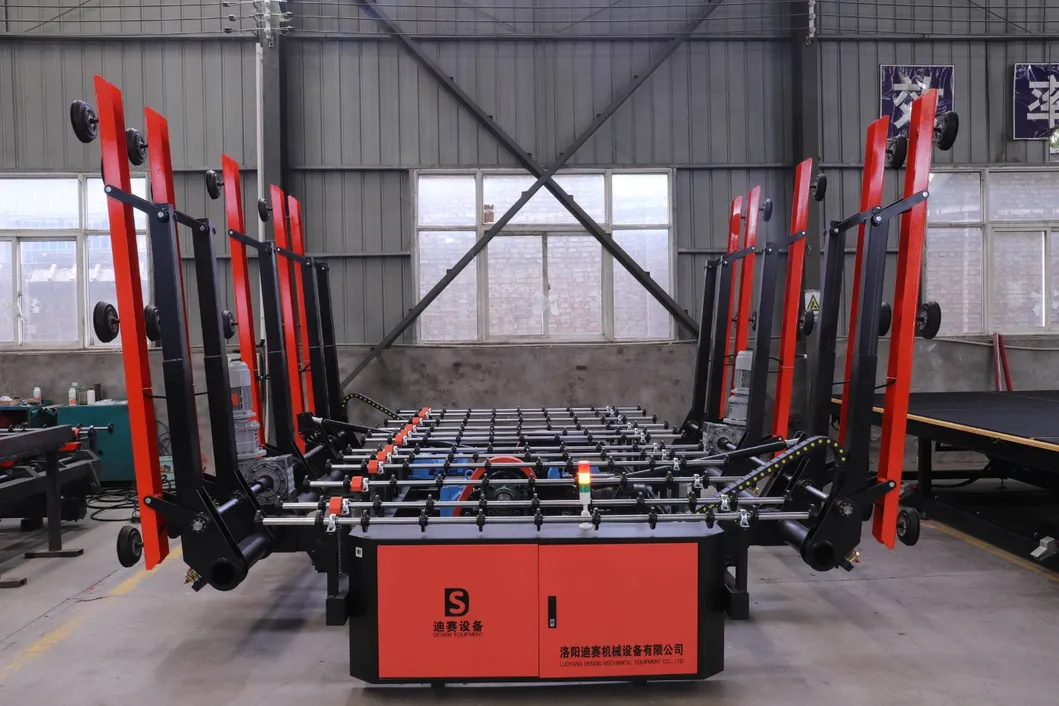

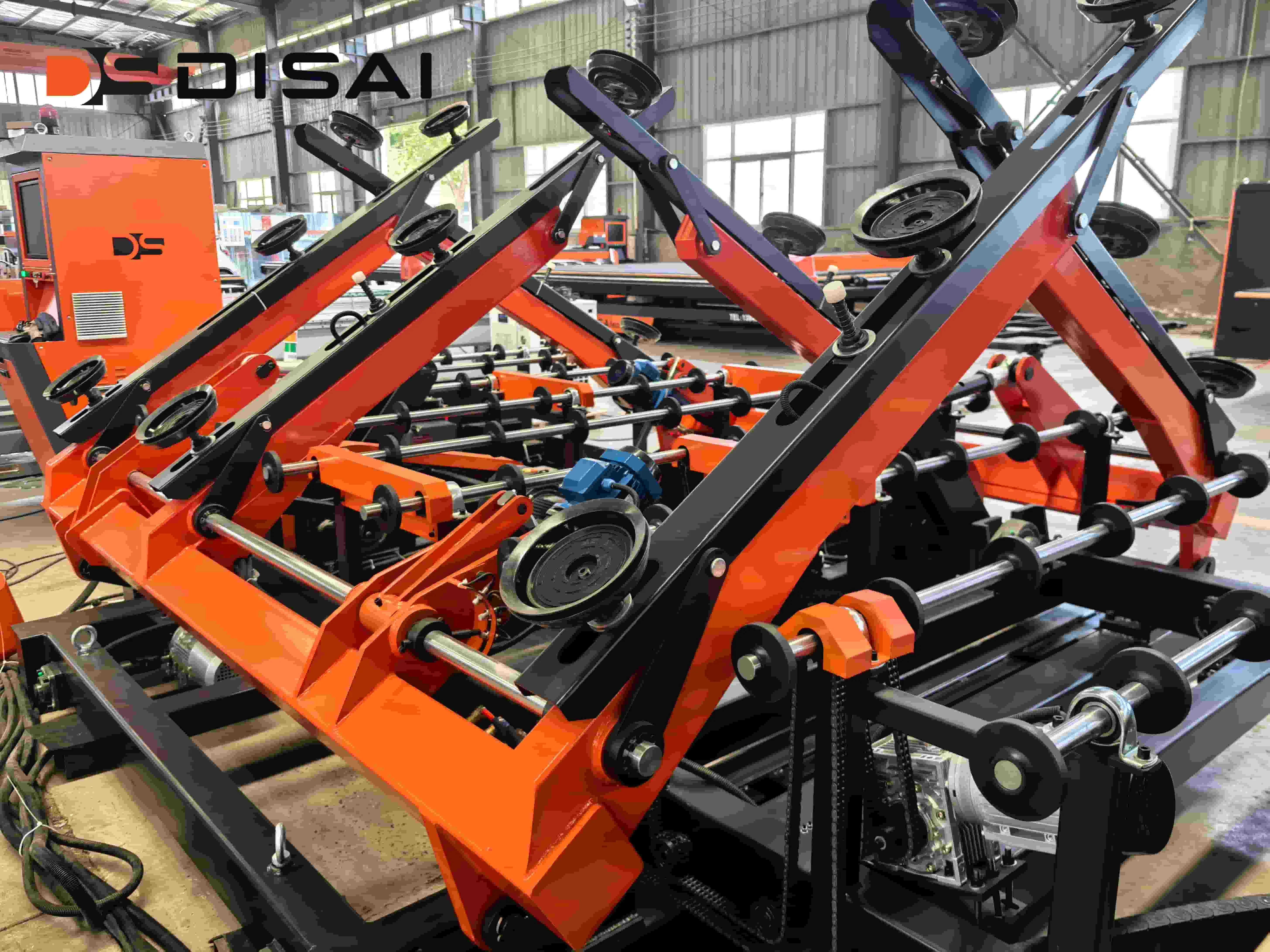

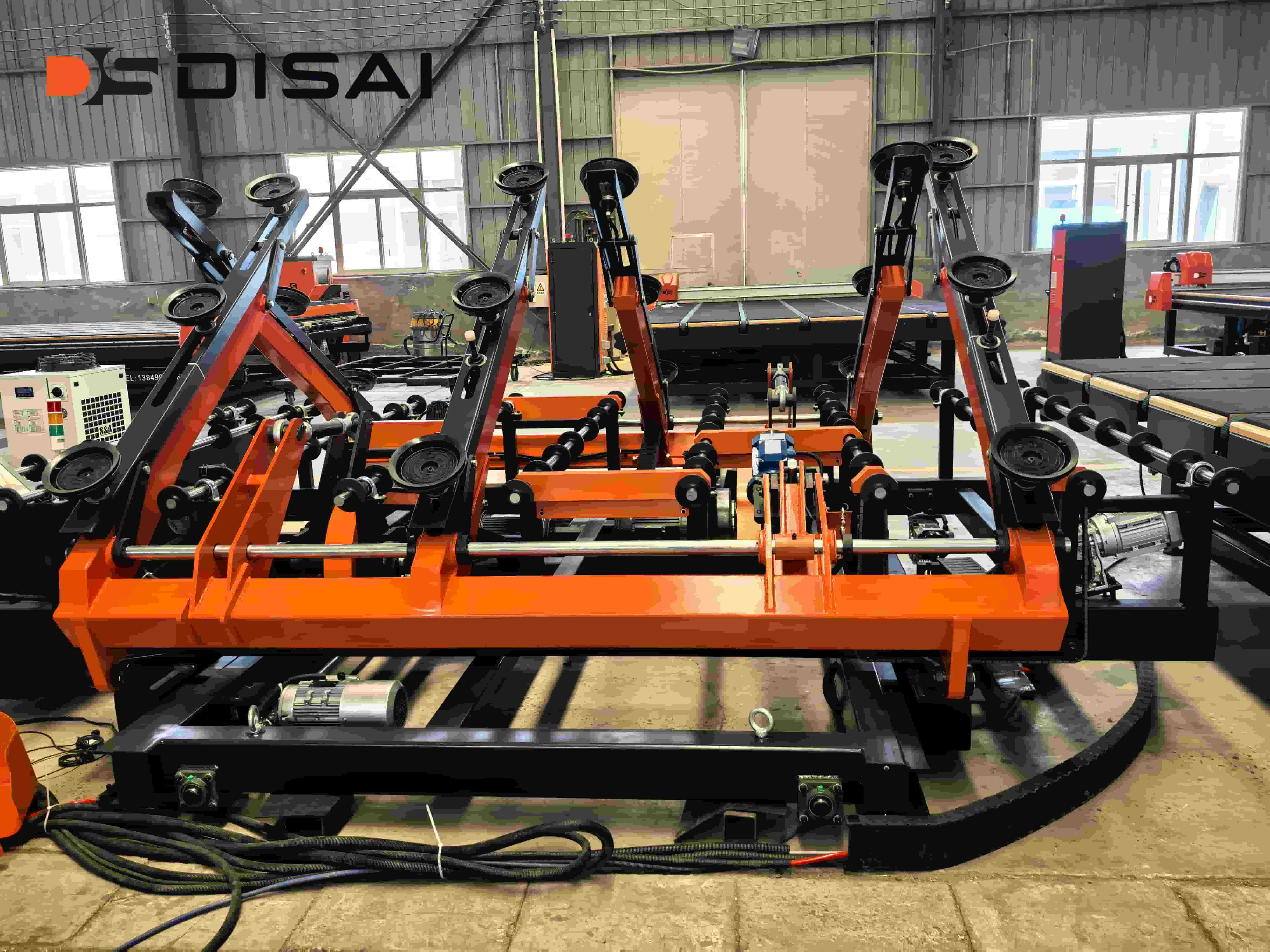

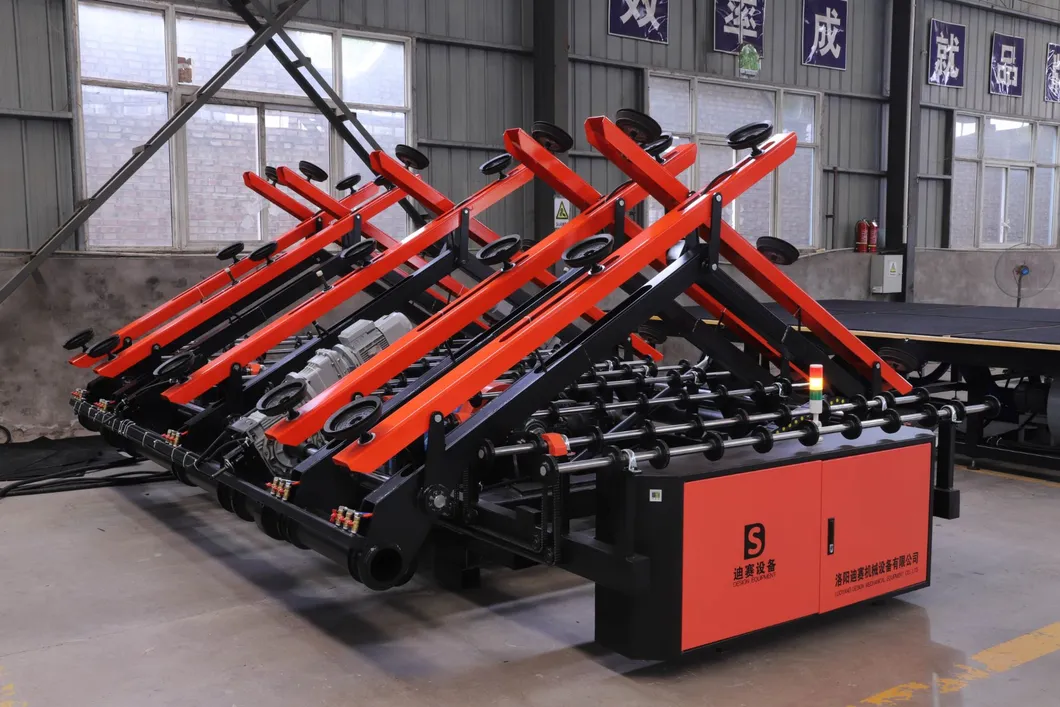

Automatic glass loading machine is an equipment that can suck glass from the glass shelf and turn to the level table and transport to cutting machine or any other working place. The structure of the loading machine mainly includes a horizontal movement mechanism, a vertical movement mechanism, a flip arm and an arm with suction cups mechanism, a horizontal transmission of glass mechanism, vacuum system and control system.

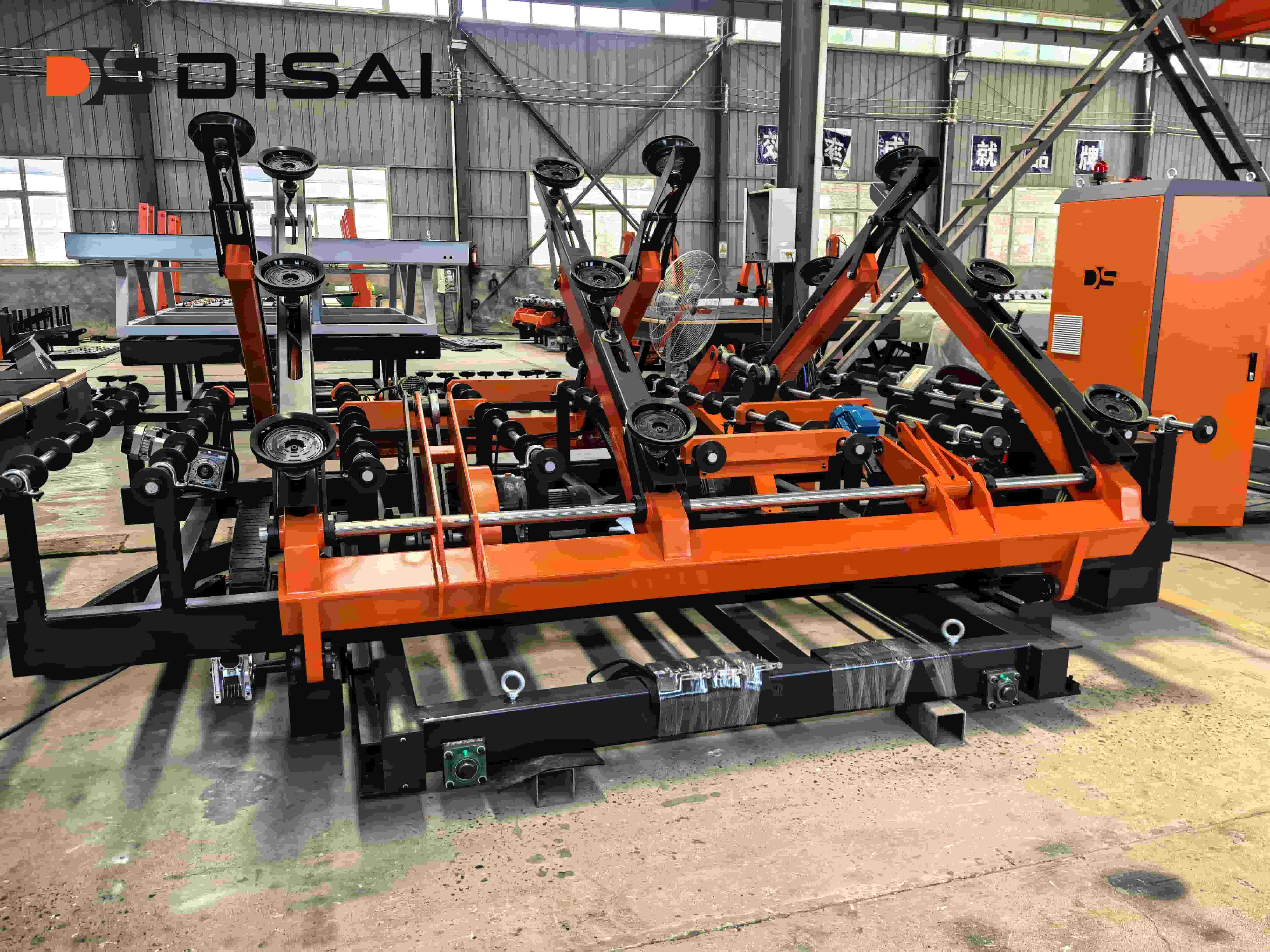

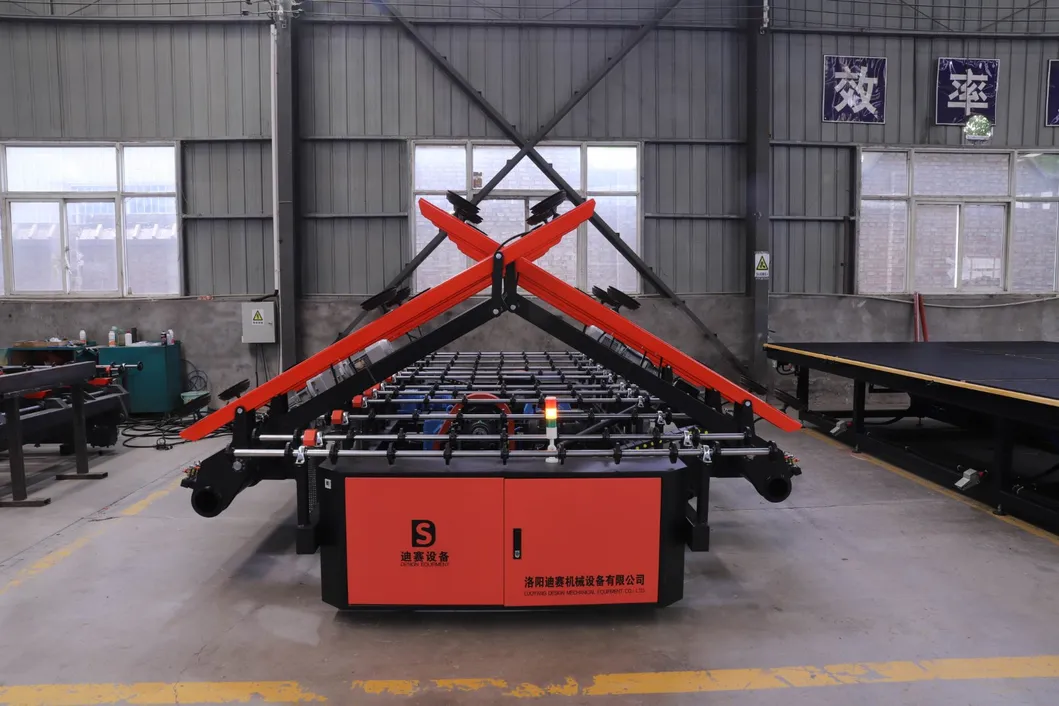

❶ The rack walks towards the glass racks direction, and one of the big arms is turned up.

❷ Induction switch touches the glass, vacuum pump starts to pick up the glass.

❸ Small arm lifts the glass from the racks; Big arm puts it down horizontally.

❹ Horizontal transmission and positioning, controlled by PLC system.

Detailed Features

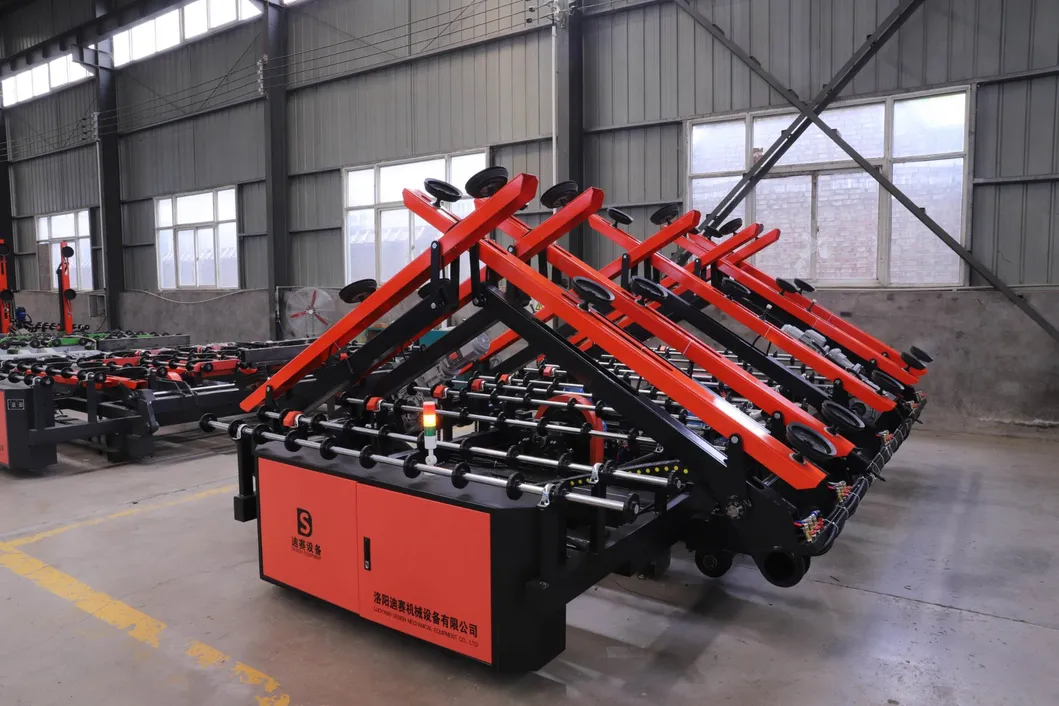

Adsorption Device

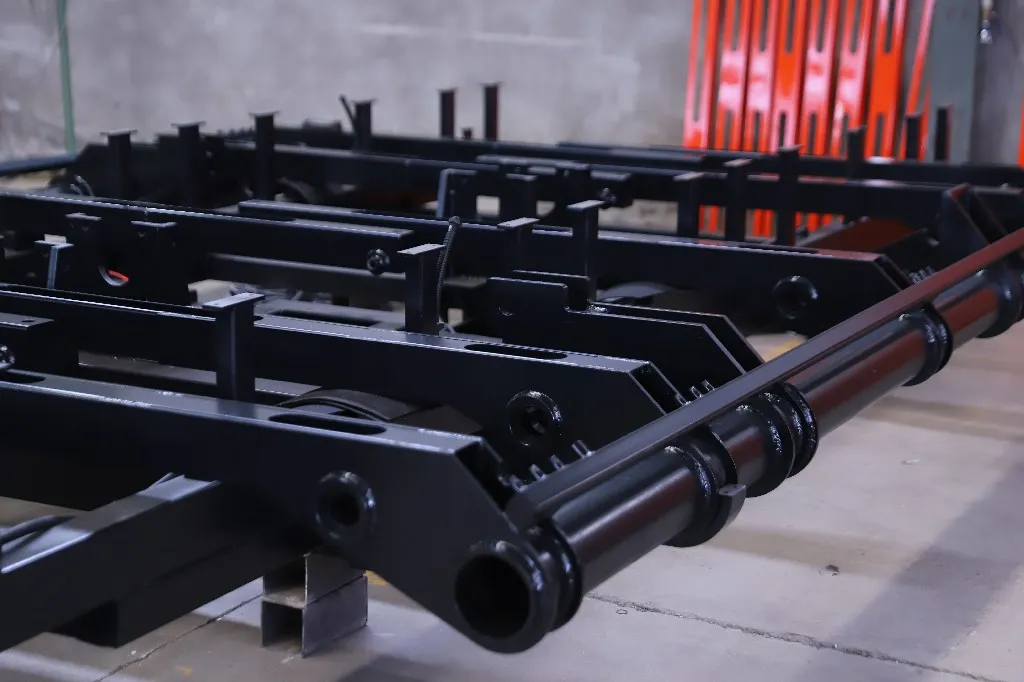

The suction cup adopts an advanced double-layer adsorption structure (inner and outer layers), which makes sucking more firm and eliminates defects of air leakage caused by damage to the outer layer.

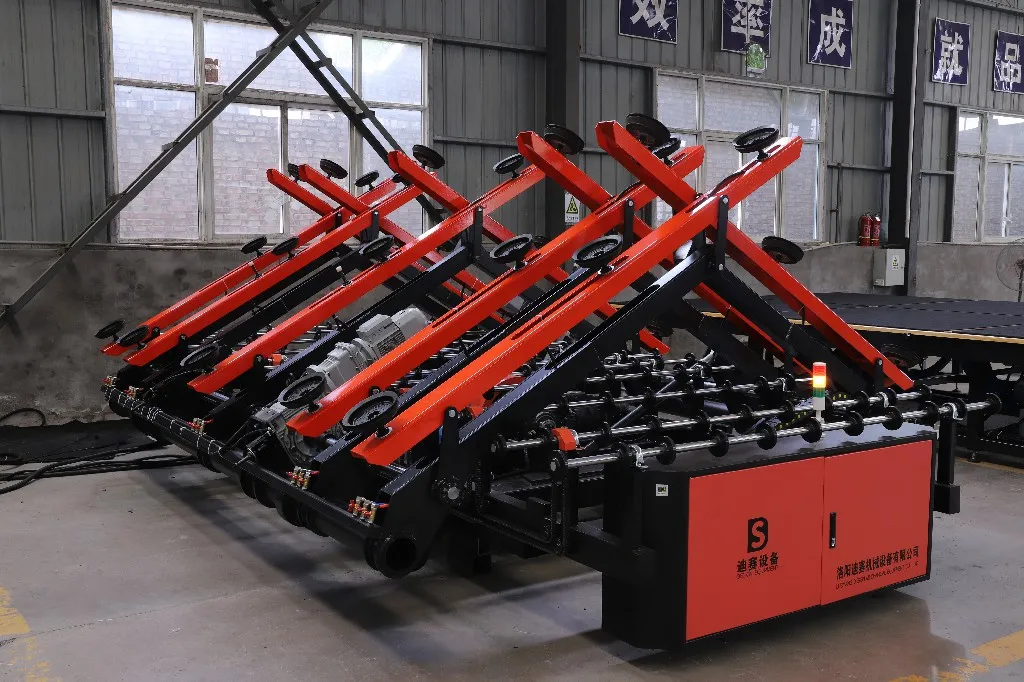

Alarm & Safety Device

Includes automatic detection and traffic light alarm devices to display abnormal situations. Emergency stop switches allow immediate control during abnormalities.

Parameter Setting

Loading sequence and numbers can be set digitally. It fully connects to the cutting machine for uninterrupted continuous automatic loading.

Technical Parameters

Machinery Parameters
Max. loading glass size	3700mm x 2500mm
Min. loading glass size	800mm x 800mm
Glass thickness	2-19mm
To suck glass depth	≤700mm
Transport speed	0-35m/min (Adjustable)
Vacuum pressure	-70~-99 Kpa
Arm quantity on each side	3
Vacuum sucker quantity on each arm	3
Power / Voltage	7.5kw / Customized
Dimension	4000mm x 3700mm x 900±50

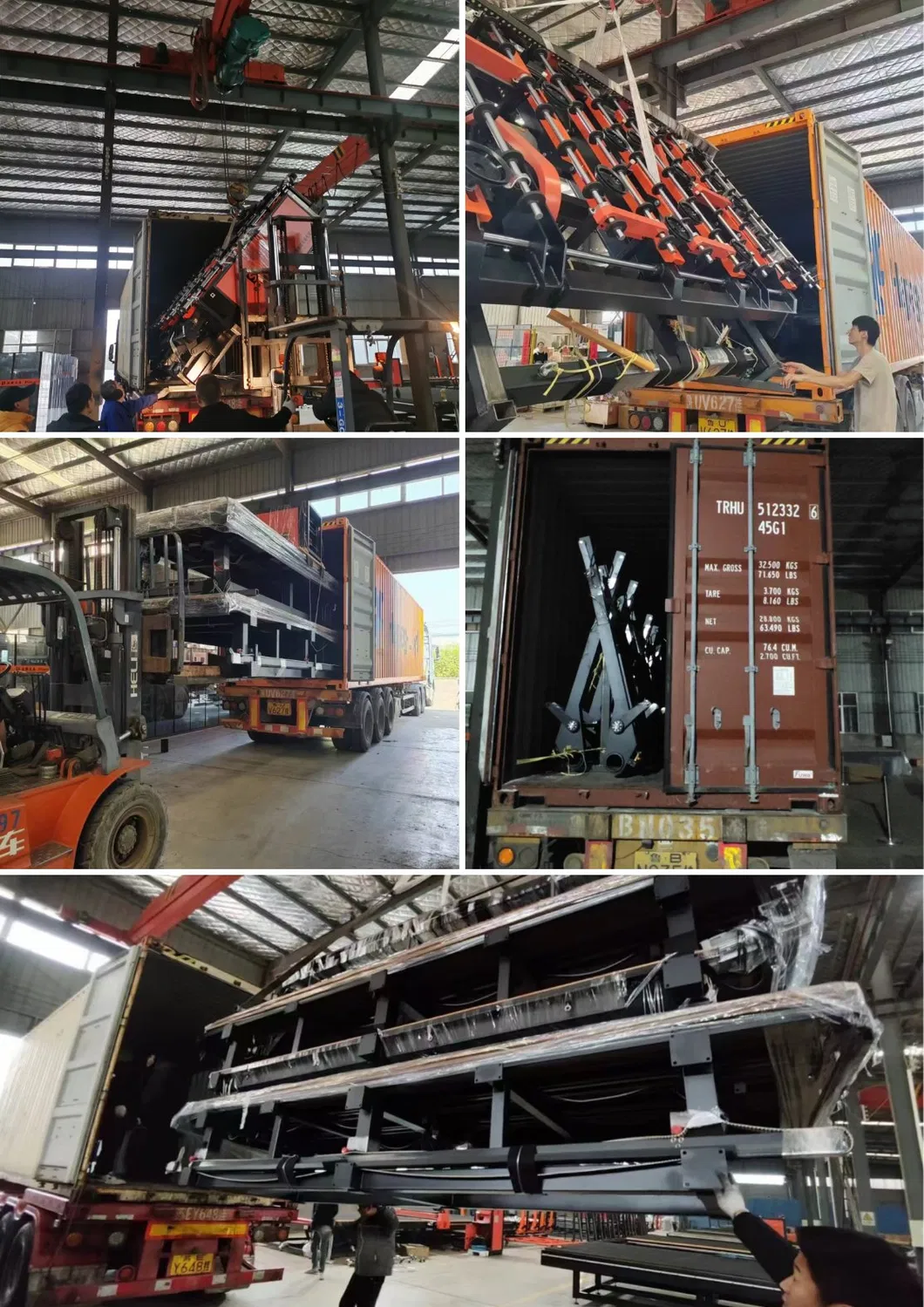

Packaging & Shipping

Frequently Asked Questions

1. What types of glass can your machine handle? The machine can process float glass, Low-E glass, coated glass, and mirror glass, with thicknesses ranging from 2 mm to 25 mm.

2. What is the maximum sheet size it can handle? Standard models handle up to 4200mm x 2800mm. Custom sizes for jumbo-size requirements are available upon request.

3. How accurate is the glass cutting? Our precision is ±0.15 mm, ensuring clean edges suitable for tempering, laminating, or IGU production.

4. Is the equipment difficult to operate? No. It features a touchscreen interface, supports CAD/CAM files, and offers automatic nesting for easy operation.

5. What kind of return on investment (ROI) can I expect? Most customers see a full ROI within 6-9 months due to higher output, lower labor costs, and reduced glass waste.

6. What happens if the machine breaks down? We provide 24/7 support and remote diagnostics. Most issues are resolved online within hours, and spare parts are kept in stock for fast shipping.
