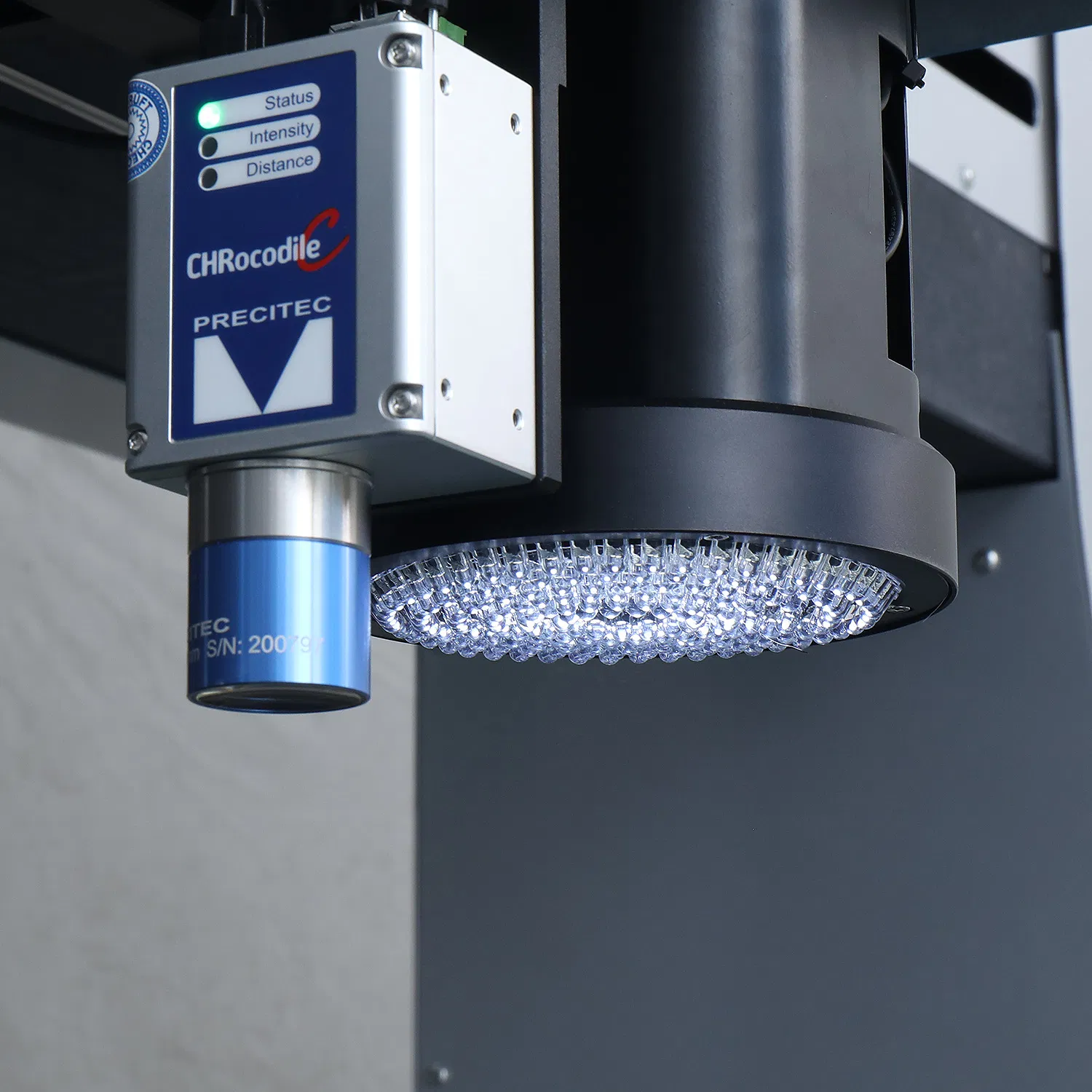

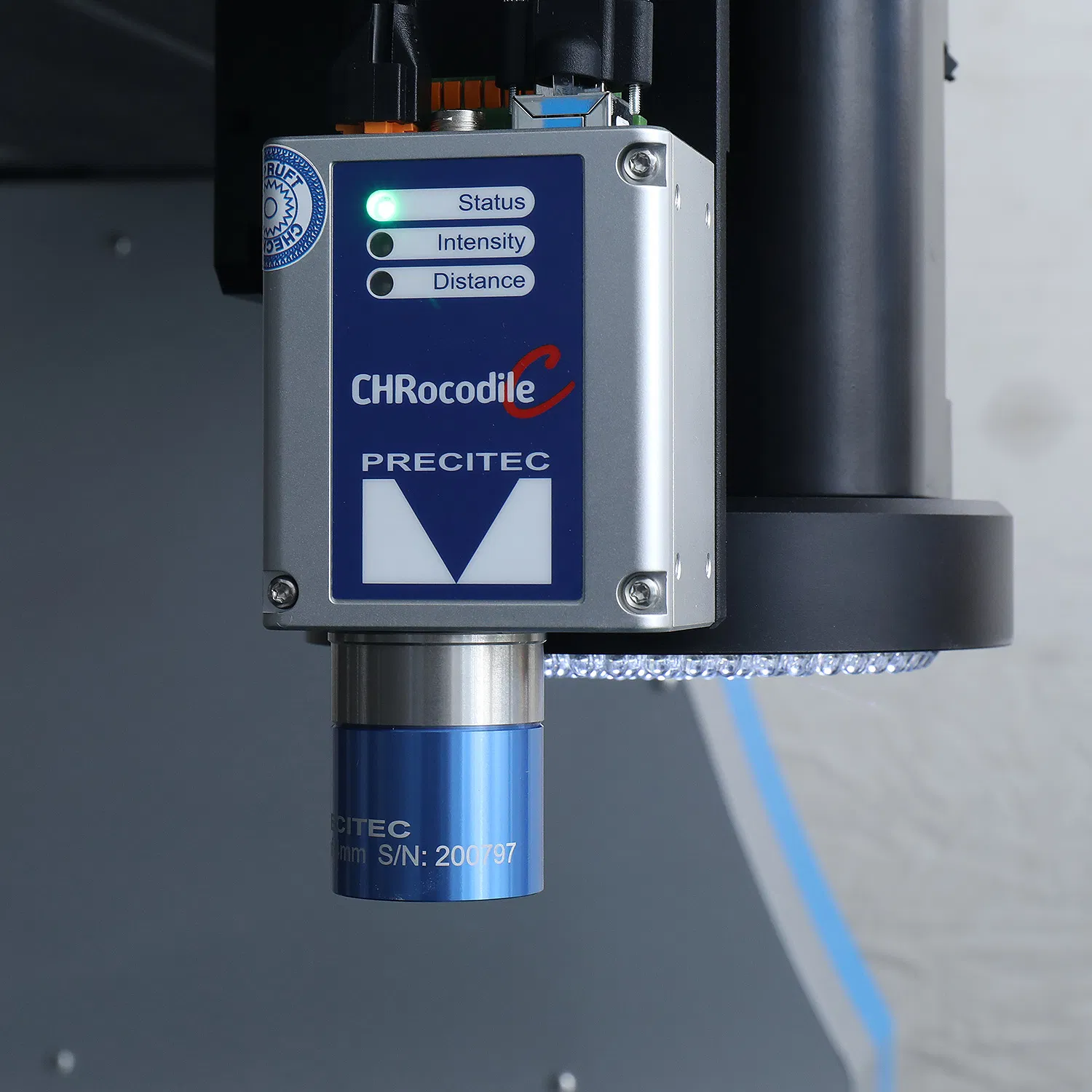

Focus Laser
1 / 5

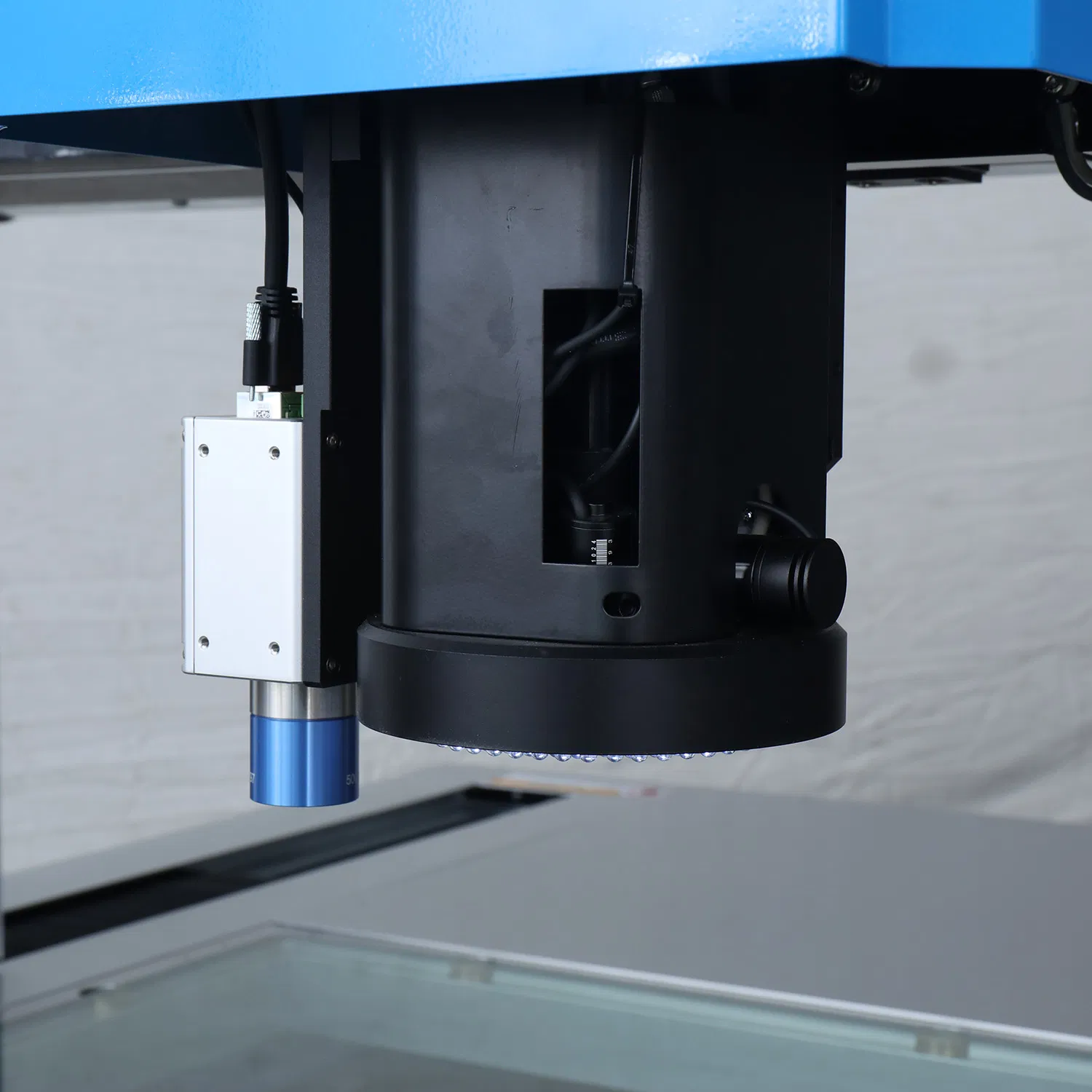

1. With automatic zoom lens, no need for manual re-calibration after finishing automatic zoom.
2. The image navigation system allows for quick location of the measured object's position.

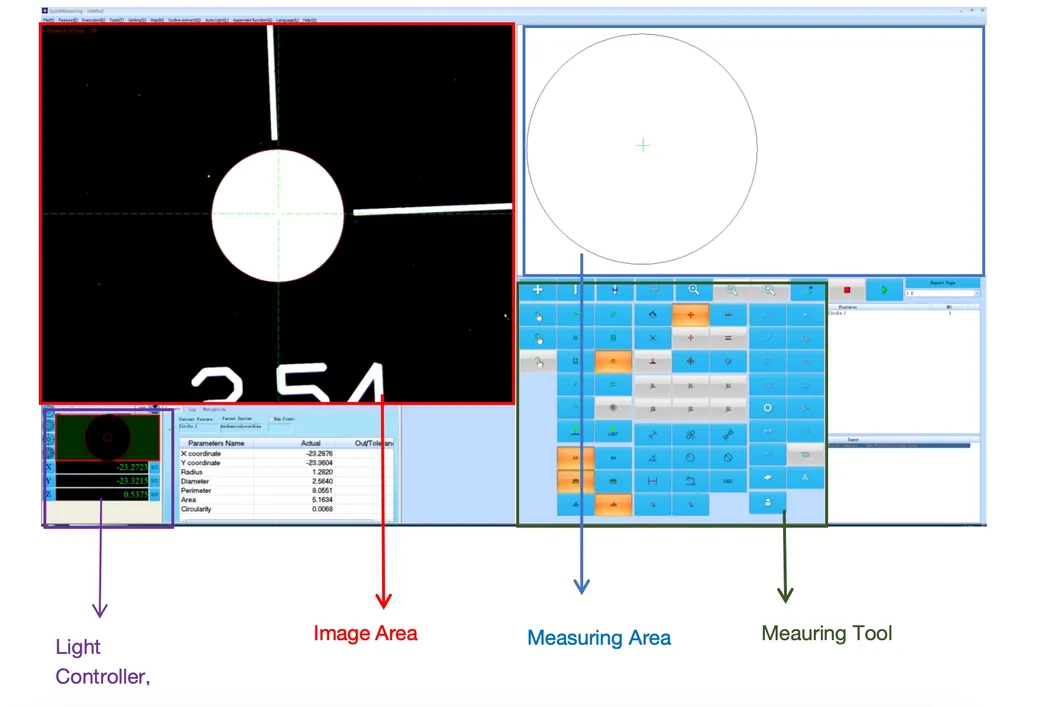

• User-friendly Windows-based interface, easy to learn and integrate.
• Multi-geometry processing with intuitive keys for coordinates and dimensions.
• Teach programming for automatic editing and DXF file imports.
• Automatic recording and calculation of measurement data.
1. GSI High Accuracy Linear Scale offers 0.5-micron resolution for exceptional accuracy.

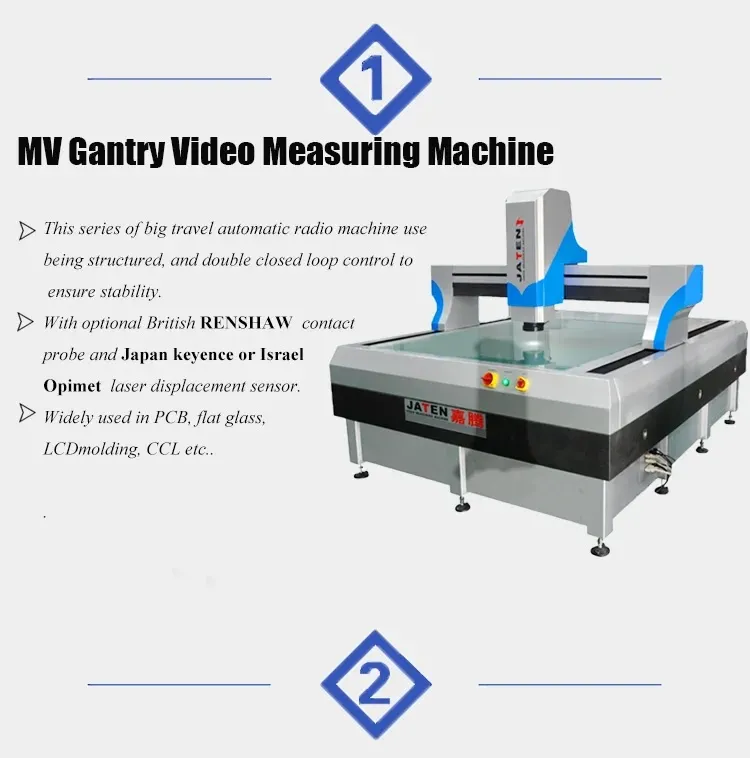

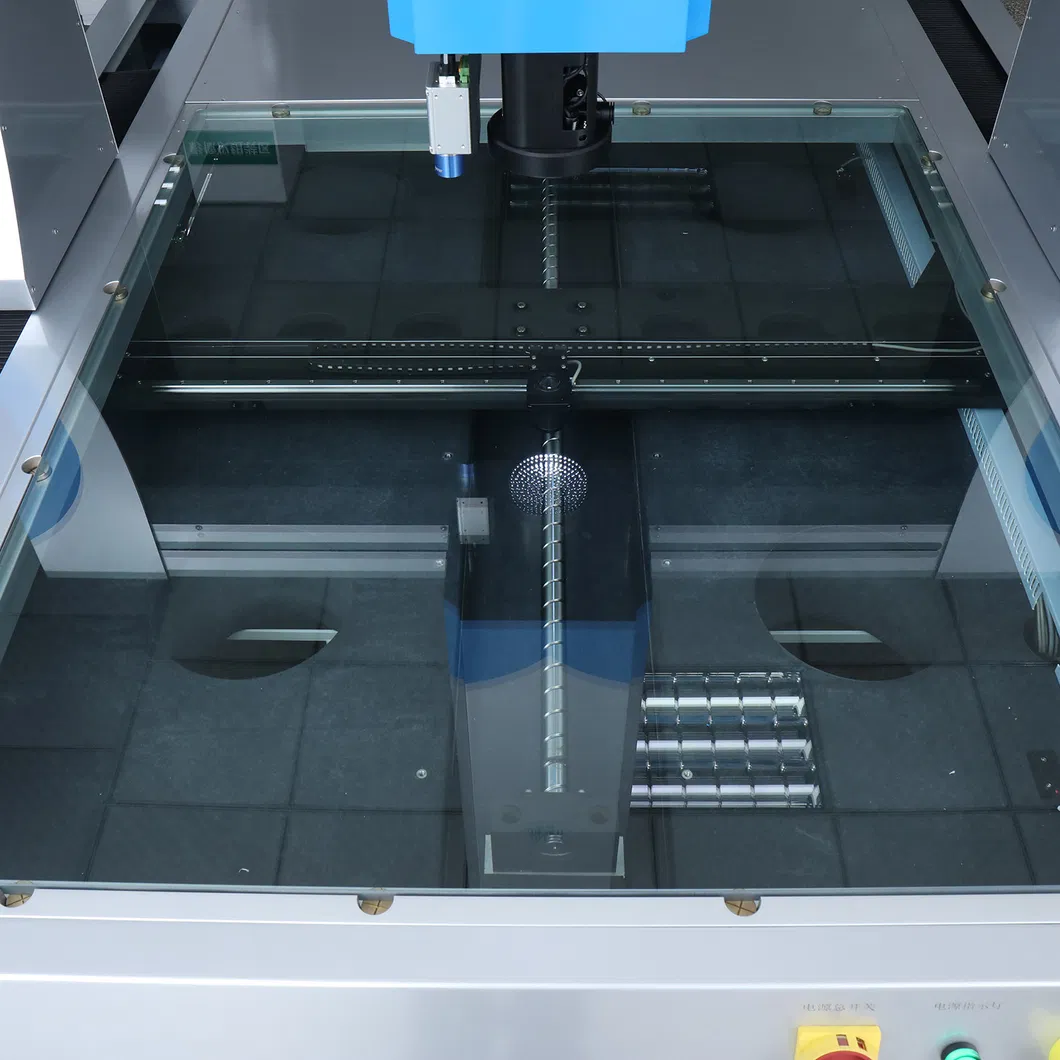

2. Precision linear guide paired with Panasonic servo motor achieves double closed-loop control.

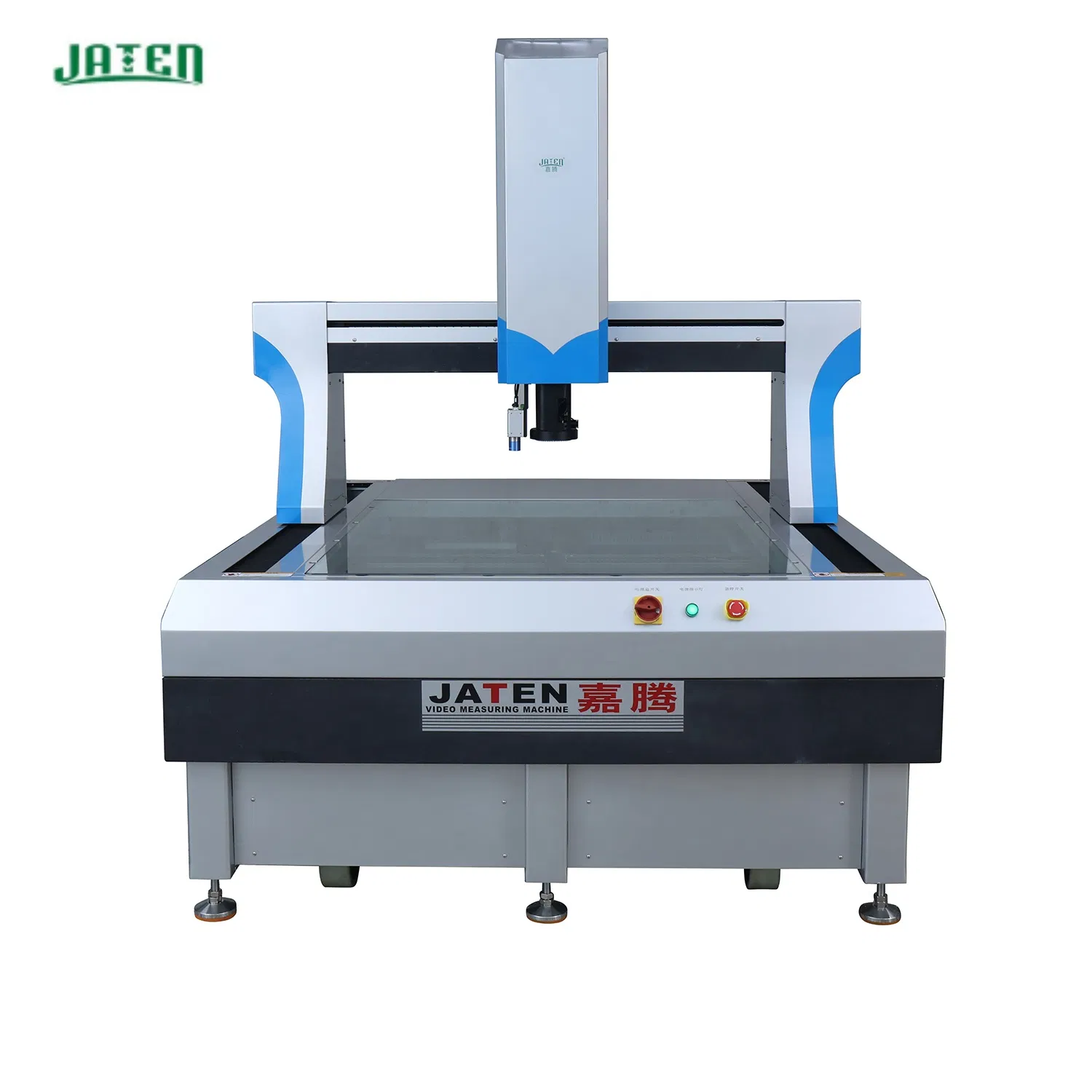

| Model | JTD-MV1210CNC |
| X,Y-axis Travel(mm) | 1200 X 1000 |
| Z-axis Travel(mm) | 200 |
| Dimensions(mm) | 2200 x 1910 x 1700 |
| Resolution(mm) | 0.0005 |
| X,Y-axis Accuracy(um) | ≤3+L/200 |
| Z-axis Accuracy(um) | ≤4+L/200 |

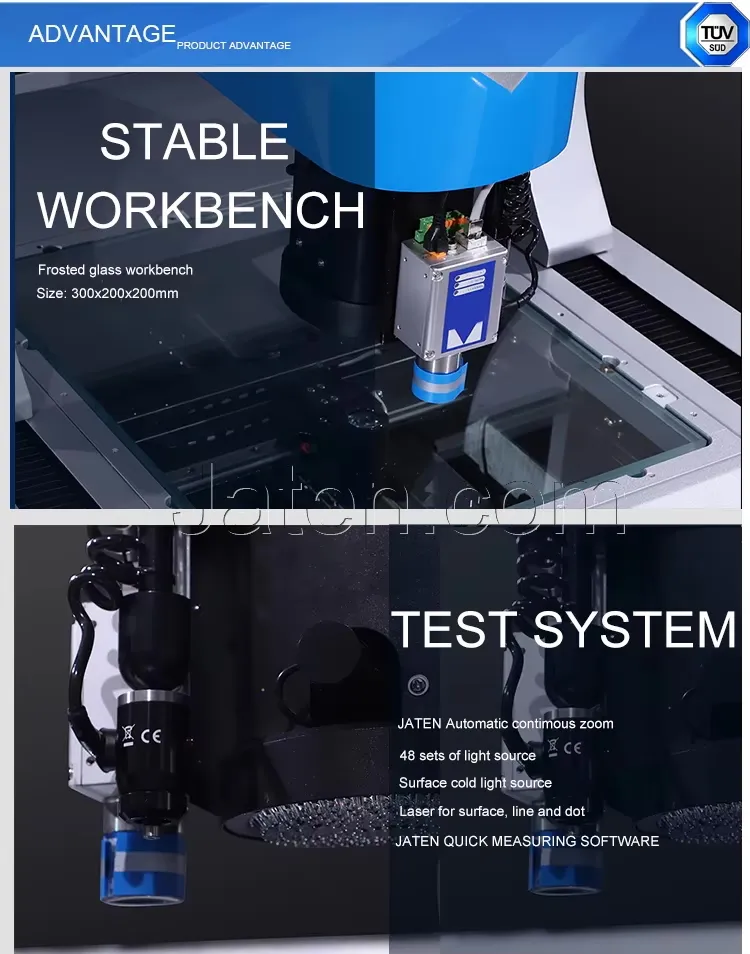

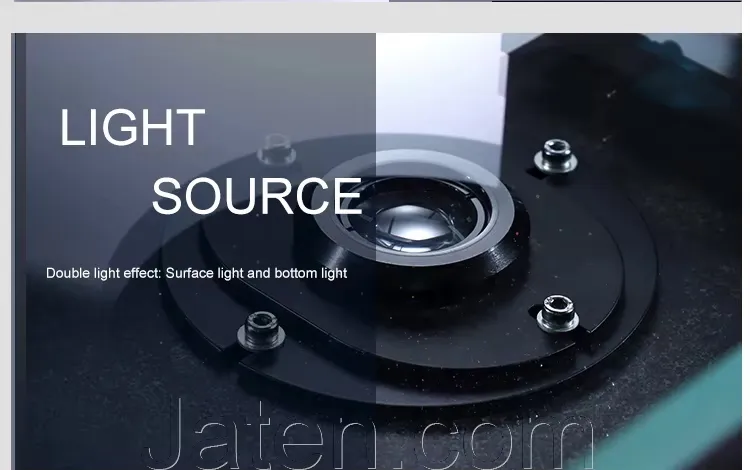

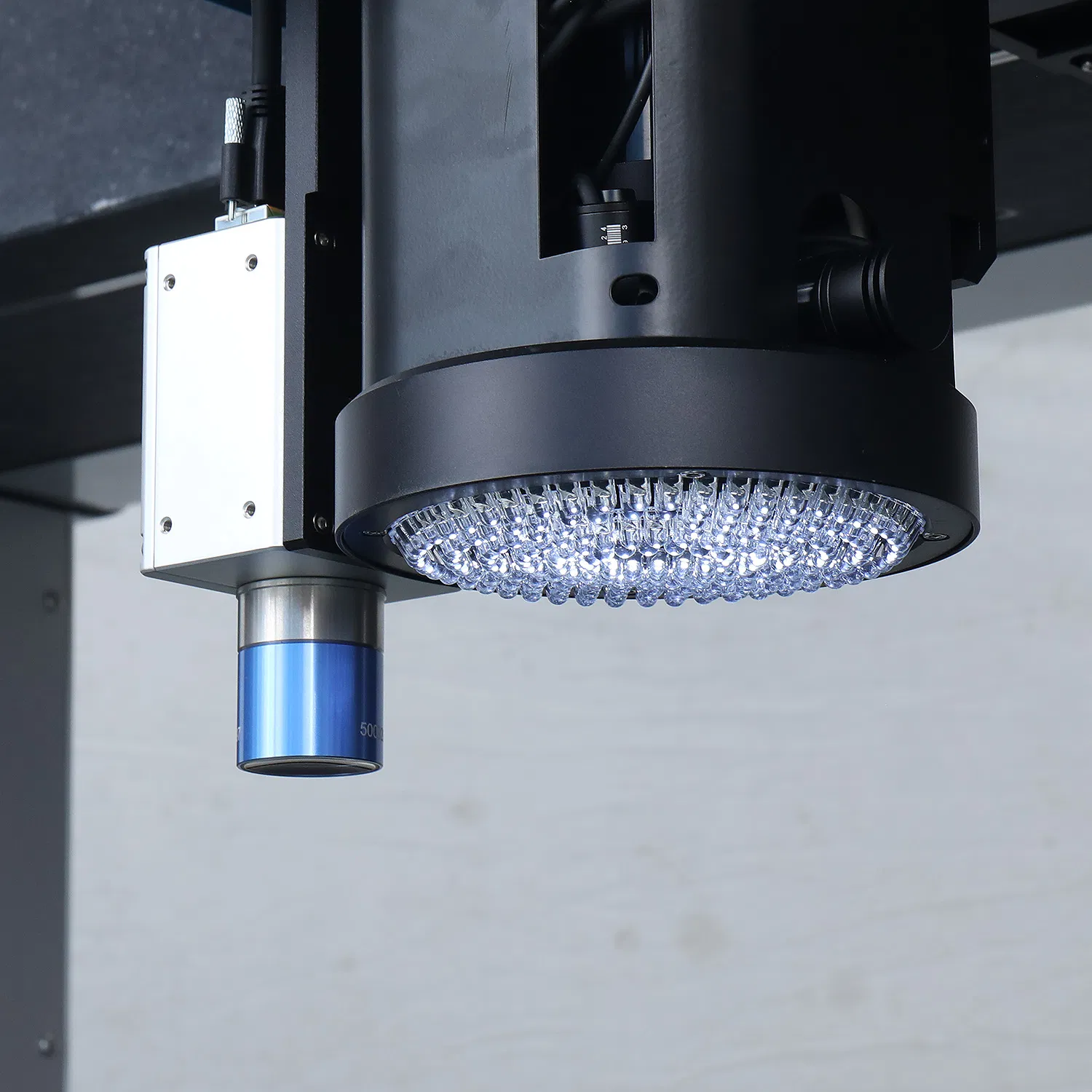

| Illumination | Adjustable LED Ring illumination |
| CCD | High Resolution Color Network Camera |
| Optical System | Automatic Zoom Lens |
| Measuring Software | Quick Measuring |
| Power | 220V±10%, 50HZ |
Our customers span 50+ countries, serving global leaders in automotive, aerospace, and electronics industries. We are committed to delivering cutting-edge solutions that meet top international standards.
