Customizable Micropore Processing System/Precision Micropore Film Processing

Customization: Available
After-sales Service: One Year Warranty
Warranty: One Year Warranty

Product Description

Product Overview

Model NO.: AT-61165
Origin: China
Package Size: 150.00cm * 90.00cm * 150.00cm
Gross Weight: 2000.000kg

Product Description

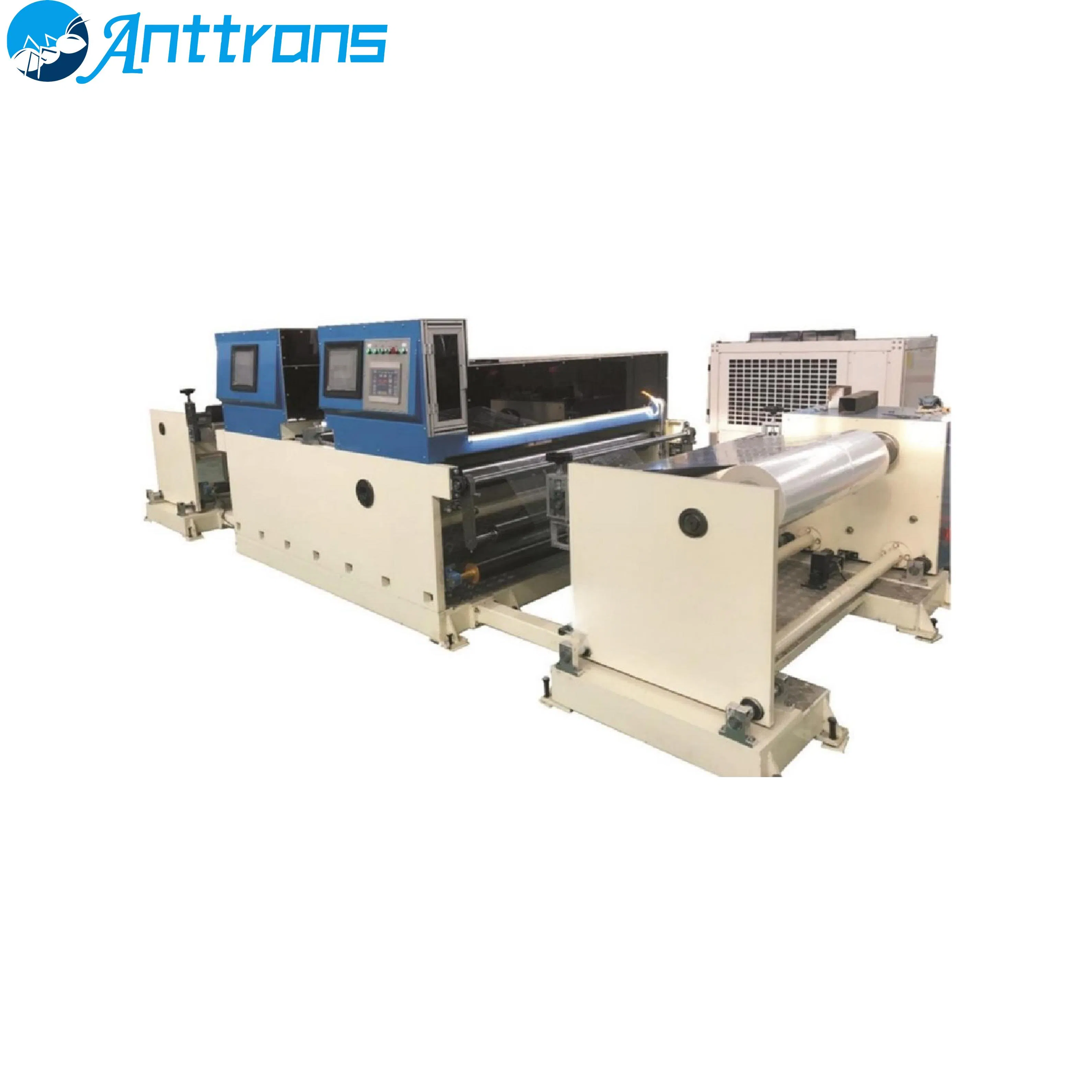

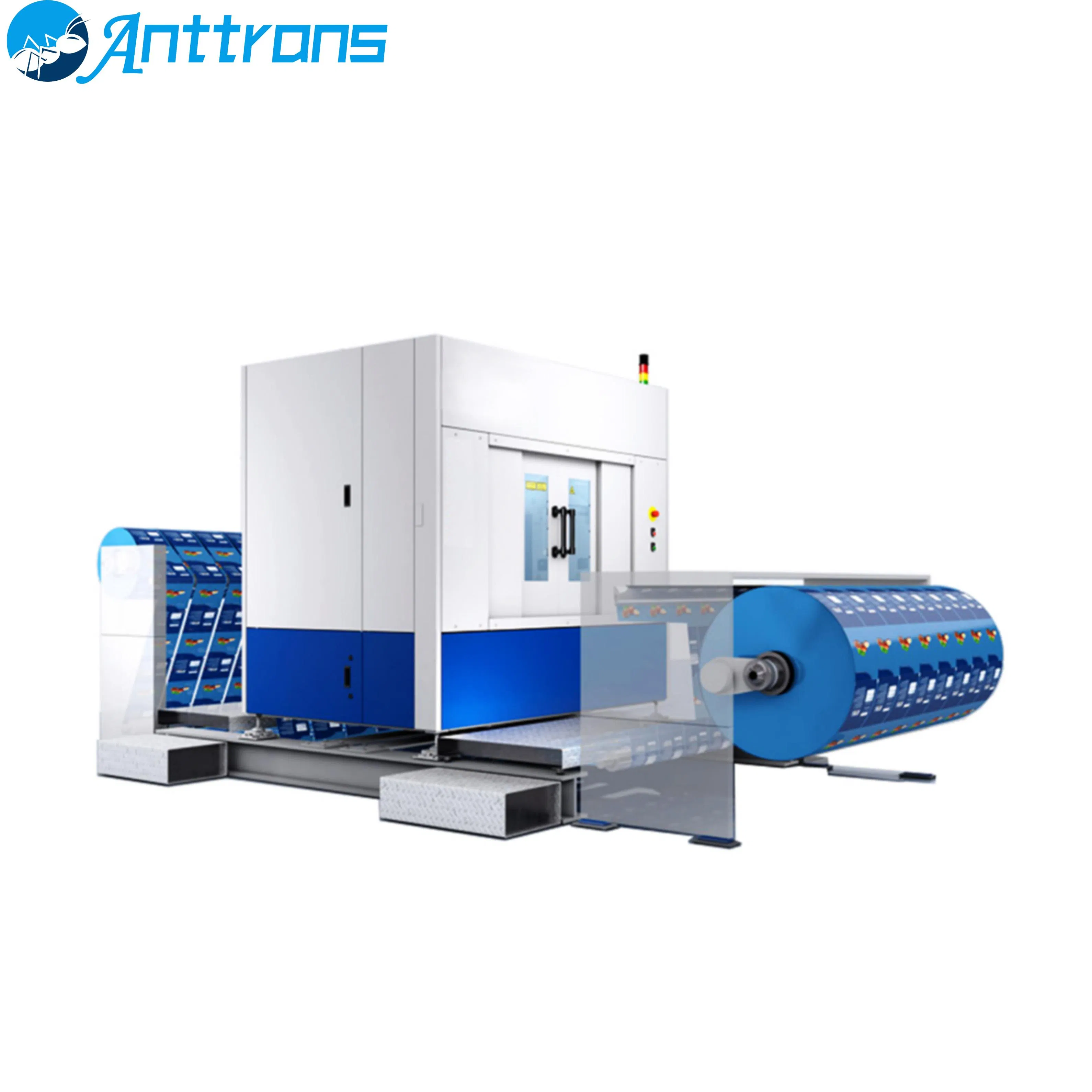

The system employs multiple laser heads spliced together for step-by-step processing with rewinding and unwinding capabilities, and can incorporate deviation correction functionality. It is suitable for high-speed micropore processing of wide-format rolled thin films. The laser system and auxiliary systems are designed according to specific processing requirements to meet demands for aperture size, processing speed, precision, and effect.

Key Features

High precision design with minimum aperture size reaching 5 microns, optimized for speed and stability.
Parallel laser systems to broaden processing width up to 2m and enhance micropore processing speed.
Ultra-high-speed laser scanning heads achieving frequencies up to 10kHz per 1mm step.
Continuous industrial 24/7 operation with maintenance-free laser systems.

Technical Parameters

Category Parameter AT-FD30/50/100
Laser Wavelength 355/1064/10600nm
Laser Power 30/50/100W
Capability Minimum Aperture 0.005~0.3mm
Capability Processing Thickness ≤0.2mm
Capability Processing Width 20mm~2000mm
Capability Processing Speed 4000 holes/s per head
Cooling Cooling Method Water-cooled
Power Electrical Supply 380V 50~60Hz 50A
Consumption Power Consumption ≤20kW

About Our Services

Our operation specializes in technical services, technology development, and technology consulting. We focus on the wholesale and retail of computer software, hardware, and auxiliary equipment, alongside graphic and textual design. Our expertise extends to the sales of functional glass, new optical materials, optical instruments, and specialized equipment for semiconductor devices. We also provide experimental analysis instruments, CNC machine tools, instruments and meters, electronic components, electromechanical equipment, metal cutting and welding equipment, and photovoltaic components.

Detailed Photos

Frequently Asked Questions

What materials can this system process?

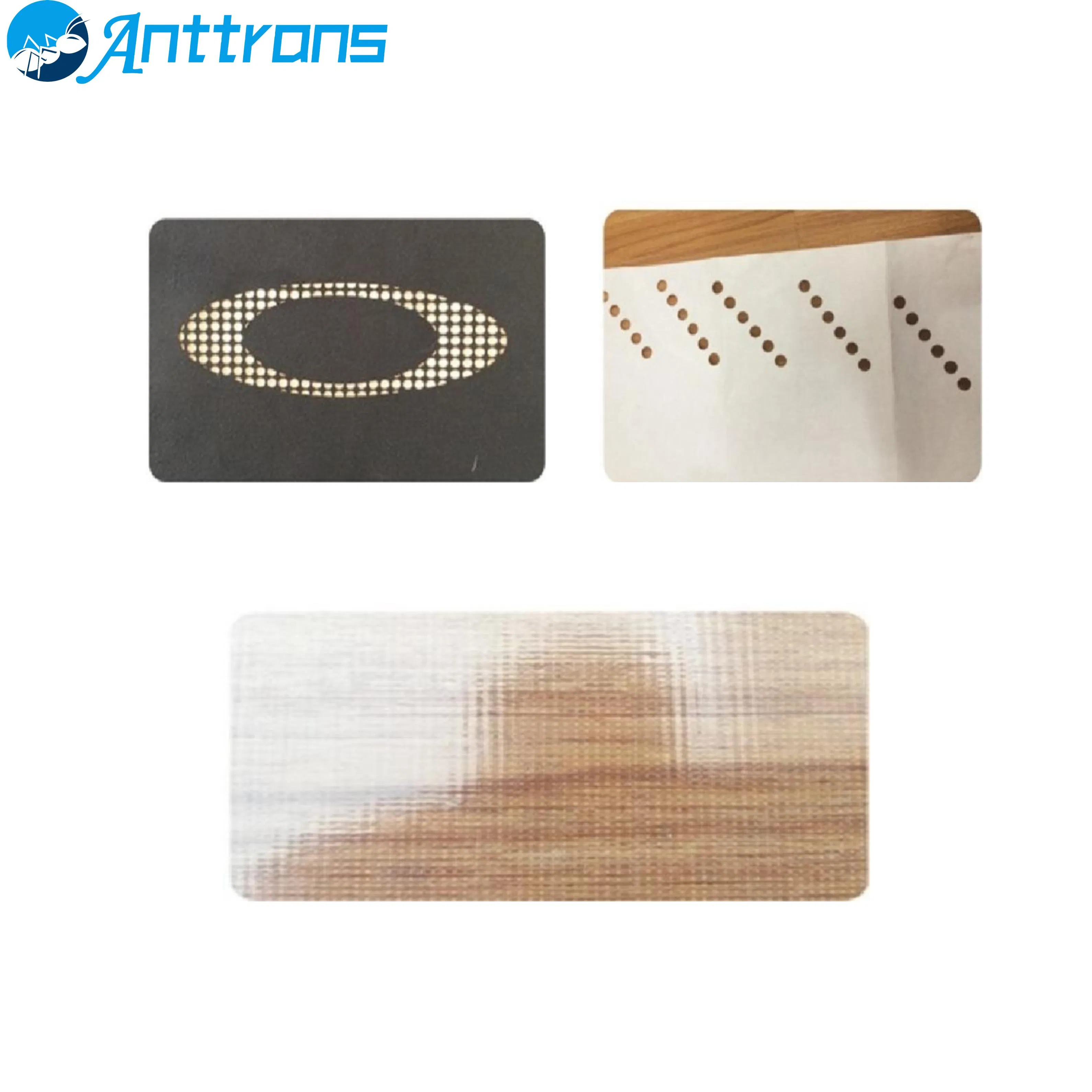

The system is designed to process metal and alloy films, as well as various types of plastic films.
What is the minimum hole size achievable?
The laser system can achieve a minimum aperture size as small as 5 microns (0.005mm).
How wide can the processing area be?
By utilizing multiple laser systems in parallel, we can support a processing width ranging from 20mm up to 2000mm.
Is the system suitable for continuous production?
Yes, the system is designed for 24/7 continuous industrial use and features maintenance-free operation.
What cooling method does the system use?
The system utilizes a water-cooled method to ensure stable operation during high-speed processing.
Can the system correct material deviation?

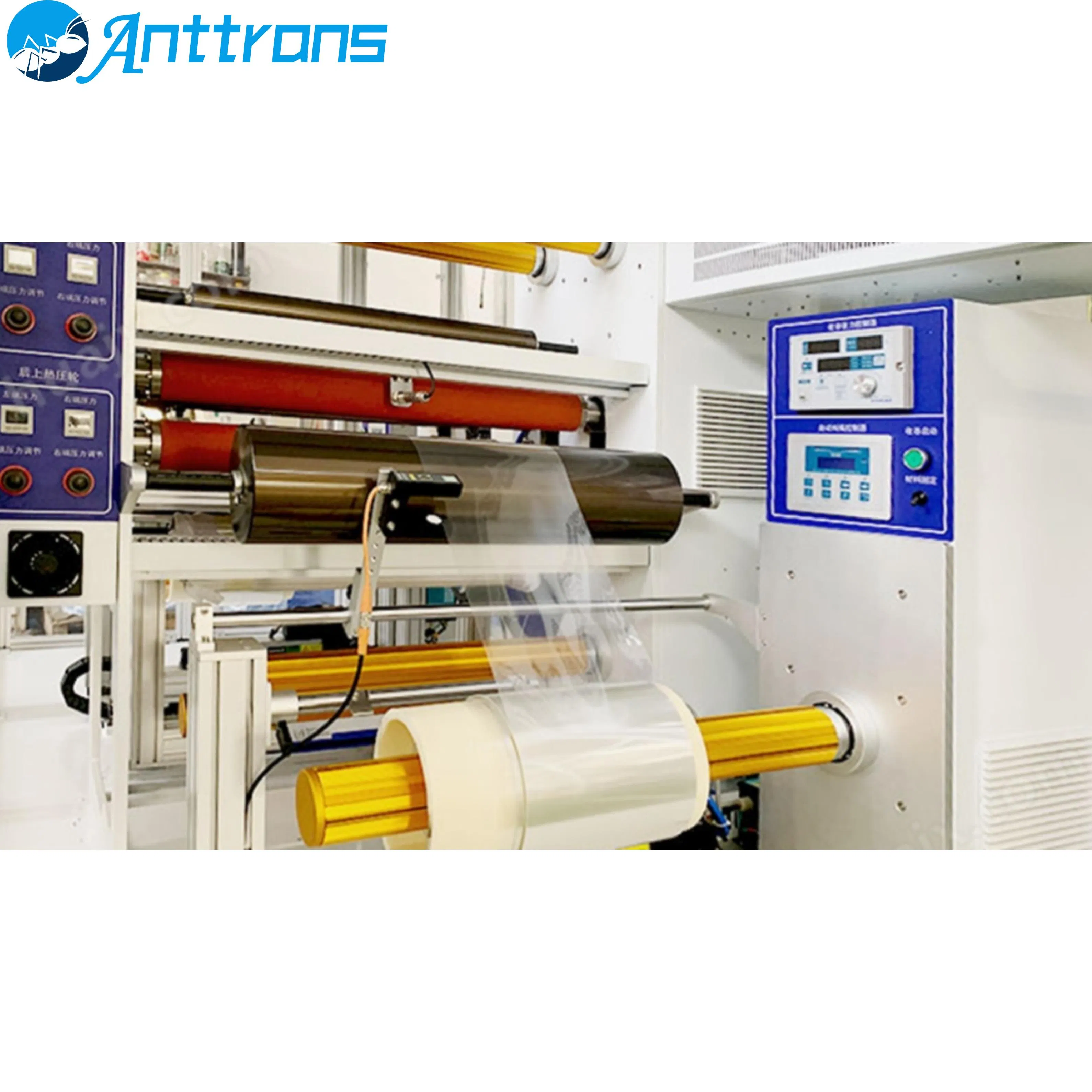

Yes, step or continuous rewinding/unwinding modules can be equipped with deviation correction functionality to ensure precision.
