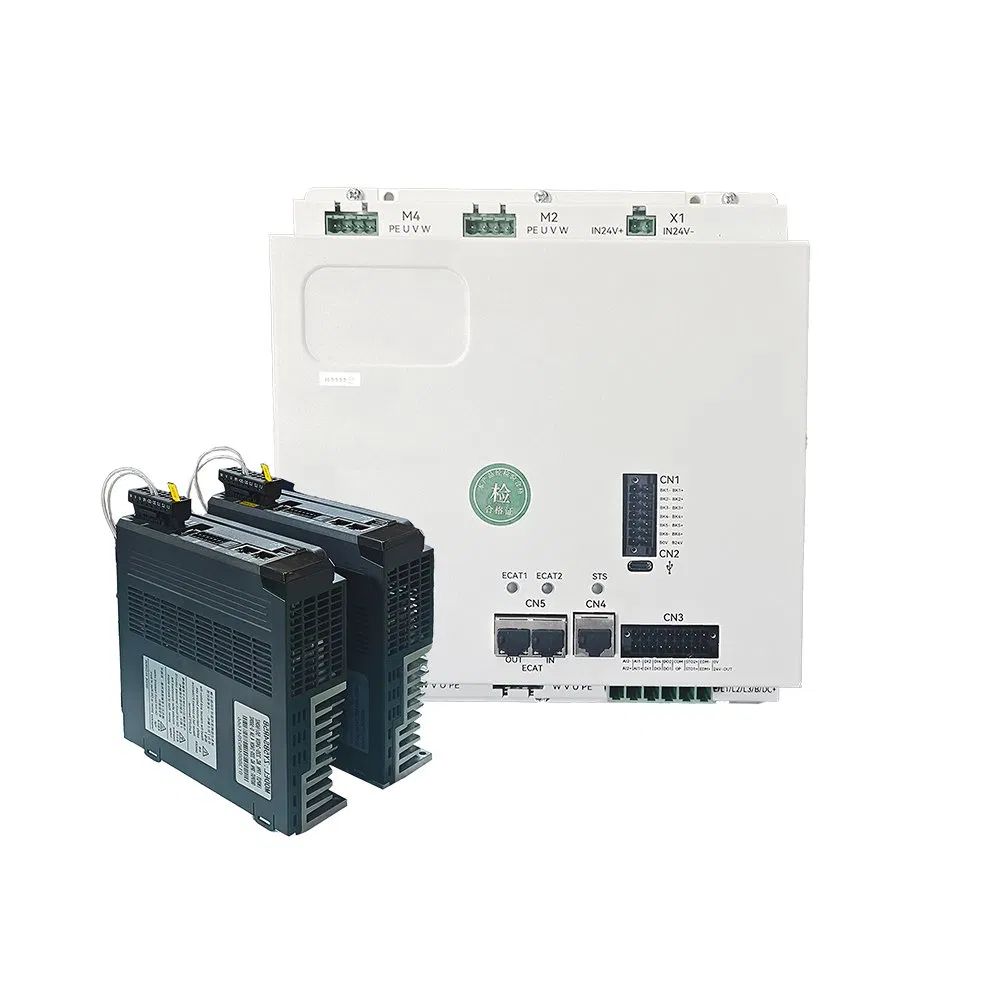

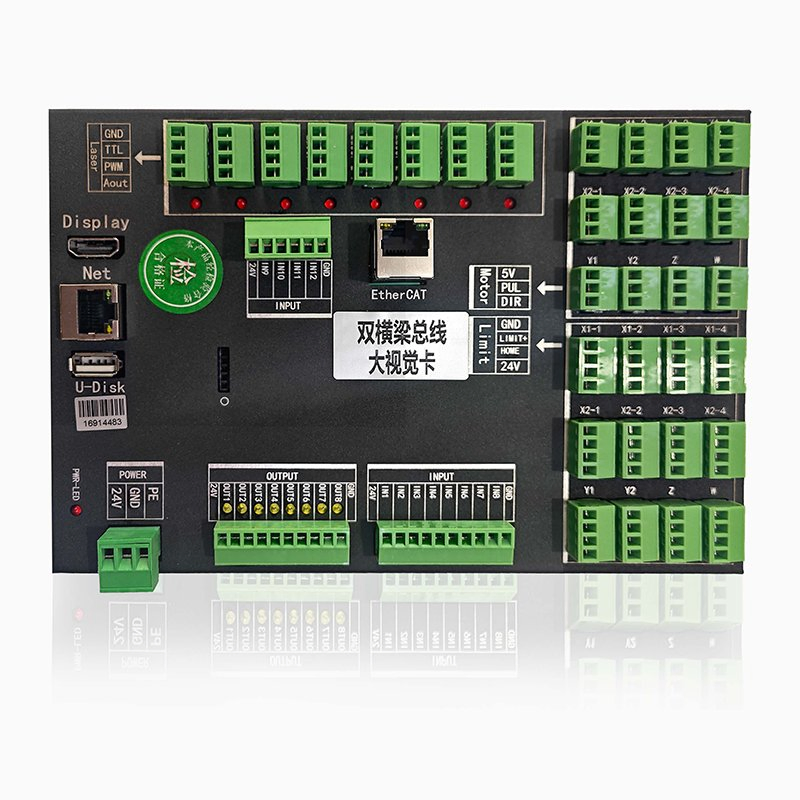

Model: ZJE716-2000 Fiber with visual system functionality, featuring 750W*3 plus 400W*1 servo motor integration. The system core is managed by the laser control card, which issues motion commands, laser power control, and gas control signals to subordinate drives and I/O modules.
Integrated with the ZY6B4S05Q-5555 four-in-one drive, six-in-one servo drive, single-axis servo drives, and multiple motors, the system achieves multi-axis synchronization, high-speed response, and high-precision positioning. This architecture significantly simplifies cabinet wiring, reduces space requirements, and boasts excellent real-time performance, scalability, and diagnostic capabilities.
Key Features
Full Integration of Control and Execution
Laser Control Card as the System Core
Multi-Axis Synchronization
High-Speed Response Positioning
Highly Scalable Architecture
Wide Industrial Application Range
Application Fields
This advanced control system is widely applied in precision manufacturing sectors, including:
Cloth/Textile/Fabric cutting
Leather processing
Glass engraving
Steel mesh and stencil cutting
Mobile phone screen protector film
Thin film and copper foil cutting
Wood and acrylic engraving
PCB etching and marking
Technical Components

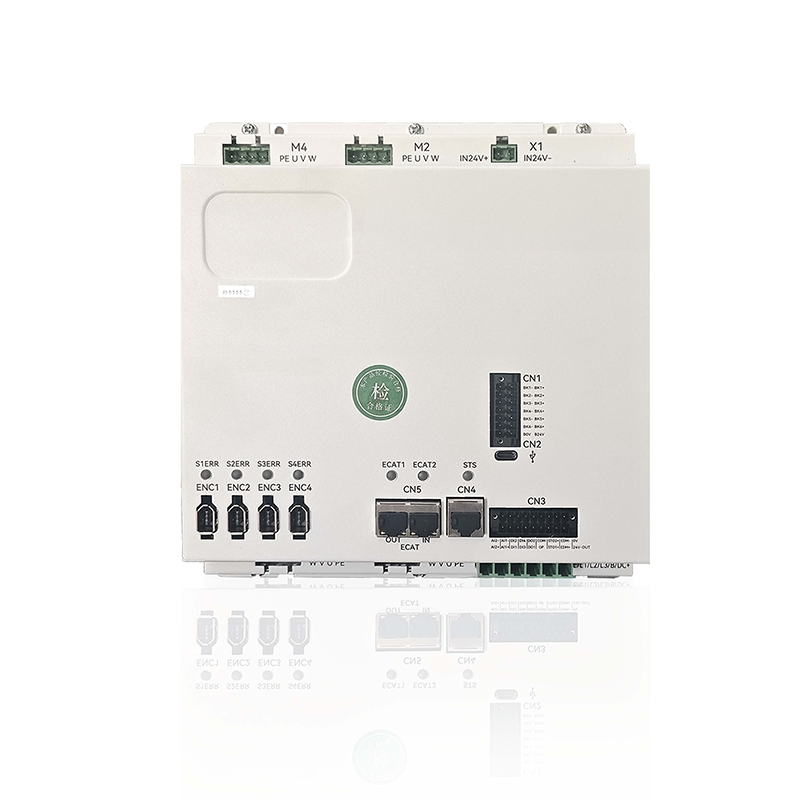

ZY6B4S05Q-5555 Four-in-One Drive: Supports four-axis synchronization with EtherCAT at a minimum cycle time of 0.125 ms. Accommodates both relative and absolute encoders and requires no homing procedure.
Single-Axis Servo Drive: EtherCAT-based servo drive with online and offline inertia identification, providing advanced multi-notch filtering.

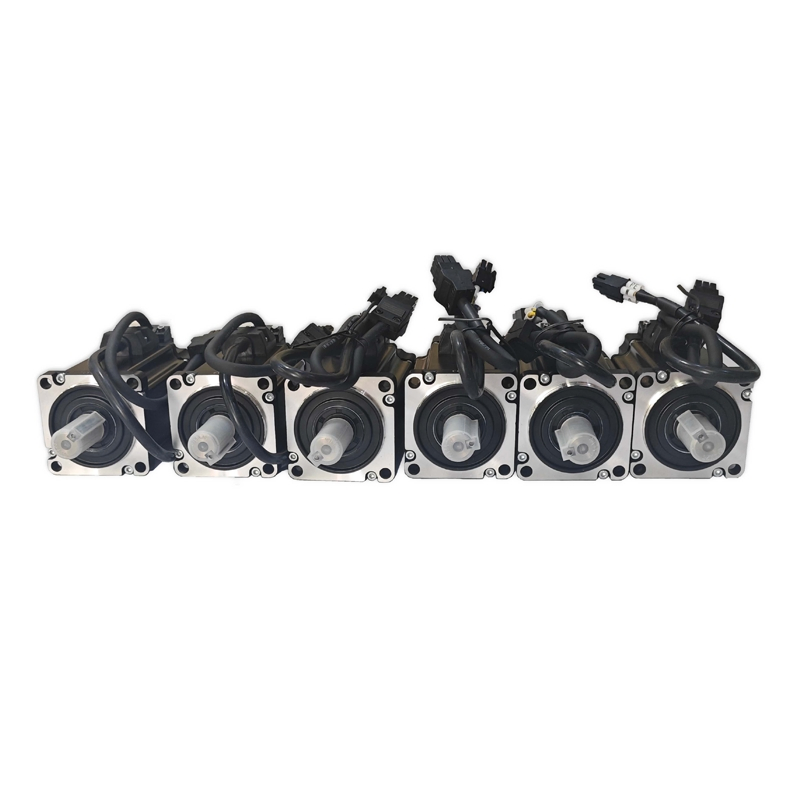

Servo Motor: Accurately adjusts position, speed, or torque of the output shaft according to control instructions.
System Advantages
Wiring & Space: 40% reduction in wiring via EtherCAT networking.
Real-Time Performance: Microsecond communication latency precision.
Modularity: Integrated components for easy expansion.
Diagnostics: Built-in tools for online trace and fault analysis.

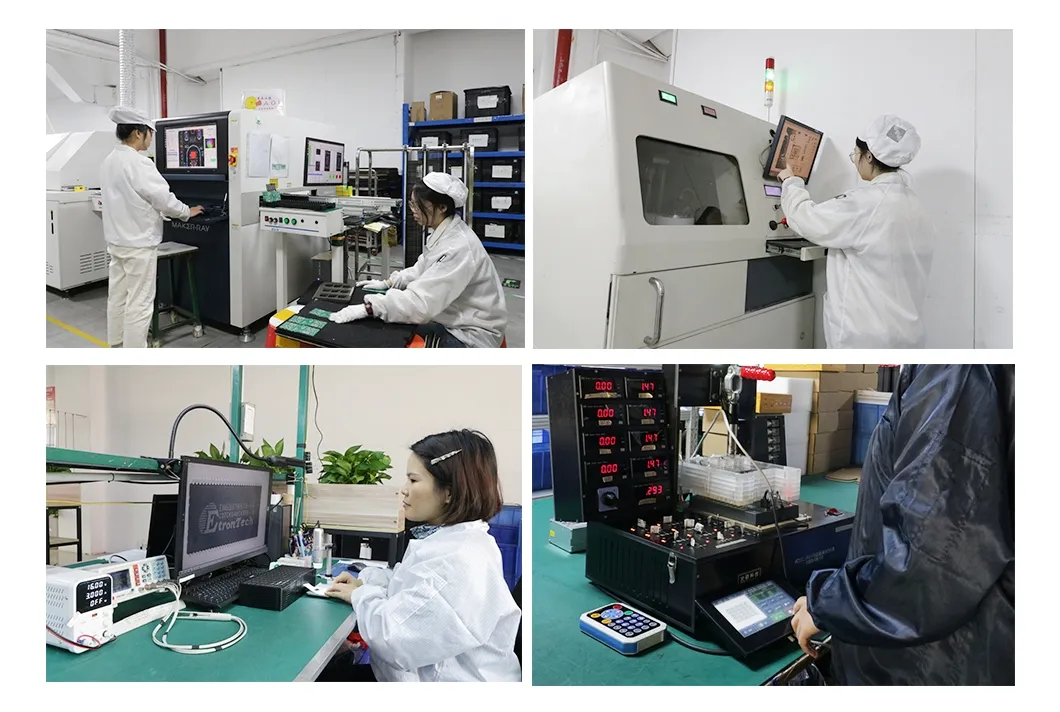

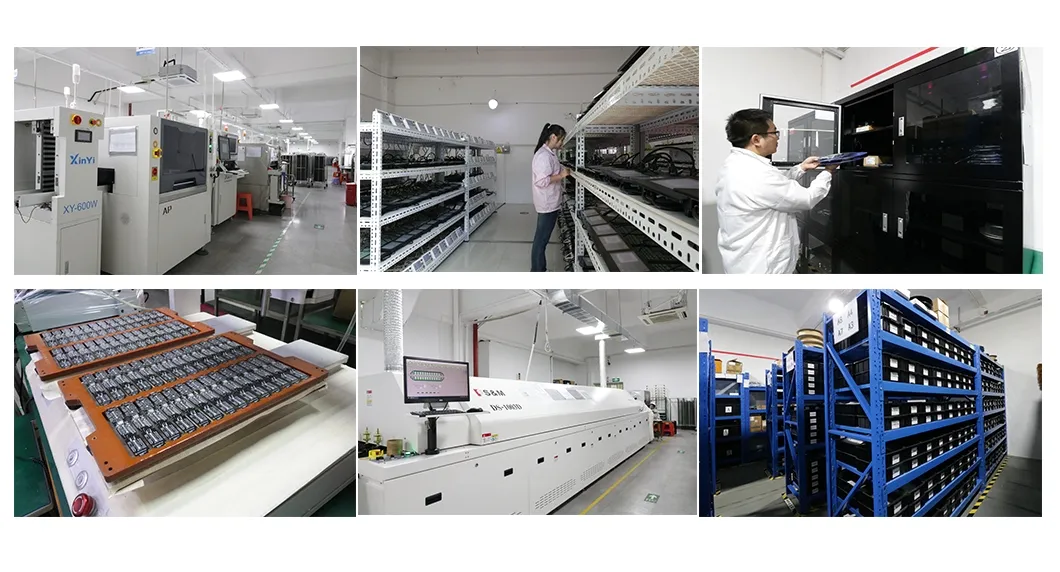

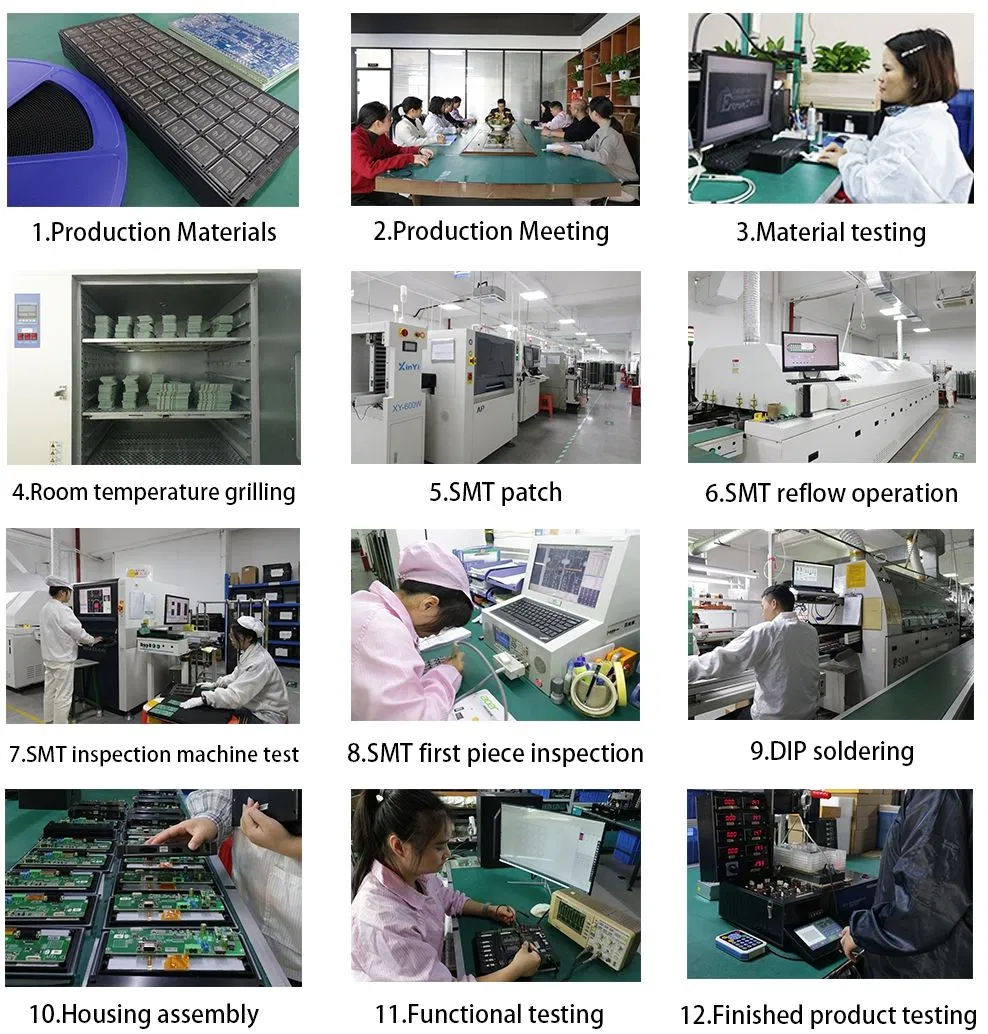

Production & Visuals
Delivery & Service
Delivery: Standard delivery time is within 30 days after order confirmation. Lead times vary based on customization.
Shipping: Flexible options including international express and ocean freight (CFR/CIF).
After-Sales Serving: Includes pre-sale consultation, remote troubleshooting, installation advice, and technical Q&A to ensure seamless operation.
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
We are an original manufacturer with a strong R&D team, professional product development technology, and advanced machinery.
Q2: How long is the delivery time?
For items in stock, lead time is typically 1 to 3 business days after payment reaches our account. Standard custom orders take up to 30 days.
Q3: Is OEM/ODM customization acceptable?
Yes, we welcome OEM and customized products. Our R&D team handles appearance design, functional module optimization, and software interface development.
Q4: What shipping options do you provide?
We primarily use international express delivery. For large quantities, cost-effective ocean freight is available.
Q5: How do you provide after-sales technical support?
Support is provided remotely via email, instant messaging, and remote desktop tools for software issues. Detailed user manuals and troubleshooting guides are included in every package.
Q6: How can I place an order?
Please send order details (model, quantity, contact info) to our sales team. A representative will contact you within one working day to confirm.
