Laser Machining System for Micro-Straight Holes in Precision Parts

1 / 5

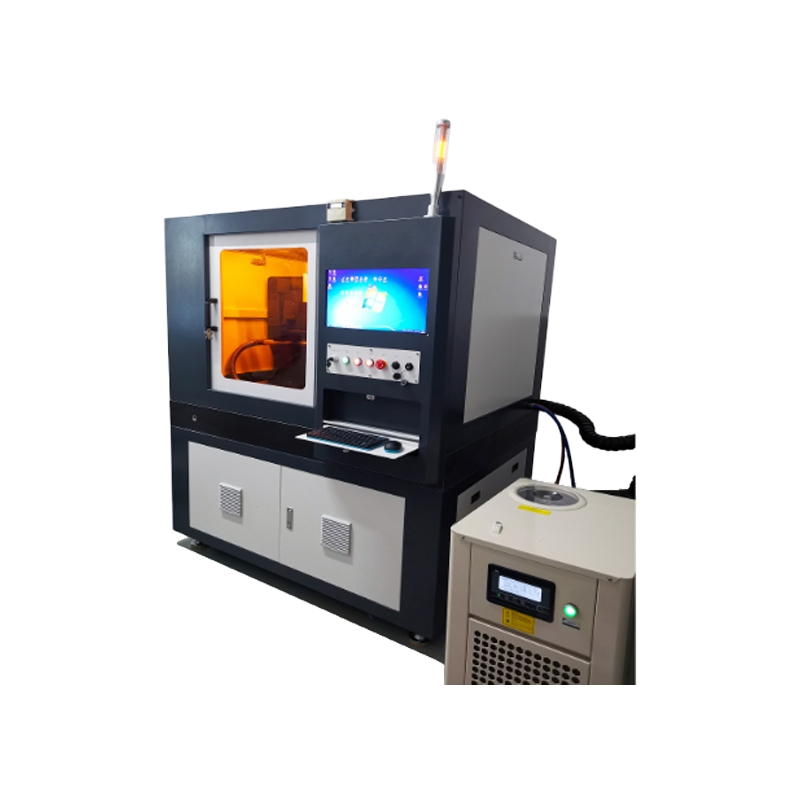

Laser Machining System for Micro-Straight Holes in Precision Parts

Customization:	Available
After-sales Service:	Video Support for Free
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Structure

Vertical Drilling Machine

Controlling Mode

CNC / Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Production Capacity

1000/ Year

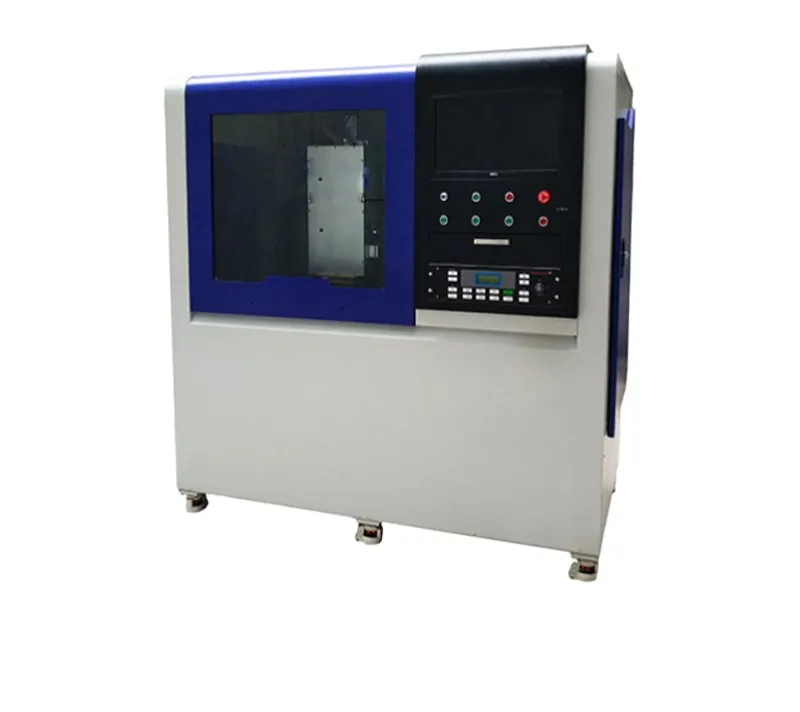

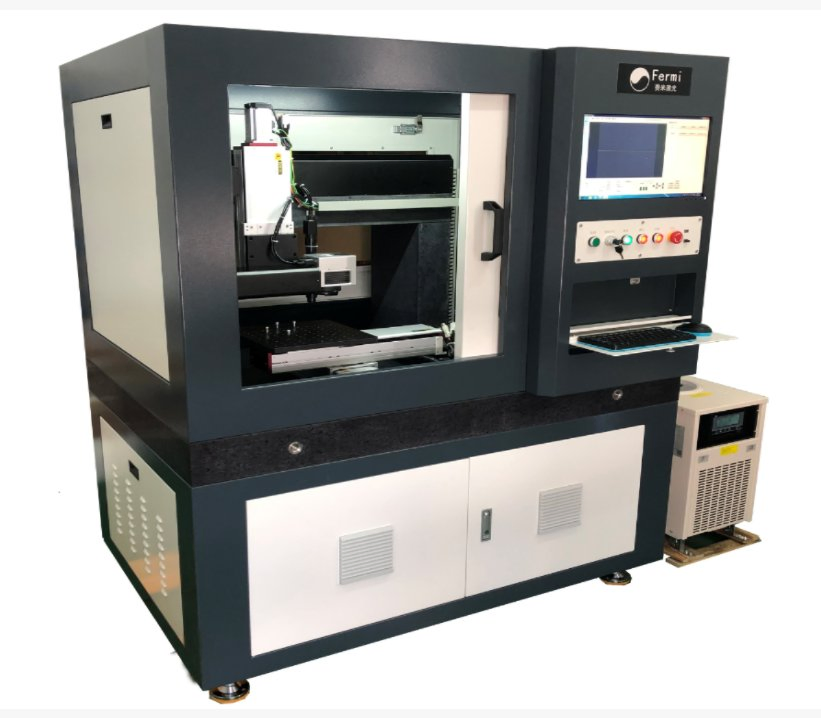

Laser Machining System for Micro-Straight Holes

High-power, high-stability ultraviolet lasers directly ablate vaporized materials, achieving a heat-affected zone at the μm level with a minimum processing spot size of 5 μm.
Rangefinder high-resolution industrial camera combined with a high-precision linear motor drive platform for sub-micron level alignment of workpiece centers.
Precision Z-axis integration achieves high-precision focusing, ensuring stable and repeatable processing results.
Ultra-high speed, submicron-level actuation pneumatic spindle clamps the workpiece for high-surface-finish machining of micro-straight holes.
Supports high-precision workpiece positioning with built-in displacement compensation functions.
Marble countertop construction enhances overall system stability and ensures long-term mechanical precision.
Versatile material processing: Suitable for metals, ceramics, organic materials, and glass. Minimum hole diameter is 5µm with a depth-to-width ratio >10:1.

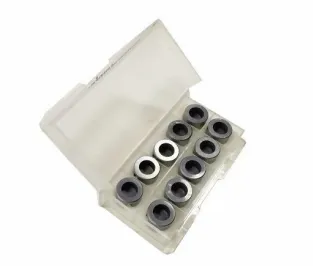

Equipment Application

Technical Parameters

Category	Parameter	FM-UVD3 Specification
Laser System	Wavelength	355nm (Ultraviolet)
	Power Output	>3W@40kHz (3~40W optional)
	Modulation Frequency	10 ~ 200kHz
	Beam Quality (M2)	<1.2
Galvanometer	Scan Range	<15 * 15mm
Galvanometer	Positioning Accuracy	≤±3μm
XY Workbench	Travel Journey	300300mm (600600mm optional)
	Repeatability	≤±1μm
	Max Speed	≤200mm/s
Z-axis	Journey / Accuracy	200mm / ≤±5μm
Monitoring	CCD Camera	5 Megapixels / 10X Optical Magnification
Processing	Min Spot Size	5 μm (10 μm optional)
Dimensions	Size & Weight	110017001900mm / 1500kg

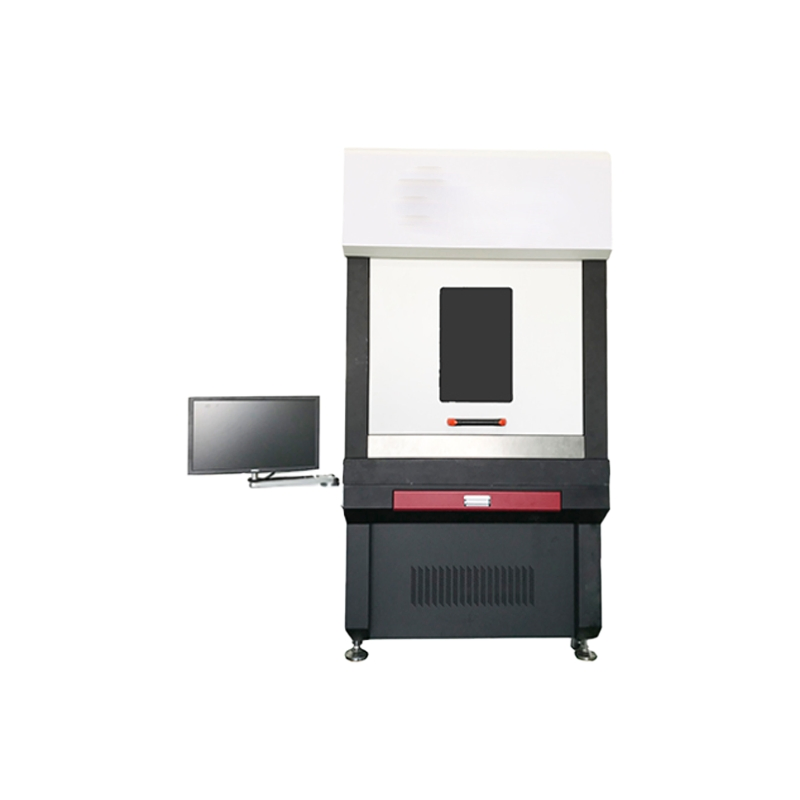

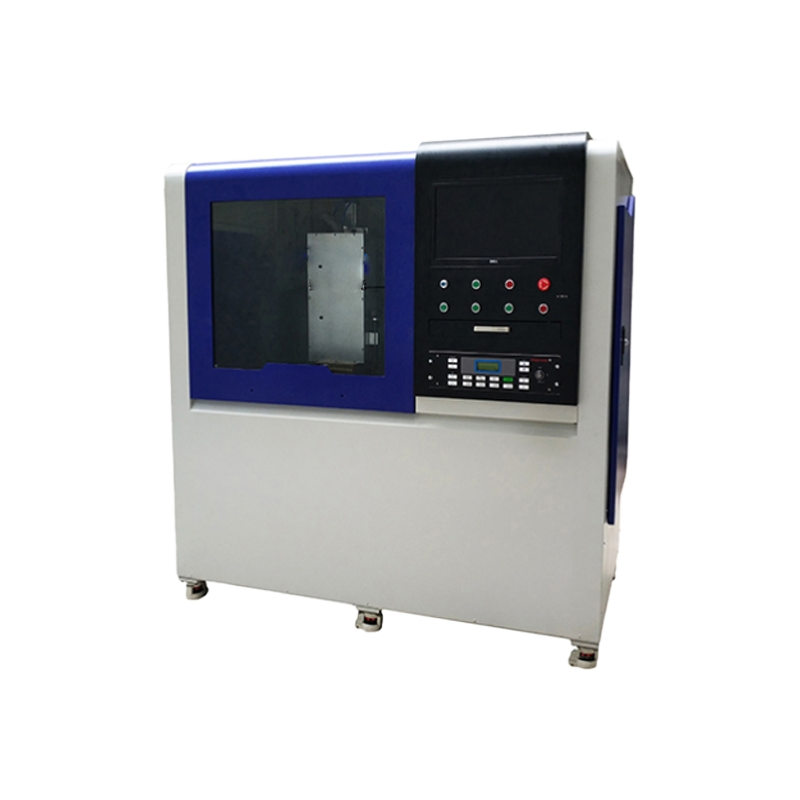

Product Gallery

Packing & Service Support

Standard Warranty: 12 months comprehensive coverage after shipping.
Extended Warranty: Optional coverage available up to 36 months.
Global Support: 24/7 technical assistance and dedicated service groups.
Professional Training: Free on-site or remote operation and maintenance training.
Manufacturing: Specialized R&D and production of industrial laser application systems including Femtosecond and Picosecond technologies.

Frequently Asked Questions

Are you a direct manufacturer for these laser systems?

Yes, we are a technology-driven factory specializing in the R&D and production of industrial laser application systems, providing complete drilling and micromachining solutions.

What is the typical delivery timeframe?

Standard items may be available in stock. Standard machine models usually require 1-3 months for production, while complex, customized projects may require additional time.

Which materials can this system process?

The system is highly versatile and can process metals, ceramics, organic materials, glass, and specialized materials for industries like biomedicine and semiconductors.

What are the accepted payment methods?

We generally accept T/T and L/C for machine orders. For specialized tools and components, we can discuss alternative payment arrangements.

How quickly can I receive a technical quotation?

We typically respond to initial inquiries within 1 hour. For standard machines, a formal technical quotation is provided within 3 days; special projects may take up to 1 week.

What is the minimum hole size the machine can achieve?

The system can achieve a minimum machining hole diameter of 5µm, with the capability to create both tapered and straight holes at a depth-to-width ratio exceeding 10:1.
