Mosaic-Based Measuring System: Integrated Laser Scanning for Enhanced 3D Modeling

i

Basic Information

Model NO.

XCA-5040

Type

3D Video Measuring System

Operate Method

Automated

Instrument Material

00 Grade Natural Marble Base

Measuring Stroke

500*400*150

Linear Accuracy

3+L/200 Um

Resolution

0.001mm

Power Supply

AC 220V 50/60Hz

P

Product Description

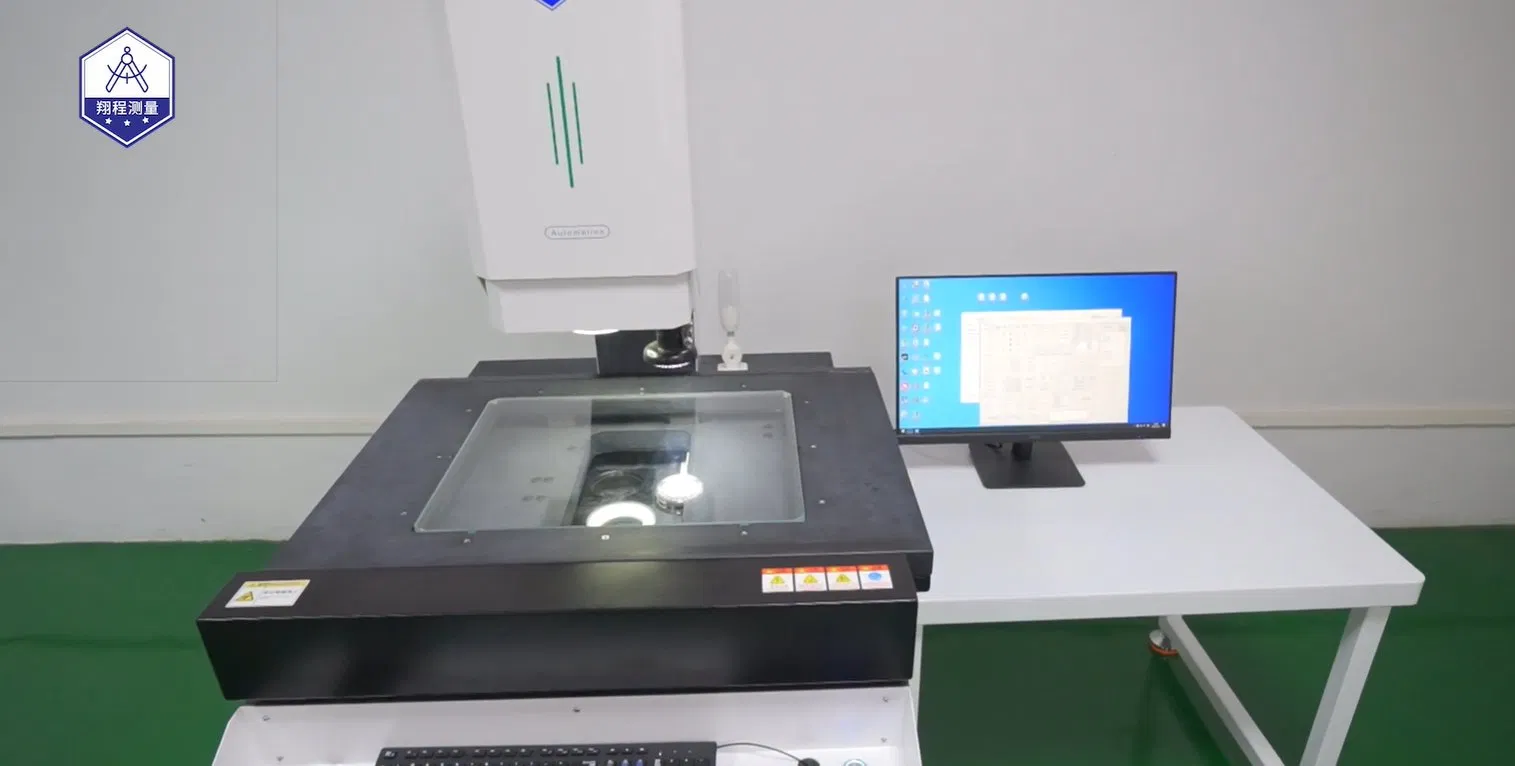

XCA series quick stitching measurement instrument with one-click operation adopts quick recognition and fast capture with industrial cameras. It realizes precision measurement and simultaneous multi-board data output. This perfect combination of optical systems and professional automatic measurement software allows for batch automatic inspection, completing high-volume tasks quickly. The software is intuitive and easy to master.

★

Product Advantages

High-precision granite structure: Non-deformable with high stability.
TEO high-resolution CCD and high-precision grating system.
P-grade linear guide rail and ball screw transmission.
Panasonic servo system for high efficiency and stability.
Programmable LED light source for multi-directional projection.
CNC software control: Automatic focusing, edge detection, and light sensing.
Configured with imported RENISHAW high-precision contact probe arrays.

C

Product Display

T

Product Parameters

Parameter Model	XCA-5040	XCA-6070	XCA-6580
Platform Size (mm)	1200 X 1450	1200 X 1800	1300 X 2000
Glass Table Size (mm)	500 X 400	600 X 700	650 X 800
X/Y/Z Travel (mm)	500 / 400 / 150	600 / 700 / 100	600 / 700 / 100
Instrument Precision (μm)	(3+L)/200
Imaging System	HD Color / Auto Zoom Lens
Weight (kg)	1000	1350	1500

A

Application Areas

Widely used in industries such as machinery, electronics, molds, plastics, die cutting, metals, rubber, precision stamping, interconnecting parts, connectors, wiring terminals, mobile phones, home appliances, computers, LCD televisions, printed circuit boards (PCB), automobiles, and watches.

Q

Certifications

?

Frequently Asked Questions

How to choose the appropriate specification?

Our professional team will provide the best solutions by sending catalog specifications or demonstration videos based on your specific requirements.

What is the delivery term for your products?

Standard products are typically in stock. For larger sizes, delivery is generally 7-10 working days after payment. Special arrangements can be made for urgent needs.

Do you accept customized OEM service?

Yes, OEM services are welcome to meet your specific industrial measurement needs.

What is your warranty period?

We offer a 12-month warranty. After the warranty, our technical team continues to provide comprehensive support and help solve any technical issues.

Where has your equipment been supplied to?

Our equipment is supplied to more than 30 countries, including the USA, UK, Germany, Japan, Korea, Singapore, and many more.

How do I install and use the product?

We provide English operating instructions and videos. If needed, we can arrange for engineers to provide on-site installation and training.
