Application
Environmental Equipment, Agriculture Machinery, Aerospace, Advertising
Cooling System
Air Cooling
Technical Class
Pulse Laser
Applicable Material
Nonmetal & Metal
Laser Classification
Solid Laser
Laser Technology
Laser Control Fault Cutting
Dimension(L*W*H)
96*53*27 Cm

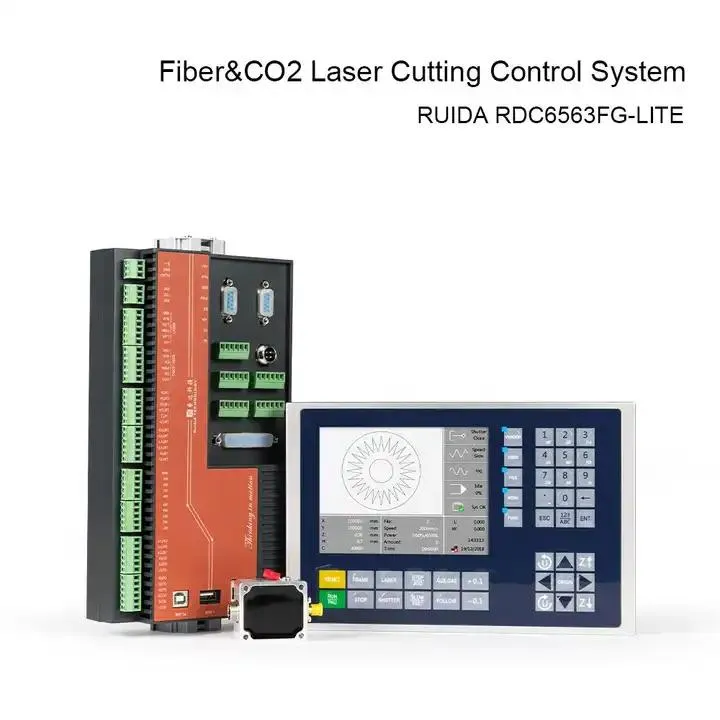

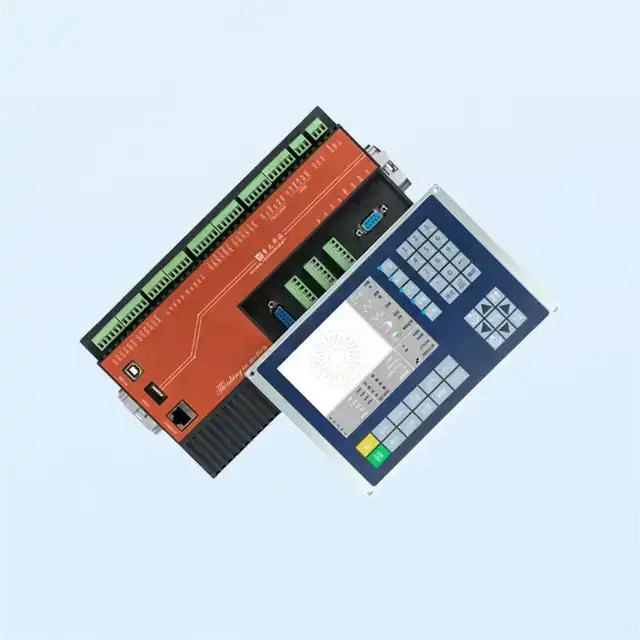

The RDC6563FG LITE offline fiber cutting control system is an advanced control solution designed for high-precision laser operations.
✓The control system offers superior hardware stability and high resistance to voltage and electrostatic interference, featuring a user-friendly LINUX-based operating system.
✓Includes excellent motion control functions, large capacity storage, and multi-channel IO control with hardware encryption algorithms.
✓The Z-axis features an automatic height adjustment system using capacitive sensing technology for precise and rapid response.

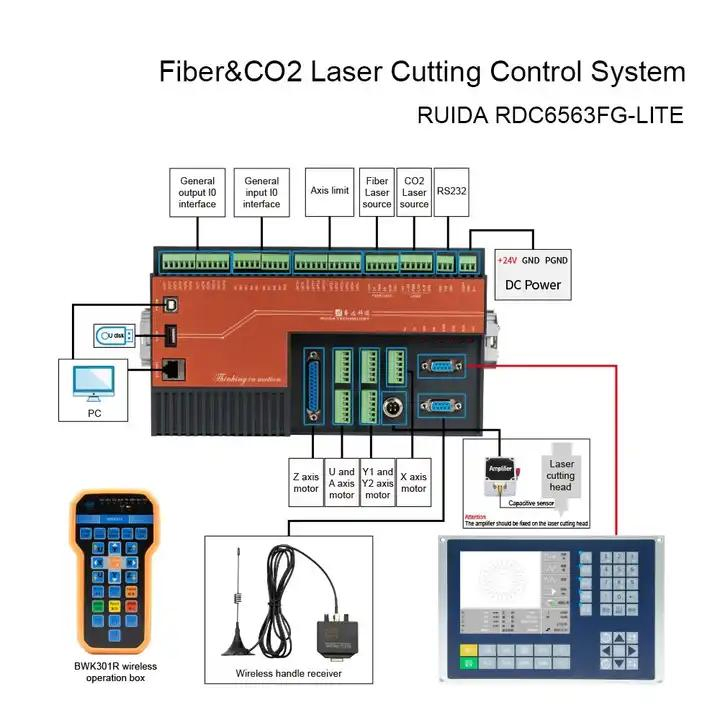

| Adaptive Laser | Fiber optic, CO2 glass tube, CO2 RF tube laser |
| Height Control | Closed loop height adjustment, pulse height adjustment |
| Supported Axes | 6 Axes |
| Laser Channel | 2 Channels |
| Interface | Ethernet, USB, Wireless handle |

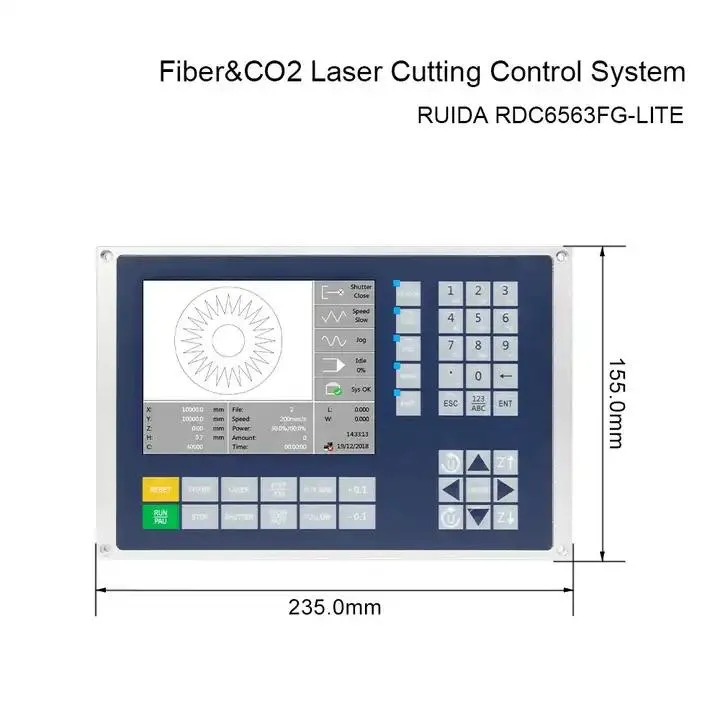

| Operation Panel | 5.6'' color screen + buttons |
| Operating System | Win7, Win8, Win10 |
| Language | Simplified Chinese, English |
- ●Offline mode support for modifying manufacturer and user parameters.
- ●6-axis motion support with high-precision capacitive sensor (<0.1mm tracking accuracy).
- ●Automatic calibration function for capacitor parameters, compatible with any cutting head.
- ●Supports advanced functions: frog jumping, flying cutting, and multi-level perforation.
- ●Supports metal processing such as film cutting and pre-piercing.
Suitable for cutting metal materials in industries such as sheet metal, automotive parts, craft gifts, decorative advertising, and kitchen utensils.
FAQ
1. Can the RDC6563FG-LITE operate without a PC?
Yes, it supports full offline operation, allowing you to modify processing attributes and parameters directly in offline mode.
2. What is the precision of the height adjustment system?
The system features a capacitive sensor with dynamic tracking accuracy of less than 0.1mm and detection accuracy of less than 0.01mm.
3. How many axes does this controller support?
The RDC6563FG-LITE supports motion control for up to 6 axes.
4. Which laser types are compatible with this system?
It is compatible with Fiber optic lasers, CO2 glass tubes, and CO2 RF tube lasers.
5. Does it support specialized cutting techniques?
Yes, it supports advanced techniques like frog jumping, flying cutting, and short-distance non-lifting for optimized processing speed.
6. What operating systems is the software compatible with?
The RDCutist software kit is compatible with Windows 7, Windows 8, and Windows 10.
