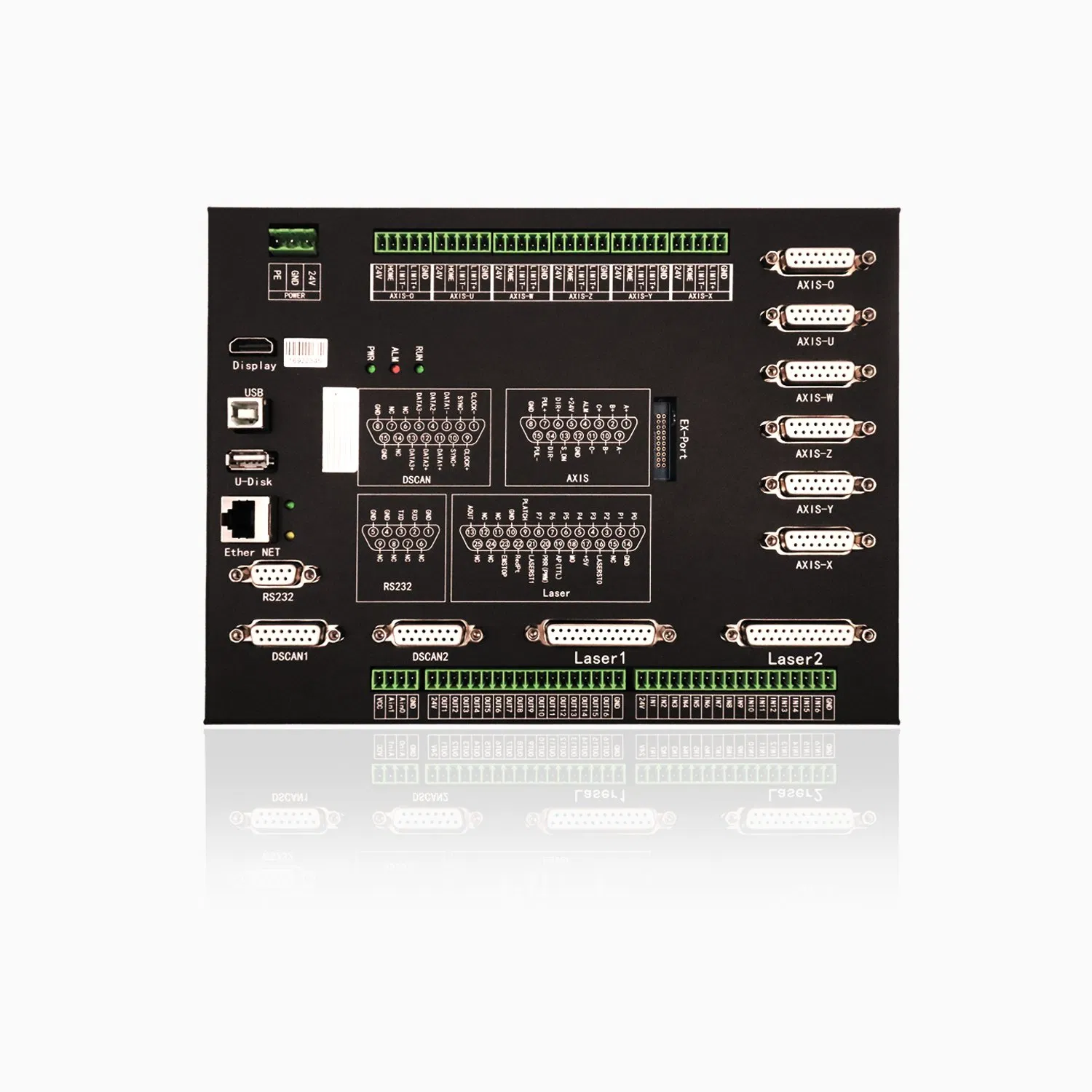

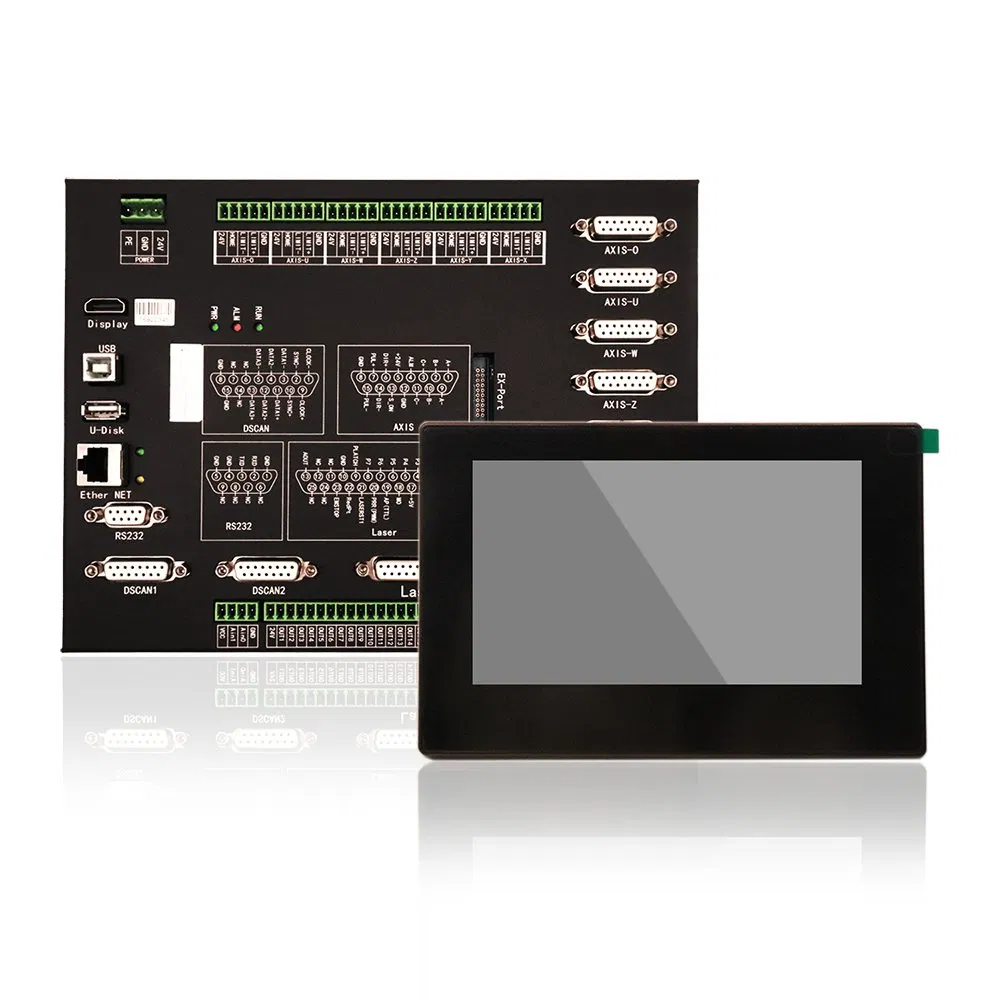

ZJS716 Multi-axis linkage Galvo Fly Cutting and Marking Motion ControlSystem

ℹ️

Basic Specifications

Model NO.

ZJS716

Type

Laser Control Card

Customized

Supported

Gross Weight

10kgs

Logo Print

Support

Power Supply

DC 24V and button battery 3V

Software

Powercut_ZJ716

Supported Format

PLT, AI, DXF, DST, BMP, JPG, PNG

🛠️

Product Overview

The ZJS716 Galvo Fly Cutting and Marking Laser Control System is a high-performance Multi-axis Linkage System. It coordinates the machine frame's X/Y axes with the galvanometer system's X/Y axes. This four-axis coordination enables high-precision motion control for complex laser processing paths, such as ring engraving and high-speed motion operations.

🚀

Core Advantages

Processing Speed: 5-10 times faster than traditional cutting systems.

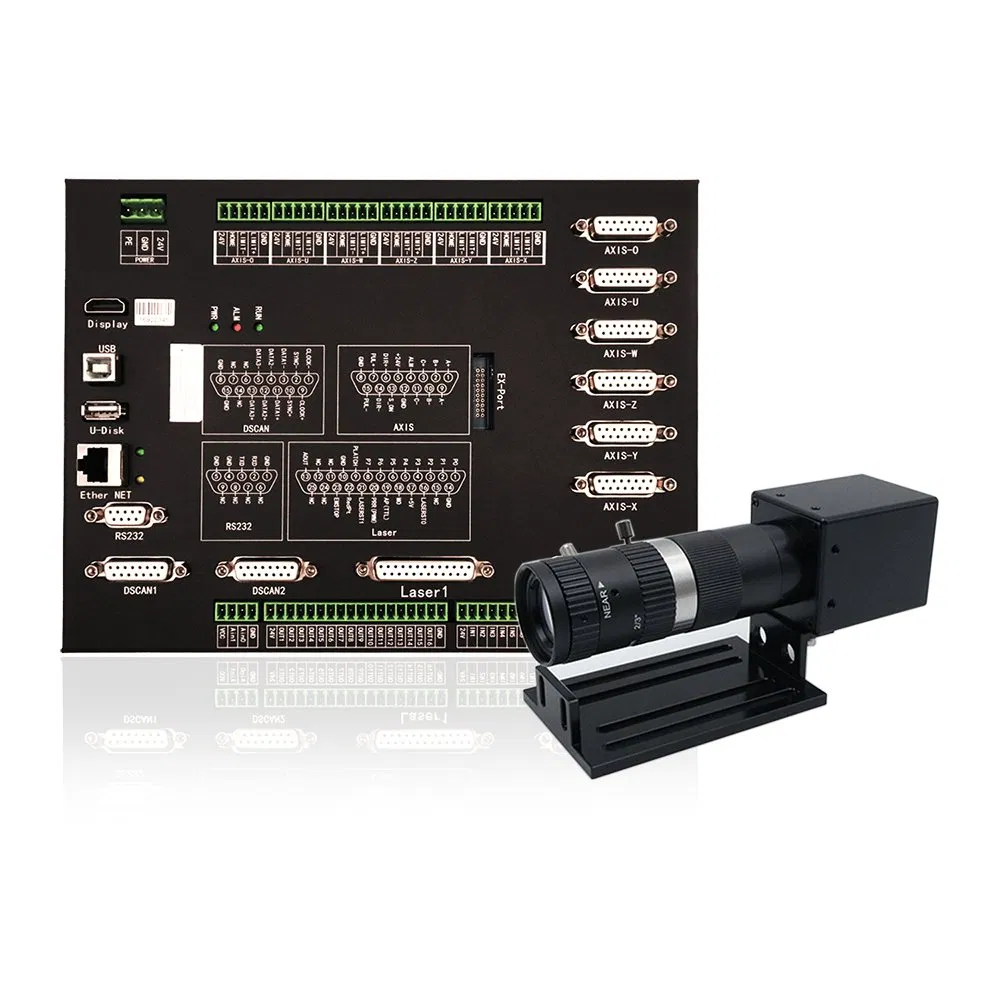

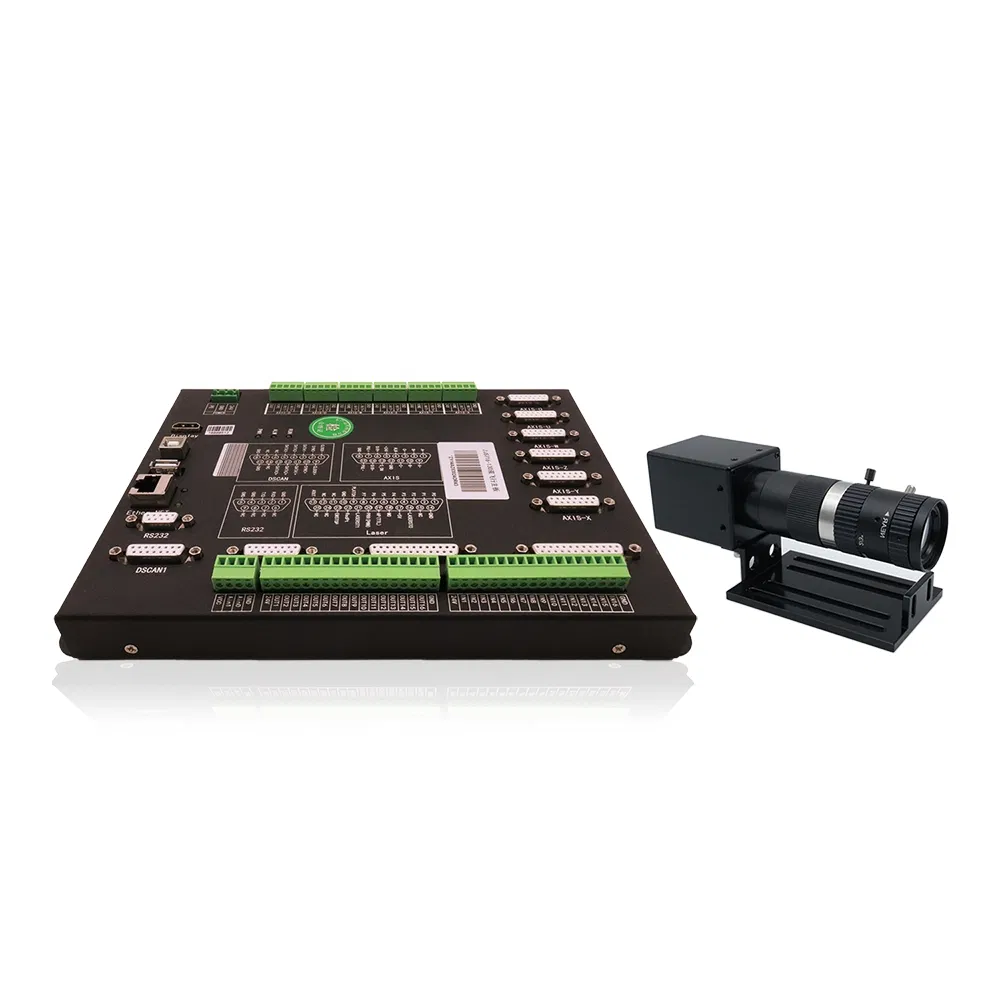

Visual Recognition: Efficient multi-template identification (up to 100 templates).

Integrated Modes: Automatic switching between cutting and engraving.

Multi-Laser Support: Compatible with RF, CO2 glass tubes, and fiber lasers.

User Interface: 7-inch touch screen for one-click parameter adjustments.

High Precision: Equipped with magnetic grid ruler (0.005mm accuracy).

📷

Application & Display

📊

Technical Parameters

Hardware Item	Specification
Screen Size	7 Inches
Control Axes	6-axis
Universal I/O Ports	16 Input / 16 Output
Storage Space	16G
Galvanometer Protocol	XY2-100
Pulse Frequency	Maximum 4M
PWM Channel	0.5K-500K Adjustable
Data Transmission	Network, USB Drive

⚙️

System Functions

Flight Function

Supported (√)

Z-axis Autofocus

Supported (√)

Rotary Engraving

Supported (√)

Visual Correction

Supported (√)

Automatic Feed

Supported (√)

Ring Engraving

Supported (√)

🏭

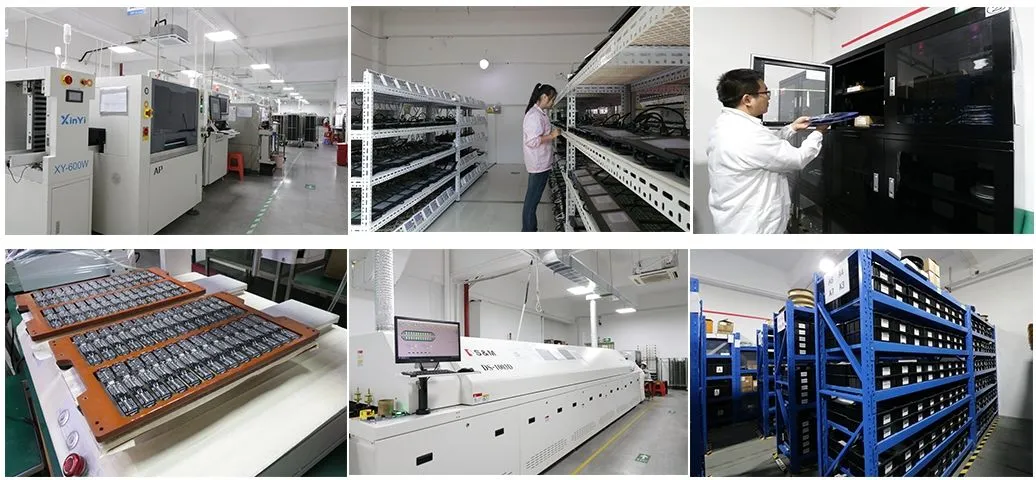

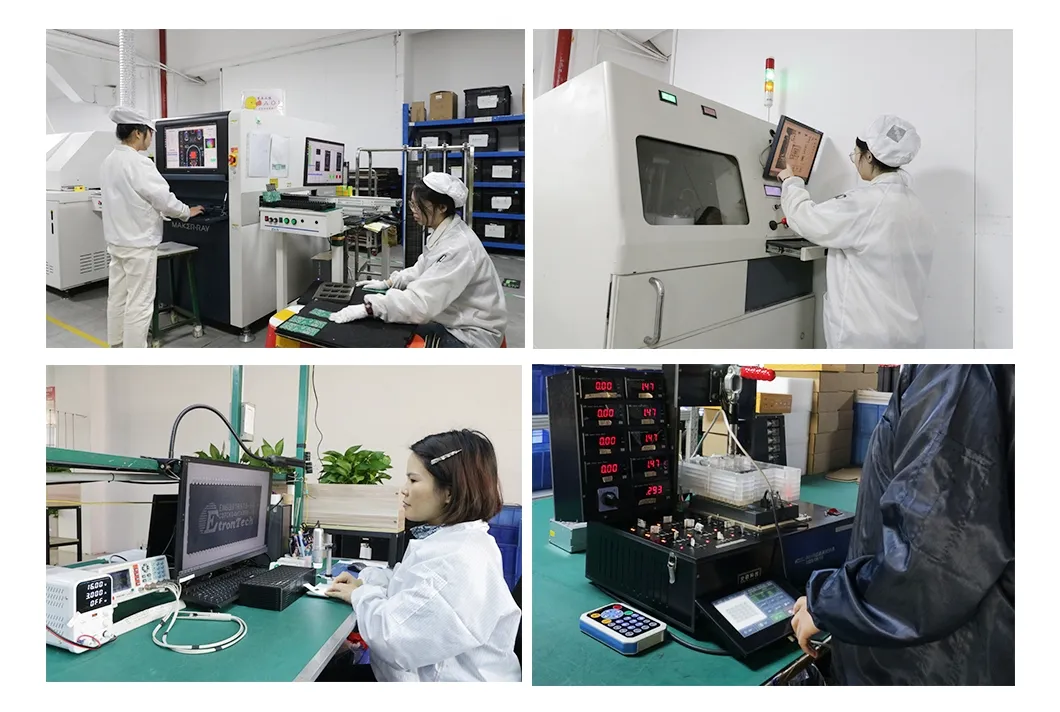

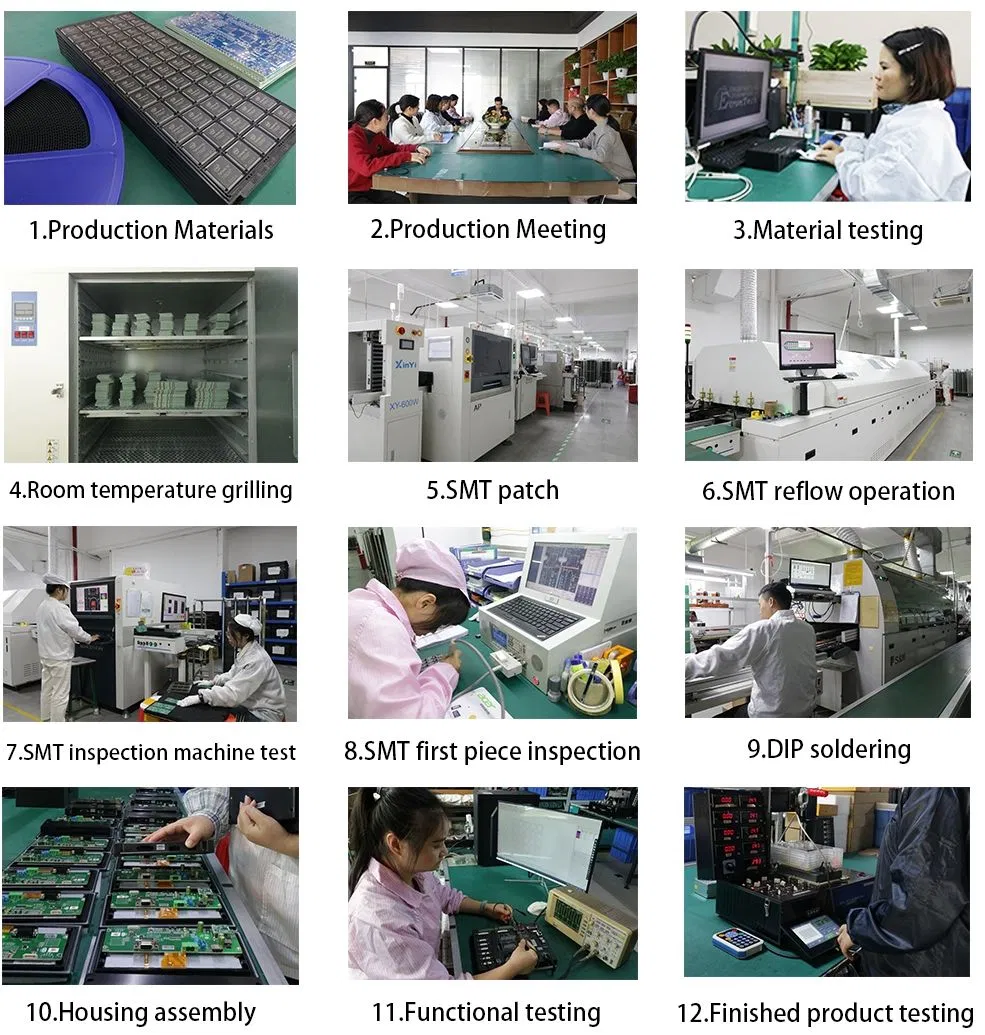

Production & Quality

❓

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are an original manufacturer specializing in motion control systems, industrial automation development, and visual intelligent identification, integrating R&D, manufacturing, sales, and service.

What is the cutting accuracy of the product?

Under ideal conditions, its positioning accuracy can reach 0.001mm. This is achieved through high-precision motor drives, advanced control algorithms, and optimized mechanical transmission.

What types of materials are supported?

The system supports a variety of non-metal materials, including acrylic, wood, leather, plastic, and fabrics. Settings can be adjusted for different material densities and thicknesses.

Is it possible to control the laser power gradient?

Yes, the controller can achieve laser power gradation. This is essential for special effects in engraving or light transmission adjustments on acrylic products.

Do you provide after-sales technical support?

Yes. We offer remote technical support via internet communication, including email and instant messaging. For software issues, we can assist through remote desktop tools.

Is OEM service acceptable?

Yes, we provide comprehensive OEM/ODM services, including appearance design, internal module optimization, and customized software interfaces to help you meet specific market demands efficiently.
