Basic Info.
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
Deep Ultraviolet
Laser Classification
Semiconductor Laser
Type
Semiconductor Laser Marking Machine
Marking Method
Scanning Marking
Specification
530x220x660mm
Production Capacity
200/Months
Product Introduction

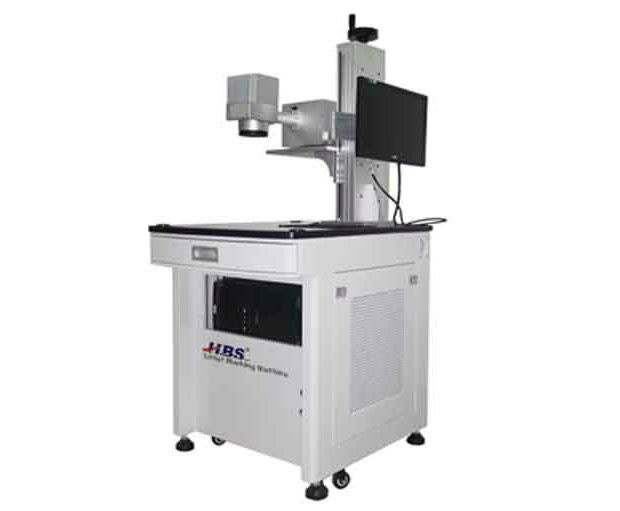

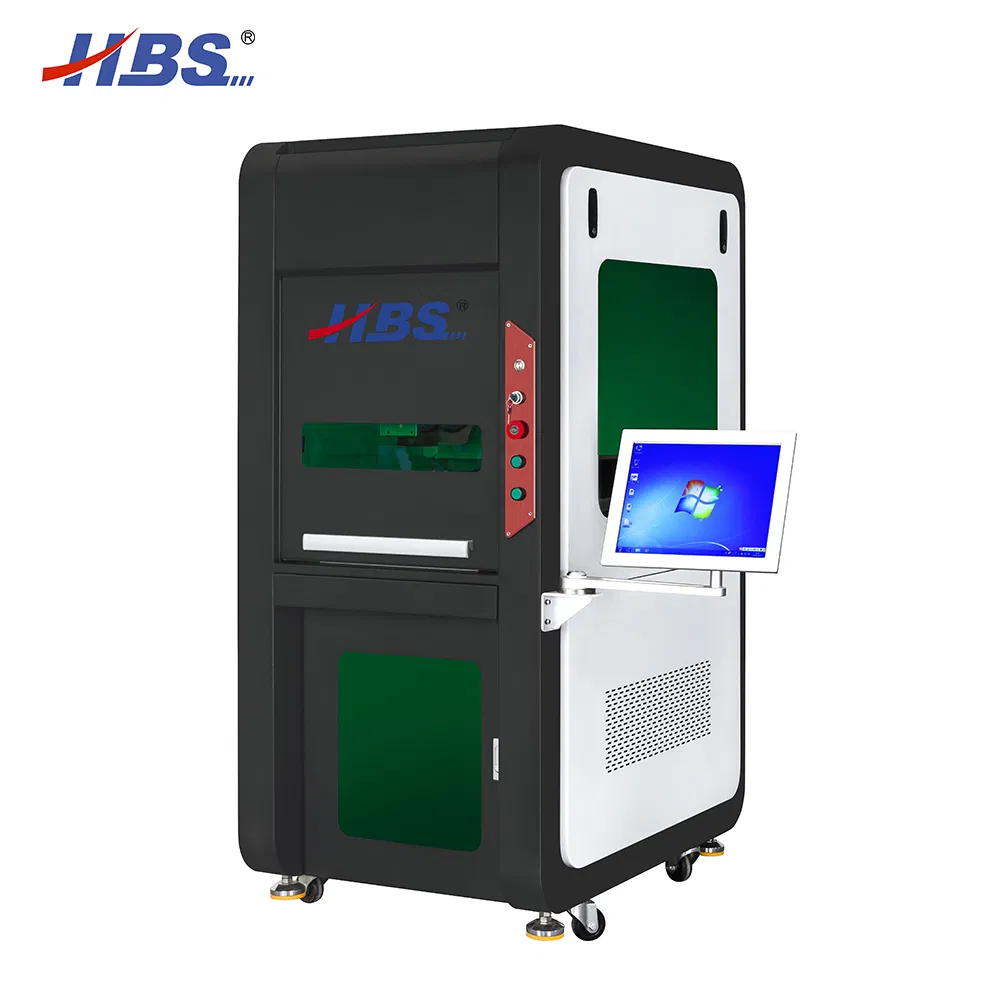

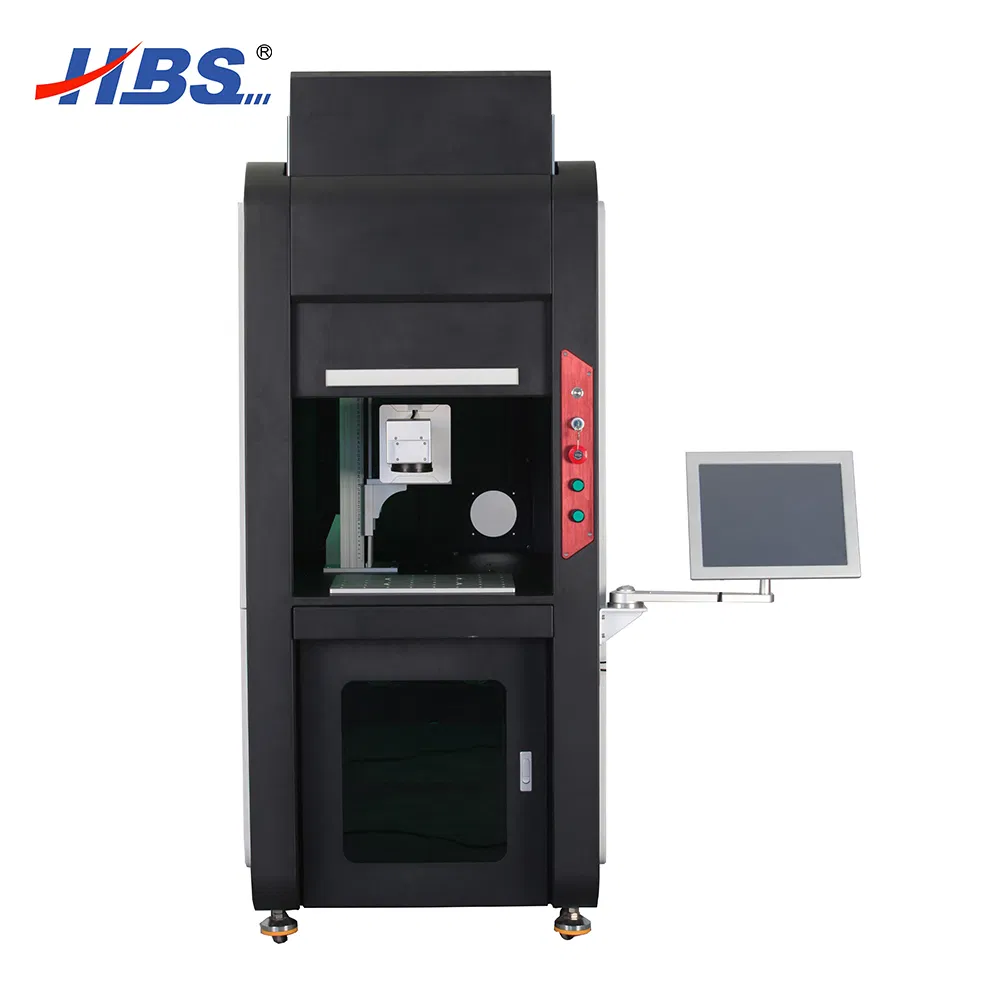

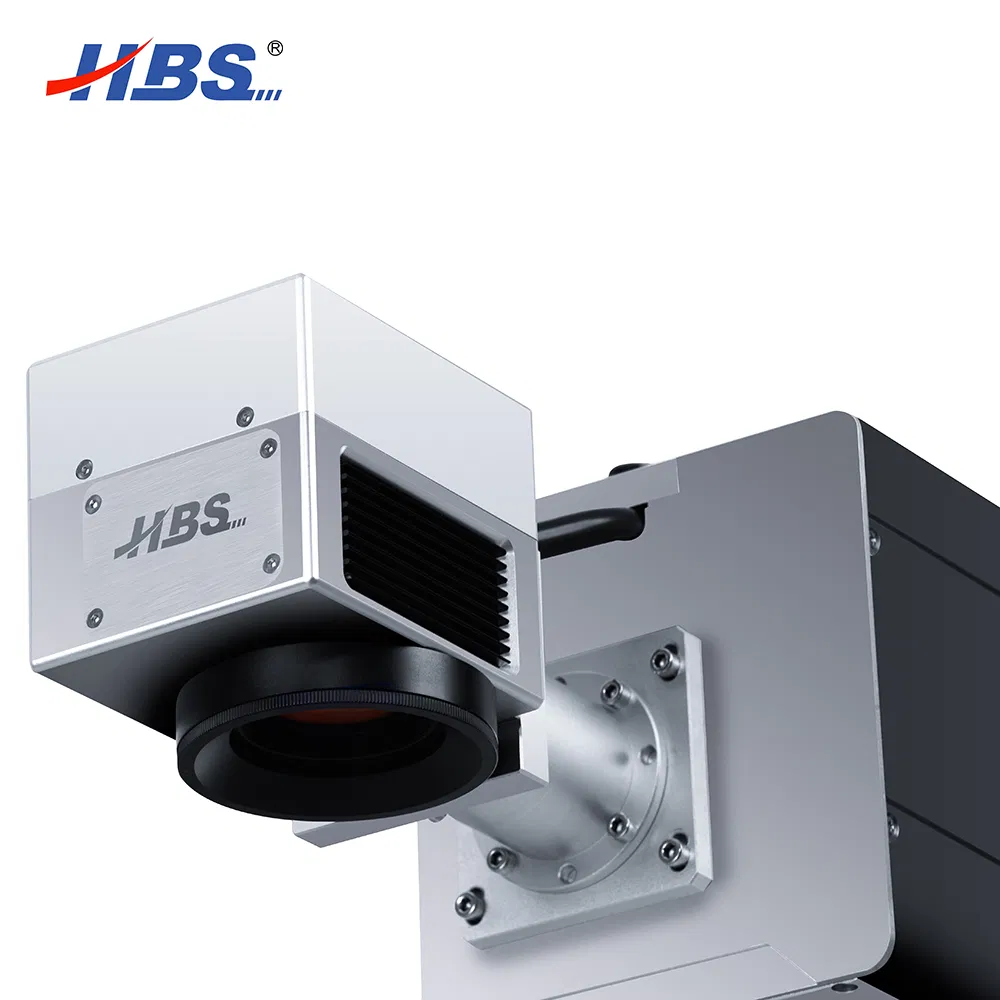

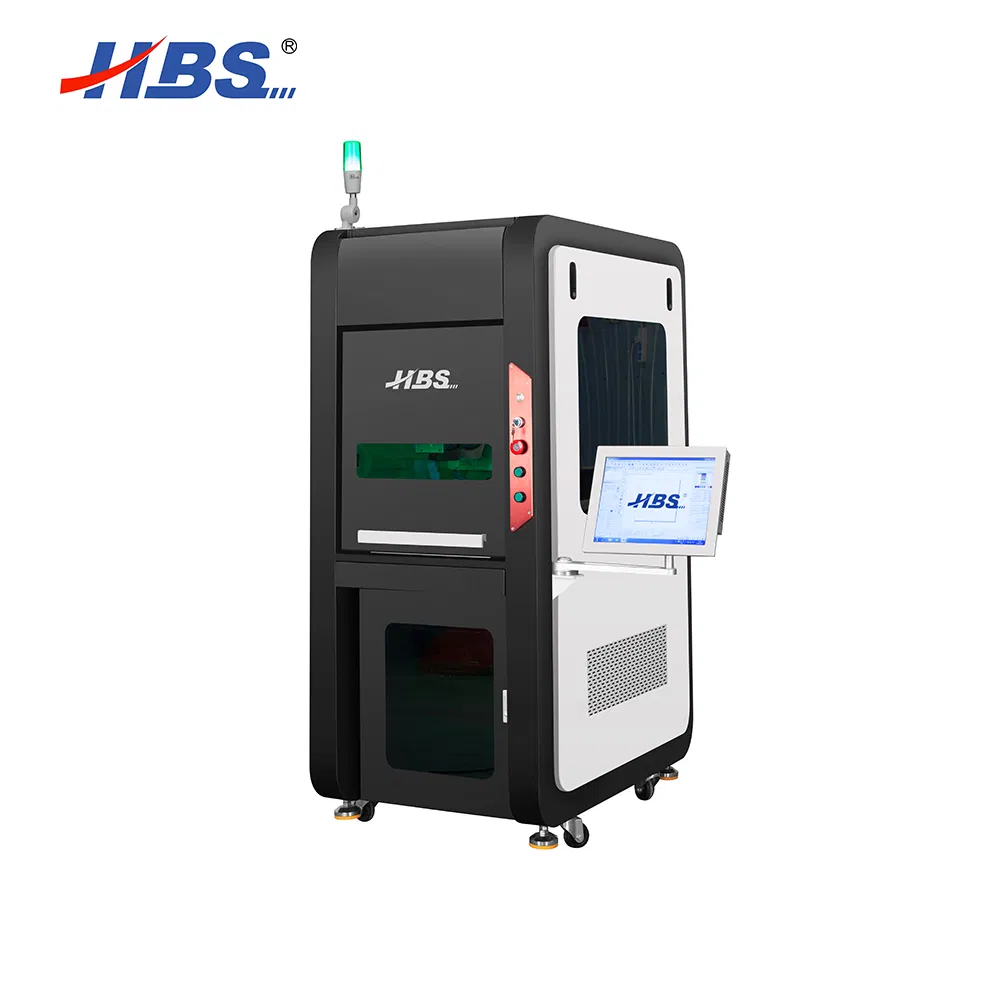

3W/5W UV Ultraviolet Laser Marking Machine for Metal Plastic
Ultraviolet Laser Marking Machine has the world's most advanced technology. It features a high electro-optical conversion rate, long working time of nonlinear crystal, high stability, high positioning accuracy, and high operation efficiency. The optimized modular design ensures convenient installation and maintenance. Equipped with a two-dimensional automated workstation, it can realize continuous marking in multi-stage or large-size areas. The laser marking line is exceptionally fine, making it suitable for high-precision marking on products such as LCD screens, IC wafers, and IC chips.
Technical Parameters
| Model | ZG-3 / ZG-5 |
| Laser Wavelength | 355nm |
| Laser Power | 3W/5W |
| Marking Area | 50x50mm/100x100mm |
| Marking speed | ≤7000mm/s |
| Beam Quality | ≤2 |
| Q Frequency Tuning | 8KHz-15KHz |
| Min. Line Width | 0.01mm |
| Min. Character Size | 0.2mm |
| Repetition Accuracy | ±0.003mm |
| Power Consumption | 2Kw |
| Power Supply | 200V/Single-Phase/50Hz/10A |
Product Application
Mainly used in the marking and surface processing of materials such as all sorts of glass, TFT, LCD screen, Plasma screen, textile products, ceramic chip, mono-crystal silicon wafer, IC chip, sapphire, and thin polymer film. The main advantage of Ultraviolet laser is complementing the shortcomings of other bandwidth lasers in precision machining and processing of special materials.
Product Visuals & Exhibition
Packaging Details
Package Size: 530x220x660mm
Frequently Asked Questions
What materials are best suited for UV laser marking?
UV lasers are ideal for heat-sensitive materials including glass, TFT/LCD screens, silicon wafers, IC chips, and various thin polymer films due to their "cold marking" capabilities.
What is the repetition accuracy of this machine?
The machine offers high-precision performance with a repetition accuracy of ±0.003mm, ensuring consistent quality in mass production.
Does the machine require a complex cooling system?
No, the system is designed with an efficient Air Cooling system, which simplifies maintenance and reduces the overall footprint of the machine.
Can it mark large-sized objects?
Yes, when equipped with a two-dimensional automated workstation, it can perform continuous marking in multi-stage or large-size areas.
What are the power options available?
The machine is available in both 3W and 5W configurations to suit different marking speed and depth requirements.
Is the installation of the machine difficult?
The machine features an optimized modular design, which makes both installation and routine maintenance very convenient for the user.
