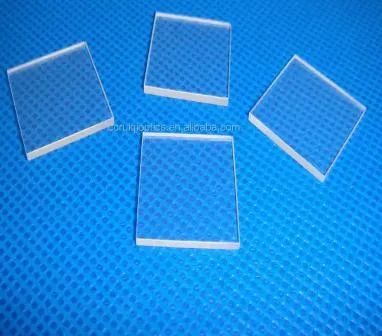

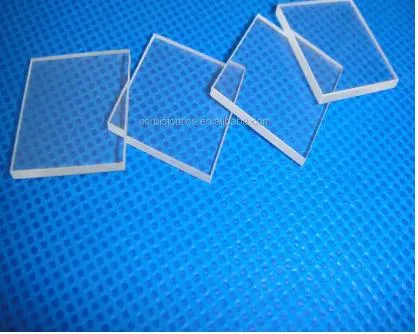

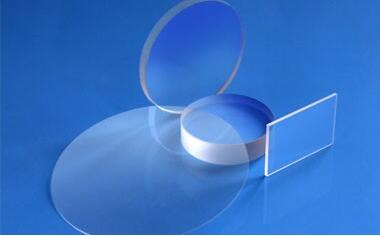

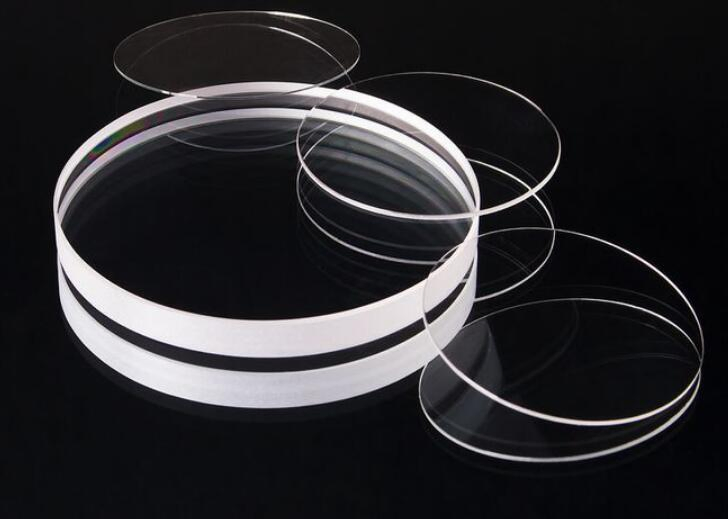

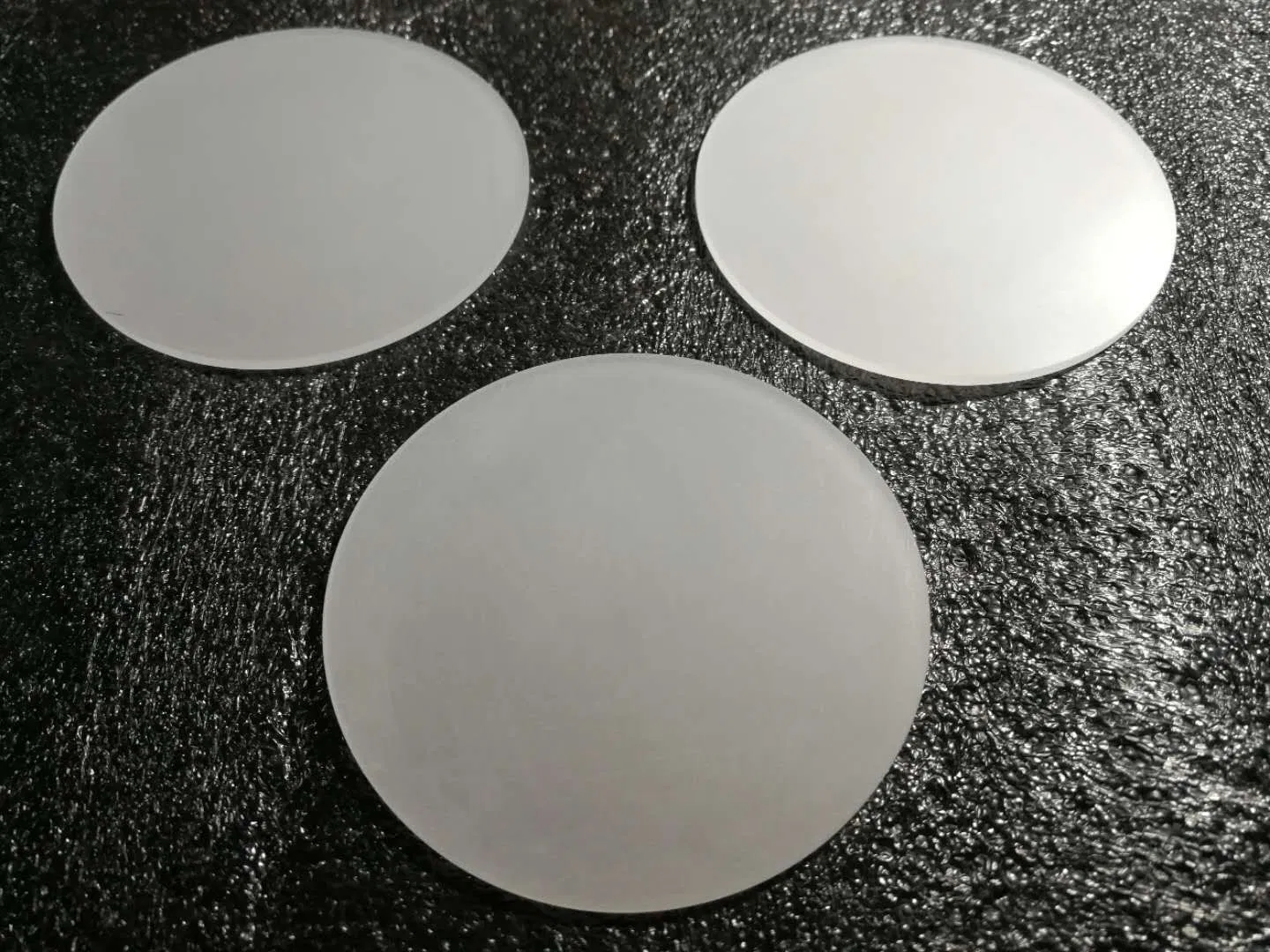

Sapphire windows and flat stock can outperform almost all other optical materials. A sapphire window exhibits exceptional performance in applications requiring extreme mechanical, optical, thermal, and chemical robustness.
They are incredibly hard, strong, and wear-resistant. A sapphire window can be exposed to extreme abradants such as sand and particulates with minimal effect on clarity. They handle pressure better than other transparent materials and transmit far into the UV and IR bands.
High temperature clear fused quartz glass tube and optical components with custom dimensions.
| Parameter | Specifications |
|---|---|
| Substrate Material | Optical glass, Quartz, Pyrex, Sapphire, ZnSe, CaF2, Ge, Si, etc. |
| Diameters Available | 1mm to 400mm |
| Diameter Tolerance | +0.00/-0.005mm or custom design |
| Thickness | 0.05mm to 100mm |
| Surface Quality | 40-20 or custom design |
| Surface Flatness | 1/2 lambda or custom design |
| Shapes | Windows, wedges, plates, wafers, ball, tubes, ingots, cylinders... |
| Clear Aperture | >90% of Diameter |
