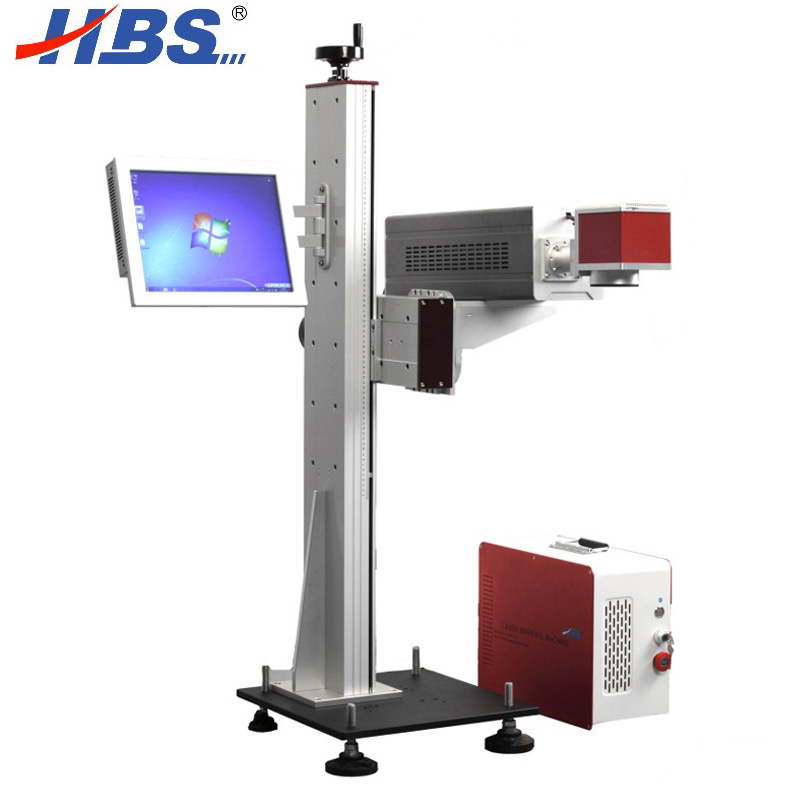

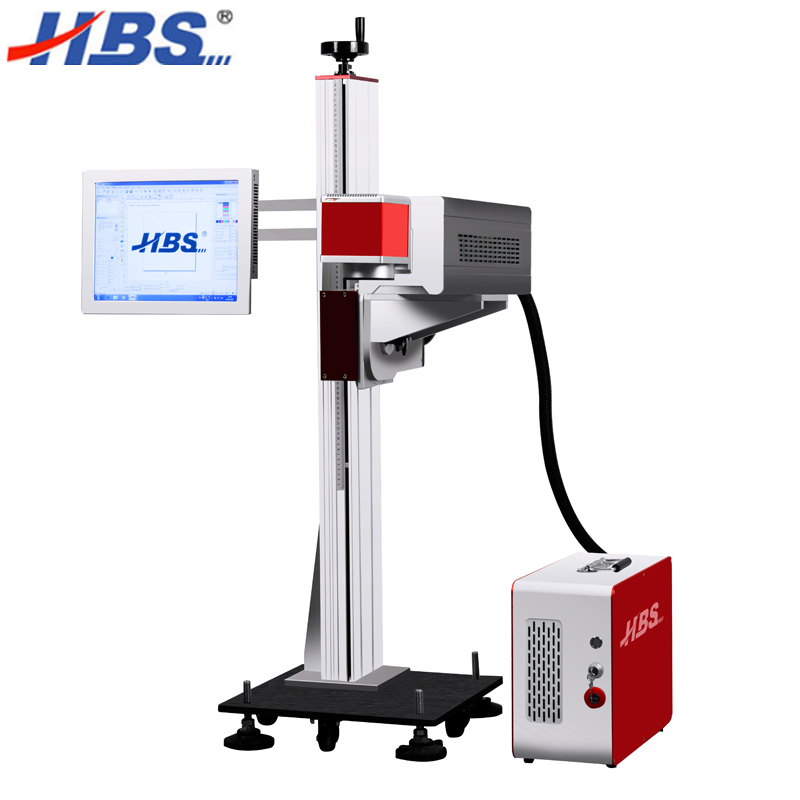

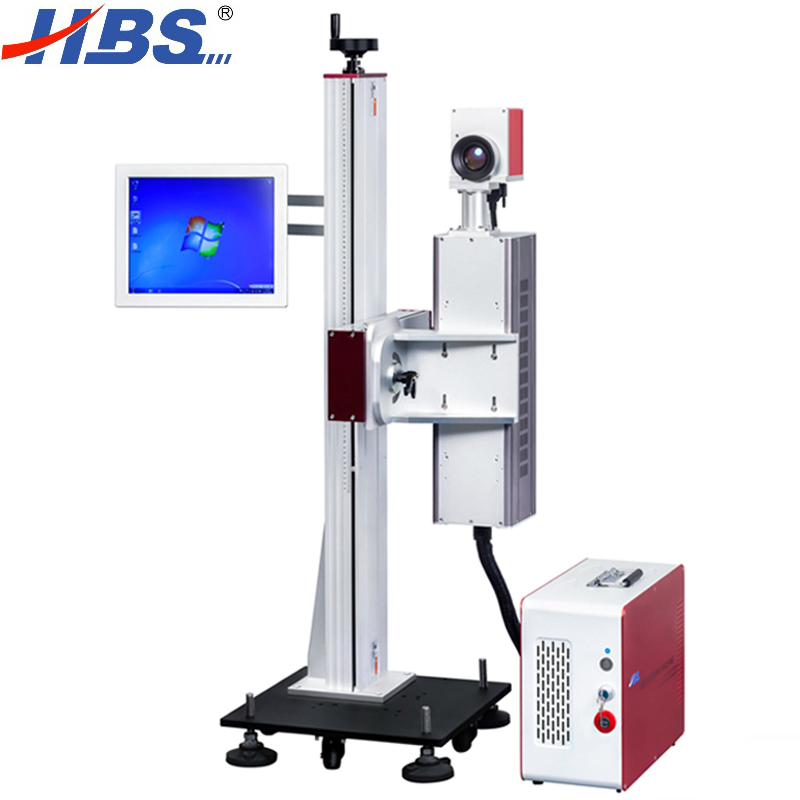

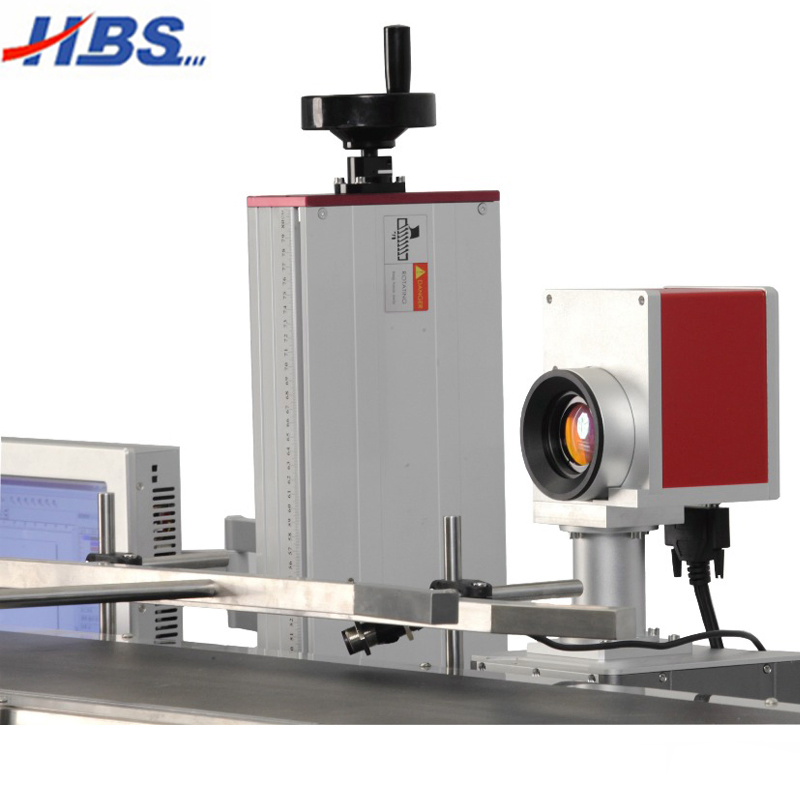

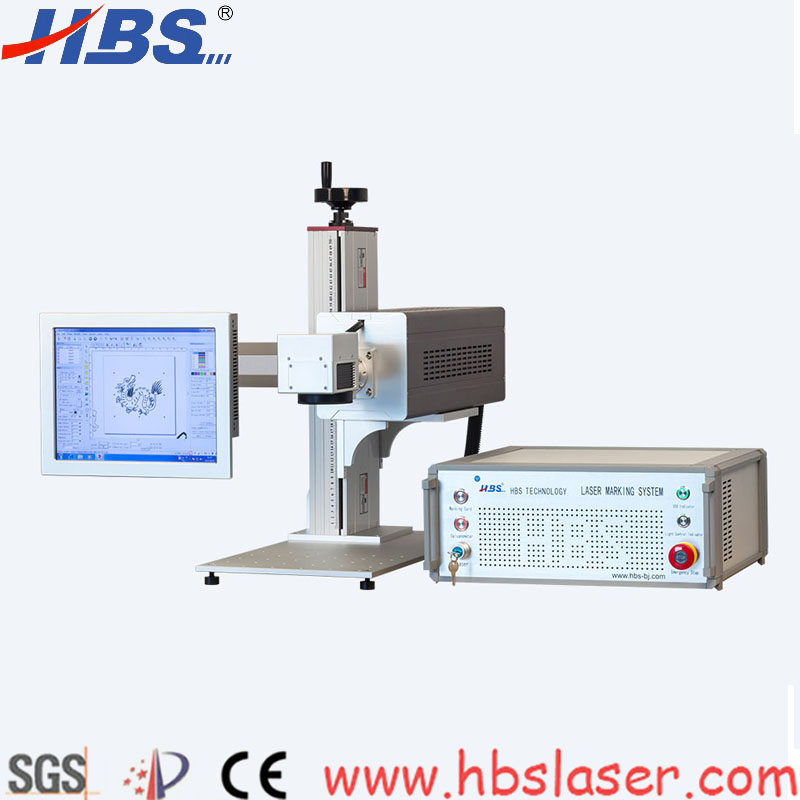

3W/5W UV Laser Marking Machine for Glass Marking/ Crystal Laser Marker Hbs-UV-3W

Customization:	Available
After-sales Service:	Online Service
Warranty:	2years

📋 Basic Information

Laser Visibility:Visible

Applicable Material:Glass, Metal, Plastic, Leather, Wood

Cooling System:Water Cooling

Technical Class:Continuous Wave Laser

Laser Wavelength:Deep Ultraviolet

Laser Classification:Semiconductor Laser

Type:Semiconductor Laser Marking Machine

Marking Method:Scanning Marking

Transport Package:Cartons

Specification:530x220x660mm

HS Code:8456110090

Production Capacity:200/Months

🔍 Product Introduction

Ultraviolet Laser Marking Machine features the world's most advanced technology. It provides a high electro-optical conversion rate, long working time of nonlinear crystal, high stability, and high positioning accuracy. The optimized modular design ensures high operation efficiency and convenient maintenance. Equipped with a two-dimensional automated workstation, it enables continuous marking in multi-stage or large-size applications. The ultra-fine laser marking line is ideal for high-demand precision marking, specifically for LCD screens, IC wafers, and IC chips.

⚙️High Stability

🎯High Accuracy

⚡High Efficiency

📊 Technical Parameters

Laser Wavelength	355nm
Laser Power	3W/5W
Marking Area	50x50mm / 100x100mm
Marking Speed	≤7000mm/s
Beam Quality	≤2
Q Frequency Tuning	8KHz-15KHz
Min. Line Width	0.01mm
Min. Character Size	0.2mm
Repetition Accuracy	±0.003mm
Power Consumption	2Kw
Power Supply	200V/Single-Phase/50Hz/10A

💡 Product Application

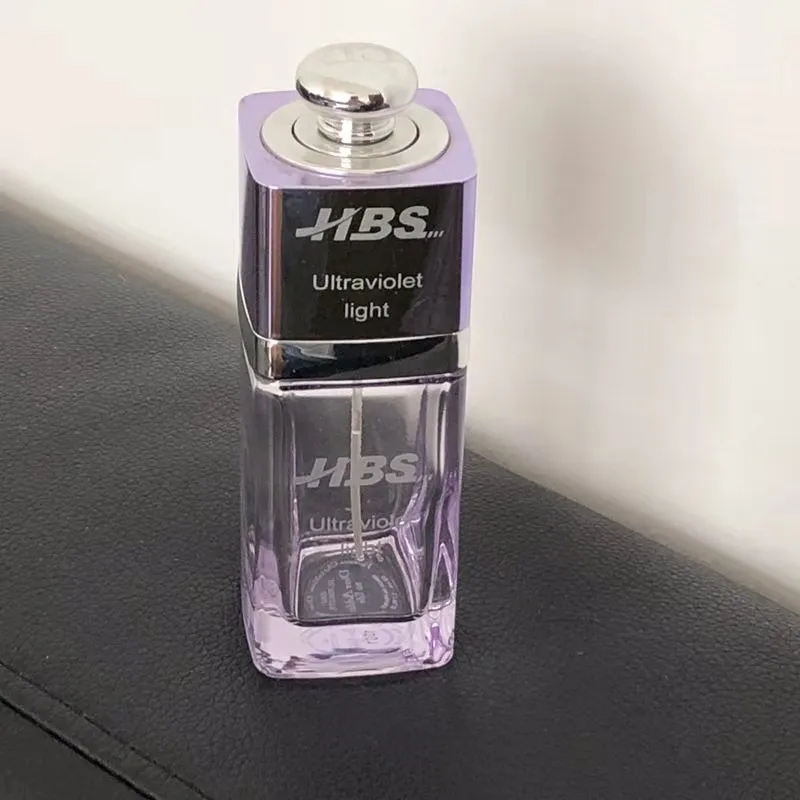

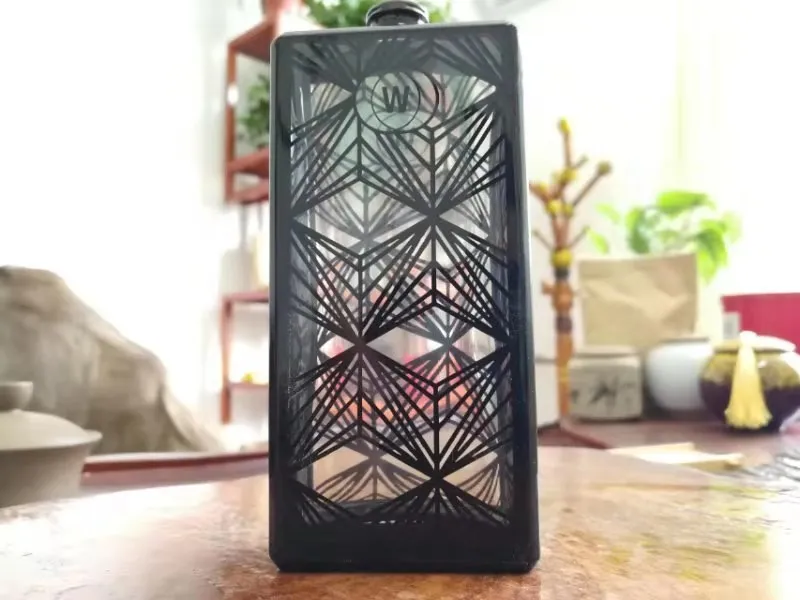

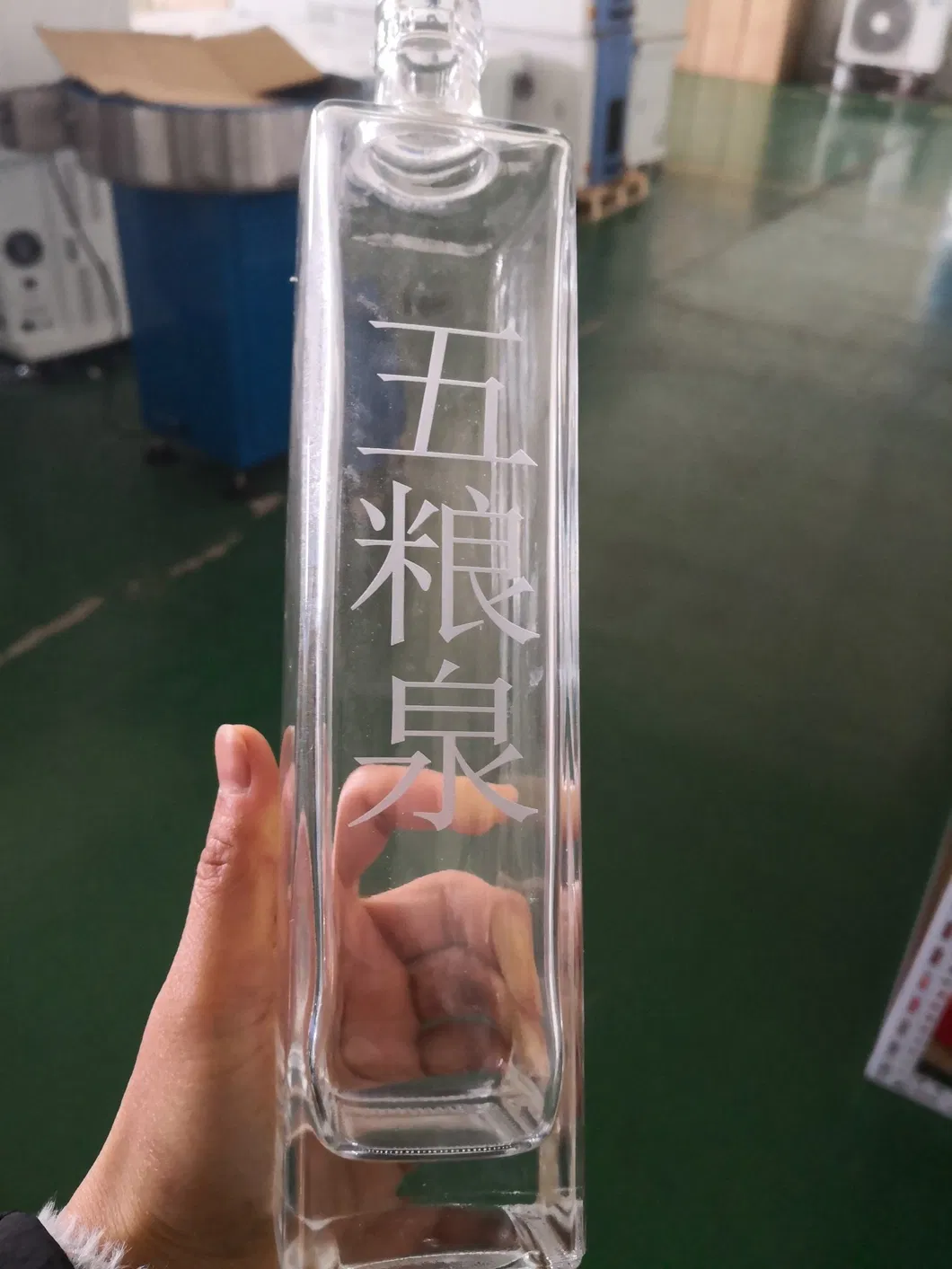

Mainly used in the marking and surface processing of materials such as all sorts of glass, TFT, LCD screens, Plasma screens, textile products, ceramic chips, mono-crystal silicon wafers, IC chips, sapphire, and thin polymer films. The Ultraviolet laser excels in precision machining and processing special materials where other bandwidth lasers may fall short.

📦 Exhibition & Packaging

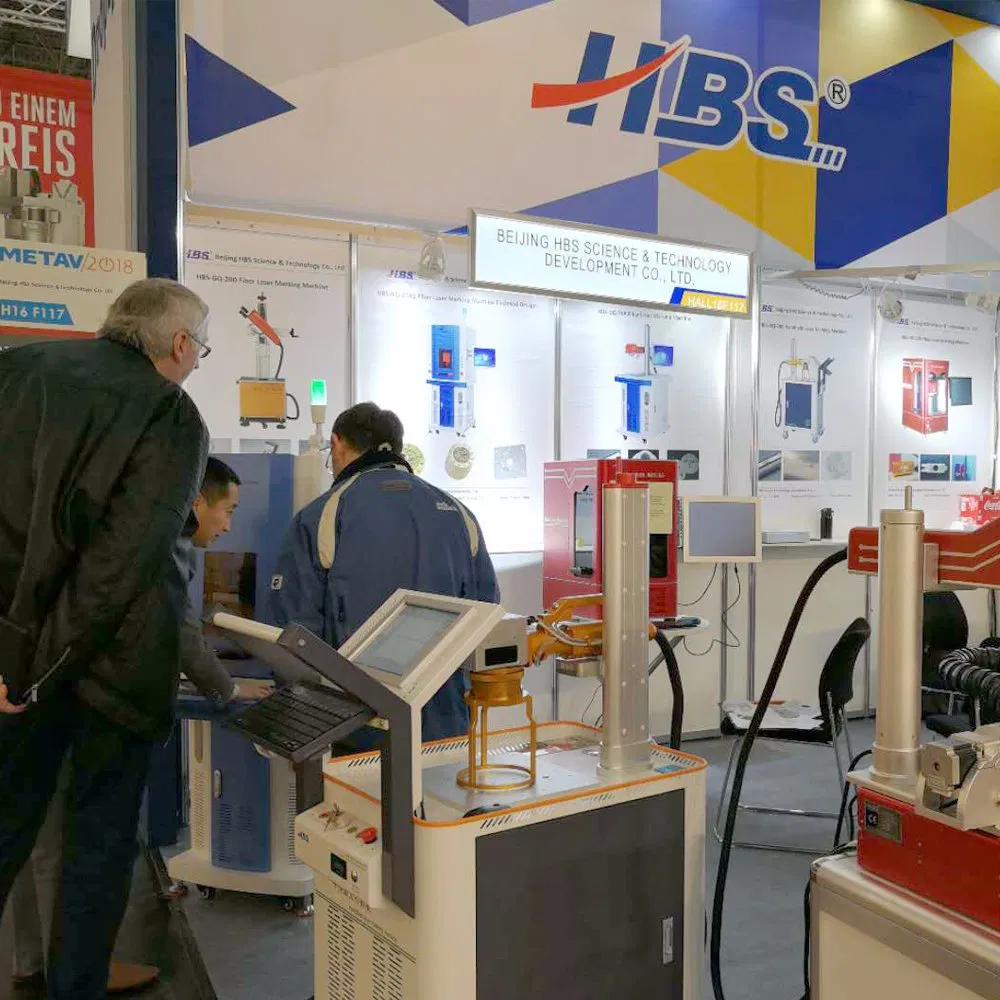

Showcased at international events like METAV 2018. Professional packaging ensures the safety of the equipment during transit.

❓ Frequently Asked Questions

Q1: What materials can the UV laser marking machine process?

A: It is ideal for glass, metals, various plastics, leather, wood, ceramic chips, IC wafers, and thin polymer films.

Q2: What is the main advantage of 355nm UV laser technology?

A: The 355nm wavelength provides "cold marking," which minimizes thermal stress and allows for extremely fine marking lines on sensitive materials.

Q3: How accurate is the marking process?

A: The machine offers a repetition accuracy of ±0.003mm and a minimum character size of 0.2mm for high-precision requirements.

Q4: Does the system require a specific cooling method?

A: Yes, the system utilizes an efficient water cooling system to maintain stability during continuous operation.

Q5: Is it suitable for large-scale production?

A: Yes, with a marking speed of up to 7000mm/s and a production capacity of 200 units per month, it is designed for industrial-scale efficiency.

Q6: What are the power requirements for this machine?

A: It operates on a single-phase 200V / 50Hz / 10A power supply with a power consumption of approximately 2Kw.
