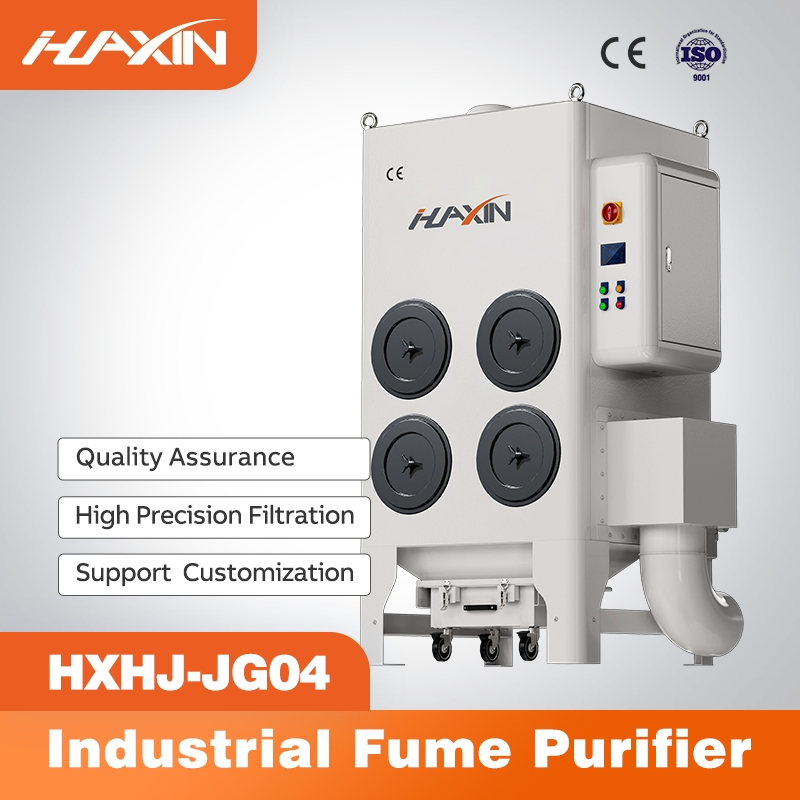

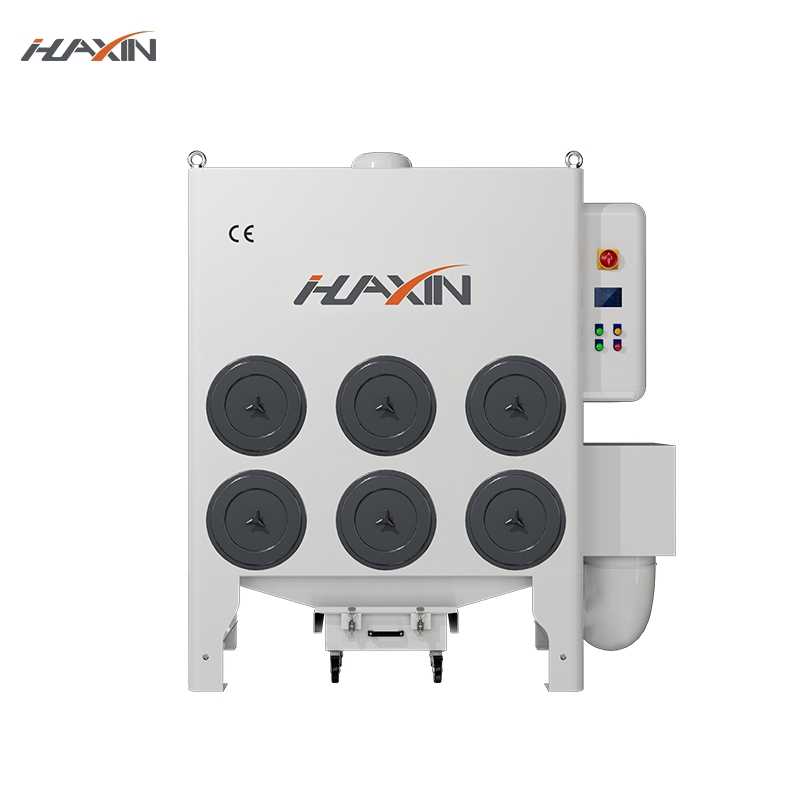

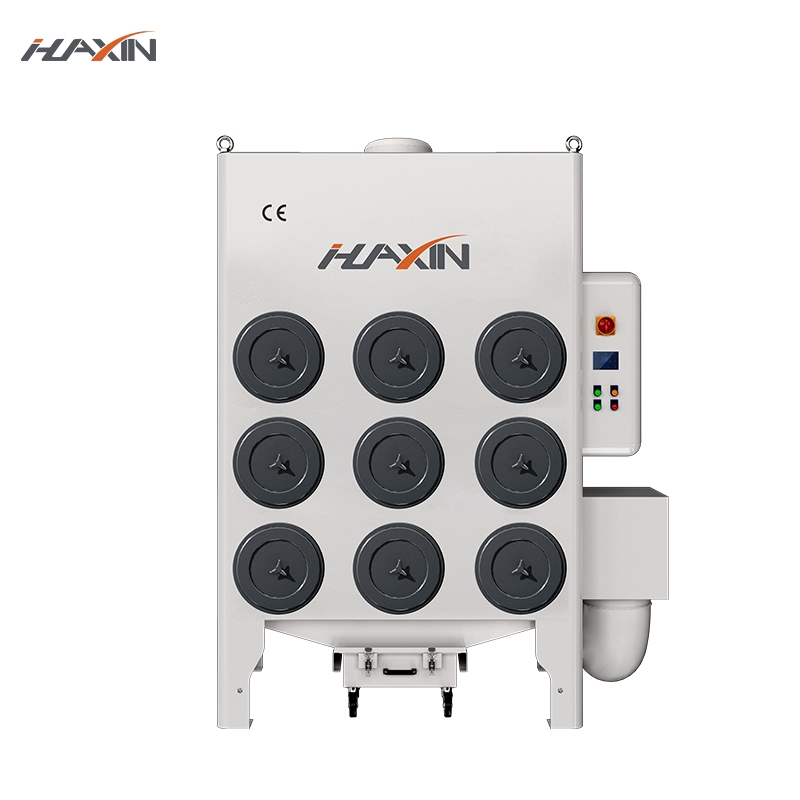

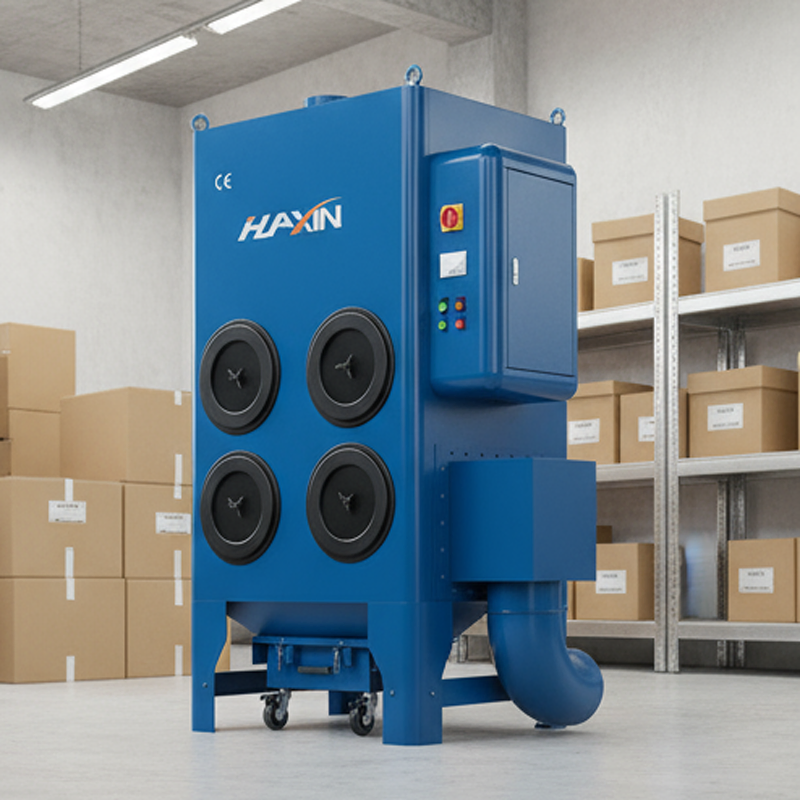

Powerful 5.5kw Laser Dust Extraction System for Woodworking

ℹ️

Overview & Basic Info

Model NO.

JG04

Operation Type

Automatic

Medium Material

Chemical Synthetic Fiber

Type

Filter Cartridge Dust Collector

Power

5.5kw

Voltage

380V/400V/415V/220V

Filtration Area

52m2

Filtration Accuracy

99.99%

Weight

420kgs

Specification

1300*940*2200MM

Origin

China

Production Capacity

50000 Pieces/Year

🚀

Product Description

Effective Capture For:

Welding Fumes
Grinding Dusts
Dry Dusts
Soldering Dusts
Cutting & Polishing

Key Features:

Air Flow: 1000~50000m3/h
Spark Trap Technology

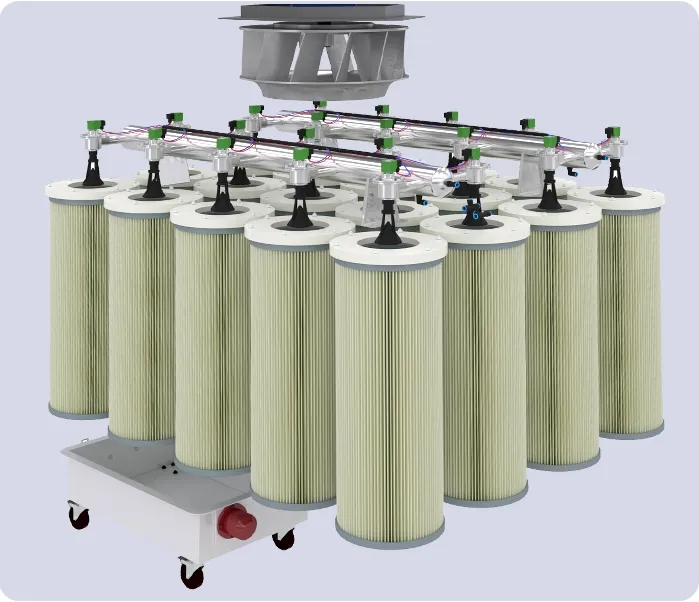

Auto-Pulse Cleaning System

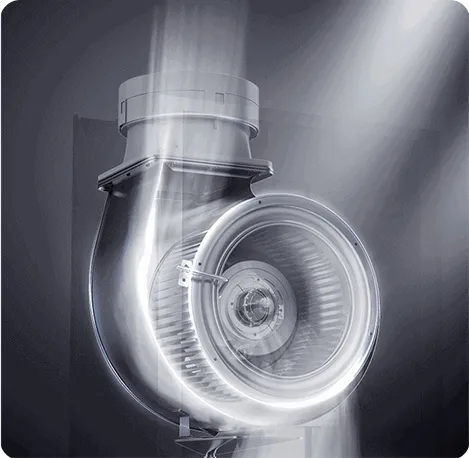

Split type design for noise reduction
Multi-stage fire protection

This industrial dust collector series is designed for large air flow requirements. It features a separate fan isolation sound box to minimize operational noise and is ideal for large-scale welding workshops, robot welding lines, and plasma/laser cutting stations.

📊

Product Parameters

Model Range	Airflow (m³/h)	Power (kW)	Voltage	Filter Area (m²)	Precision	Noise dB(A)	Size (mm)
JG04	4000	5.5KW	380V/415V/220V 50/60Hz	94	99.50%	82	13009402200
JG06	6000	7.5kW		140	99.50%	83	180010502200

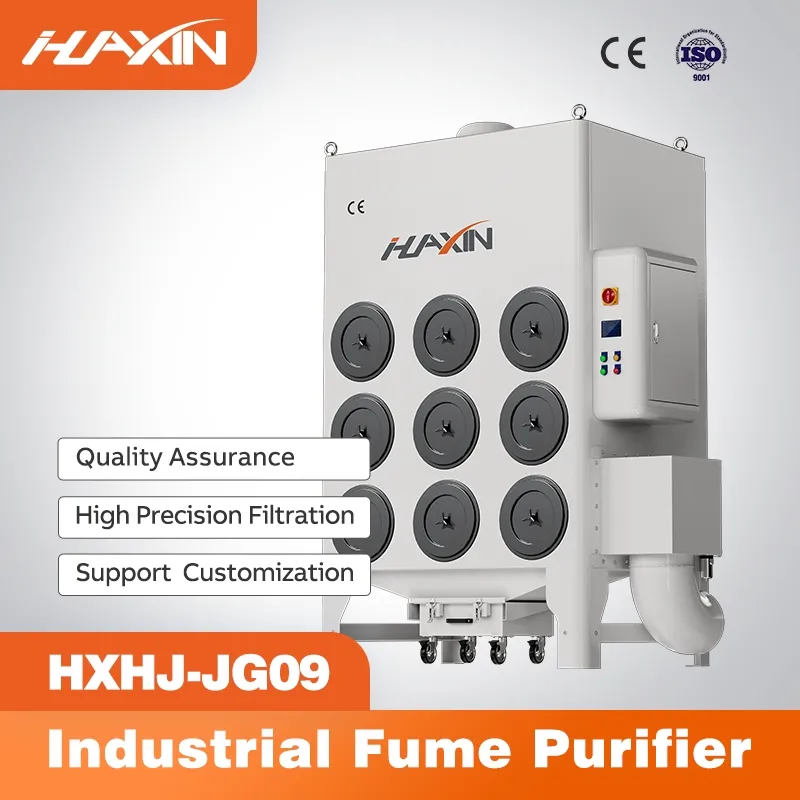

JG09	9000	11kW		188	99.50%	84	180011002820
JG12	10000	15kW		284	99.50%	85	180012003300

⭐

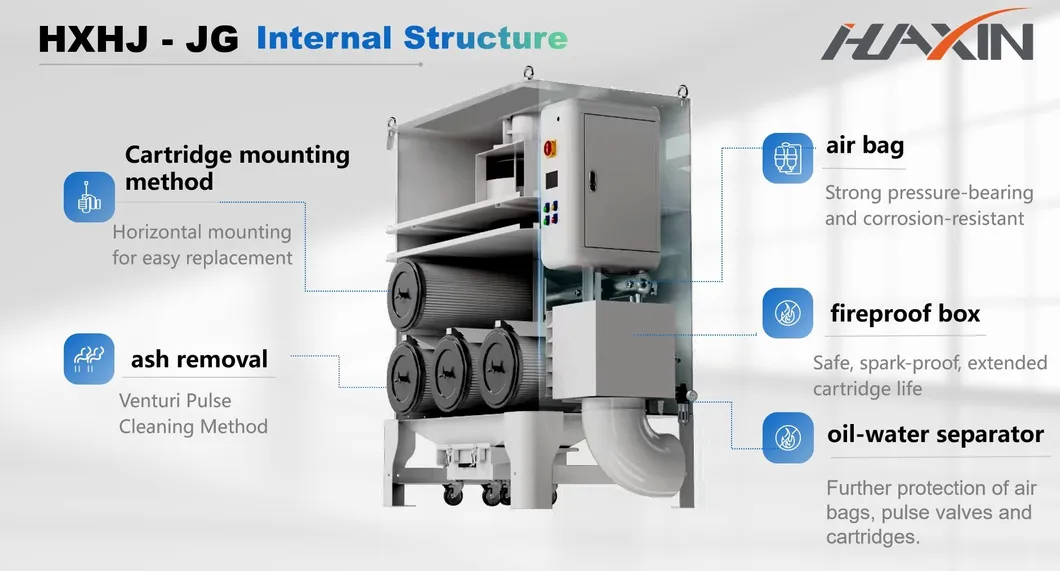

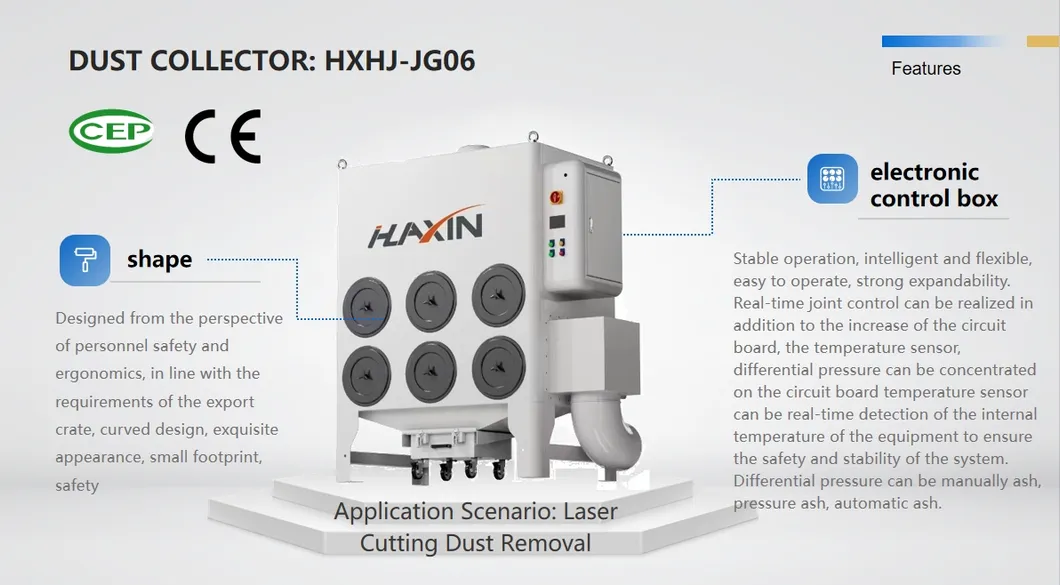

Our Advantages

📜

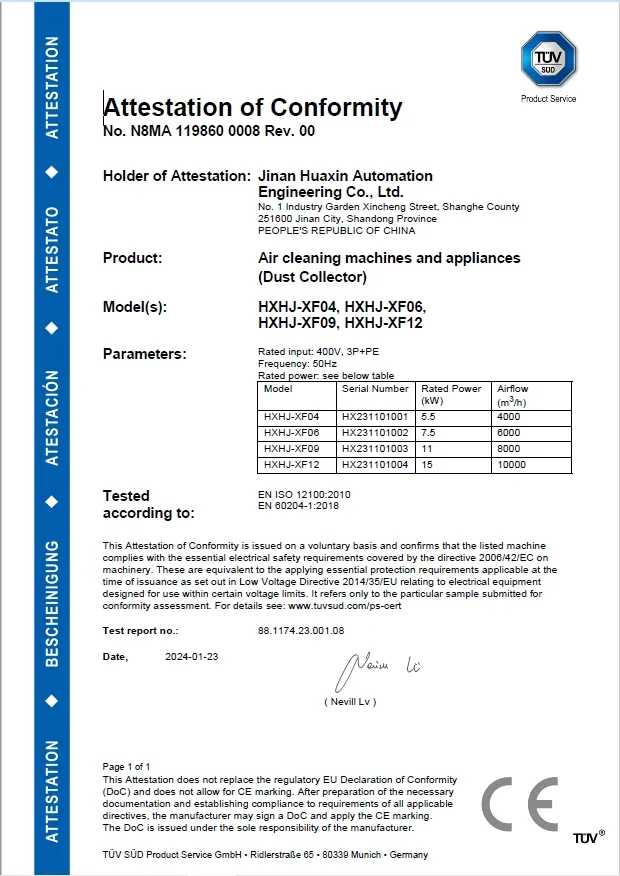

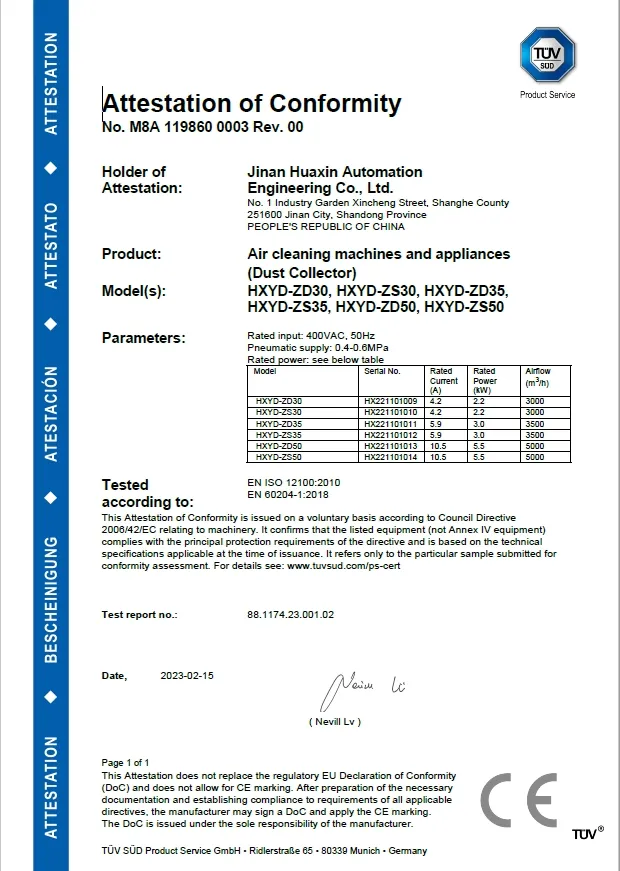

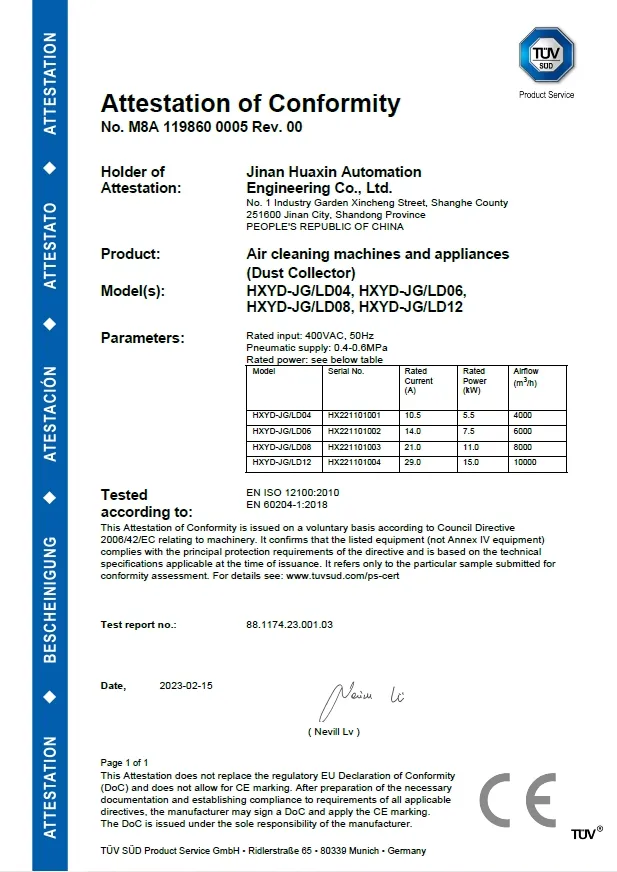

Certifications

📷

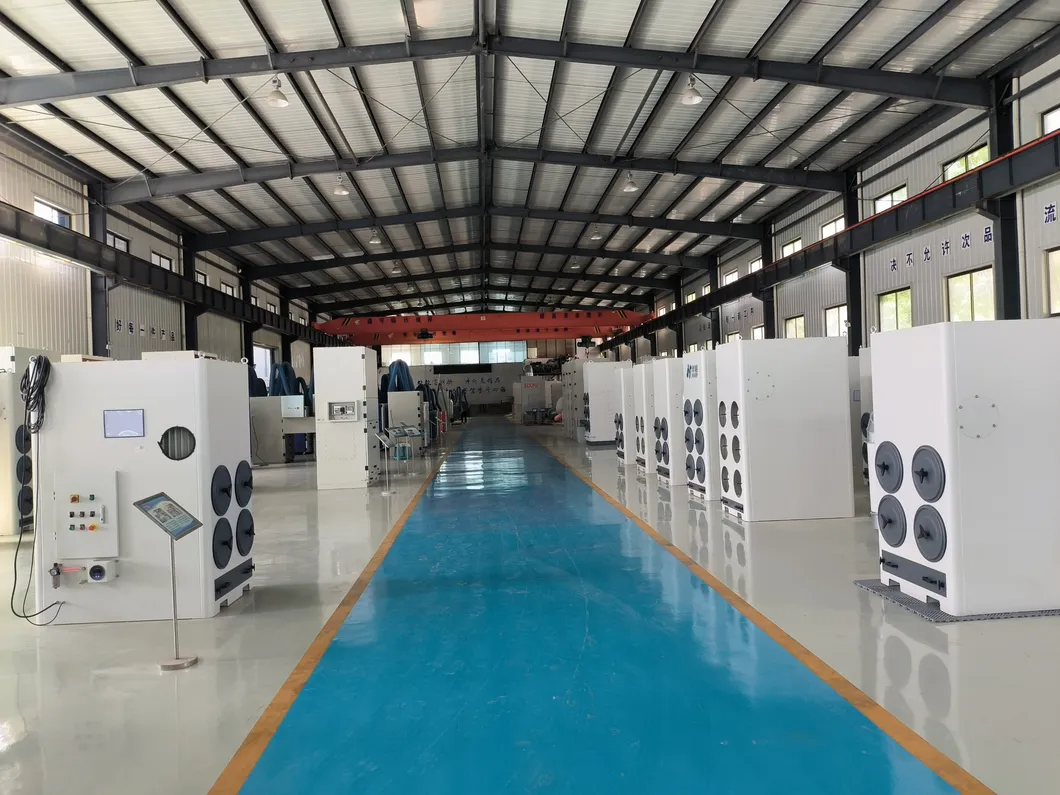

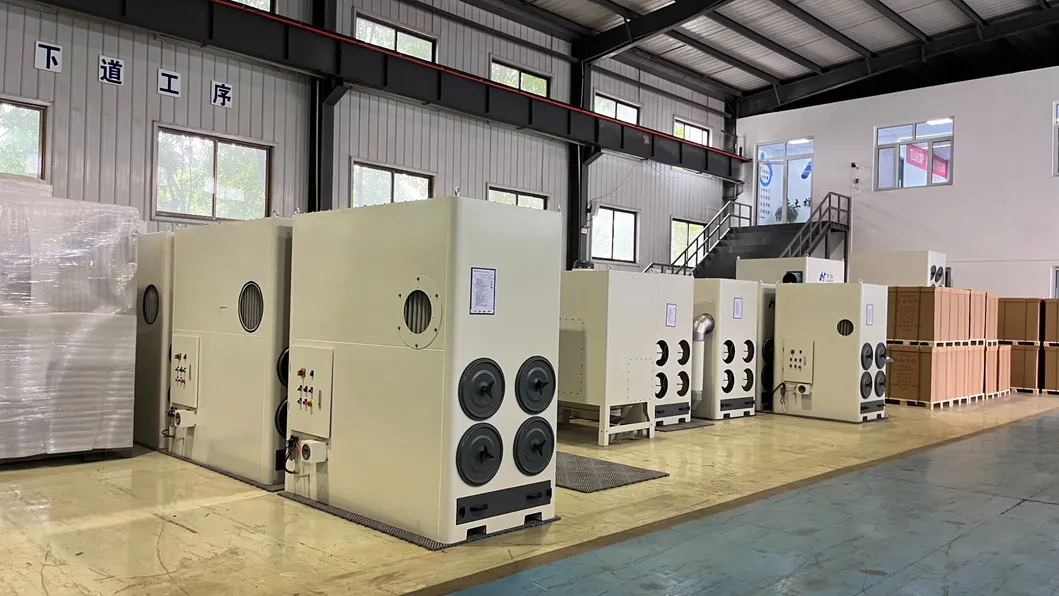

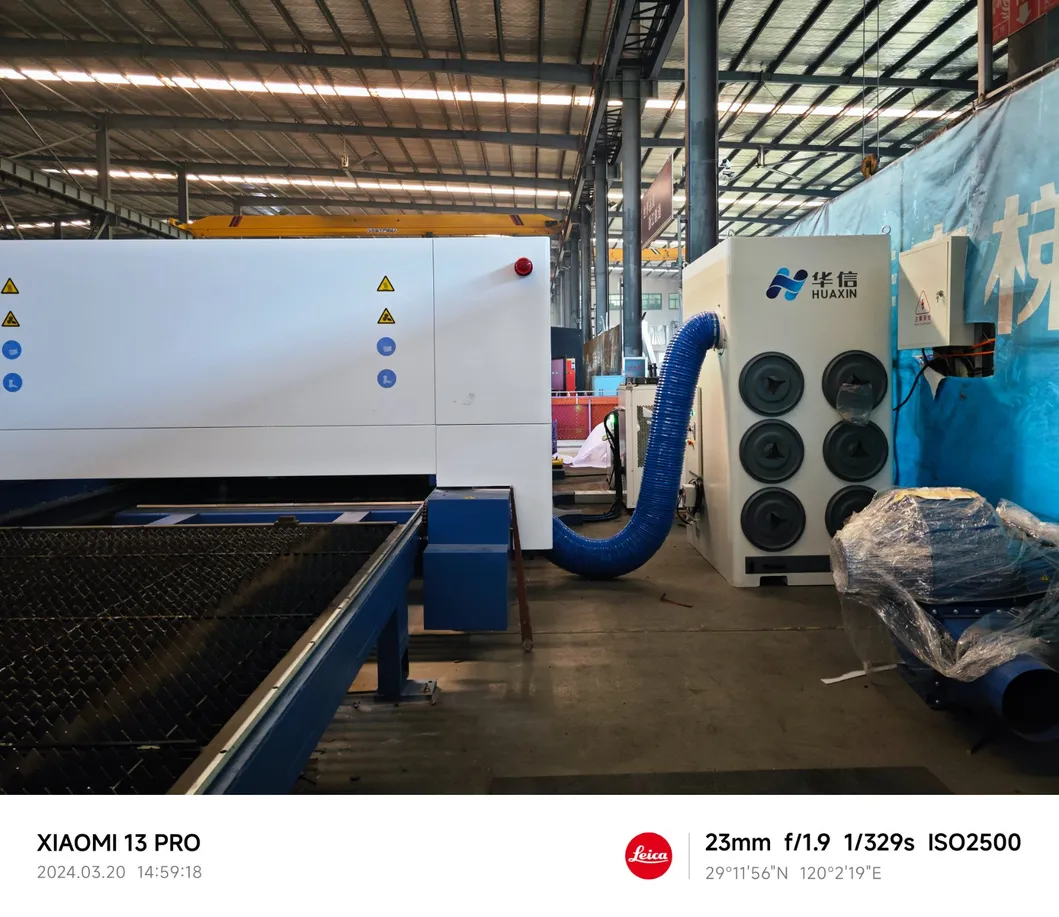

Detailed Photos

📦

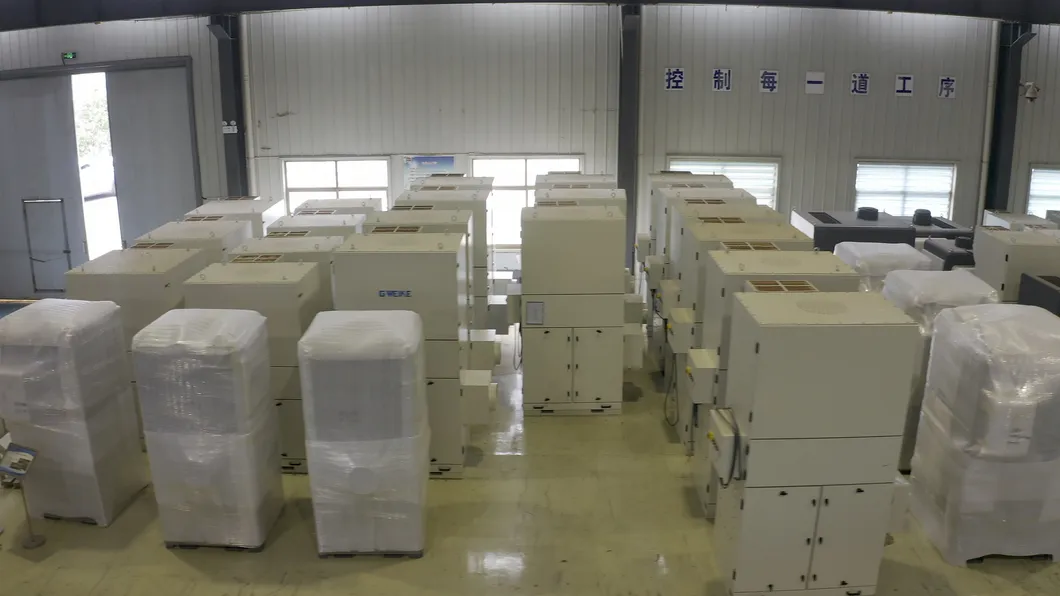

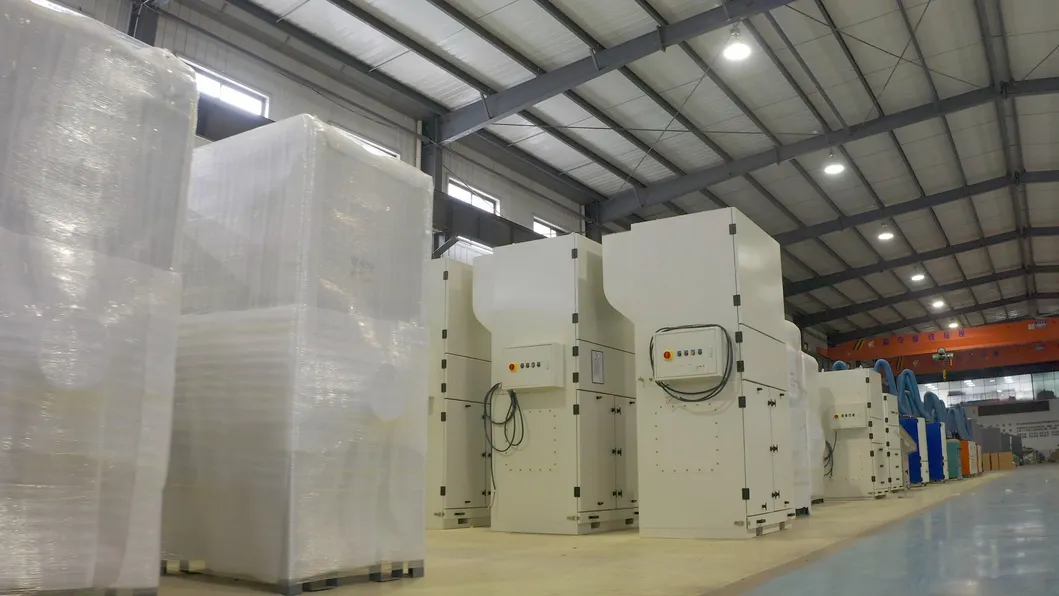

Packaging & Shipping

❓

Frequently Asked Questions

Is there any noise during operation?

The fans are equipped with sound insulation cotton and high-quality enclosures to ensure they do not produce excessive noise during operation.

How do I determine the required air volume?

You can measure the diameter of the exhaust pipe at the bottom of your cutting platform. By providing us with this measurement, we can calculate the exact air volume needed for your specific setup.

How does the system prevent fire from sparks?

We install specialized spark catchers (labyrinth structure). These force sparks to hit cold plates multiple times, effectively extinguishing them before they reach the filter material.

Can the filtered air be discharged indoors?

Yes. We use high-precision flame-retardant filter material that captures dust as small as 0.3um with over 99% efficiency, allowing for direct indoor discharge and meeting environmental standards.

What is the warranty and after-sales policy?

The warranty period is one year. Maintenance is free during this time. Outside the warranty period, we provide lifelong support where only the cost of replacement parts is charged.

Are OEM or ODM services available?

Yes, we provide both OEM and ODM services. We can produce units under your brand name and modify sizes or specifications to meet your specific requirements.
