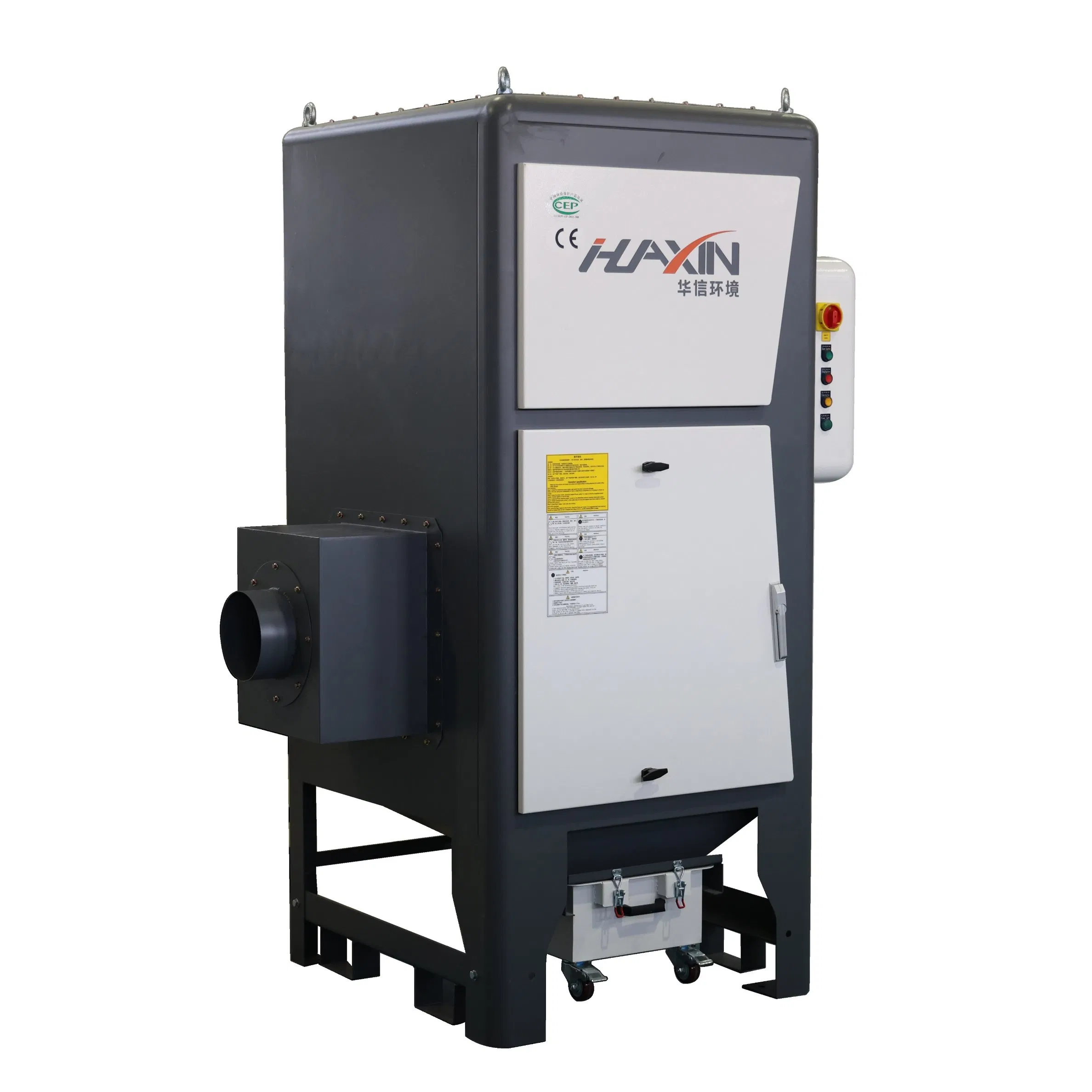

Powerful 7.5kw Dust Extraction System for Laser Cutting Equipment

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
XF06
Operation Type
Automatic
Medium Material
Chemical Synthetic Fiber
Method
Dry Dust Collecting
Type
Filter Cartridge
Power
7.5kw
Voltage
380V/415V/220V
Filtration Area
78m2
Accuracy
99.99%
Particle Size
0.3um

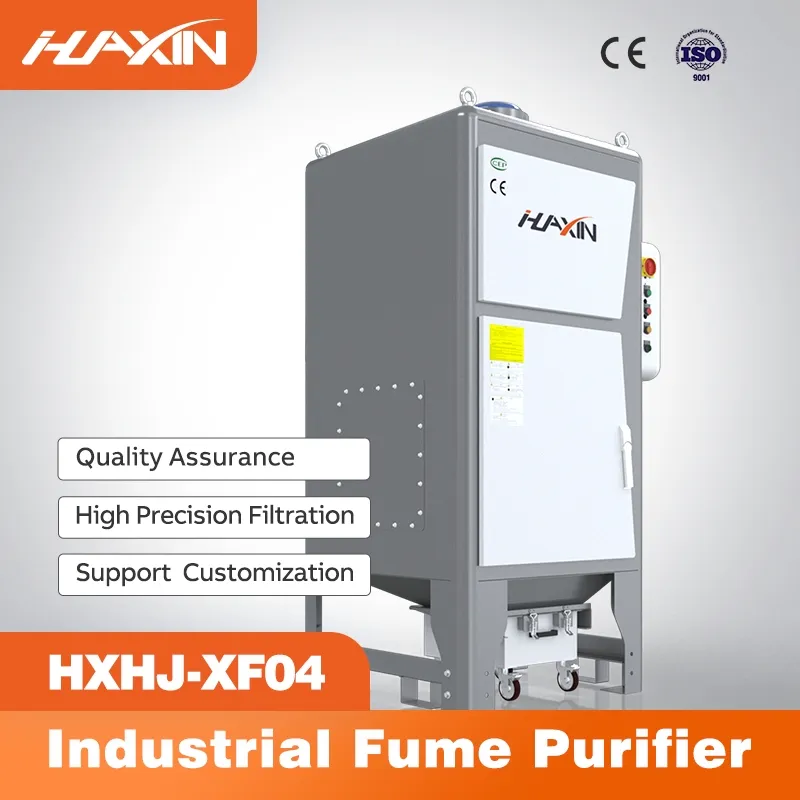

Dust Extraction System

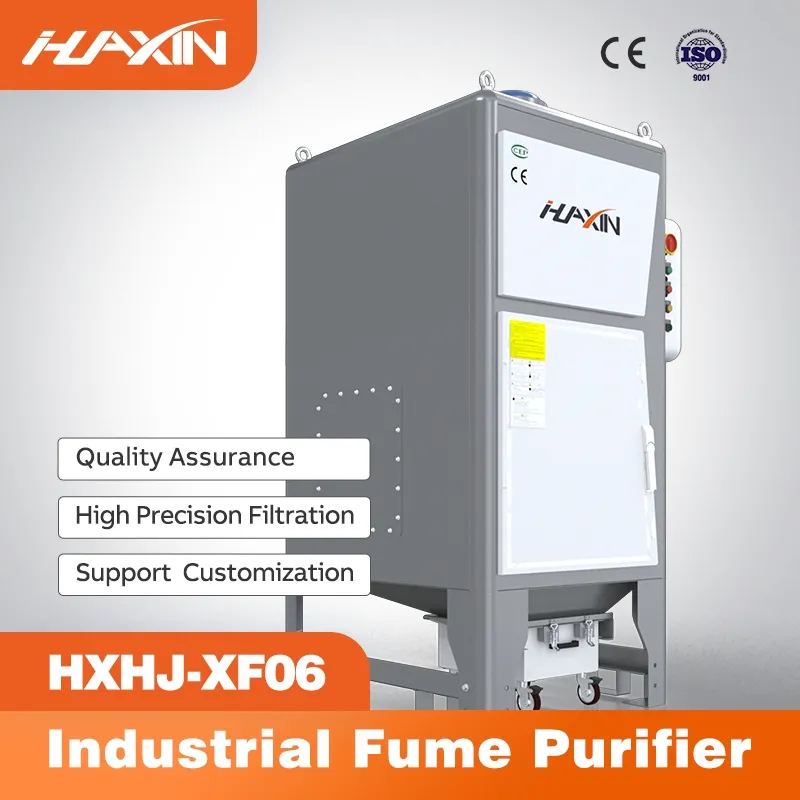

Extraction Unit

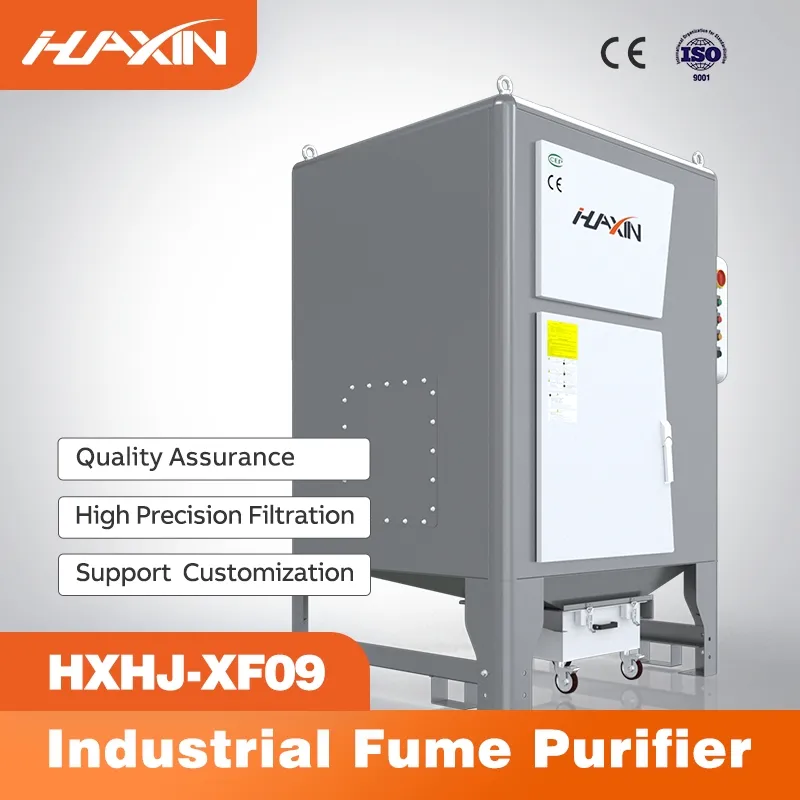

Equipment View
Product Description
High-Efficiency Filtration

Crafted with utmost precision, this Dust Collector exemplifies cutting-edge filtration technology. Engineered to capture an extensive array of particulate matter from minuscule dust to fumes, ensuring a workspace free of impurities with efficiencies reaching 99.99%.

Adaptability to Different Dust Types

Designed for resilience and versatility, these systems handle diverse dust characteristics. Whether metal fines from laser cutting or unique properties from plastics and composite materials, it ensures effective dust management.

Powerful Suction Capacity

Equipped with extraordinary suction power for immediate dust capture at the source. This protects the precision equipment from potential dust damage and extends machine lifespan.

Low Noise Operation

Meticulously engineered for quiet operation, maintaining noise levels typically under 80 decibels. This fosters a serene and productive working environment.

Detail View
Technical Parameters
Model Airflow (m³/h) Power (kW) Filter Area (m²) Precision Noise dB(A) Size (mm)
XF0440005.55299.99%77±31200*1100*2500
XF0660007.57899.99%77±31200*1400*2500
XF0990001111799.99%77±31600*1400*2500
XF12120001515699.99%77±31600*1700*2500
XF161600018.520899.99%77±32000*1700*2700
XF20200002226099.99%77±32100*2200*2800
Our Advantages & Details

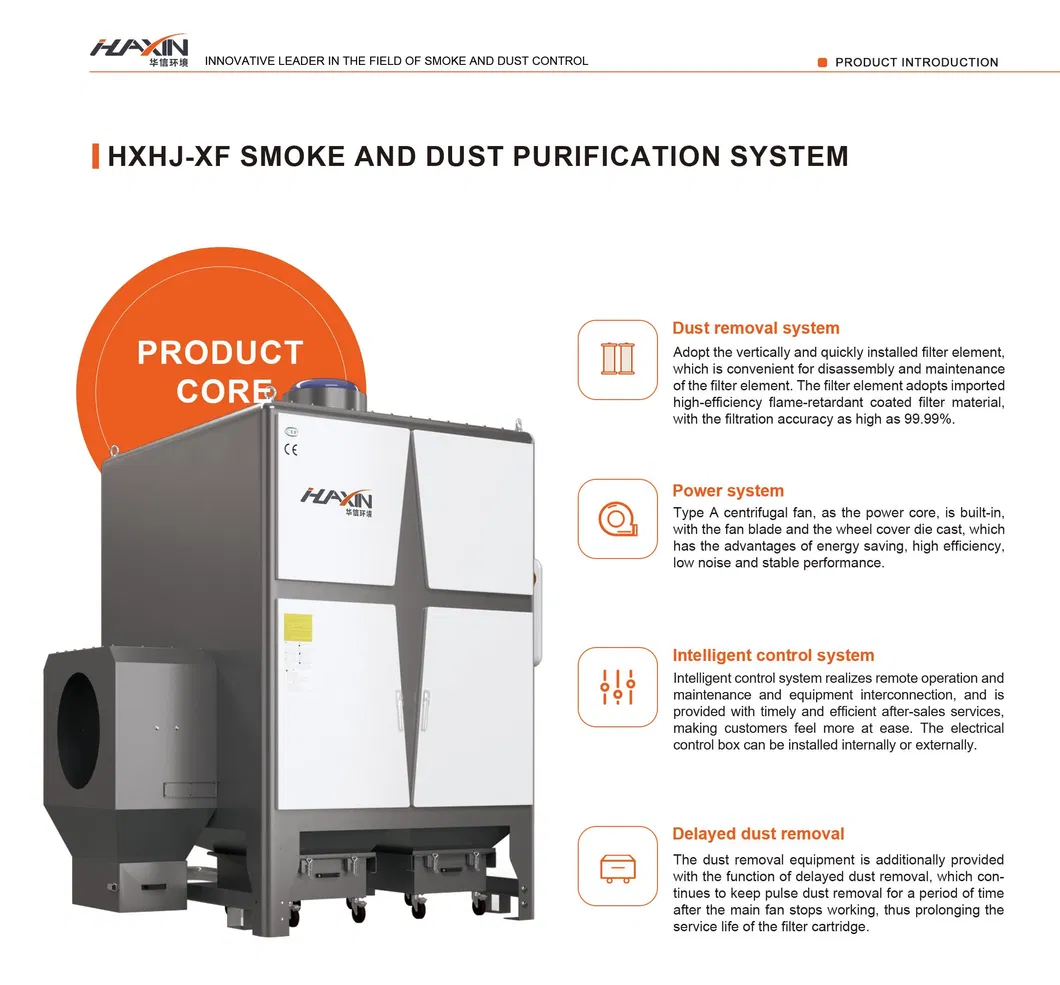

Advantage 1

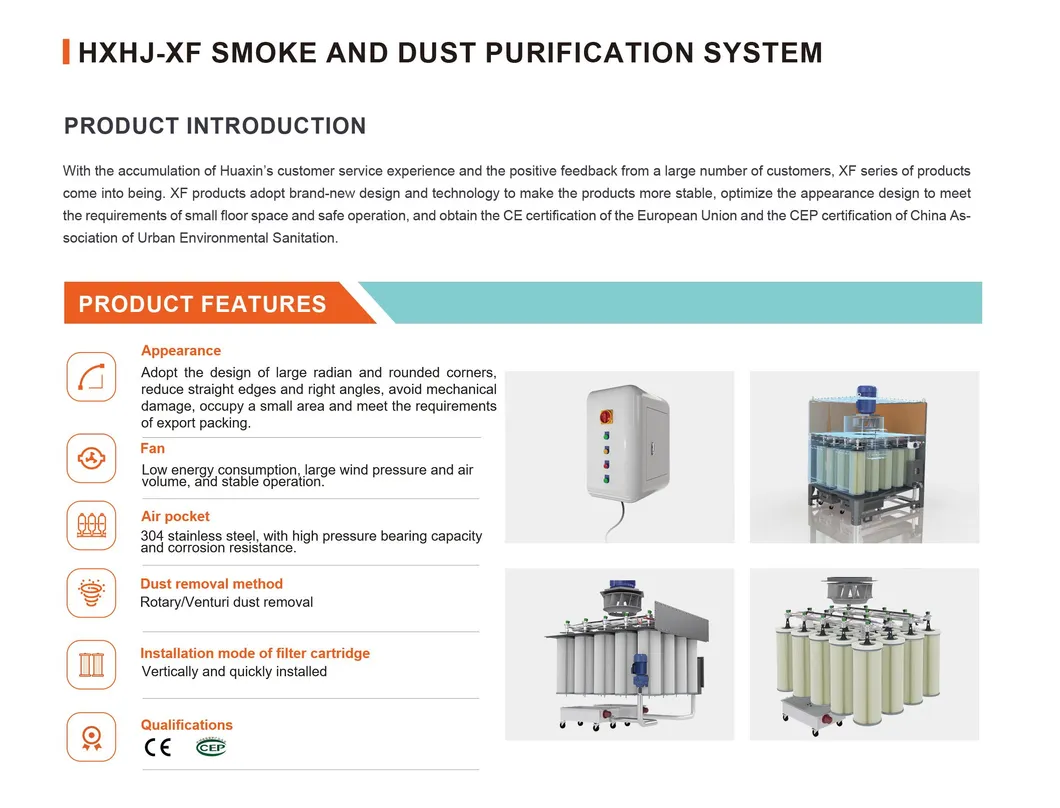

Advantage 2

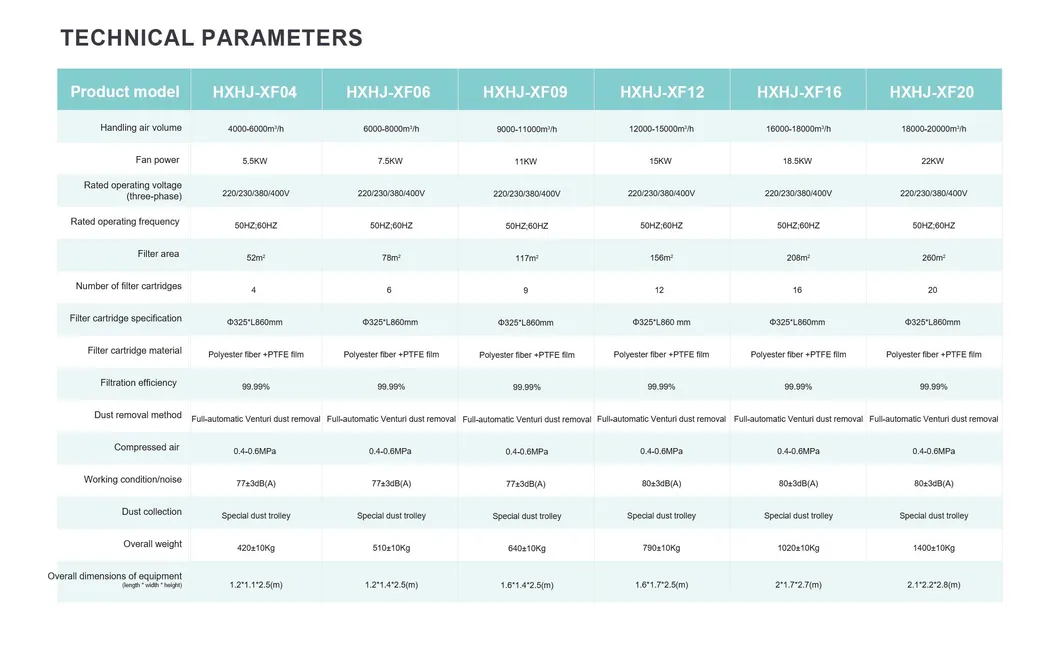

Advantage 3
Certifications

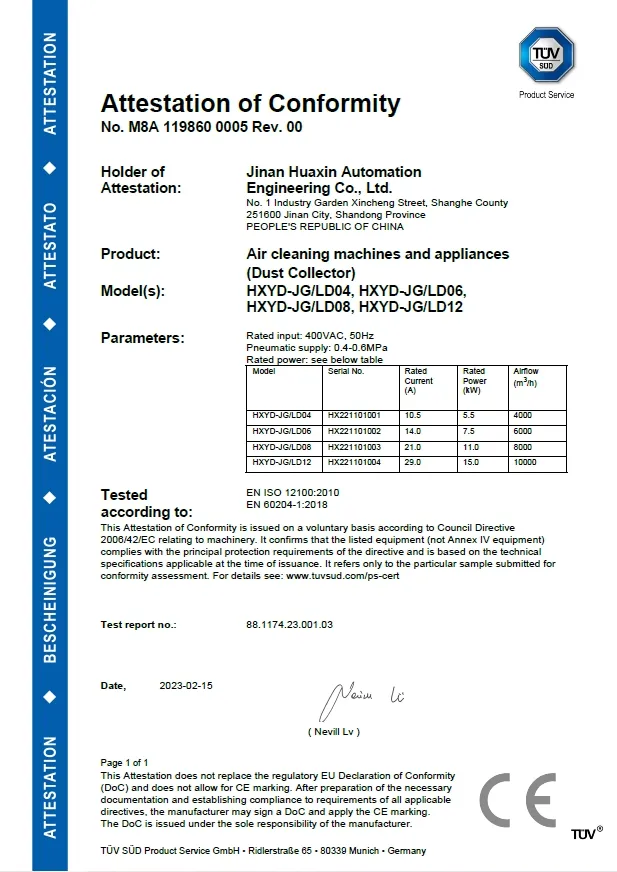

Cert 1

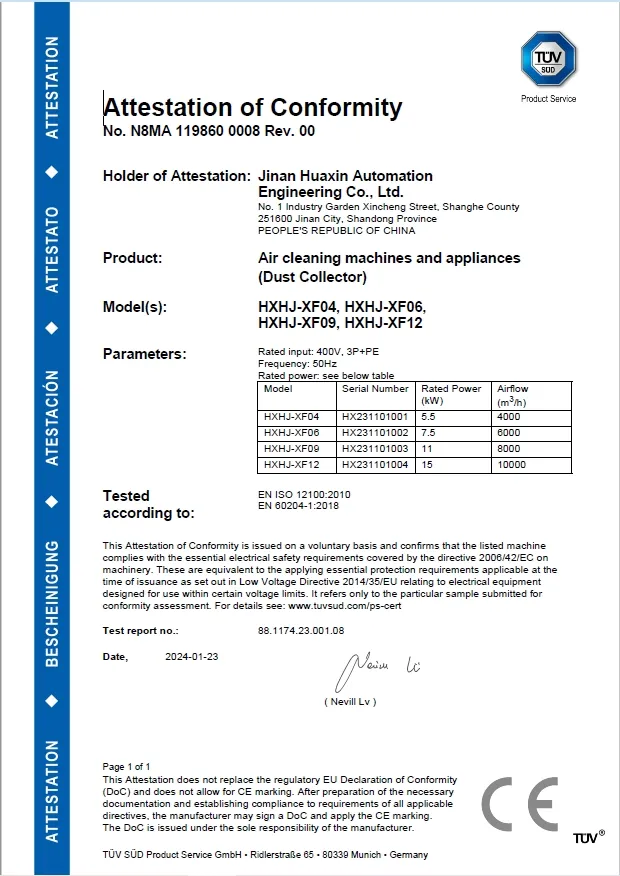

Cert 2

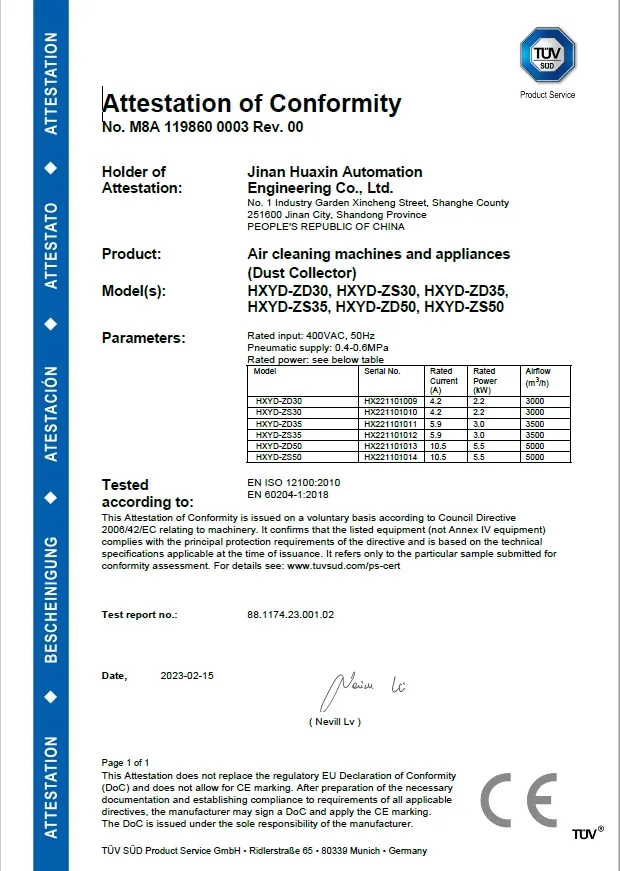

Cert 3
Packaging & Shipping

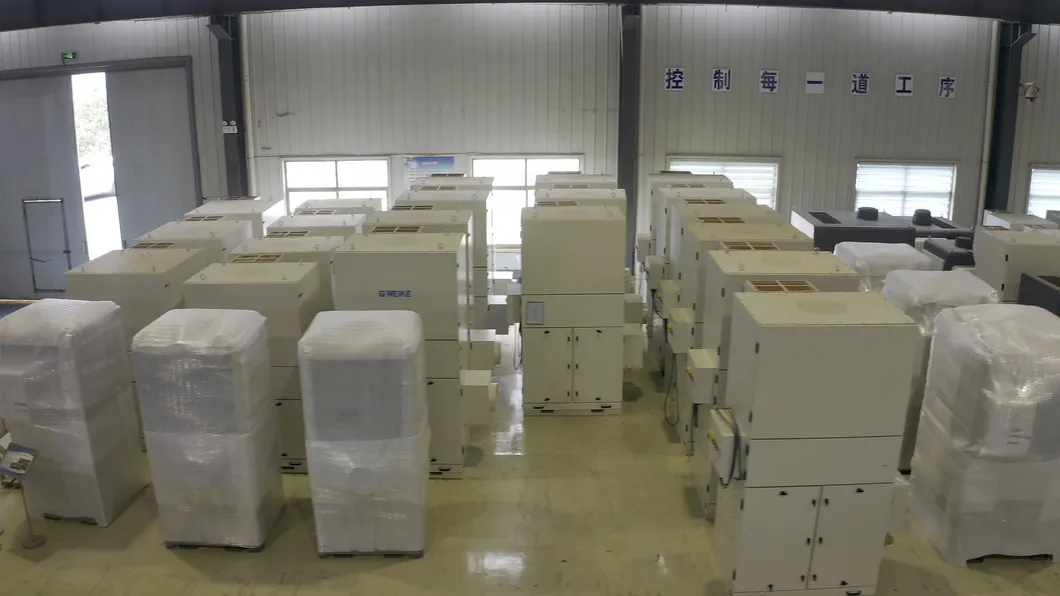

Package 1

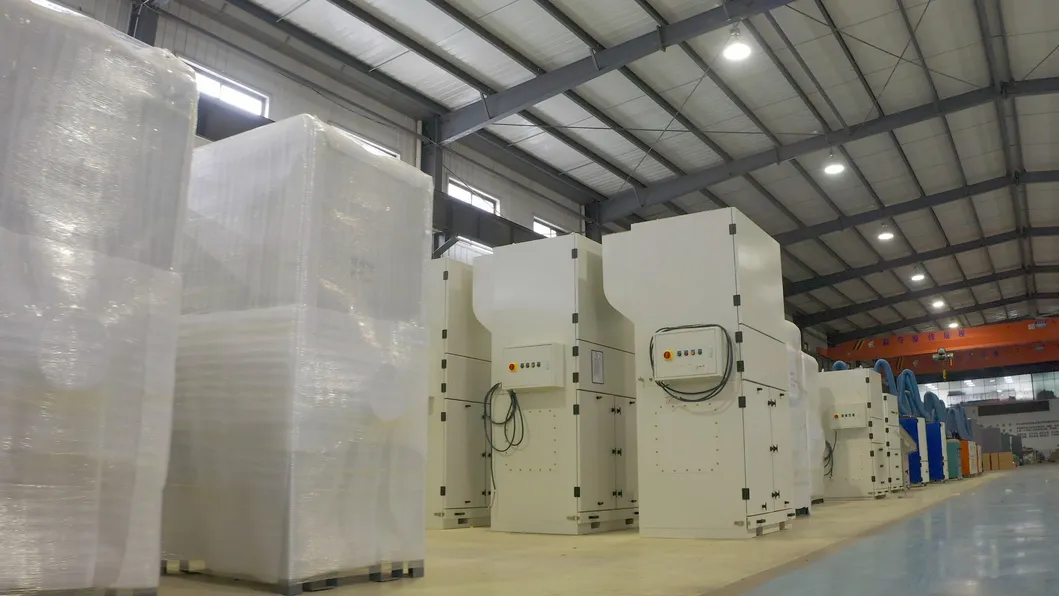

Package 2

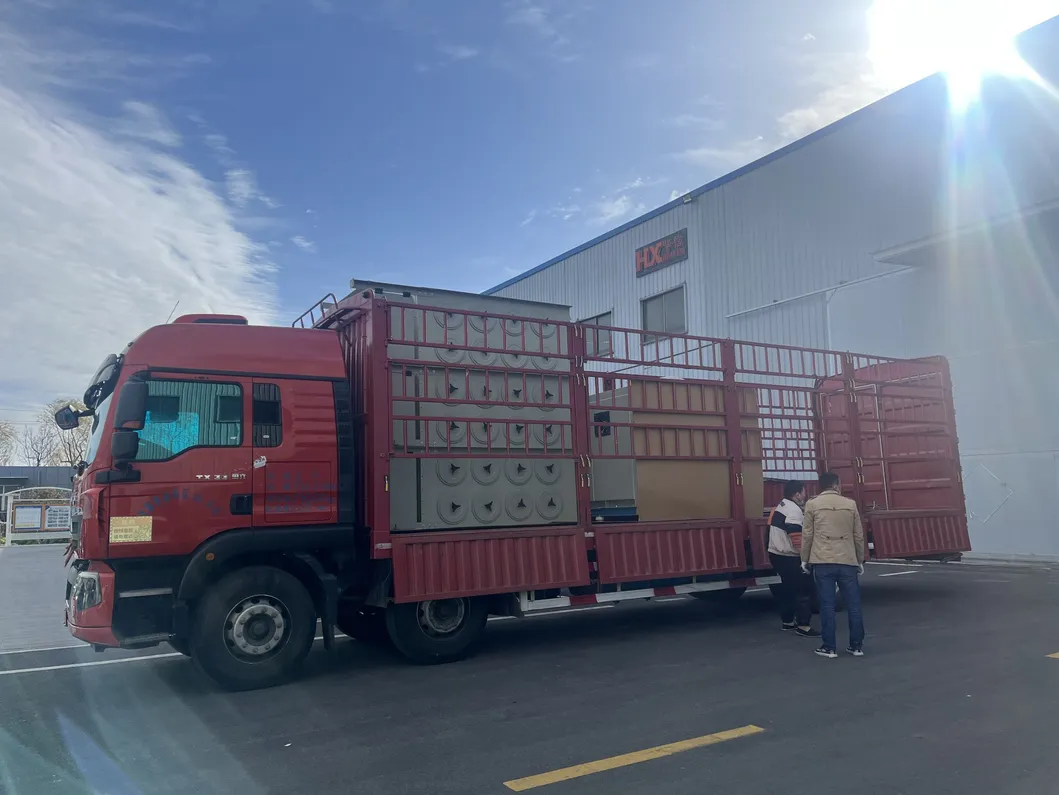

Package 3
Frequently Asked Questions
Is there any noise during operation?
The fans are equipped with high-quality sound insulation cotton to ensure they do not produce excessive noise, maintaining a comfortable work environment.
How do I choose the correct air volume for my needs?
Measure the diameter of the exhaust pipe on your cutting platform. By sharing this data with us, we can calculate the exact air volume requirement for your specific collector.
How are sparks handled to prevent fire accidents?
We install specialized spark catchers (embedded baffle, pipe baffle, or pipe swirl types). These use labyrinth structures to extinguish sparks before they reach the filter.
Can the filtered air be discharged directly indoors?
Yes. With high-precision flame-retardant filter material, the system captures 99% of dust down to 0.3um, making it safe for indoor discharge without a chimney.
What is the surface treatment of the equipment?
We use a professional plastic spraying process. This ensures the surface finish is durable, resistant to falling off, and built for long-term industrial use.
What kind of after-sales warranty do you provide?
We provide a one-year warranty period with free maintenance. Beyond the warranty period, we only charge for the cost of replacement parts.
