Crane 3r RGB Laser Dock Guidance System for Pedestrian Walkways Safety

1

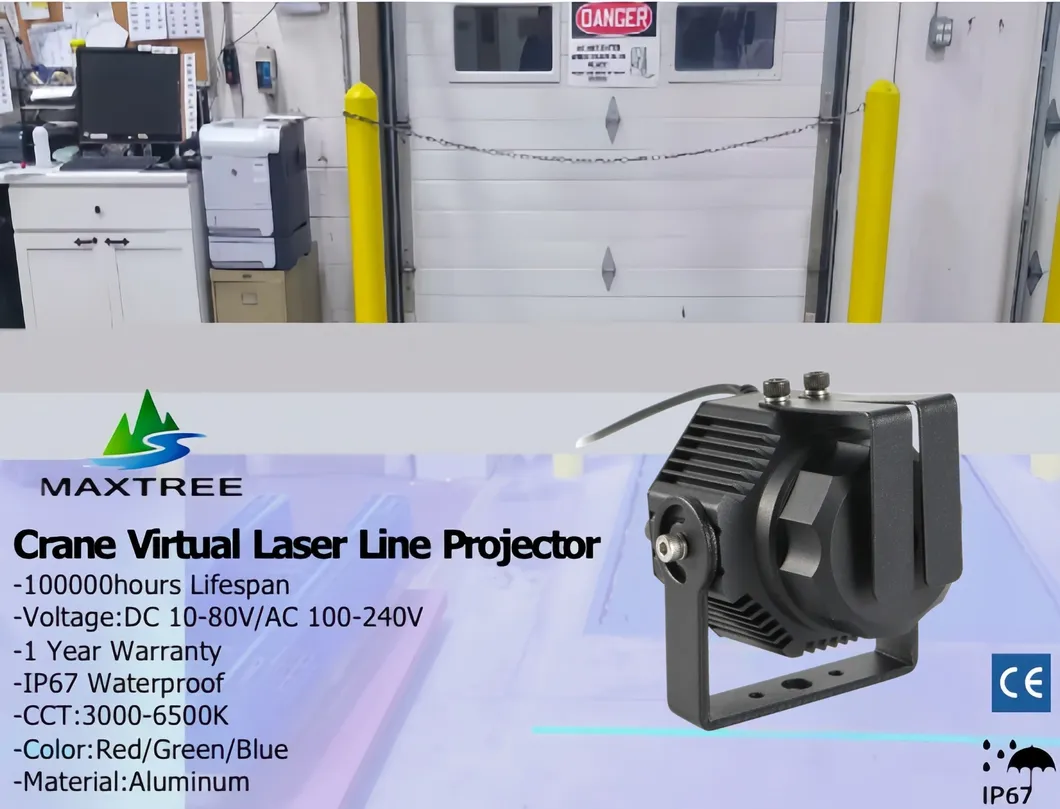

Basic Info & Parameters

Model NO.:MXFSL

Warranty:12 Months

Weight:0.2kg

Type:Safety Warning Light

Power:1000MW

Application:Overhead Crane

Projection Type:Line

Safety Class:3R

CCT:3000K-6500K

IP Grade:IP67

Specification:10.1*4.4*6cm

Lifespan:100,000 Hours

2

Product Description

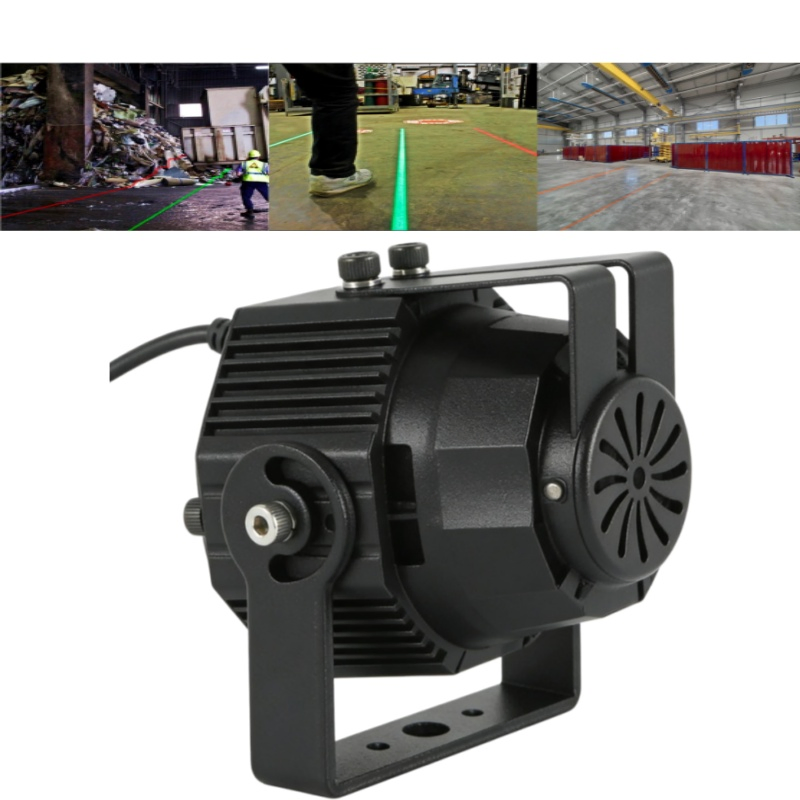

Crane 3R RGB Laser Dock Guidance System

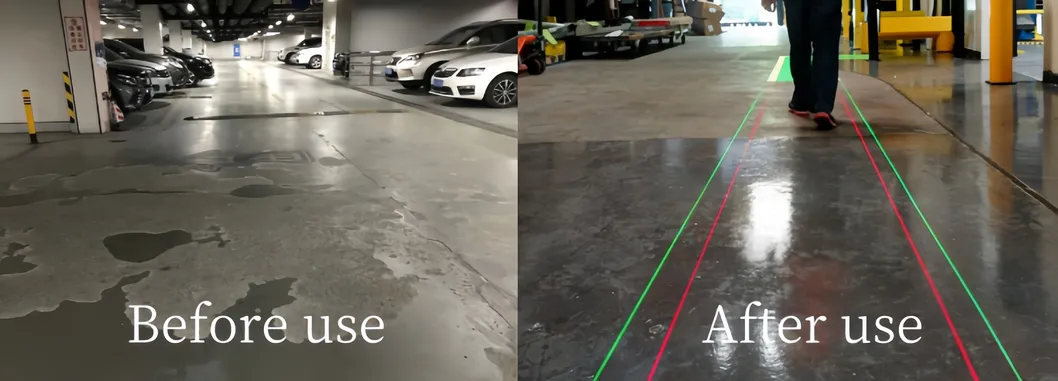

Virtual line lasers create durable floor lines in your warehouse, eliminating the need for ongoing maintenance required with floor tape and paint. These virtual line lasers are compact, lightweight, durable, and reliable. They produce a fine line that is clearly visible in bright conditions and completely safe for the eyes.

3

Projection Parameters

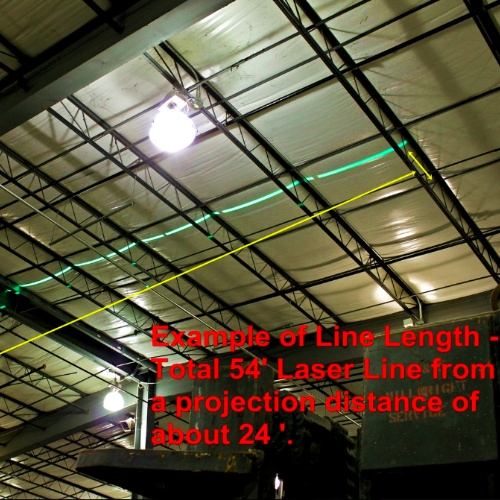

The maximum length and brightness depend on the installation height. Refer to the table below for length approximations:

ANGLE	DISTANCE	LINE LENGTH APPROX
45°	5M	4M
60°	5M	6.6M
90°	5M	8M
110°	5M	10M
135°	5M	12M

4

Key Benefits & Features

1. Reduce Property Damage: Achieve seamless docking with virtual navigation.

2. Reduce Accidents: Improve visibility in low light or winter conditions.

3. Reduce Insurance Claims: Minimize accidents during handling processes.

4. Reduce Downtime: Minimize unplanned stoppages.

5

Installation & Application

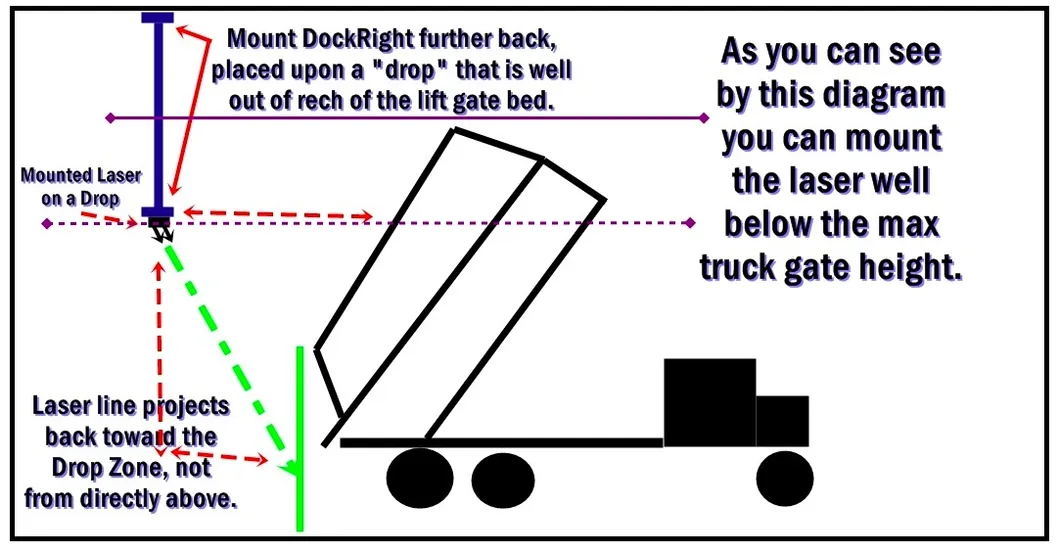

The laser projector is easy to set up and maintain. Install at the desired height, plug it in, and adjust brackets for precise beam positioning. No specialized tools or training are required.

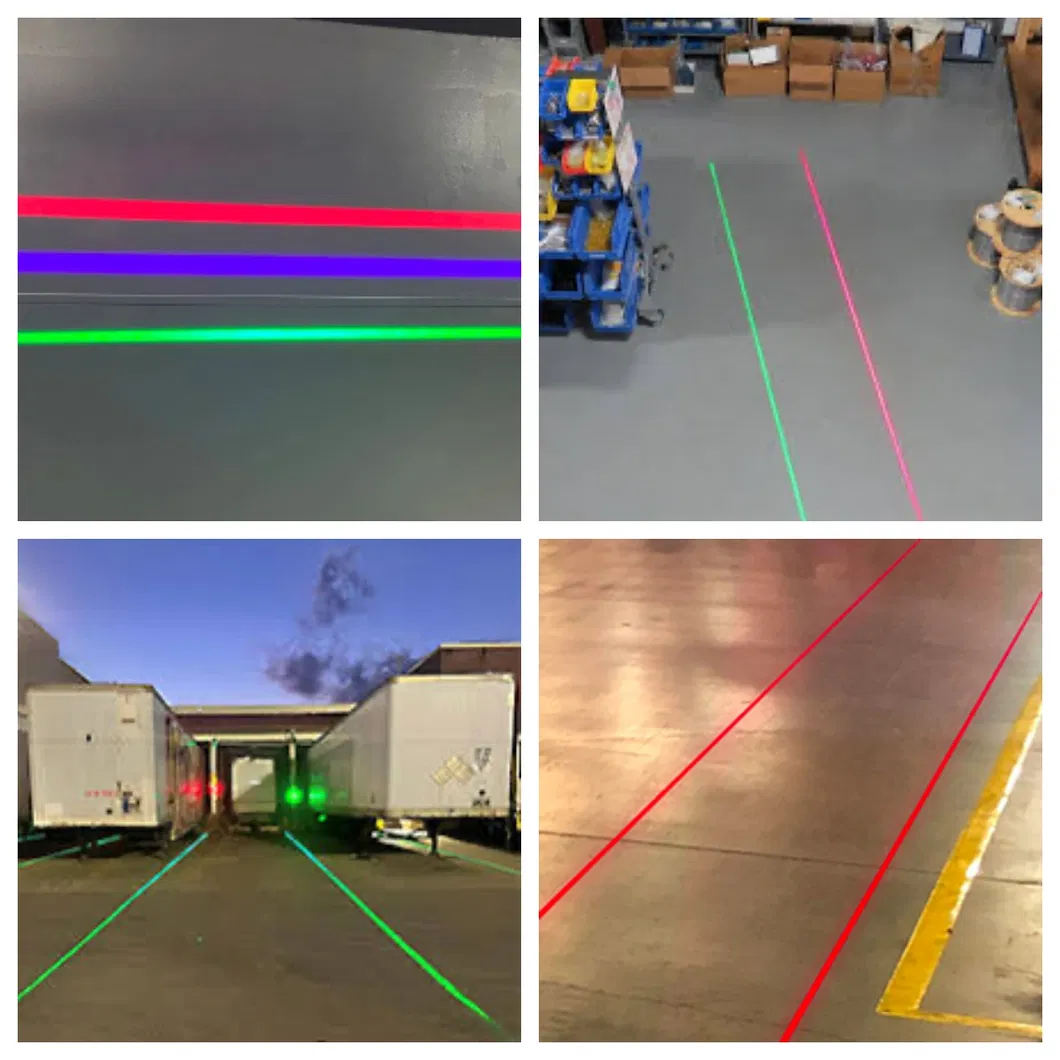

Common Applications:

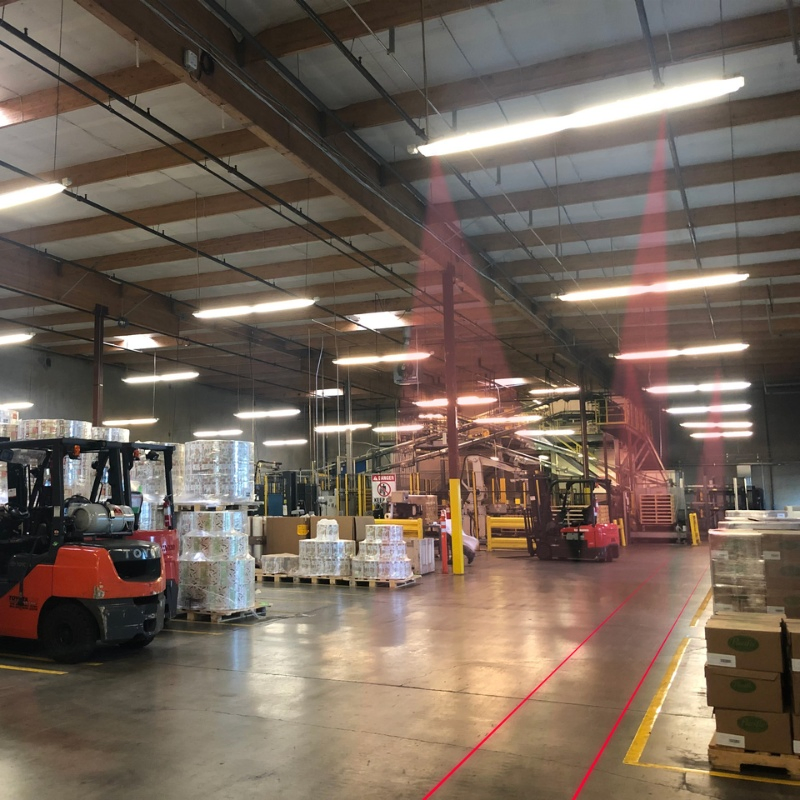

Warehouses & Pedestrian Walkways

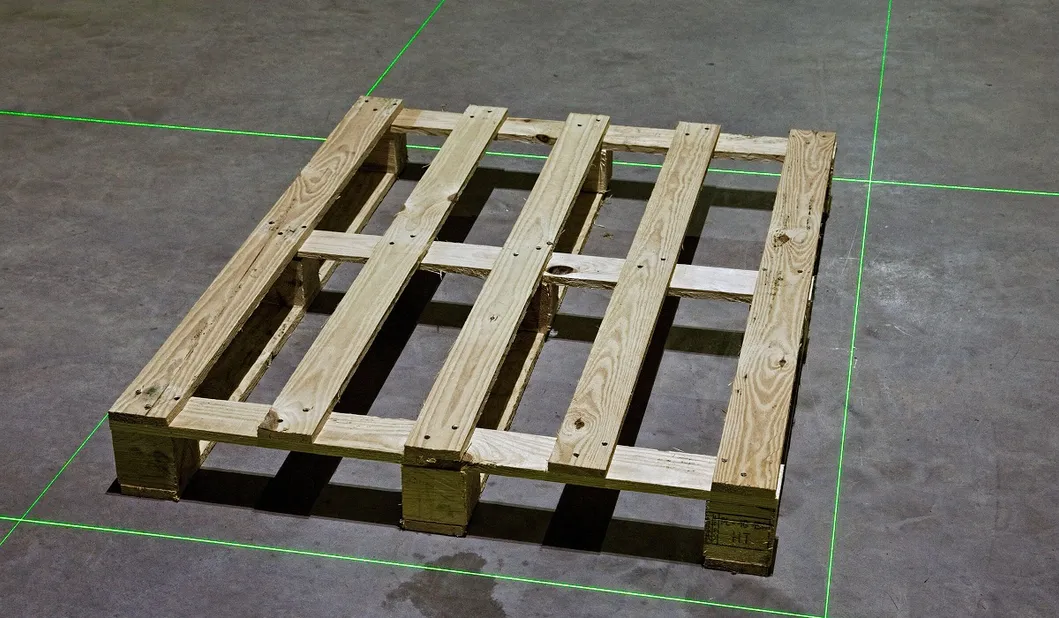

Staging Lanes & Safety Zones

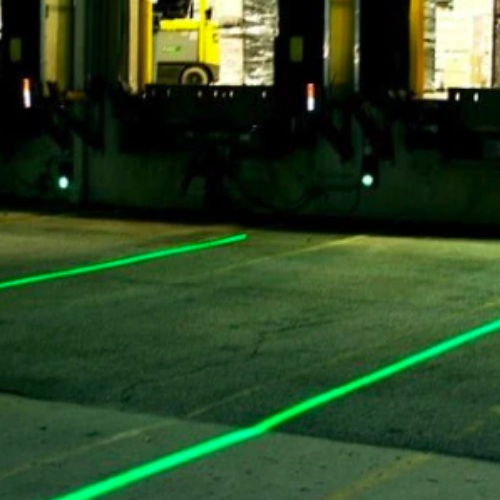

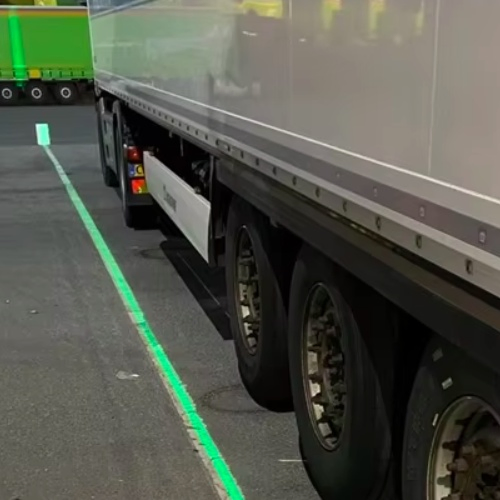

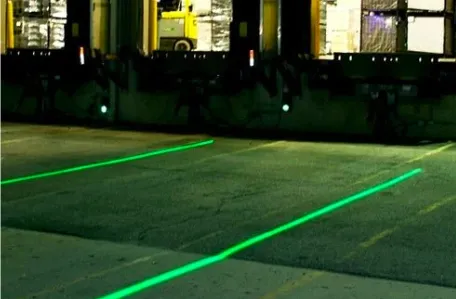

Docks (Indoor/Outdoor) & Rough Surfaces
Manufacturing Plants (Around heavy machinery)
Parking Lots (Highlight walkways)

?

Frequently Asked Questions

How does the virtual laser system work?

The system uses advanced laser technology to project high-visibility lines on the floor. Once installed at the correct height, the length of the lines can be customized to suit your facility's needs.

Can this system be used in outdoor environments?

Yes. Our laser projectors feature an IP67 rating, which means they are waterproof and dustproof, making them ideal for outdoor docks and rugged industrial settings.

Is the laser beam safe for eyes?

The projectors use eye-safe low-power lasers designated with an IEC 3R safety rating. While they are safe for standard operation, staring directly into the laser for extended periods should be avoided.

What maintenance is required for these projectors?

Maintenance is minimal. The system features durable components with a lifespan of over 30,000 hours. Regular checks and occasional cleaning of the lens are usually all that is needed.

What are the power requirements for installation?

We offer flexible power options to match your infrastructure, including 10-80VDC and 100-240VAC versions.

What beam colors are available for the guidance system?

The system is available in three high-visibility colors: Green, Red, and Blue, ensuring maximum clarity in different lighting conditions.
