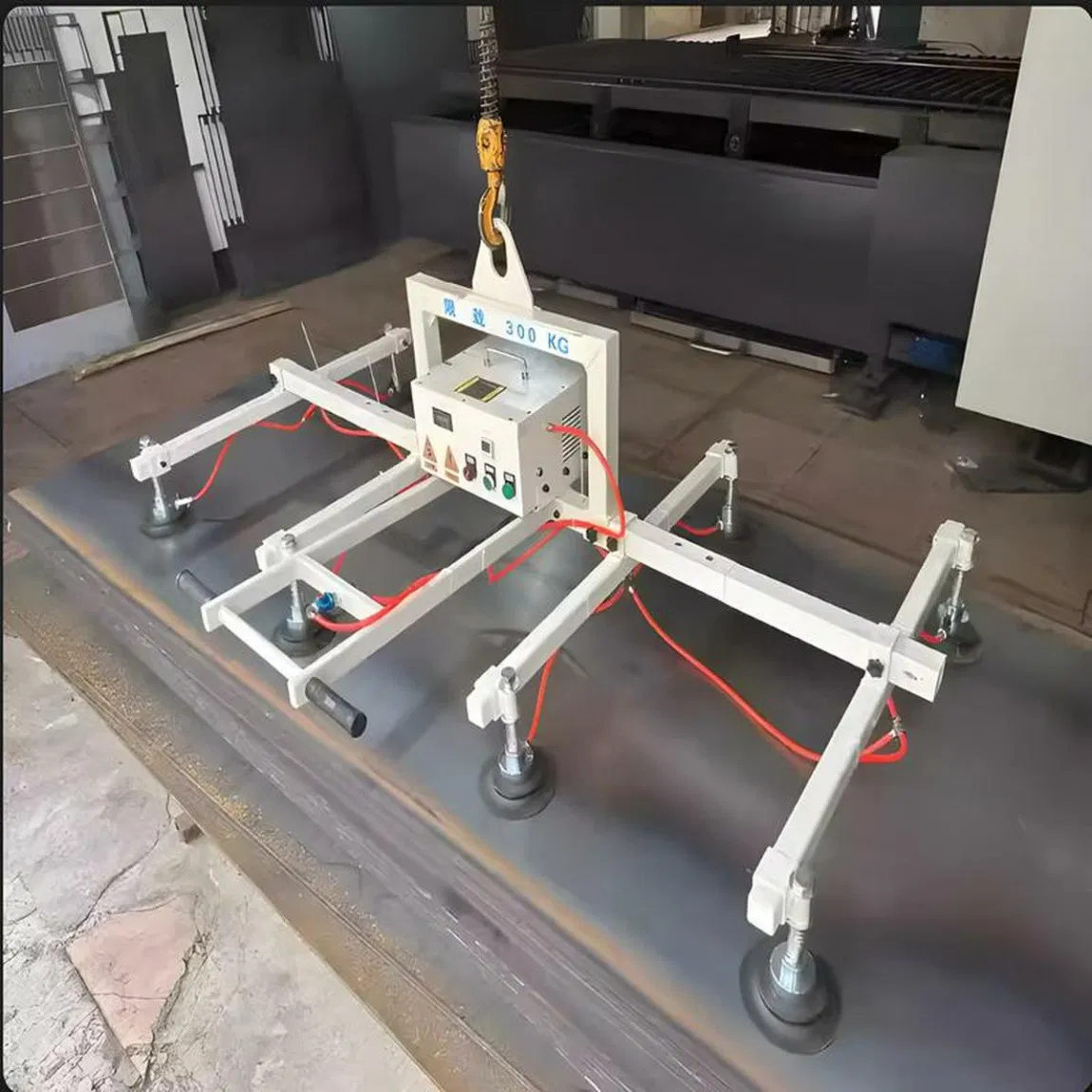

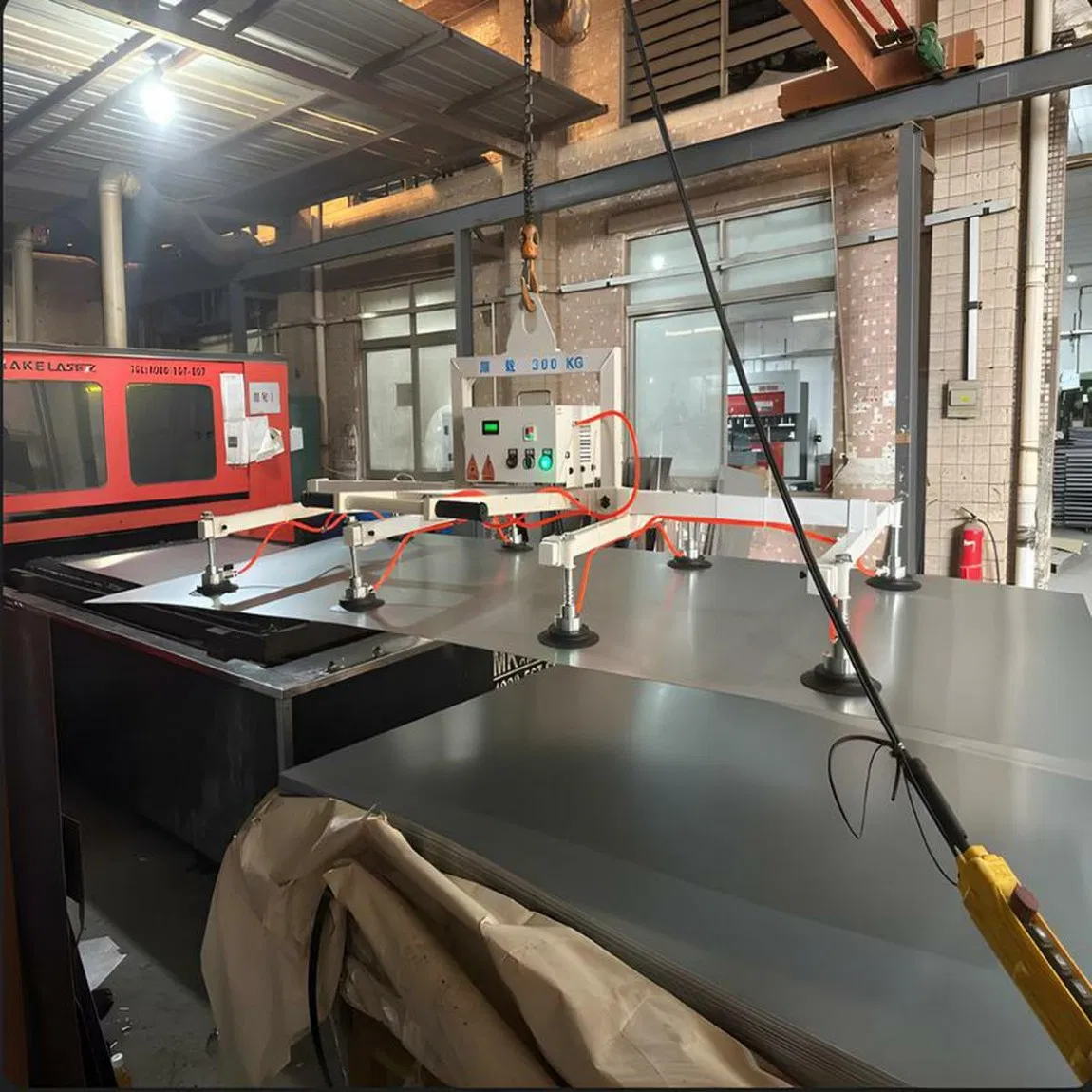

The electric laser cutting feeding machine stands out for its precision and efficiency in automated material handling. It eliminates manual errors in traditional methods, ensuring each cut is accurate and consistent. This machine's speed and reliability make it an invaluable asset in high-volume production environments, where every second counts.
| Model | Length | Capacity | Sucker Qty | Sucker Diameter | Voltage | Package Size | Gross Weight |
|---|---|---|---|---|---|---|---|
| XDL300-2M | 2m | 300kg | 4pcs | 200mm | 220/380V | 2100x840x840mm | 110kg |
| XDL600-2M | 2m | 600kg | 6pcs | 200mm | 220/380V | 2100x840x840mm | 120kg |
| XDL800-2M | 2m | 800kg | 8pcs | 200mm | 220/380V | 2100x840x840mm | 125kg |
| XDL800-3M | 3m | 800kg | 8pcs | 200mm | 220/380V | 2100x840x840mm | 135kg |
| XDL1000-3M | 3m | 1000kg | 10pcs | 200mm | 220/380V | 2100x840x840mm | 180kg |
| XDL1000-5M | 5m | 1000kg | 10pcs | 200mm | 220/380V | 2100x840x840mm | 190kg |
| XDL2000-5M | 5m | 2000kg | 20pcs | 200mm | 220/380V | 2100x840x840mm | 290kg |
The product adheres to CE certification standards. Safety loading is adjustable, offering flexibility for diverse lifting tasks. Includes accumulator and pressure detection to ensure maximum safety.

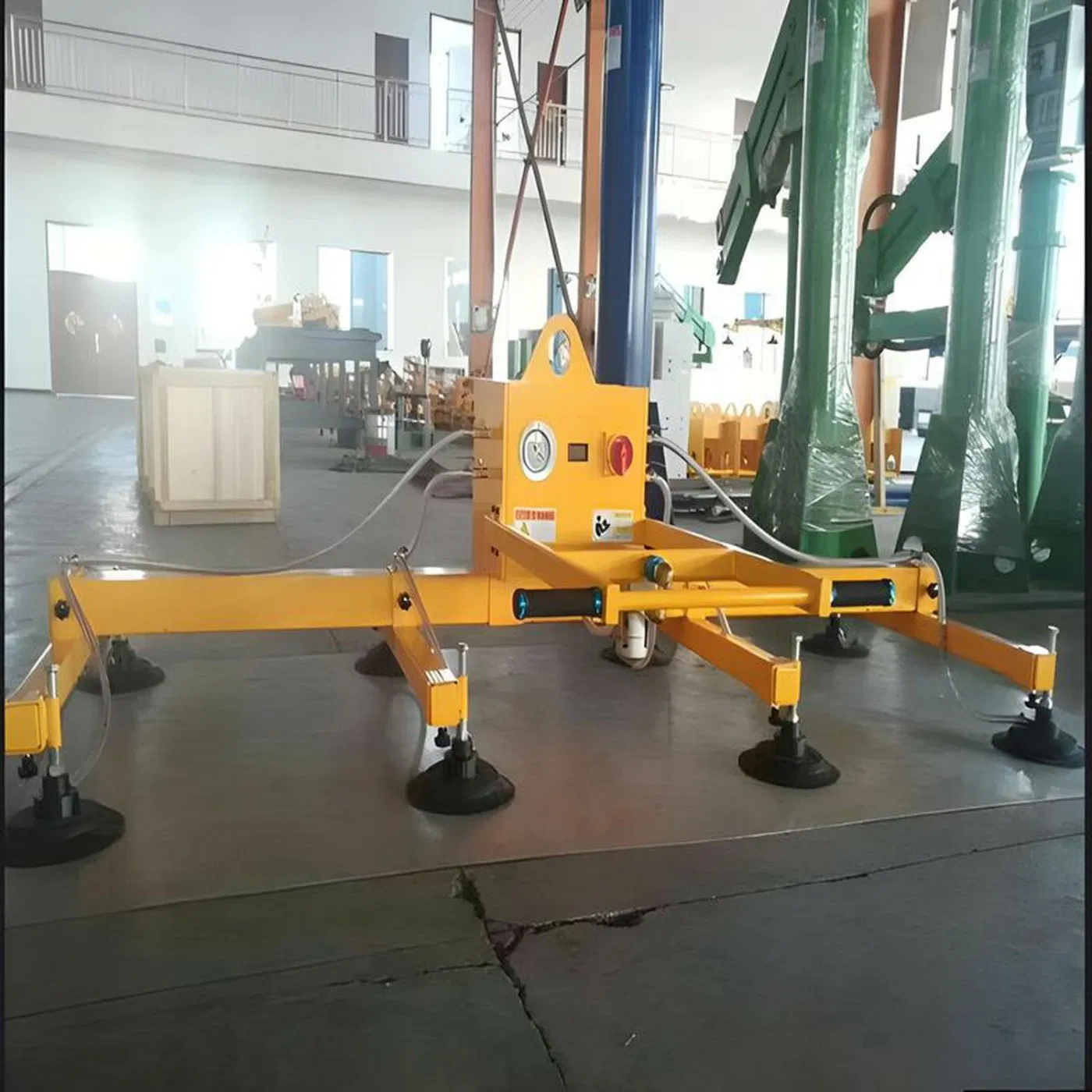

Powered by electricity with a 2-year machine warranty and 3-year warranty on core components. Features high-quality thickened steel sheet metal and a fully painted bracket connection.

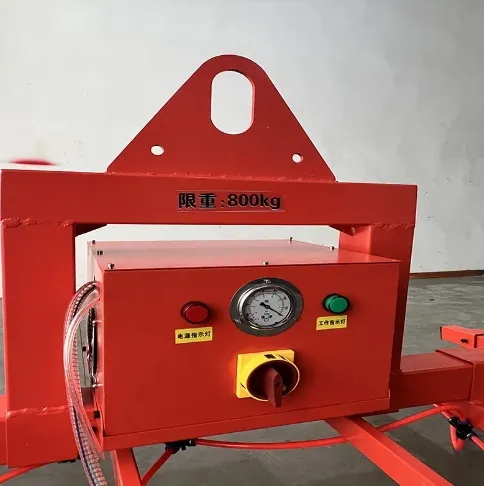

Equipped with an intelligent alarm device. If vacuum pressure drops below 50, a sound and light alarm triggers within 1.5 seconds. Supports both manual and remote control.

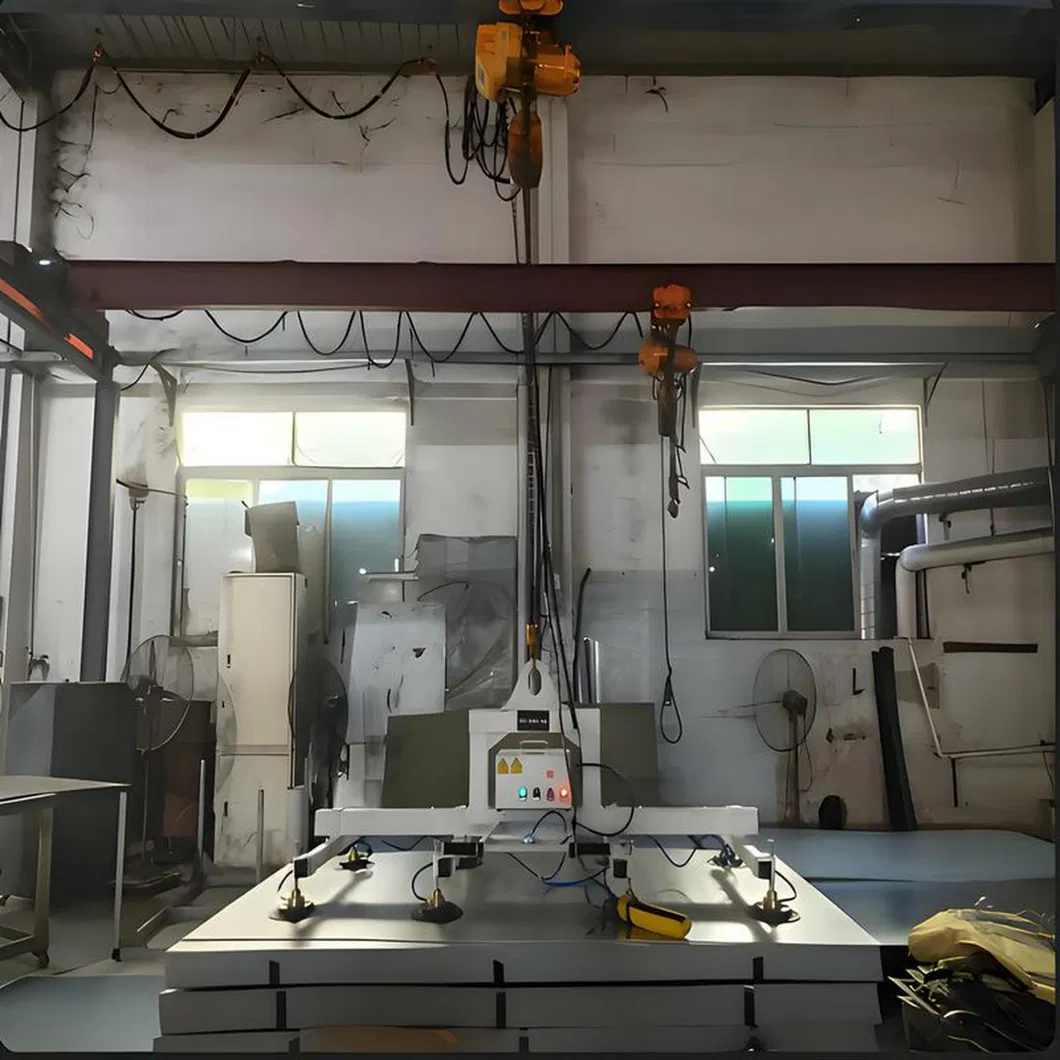

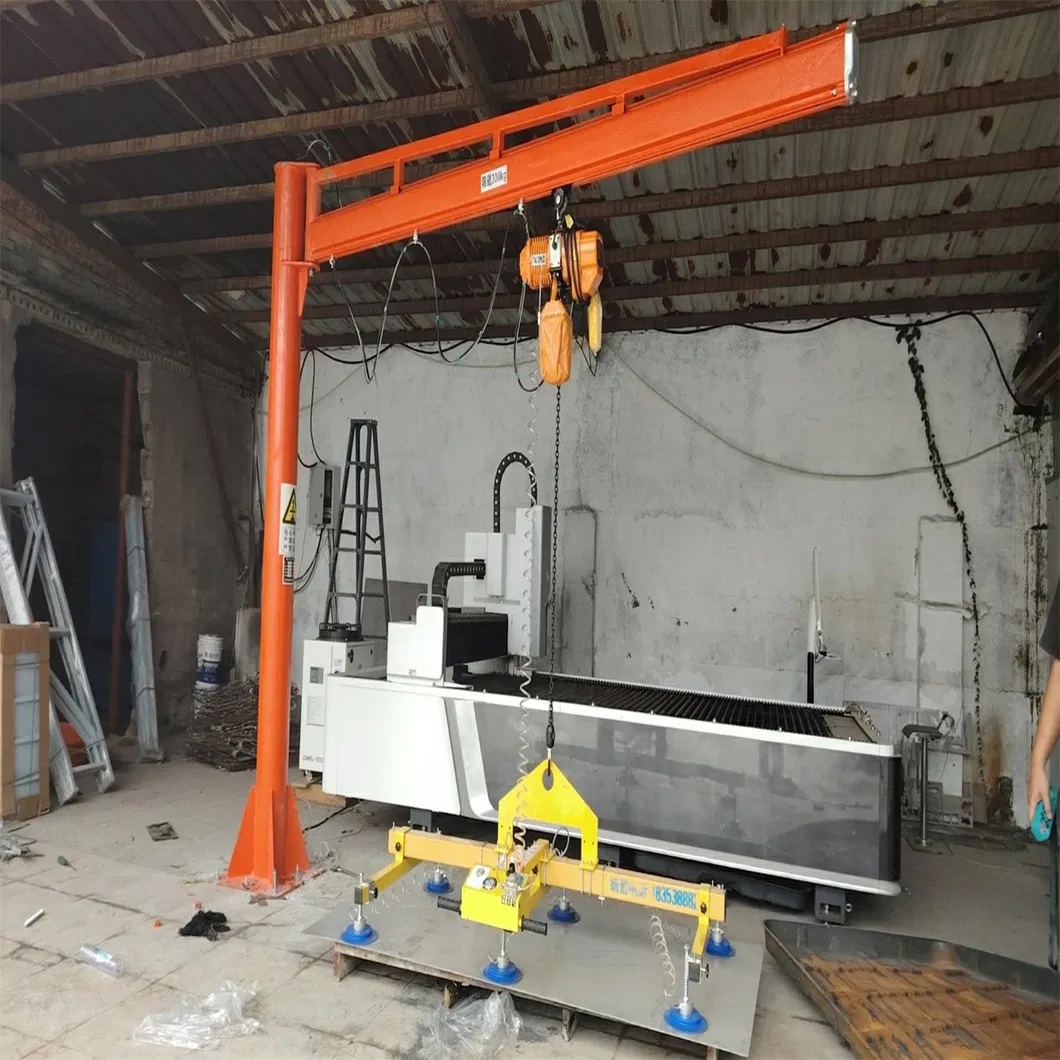

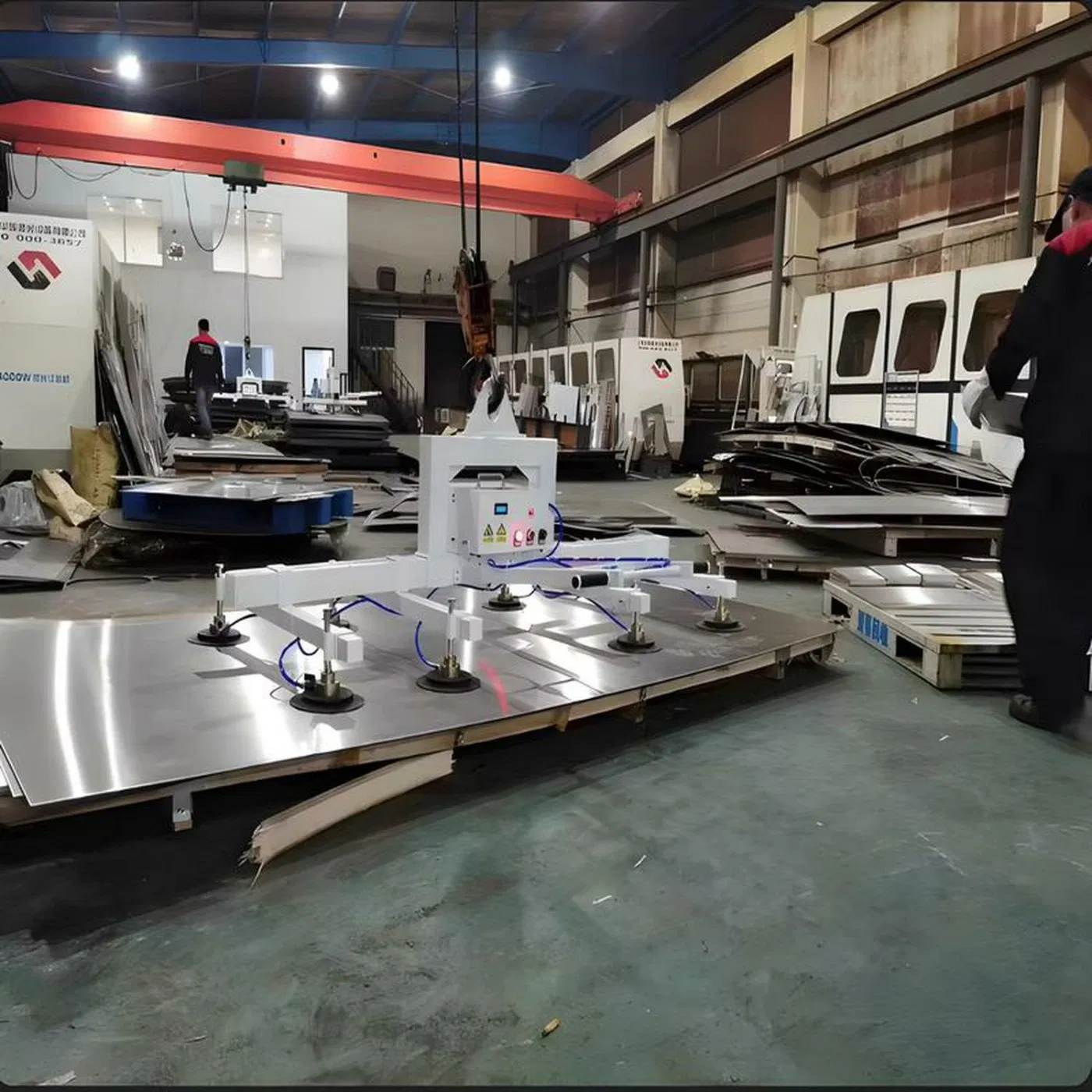

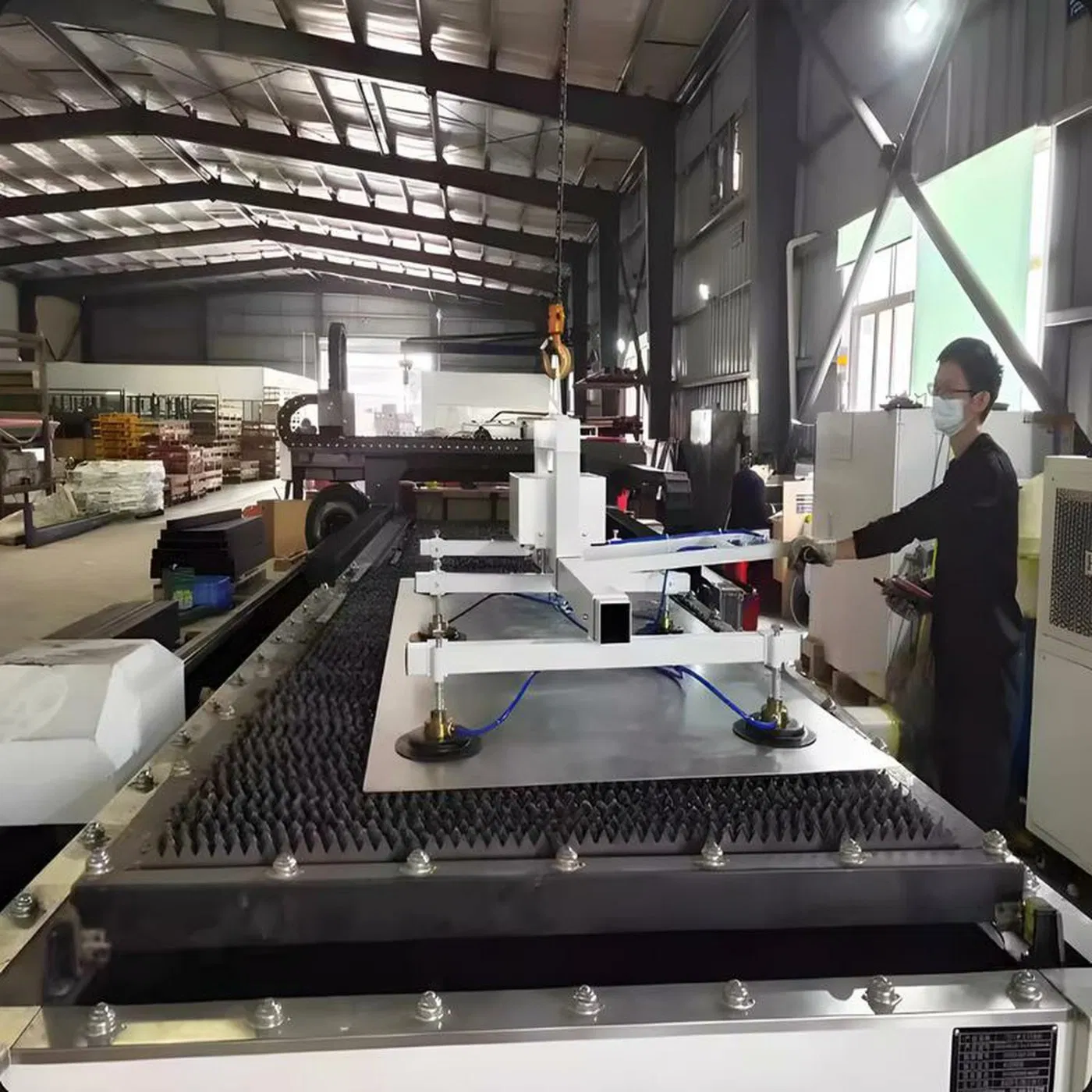

This vacuum lifting system is ideal for building material shops, machinery repair shops, manufacturing plants, construction works, and energy & mining. It is specifically designed for handling various plates, including aluminum and stainless steel.

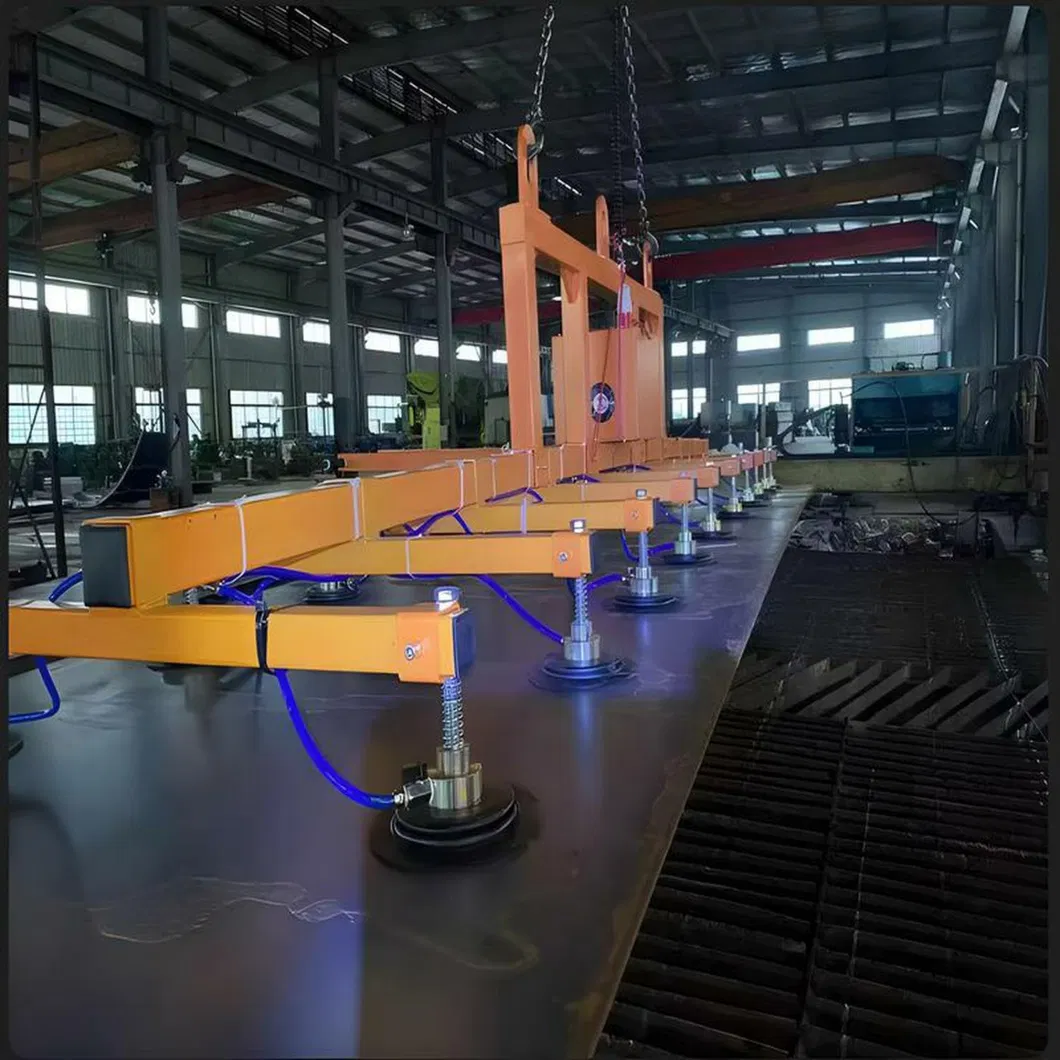

Sheet metal bracket welding base with a fully painted bracket connection ensures durability and resistance to breakage. The equipment can be applied to high-temperature plates below 400 degrees.

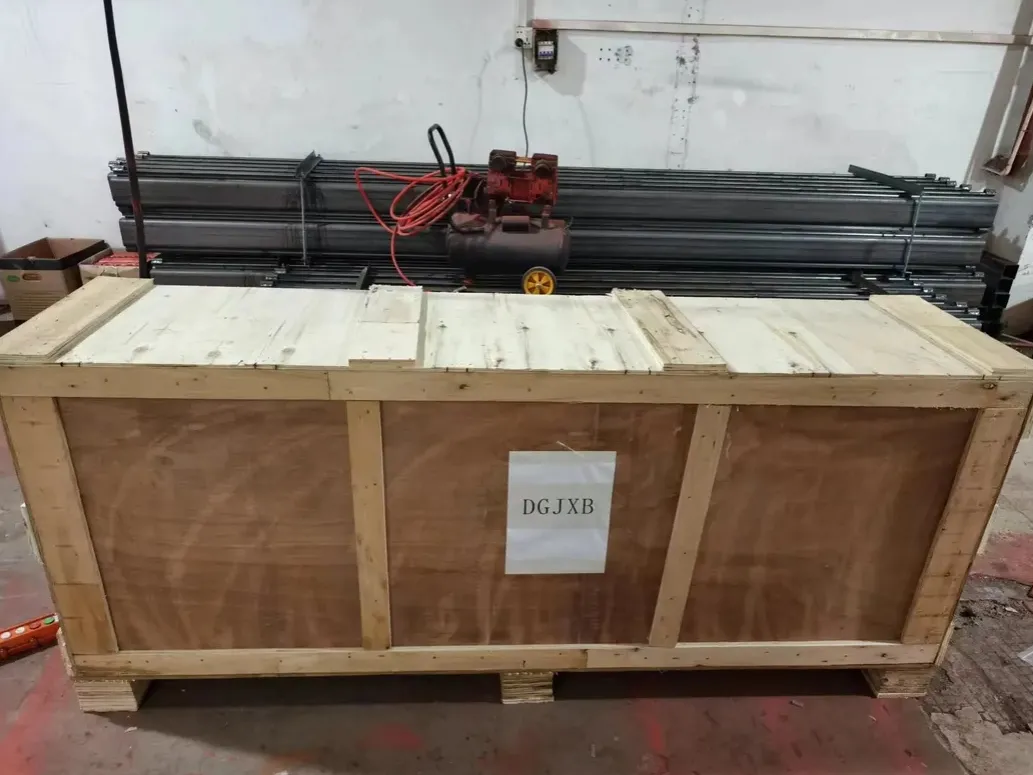

The equipment is encased in plastic foam for protection and secured with cable ties, then arranged neatly inside a wooden crate. Thickened export-grade wooden planks are utilized to seal and safeguard the product during transit.
