Product Description

Basic Specifications

Model NO.

PCB

Application

Electronics Manufacturing

Cooling System

Water Cooling/Air Cooling

Technical Class

Pulse Laser

Automatic Grade

Automatic

Type

Violet/CO2/Green/Fiber

Laser Power

5/10W

Marking Speed

≤7000mm/S

Board Size

50mm*50mm~510mm*460mm

Package Weight

820.000kg

Product Description

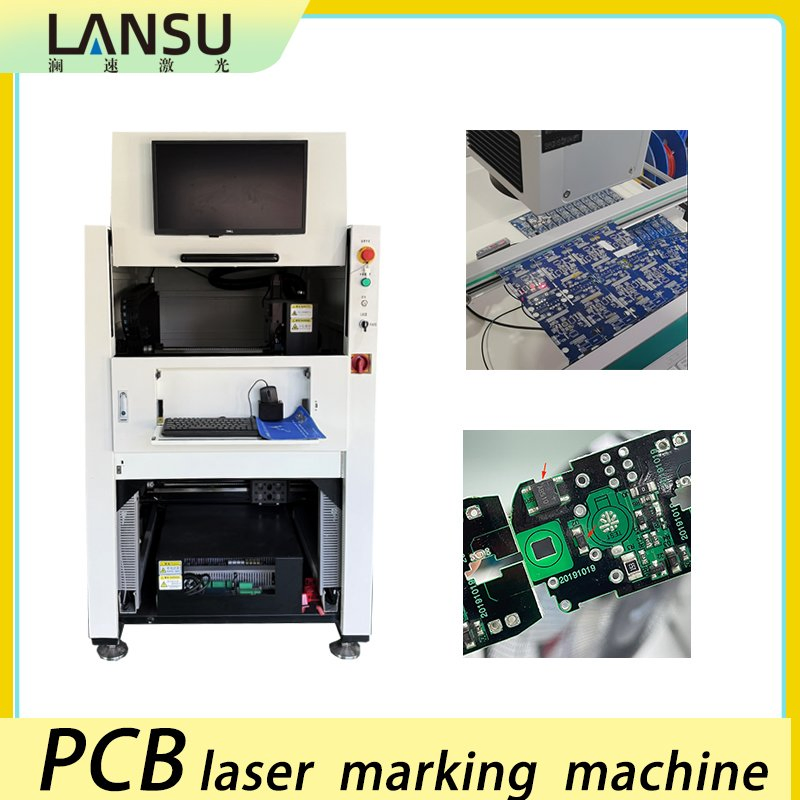

Product features: The PCB laser equipment perfectly integrates the advantages of laser and automation. It can complete a large amount of engraving work in a short period, greatly improving production efficiency through computer control technology. Due to its high precision, high efficiency, environmental friendliness, and wide range of applications, it has become indispensable equipment in modern manufacturing.

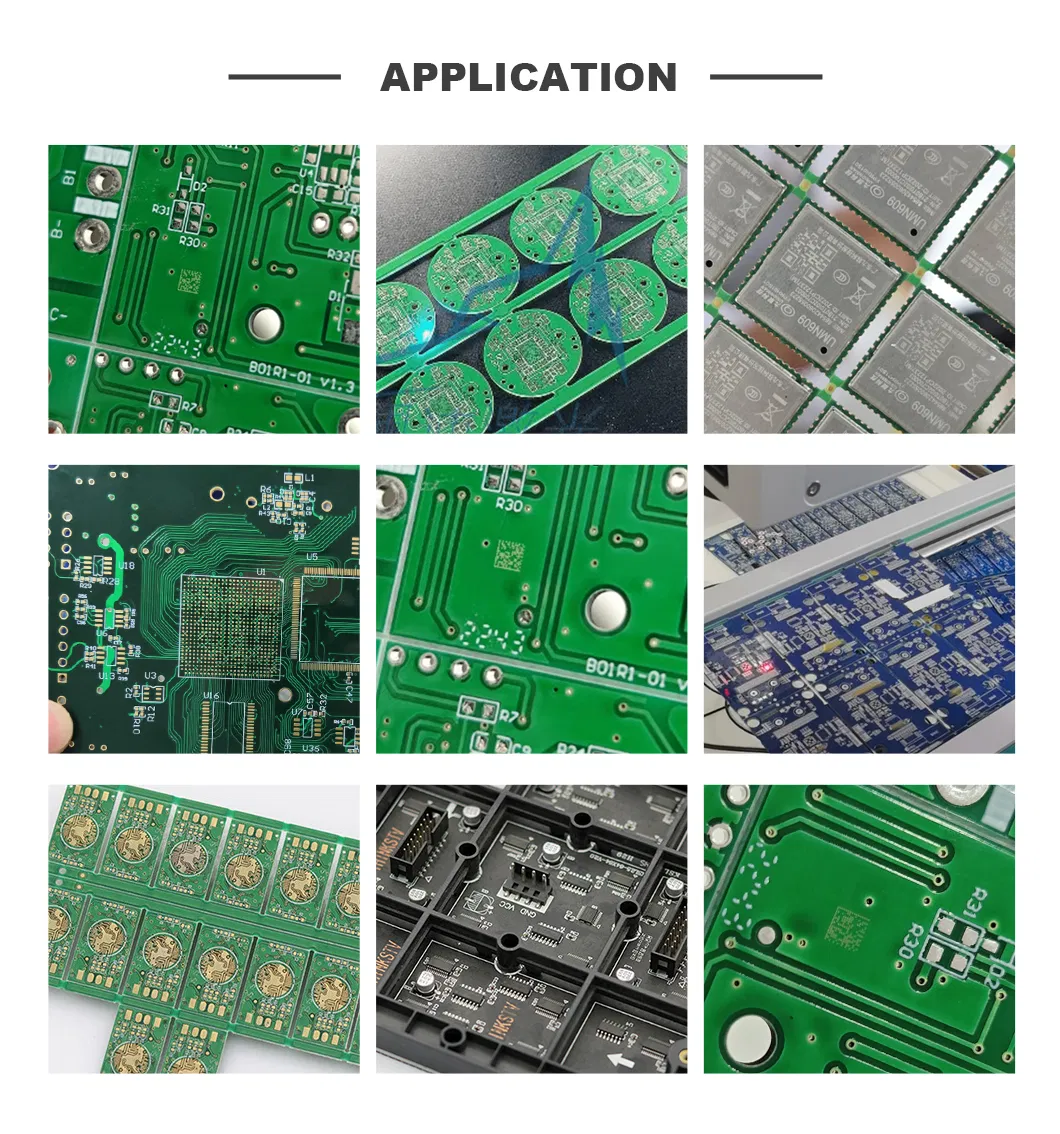

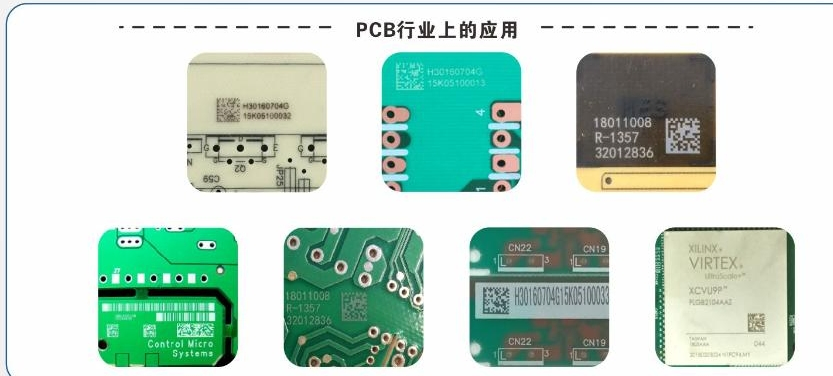

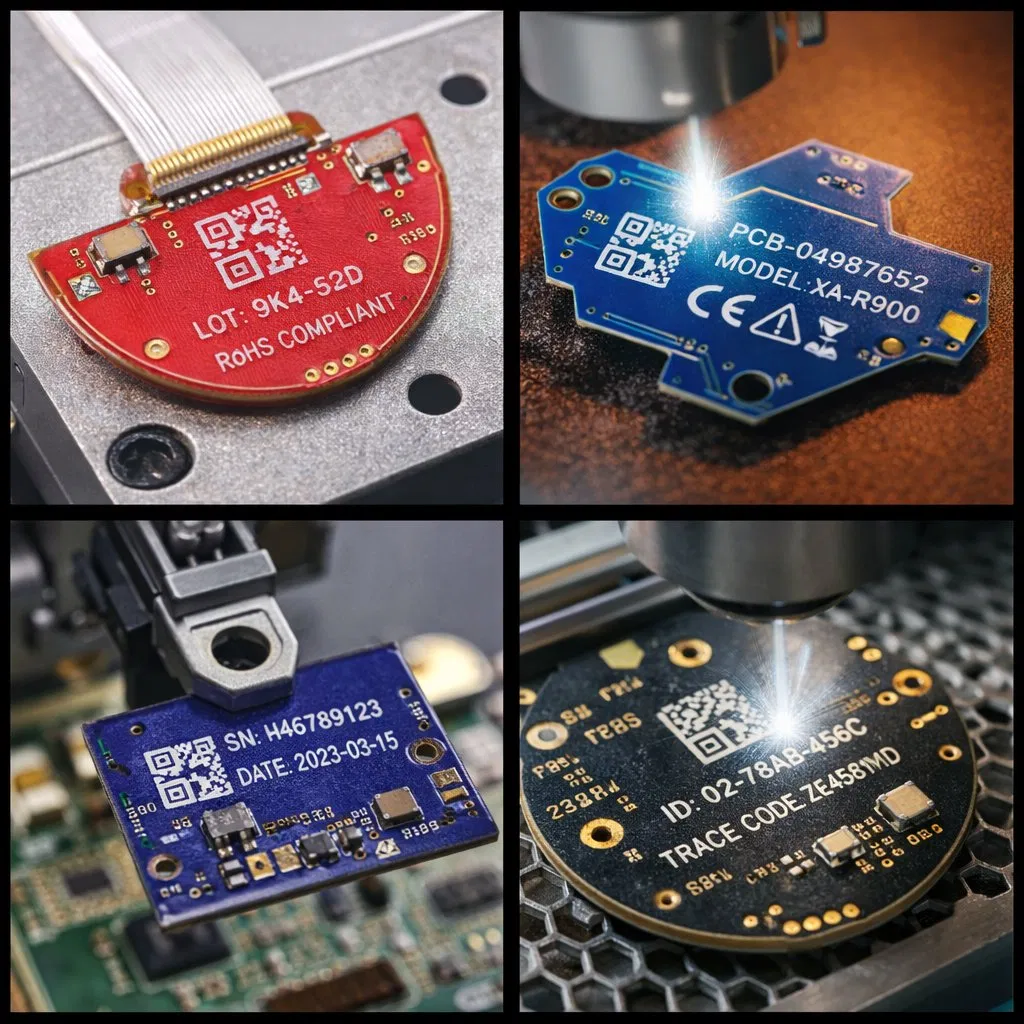

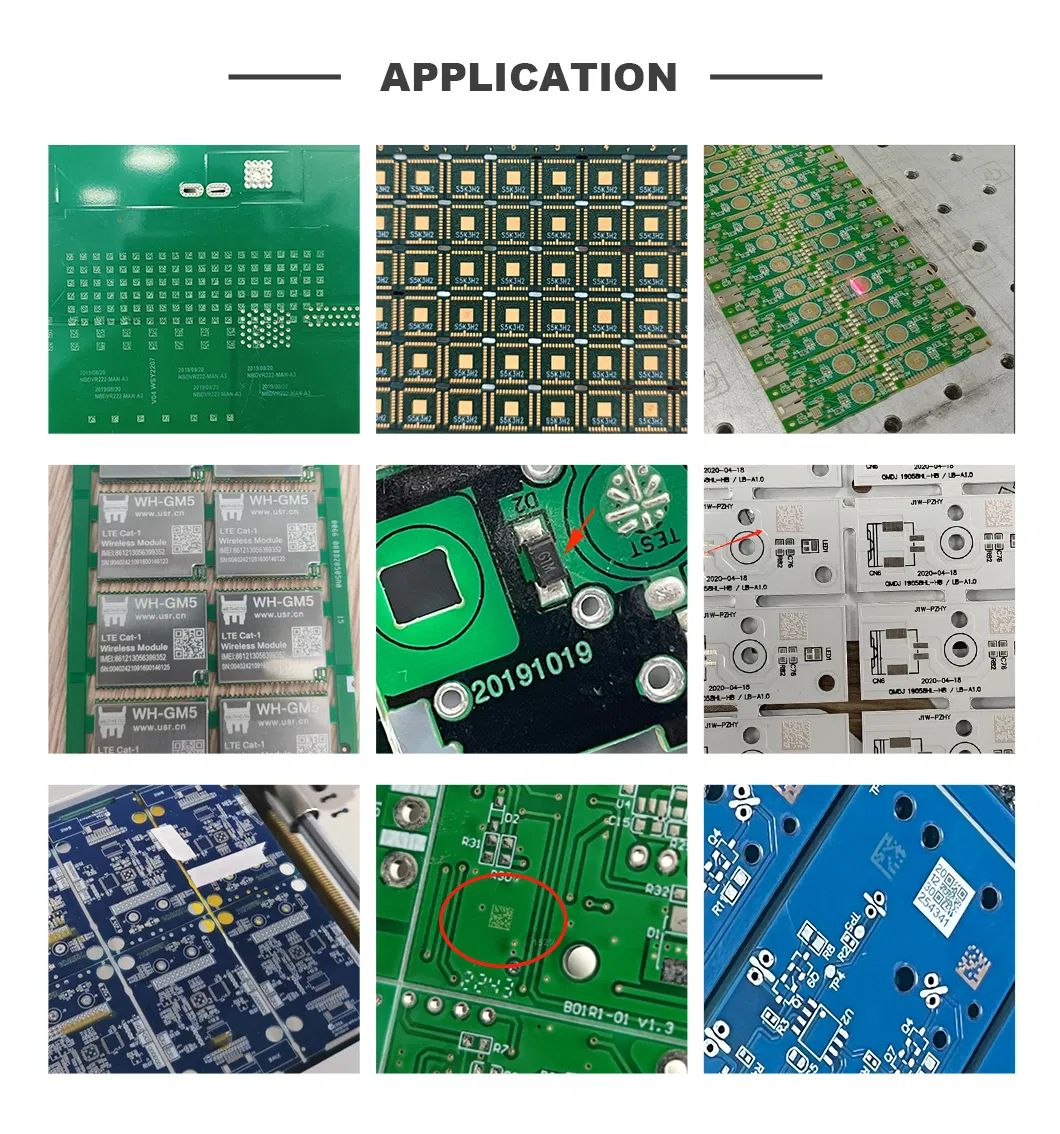

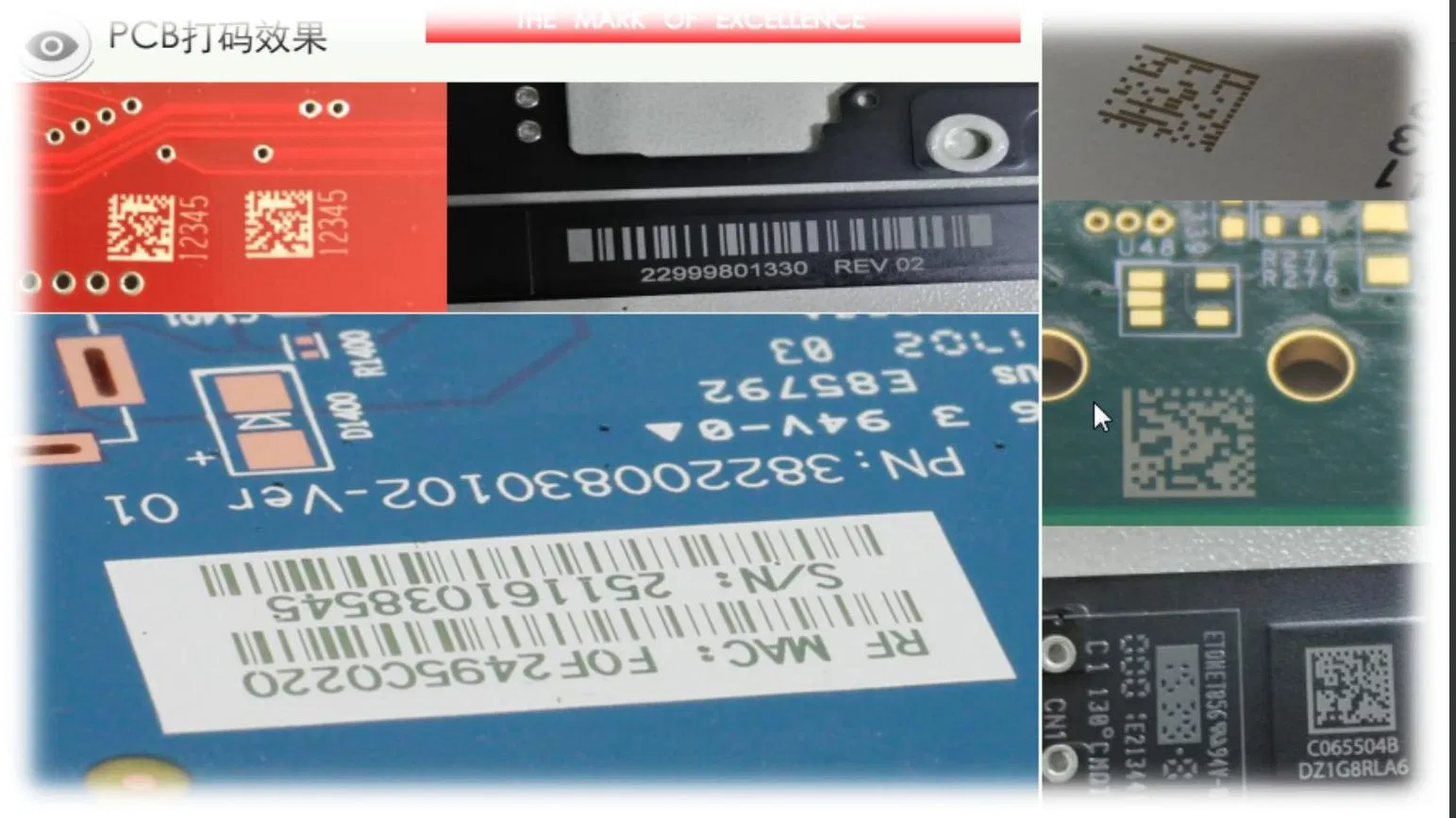

Applicable materials: Mainly used in fields requiring high automation and precise tracking management, including PCBs, FPCBs (flexible circuit boards), and SMT (surface mount technology) in electronics manufacturing. It is widely used to automatically mark 2D codes on PCB surfaces for data tracking.

Technical Parameters

Model	LS-PCB-5/10/15/20W
Laser Type	Violet/CO2/green/fiber
Laser Power	5/10/15/20W
Board Size	50mm50mm~450mm400mm
Marking Speed	≤7000mm/s
Min Point Diameter	0.04mm
Min Character	0.2mm
Plate Thickness Range	0.5~6mm
Targeting Method	MARK+CCD
Power Consumption	1200W

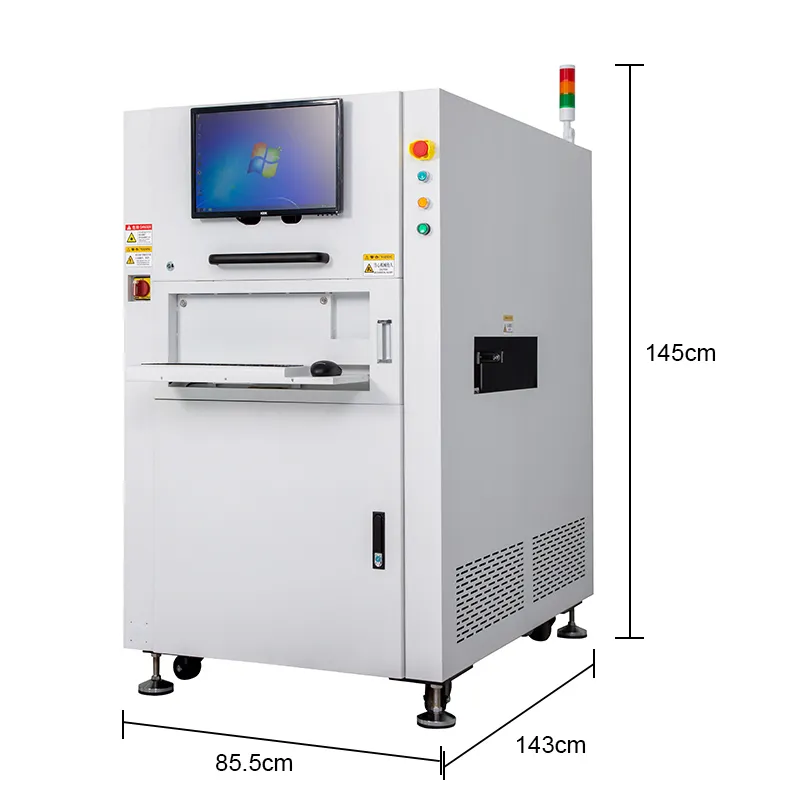

Machine Size	855mm1430mm1450mm

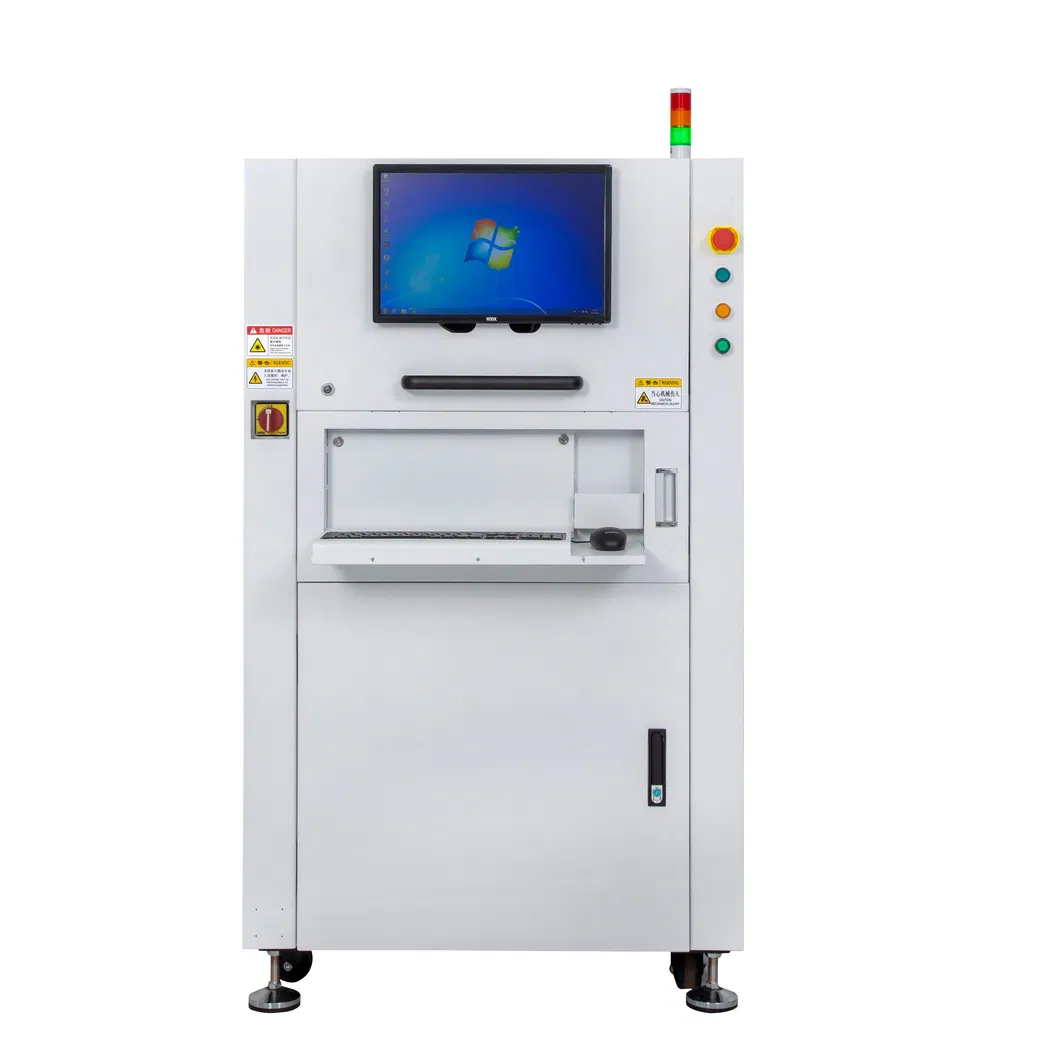

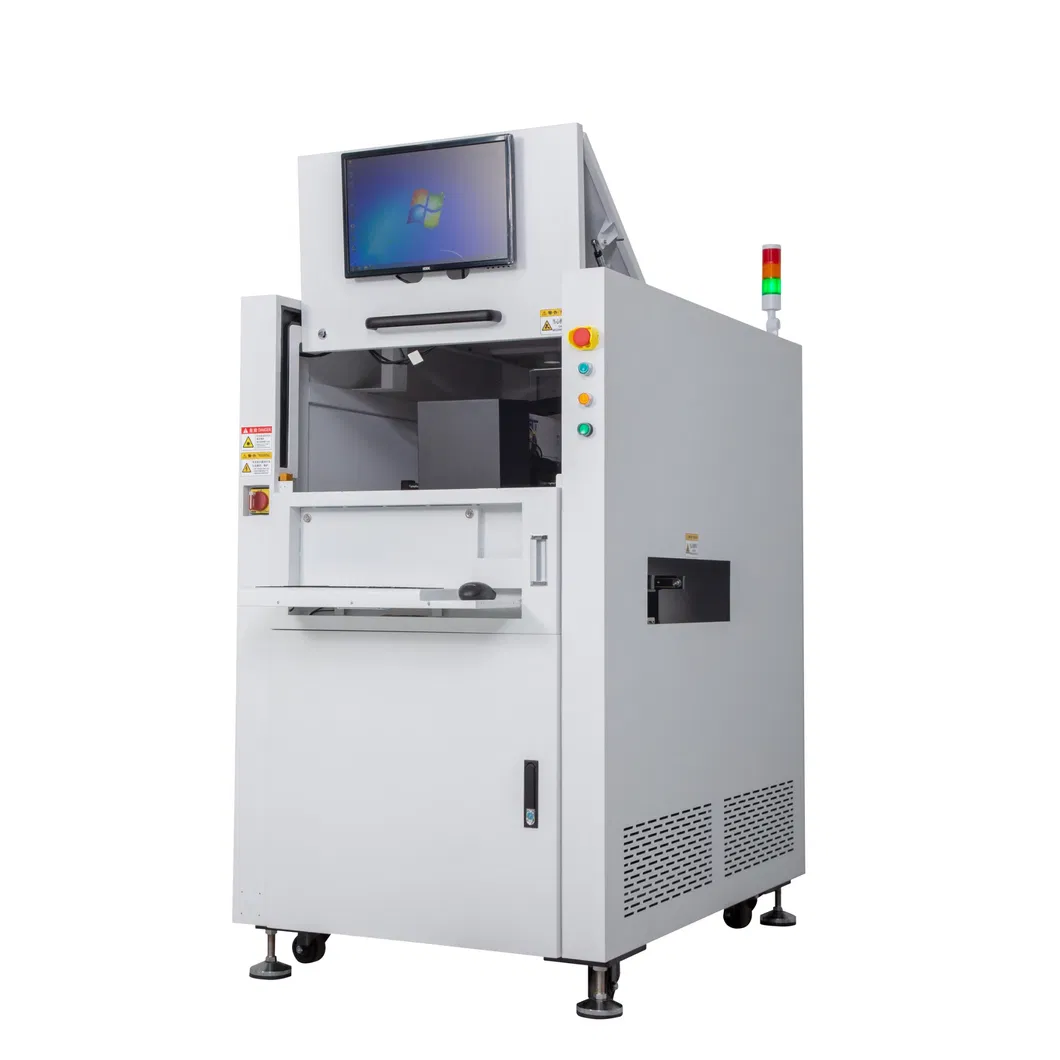

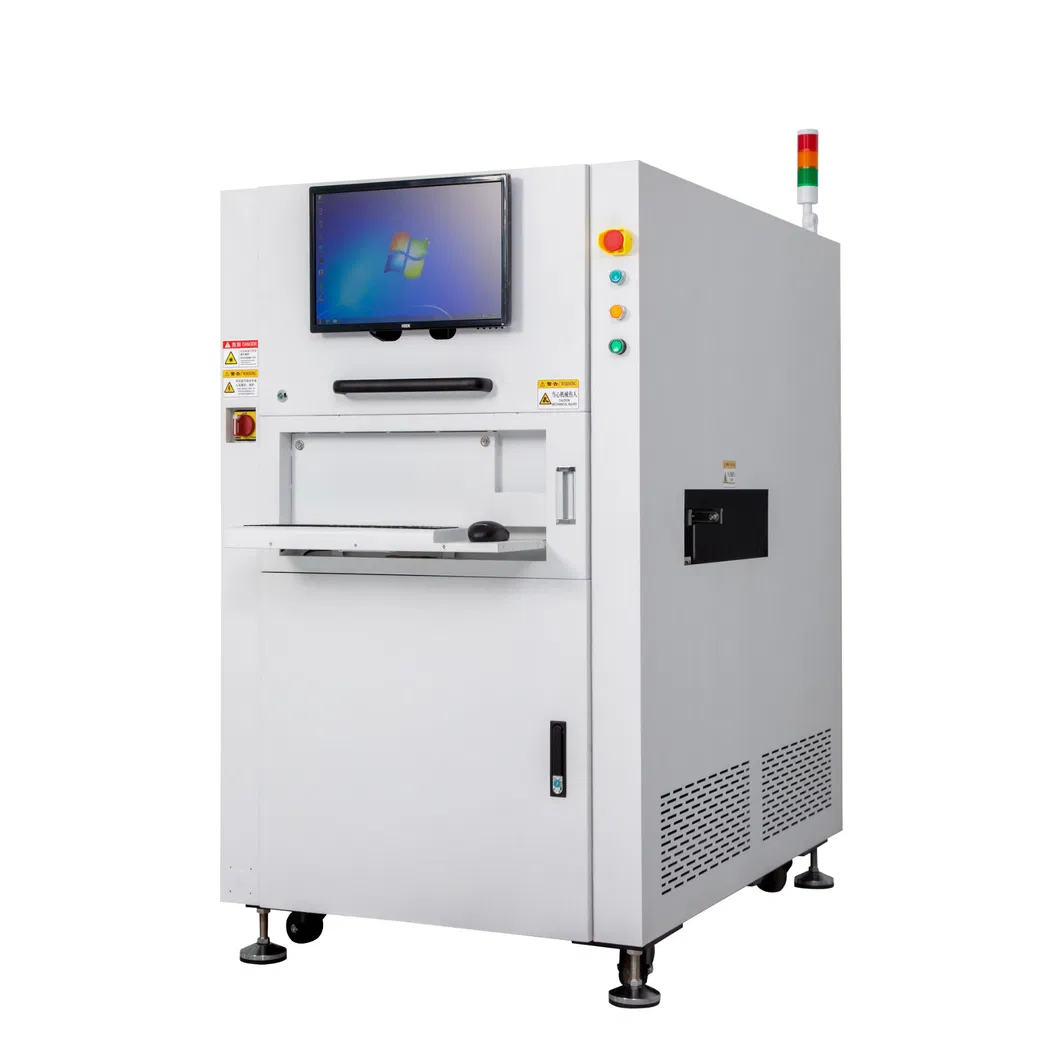

Visual Presentation

Frequently Asked Questions

How do you guarantee the quality of the laser systems?

We ensure quality through a rigorous process including a pre-production sample before mass production and a final comprehensive inspection before every shipment.

What types of laser machines are available?

We provide a comprehensive range of equipment including Laser Marking, Welding, Engraving, Cutting, and Cleaning machines.

Why should I choose your equipment over other suppliers?

Our machines are designed for high-intensity industrial use, capable of working continuously for 24 hours with a lifespan of up to 100,000 hours, utilizing top-tier components for maximum stability.

What is the typical lifespan of the laser equipment?

With proper maintenance, our high-configuration equipment is designed to operate reliably for up to 100,000 hours.

What delivery and payment terms do you accept?

We accept various delivery terms including FOB, CFR, CIF, EXW, DDP, and more. Accepted payment methods include T/T, L/C, Credit Card, and PayPal.

What languages does your support team speak?

Our team is multi-lingual and can assist in English, Chinese, Spanish, Japanese, German, French, Russian, and several other major languages.
