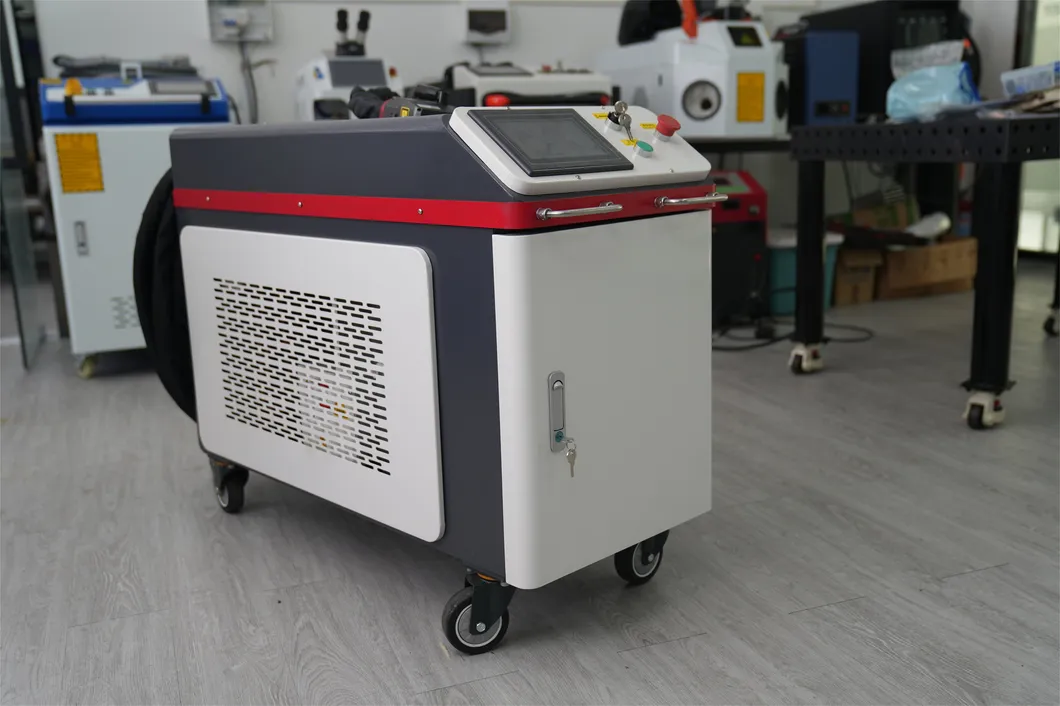

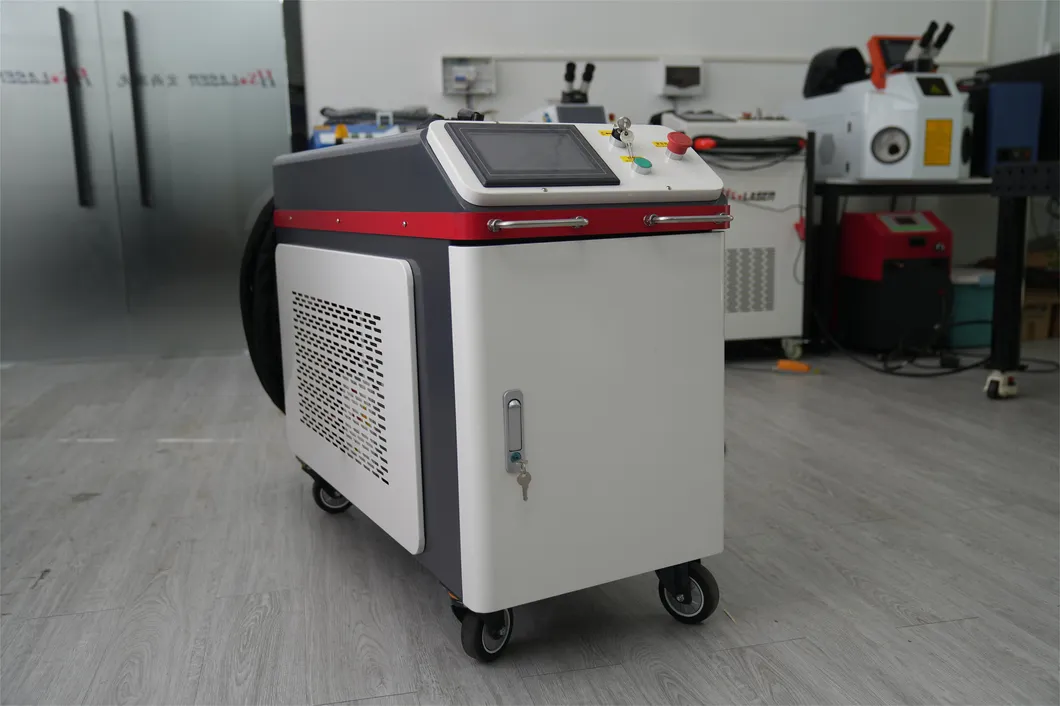

Pulse Laser Cleaning Machine Overview
This high-power pulse laser cleaning system is designed for professional industrial applications, featuring JPT laser sources and advanced water cooling. It is ideal for high-precision rust removal, paint stripping, and heavy-duty surface decontamination without damaging the base material.
Model
HS-LC500 / HS-LC1000
Cooling System
Water Cooling
Delivery Time
10 Working Days
Technical Specifications (500W)
| Laser Power | 500W |
Cooling System | Water cooling |
| Operation Mode | Pulse |
Wavelength | 1064±5 nm |
| Pulse Width | 30-500 ns |
Single Pulse Energy | 15mJ / 50 mJ |

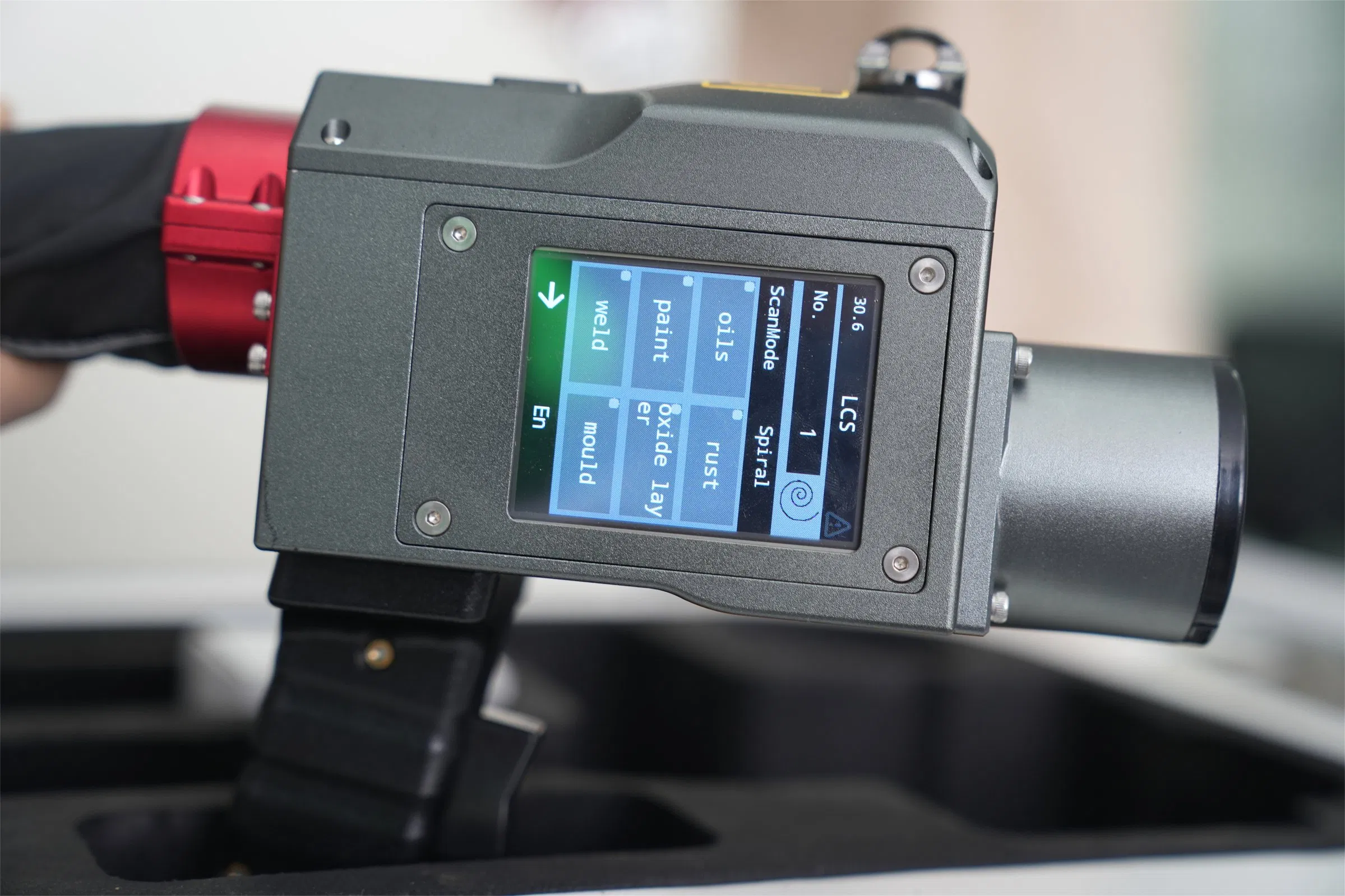

| Scan Modes | Linear, Circular, Sine, Spiral, Square, etc. |
Cable Length | 10 m |
| Machine Size | 990*458*791mm |
Machine Weight | 185kg |
Technical Specifications (1000W)
| Average Power | ≥1000W |
Power Consumption | ≤8000W |
| Pulse Width | 10-500ns |
Repeat Frequency | 1-3000 kHz |
| Scan Range | 0mm - 145mm adjustable |
Scanning Frequency | ≥300Hz |
| Machine Size | 1055*623*1105mm |
Total Weight | ~250kg |
Core Advantages
- Eco-Friendly: No chemical reagents or consumables required; waste is solid powder.
- Non-Contact Cleaning: Ensures zero damage to the substrate (damage ≤0.5μm).

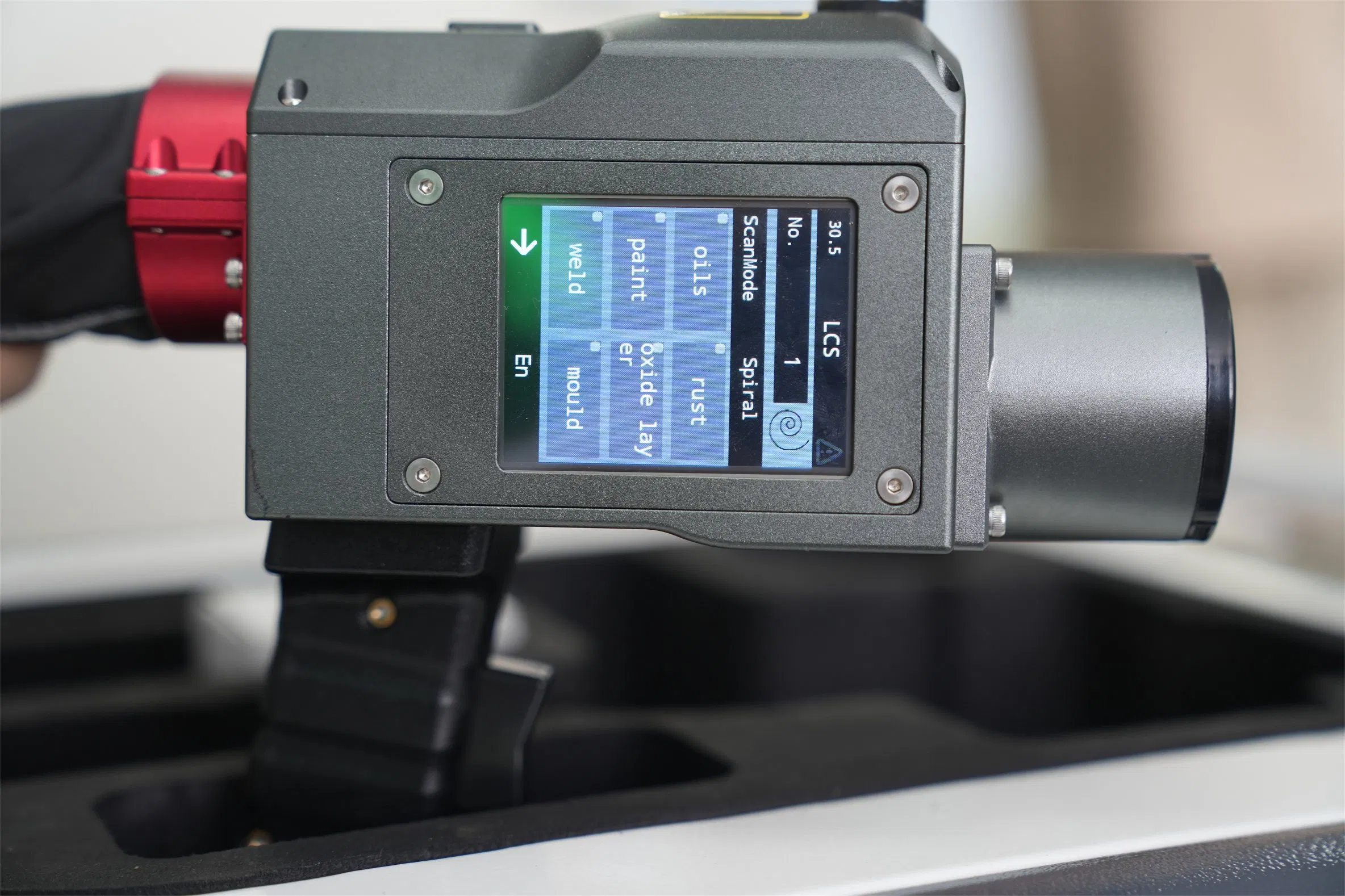

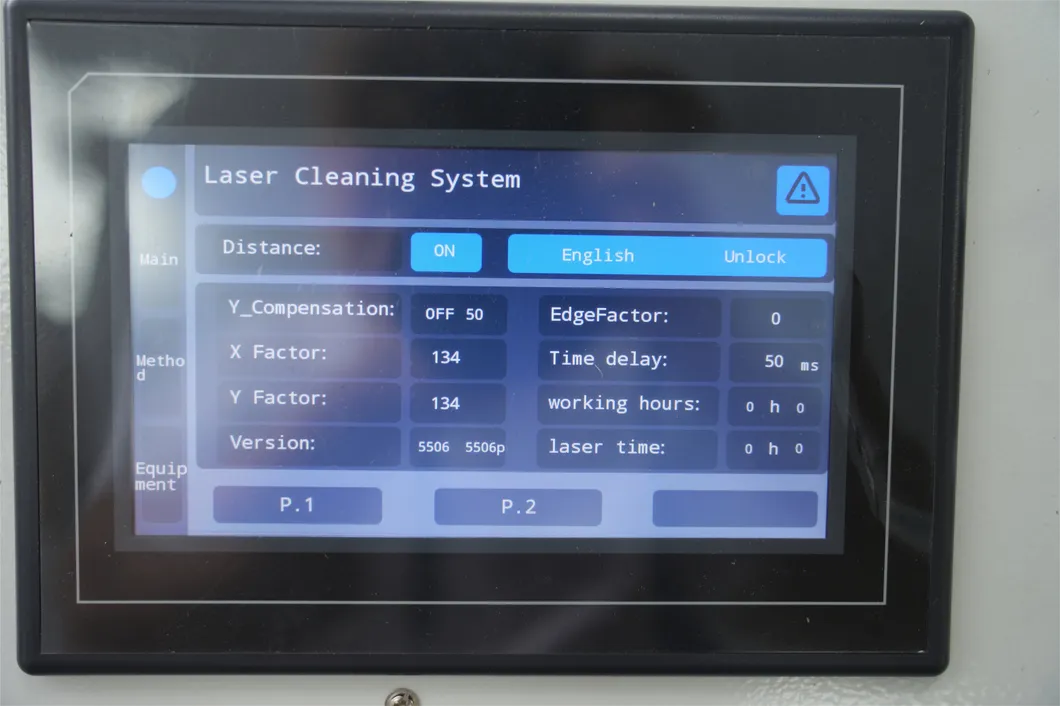

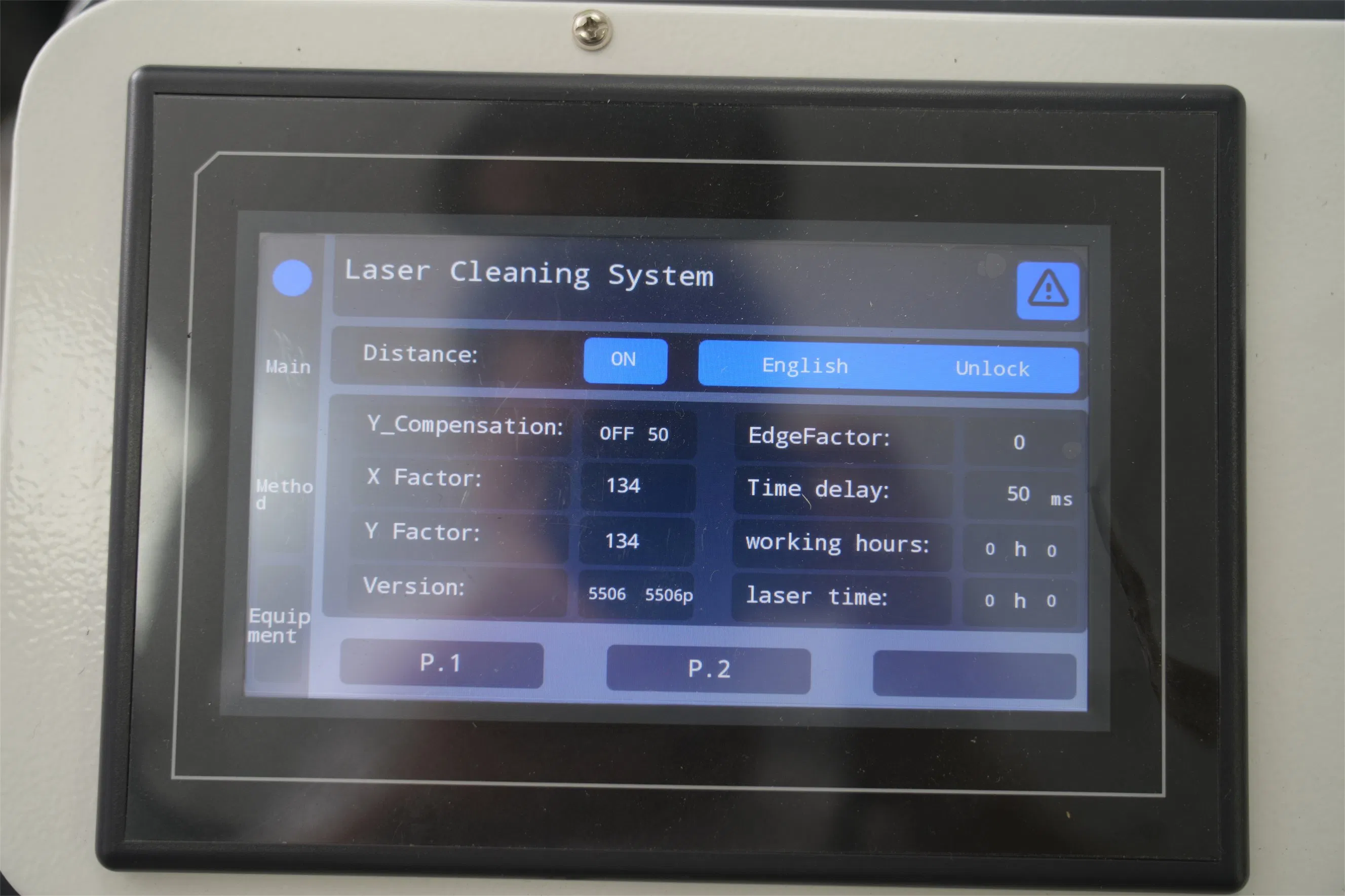

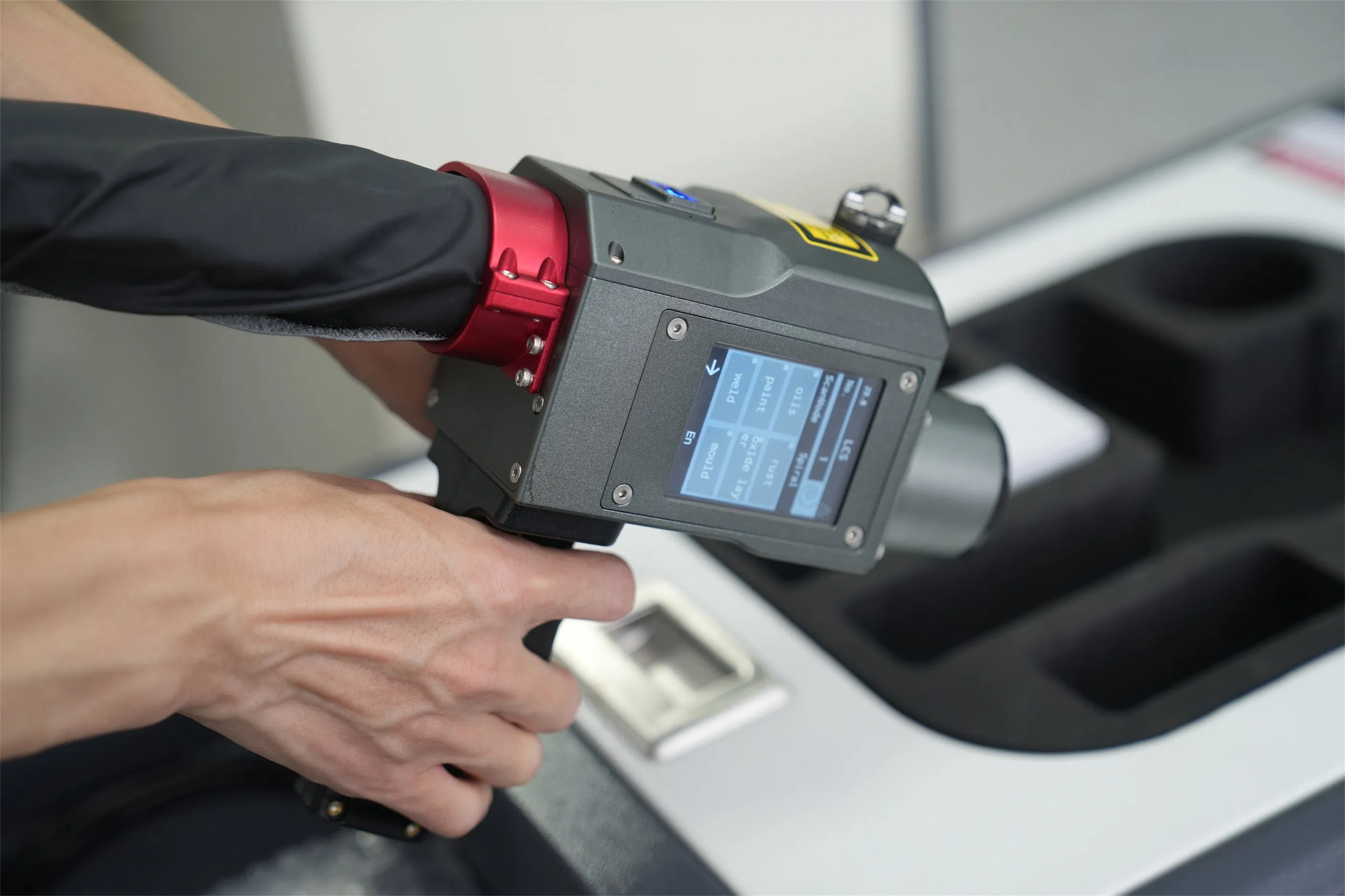

- Precision & Flexibility: Handheld operation with support for multi-language systems.
- High Adaptability: Cleans metal (rust, oil, coatings) and non-metals (ceramics, glass).
- Complex Surfaces: Easily cleans grooves, small holes, and curved surfaces.
Application Scenarios
Industrial Fields:
- Automobile sheet metal refurbishment.
- Rail transportation weld cleaning.
- Tire and rubber mold residue removal.
Special Scenarios:
- Cultural relics and stone statue restoration.
- Aerospace high-precision component pretreatment.
- Airstrip and large vessel cleaning.

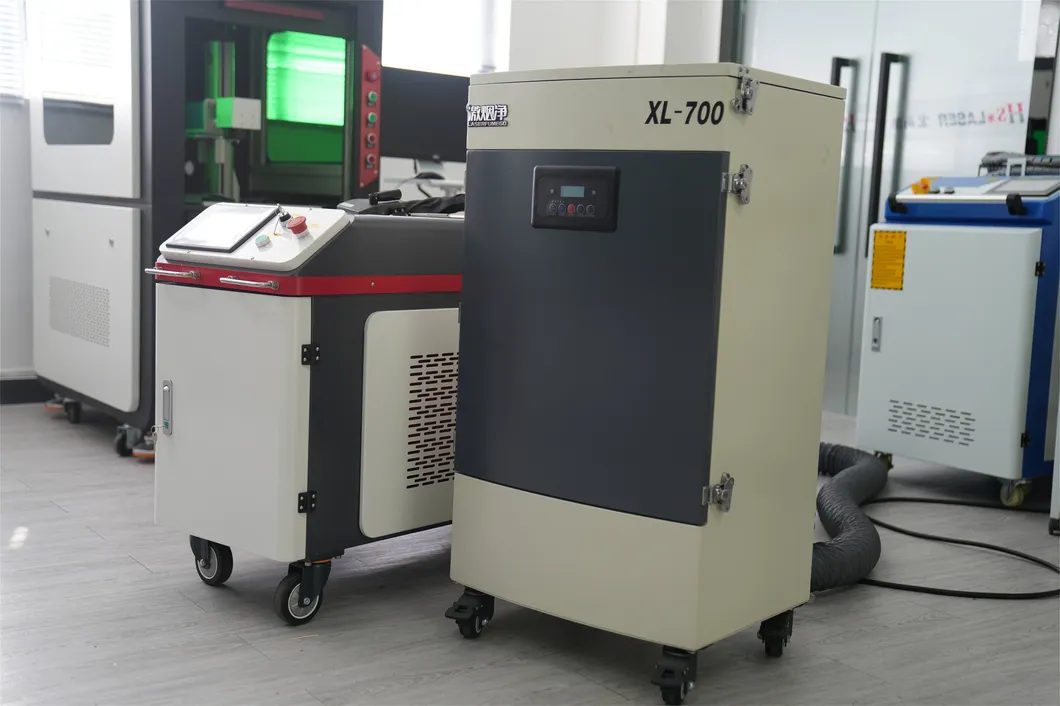

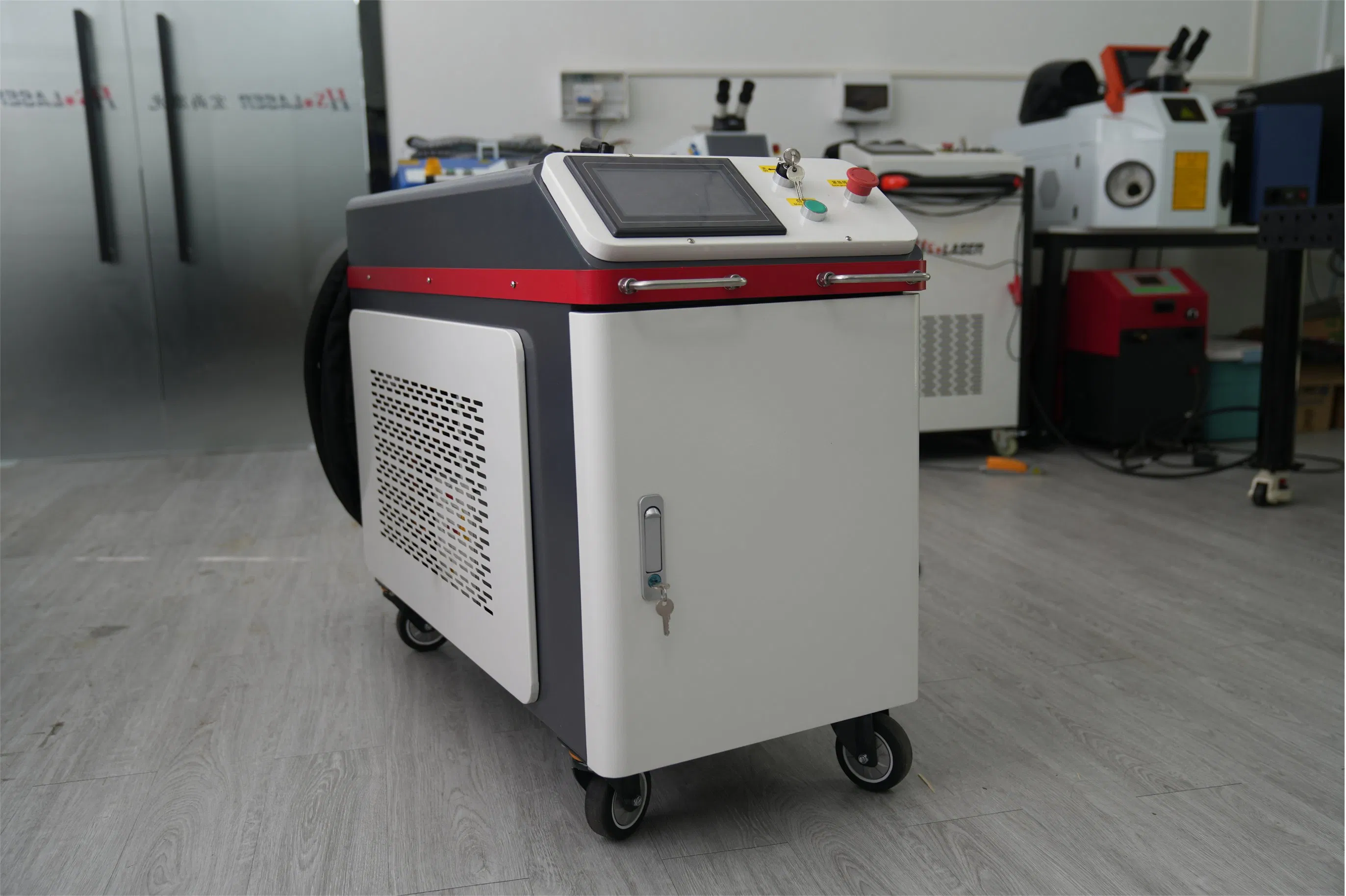

Product Display & Manufacturing
Certifications & Global Presence
Packaging & Shipping
Frequently Asked Questions
Will the laser cleaning process damage my metal parts?
No, pulse laser cleaning is a non-contact method. It specifically targets the surface contaminants like rust or paint while leaving the base metal substrate undamaged.
What is the difference between 500W and 1000W models?
The 1000W model provides higher energy and faster cleaning speeds, making it more suitable for thick rust or large-scale industrial projects compared to the 500W model.
How long does the laser source last?
The JPT laser source is highly durable, with a typical service life of up to 100,000 hours under standard operating conditions.
Is the machine easy for a beginner to operate?
Yes, the handheld design is ergonomic and the software interface supports multiple languages. Most operators can become proficient with just a few hours of training.
Does the machine require any special maintenance?
The system is relatively low-maintenance. You primarily need to ensure the water cooling system uses pure or distilled water and keep the protective lens of the cleaning head clean.
What materials can this machine clean?
It can effectively clean a wide range of materials including carbon steel, stainless steel, aluminum, copper, ceramics, and even some composites or glass.
