Alicosolar 1MW Solar Panel Plant Structure for Flat Roof and Open Field Mounting Solar Power System Solar Kit

1 / 5

Alicosolar 1MW Solar Panel Plant Structure for Flat Roof and Open Field Mounting Solar Power System Solar Kit

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview

Product Parameters

On Grid System Configuration

Projects Shown

📊 Basic Information

Model NO.

1MW-SYSTEM

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Grid-Tied & Hybrid Inverter

System Type

1 MW Solar System

Package

Carton/Wooden Box

Capacity

1.2 Gw/Year

HS Code

85414020

⚙️ Product Parameters

Name	1000KW On-grid Description	Quantity
Solar Panel	Mono 550Watt PV Module	1818 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On-Grid Inverter	120KW Three Phase	9 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	6 mm2	4000 Meters
MC4 Connector	6 mm2 1000VDC	10 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	10 Set

Note: Product dimensions and physical appearance in this data sheet are nominal. The manufacturer reserves the right to make product changes from time to time, without prior notification.

🔌 On Grid System Configuration

1. Solar Panel

2. On Grid Inverter

3. Switch Box

4. Power Meter

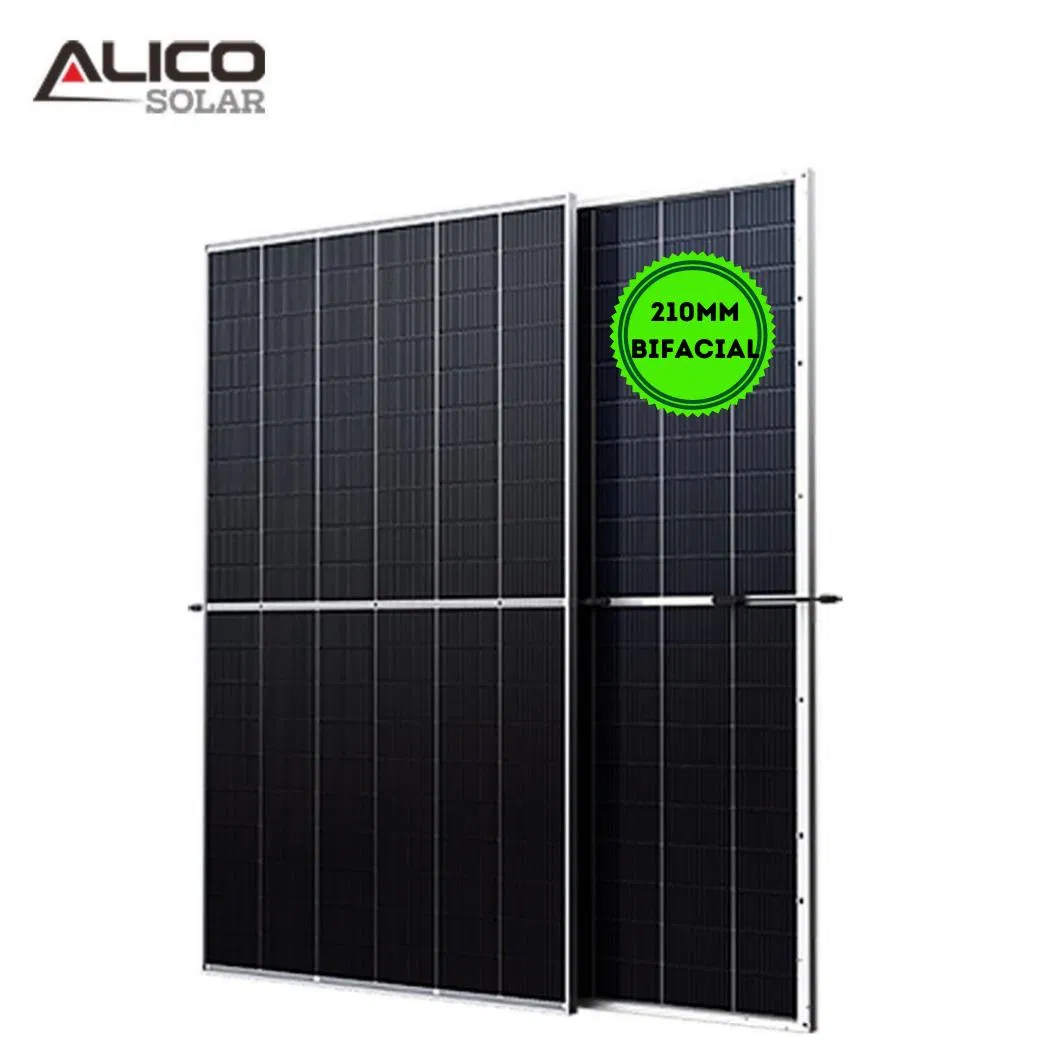

☀️ Mono Solar Panels

Peak Power Watts: 455-690Watt
Weight: 18.6 kg - 35 kg
Tier 1 standard
12 years warranty quality
30 years warranty power

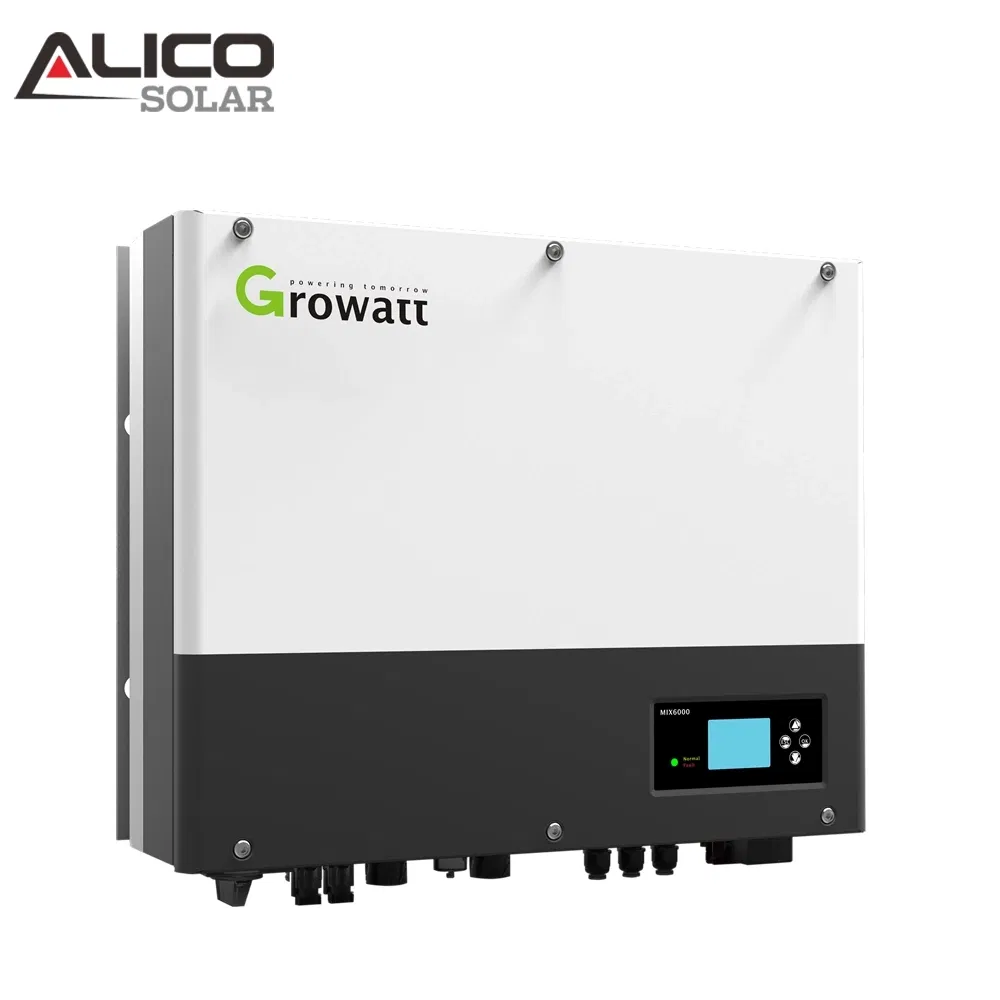

🔋 On-Grid Inverter

Max. DC Input Power: 5.8KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5-10 Years
Wifi Stick included, Lan & GPRS Optional.

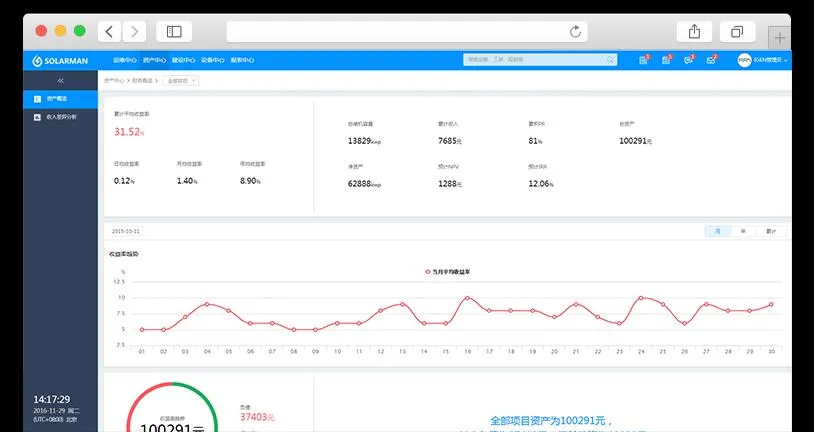

📱 Remote Monitoring System

Data Logging Stick allows you to receive information from your solar power system. Stay informed about PV performance and atmospheric conditions via Wi-Fi, Lan or GPRS. App available for PC, iOS & Android.

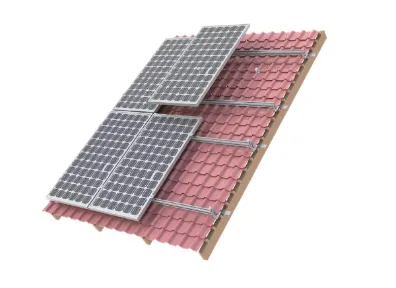

🏗️ PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip, Tie, Ground Clip & Lugs Optional

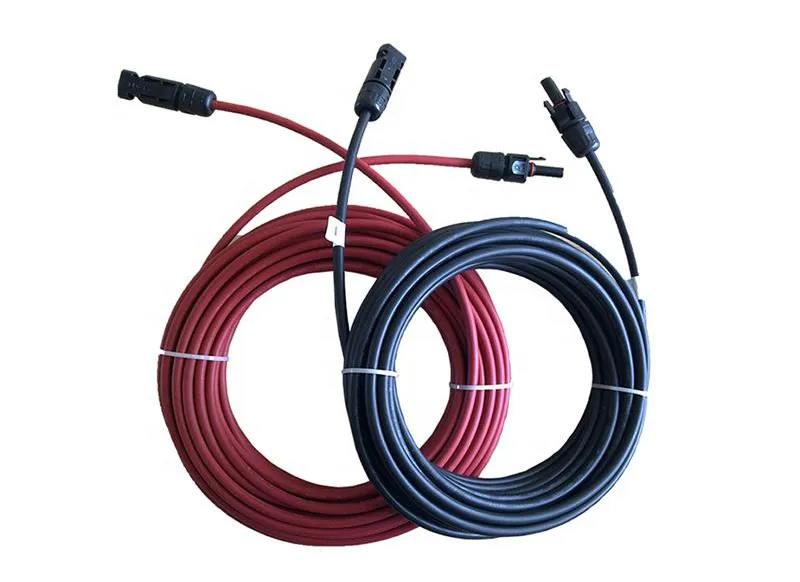

🔗 DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A, 70A
Lifetime: ≤25 Years

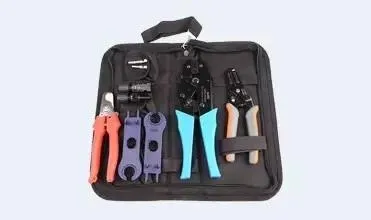

🛠️ PV Tools

Wire Cable Cutter & Stripper
MC3 MC4 Crimper
MC4 Connectors Assembly & Disassembly Tool

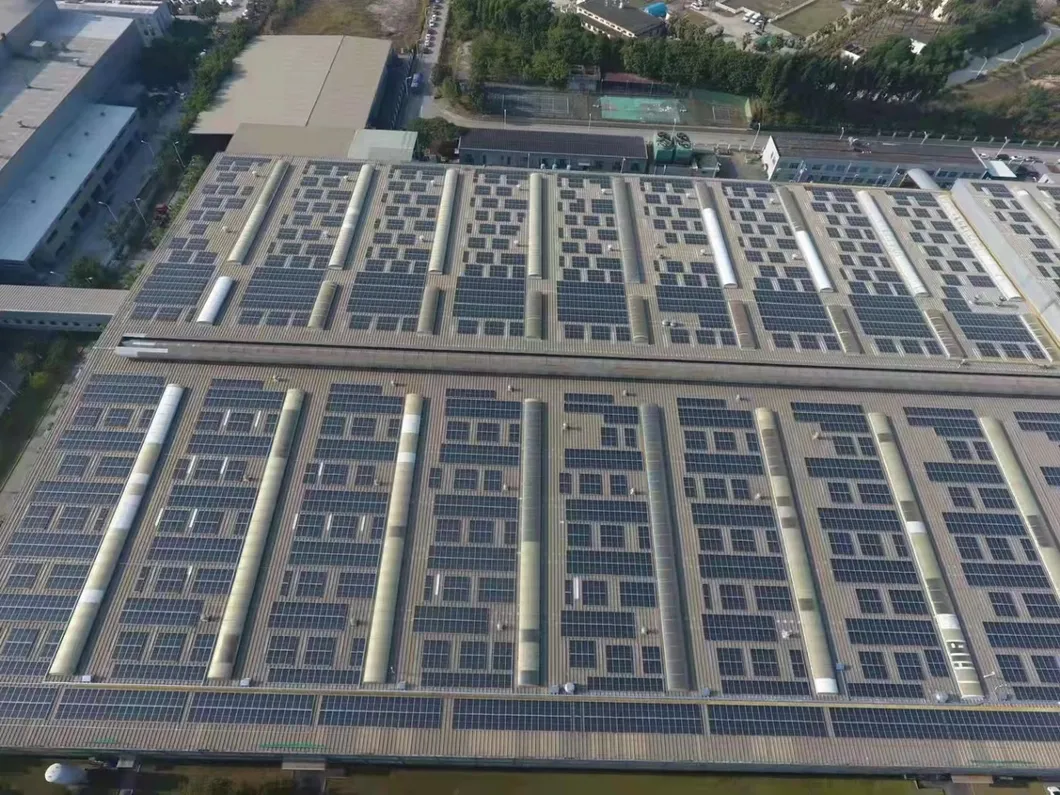

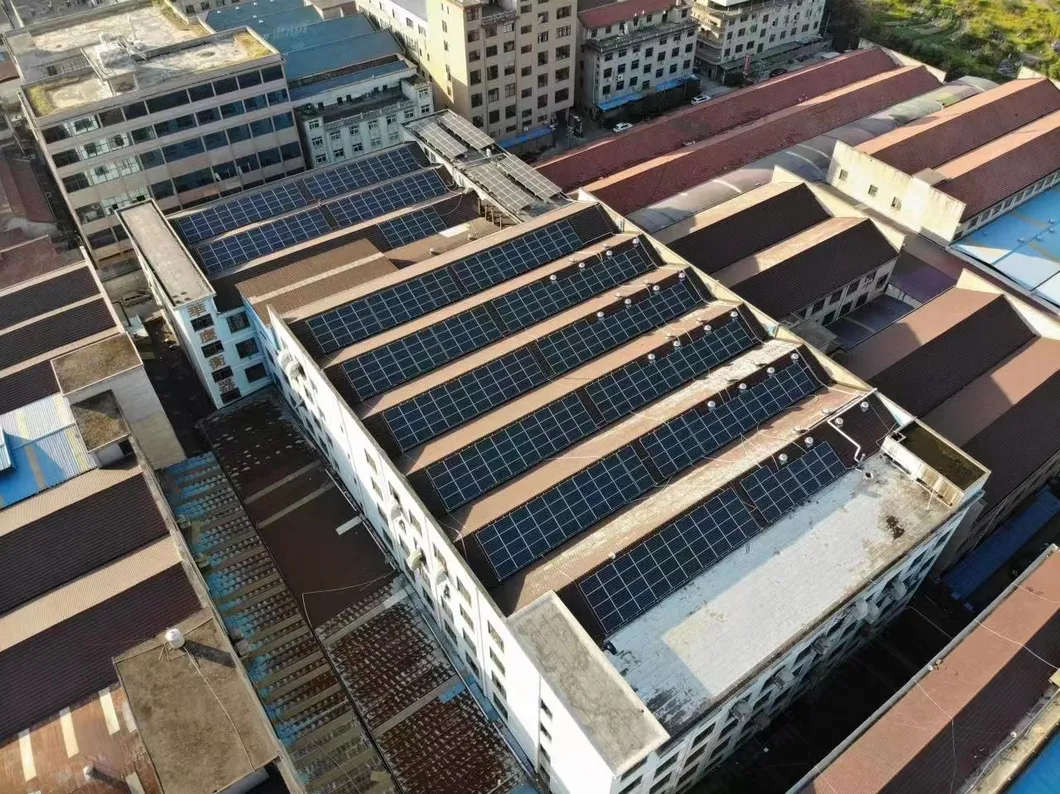

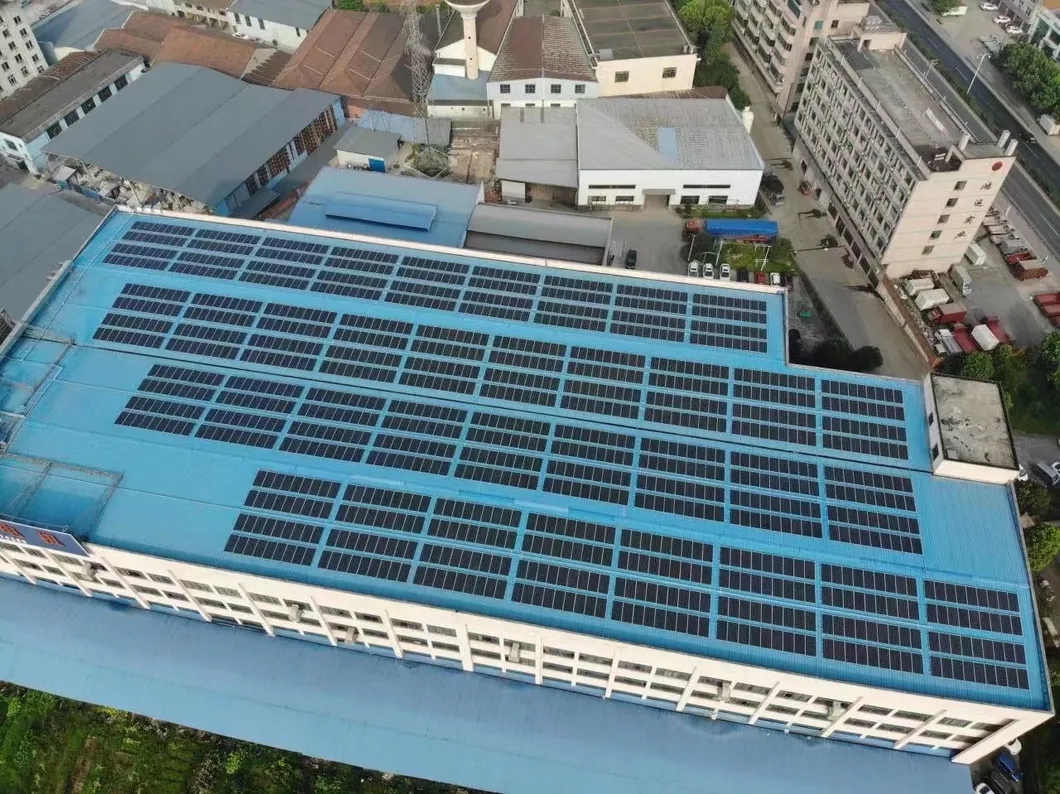

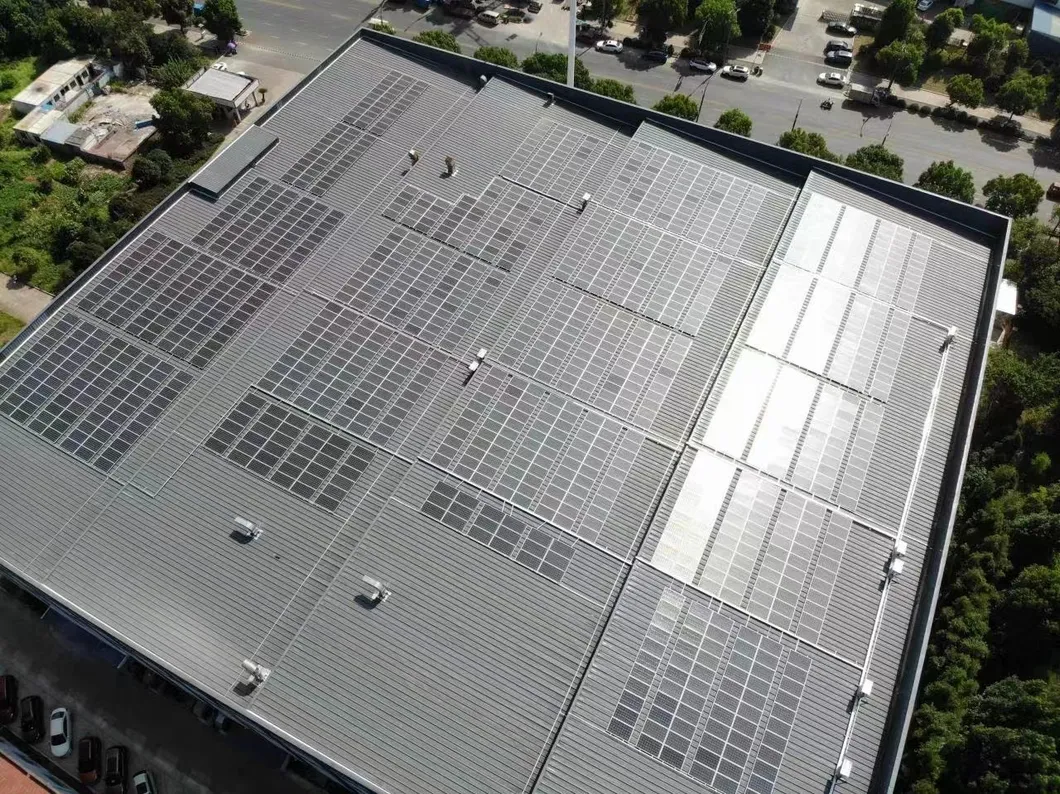

🏗️ Projects Shown

❓ Frequently Asked Questions

What is included in a 1MW solar system kit?

The kit typically includes 1818 mono 550W solar panels, nine 120KW on-grid inverters, DC/AC disconnect switches, 4000 meters of DC cabling, mounting systems for roofs or ground, and necessary installation tools.

What is the expected lifespan of the solar panels?

The mono solar panels come with a 12-year quality warranty and a 30-year power output warranty, ensuring long-term reliability for industrial or commercial use.

Can the system be monitored remotely?

Yes, the system includes a remote monitoring logger that supports Wi-Fi, LAN, or GPRS. You can check the performance and status via dedicated apps for PC, iOS, and Android.

Is the mounting system customizable?

Absolutely. While standard kits are designed for pitched roofs, optional customizations are available for flat roofs, asphalt shingles, or open-field ground mounting.

What certifications do these systems have?

All components are fully certified, including ISO and CE certifications, meeting international safety and performance standards.

How is the system shipped?

The components are securely packed in high-quality cartons or reinforced wooden boxes to ensure they arrive in perfect condition at your project site.
