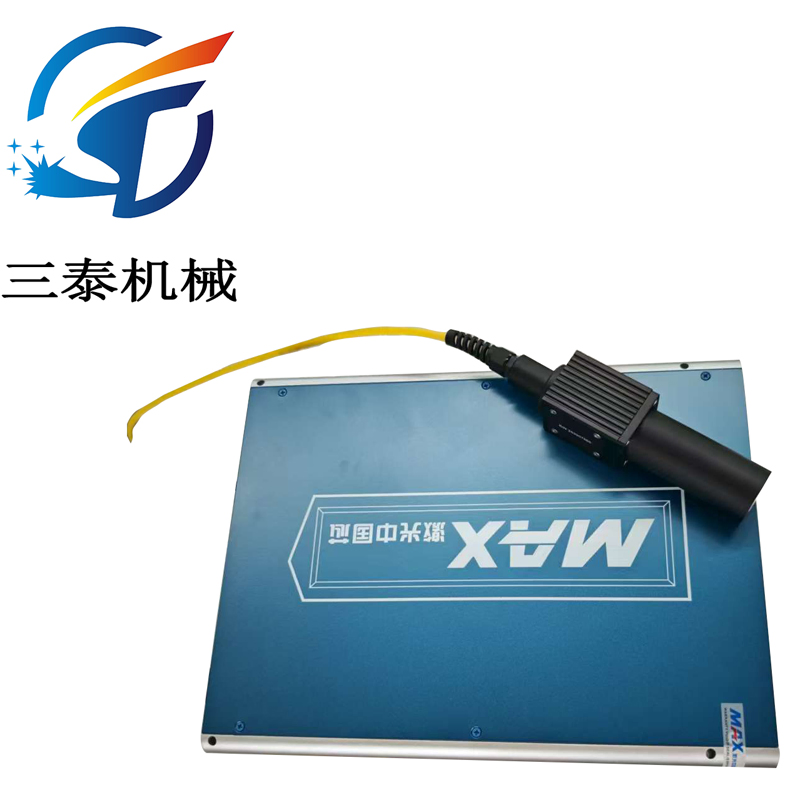

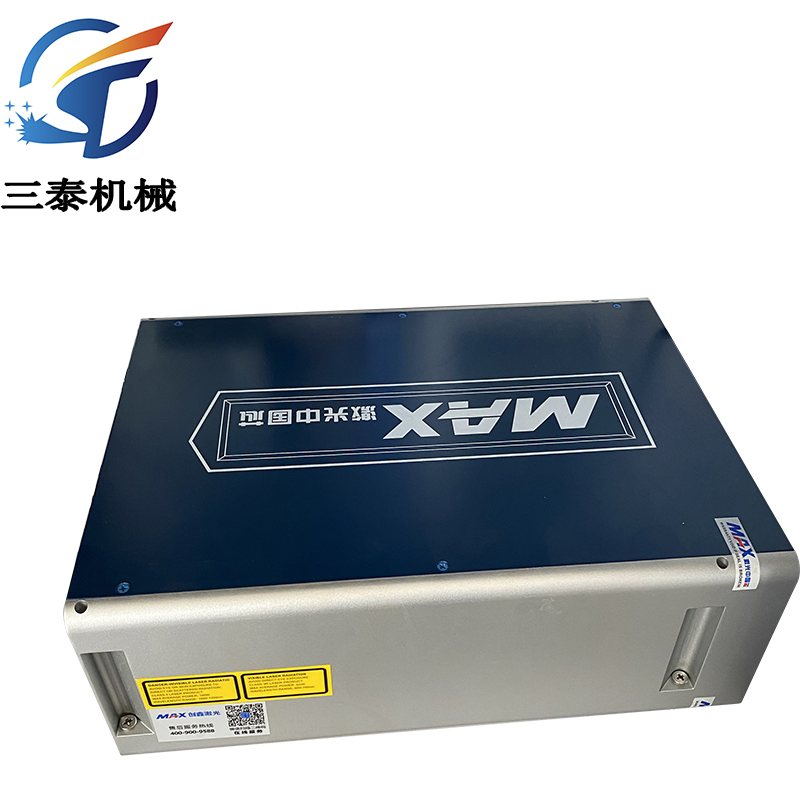

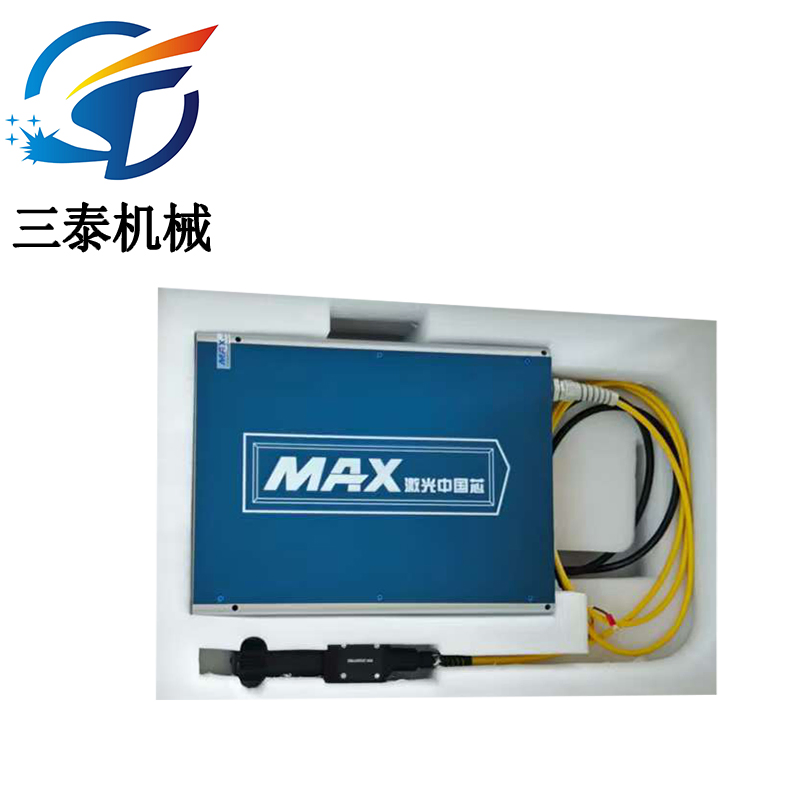

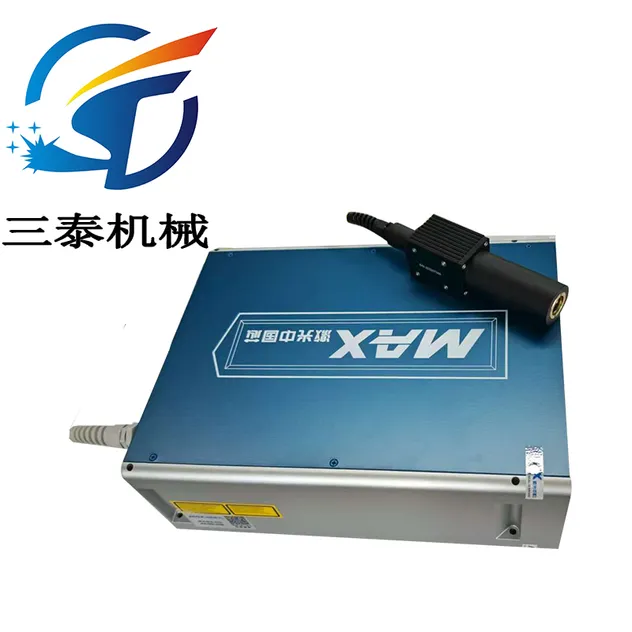

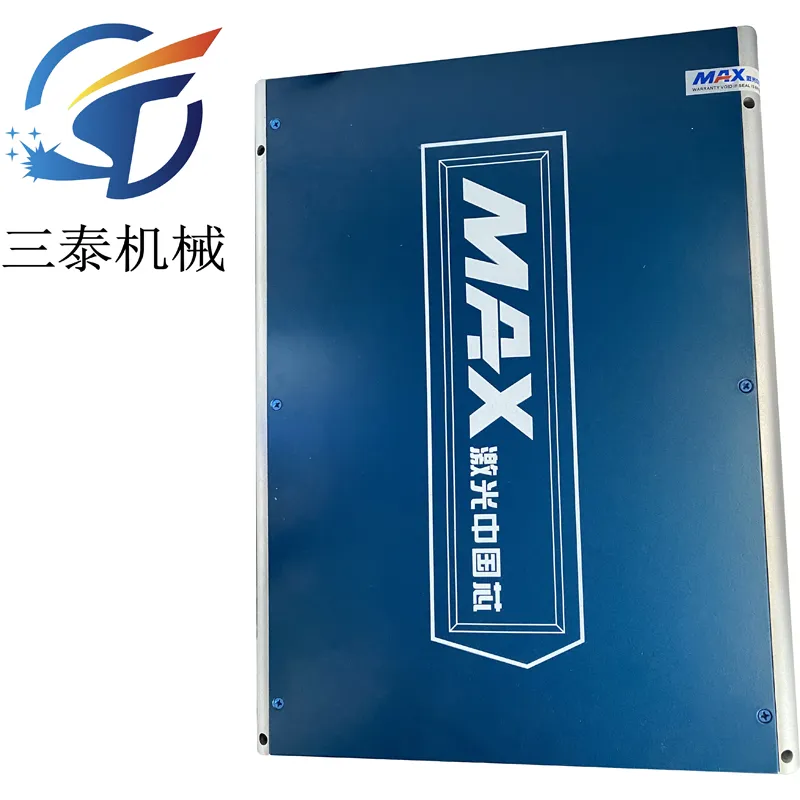

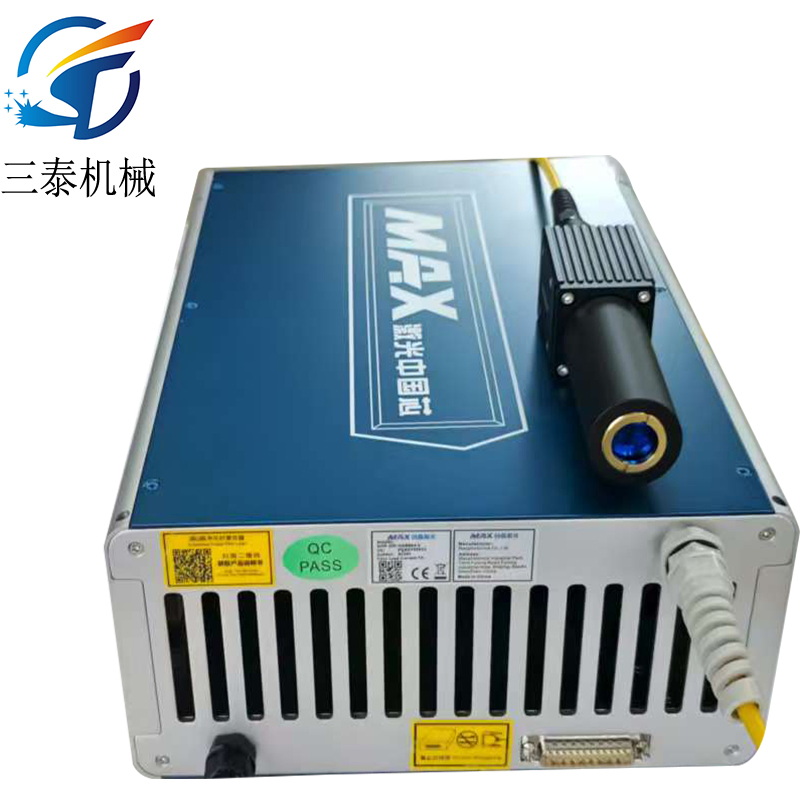

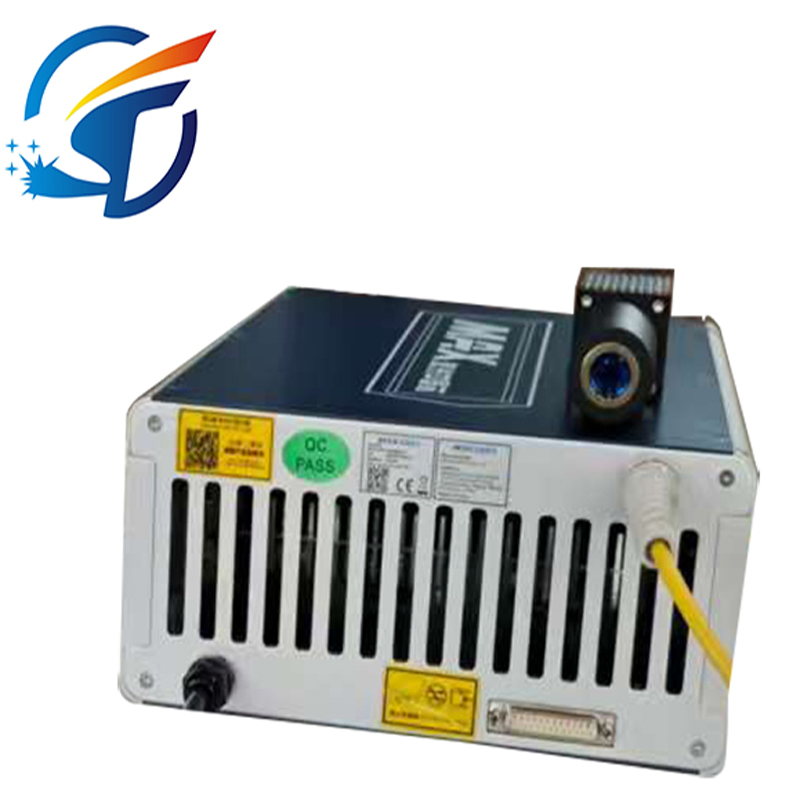

All-Fiber Integrated Ultrafast Laser System for Laser Marking Machine

Customization:	Available
After-sales Service:	24-Hour Online
Warranty:	One Years

i

Basic Information

Model NO.

20-100W

Type

Laser Generator

Wattage Selection

50-200W

Operating Mode

Pulse

Polarization State

Random

Beam Quality

1.5 square Meter

Specification

400*300*150mm

HS Code

9027509090

L

Laser Marking System Light Source

A fiber laser is a type of laser that uses rare-earth-doped optical fiber as the gain medium, offering advantages such as high efficiency, excellent beam quality, long lifespan, and low maintenance. Its working principle involves using a pump source (e.g., diode lasers) to excite rare-earth ions (e.g., ytterbium, erbium) in the fiber, generating high-intensity laser output. Fiber lasers are widely used in industrial processing (e.g., cutting, welding, marking), telecommunications, medical applications, and scientific research.

S

Technical Specifications

Key Configurations:

Average optical power (W): 50-200W
Working model: Pulse
Beam Quality M²: 1.5/1.8
Center Wavelength: 1064±5nm
Pulse Repetition Frequency: 10~170 kHz
Single Pulse Energy: 0.45~1.5 mJ

Model	50W	Power Adjustment Range	10~100%
Average Optical Power	50W	Pulse Repetition Frequency	33~80 kHz
Operation Mode	Pulsed	Output Power Instability	5%
Polarization	Random	Output Beam Diameter	7.5 (6~9) mm
Beam Quality M²	1.8	Laser On Time	110~140 μs
Center Wavelength	1064±5nm	Fiber Cable Length	2.5m (1.9~3)

V

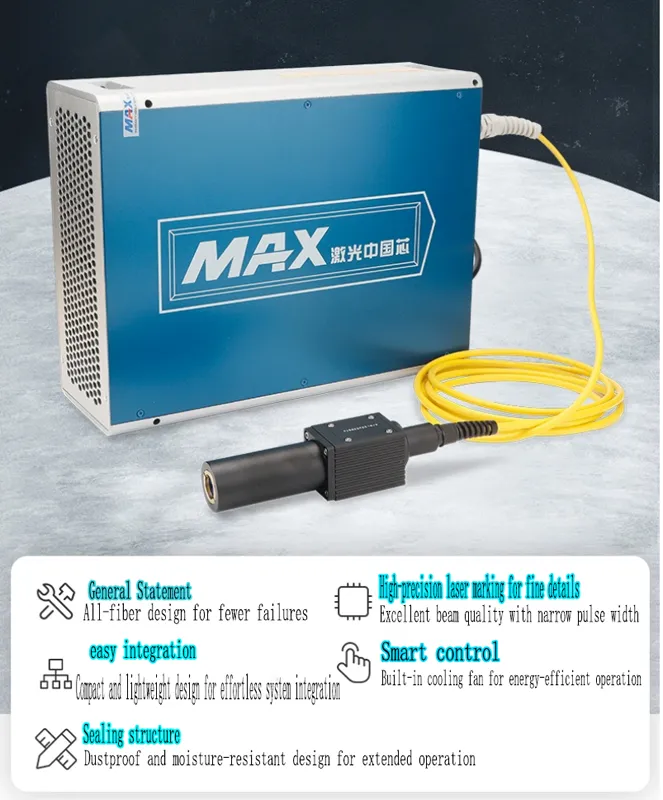

Visual Presentation

A

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).

Extended Warranty: Optional coverage available up to 12 months.

Training: Comprehensive on-site or remote operation and maintenance training programs.

?

Frequently Asked Questions

Q1: How can I choose the most suitable laser machine?

Please let us know your machining demand or required machine size. We can recommend the best model based on your product drawings or specific application needs.

Q2: What is your minimum order quantity (MOQ) and warranty period?

The MOQ is one set. We provide a one-year warranty and offer lifetime technical service for all our machines.

Q3: How do you ensure the quality of your products?

We select premium materials for processing. During and after production, we inspect all finished parts. Our QC team conducts final testing on every machine according to customer requests.

Q4: What trade terms do you accept?

We accept FOB, CFR, CIF, and other standard international trade terms.

Q5: What is the estimated delivery time?

Standard delivery is within 15-60 working days after receiving the deposit. Special or customized machines may require additional time, which will be confirmed during the order process.

Q6: How can I request a formal quotation?

You can contact us via our official communication channels to request a quote, and then proceed by confirming with a Purchase Order (PO).
