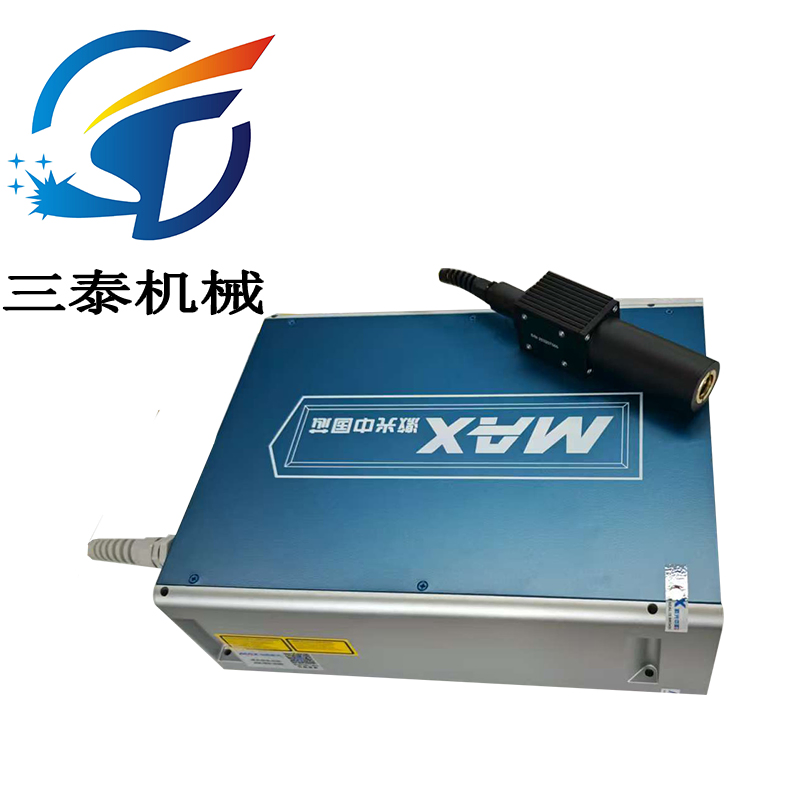

Fiber Laser Marking System for Laser Marking Machine

Customization: Available
After-sales Service: 24-Hour Online
Warranty: One Years

Product Description

Product Overview
A fiber laser is a type of laser that uses rare-earth-doped optical fiber as the gain medium, offering advantages such as high efficiency, excellent beam quality, long lifespan, and low maintenance. Its working principle involves using a pump source (e.g., diode lasers) to excite rare-earth ions (e.g., ytterbium, erbium) in the fiber, generating high-intensity laser output. Fiber lasers are widely used in industrial processing (e.g., cutting, welding, marking), telecommunications, medical applications, and scientific research, particularly excelling in high-power precision machining.
Model NO.
20-100W
Type
Laser Generator
Wattage Selection
50-200W
Operating Mode
Pulse
Polarization State
Random
Beam Quality
1.5square Meter
Standard Component
Standard Component
Customized
Non-Customized
Technical Specifications

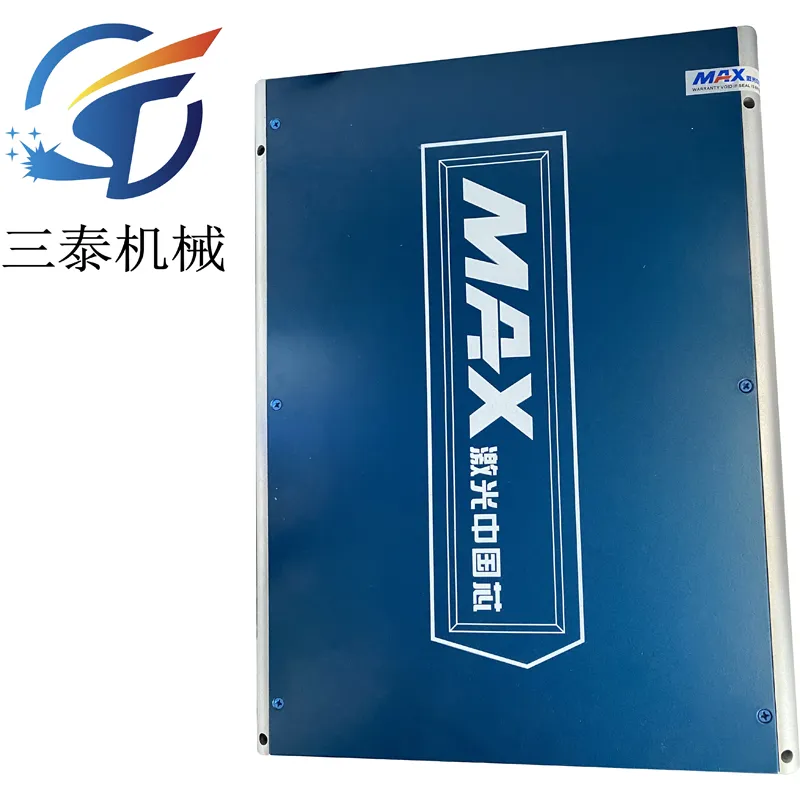

Fiber Laser Marking System Configuration
Key Configurations
  • Average optical power (W): 50-200W
  • Center Wavelength (nm): 1064±5nm
  • Beam Quality M²: 1.5 / 1.8
  • Single Pulse Energy (mJ): 0.45~1.5
  • Pulse Repetition Frequency (kHz): 10~170
  • Output Beam Diameter (mm): 7.5 (6~9)
Model 50W Power Adjustment Range (%) 10~100
Average Optical Power Pnom (W) 50 Pulse Repetition Frequency (kHz) 33~80
Operation Mode Pulsed Output Power Instability (%) 5
Polarization Random Output Beam Diameter (mm) 7.5 (6~9) (1/e²)
Beam Quality M² 1.8 Laser On Time (μs) 110~140
Center Wavelength (nm) 1064±5nm Fiber Cable Length (m) 2.5 (1.9~3)
Fiber Laser Component View 1

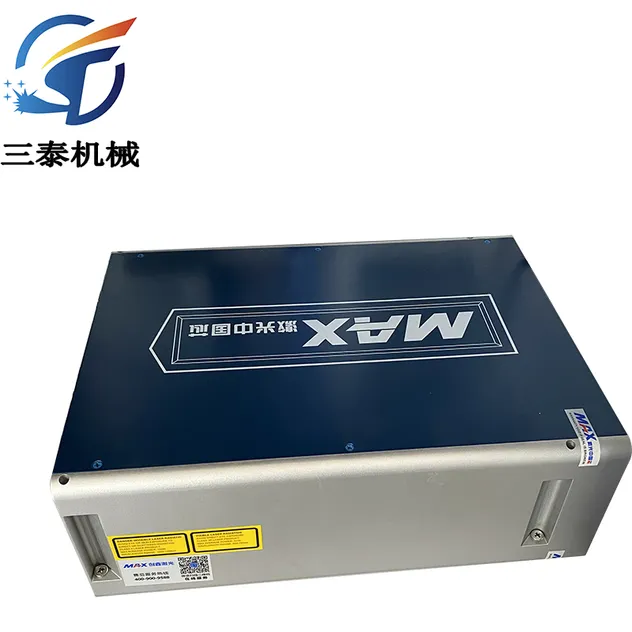

Fiber Laser Component View 2

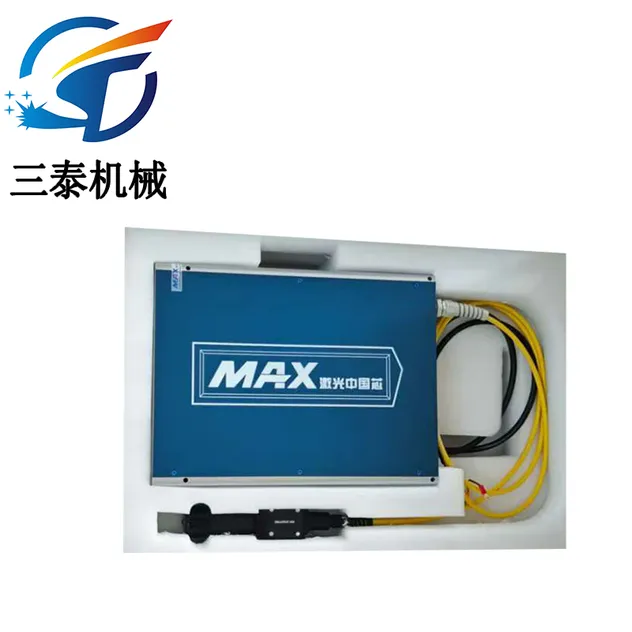

Fiber Laser Component View 3
Performance & Dimension

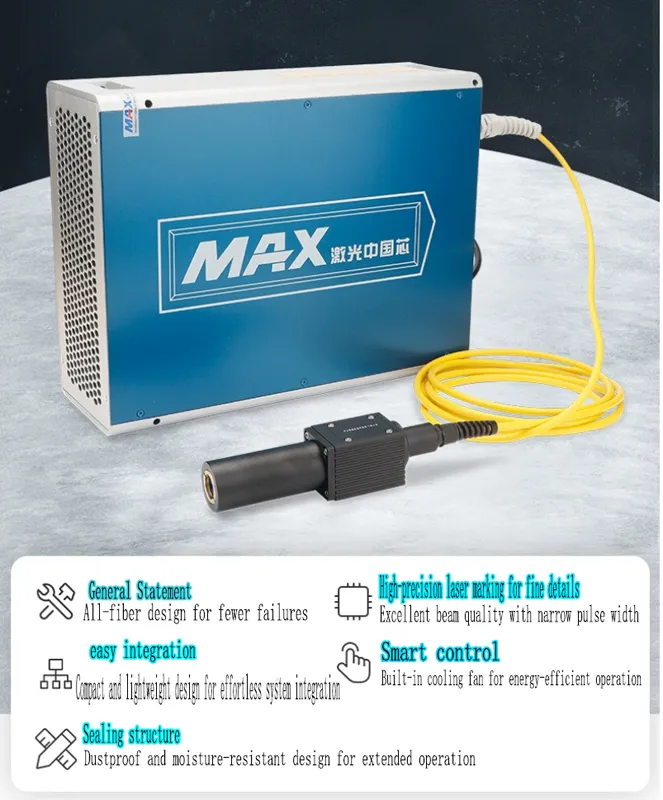

Performance Detail 1

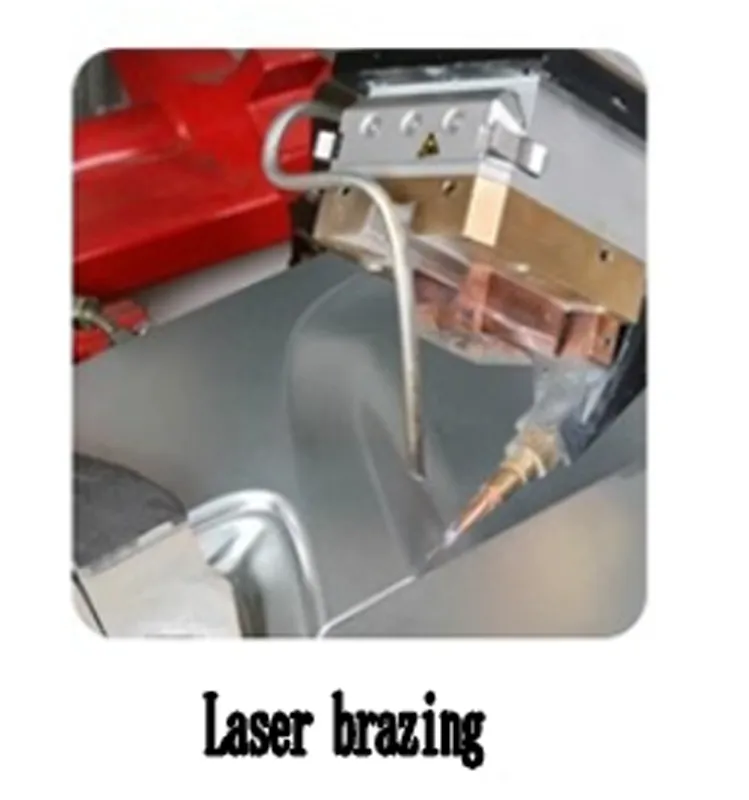

Performance Detail 2

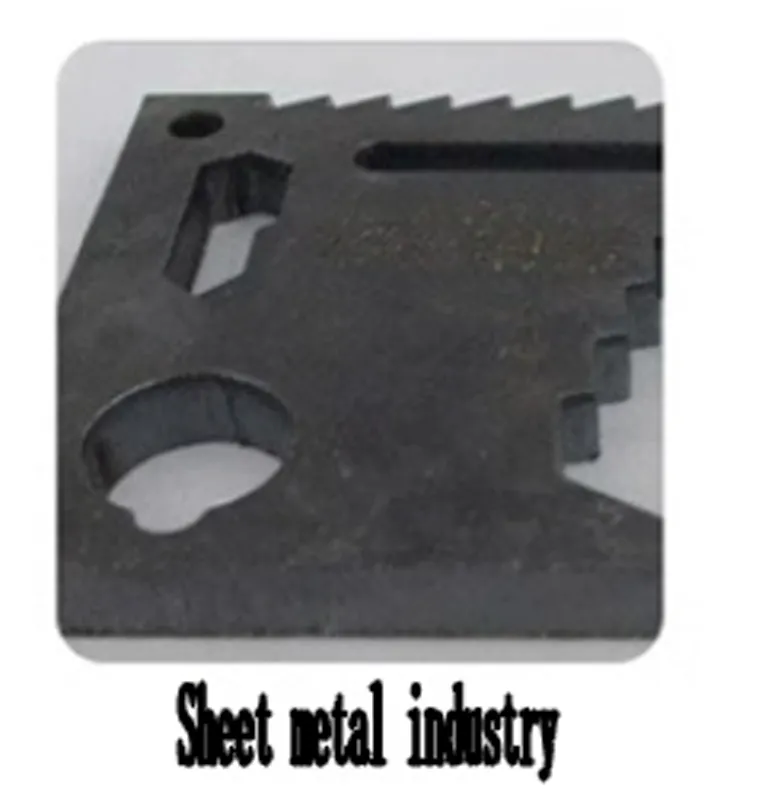

Performance Detail 3

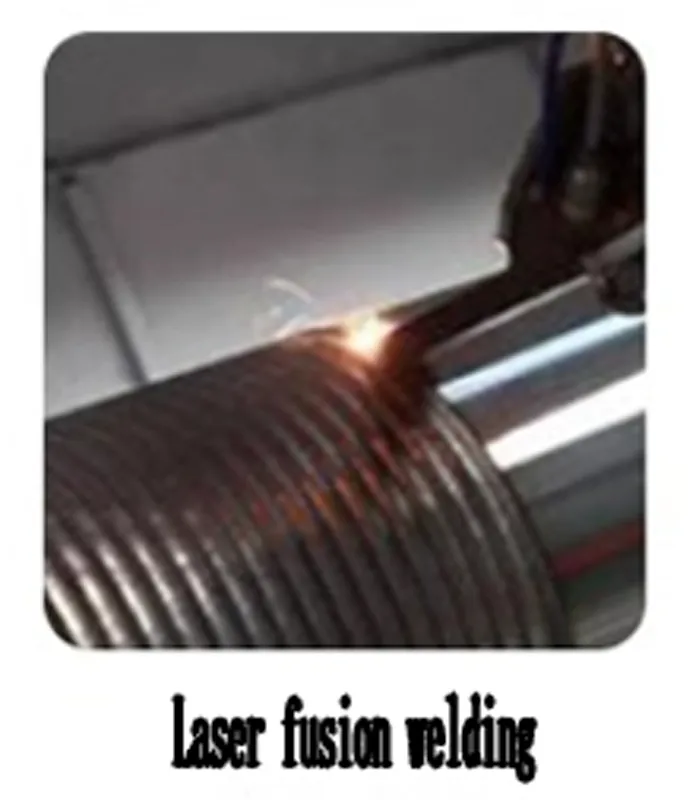

Performance Detail 4
After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
  • Extended Warranty: Optional coverage up to 12 months.
  • Training: On-site or remote operation and maintenance training.
Frequently Asked Questions
How can I choose the most suitable machine?
Please let us know your machining demand or machine size; we can recommend the best model for you. You can also send us product drawings for professional selection.
What is your minimum order quantity (MOQ) and warranty?
The MOQ is one set. We provide a one-year warranty and offer lifetime service for the machine.
How do you ensure the quality of the laser systems?
We select the best materials for processing, inspect finished parts during and after production, and conduct rigorous QC tests per customer requests before shipping.
What are your accepted trade terms?
FOB, CFR, CIF, and other standard international trade terms are all acceptable.
What is the expected delivery time?
Standard delivery is within 15-60 working days after receiving the deposit. Special configurations may require additional time.
How can I request a quote?
Contact us via email or phone with your requirements, and we will provide a detailed quote for your confirmation.
