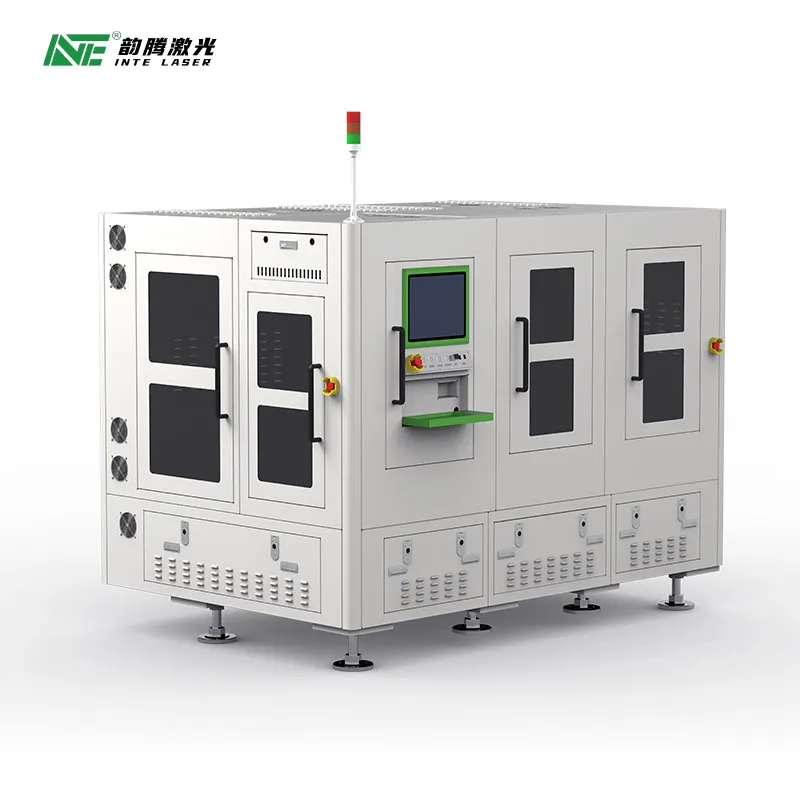

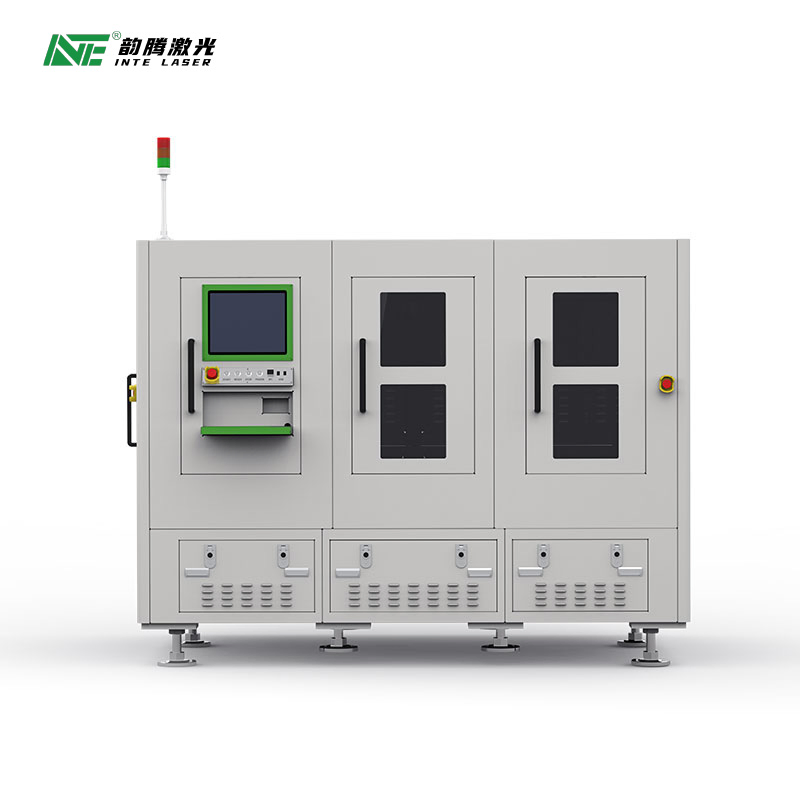

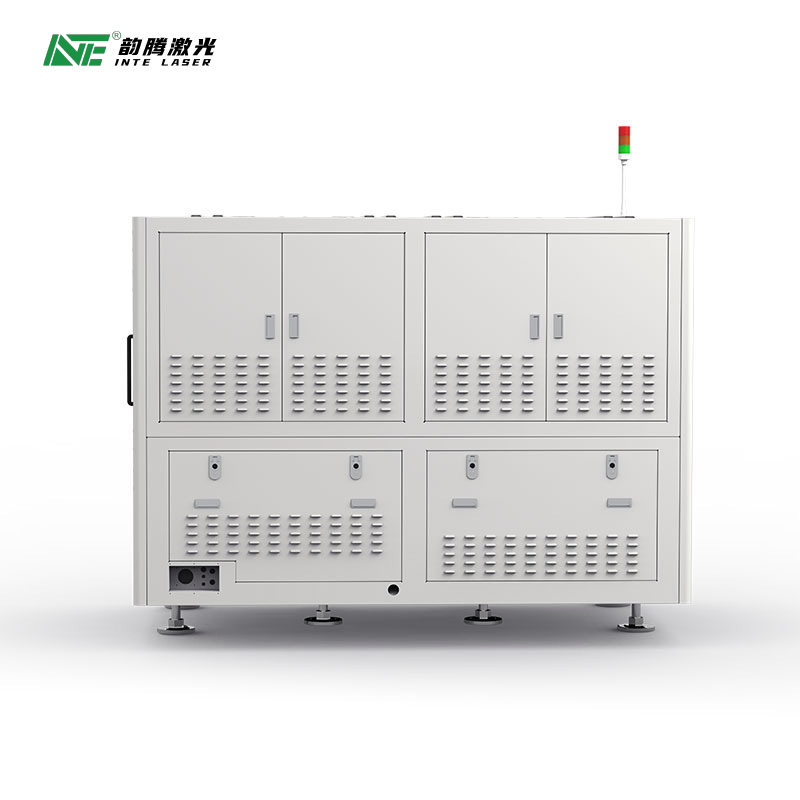

Compact Automatic Laser Panel Cutting Machine with High Precision Cutting

1 / 5

Compact Automatic Laser Panel Cutting Machine with High Precision Cutting

Customization:	Available
Application:	Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Aerospace Industry, Automotive Industry
Cooling System:	Water Cooling

Send Inquiry

Product Description

Basic Info.

Model NO.	INTEPC001
Technical Class	Pulse Laser
Applicable Material	Nonmetal
Structure Type	Gantry Type
Laser Classification	Solid Laser
Laser Technology	Laser Flame Cutting
Machine Weight	1500kg
Processing Material	Flexible Boards, Rigid Boards, and Flexible-Rigid
Laser Type	Nanosend UV/Nanosend Green
Processing Accuracy	±0.02mm
Transport Package	Wooden Box
Specification	1300mmX1800mmX1800mm
Origin	China
Production Capacity	100 Sets/Month

★

Product Description

Fully Automatic Laser Panel Cutting Machine

⚙

Product Parameters

Laser Type	Nanosecond UV/ Nanosecond Green Laser
Processing Area	350mmx300mm(Customized)
Machine Size	1300mmX1800mmX1800mm
Cutting Accuracy	±0.02mm
Electric Power Loading	3.5KW
Machine Weight	1500KG
Environmental Condition	Humidity: 30% to 60% without condensation; Temperature: 22ºC ± 2

✔

Equipment Processing Advantage

User-friendly software interface with simple one-click production drawing import.

Contactless processing technology with specially designed fixtures to protect product integrity.

Advanced real-time smoke and dust management system for pristine product quality.

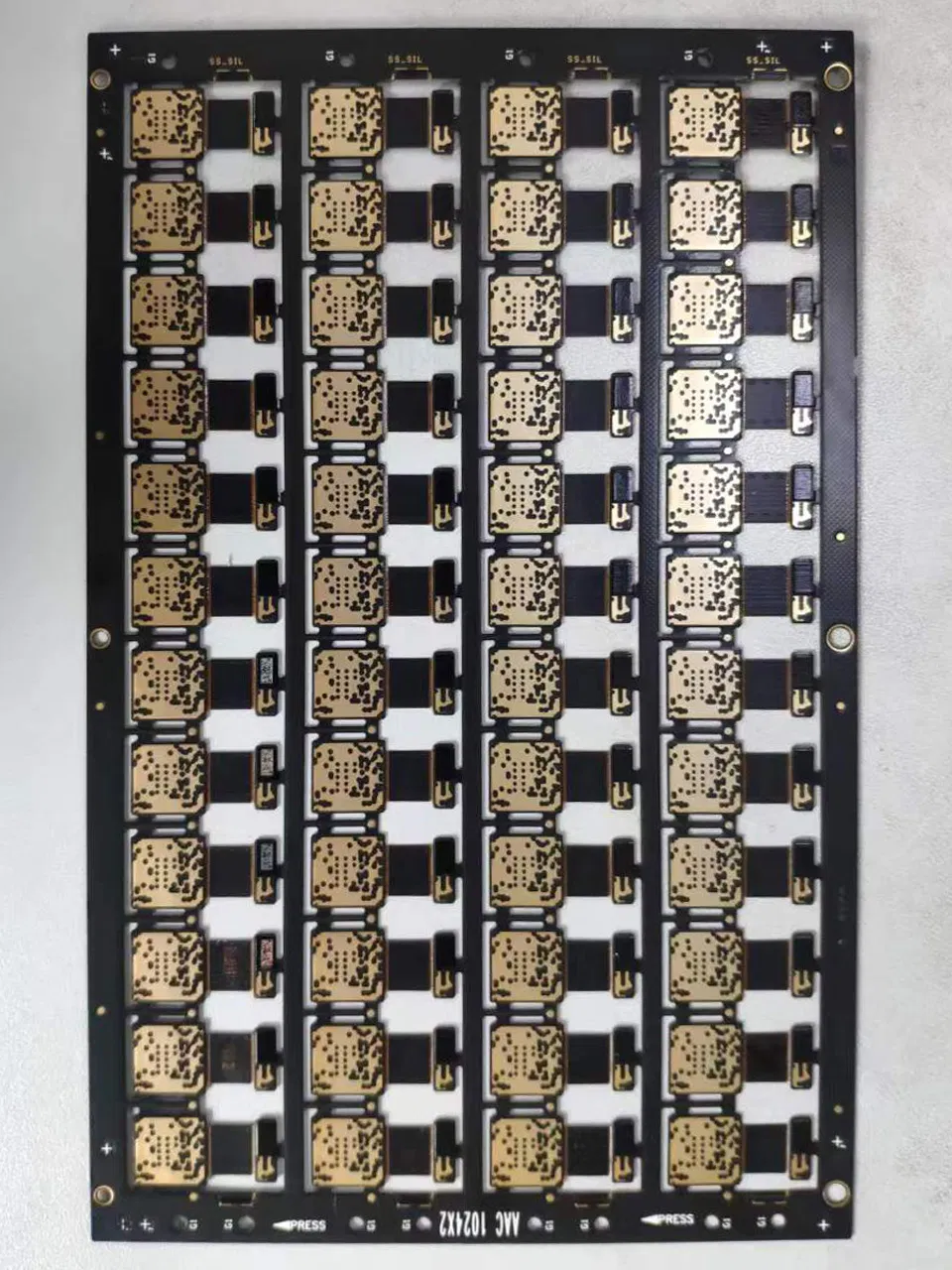

Unparalleled versatility for cutting flexible, rigid, and combination boards into any shape.

Fully enclosed processing area for maximum operator safety and continuous protection.

Customized MES ports for comprehensive data collection, tracking, and superior productivity monitoring.

High efficiency with UPH: 7k/h and cutting accuracy of ≤ ±30um for thicknesses up to 3mm.

One-stop automated assembly line service to maximize workflow productivity.

☏

After Sales Service

●

1 year guarantee covering the entire machine, complemented by complimentary lifetime maintenance.

●

Free, comprehensive training at the factory to master every aspect of machine operation.

●

Skilled engineers ready for overseas training and exemplary after-sale services worldwide.

ⓘ

Technology Profile

Specializing in laser applications and automated manufacturing processes since 2013, we offer cutting-edge processing technologies, optimization solutions, and specialized laser application machines. Our technical support empowers customers with enhanced creativity and added value.

As a technology-driven leader, we focus on independent research and development in laser generators, optical devices, and equipment application processes, excelling in automation system integration.

We provide comprehensive solutions for laser micromachining applications, encompassing processing technology, laser sources, optical systems, and application equipment across industries including printed circuit boards, consumer electronics, semiconductors, glass, and new energy.

◈

Exhibitions

Frequently Asked Questions

Q: What can we do for you?

A: We provide advanced equipment, technical solutions, and comprehensive service support to help improve production efficiency, reduce costs, and optimize product quality.

Q: Are you a trade company or manufacturer?

A: We are a manufacturer with independent research and development capabilities and manufacturing capabilities, also providing OEM and ODM services.

Q: What is your delivery date?

A: Approximately 35 days after receipt of payment.

Q: What are your payment terms?

A: 30% deposit in advance and 70% balance before shipment.

Q: What materials can this machine process?

A: The machine is designed for nonmetal materials including flexible boards, rigid boards, and flexible-rigid combination boards.

Q: What is the processing accuracy of the machine?

A: The machine achieves a high processing accuracy of ±0.02mm, ensuring precision for complex cutting requirements.
