Alpha 210 Lab-Grade Vibratory Cutting Polishing Machine Metallurgical Polisher Grinder Dual-Wheel Metallographic Polishing Equipment
Alpha 210 Lab-Grade Vibratory Cutting Polishing Machine Metallurgical Polisher Grinder Dual-Wheel Metallographic Polishing Equipment
1 / 2
Alpha 210 Lab-Grade Vibratory Cutting Polishing Machine Metallurgical Polisher Grinder Dual-Wheel Metallographic Polishing Equipment
Alpha 210 Lab-Grade Vibratory Cutting Polishing Machine Metallurgical Polisher Grinder Dual-Wheel Metallographic Polishing Equipment

Alpha 210 Lab-Grade Vibratory Cutting Polishing Machine Metallurgical Polisher Grinder Dual-Wheel Metallographic Polishing Equipment

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Information

Model NO.
Alpha 210
Environment
Normal Pressure and Temperature
Display
Digital Display
Performance
Automatic
Power Supply
220V
Weight
40kg
Certification
CE
Speed
50-600rpm
Diameter
10 Inch (254mm)
Direction
Cw/Ccw
Panel
Tempered Glass, Touch Panel
Rated Power
1500W
HS Code
90241090
🔬

Product Description

Alpha 210 Lab-Grade Polisher
Technical Parameters Specifications
Blader Diameter 10" (254mm)
Speed 50-600rpm
Direction CW/CCW
Torque 10N·m
Electrical Voltage/Frequency 220V/50Hz (1Ph/N/PE)
Rated Power 1500W
Rated Current 8A
Control Panel Tempered glass, Touch panel
Preset 3 Speeds Yes
Timing/Countdown Yes

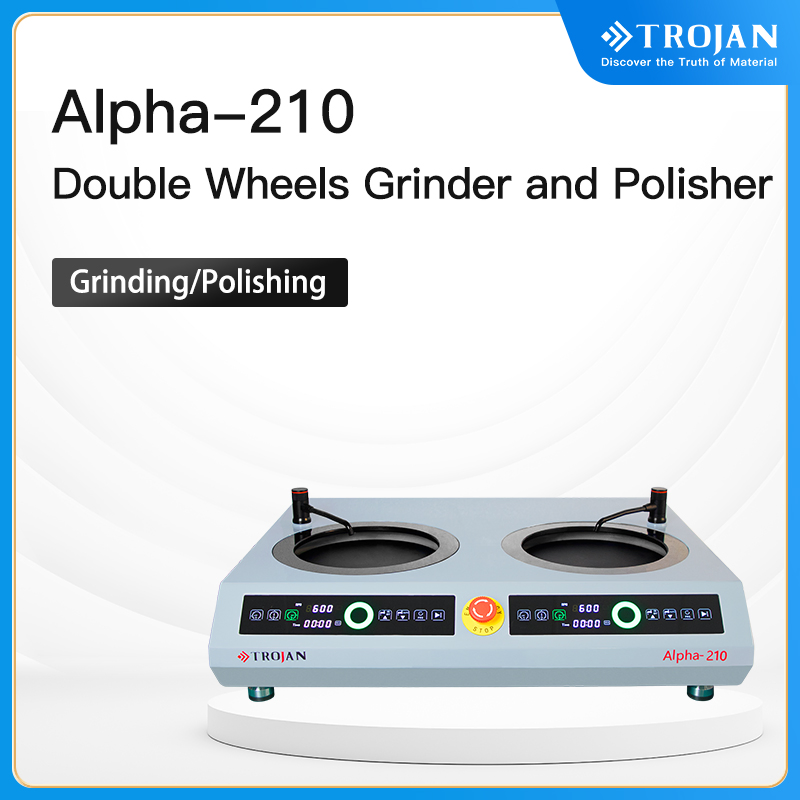

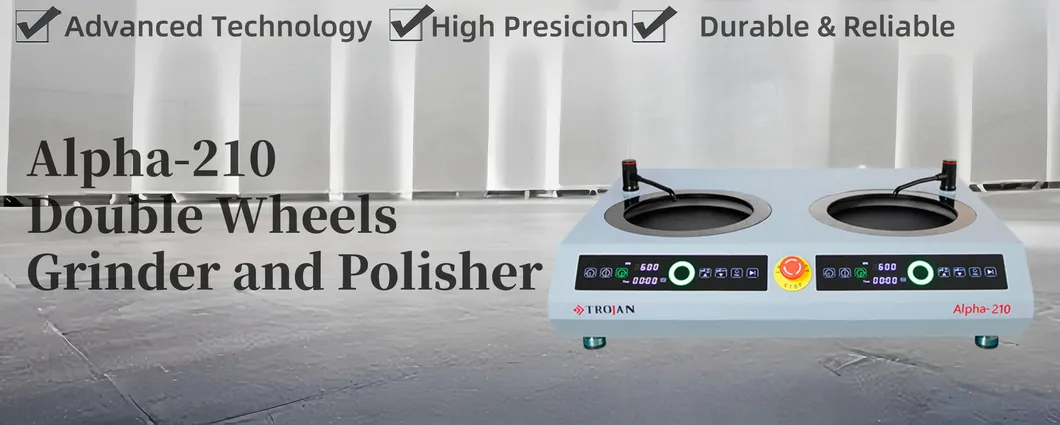

Alpha-210 Double Wheels Grinder and Polisher

The Alpha-210 is a 10" (254mm) disc diameter, double disc, double control grinding and polishing machine. Small in size with a compact structure, it is easy to operate. Featuring a modern touch panel, it is ideal for grinding and polishing various specimens.

Key Features:

  • Servo motor maintains high torque even at low speeds.
  • Glass touch panel for intuitive operation.
  • Fully sealed working tray design to prevent leakage.
  • Retractable faucet for convenient cleaning.
  • Tool-free disassembly of the working plate.
  • High-strength, aesthetic ABS molded shell.

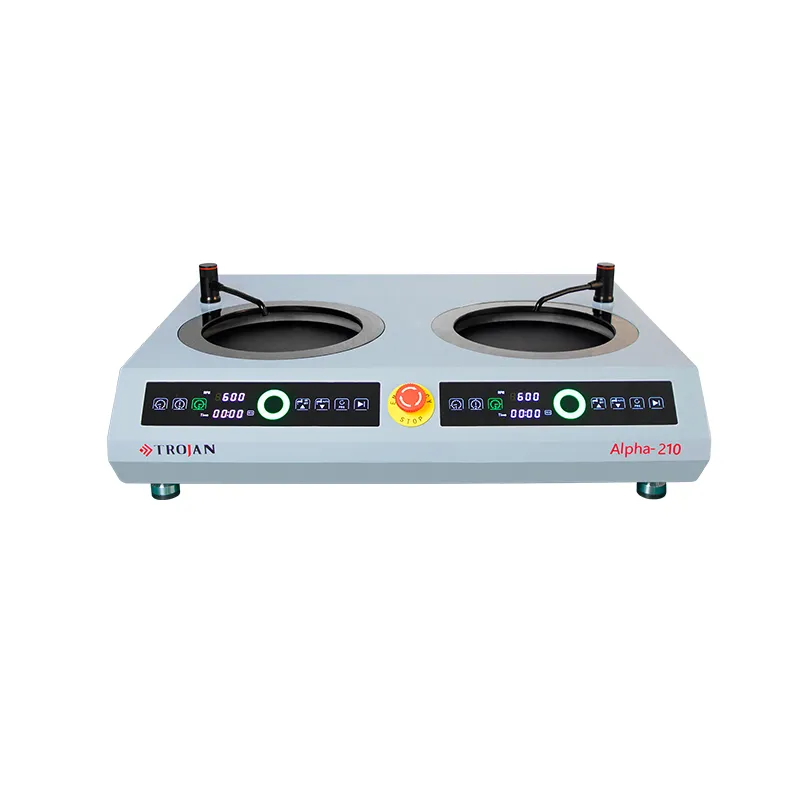

Alpha 210 Unit
🖼️

Visual Overview

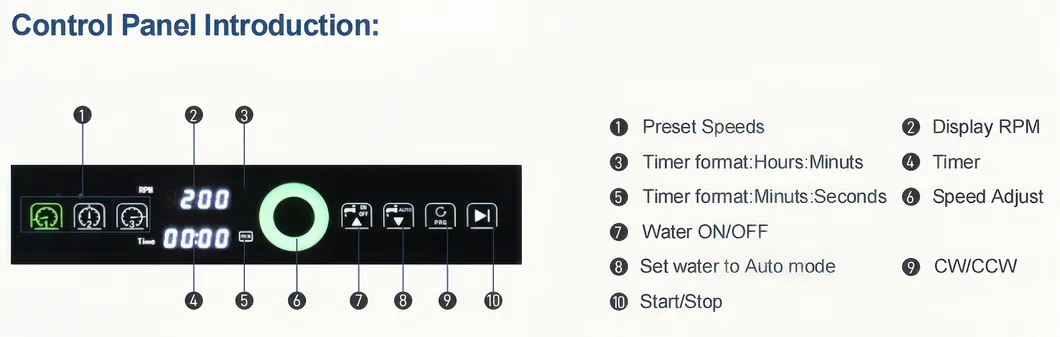

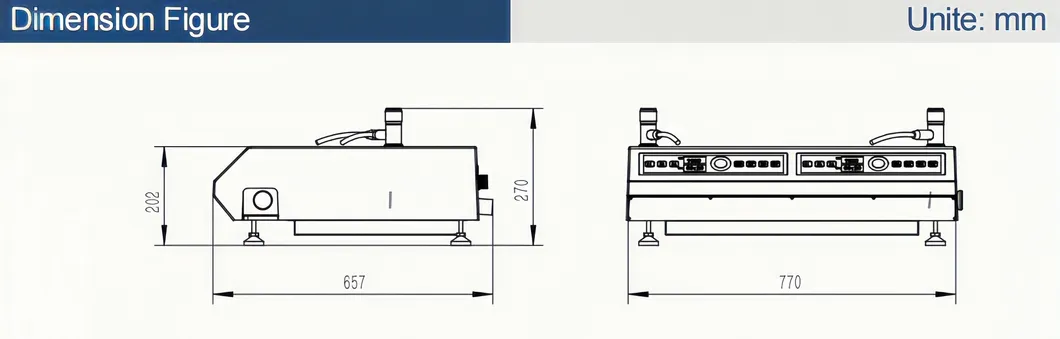

Polishing Details Machine Interface Operation View
⚙️

Scope of Application

Applications
🌟

Related Products

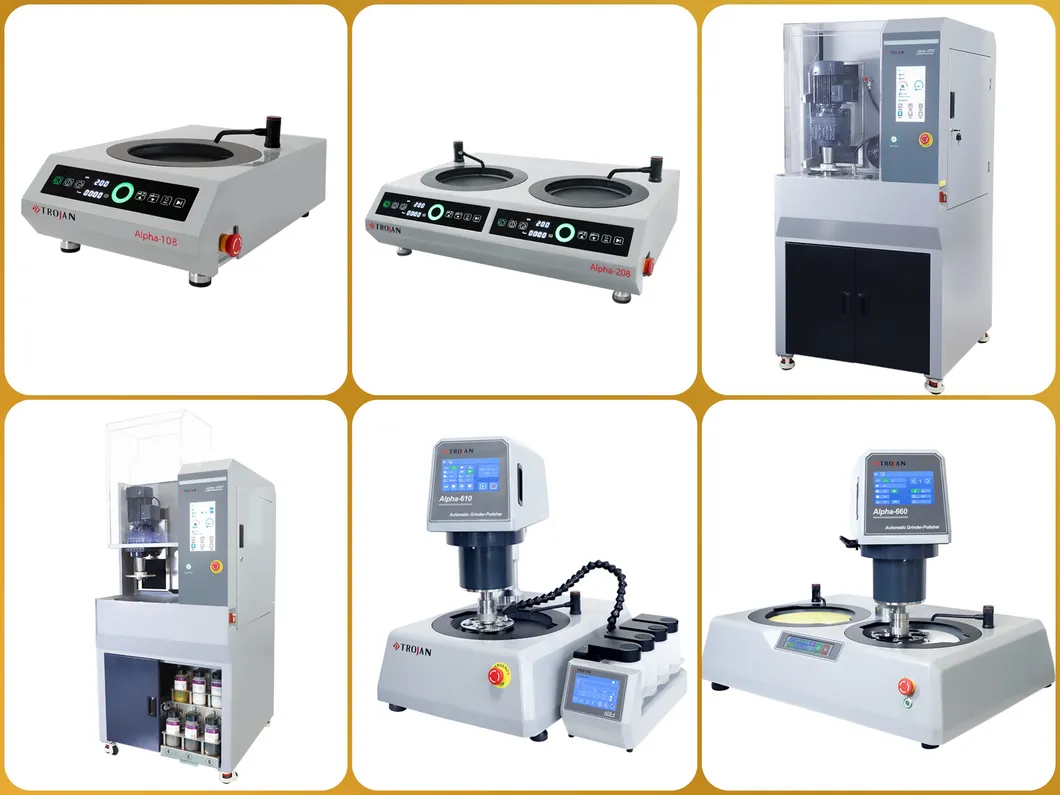

More Products
🏆

Certifications & Exhibition

Certifications Exhibition
📦

Packaging & Shipping

Shipping Case
❓

Frequently Asked Questions

I haven't used this type of machine before, is it easy to operate?
Yes. We provide comprehensive English tutorial guides and videos. We also offer support via email and online chat to ensure you can handle the equipment confidently.
What should I do if the machine encounters a problem?
Within the warranty period, we provide free replacement parts for any issues occurring under normal usage conditions.
What are the available payment terms?
We accept various terms including EXW, CIF, and FOB. Payments can be made via TT, PayPal, LC, or Western Union.
Is the machine customizable for special speed requirements?
Yes, while the standard speed is 50-600rpm, we can accommodate special requirements for speeds up to 50-1000rpm.
What kind of packaging is used for international shipping?
The equipment is securely packed in a robust wooden case to ensure maximum protection during transport.
Can the disc direction be changed?
Yes, the Alpha 210 supports both CW (Clockwise) and CCW (Counter-Clockwise) directions.
