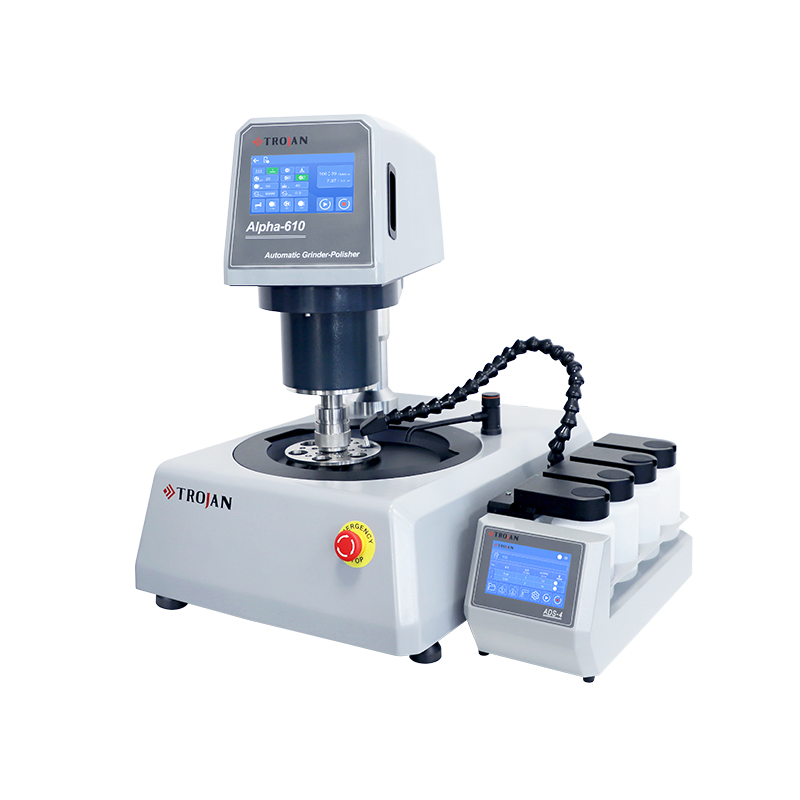

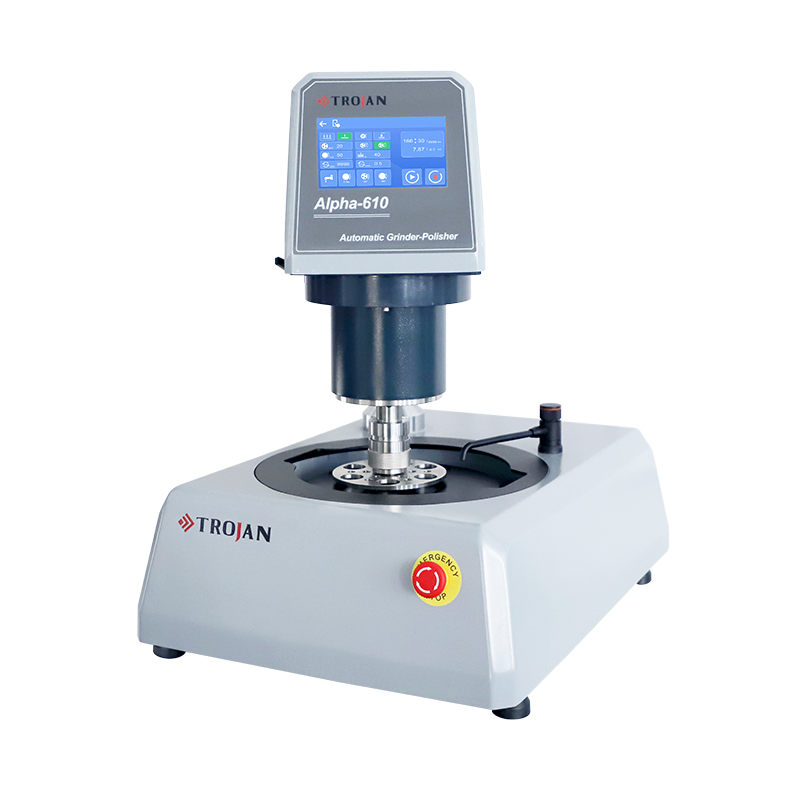

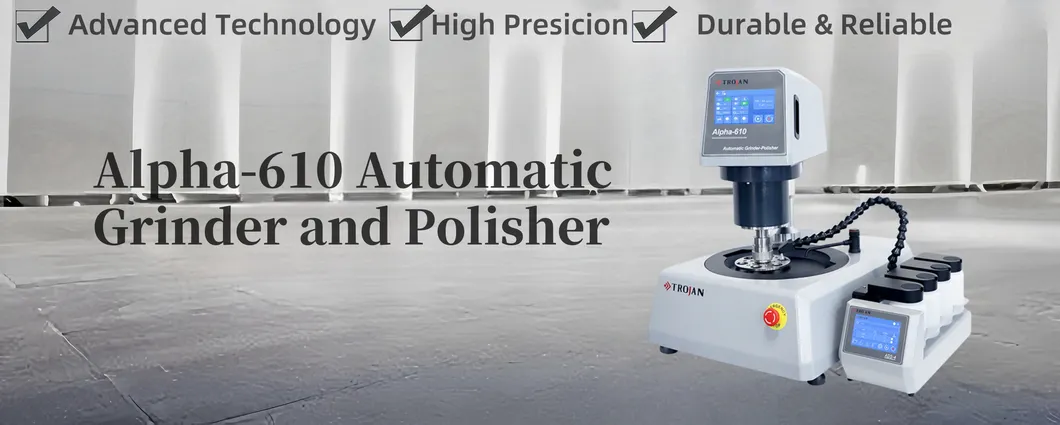

Alpha - 610 Automatic Grinder and Polisher

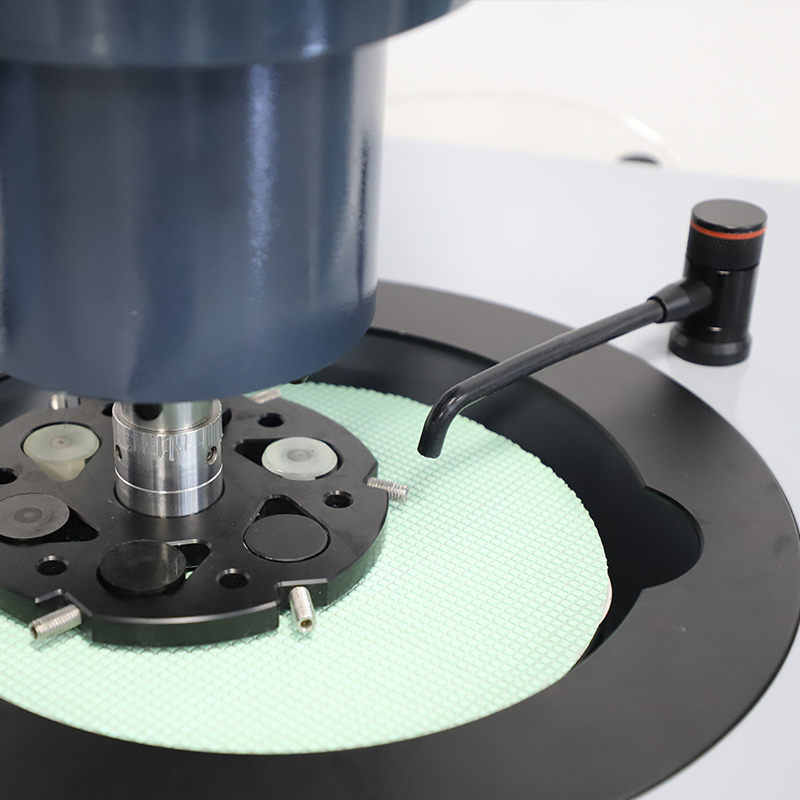

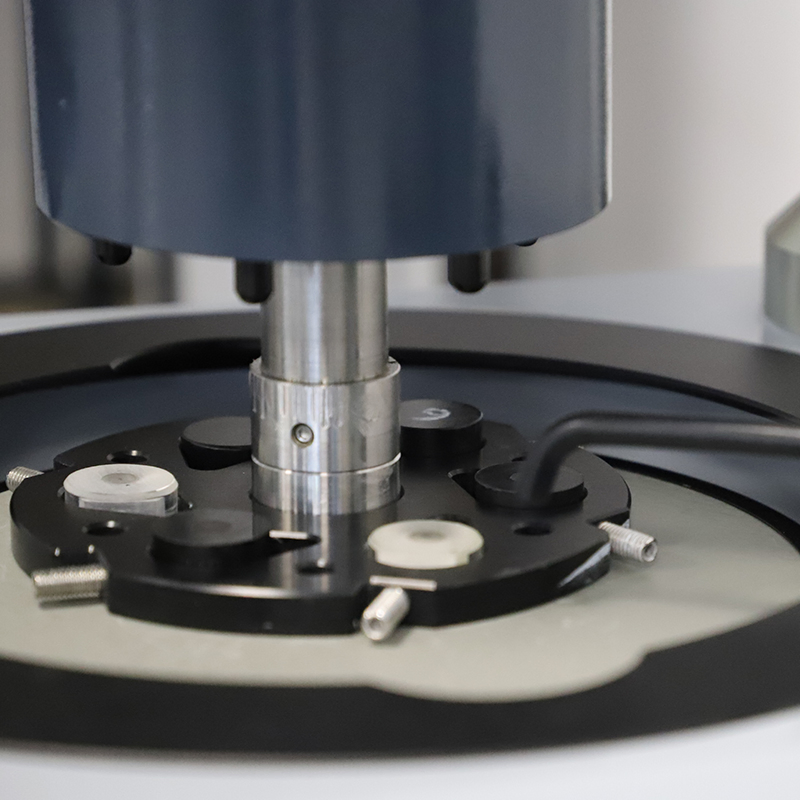

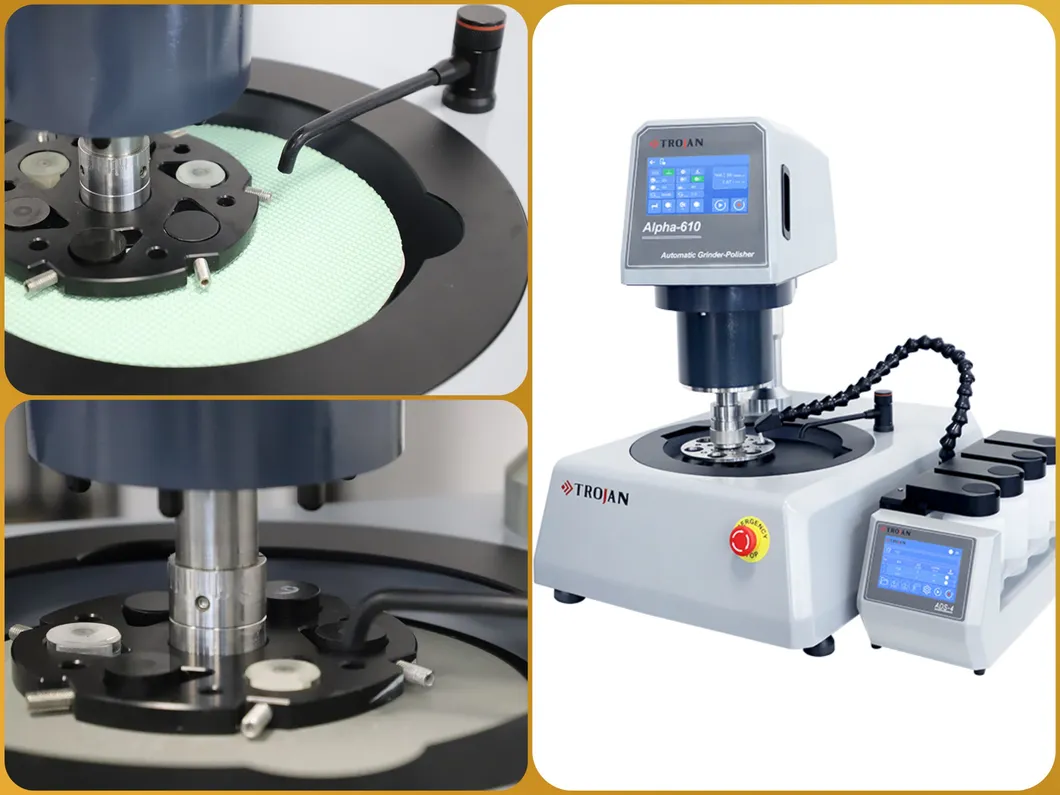

The Alpha-610 is a single platen automatic grinder polisher. The grinding head and the grinding platen are driven by two independent motors, suitable for grinding platen with a diameter of 200mm - 300mm. The machine features two types of pressurization: center loading and individual loading, and can be equipped with an optional 4-set peristaltic pump dripping system. Twenty sets of commonly used grinding processes can be set and stored in the system, enabling highly repeatable test results easily and quickly.
Cast aluminum shell and SMC standard loading cylinder for enhanced reliability and durability.

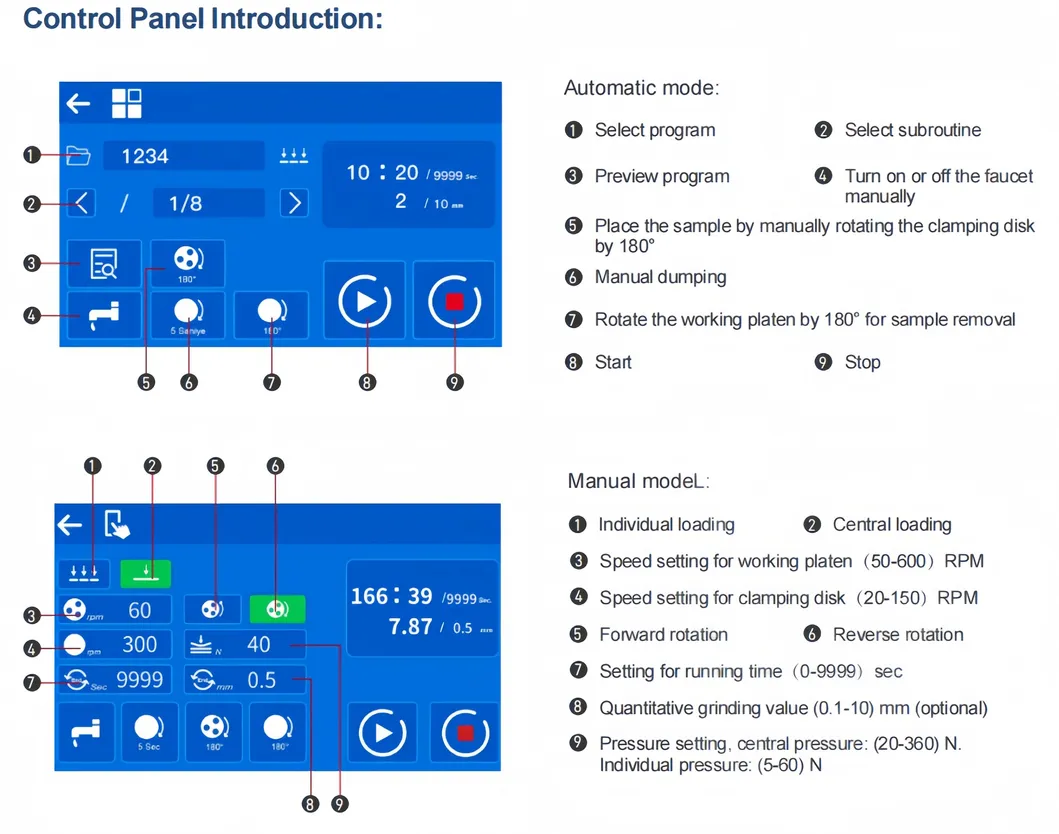

7-inch touch screen panel with a simple, easy-to-understand user interface.
Two-hand protection button to safely control the lifting and lowering of the clamping platen.
Built-in storage for 20 groups of common process parameters and user-defined settings.
Large diameter side drainage system and pluggable faucet for easy cleaning and maintenance.
Built-in automatic temperature-sensing cooling fan to extend operational lifespan.
| Parameter | Alpha-610 Details | |
|---|---|---|
| Head | Loading Force | Central loading and Individual loading |
| Central Pressure | 20-360N | |
| Individual Pressure | 5-60N | |
| Speed / Power | 20-150rpm / 750W | |
| Grinding Disc | Power | 220V, 750W |
| Speed | 50-600rpm | |
| Diameter | 254mm (8"/203mm, 12"/305mm optional) | |
| Quantitative | Accuracy / Capacity | ±0.1mm / 0.1mm-10mm |
| Dosing | Type | Peristaltic pump, DC24V, 10W |
| Max Flow | 52ml/minute (4 channels) | |
