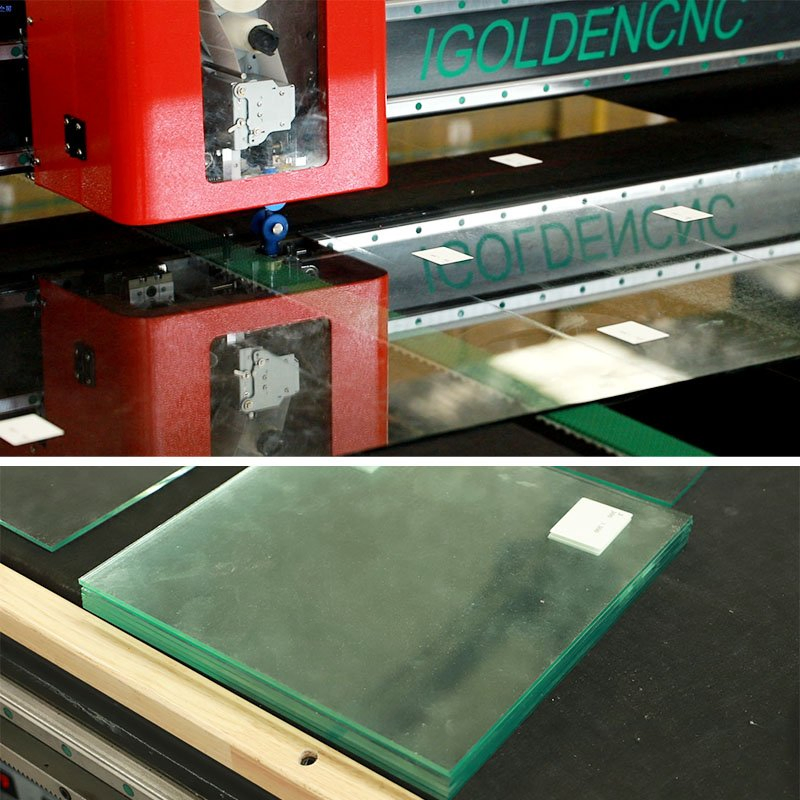

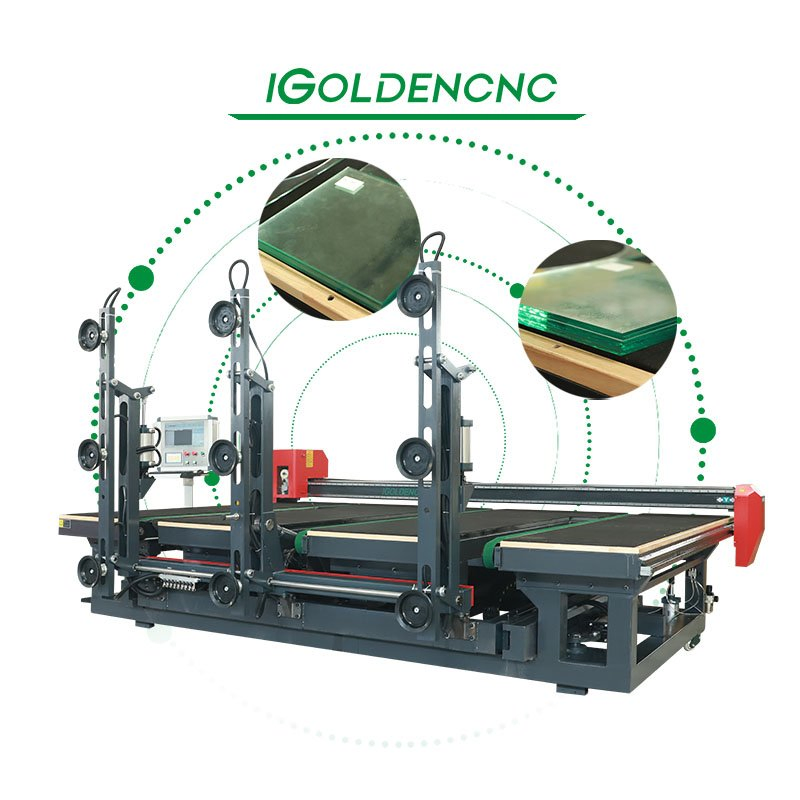

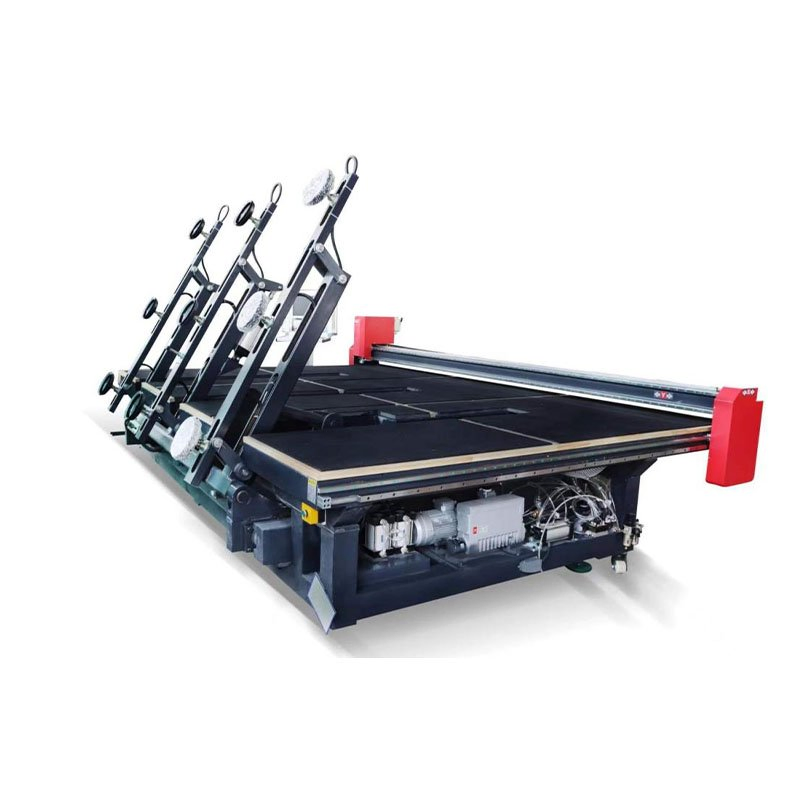

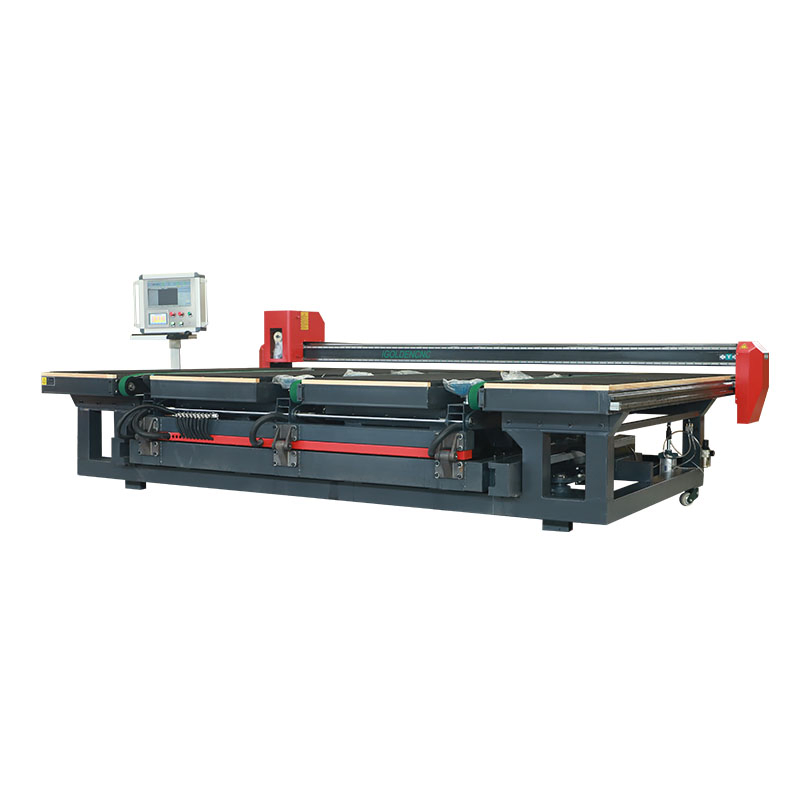

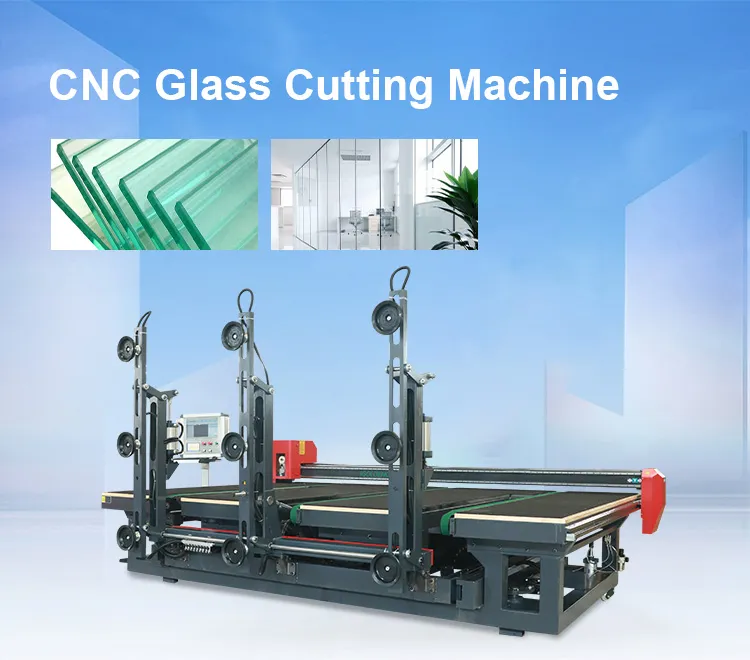

The equipment features a compact footprint with simple and safe operation, significantly saving labor costs. It can be directed via remote control for free movement within the workshop. Equipped with an advanced mechanical structure supporting optimized cutting software and high-performance servo motors, it greatly improves machine stability and glass cutting optimization rates.

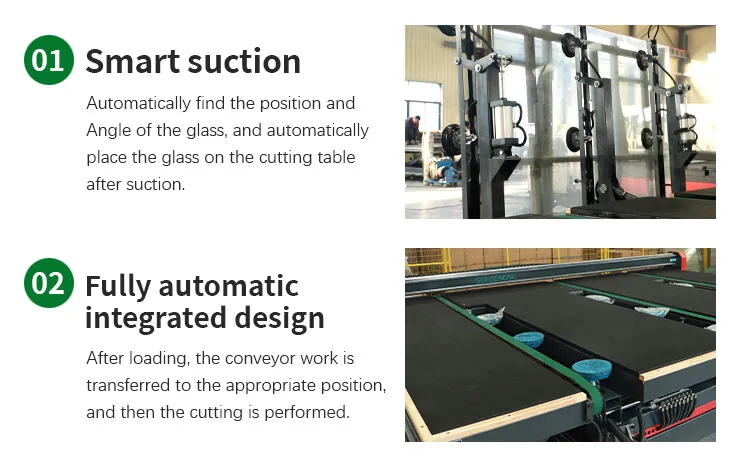

Realize automatic glass loading, automatic cutting, automatic positioning, and automatic optimization. With high production speeds and fast ROI, it is an ideal choice for small and medium-sized glass enterprises.
Applications: Suitable for architectural glass, furniture glass, craft glass, decorative glass, cabinet glass, glass mirrors, and more.

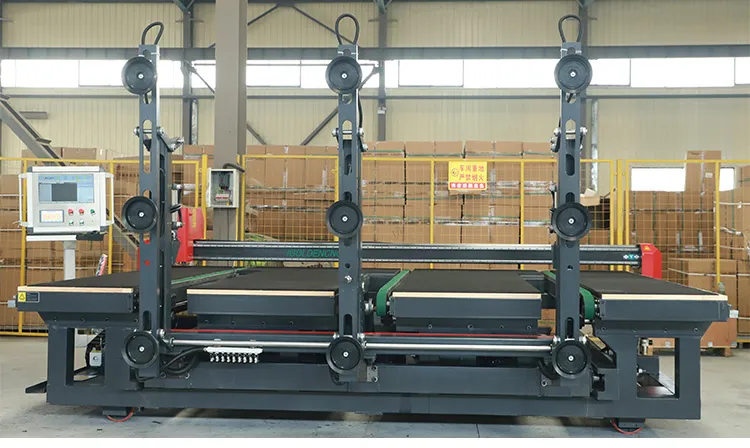

| The Upper Piece of Glass (Loading) | |
|---|---|
| Model | iGA-CA3826 |
| Max. on-chip size | 2500*3660mm |
| Sheet thickness | 3~19mm |
| Fastest cycle | 30-50 s |
| Max. suction depth | 450mm |
| Upper arms | 3 arms (per side) |
| Suckers per arm | 3 units |
| Power source | 380V/50HZ |
| Installed power | 6KW |
| Gross weight | 3.6T |

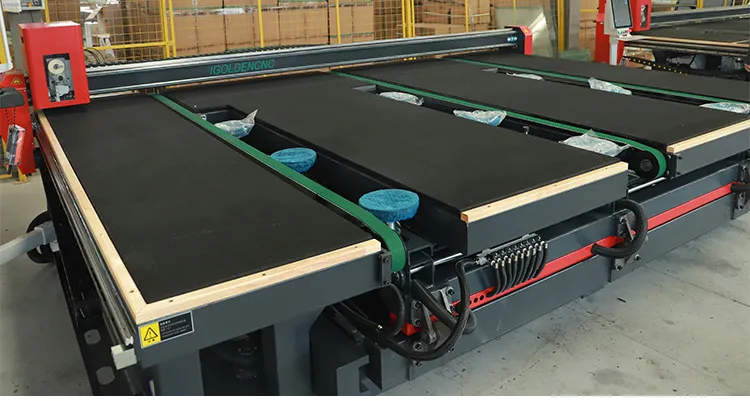

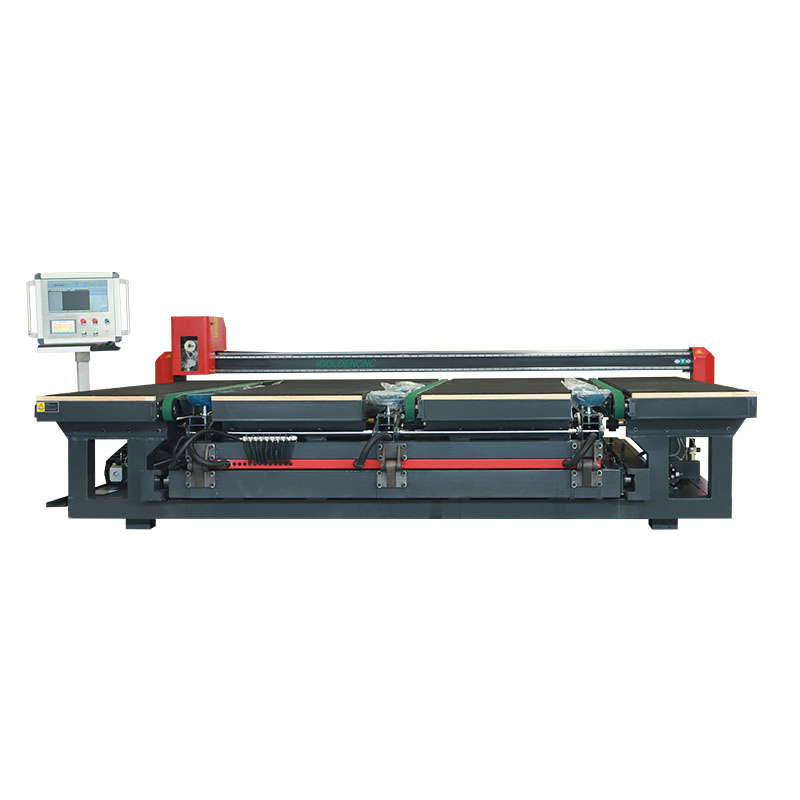

| Cutting Section | |
|---|---|
| Max. size of cut glass | 2500*3660mm |
| Table height | 900±50mm |
| Cutting thickness | 3~19mm |
| Main Configuration | |
|---|---|
| Platen | Imported waterproof/fireproof board (flatness ≤±0.020mm) |
| Rack | High precision grinding helical teeth |
| Orientation | Automatic edge patrol system |

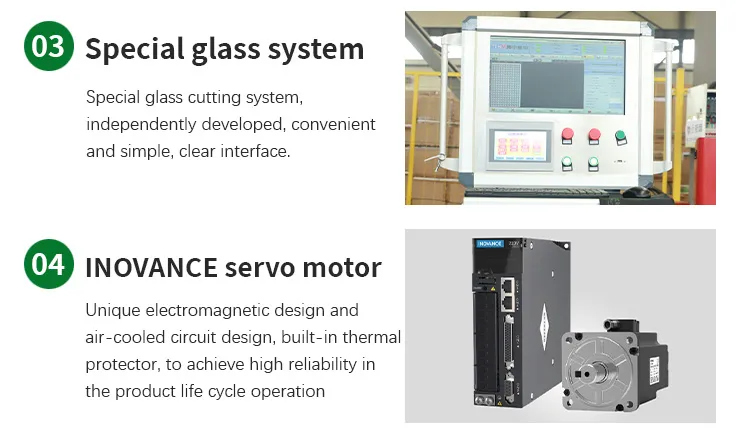

| Servo motor | INOVANCE |
| Cutting system | Professional glass cutting system |
