Metallographic Sample Grinding Polishing Machine Double Discs Alpha 210 Lab-Grade Vibratory Cutting Polishing Machine

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

i

Basic Info

Model NO.	Alpha 210	Environment	Normal Pressure/Temp
Display	Digital Display	Performance	Automatic
Power Supply	220V	Weight	0-50kg
Certification	CE	Customized	Customized
Speed	50-600rpm	Diameter	10 Inch (254mm)
Direction	CW/CCW	Torque	10N
Rated Current	8A	Panel	Tempered Glass, Touch Panel

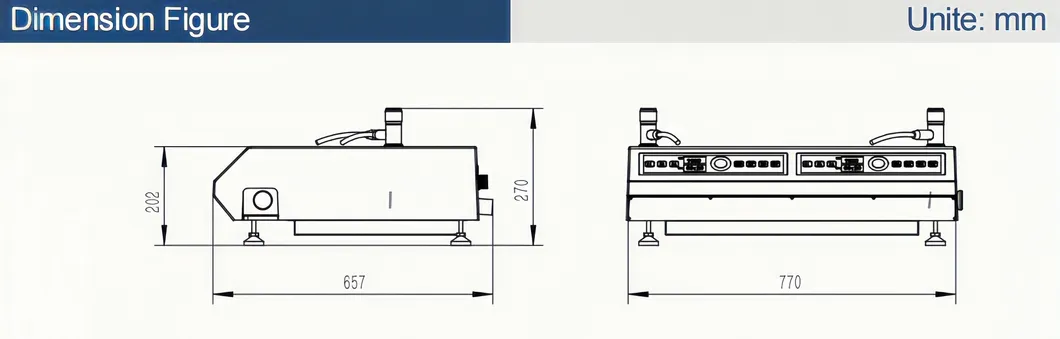

Rated Power	1500W	Specification	770X657X270mm

P

Product Description

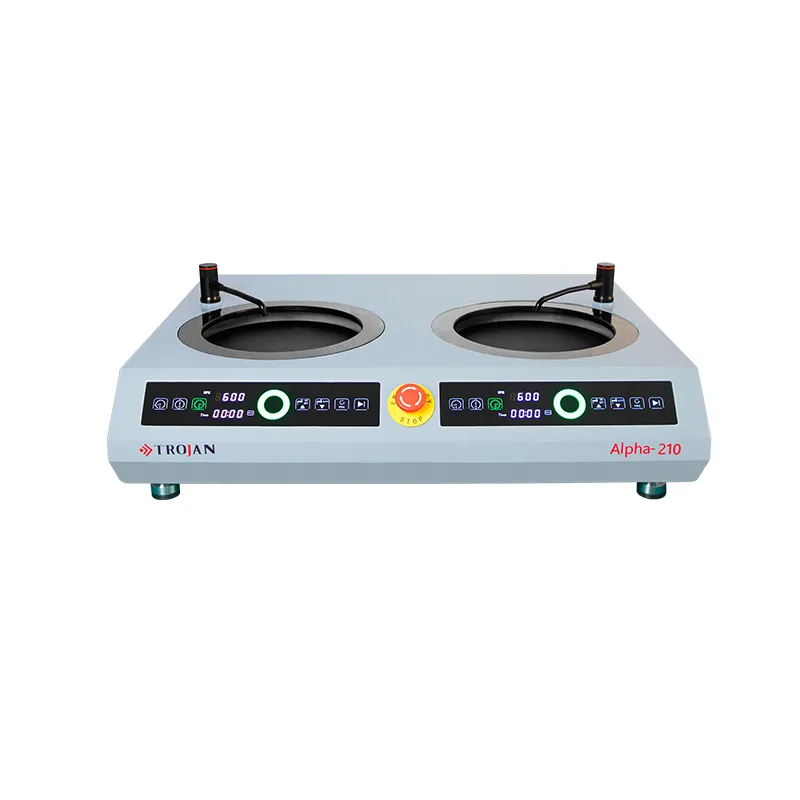

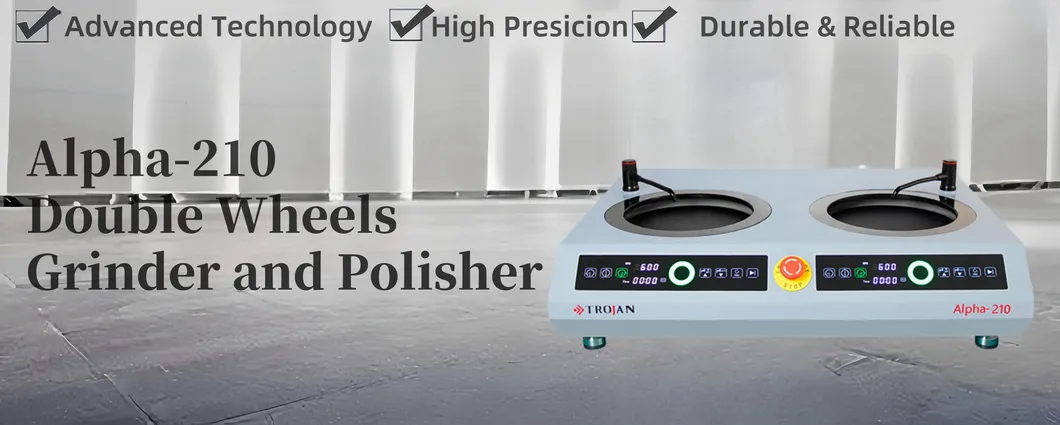

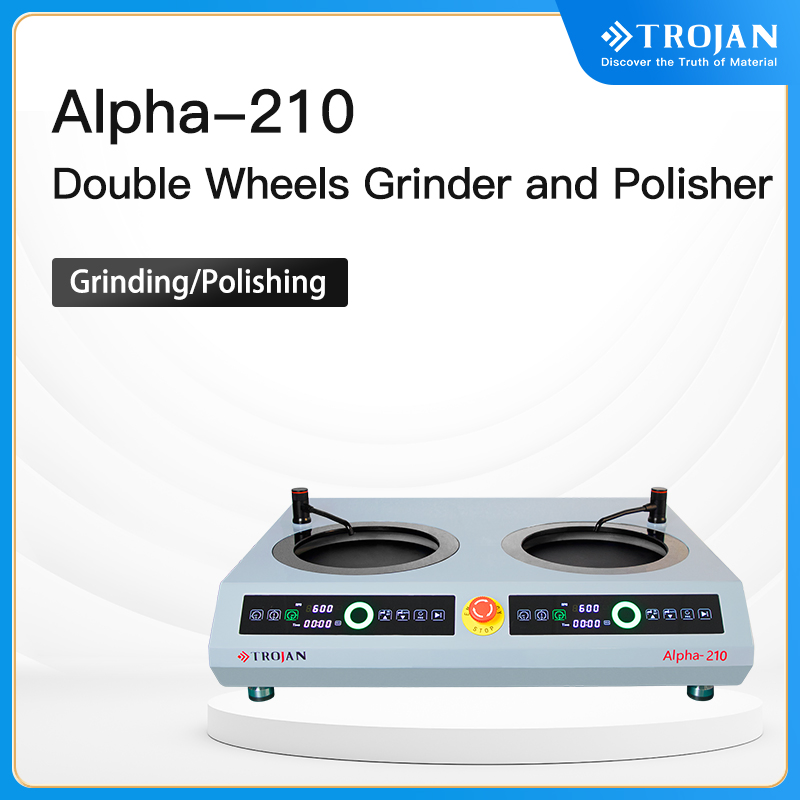

Alpha-210 Double Wheels Grinder and Polisher

Alpha-210 is a 10" (254mm) disc diameter, double disc, double control grinding and polishing machine. The machine is small in size, compact in structure and easy to operate. Adopting the popular touch panel, it is especially suitable for grinding and polishing of various specimens.

Model		Alpha-210
Blader	Diameter	10" (254mm)
	Speed	50-600rpm
	Direction	CW/CCW
	Torque	10N·m
Electrical	Voltage/Freq	220V/50Hz
	Rated Power	1500W
	Rated Current	8A

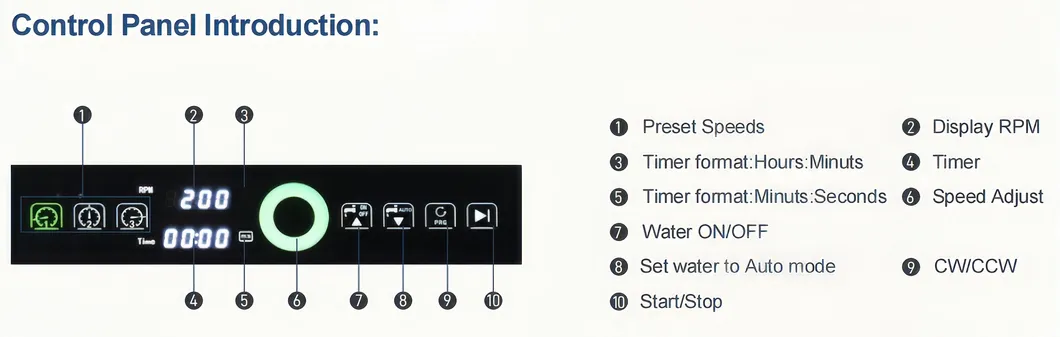

Control	Panel	Tempered glass, Touch panel
	Preset Speeds	Yes (3 Speeds)
	Timing	Yes

F

Key Features

✔ Servo motor maintains high torque even at low speed.
✔ Glass touch panel for simple and intuitive operation.
✔ Fully sealed working tray design prevents internal water leaks.
✔ Retractable faucet for convenient cleaning and washing.
✔ Tool-free disassembly of the working plate.
✔ High-strength ABS molded shell, compact and aesthetically pleasing.

R

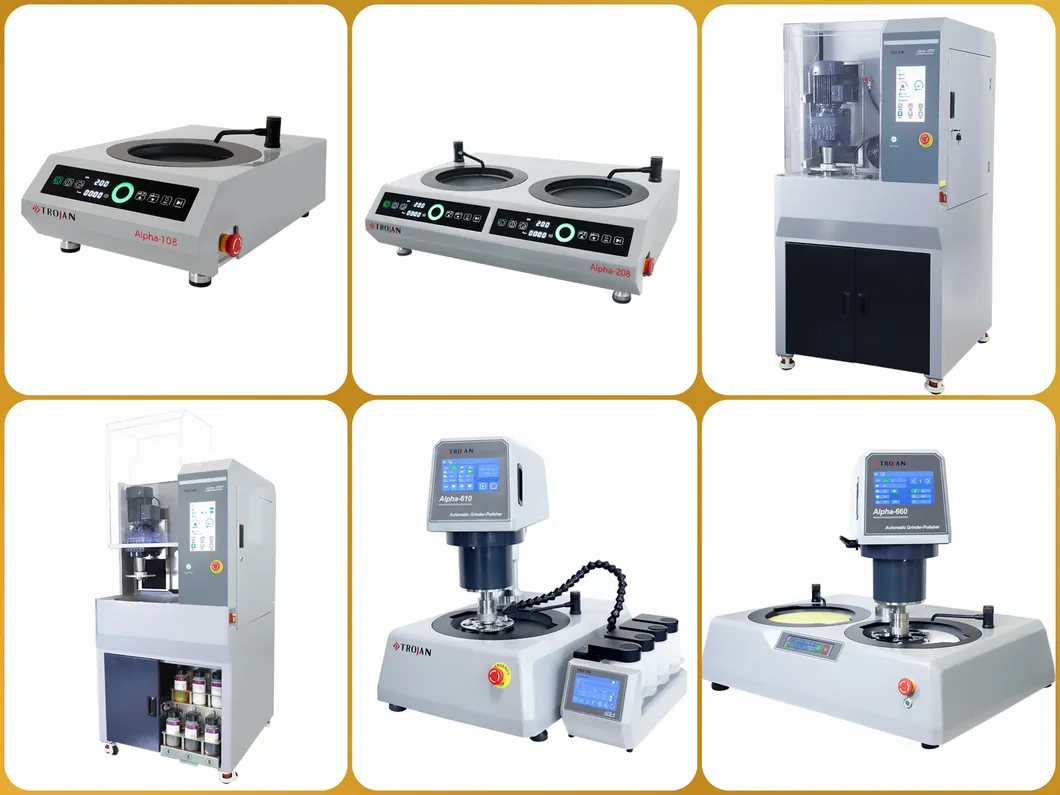

Related Products & Scope

C

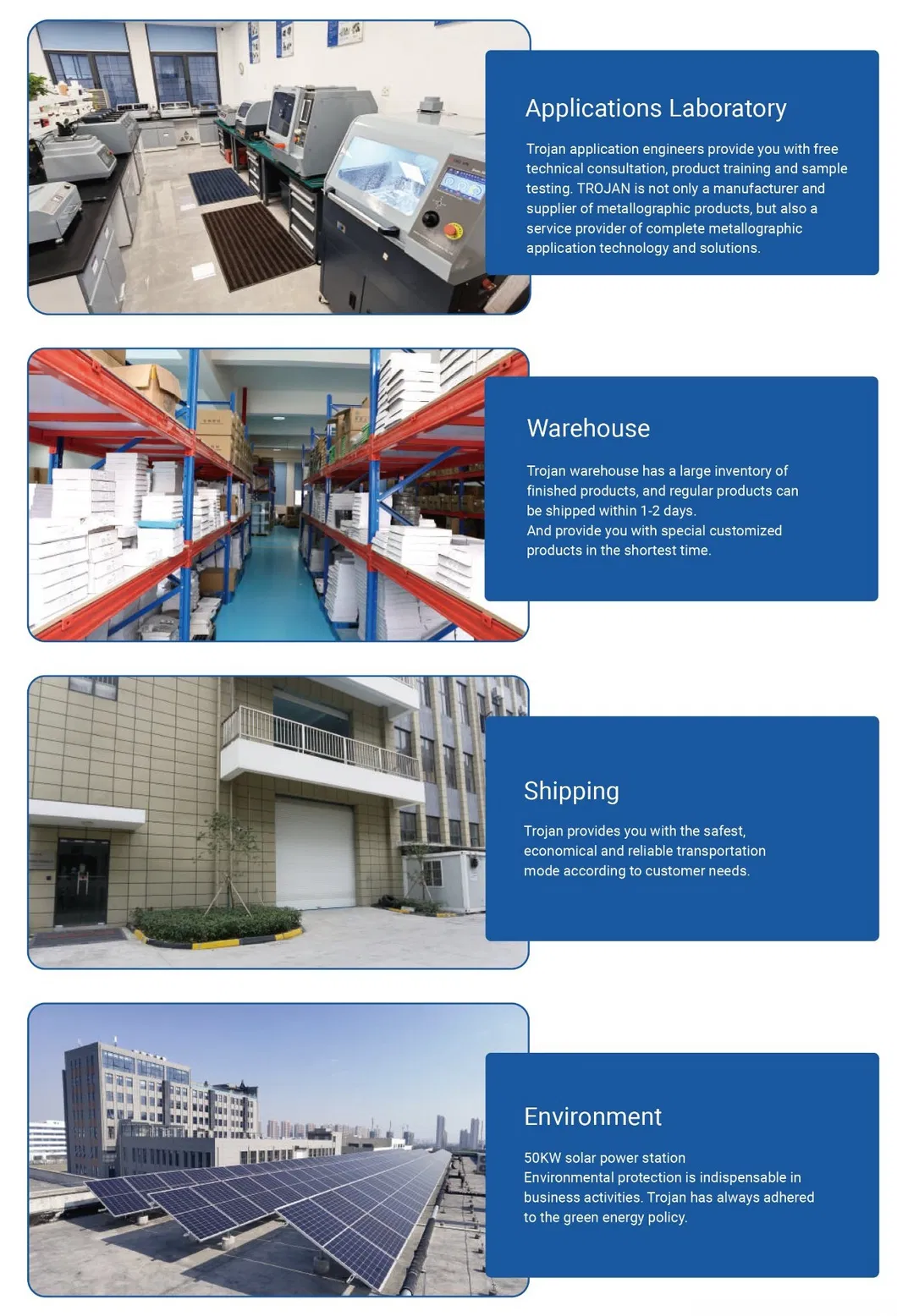

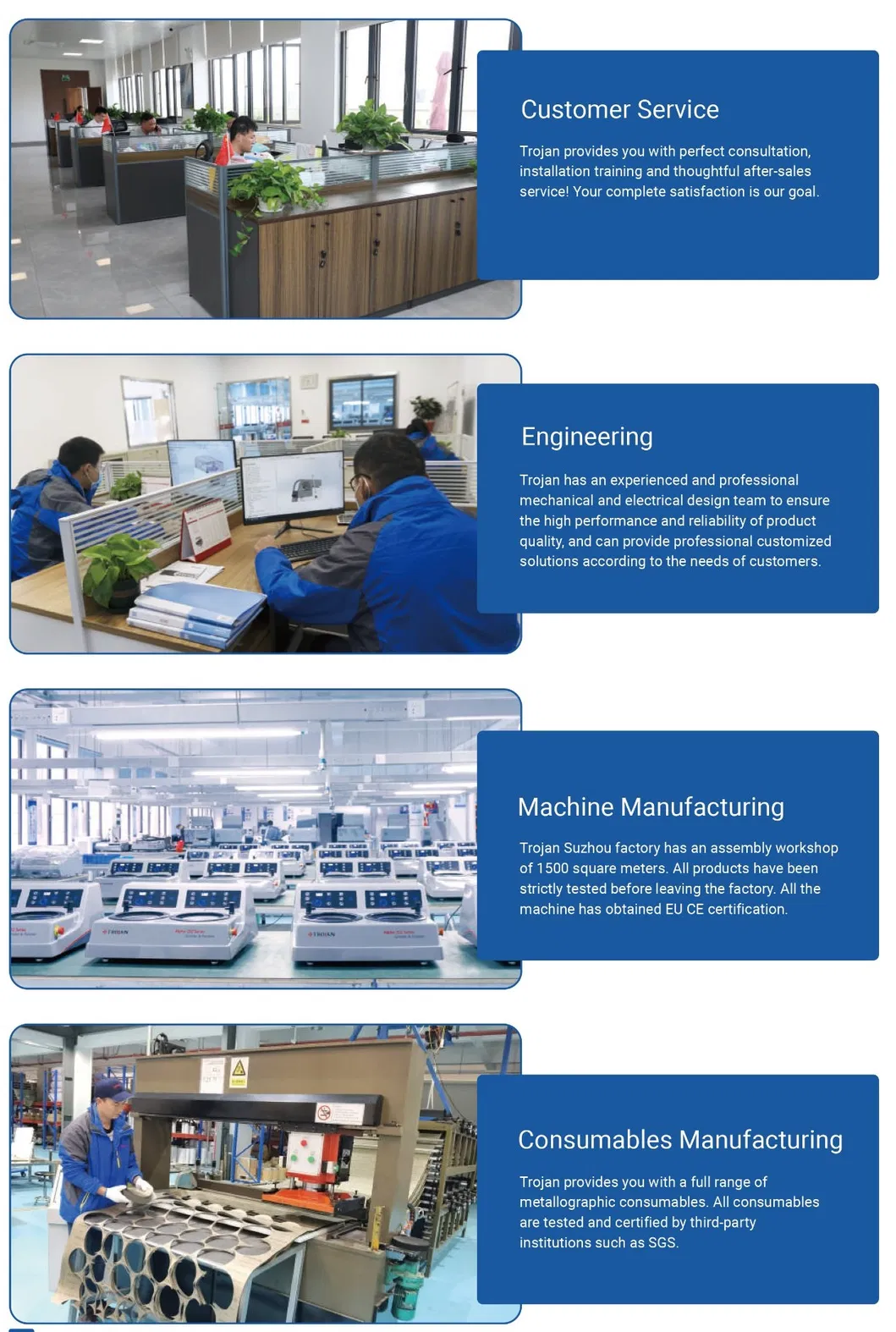

Manufacturing & Quality

S

Packaging & Shipping

?

FAQ

Is the machine easy to operate for beginners?

Yes, we provide English tutorials and guide videos. We also offer assistance via email, phone, and online chat to ensure smooth handling.

What happens if the machine has a technical problem?

Under normal use, we send free replacement parts during the warranty period to resolve any issues.

What are the available payment terms?

We accept TT, PayPal, LC, and Western Union. Delivery terms include EXW, CIF, and FOB.

What are the benefits of the servo motor in this machine?

The servo motor allows the machine to maintain high torque even at low speeds, ensuring consistent polishing quality.

Are tools required to disassemble the working plate?

No, the working plate is designed for easy disassembly without the need for any special tools.

Is the control panel durable?

Yes, the machine features a tempered glass touch panel which is both durable and easy to clean.
