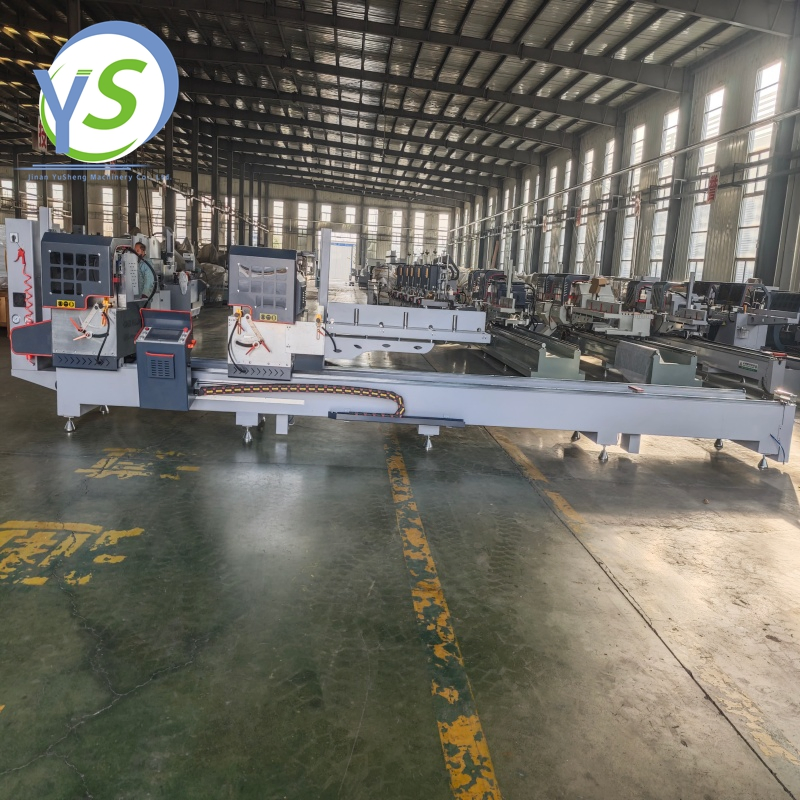

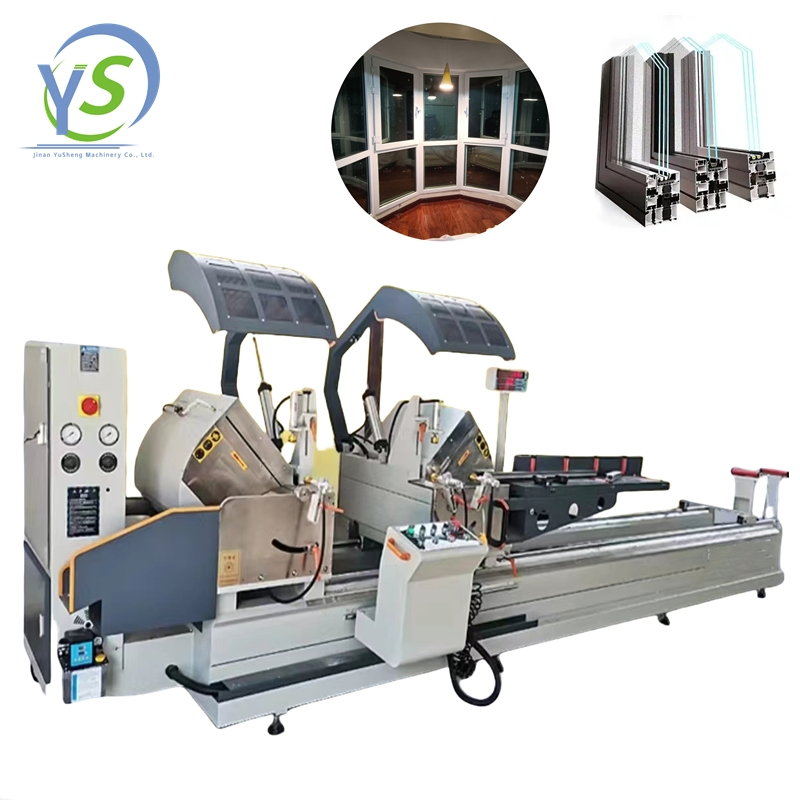

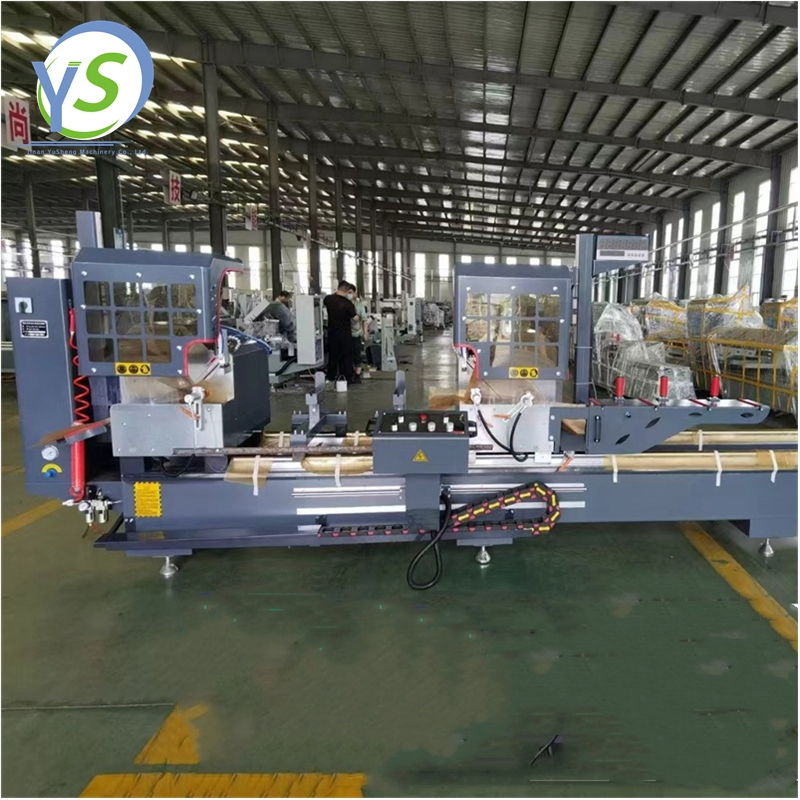

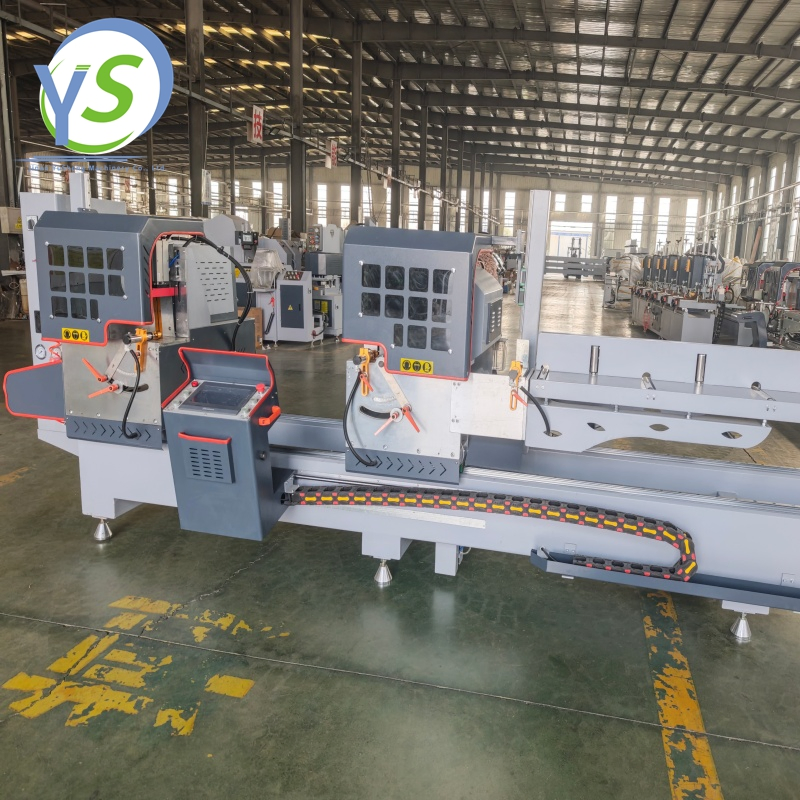

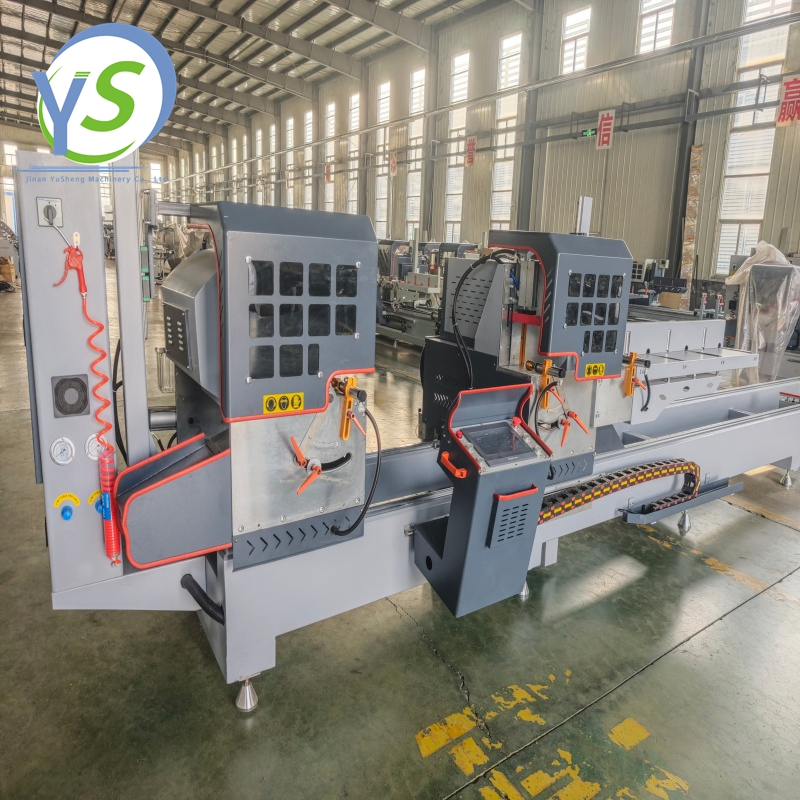

Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine
Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine
Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine
Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine
Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine
1 / 5
Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine
Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine
Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine
Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine
Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine

Aluminium Windows Doors Cutting Machine Digital Display Double Head Mitre Saw Aluminum Composite Panel Cutting Machine

Customization: Available
After-sales Service: Free Online Technical Support
Warranty: 12 Months
Send Inquiry

Product Description

📋

Basic Info.

Model NO.
LJZB-450-3700/500-4200/550-4200/600-4200
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Weight
1500kg
Cutting Width
135mm
Cutting Height
200mm
Cutting Length
Max 4200mm
Cutting Angle
90 Degree 45 Degree
Origin
China
Production Capacity
200 Piece/Month
🛠️

Product Description

Aluminium Window Door Double Head Precision Cutting Saw

Double Head Precision Cutting Saw
  • The machine can cut industrial aluminum profiles, aluminum doors and windows profiles, curtain wall profiles and PVC profiles.
  • The saw blade automatically swings into 45° and 90° angles, automatically opens and closes the protective cover for safer operation.
  • Automatic head rotation, bidirectional positioning, and clamping. Single head can work independently. Multiple profile dimensions can be input for continuous cutting.
  • Saw blade moves from back to front, ensuring safety and reliability with large cutting height and width capabilities.
  • Equipped with high-quality special carbide saw blades for high processing precision.
  • CNC transmission adopts high standard rack and pinion for accurate positioning and smooth operation.
  • High precision spindle ensures stable rotation and improves workpiece surface quality.
  • Gas-liquid damping cylinder achieves uniform feed speed regulation.
  • Includes a micro spray cooling device for enhanced performance.
📸

Detailed Photos

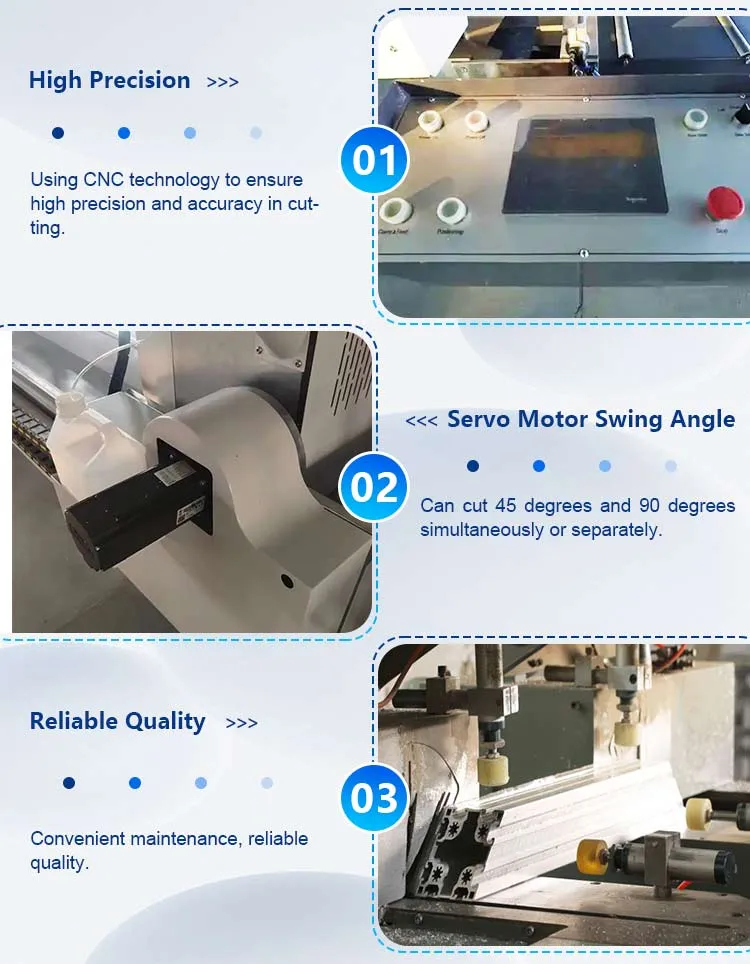

Detailed View 1
📊

Product Parameters

Parameter Specification
ModelLJZB-500*4200
Power380V 50HZ (customizable)
Saw head motor2×2.2KW
Working pressure0.6 ~ 0.8mpa
Air consumption60L/min
Saw lengthMax 4200mm / Min 380mm
Saw widthMax 135mm
Maximum cutting slope135*200mm
Sawing Angle90°, 45°
Feed speedStepless speed regulation 0-3m/min
Saw blade specificationsφ500×4.4×φ30×Z120
Dimensions5800×1800×1500 mm
Weight1800 kg
Cutting precision≤ 0.01mm
🔄

Processing Flow Chart

Flow Chart 1

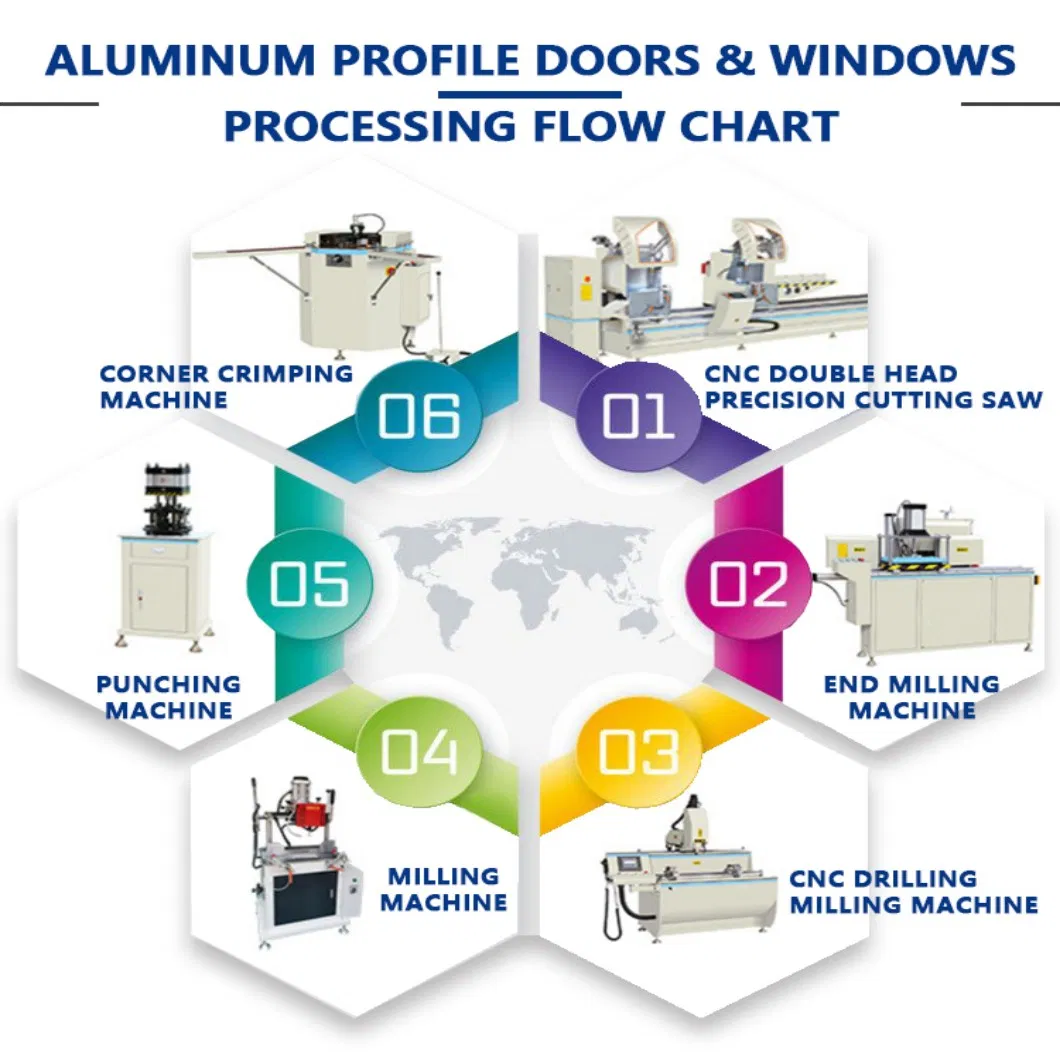

Flow Chart 2
🏢

Company Profile

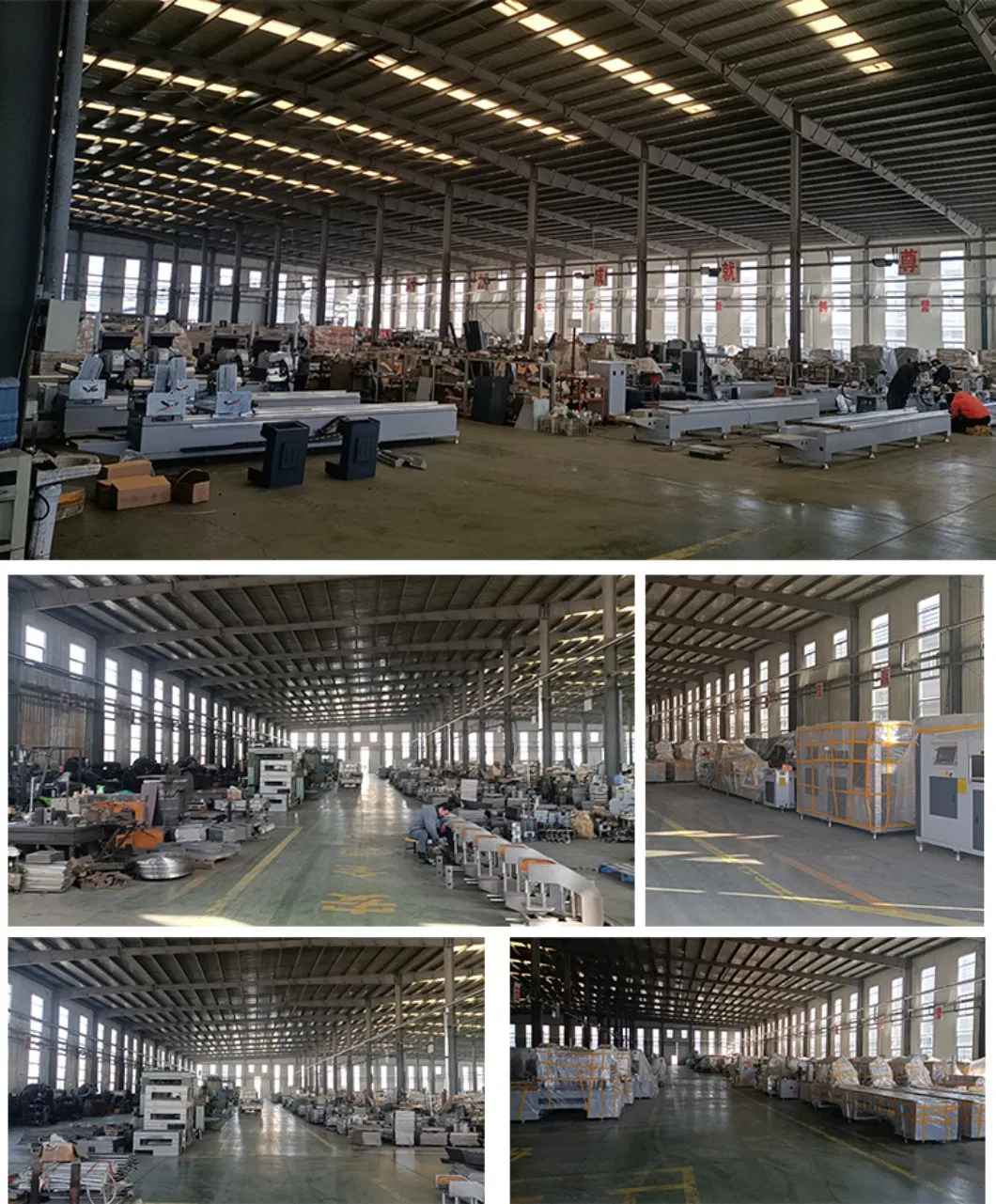

Workshop 1

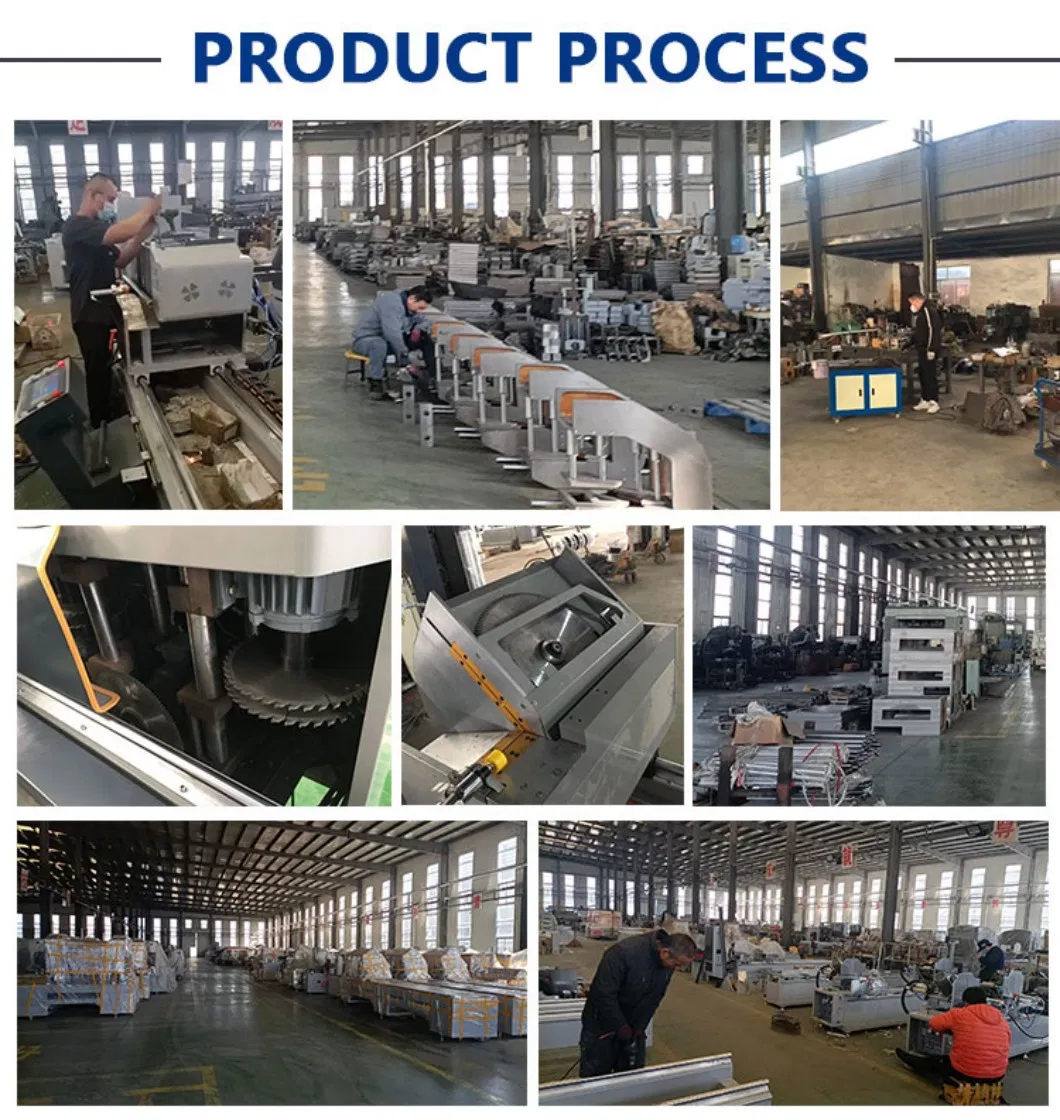

Workshop 2
Dedicated to the cutting-edge technology of aluminum profiles, doors, windows, and curtain wall processing equipment. Our team consists of experienced experts in the industry, supported by a large-scale mechanical processing workshop. We are a high-tech enterprise integrating research, production, and service, providing complete assembly equipment for industrial aluminum profiles, rail transit, aerospace, and household appliances. We specialize in customizing high-grade products to meet specific customer requirements, ensuring energy efficiency and precision.
🏆

Certifications & Our Clients

Certificates
Clients 1
Clients 2
❓

FAQ

Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of factory experience. By manufacturing our own machines, we ensure trusted quality and superior after-sales service.
Can the machine voltage be customized?
Yes, the voltage can be fully customized according to the specific requirements of our clients' regions.
What is the typical delivery time?
Standard machines usually take 7-10 days. For non-standard or customized machines, the delivery time ranges from 15 to 30 days depending on the requirements.
How do you handle after-sales service and communication?
We provide comprehensive support including installation and operation guidance. Our engineers are fluent in English and have years of experience with CNC machinery to solve problems quickly via email or video.
What documents are provided after shipment?
After shipment, we send all original documents via courier, including the Packing List, Commercial Invoice, Bill of Lading (B/L), and other certificates required for your region.
What is the warranty period for the machinery?
We offer a 1-year complete warranty from the date of commissioning and provide life-time maintenance services to ensure long-term functionality.
