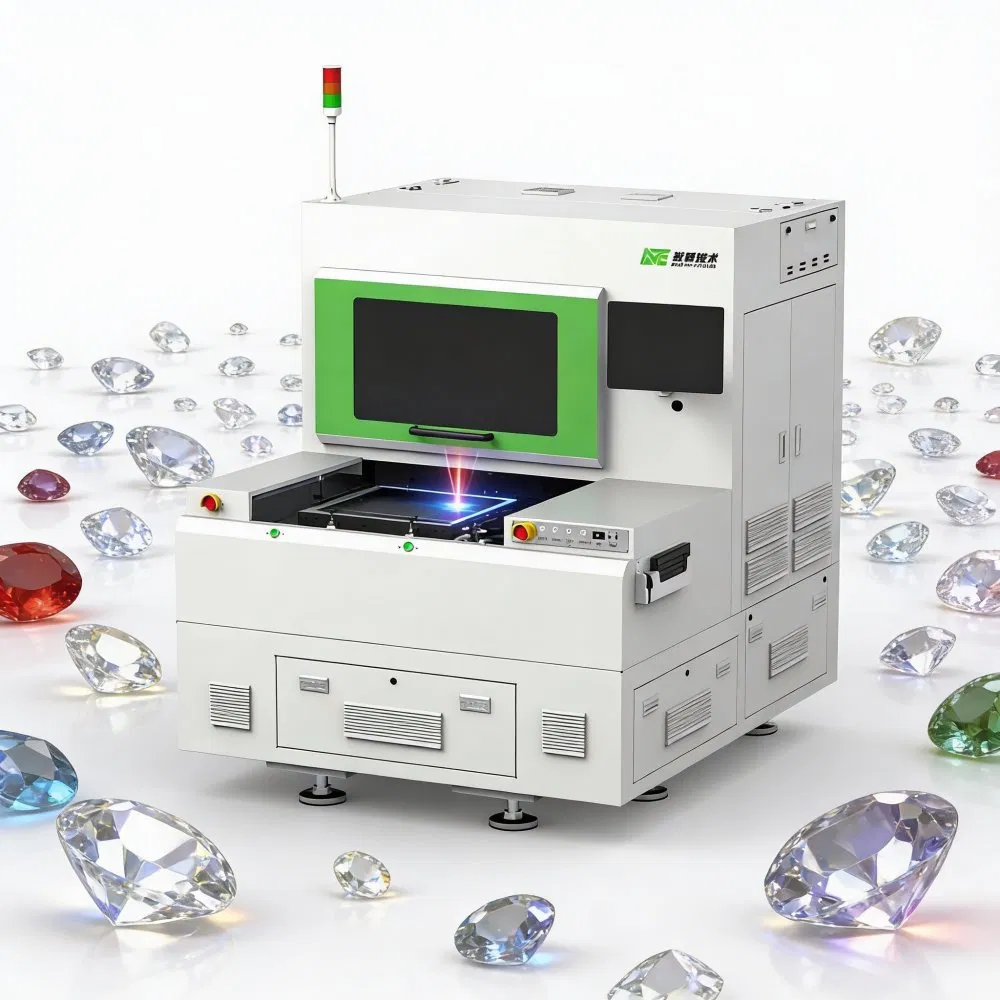

High Efficiency Automated Dual Head Gemstone Processing Laser Diamond Cutting Equipment

Basic Specifications

Application

Home Appliance, Aerospace, Automotive, Zirconia/Ruby

Cooling System

Water Cooling

Technical Class

Pulse Laser

Material

Nonmetal

Structure

Gantry Type

Laser Type

Solid Ultrafast Laser

OEM/ODM

Accepted

Certificate

CE, ISO9001

Machine Size

1600*1900*2000mm

Capacity

100 sets/Month

Product Description

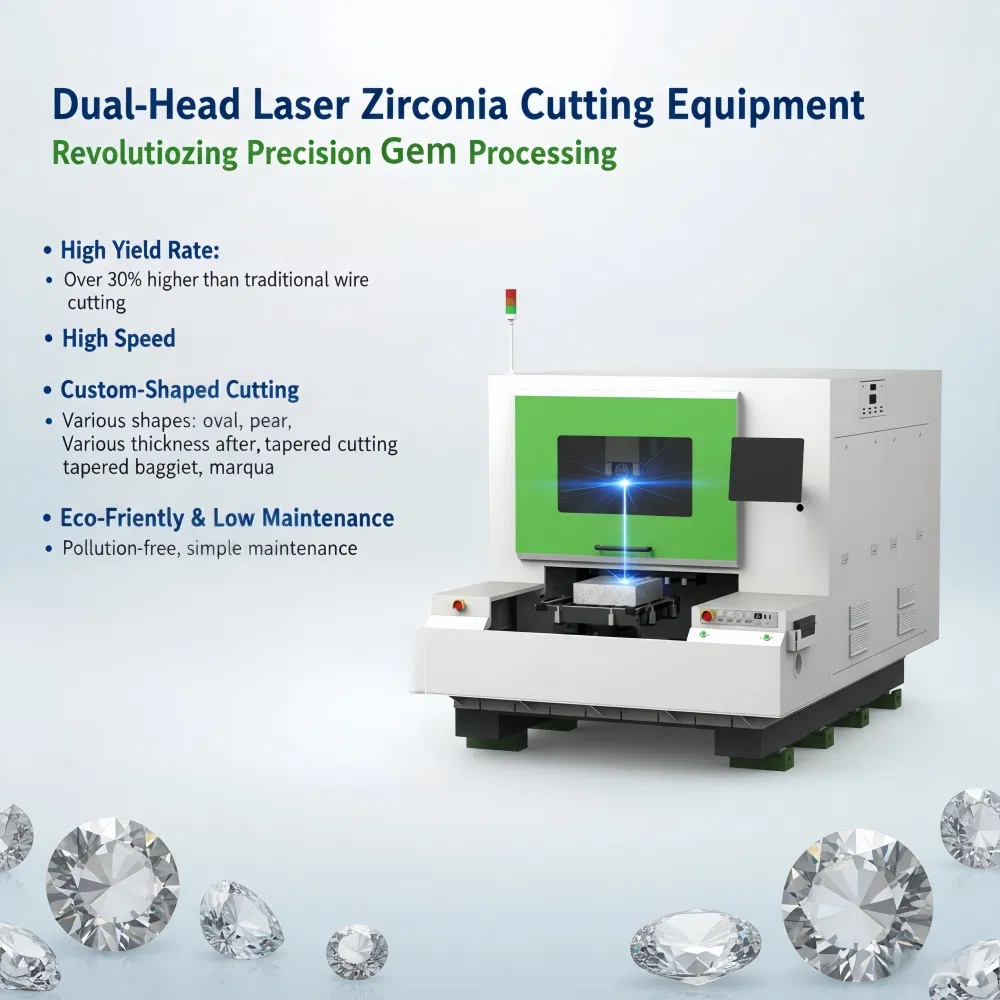

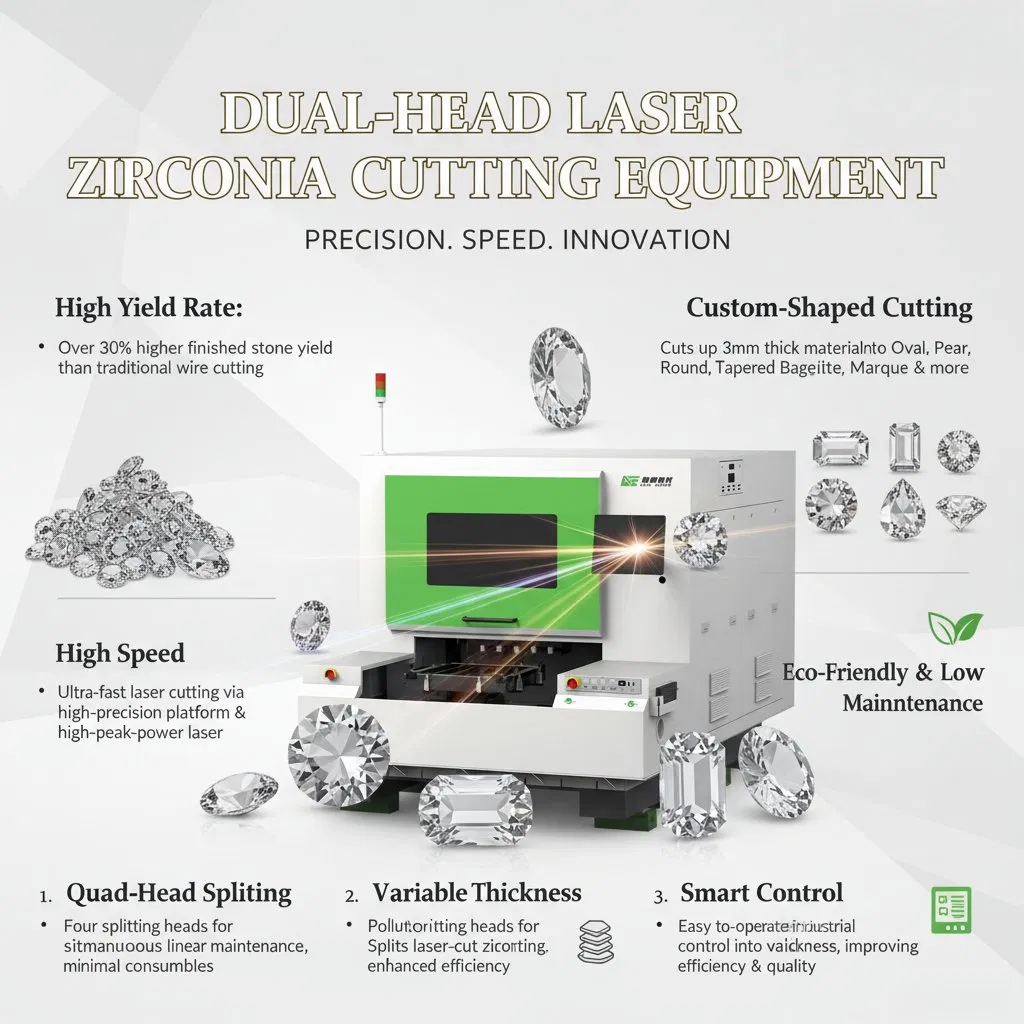

High Efficiency Automated Dual Head Gemstone Processing Laser Cutting Equipment

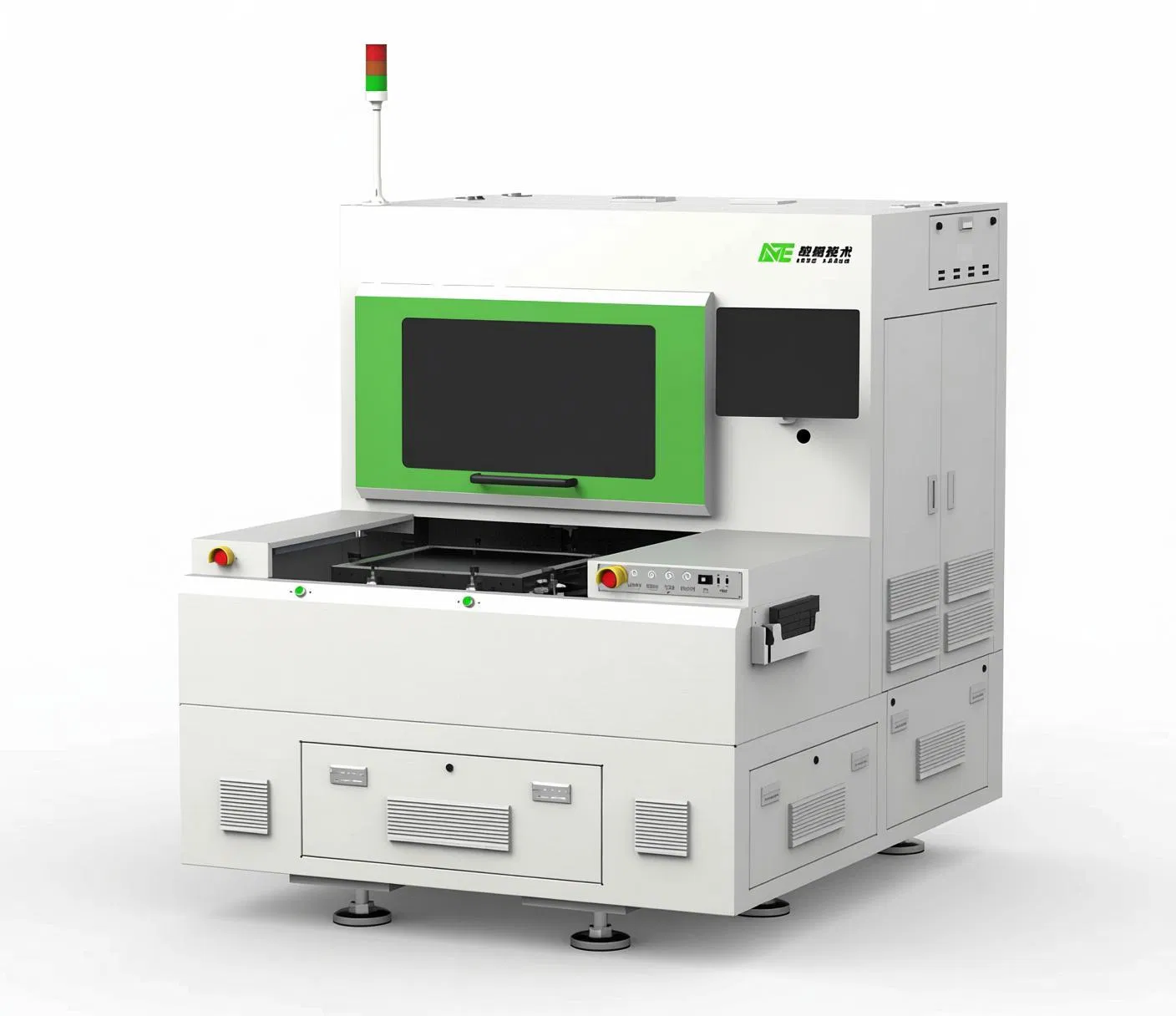

Elevate your gemstone processing capabilities with the YT-2-353, a state-of-the-art dual-head laser cutting system designed specifically for zirconia and synthetic stones. Engineered to replace traditional wire cutting, this equipment combines ultra-fast picosecond laser technology with an intelligent splitting system, delivering unparalleled speed, precision, and material yield.

Our Advantages

High Yield Rate: Finished stone yield rate is over 30% higher than traditional wire cutting.
High Speed: High-precision motion platform combined with high-peak-power laser for ultra-fast zirconia cutting.
Custom-Shaped Cutting: Support for shapes including oval, pear, round, tapered baguette, and marquise up to 3mm thickness.
Eco-Friendly & Low Maintenance: Pollution-free process with minimal consumable usage.
Advanced Efficiency: Four splitting heads performing simultaneous linear splitting.

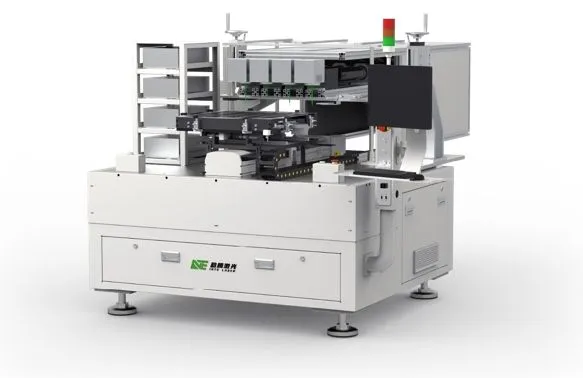

Features an easy-to-operate industrial control software platform, significantly improving processing quality and efficiency for various stone thicknesses.

Technical Parameters

Laser Type	Infrared Sub-picosecond Laser
Processing Area	600mm x 600mm (Customizable)
Machine Dimensions	1650mm x 1950mm x 2000mm
Processing Accuracy	± 0.02mm
Total Power Consumption	6.5 KW
Machine Weight	3500 KG
Working Voltage	AC380V
Environment	Temp: 22°C ± 2°C; Humidity: 30%~60%

Main Applications

1Synthetic Gemstone Manufacturing

High-volume cutting of Cubic Zirconia (CZ), Moissanite, and more.

2Custom Jewelry Design

Rapid prototyping and production of unique and complex gem shapes.

3Industrial Ceramics

Precise cutting of brittle hard materials for industrial applications.

Packaging & Logistics

Packing: 1 PCS per Robust Wooden Case

Shipping: Recommended by sea due to heavy weight. International express available for urgent requirements.

Delivery: Standard goods 30-45 days; Customized solutions 45-60 days.

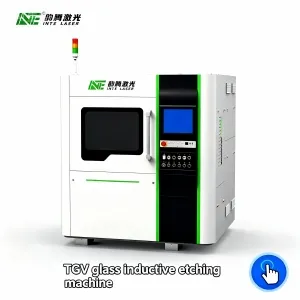

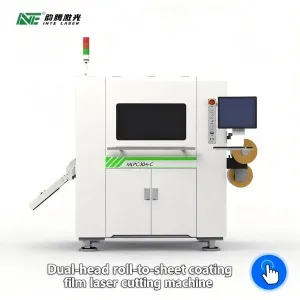

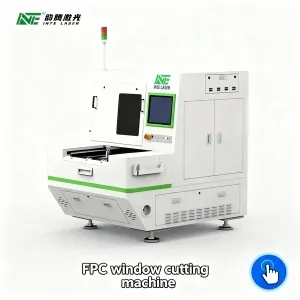

More Equipment Recommendations

Frequently Asked Questions

Q1: What are the advantages of the dual-head system?

The dual-head design maximizes efficiency by enabling simultaneous processing, effectively doubling production capacity for gemstones like Cubic Zirconia compared to single-head machines.

Q2: Does the laser cause micro-cracks on gemstone edges?

No. Our equipment uses ultrafast "cold ablation" technology which minimizes thermal impact, ensuring smooth, chip-free edges and reducing the need for post-polishing.

Q3: How is precision maintained during mass production?

The system includes a high-precision CCD vision positioning system that automatically identifies contours and edges, achieving repeatability accuracy of ±0.01mm.

Q4: Can the software handle complex patterns?

Yes. The software supports DXF, PLT, and AI formats. It is optimized for complex patterns and irregular shapes common in jewelry design with a user-friendly interface.

Q5: What is the lifespan of the laser source?

We use industry-leading laser sources with a typical lifespan of 20,000 to 50,000 hours. Maintenance is minimal, and we provide full diagnostic support.

Q6: Do you offer sample cutting tests?

Absolutely. You can send your raw gemstone materials to us, and our engineering team will conduct a free cutting test and provide video results for your evaluation.
