Customization: Available
Certification: CE, ISO, TUV
Control System: PLC
Send Inquiry

Product Description

Basic Specifications

Model NO.HPJ-DW2536
Product NameEquipment for Insulating Glass
Glass Thickness3-19 mm
Max. Glass Size2500*1800mm
Min. Glass Size500*300mm
Power Supply380V 50Hz / 32kw
Working Speed2-45m/Min
Washing Speed2-12m/Min
Dimensions18550*3000*2900mm
Weight5500kg
Warranty1 Year

Product Description

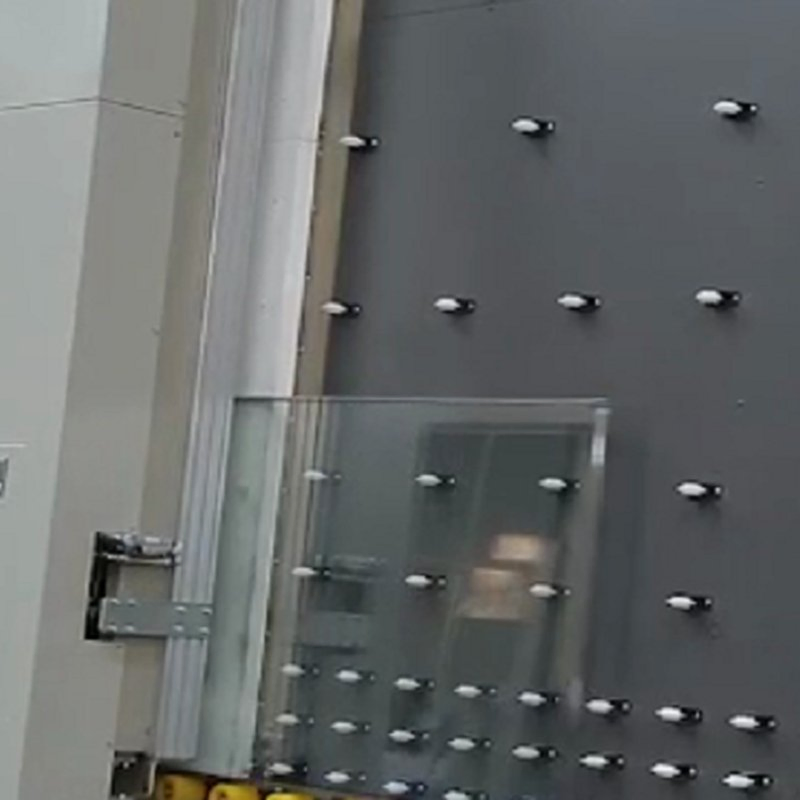

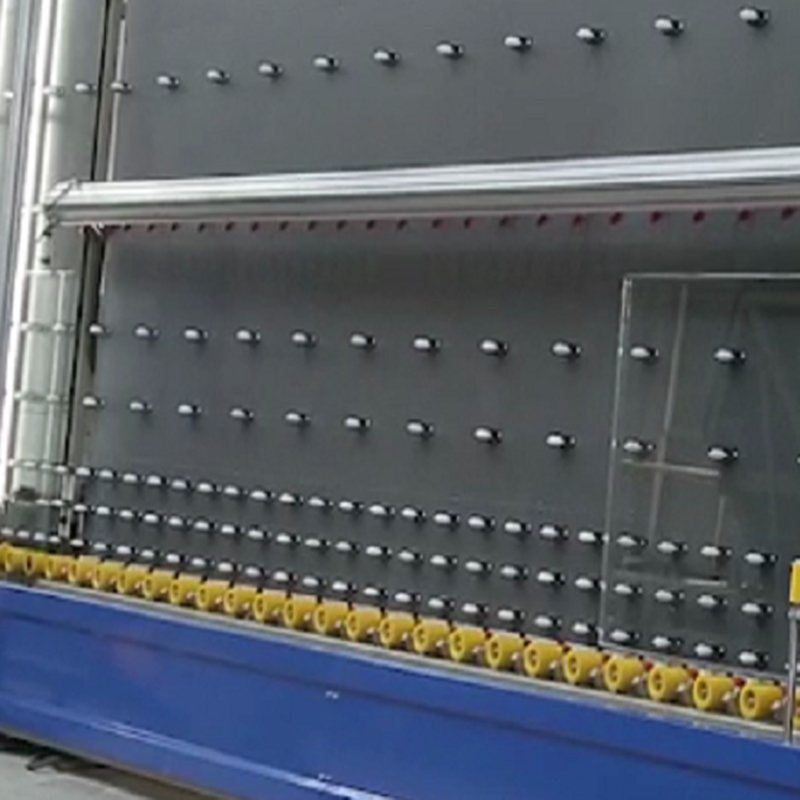

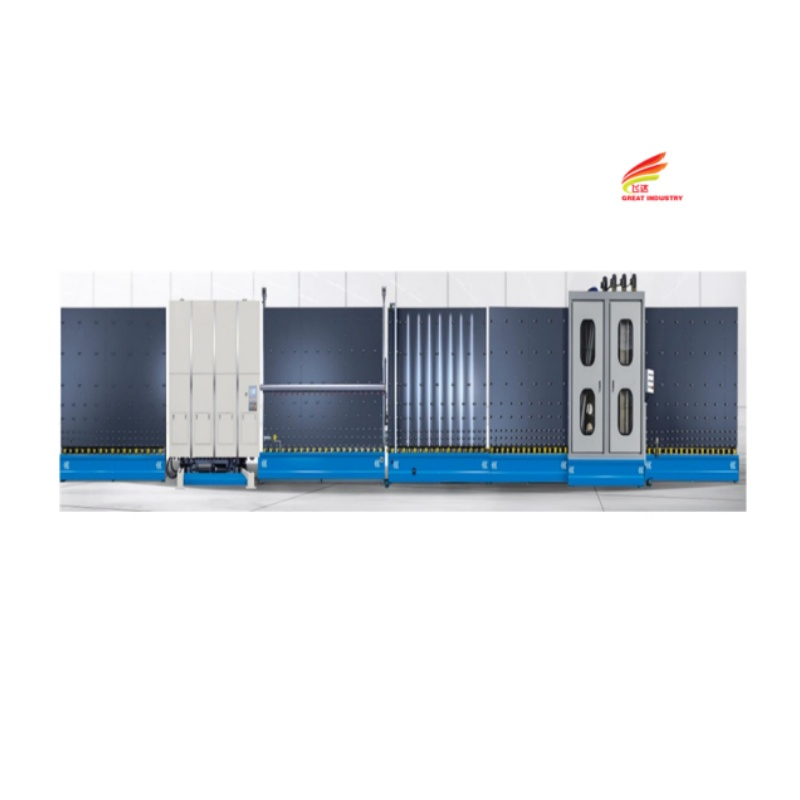

Insulating Glass Production Line

Double glazing glass production vertical glass washing equipments for high-efficiency insulating glass processing.

Performances and Features

  • Equipped with inside and outside assembly function for powerful performance.

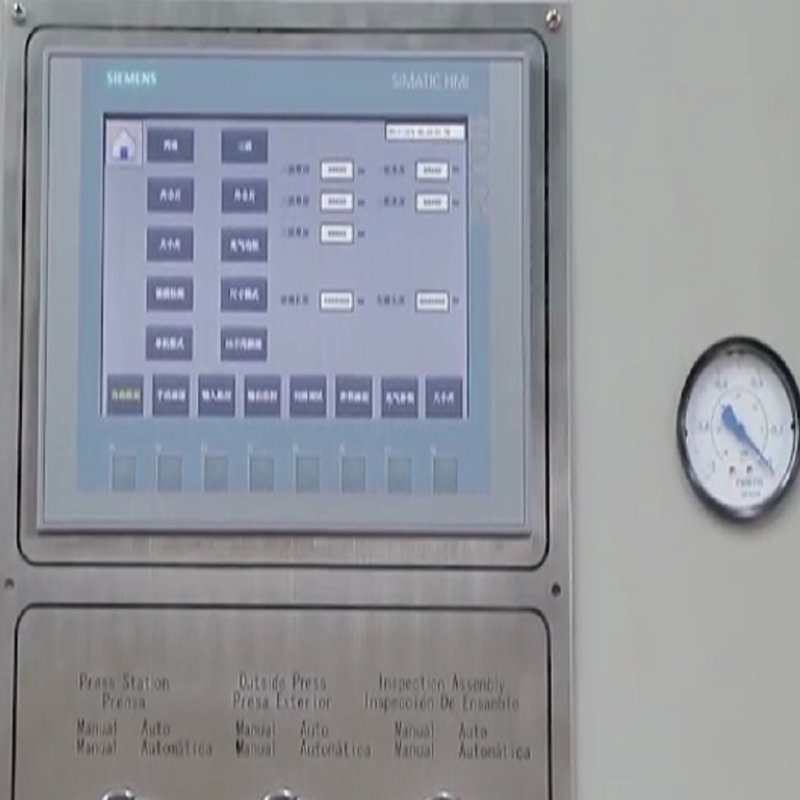

  • Siemens PLC control system with HMI touch screen for manual and automatic control.
  • Automatic identification of coated glass and Low-E glass types.
  • Self-adjusting air knife according to the specific glass thickness.
  • Third conveyor pre-stores glass to significantly improve production efficiency.
  • Dual panel pressing drive options: Servo or Hydraulic (optional).
  • Versatile application: Suitable for double glass, triple glass, step glass, and shaped glass.

Detailed Visuals

Company Overview
Machine Detail 1

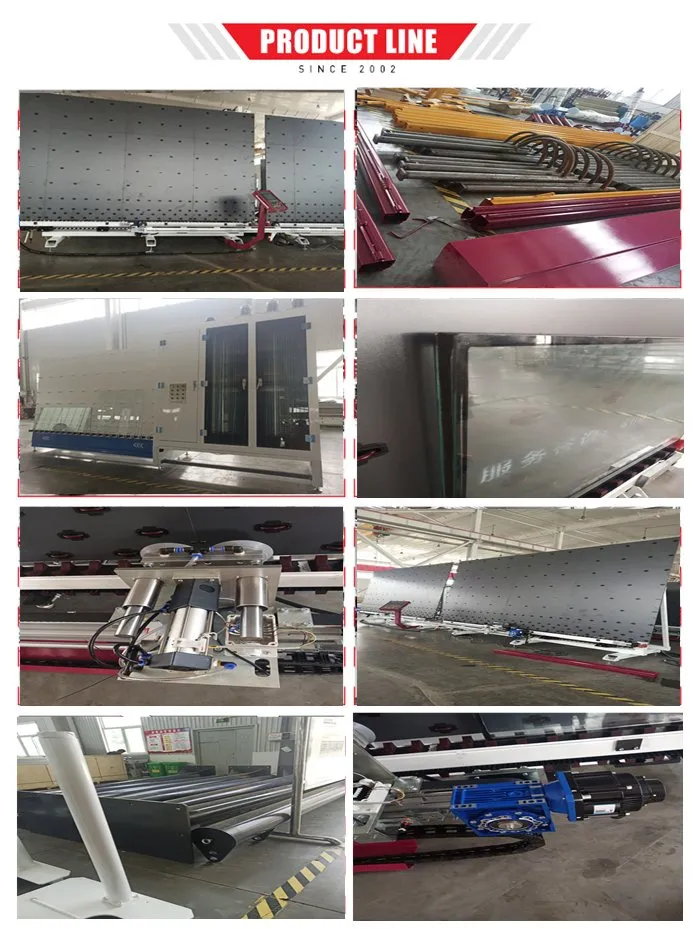

Machine Detail 2

Our Advantages

Advantage 1
Advantage 2

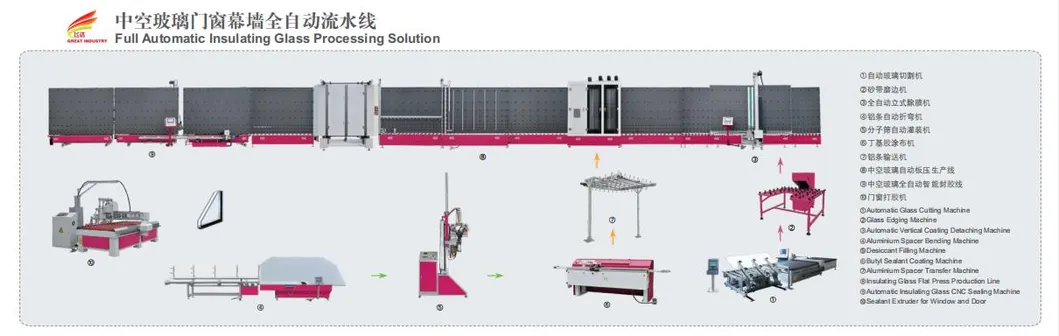

Advantage 3
Advantage 4
Advantage 5
Advantage 6

Packaging & After-Sales

Packaging and Shipping
Service Terms
Service Duration7*24 Hours (All Weather Service)
Warranty Period1 Year
Package TypeNon-Fumigation Plywood Wooden Pallet

Frequently Asked Questions

1. What is the maximum glass size the machine can process?
The system can handle a maximum glass size of 2500*1800mm, suitable for large-scale industrial insulating glass production.
2. Can this production line handle Low-E glass?
Yes, the machine features automatic identification for coated glass and Low-E glass to ensure proper processing without damaging the coating.
3. What types of insulating glass can be produced?
It is highly versatile and suitable for double glazing, triple glazing, stepped glass, and various shaped glass units.
4. What control system does the equipment use?
The equipment utilizes a Siemens PLC control system combined with an HMI touch screen for precise manual and automatic operation.
5. How does the air knife adjust for different glass thicknesses?
The air knife system adjusts automatically based on the detected thickness of the glass (from 3mm to 19mm) for optimal drying performance.
6. What is the warranty and after-sales support?
We provide a 1-year warranty and offer 7*24 hours all-weather technical support to ensure stable machine performance.
