Product Description

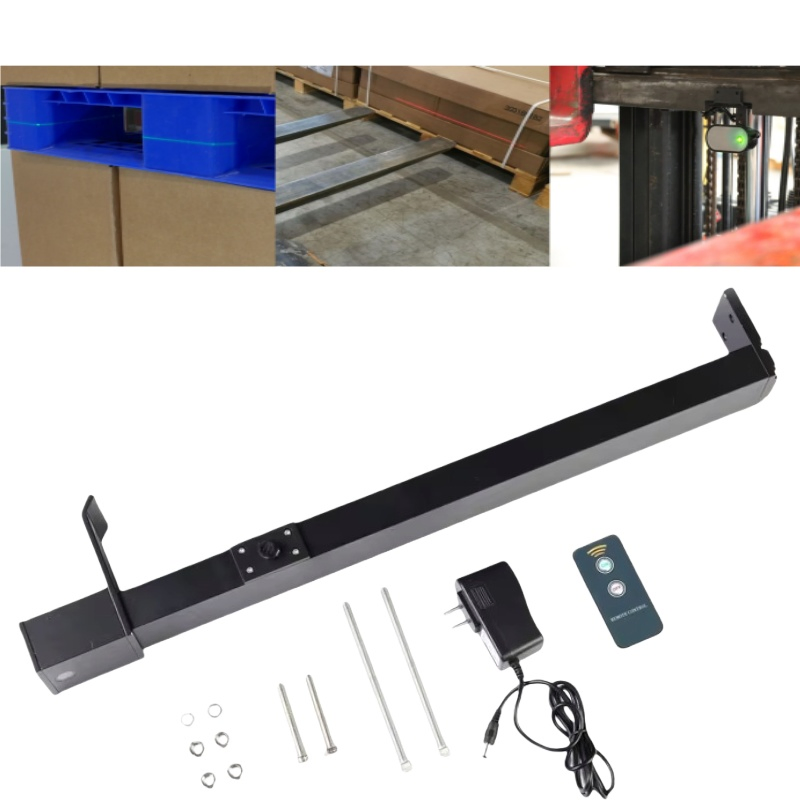

Forklift Laser Tine Guides Alignment System

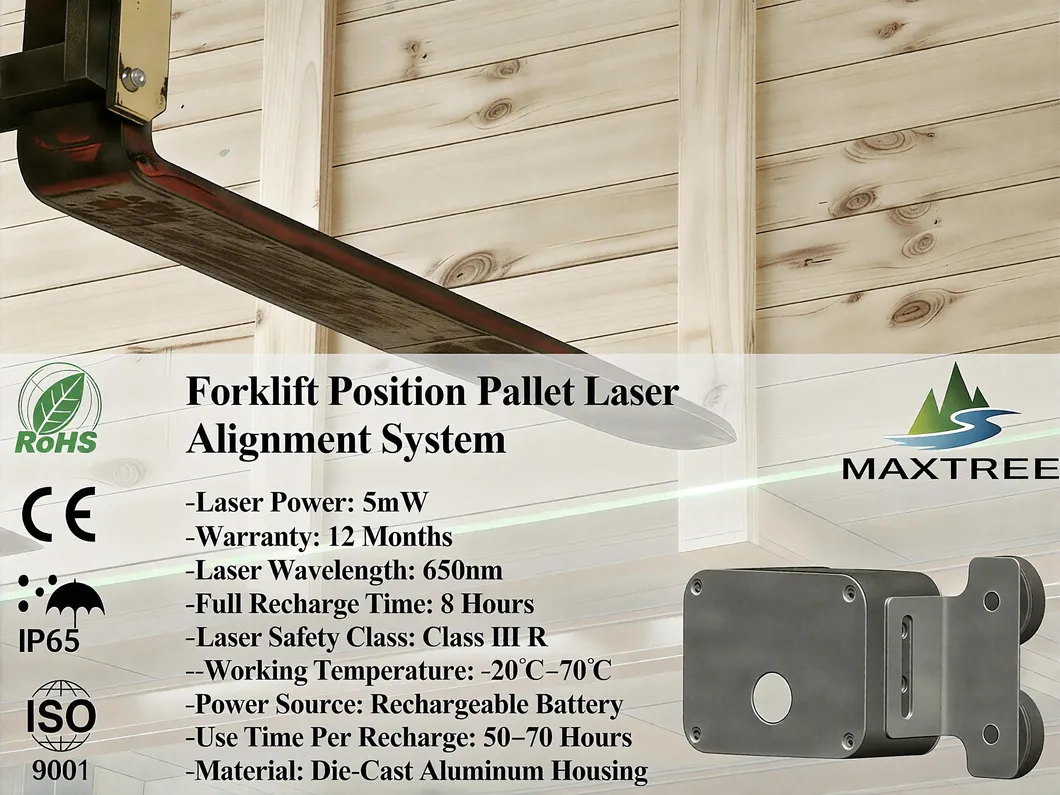

Technical Specifications

Model NO.	MXHHL	Input Voltage	10-80V DC
Laser Power	5MW	Light Source	Laser
Function	Alerting, Positioning	Power Source	Rechargeable Battery
Full Recharge Time	8 Hours	Use Time	50h-70 Hours
Laser Safety Class	Class III R	Laser Wavelength	650mm
Performance	100% Waterproof, Dust-Proof, Quake-Proof	Working Temperature	-20℃ to 70℃
Warranty	12 Months	Lifespan	30,000 Hours

Product Overview

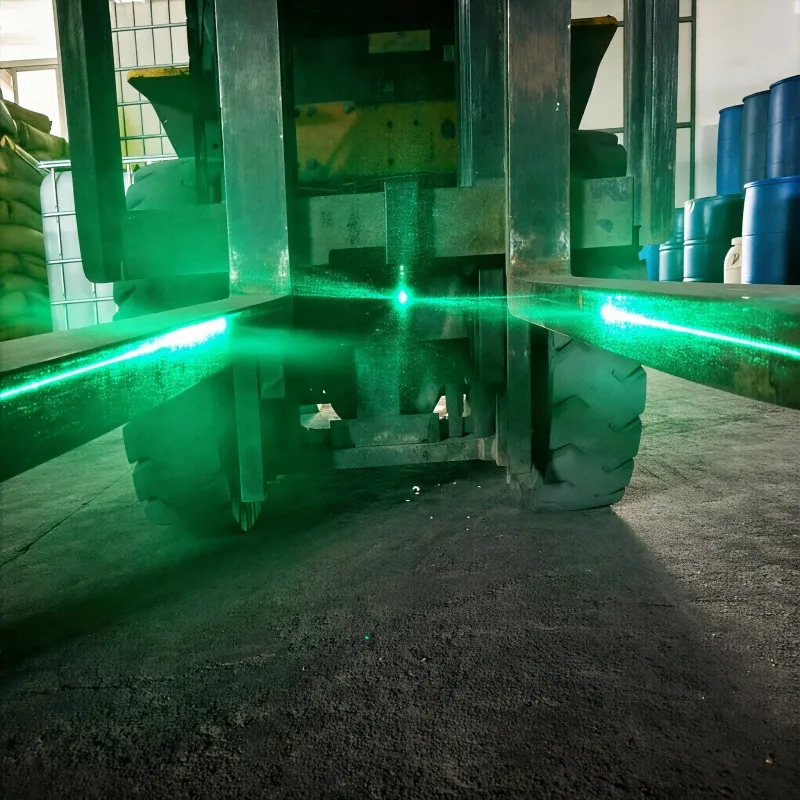

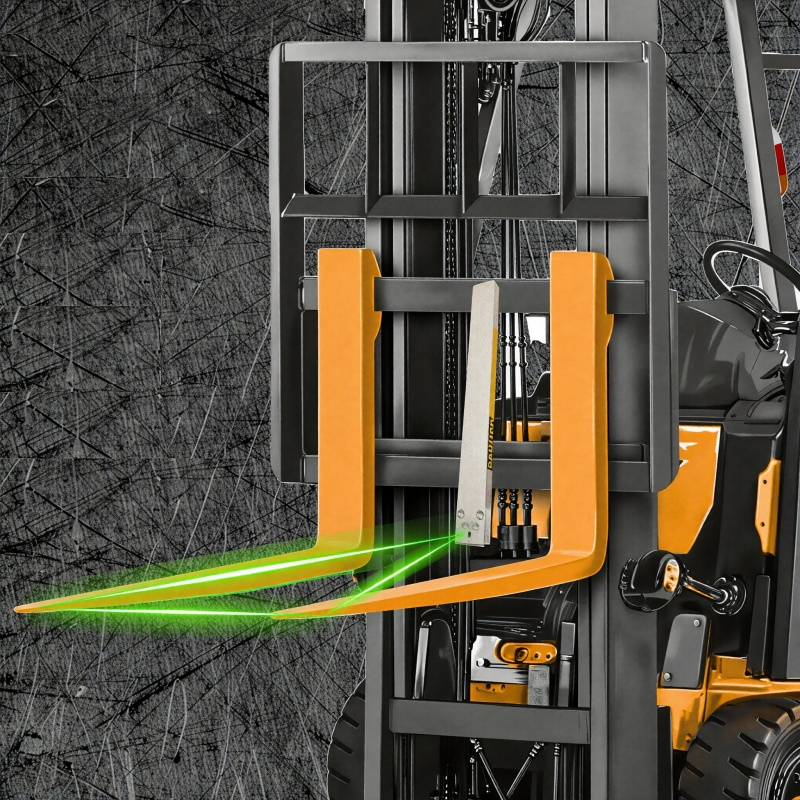

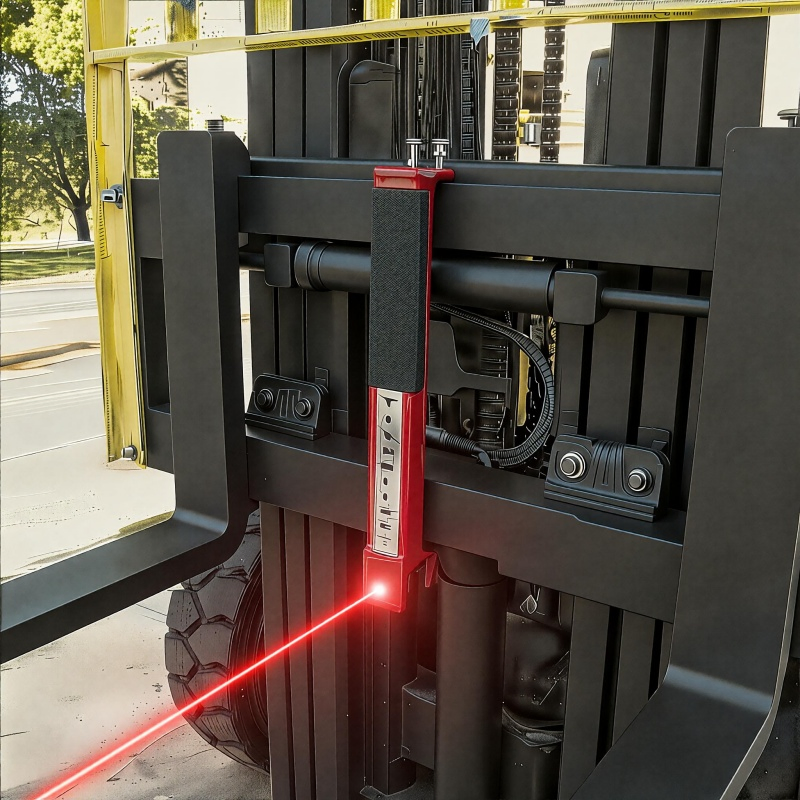

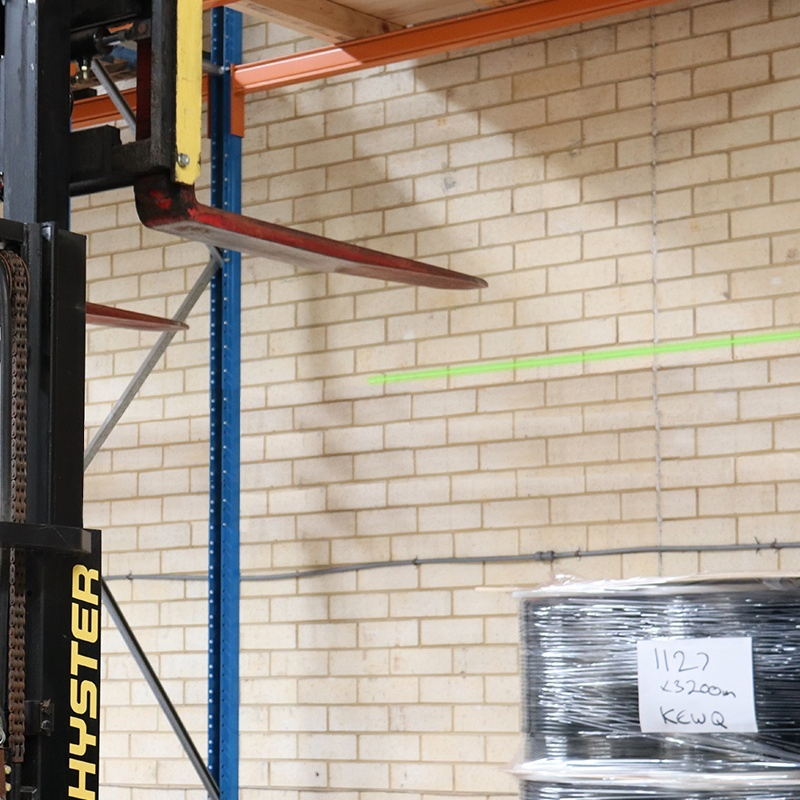

The Forklift Laser Tine Guide is a specialized alignment system designed to provide operators with a clear visual reference. By projecting an ultra-bright laser line, it allows for high-precision fork alignment with pallets or staging materials, significantly reducing damage and improving warehouse efficiency.

Key Features & Benefits

Safety Booster: Significantly enhances forklift safety in high-traffic work environments.
Training Resource: Excellent tool for educating new operators on accurate load handling.
Productivity Gain: Improves employee speed and accuracy, saving operational costs.
Damage Reduction: Prevents costly product and rack damage during high-level stacking.
Durability: Features a die-cast aluminum housing with IP65 waterproof rating.

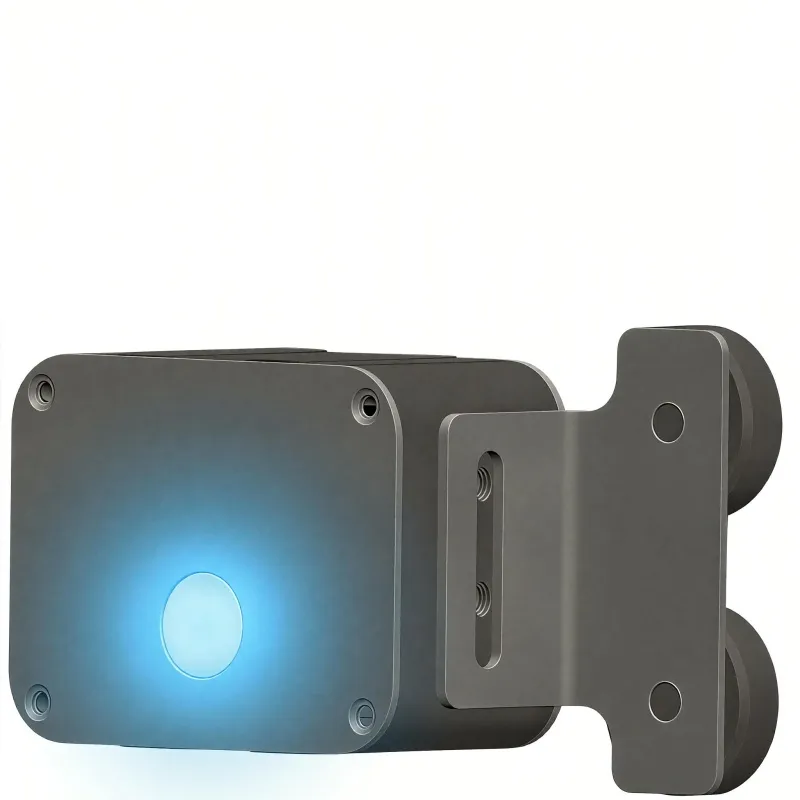

Versatility: Available in red, green, and blue laser options for different lighting conditions.

Operation Modes & Control

Activation Systems:

RF Remote: Manual wireless control from the cab.
Vibration Switch: Automatic activation when motion is detected; auto-off after 4 minutes.
Height Switch: Triggers when forks rise above 7 feet.
Key Switch: Hardwired to sync with the forklift’s power state.
