Basic Info

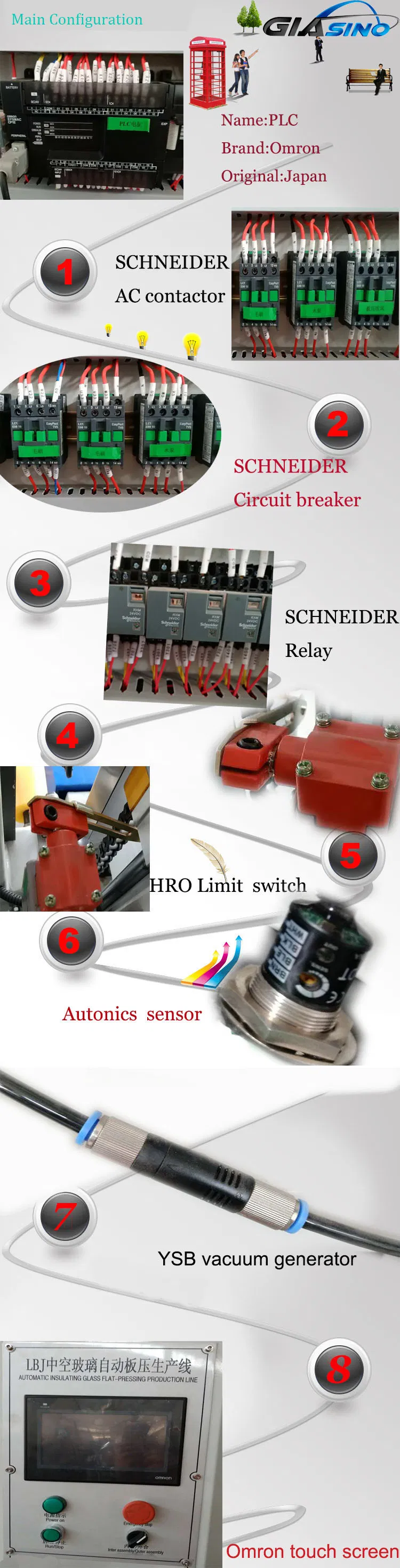

Core Components
PLC, Motor
Max Glass Size
2000*2500mm
Type
Insulating Glass Production Line
After-sales Service
Support Online, Video Technology Support
Transport Package
Seaworthy Packing
Specification
22750*2300*3400mm

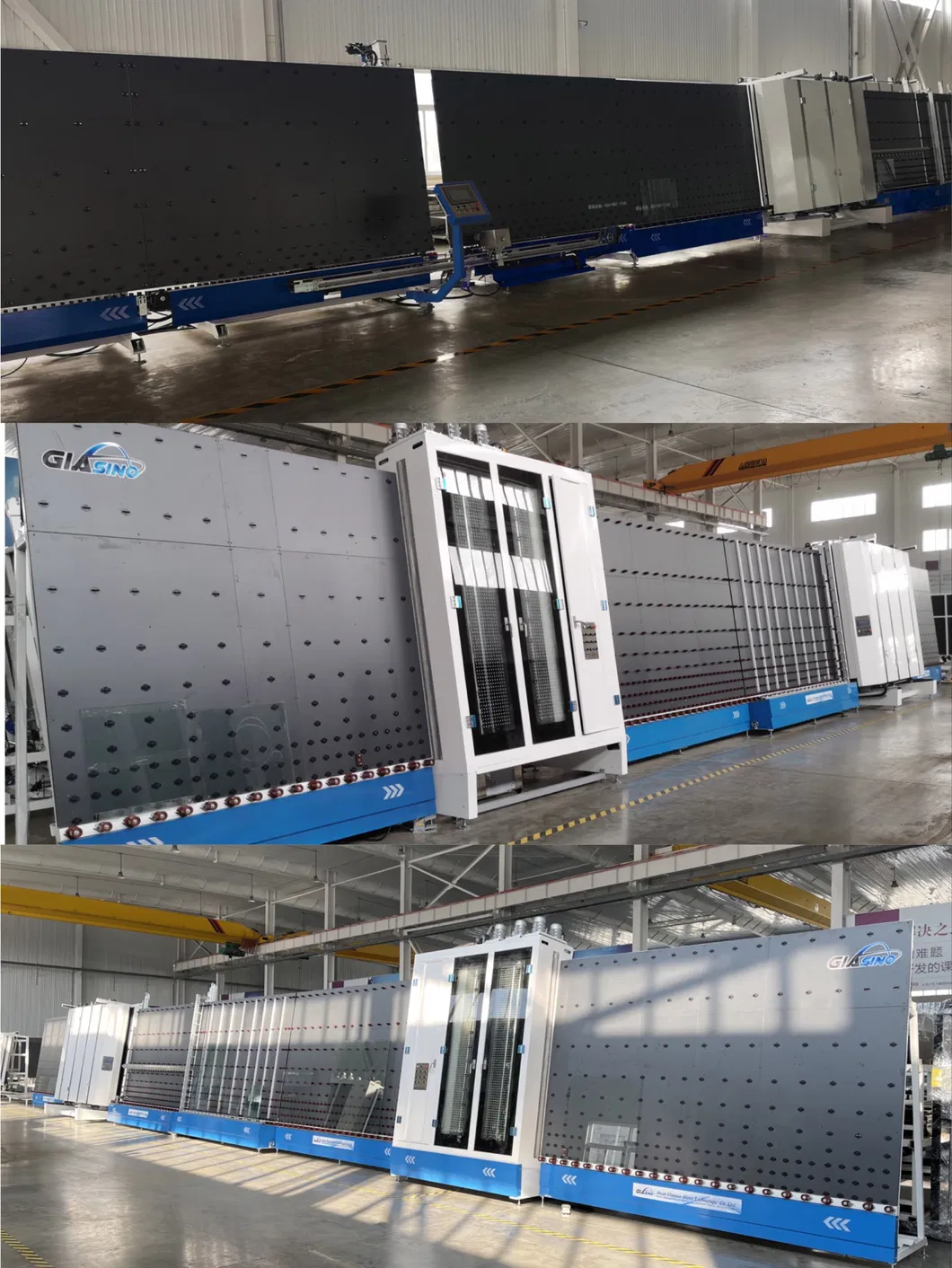

Product Description

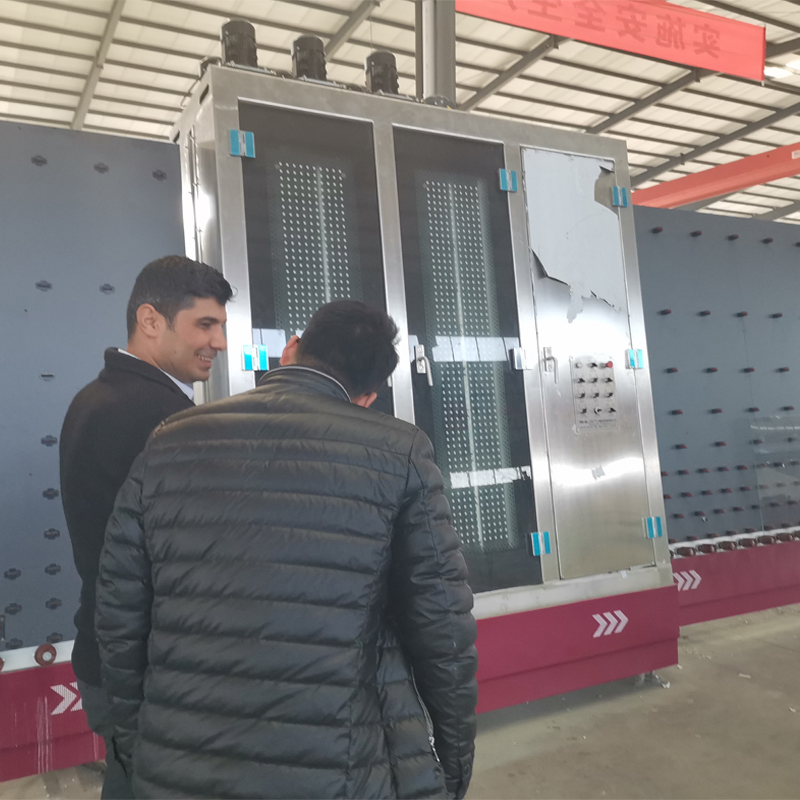

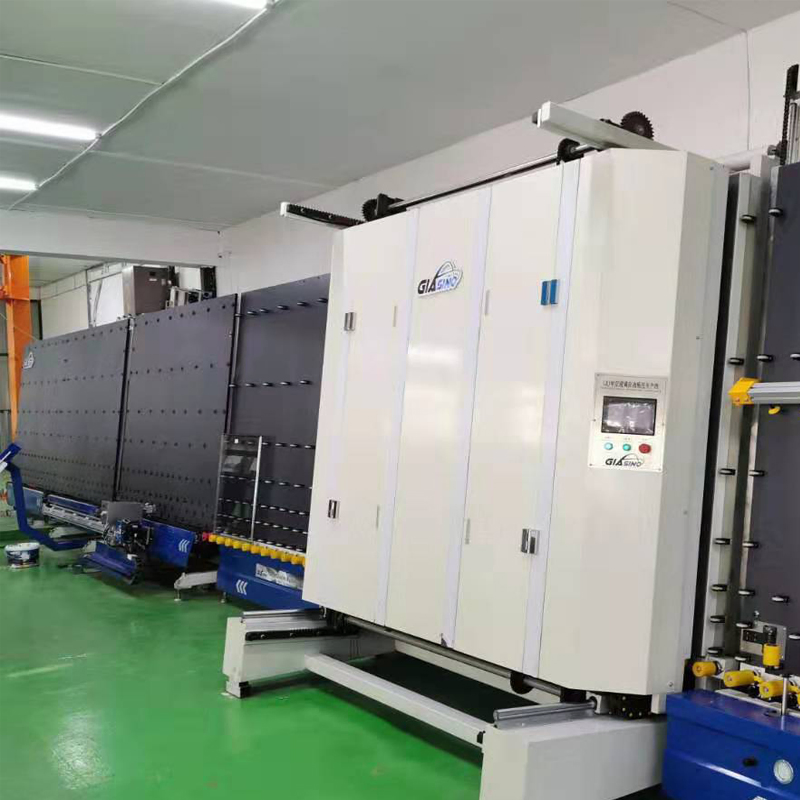

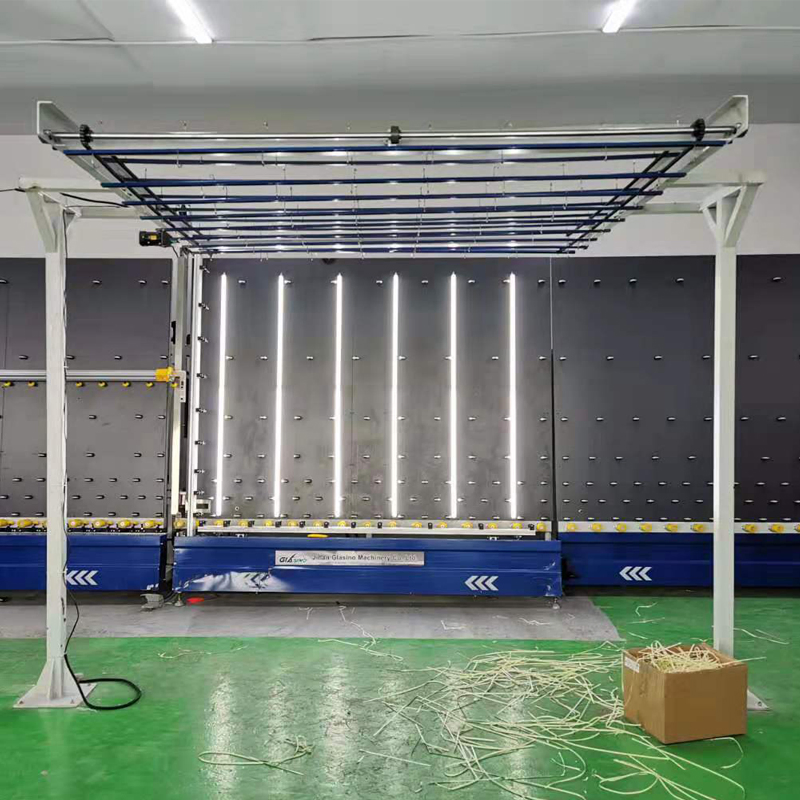

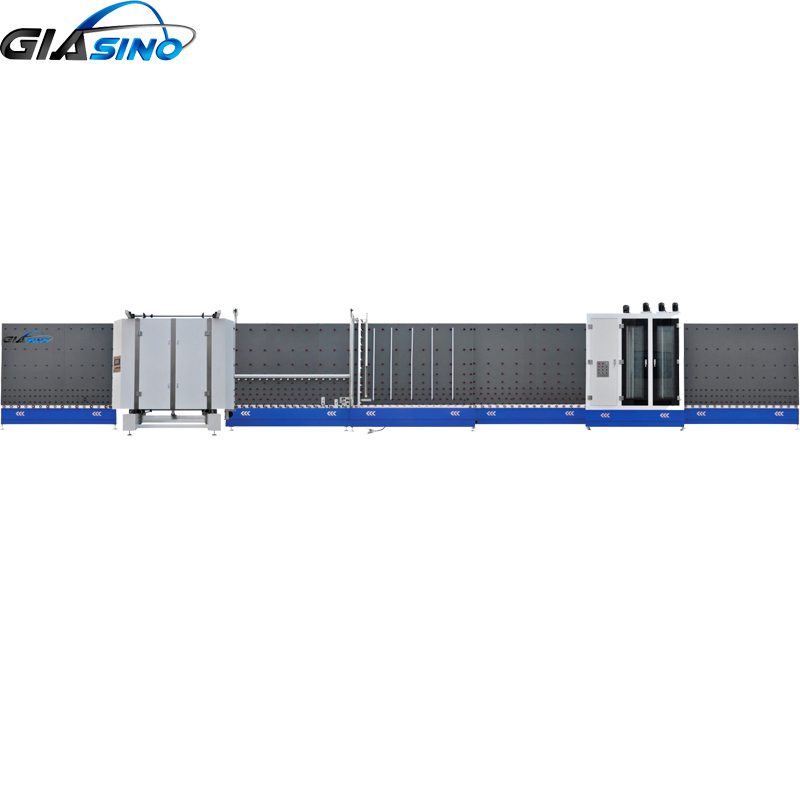

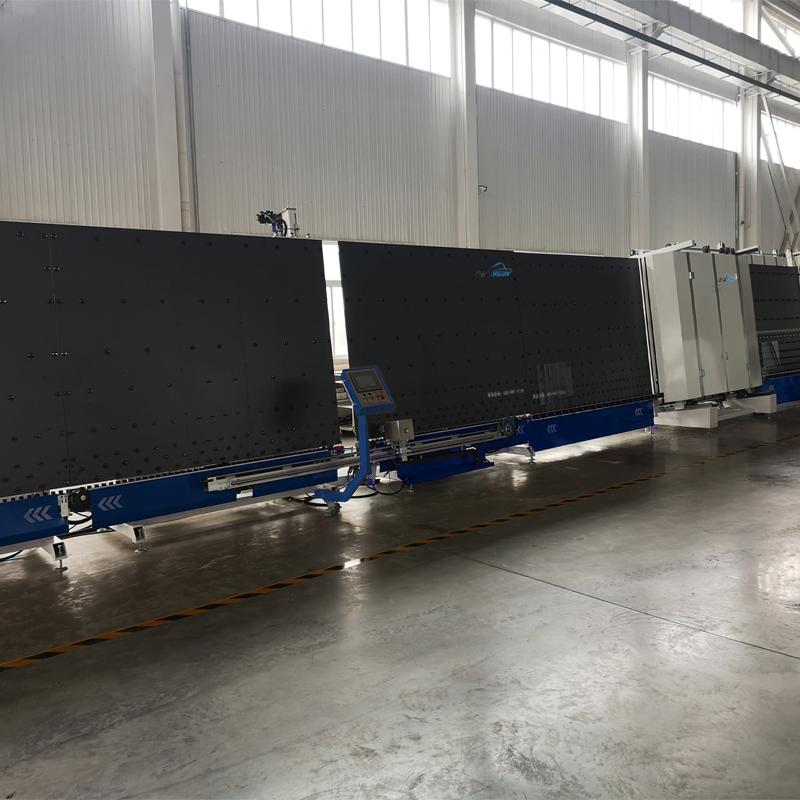

High Sales Insulating Glass Processing And Production Equipment

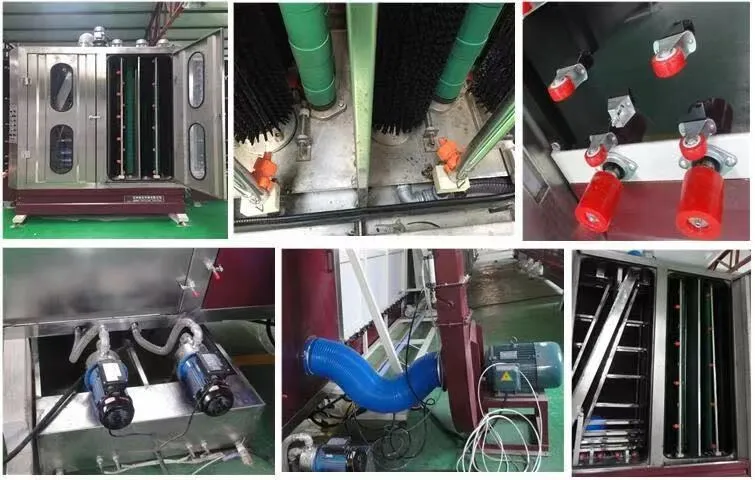

Detailed Features
- Automatically distinguish the coating side of coated glass and Low-E glass.
- PLC control system with touch screen operation.
- Machine work and fault dynamic display.
- Outside assembly lines can produce standard double layer IG and three layers IG.
- Product lines are available for both inside and outside panel press, which can produce stepped IG, standard double layer IG, and three layers IG (Optima).
- Designed for curtain wall glass, double layer IG, and three layer IG glass.
- IG press design-gear and chain synchronous device driven by hydraulic station.
- Frequency control designed for glass transmission.

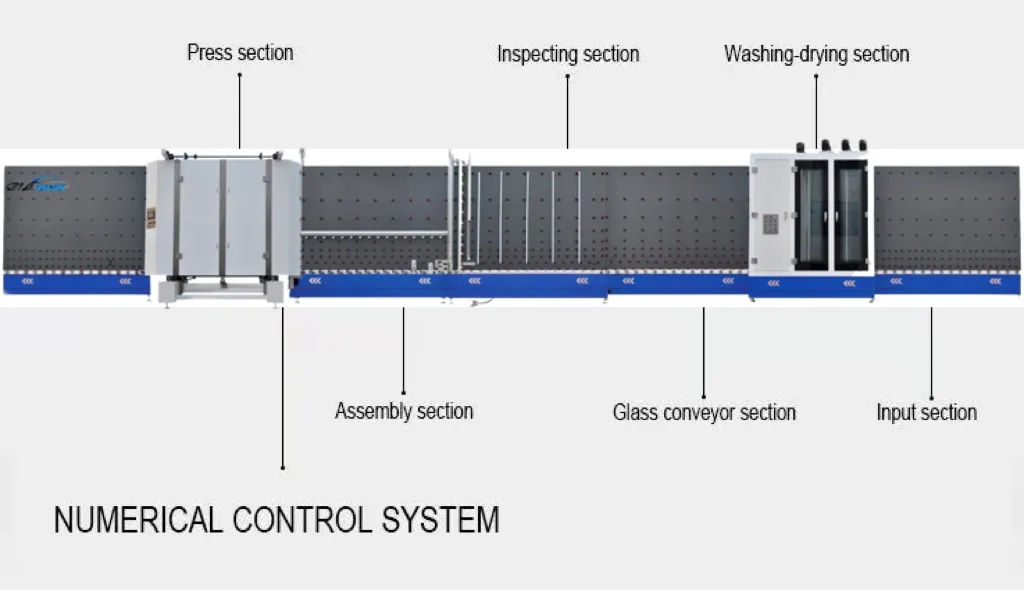

- Production Line-1 is spacer attaching in assemble section.
- Production Line-2 is spacer attaching in apart assemble section.
- Output 800 IG units-single 5 hours (double layer IG size 1M).
- Panel press openable easy for maintenance.
Technical Specifications
| Model |
Power |
Max glass size |
Min glass size |
Pane glass thickness |
Min IG unit thickness |
Washing speed |
Air pressure |
Working speed |
Over dimension |
| LB2530 |
27.25KW |
2500*3000mm |
300*450mm |
3-12mm |
12-50mm |
0-8m/min |
0.8m³/min |
0-45m |
22750*2300*3400mm |
| LB2535 |
34.25KW |
2500*3000mm |
300*450mm |
3-12mm |
12-50mm |
0-8m/min |
0.8m³/min |
0-45m |
26500*2300*3400mm |
Packaging & Shipping

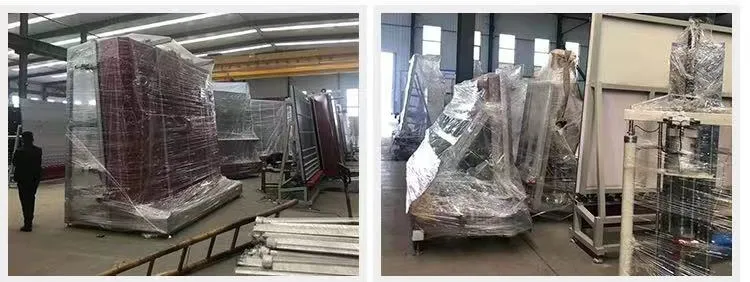

We will use PE film cover the machine, and add the metal pallet, or can use the plywood case, then loading to the container.

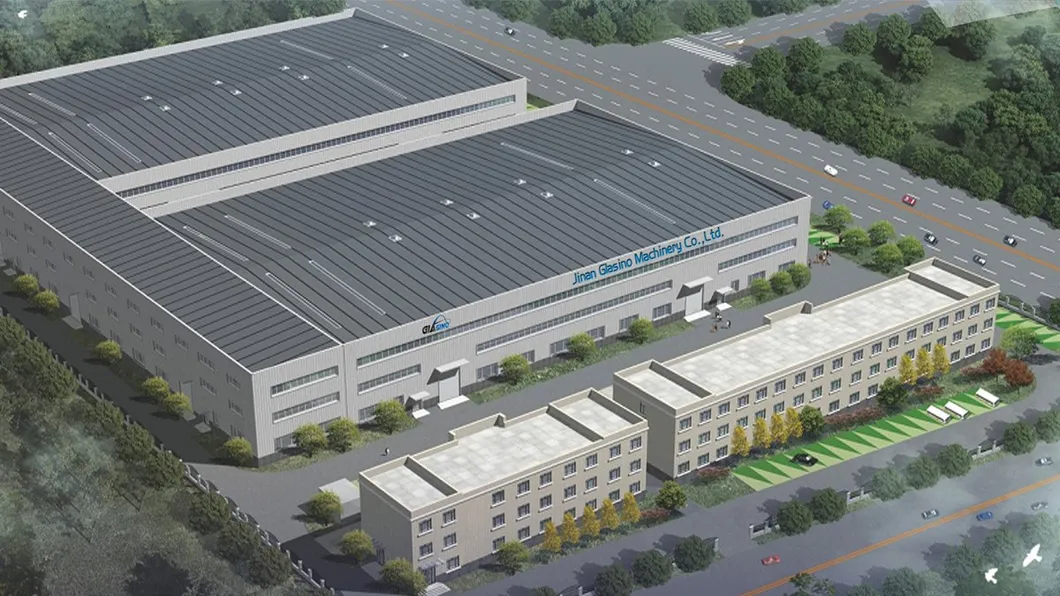

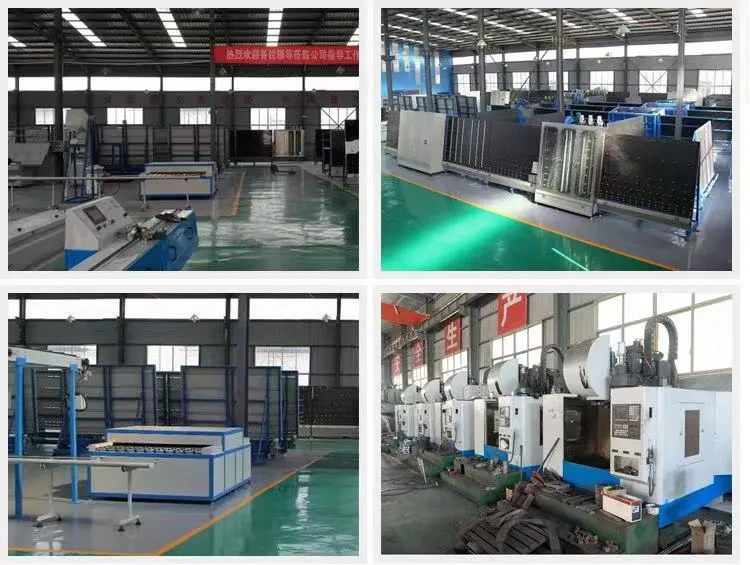

Manufacturing Strength
Founded in 2003, we are a high-tech enterprise specializing in the production of glass tempering furnaces, CNC glass cutting machines, insulating glass machines, and curtain wall glass machines. Our main products include laminated glass cutting lines, automatic insulating glass CNC sealing machines, aluminum spacer bending machines, and desiccant filling machines. We have passed European CE certification, Switzerland SGS certification, and ISO 9001: 2008 quality control systems. Outstanding quality is our basis, and satisfying service is our guarantee.
Service & Exhibition
FAQ
Who are we?
We are based in Shandong, China, established in 2019, serving markets across South America, Eastern Europe, the Mid East, Western Europe, North America, Southeast Asia, and more.
How can we guarantee quality?
We always provide a pre-production sample before mass production and conduct a final inspection before shipment to ensure the highest quality standards.
What can you buy from us?
Our product range includes Glass Cutting Machines, Insulating Glass Machines, Glass Tempering Furnaces, Glass Washing Machines, and Glass Ceramic Products Kilns.
Why should you buy from us and not other suppliers?
We offer more than 20 years of design and production experience, master core technologies, maintain a professional after-sales service team, and provide excellent, stable product quality.
What services can we provide?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. We accept payments in USD, EUR, and CNY via T/T, L/C, Credit Card, and PayPal.
What languages are supported?
Our team is proficient in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
