Product Description

Product Overview

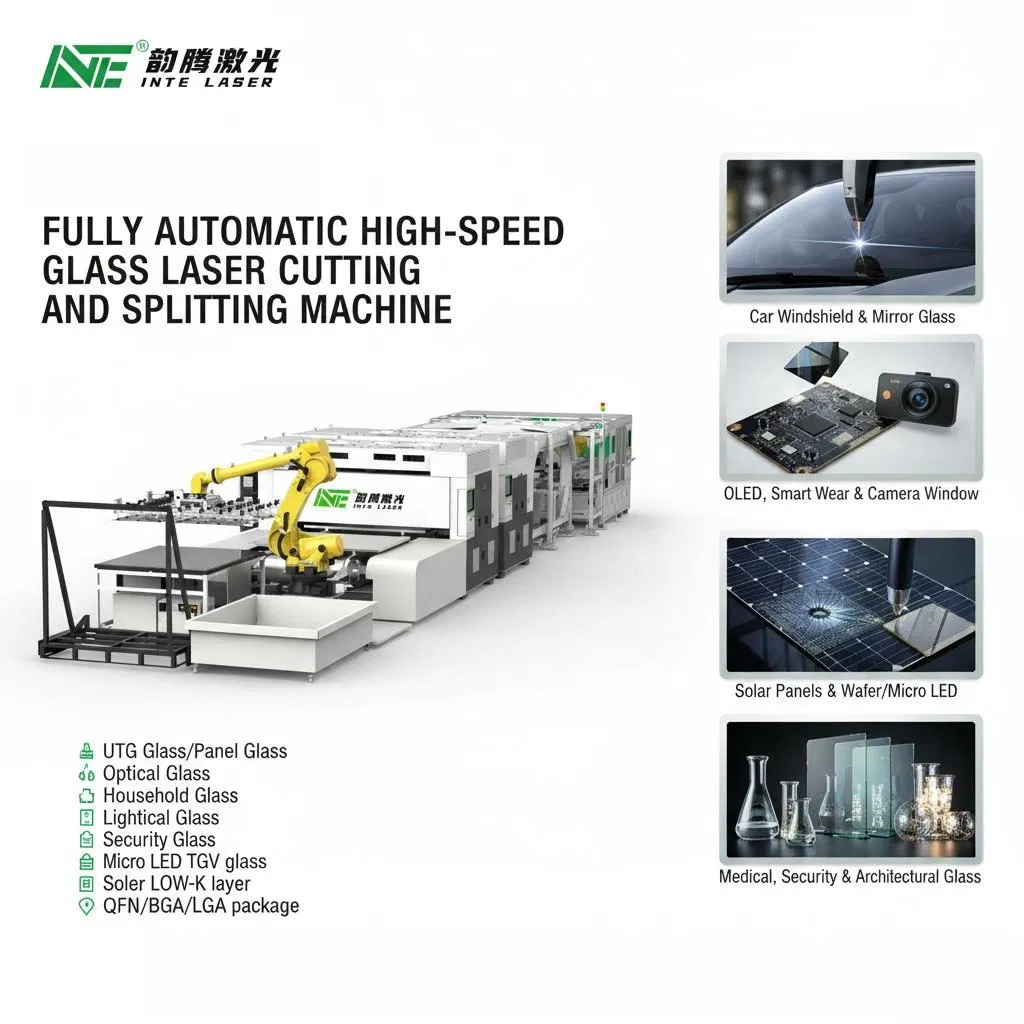

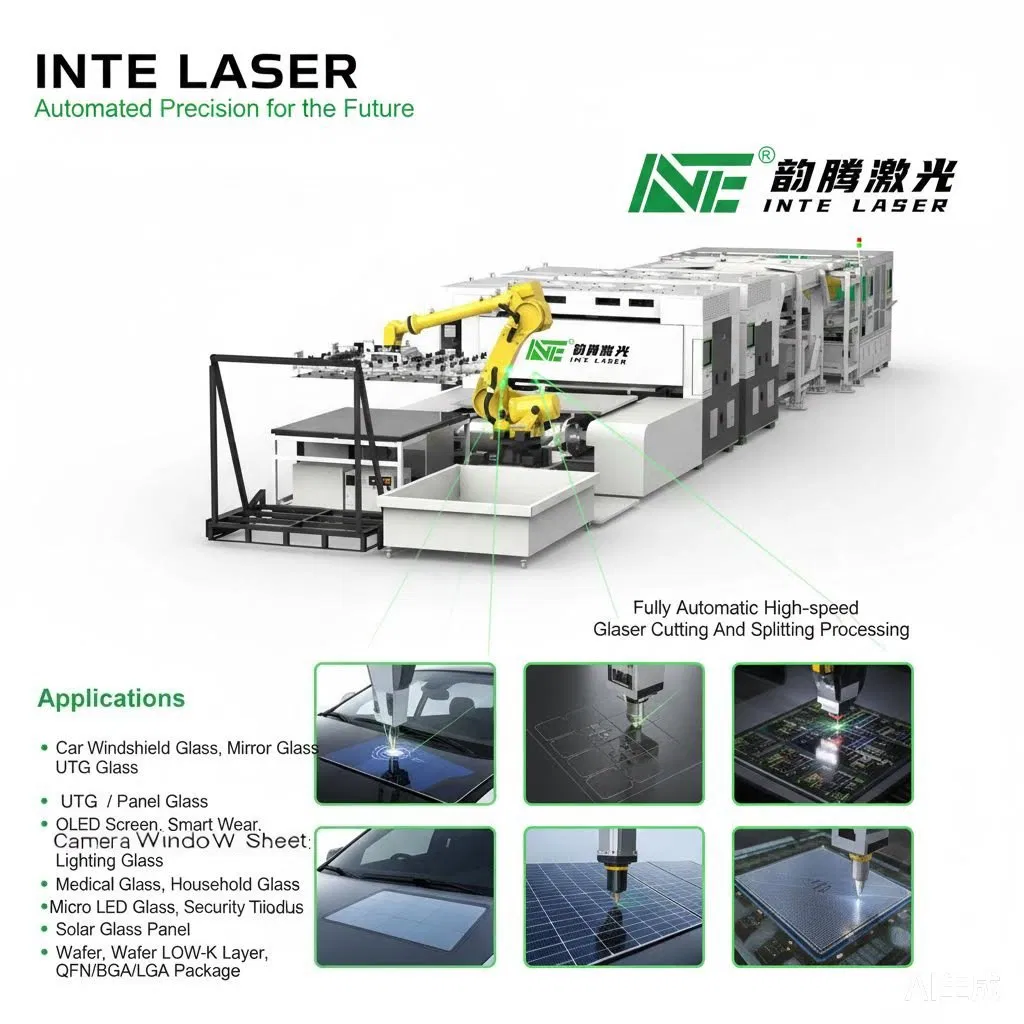

Fully Automatic High-Speed Tempered Car Glass Cutting and Splitting Production Line

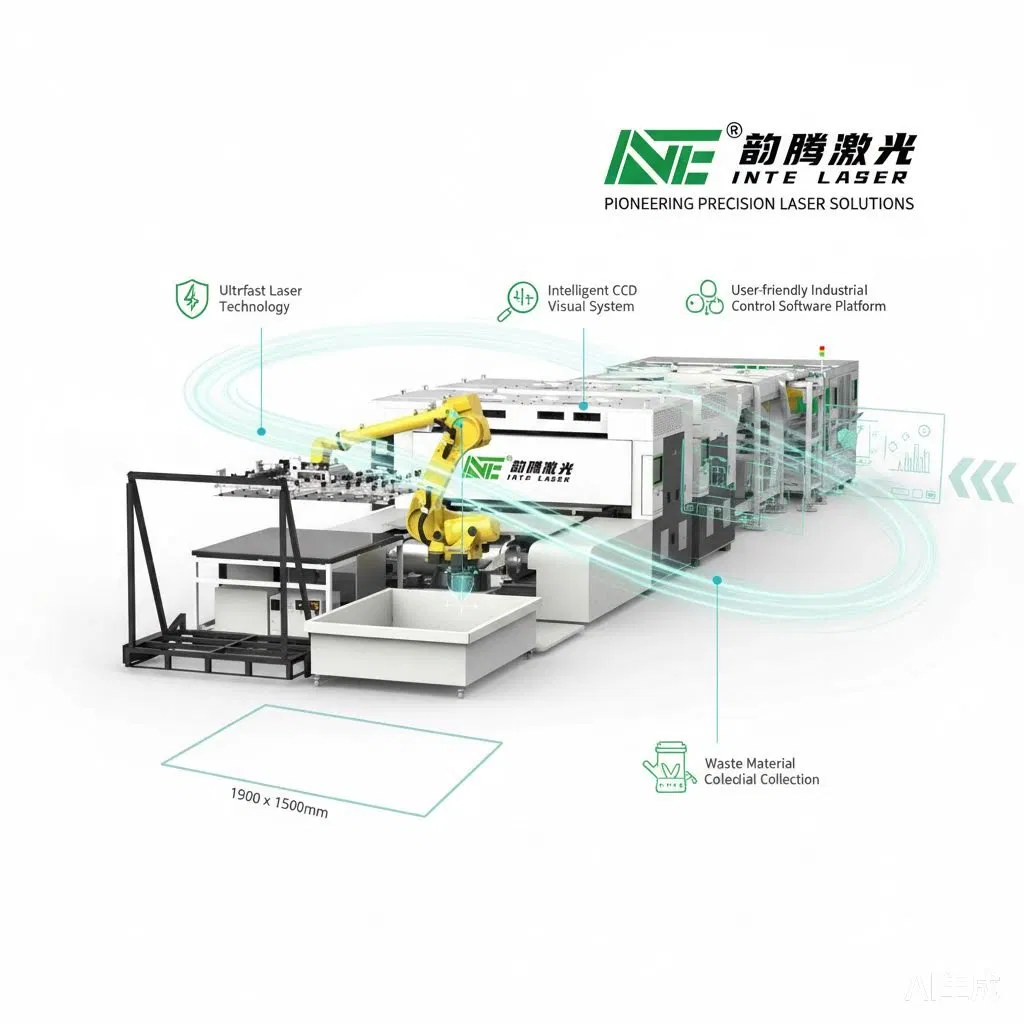

This end-to-end automation solution for high-precision, high-efficiency glass production eliminates manual intervention. From raw glass loading to finished product collection, it features fully automated feeding, CCD-based real-time inspection, and waste material recycling, significantly reducing labor costs while boosting production speed.

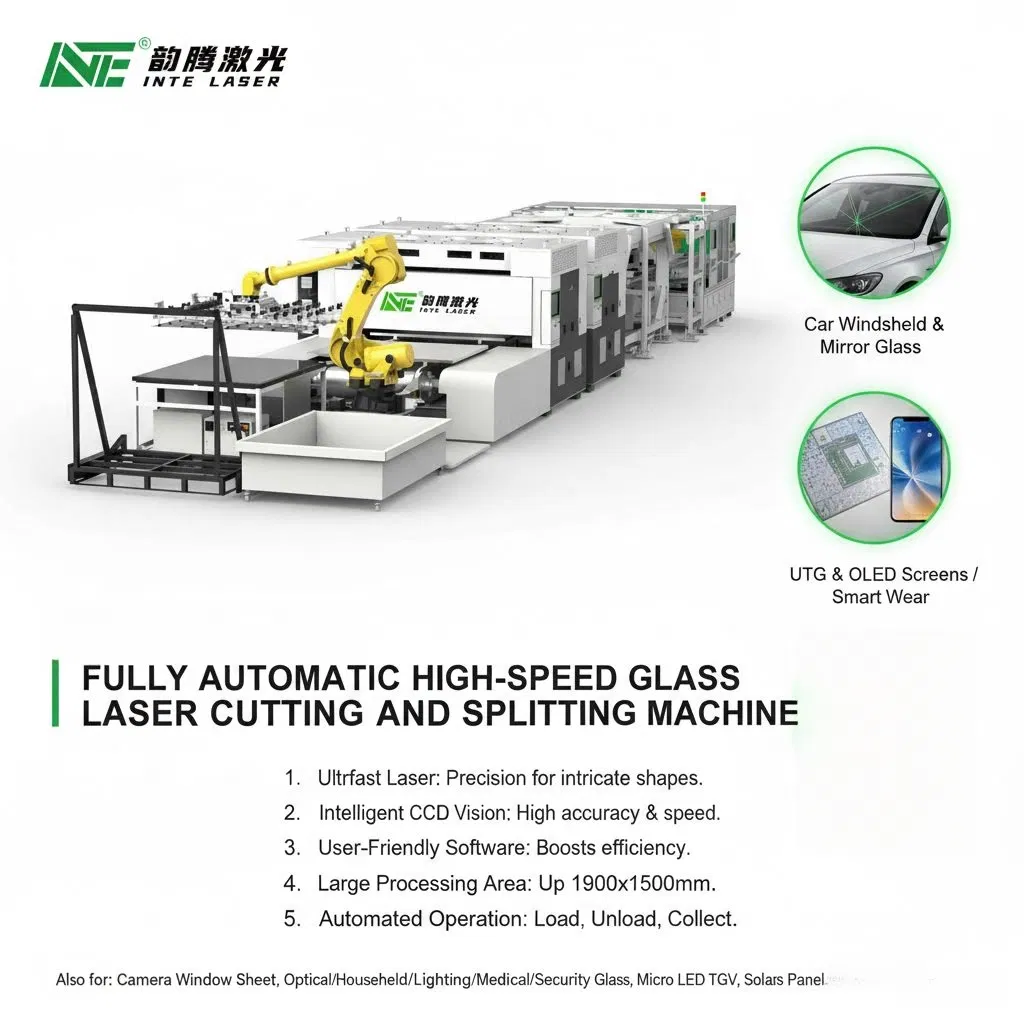

Glass Cutting Production Line
Application Home Appliance, Petroleum Machinery, Aerospace, Automotive, Optical, Glass Industry
Cooling System Water Cooling
Technical Class Pulse Laser (Ultrafast)
Applicable Material Nonmetal (Glass)
Structure Type Gantry Type
Laser Technology Solid Laser / Infrared Picosecond
Production Capacity 100 sets / Month

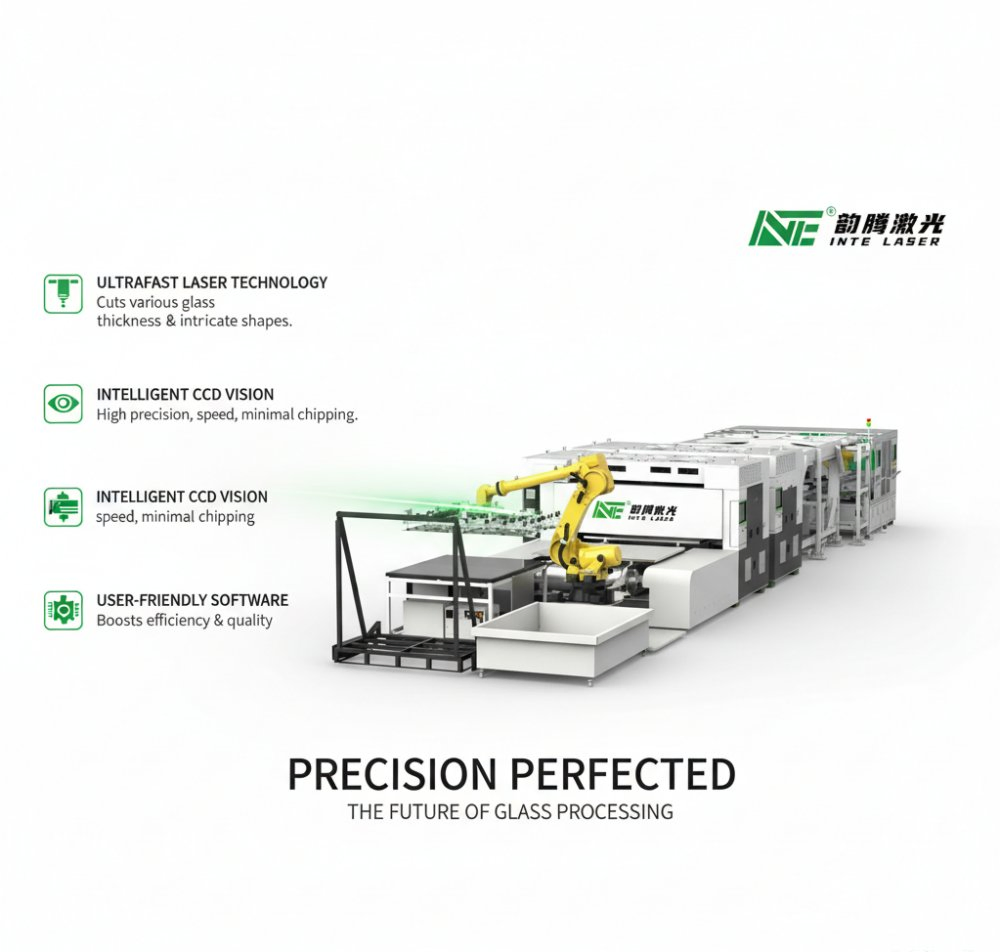

Technical Highlights
Detail 1
Detail 2
Detail 3
⚡ Infrared Picosecond Laser
Cuts glass thicknesses of 1-20mm with intricate shapes, ensuring ±0.03mm precision. Ideal for windshields and electronic displays.

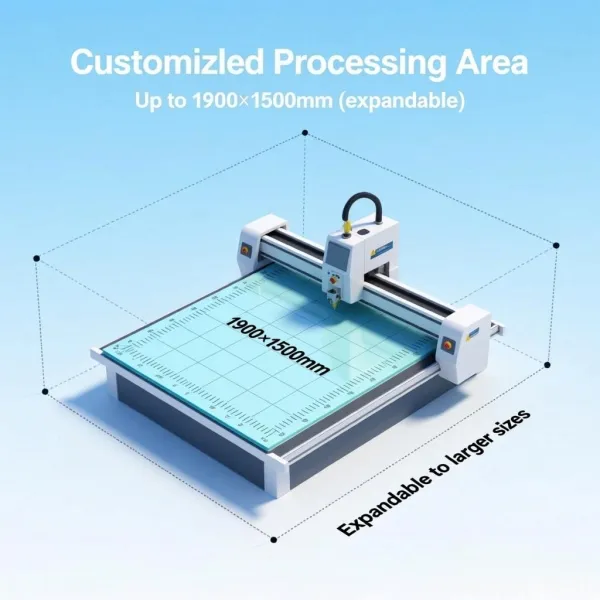

📏 Customizable Area
Standard processing area up to 1900×1500mm, expandable to meet large-scale architectural or solar panel projects.

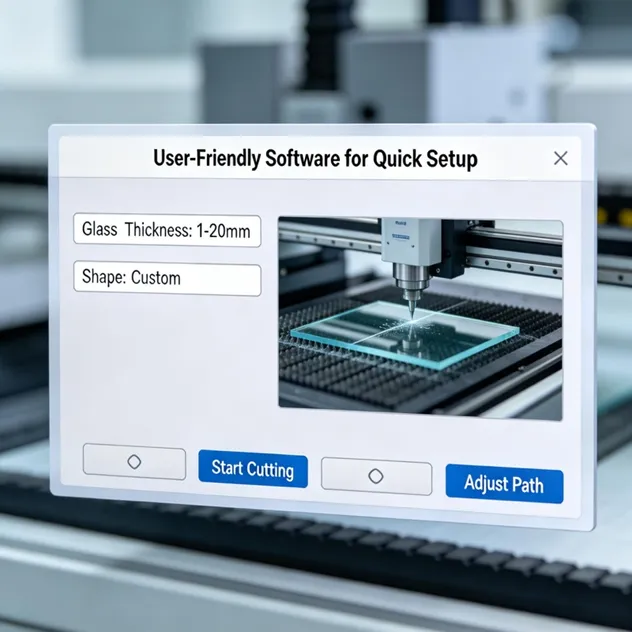

⚙️ Smart Software
Intuitive interface simplifies operation, enabling quick setup for new glass types or custom orders.
Technical Specifications
Laser Type Infrared Picosecond Laser
Processing Area 1900mm x 1500mm (Customizable)
Machine Dimensions 15000mm x 5000mm x 2100mm
Processing Accuracy ± 0.03mm
Total Power Consumption 50KW
Machine Weight 32000 KG
Working Voltage AC380V
Environment Temp: 22°C ± 2°C; Humidity: 30%~60%

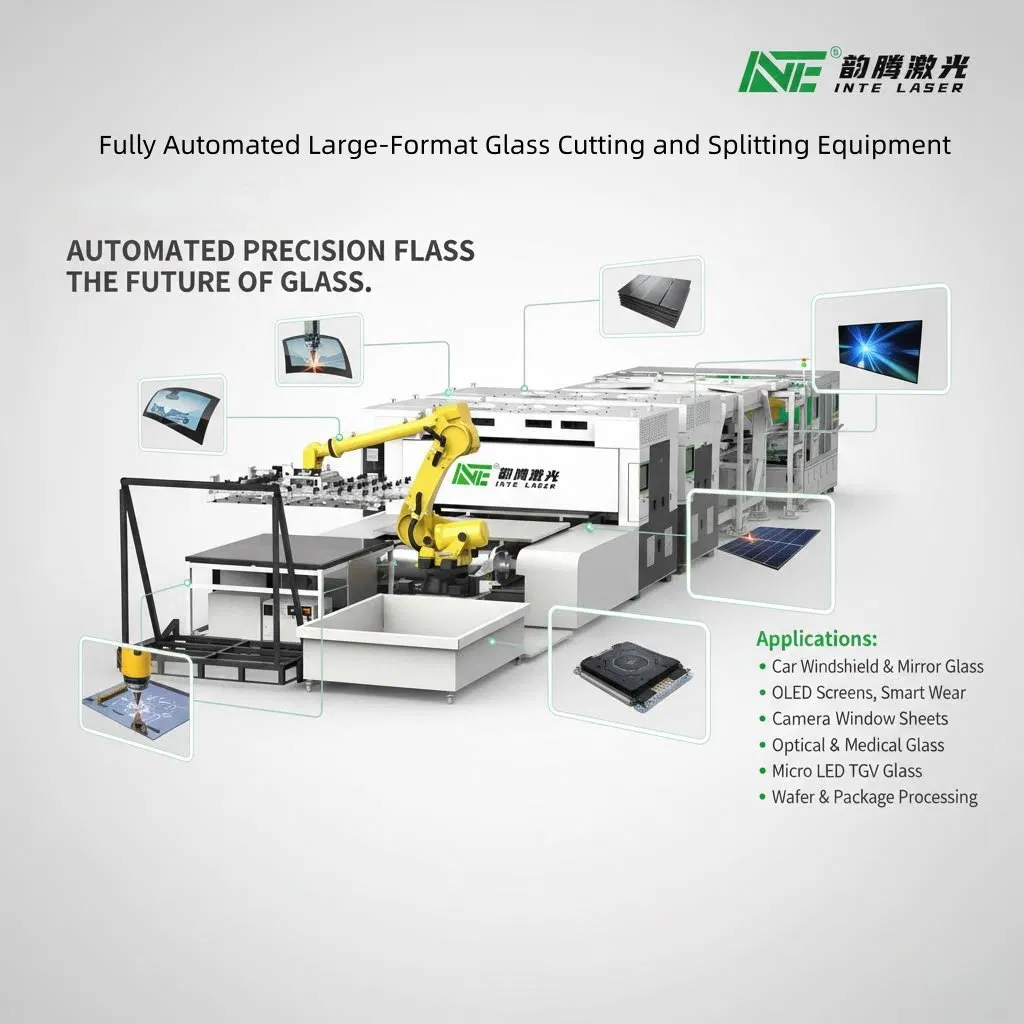

Application Areas
  • Vehicle windshields & rearview mirrors
  • UTG glass, OLED screens, & smart wearables
  • Optical, household, & medical glass
  • Micro LED TGV & Solar glass panels
  • Wafer low-K layer & KGN/BGA packaging
Application Samples
R&D and Production Capability
We are a technology-oriented enterprise specializing in the independent research and development of laser generators, optical devices, and automation system integration. We provide innovative solutions for laser micromachining across consumer electronics, semiconductors, and new energy industries.
R&D Center
Production Base
Testing Lab
Laboratory Center
Frequently Asked Questions
What is the processing accuracy of this equipment?
It achieves a machine processing accuracy of ±0.03mm, ensuring precise cuts for high-value glass products.
Can it handle different glass thicknesses and shapes?
Yes, the infrared picosecond laser supports cutting glass of varying thicknesses (1-20mm) and intricate, curved, or irregular designs.
What does the automation include?
The system covers the entire workflow: automatic loading/unloading, CCD-based real-time inspection, laser cutting, and waste material collection.
Is the processing area customizable?
The standard processing area is 1900×1500mm, but it can be customized to larger sizes based on specific requirements.
How does it improve production efficiency?
It boosts production speed by over 30% and reduces labor costs by up to 50% through full automation and higher yield rates.
Can it process thin glass without chipping?
Yes, the intelligent CCD system and picosecond laser ensure smooth edges and minimize chipping even for thin (1-2mm) or fragile glass.
