Basic Information
| Model NO. |
WLBZ2030-CF |
Weight of Machine |
9000 Kg |
| Type |
Insulating Glass Production Line |
Structure |
Vertical |
| Washing Type |
Ultrasonic Glass Washing Machine |
Condition |
New |
| Warranty |
1 Year |
Capacity |
100 set/Year |
| Key Selling Points |
Easy to Operate, High-Accuracy |
| Specification |
18760*3500*2850mm |
| Transport Package |
Plastic Covering and Stretch Film Package |
Product Description
The specific price is subject to actual configuration and negotiation.

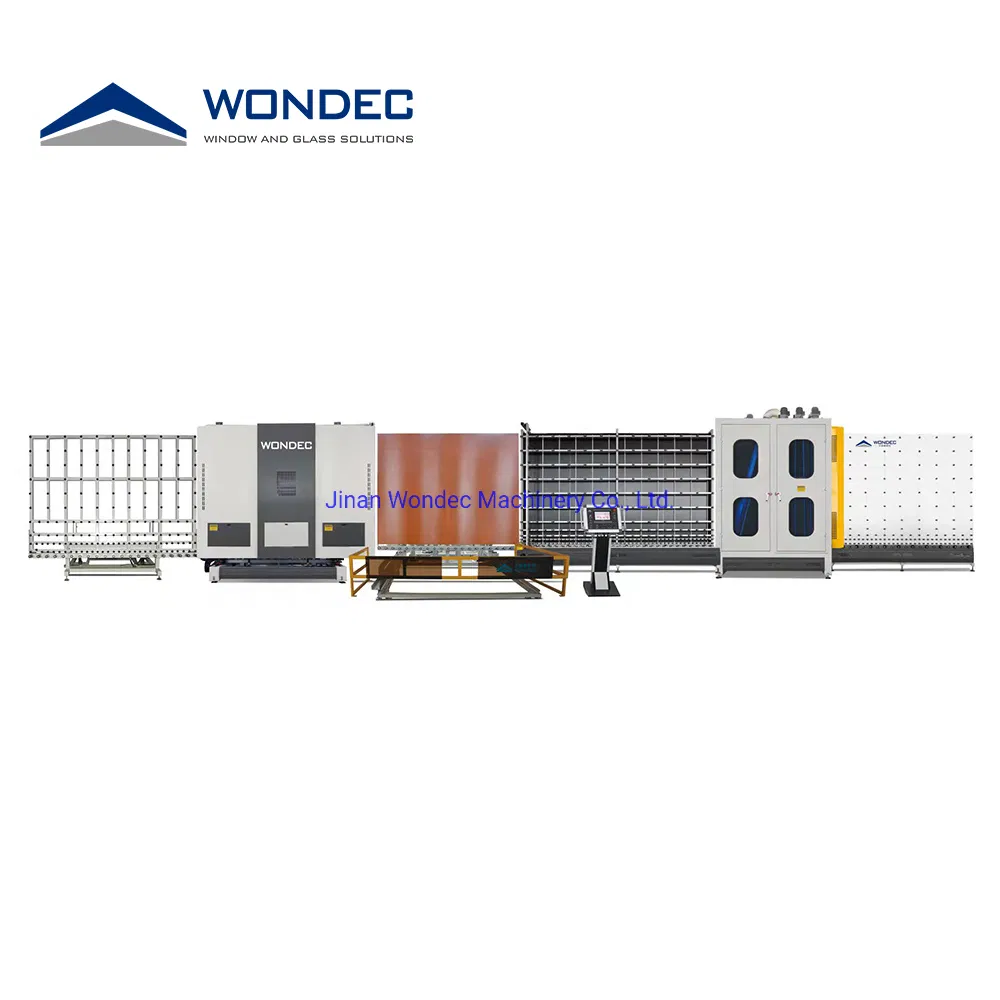

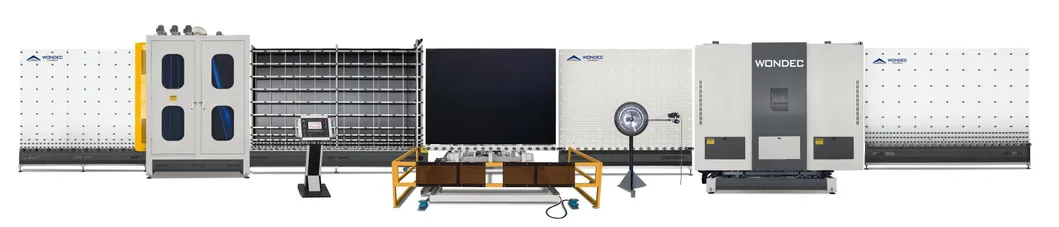

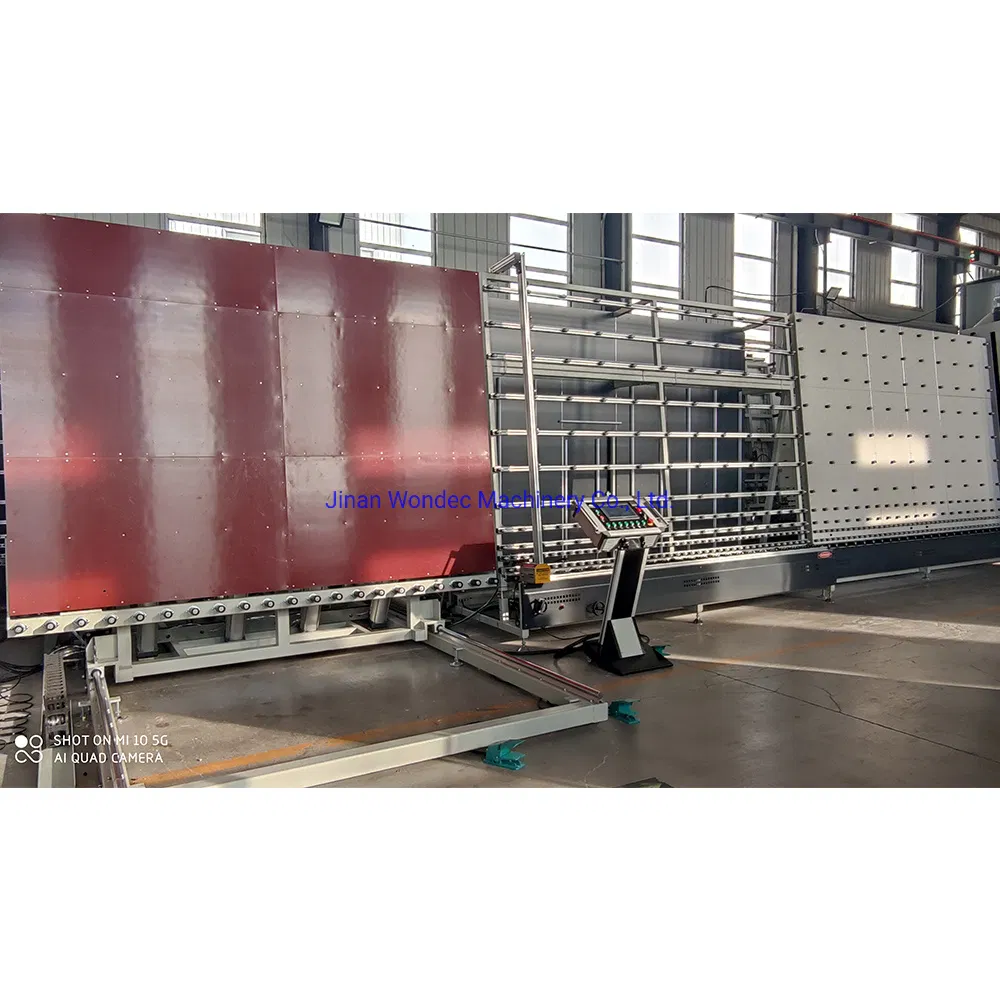

Production Line Overview
The whole super spacer insulating glass production line includes 7 main sections:
1. Loading section (with Low-E checking)
2. Washing and drying section
3. Conveyor section with door
4. Tilting table
5. Georgian bars application
6. Panel press & gas filling section
7. Conveyor section
Equipment Advantages
PLC control system with touch screen interface.
Automatic inspecting glass dimension and thickness.
Suitable for triple insulating glass units for different spacer widths.
Integrated screen display for dynamic operation tracking and troubleshooting.
Servo motors for precise pressing and aluminum frame section control.
Plate press can be opened for easy maintenance.
Air knife automatically adjusts distance based on glass thickness.
High-speed inert gas filling with real-time concentration display.
Detailed Photos
Section 01: Input Section - Transports glass to the washing zone. Includes carbon fiber conductive brushes for Low-E glass detection.

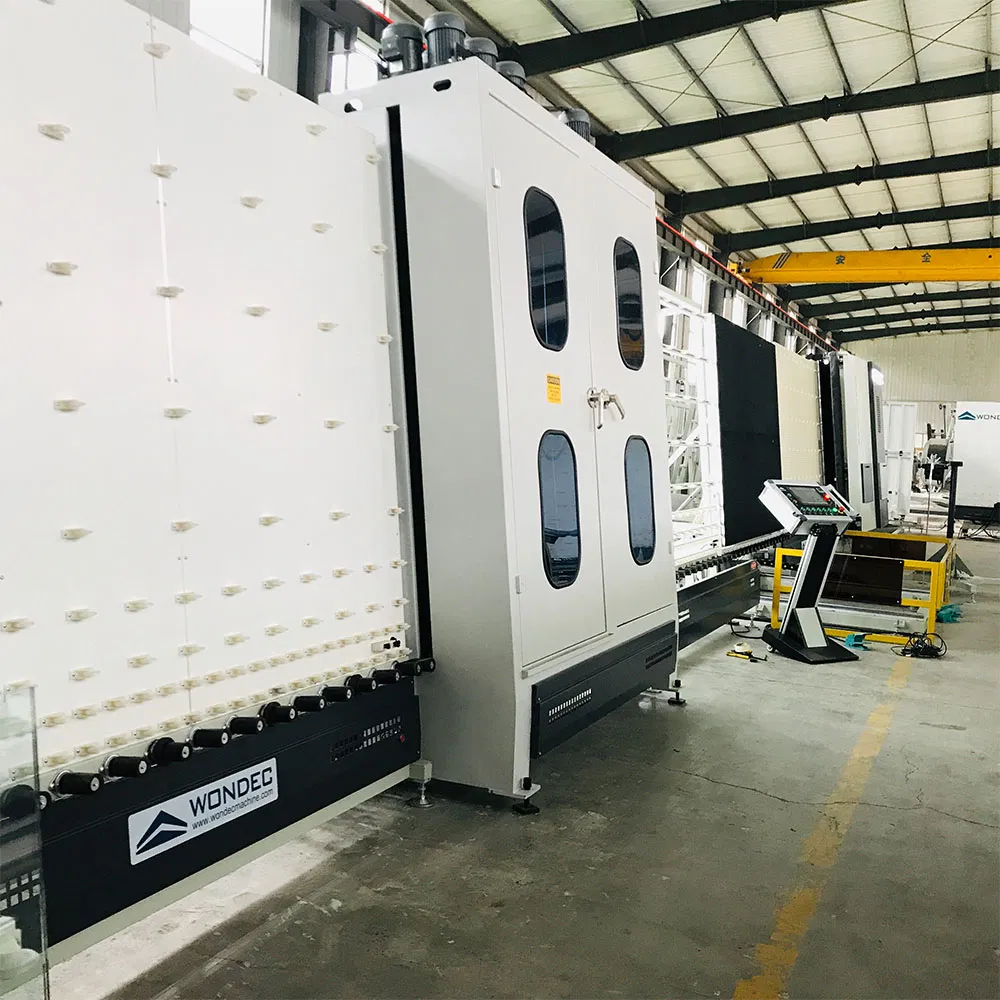

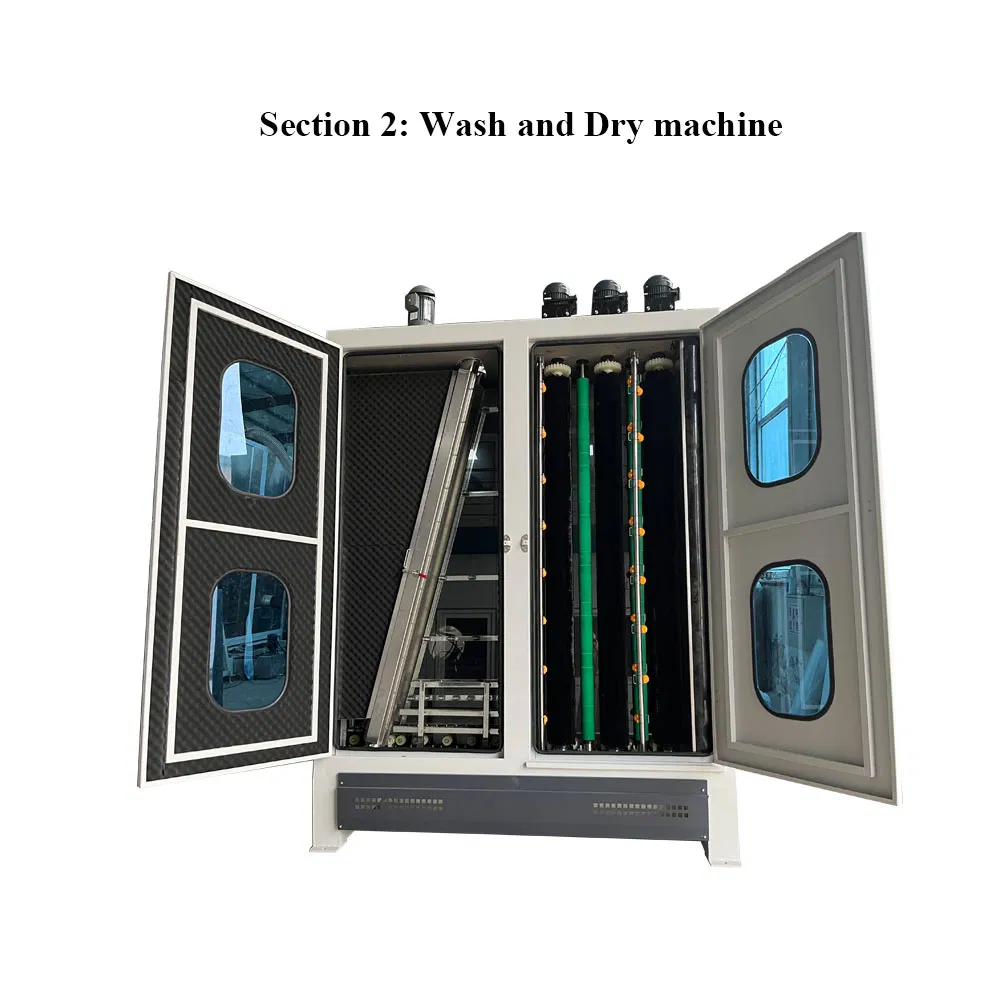

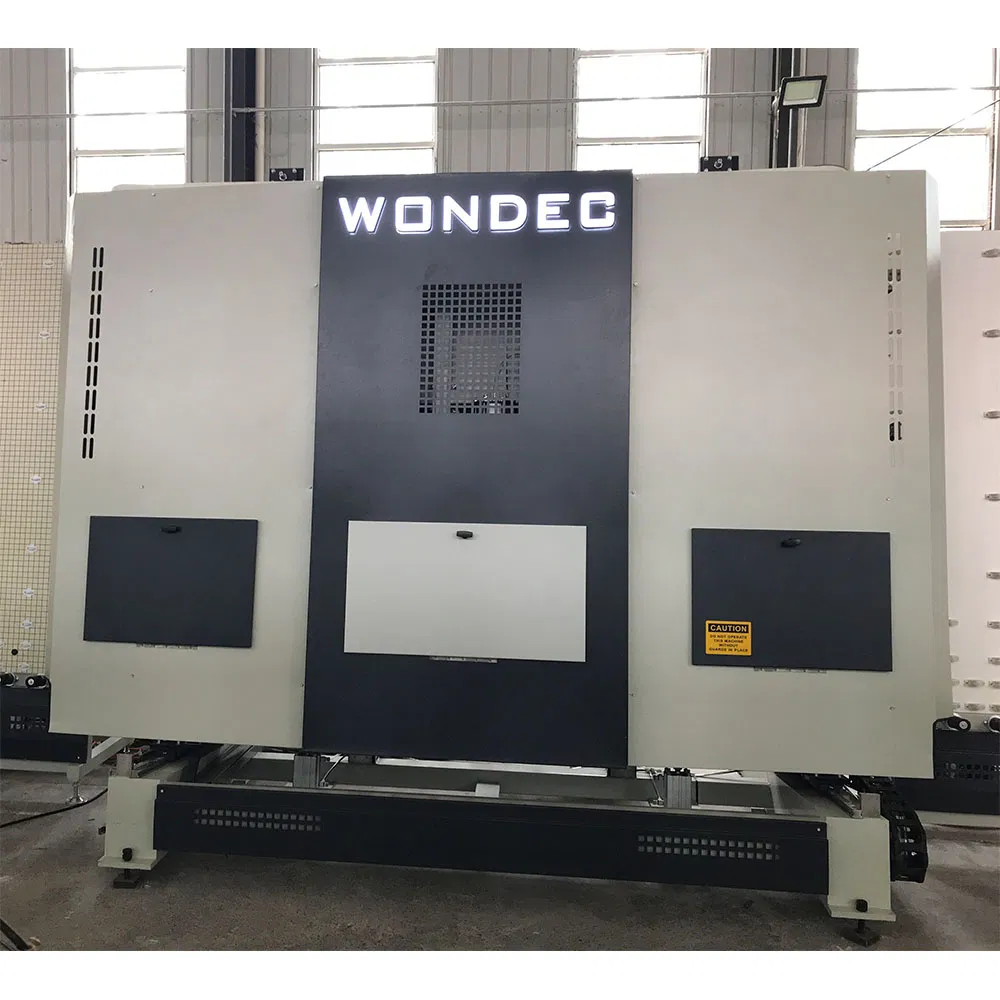

Section 02: Washing and Drying Section - Constructed with stainless steel and corrosion-proof materials. Includes water heating and stainless steel bearing bases.
Section 03: Conveyor & Light Inspection - Open design allows operators to inspect and manually clean glass if necessary.

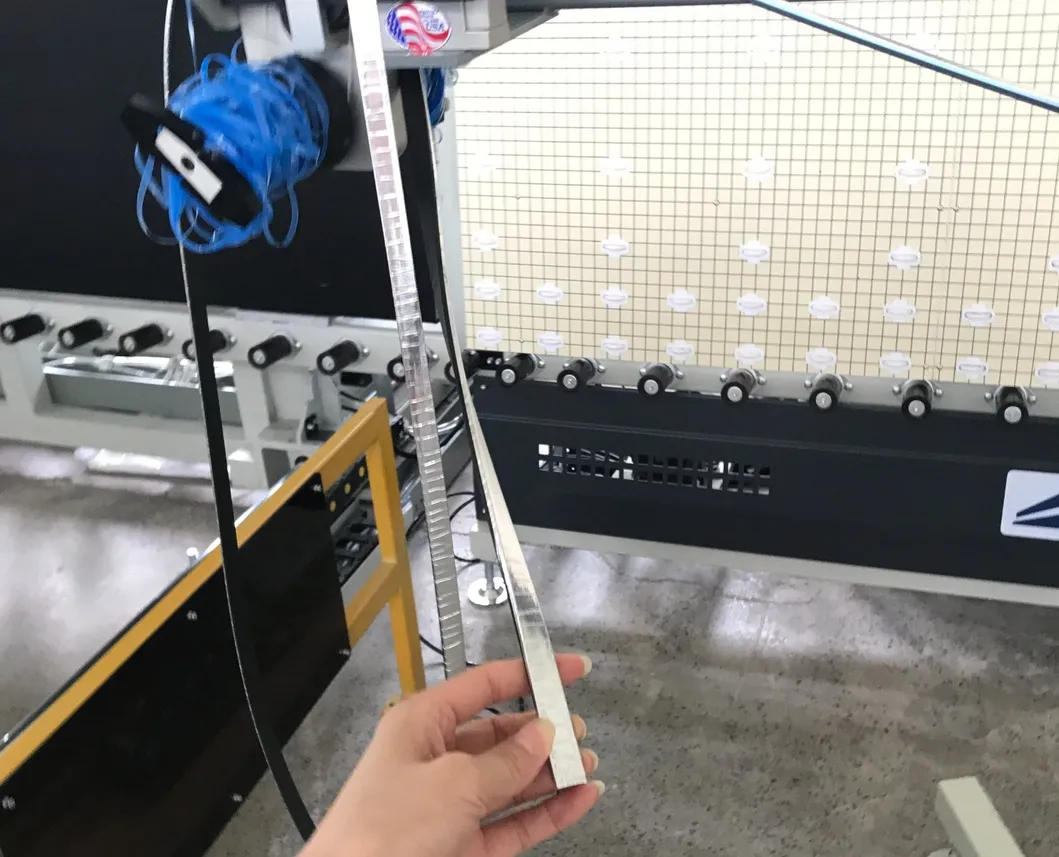

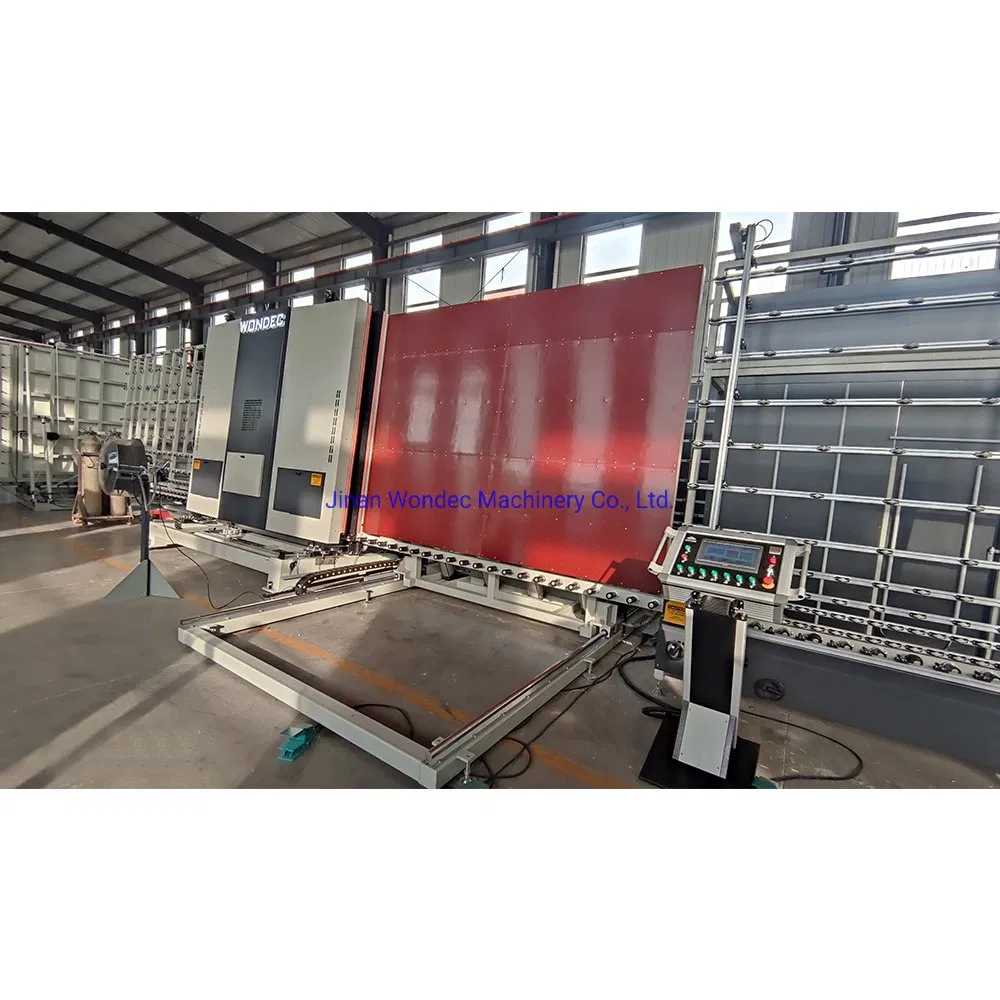

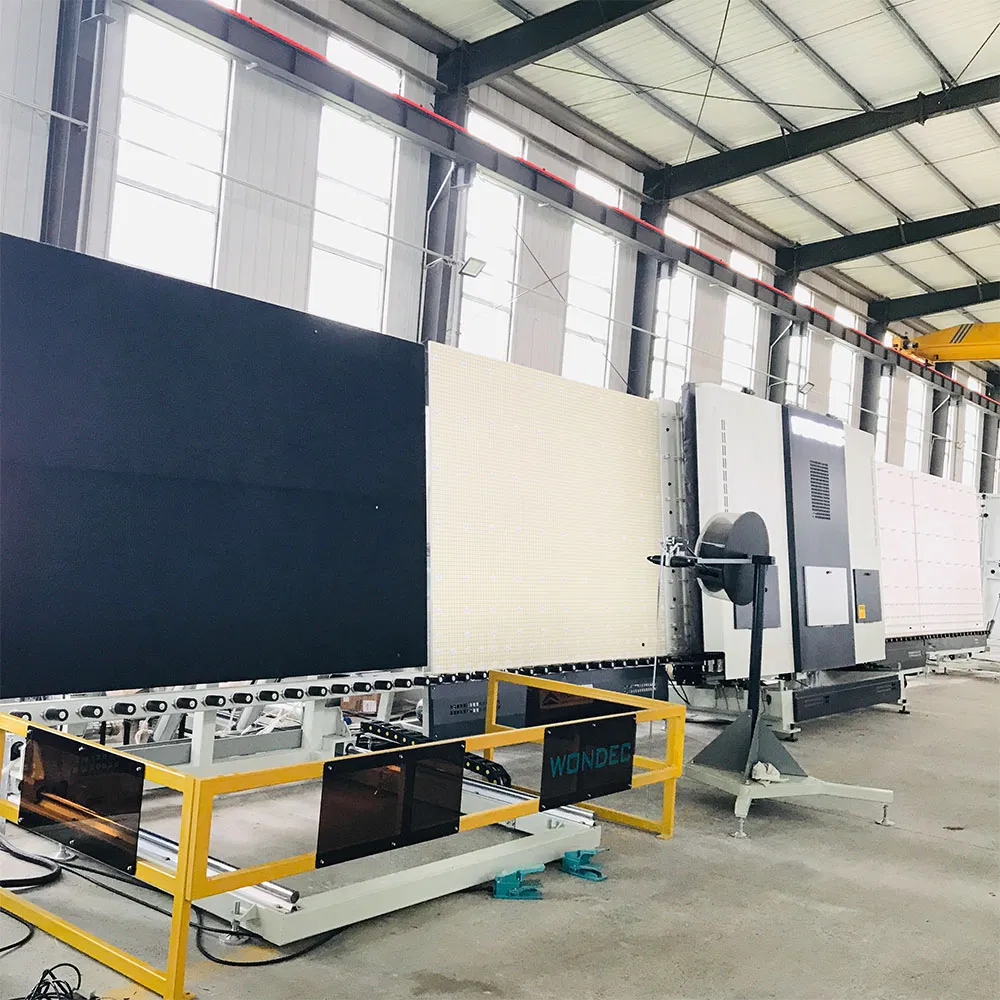

Section 04: Tilting Table - Features suck and release functions for easy and safe placement of super spacers.

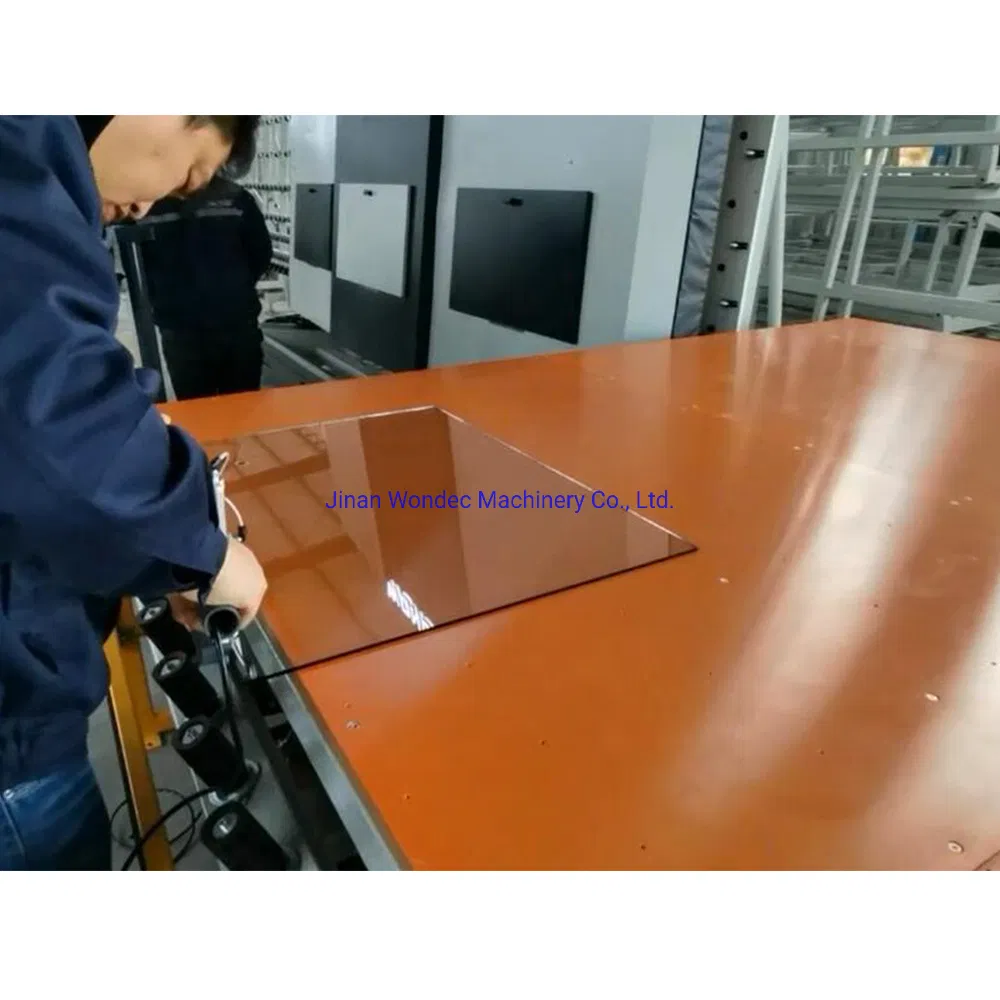

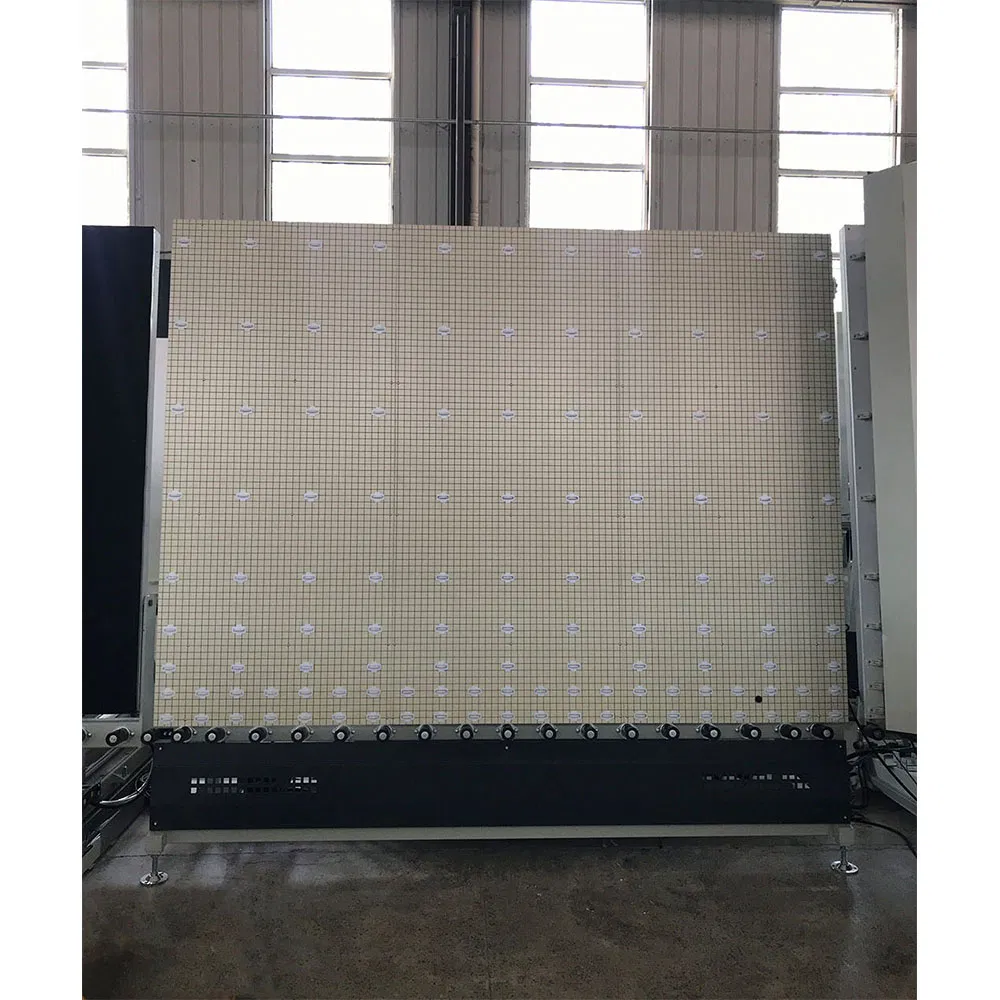

Section 05: Georgian Bars Application - Board lines assist in the accurate placement of decorative frames.

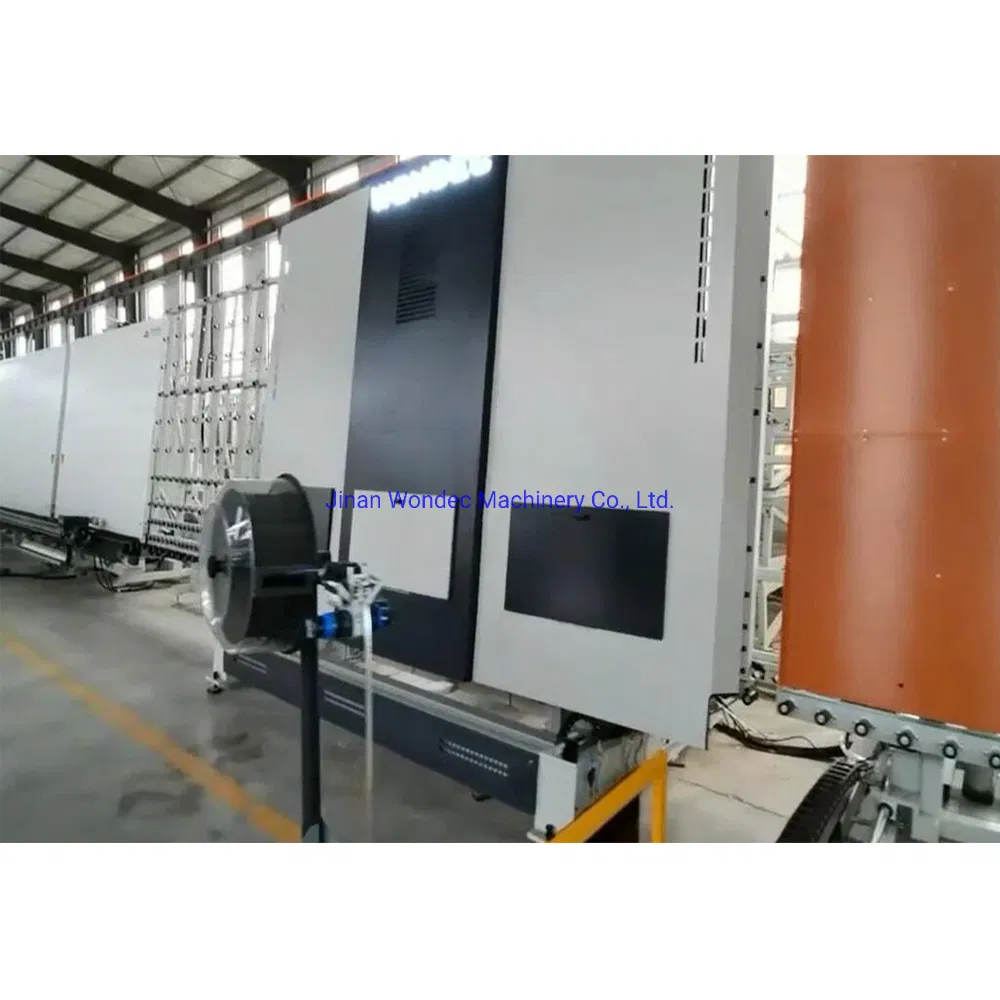

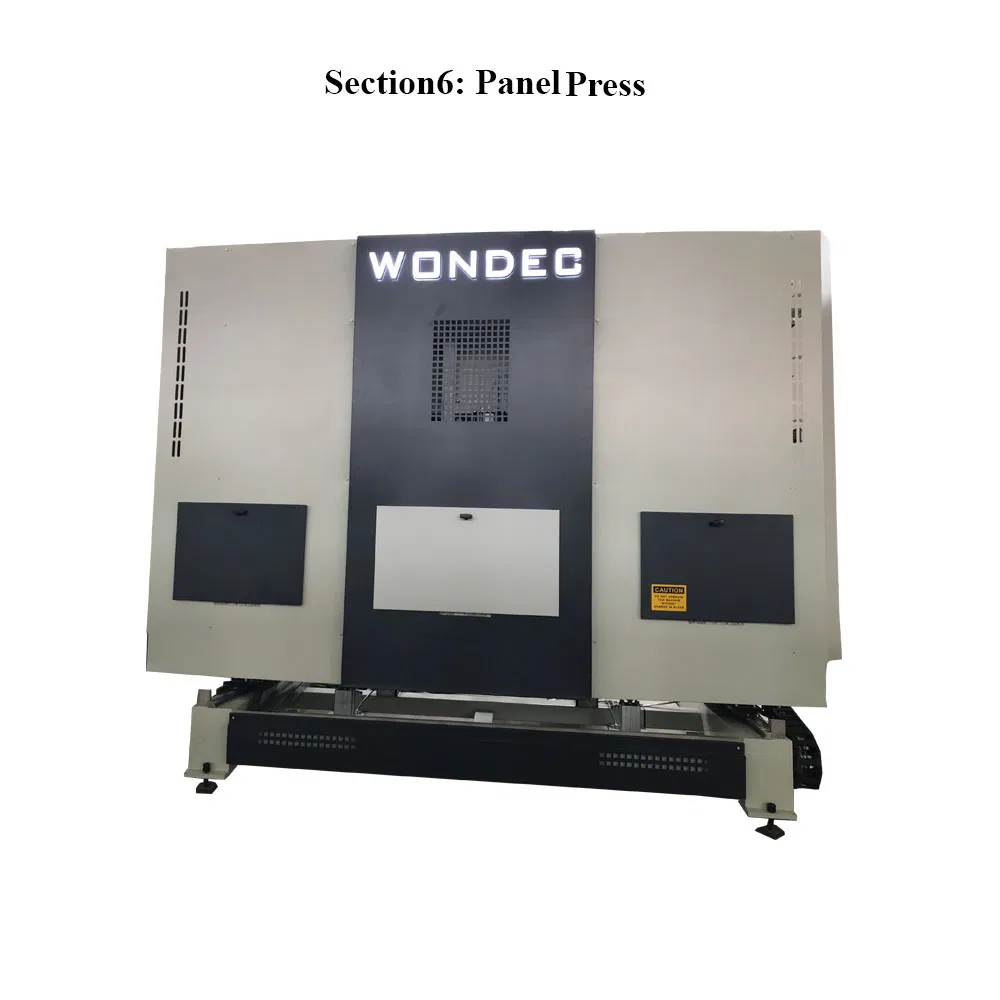

Section 06: Panel Press Section - Controlled by Servo motors with a reinforced steel frame for maximum stability. Features partitioned suction cups for different glass sizes.
Section 07: Output Section - Transfers finished insulated glass for secondary sealing.
6 independent motors drive the brushes.
Direct coupling connection prevents slipping.
Soft 0.1mm brushes for Low-E glass and 0.2mm brushes for ordinary glass.
Denser steel frame for machine longevity.
Two-layer pressing plate for adjustable flatness.
Separate logic valves for each suction cup.
Automatic online gas filling from the bottom side.
Product Parameters
| Max. Glass Size | 2000*3000mm |
|---|
| Min. Glass Size | 500*300mm |
|---|
| Pane Glass Thickness | 3-12mm |
|---|
| Max. Insulating Glass Thickness | 12-40mm |
|---|
| Glass Washing Speed | 3-12m/min |
|---|
| Working Speed | 2-48m/min |
|---|
| Air Pressure | 0.8m³/min |
|---|
| Water Electrical Conductivity | ≤40µS/cm |
|---|
| Overall Dimension | 21640*2100*3050mm |
|---|
| Voltage | 220V/60Hz or customized |
|---|
| Total Power | 24.5kw |
|---|
Production Workflow & Packaging
Production Workflow
Packaging & Shipping
Our Service
Pre-sales Service
Layout design based on your building floor plan or sketch.
Detailed technical drawings based on equipment layout.
After-sales Service
Weekly production progress reports.
Installation, debugging, and personnel training.
English operation manuals provided.
One-year warranty and lifetime technical support.
Frequently Asked Questions
How is the quality control for your machinery?
The entire production procedure undergoes regular inspection and strict quality control. Every component is inspected before use, and the complete machine is tested before leaving the factory. Testing videos and pictures are available before delivery.
Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in this field. We provide not just machinery, but complete production solutions.
What happens if the machine has problems after ordering?
Free parts are sent during the warranty period if issues arise. We offer lifetime free after-sales technical support via phone, WhatsApp, and email 24/7.
Do you provide installation services in my country?
Yes, we arrange for engineers to install the machine at your factory and provide training for your personnel once the equipment arrives.
Which countries have your products been exported to?
Our equipment has been exported to over 50 countries and regions, including North America, South America, Europe, India, Russia, and many others.
What documents are provided after shipment?
We send original documents via DHL, including the packing list, commercial invoice, bill of lading, and any other certificates required by our clients.
We are grateful for your interest in our products and look forward to supporting your business!
