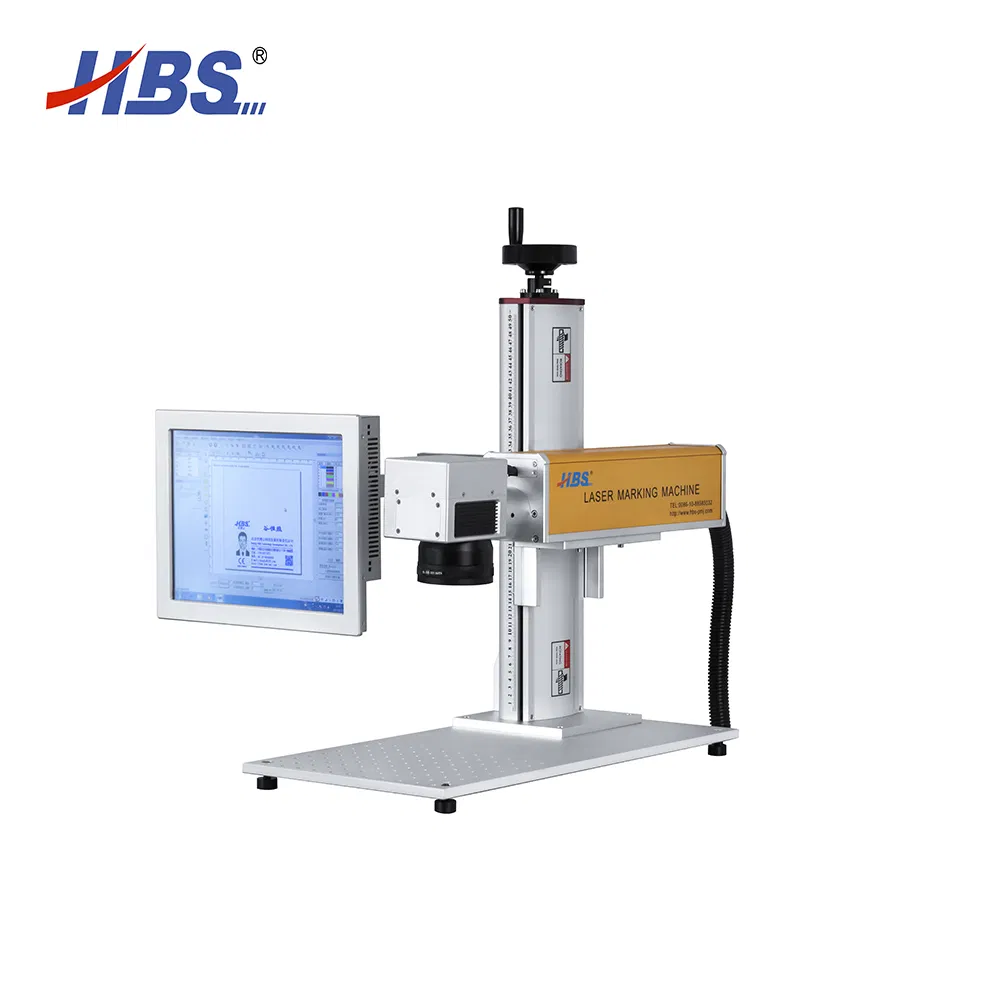

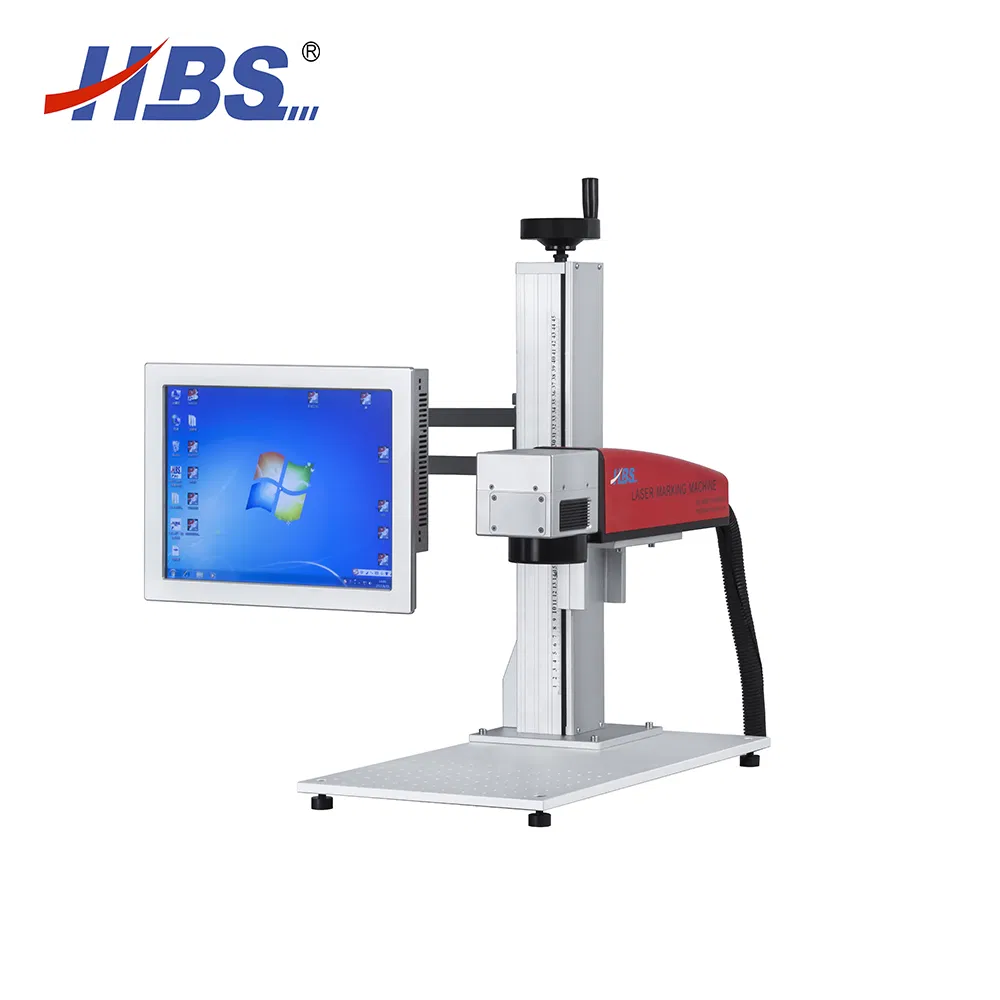

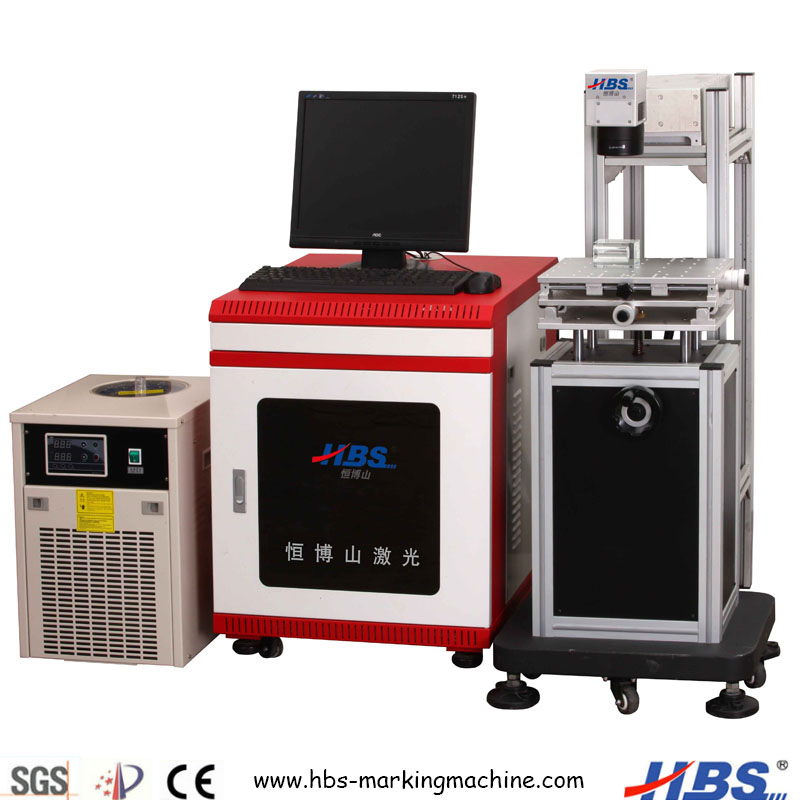

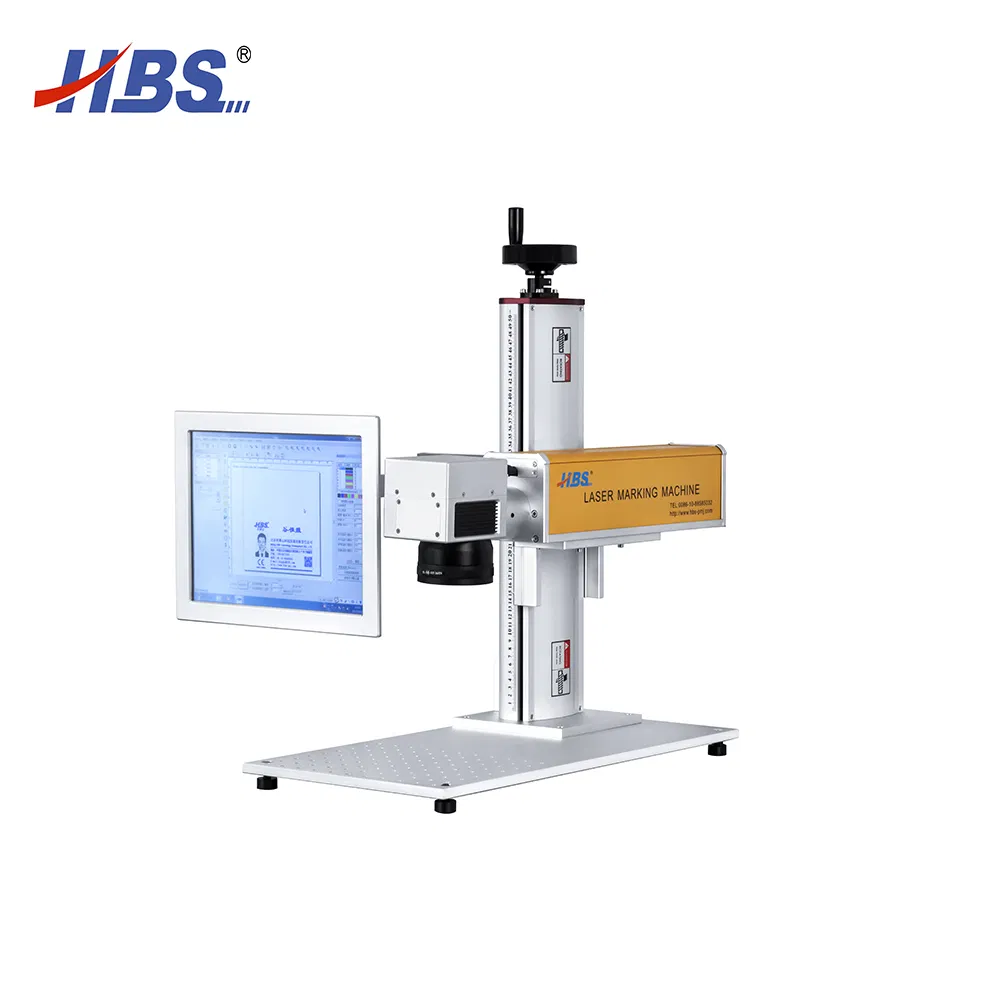

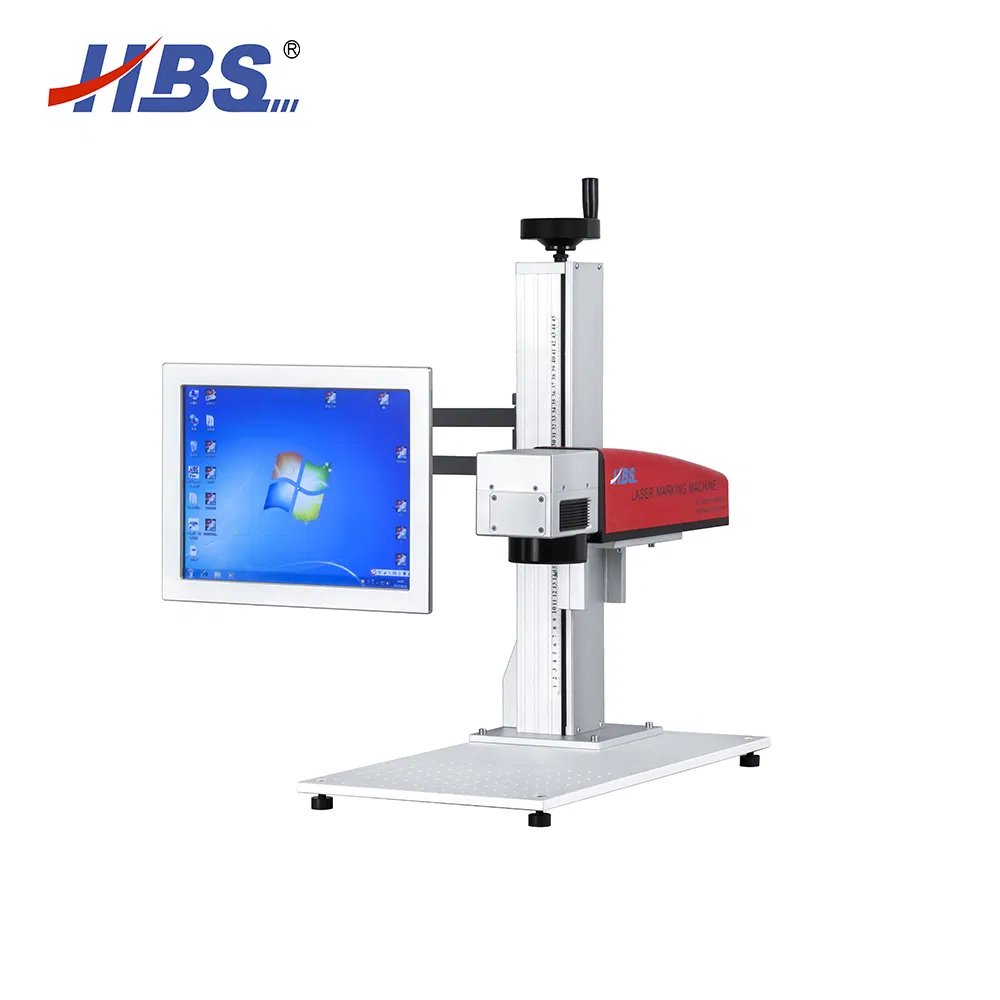

The Ultraviolet Laser Marking Machine incorporates world-class advanced technology, offering a high electro-optical conversion rate and exceptional stability. Designed with an optimized modular structure, it ensures convenient installation and maintenance. The system produces extremely fine laser marking lines, making it perfect for high-precision demands such as LCD screens, IC wafers, and microchips.
| Parameter | Specifications |
|---|---|
| Model | ZG-3 / ZG-5 |
| Laser Wavelength | 355nm |
| Laser Power | 3W / 5W |
| Marking Area | 50x50mm / 100x100mm |
| Marking Speed | ≤7000mm/s |
| Beam Quality | ≤2 |
| Q Frequency Tuning | 8KHz-15KHz |
| Min. Line Width | 0.01mm |
| Min. Character Size | 0.2mm |
| Repetition Accuracy | ±0.003mm |
| Power Consumption | 2Kw |
| Power Supply | 200V / Single-Phase / 50Hz / 10A |
This system is primarily used for surface processing and marking of high-tech materials including Glass, TFT/LCD/Plasma screens, Textile products, Ceramic chips, Silicon wafers, IC chips, Sapphire, and Thin polymer films. The UV laser excels in precision machining where other bandwidth lasers fall short.
Standard export packaging ensuring safety during transit. Dimensions: 530x220x660mm.
