| Technical Specifications | Details |
|---|---|
| Type | Solar Power System Component |
| Material | Galvanized steel, Aluminum 6000 series |
| Fasten material | Aluminum, SUS304, Steel |
| Survival Wind Speed | < 60m/s |
| Design Snow load | Up to 1.4KN/ Square meters |
| Solar panel type | Framed or Frameless |
| Quality warranty | 12-25 years |
| Duration | More than 20 years |
| NO. | NAME | SIZE(mm) | QTY | MATERIAL |
|---|---|---|---|---|

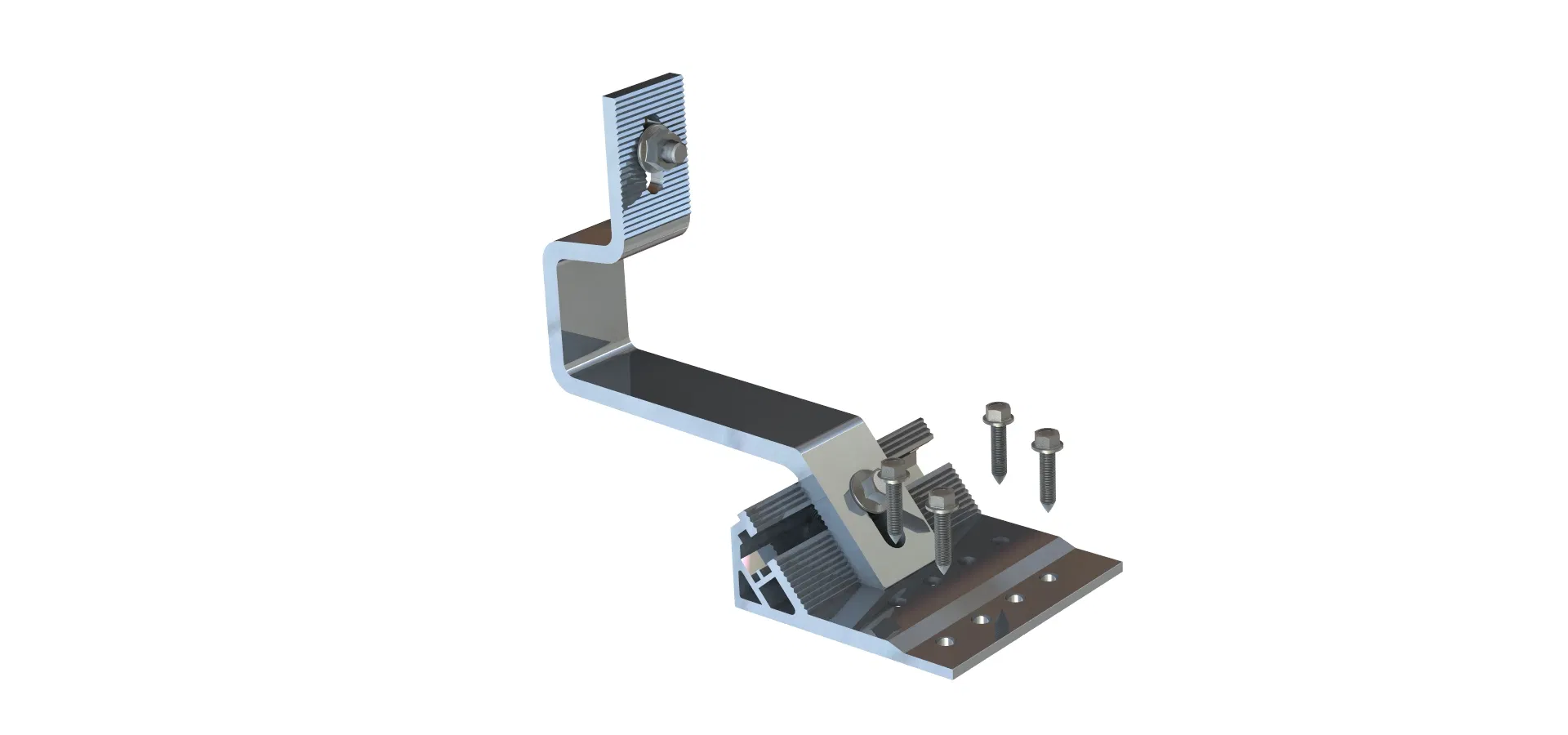

| 1 | Roof Hook | - | 8 | AL6063-T5 |
| 2 | Drilling Screw | M5.5*60 | 32 | 304 |
| 3 | Rail | 2100 | 4 | AL6063-T5 |
| 4 | Rail Joiner | 200 | 2 | AL6063-T5 |
| 5 | Mid Clamp | Viega Profi-press | 6 | AL6063-T5 |
| 6 | End Clamp | Viega Profi-press | 4 | AL6063-T5 |

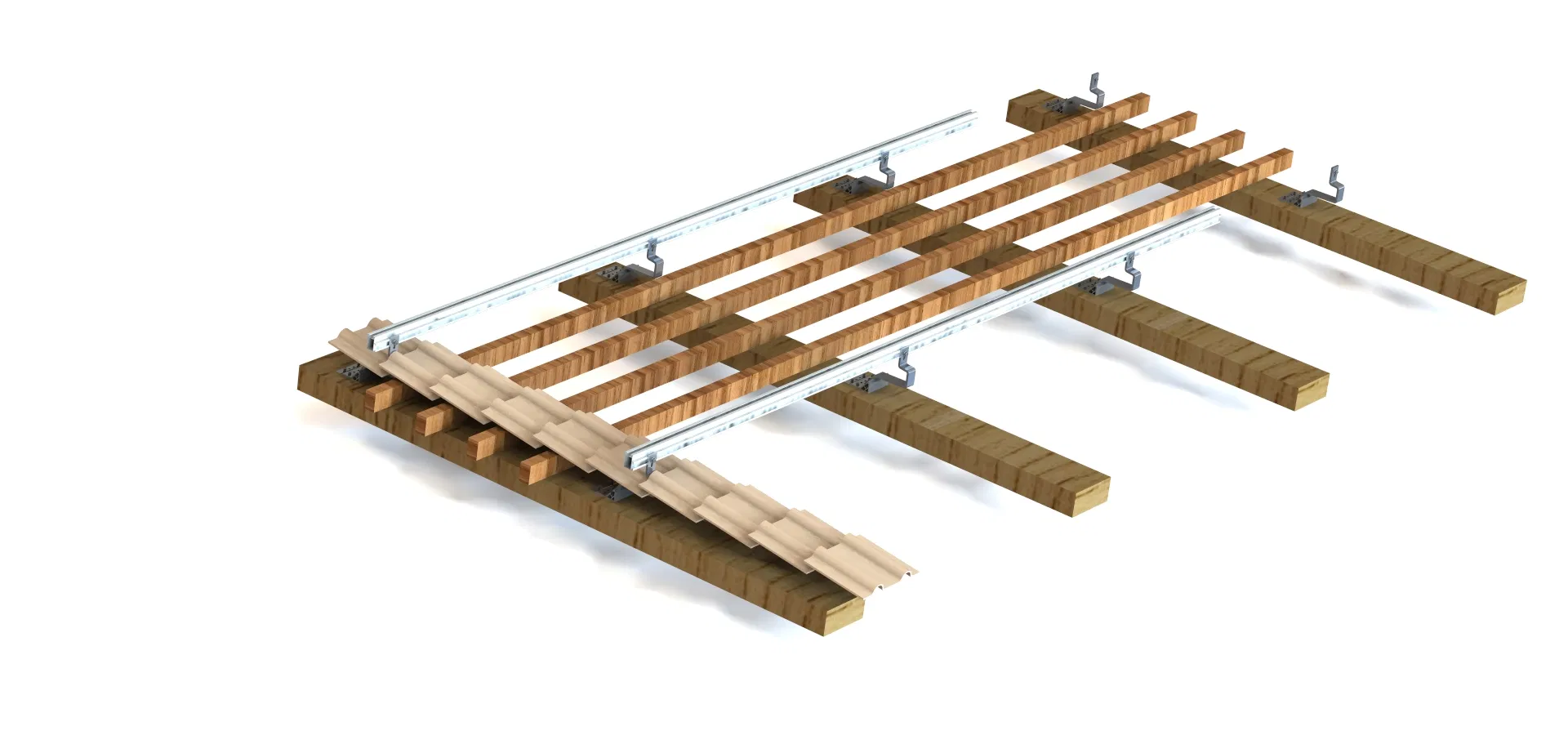

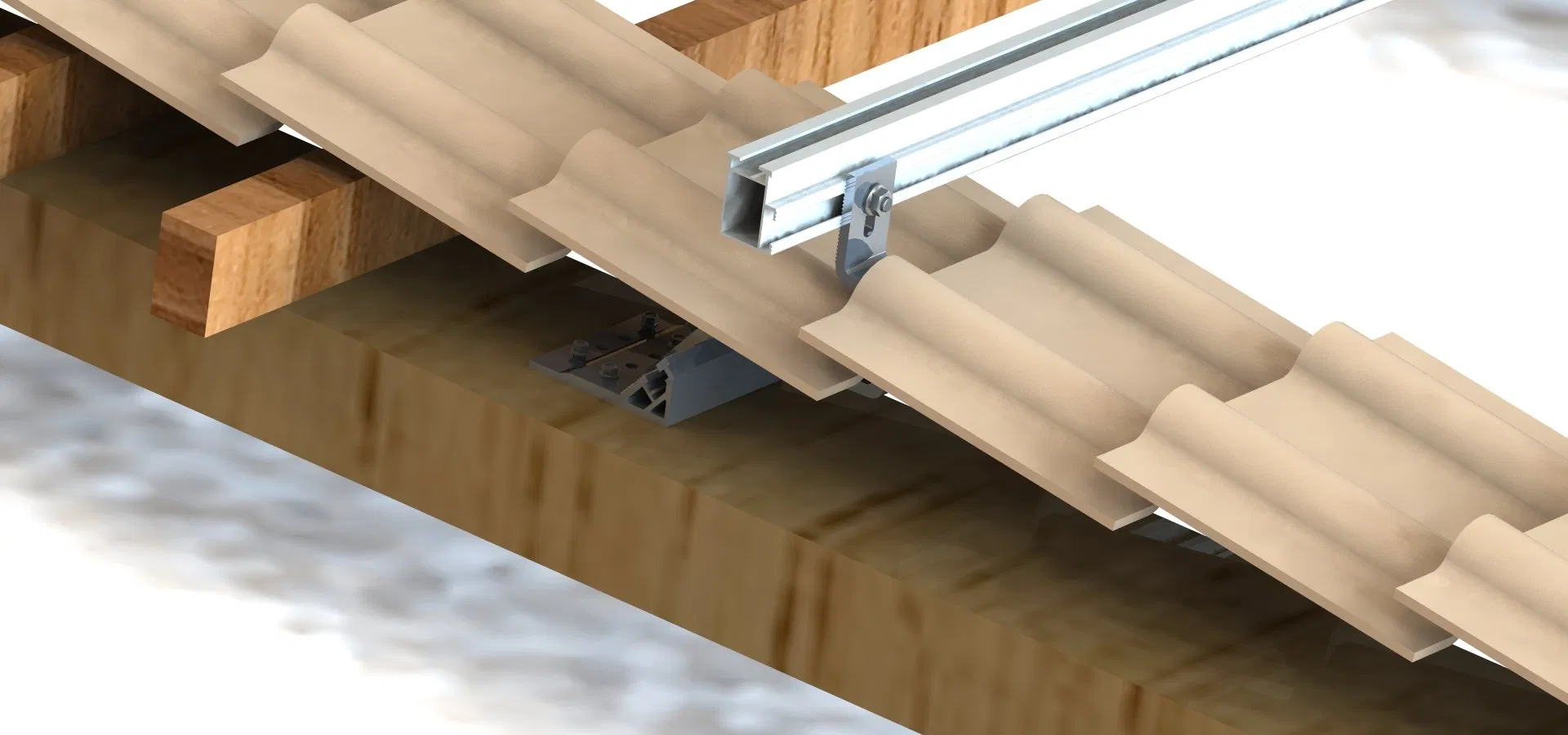

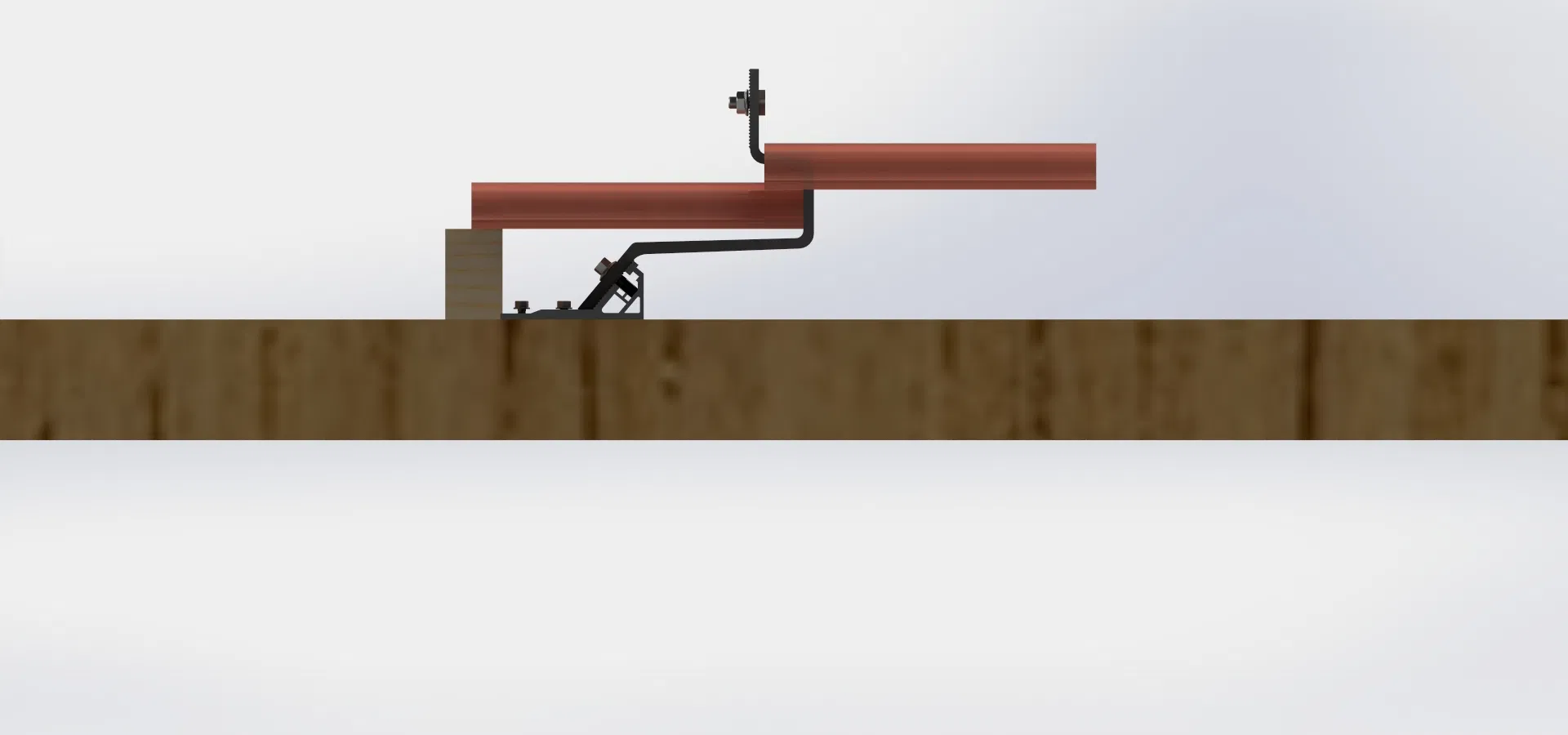

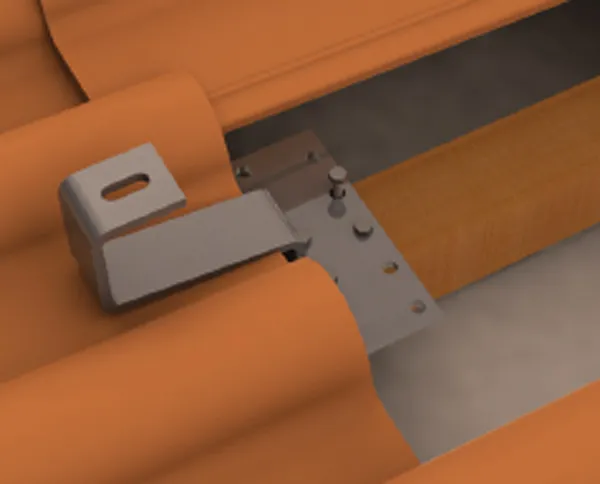

Fix roof hook on to the wooden beam with wood screw. Generally, three wood screws are enough.

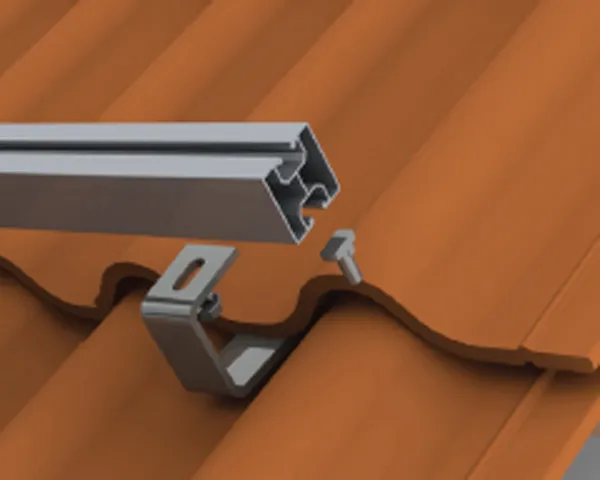

Fix the aluminum rail to the roof hook with T-head bolt and flange nut.

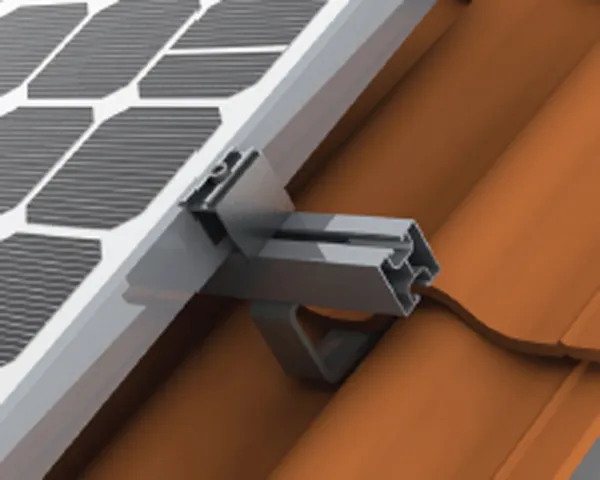

Fasten the hex bolt when the module clamps and PV modules are located.
In order to help you get the right system, please provide the following info:
