Standard Digital Readout Vertical Profile Projector for Shaping File

Customization:	Available
Magnification:	100-500X
Type:	Video

Send Inquiry

Product Description

Basic Specifications

Model NO.

VP400-2010

Number of Cylinder

Binoculars

Mobility

Desktop

Stereoscopic Effect

Without Stereoscopic Effect

Kind of Light Source

Laser

Shape

Rectangular Prism

Usage

Teaching, Research

Principle

Electronic

Principle of Optics

Polarizing Microscope

Transport Package

Plywood

Specification

CE, ISO

HS Code

9031491000

Production Capacity

20 Pieces/Month

Product Overview

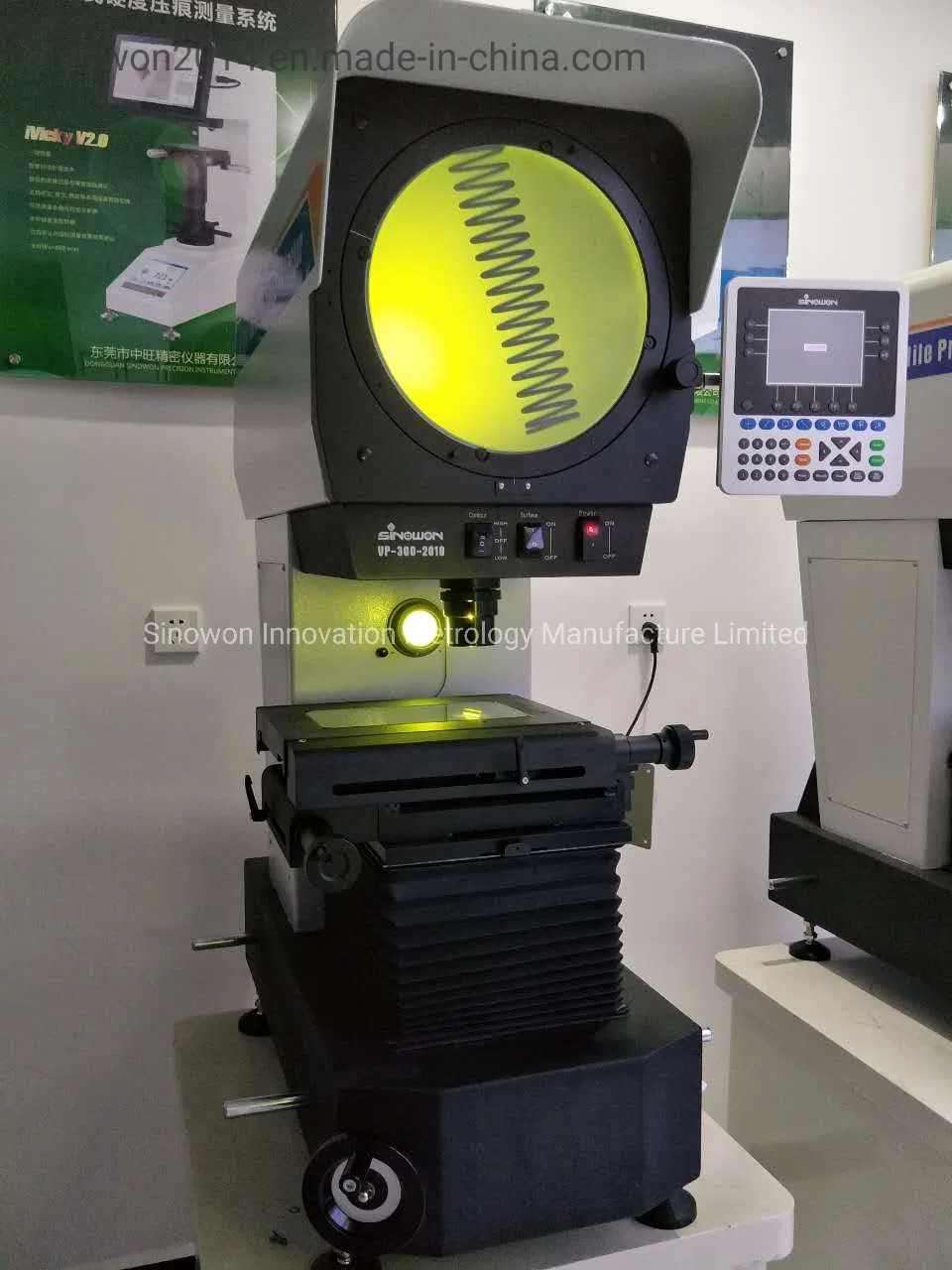

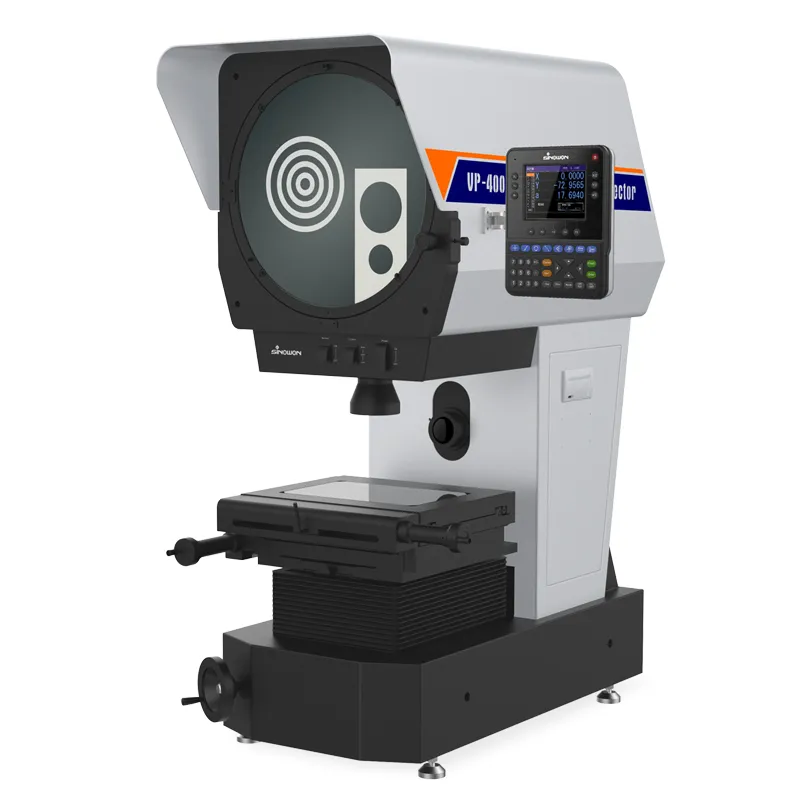

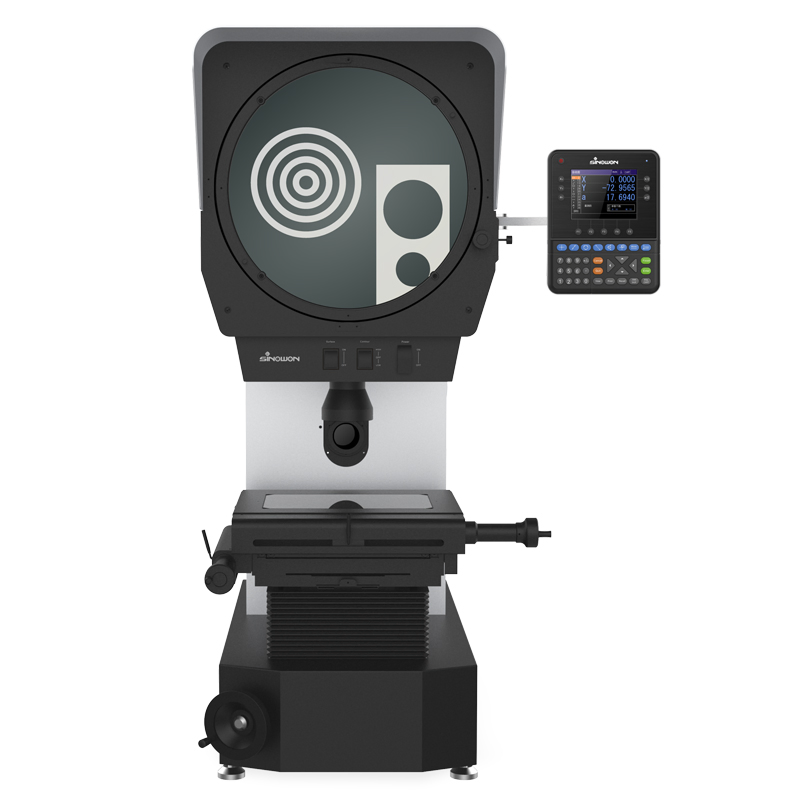

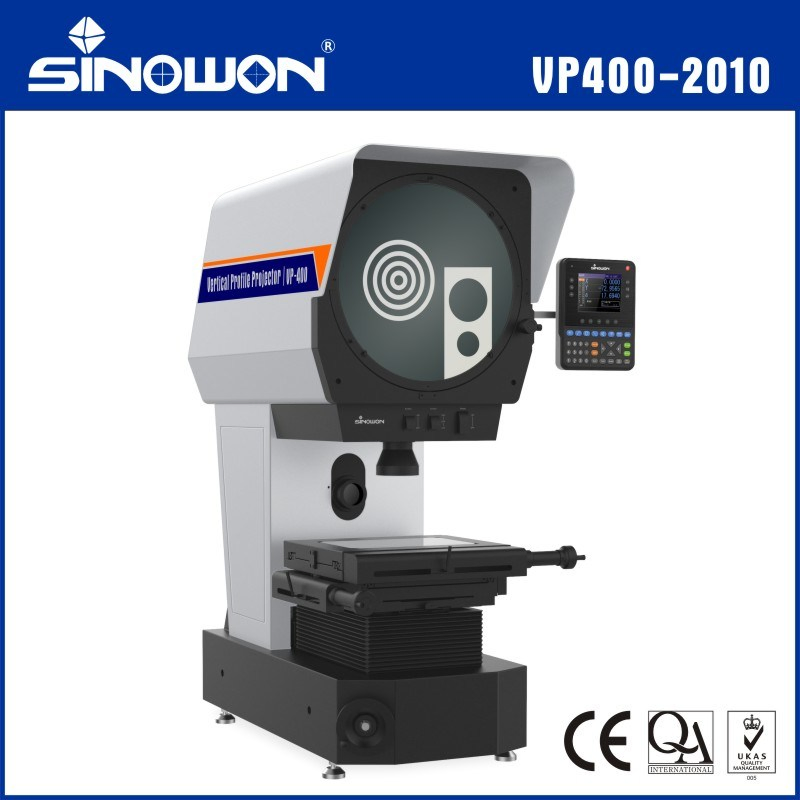

Standard Digital Readout Vertical Profile Projector VP400-2010

This profile projector technology is designed to display accurate magnification of workpieces for comparison and precision measurements, fully integrated with advanced data processing capabilities.

Key Features

◈
Stable Lifting System: Adopts cross roller rail and precision screw drive for comfortable and stable movement.
◈
High-Clear Imaging: Coating process reflector ensures clearer images and excellent dustproof performance.
◈
Adjustable Illumination: Contour and surface illumination can be adjusted to meet different workpiece requirements.
◈

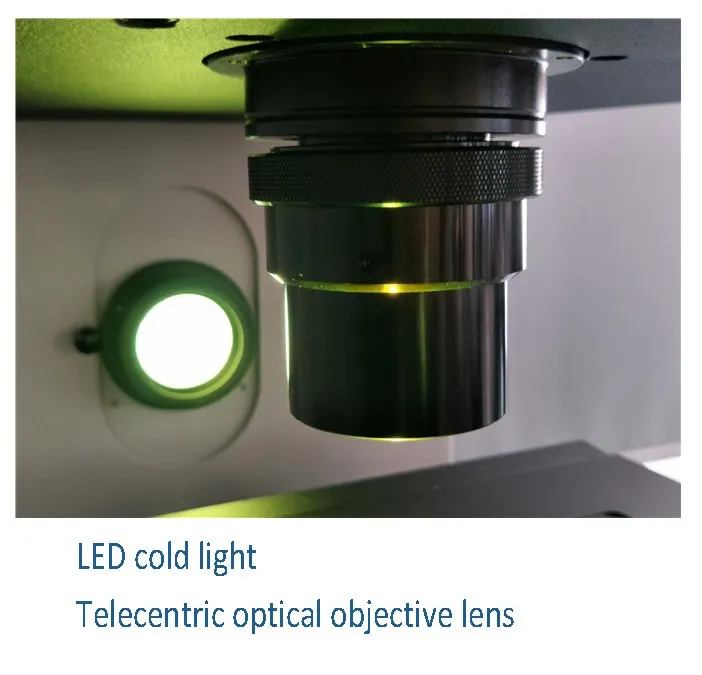

Long-life LED: Imported high-light LED illumination ensures precision measurement and long service life.
◈
Optical Precision: High resolution system with magnification error less than 0.08%.
◈
Efficient Cooling: Powerful Bi-axial fan cooling system significantly increases the machine's lifespan.
◈

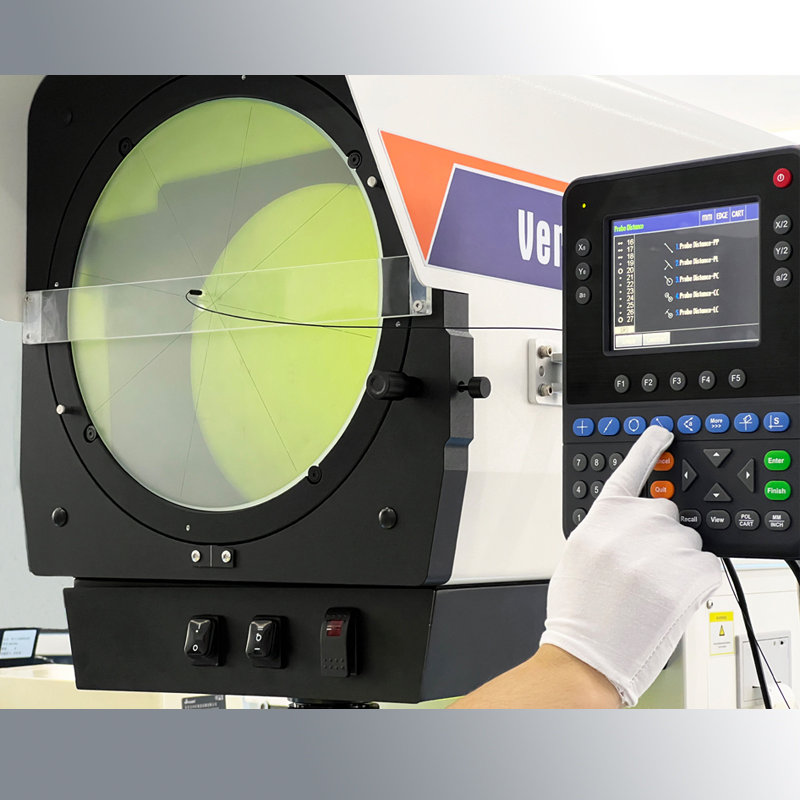

Advanced DRO: Equipped with the powerful DP400 colorful LCD digital readout for fast and accurate 2D measurement.
◈
Data Management: Built-in Mini-printer allows for immediate data printing and saving.

Technical Specifications

Feature	VP400-2010 Specification	VP400-2515 Specification
Stage Travel	200x100mm	250x150mm
Metal Stage Size	308x408mm	308x408mm
Glass Stage Size	198x306mm	198x306mm
Resolution	0.0005mm
Accuracy	≤3+L/200(um)
Focusing	100mm
Screen Diameter	Ø412mm (Range ≥ Ø400)
Rotation Angle	0~360° (Res: 0.01°)
Illumination	Contour & Surface: 3.2V/10W LED
Power Supply	AC110V/60Hz; 220V/50Hz, 150W

Objective Lens Options

Magnification	5X (Optional)	10X (Standard)	20X (Optional)	50X (Optional)
Field of View	φ80mm	φ40mm	φ20mm	φ8mm
Working Distance	65mm	80mm	67.7mm	51.4mm

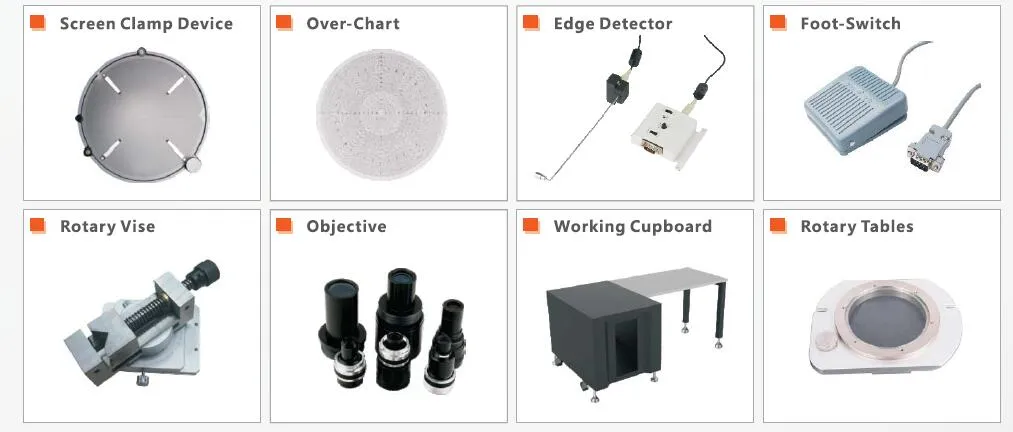

Accessories & Components

Service & Support

Technical Support: We provide professional technical after-sales service and lifelong support. Comprehensive English operation manuals and instructional videos are provided, along with video-conference support for online troubleshooting.

Warranty: 15-month warranty included. Within this period, spare parts are provided free of charge for quality-related issues (excluding artificial damage or force majeure).

Extended Service: Beyond the warranty period, we continue to provide full maintenance services, with customers covering parts and transportation costs.

Frequently Asked Questions

What is the measurement resolution of the VP400-2010?

The system provides a high resolution of 0.0005mm, ensuring precise measurements for industrial and research applications.

What type of lighting does the projector use?

It uses high-light, long-life 3.2V/10W LED illumination for both contour and surface lighting, which is more durable than traditional bulbs.

Does the machine support data output?

Yes, it features a built-in mini-printer and a DP400 multifunction colorful LCD digital readout to process, display, and print measurement data.

What objective lenses are included?

The standard package includes a 10X objective lens. Optional 5X, 20X, and 50X lenses are available depending on your magnification requirements.

How long is the warranty period for this equipment?

We offer a 15-month warranty covering quality-related issues, along with lifelong technical support.

Is the lifting system stable for heavy workpieces?

Yes, the lifting system uses a cross roller rail and precision screw drive, designed to handle workpieces up to 10kg with smooth and stable operation.
