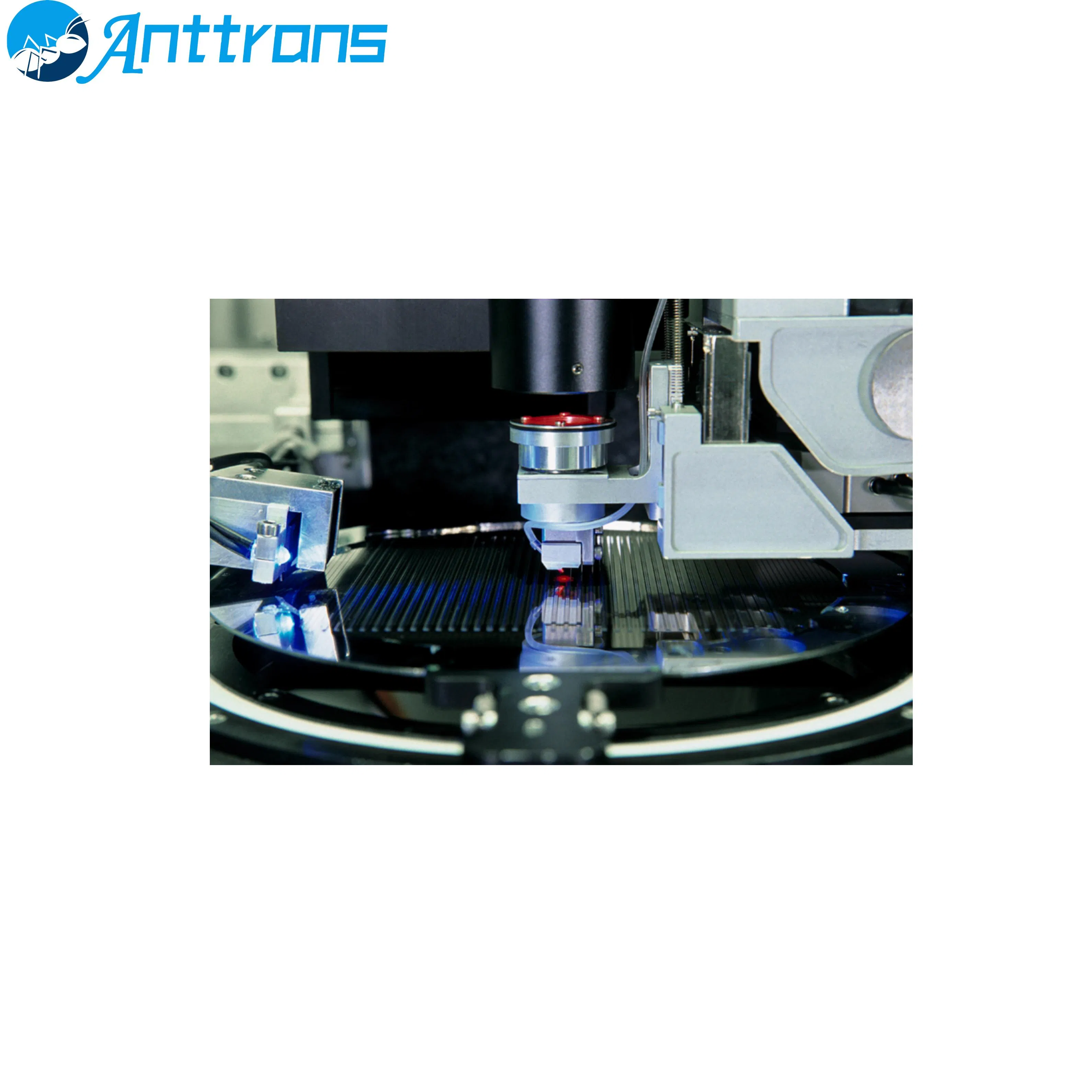

Ultra-Fast Machining System/Laser Machining System

1 / 5

Ultra-Fast Machining System/Laser Machining System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

Overview & Specifications

Model Number

AT-61151

Origin

China

Package Size

1500.00cm * 1060.00cm * 950.00cm

Package Gross Weight

500.000kg

Key Product Features

01High-power, ultra-fast ultraviolet laser for direct ablation with no heat-affected zone.

02Excellent beam shaping design for advanced micro-machining capabilities.

03High-precision galvanometer for accuracy better than ±2μm.

04Linear motor-driven platform for repeatability accuracy up to ±1μm.

05Electrically adjustable Z-axis for 3D structure machining.

06Extended precision rotary axis for irregularly shaped parts.

07High-resolution industrial camera for full-field error correction and positioning.

08On-machine power detection and compensation for long-term reliability.

09Supports up to 256 layer parameters and multiple file formats (DXF, AI, PNG).

10Stable marble tabletop design ensures long-term system precision.

11Versatile processing for glass, organics, metals, ceramics, and more.

Application Areas

Medical devices, precision tools, precision micro-mold forming, and fine mask fabrication.

Technical Parameters

Category	Parameter	Details (AT-UVAT-5A)
Laser	Wavelength	343/355nm
	Power	10W
	Modulation Frequency	1-2000kHz
	Pulse Width	<10ps
Galvanometer	Repeatability	<1μm
Galvanometer	Positioning Accuracy	≤±3μm
XY Table	Travel	500*400mm
	Positioning Resolution	0.1μm
	Repeatability	≤±1μm
	Positioning Accuracy	≤±3μm
Z Axis	Travel	200mm
	Repeatability	≤±1μm
	Positioning Accuracy	≤±5μm
Cooling	Water Cooling	2000W Cooling Capacity
Dimensions	Size	170014001950mm
Weight	Total Weight	2000Kg

Main System Components

Scanning Galvanometer	Linear Translation Stage
Control Card & System	Focusing Lens
CCD Monitoring	Water Chiller
Smoke Dust Collector	UPS Power Supply

Service Scope

We provide technical services, technology development, and consulting in the fields of computer software and hardware. Our business covers the wholesale and retail of optical instruments, specialized semiconductor device equipment, experimental analysis instruments, and CNC machine tools. Additionally, we specialize in the sales of functional glass, optical materials, electronic components, and welding equipment.

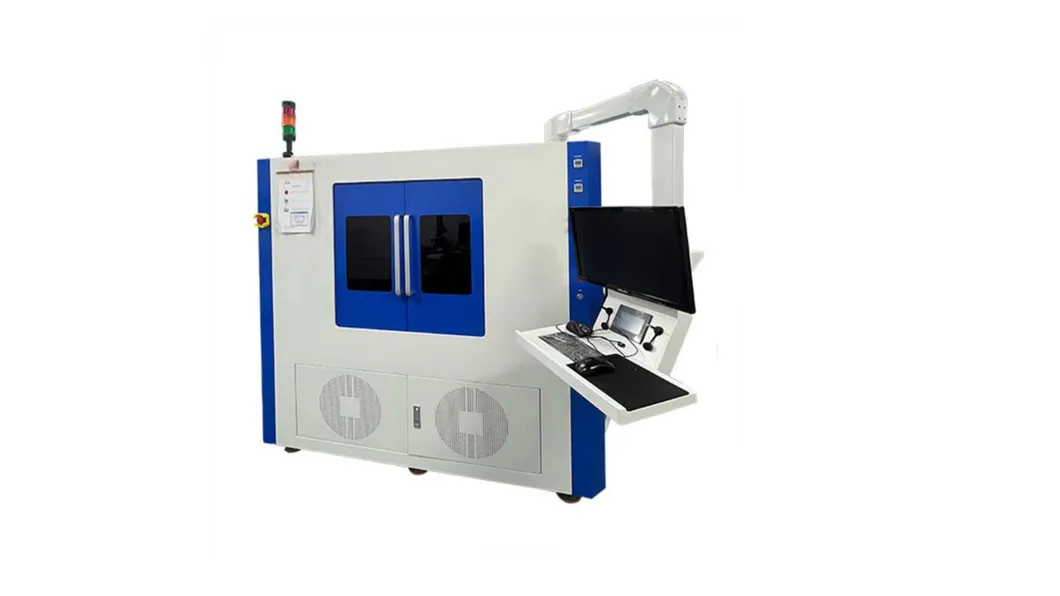

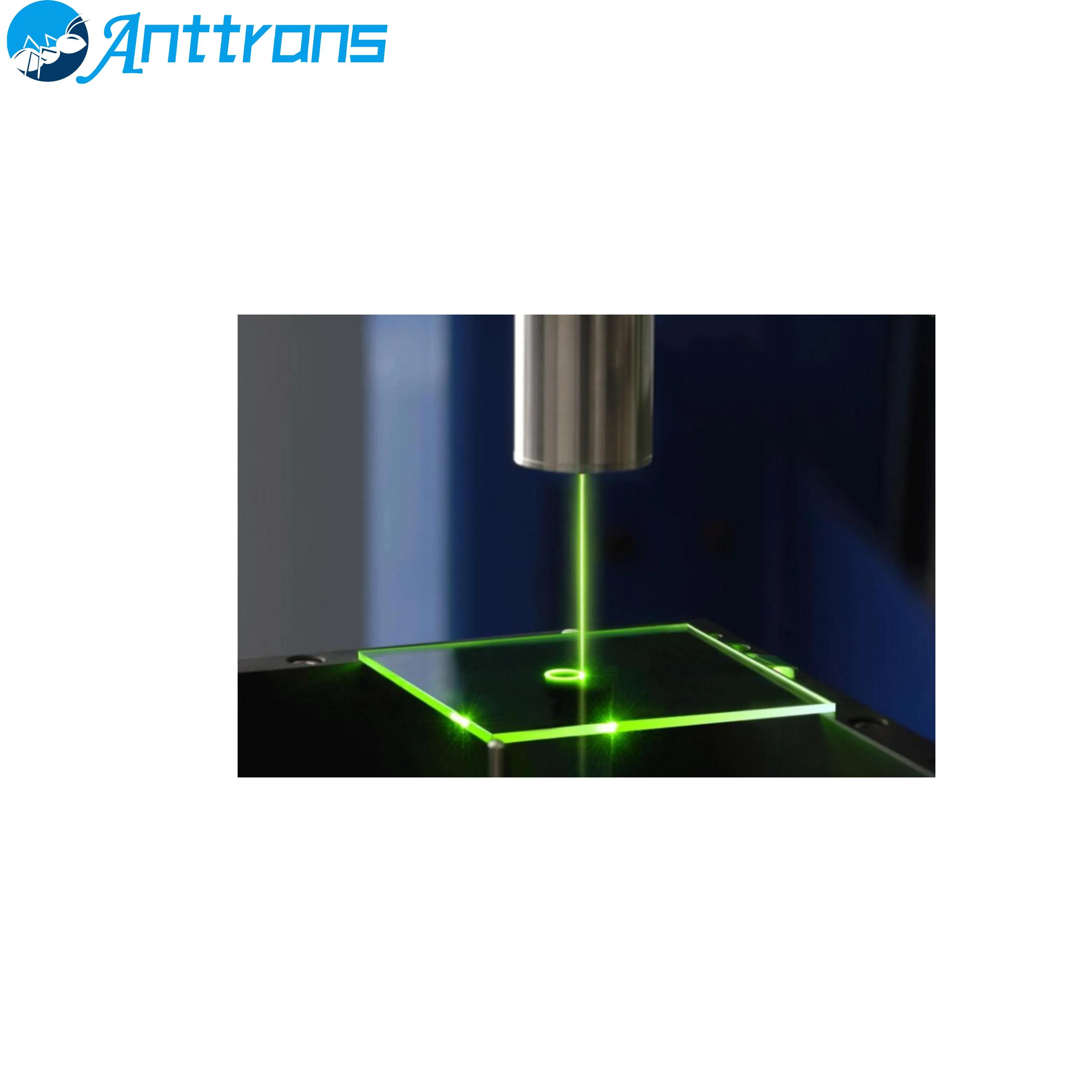

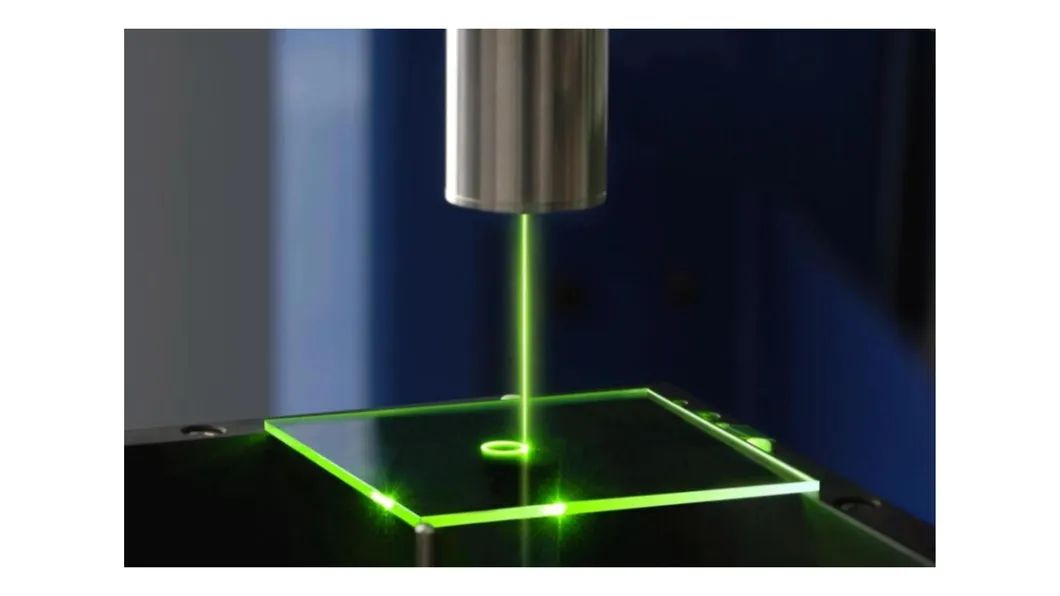

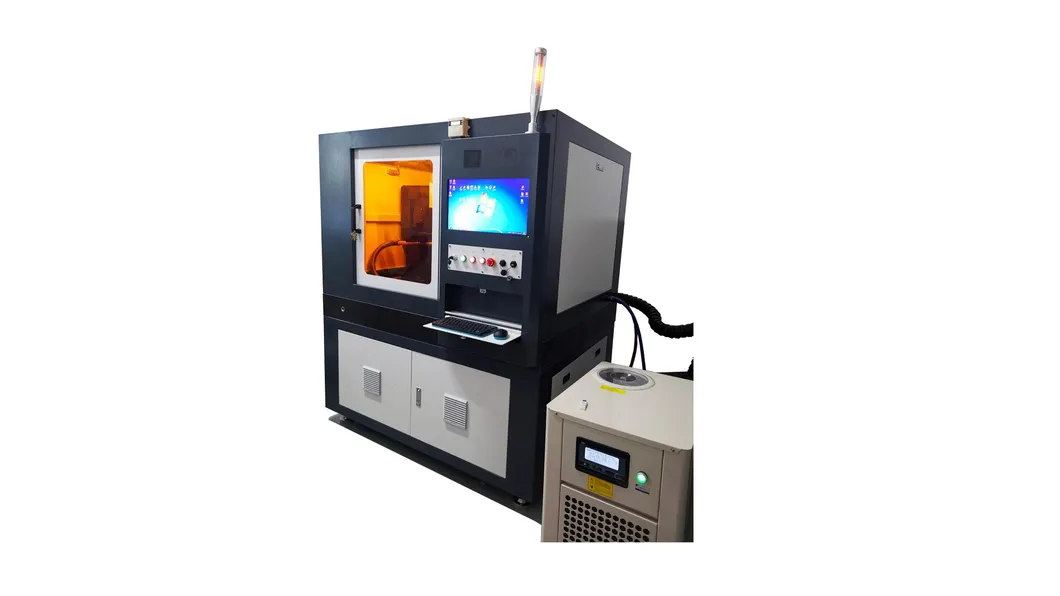

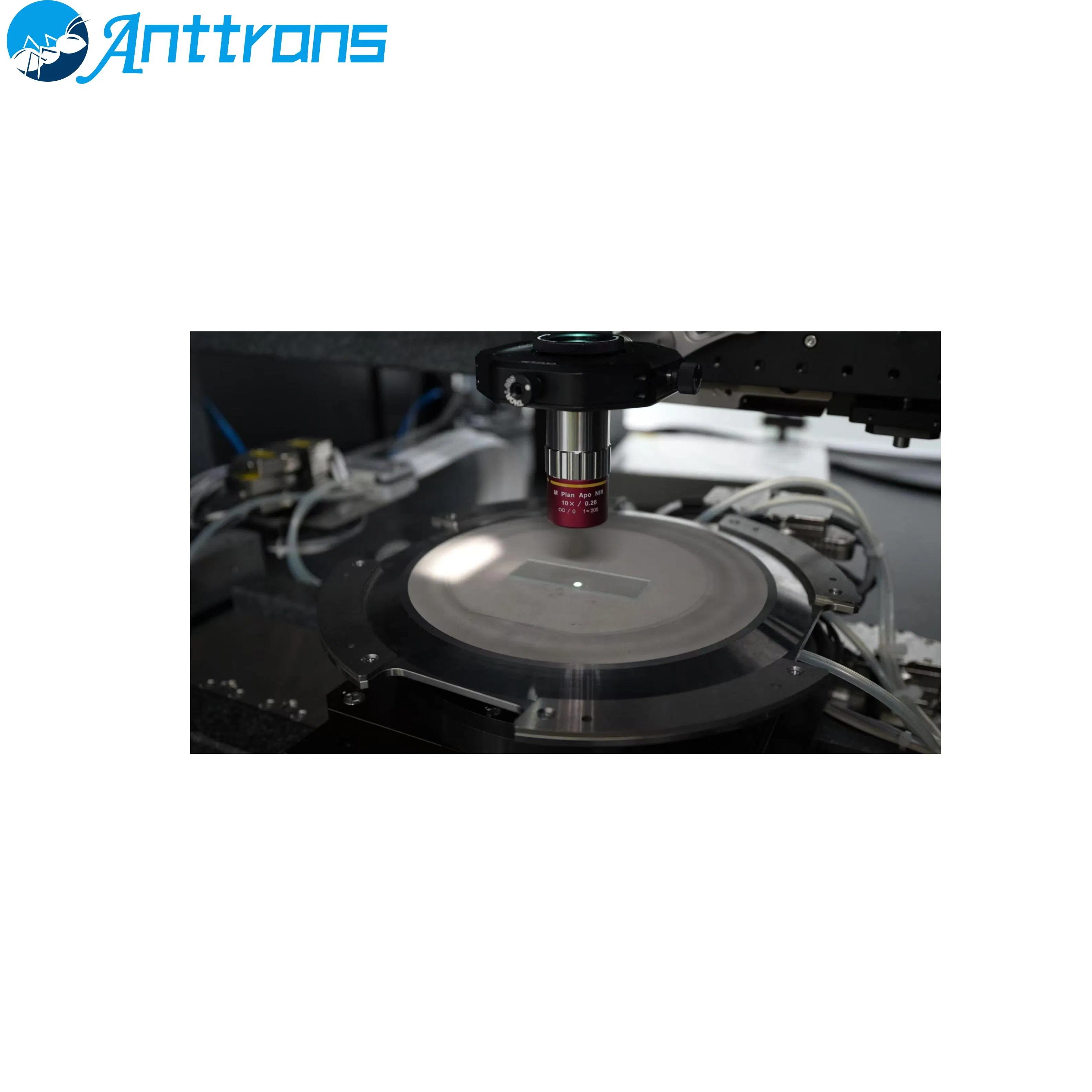

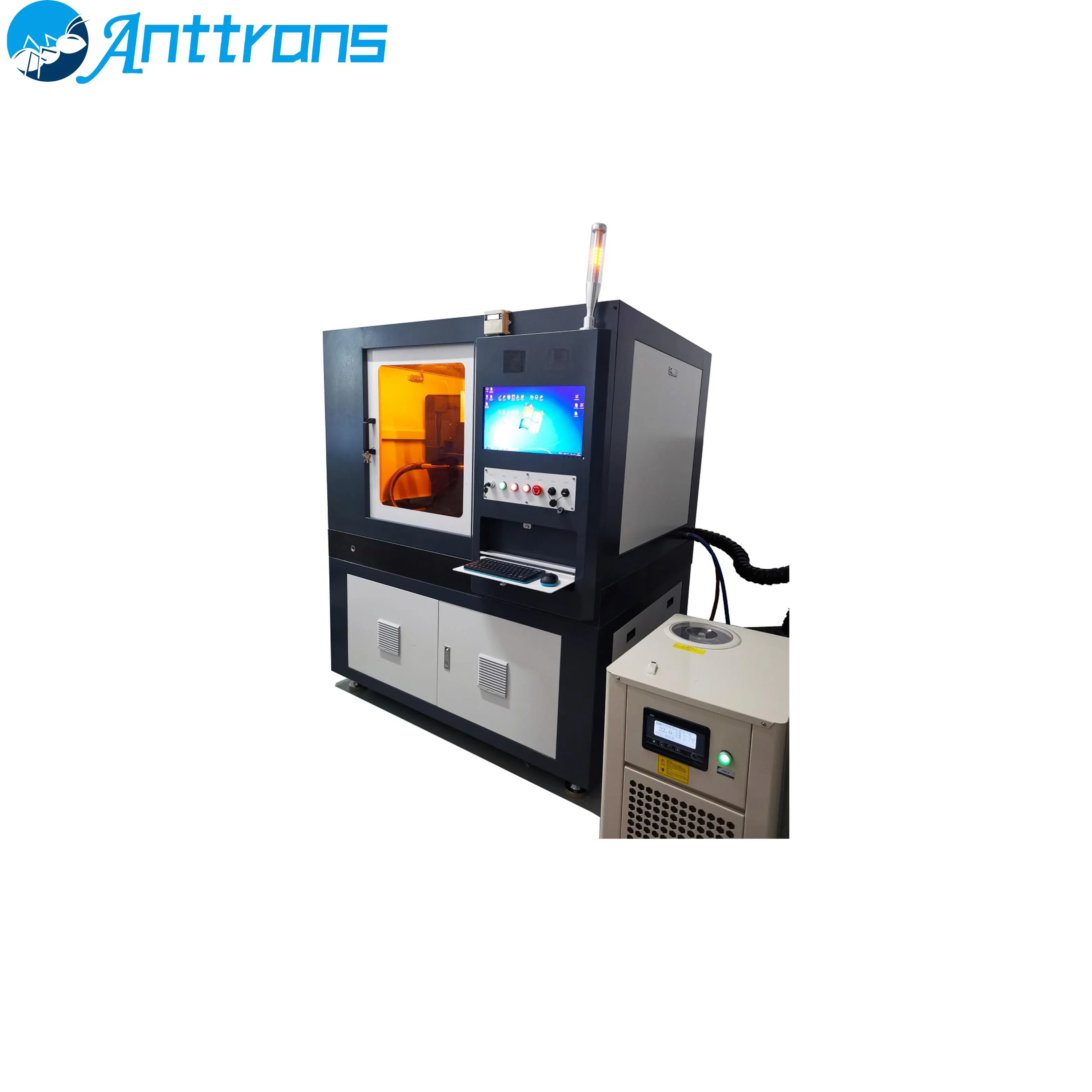

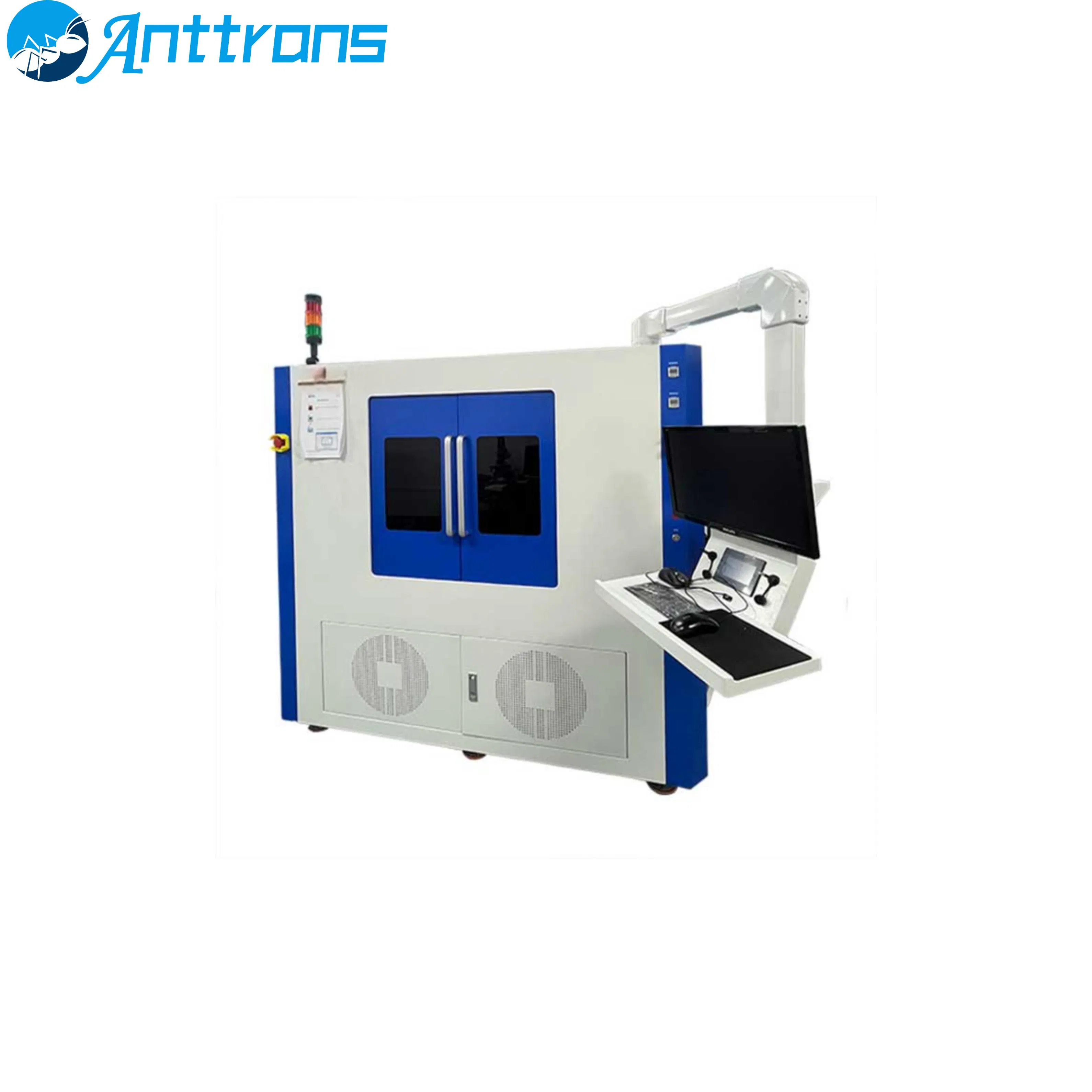

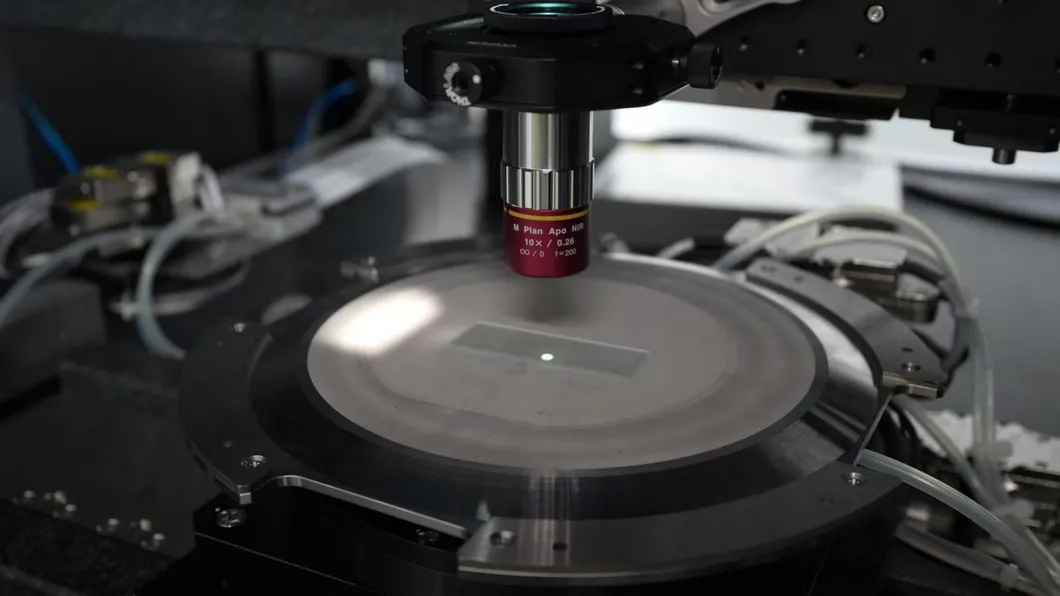

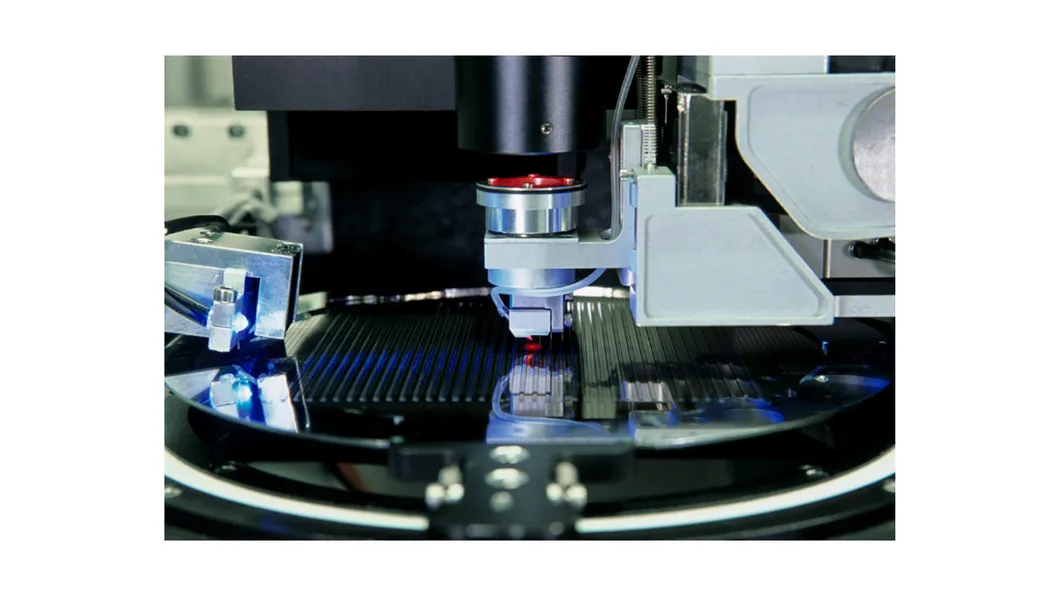

Product Visuals

Frequently Asked Questions

What materials can this system process?

The system is suitable for virtually all solid materials, including glass, organic materials, metals, ceramics, and diamonds.

What is the machining accuracy of the AT-UVAT-5A?

The system achieves a machining accuracy better than ±2μm and a local dimensional accuracy better than 2μm, with repeatability up to ±1μm.

Does the machine support 3D structural machining?

Yes, the Z-axis is electrically adjustable to accommodate materials of different thicknesses, specifically designed for fine machining of three-dimensional structures.

What file formats are compatible with the control software?

The system supports two-dimensional and three-dimensional vector and image files such as DXF, AI, and PNG.

What kind of cooling and power environment is required?

The system uses a water cooling unit with a 2000W capacity. It requires a 220V 50-60Hz 10A power supply and consumes ≤3000W.

Are there any optional advanced features available?

Yes, optional features include parallel processing, power detection feedback, micron-level autofocus, sub-micron topography detection, and five-axis linkage.
